Wall Version portable rapid a4 document scanner can scan photo and document scanners for education training in classroom

Main points:
1, resolution: 3672 * 2856 (10 million autofocus)
3, toggle switch, natural light, 6 LED lights .

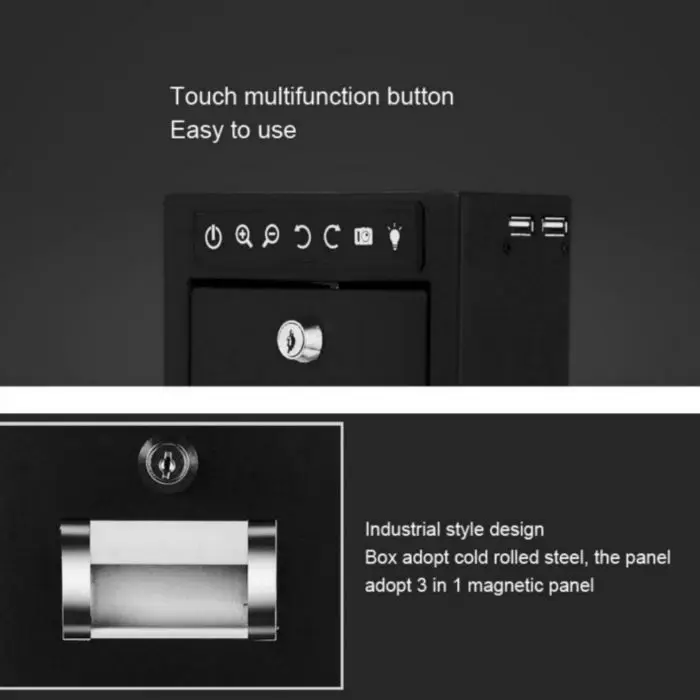

4, the box with cold-rolled steel, put the panel with triple magnetic panels, beautiful small size.
5, touch multi-function keys: open and close the booth software keys, zoom in and out, rotate left and right, take photos
6, A4 format Auto focus

detailed specification

The largest format: A4

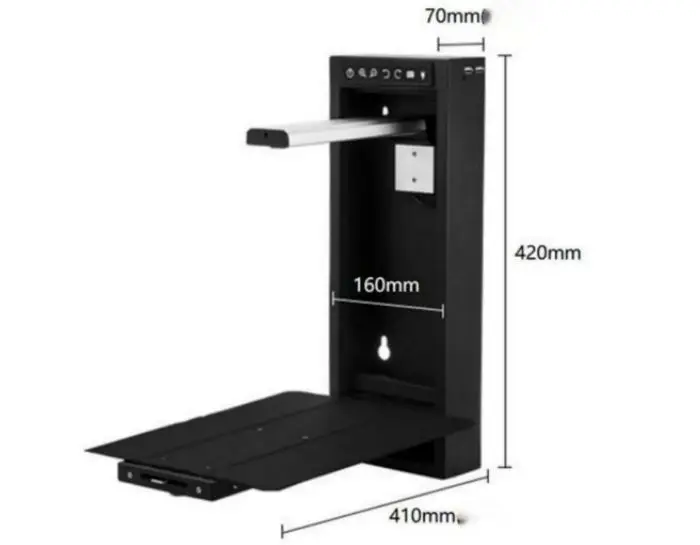

Product Size: Close: 160mm (length) * 70mm (width) * 420mm (height) Expand: 160mm (length) * 410mm (width) * 420mm

Gross weight: 3.5KG

Net weight: 3.1KG

Scanning element: CMOS

Resolution:3672*2856 (10.0MP auto focus)

Scanning speed:around 1 second

Structure mode: built-in high shot instrument; high shot instrument folding, aluminum alloy shell, cold-rolled steel box, put the
panel using three in one with a magnetic panel, beautiful small size

Color median: 24

Interface Type: USB2.0 connection

Scan light: natural light + dial LED fill light

Scanning medium: papers, books, office documents, documents, ID cards, notes, pictures, photos,
magazines, books, solid objects, etc.

Operating System: Windows 2003 / XP / Vista SP1 / WIN 7 / WIN 8 and so on

Other features: Intelligent cut edge correction, auto focus, merging, bar code recognition,
two-dimensional code reading, watermark, PDF function, video function

Image contrast: support multiple image split screen contrast, up to 64 split screen image.
Each split screen can be customized to extract the booth image, and in the split screen to write, draw, add comments, etc.,
support for single-screen, with the screen to enlarge, reduce, rotate, annotation and other functions

Product Use: Education Applications

Pixel: 10 million autofocus

Picture format: JPG, GIF, BMP, TIF, PDF and so on

Document Format: PDF, WORD, Excel, TXT

Video format: AVI

Power type: USB5V power supply

Image Control: Brightness Adjustment, Saturation Adjustment, Exposure Value Adjustment, Sharpness Adjustment,
Color Adjustment, Gain Control, etc.

Focus mode: fixed precision auto focus

Zoom mode: Auto Focus

Scan mode: color, grayscale, black and white

Microphone: Built-in USB microphone (optional)

Fixation: High Profiler Installation: Attached to the high profile device through the metal frame,
front mounted to the box, more solid and easy to disassemble and maintain

Driver: no drive USB video device

Software Interface: C #, JAVA, OCX, TWAIN interface, according to customer requirements custom software interface

System requirements: P4 or equivalent CPU, 512M or more, support for Windows 2003, Windows XP,
WIN 7, WIN 8 host required Standard USB2.0 hub or extrapolated USB2.0 adapter MS Direct X9.0 or later
