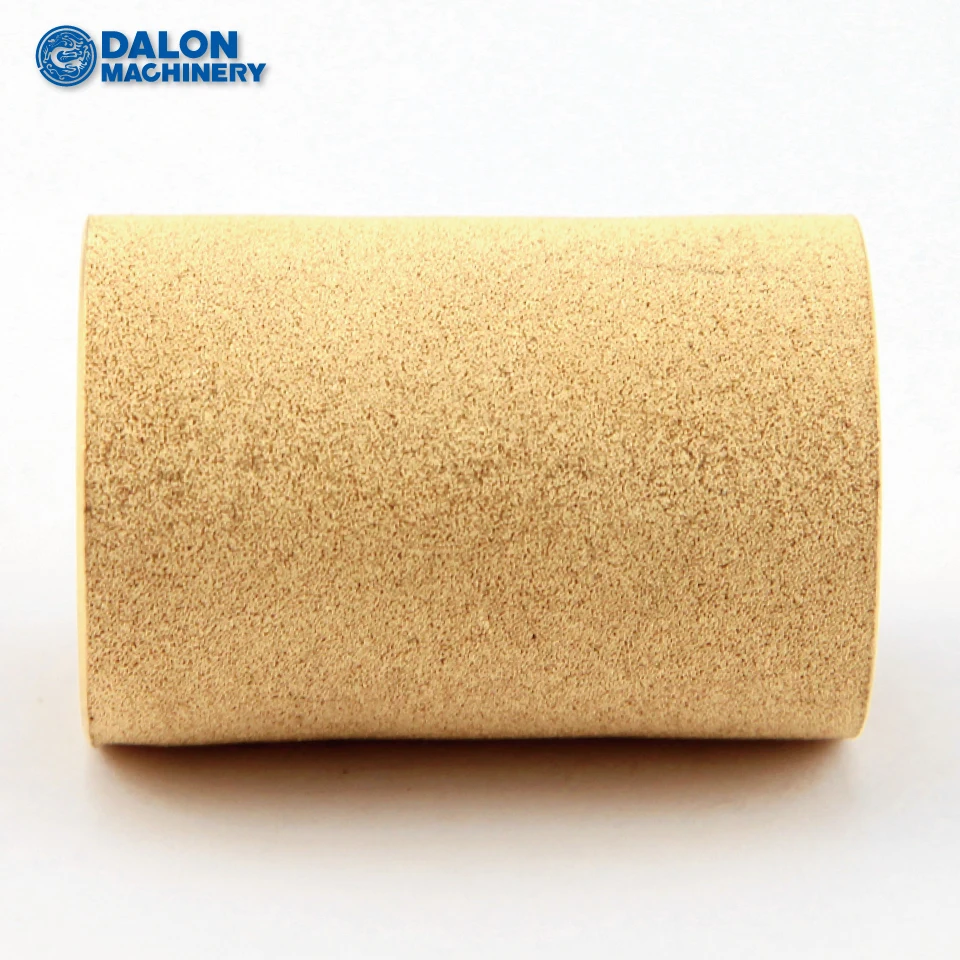

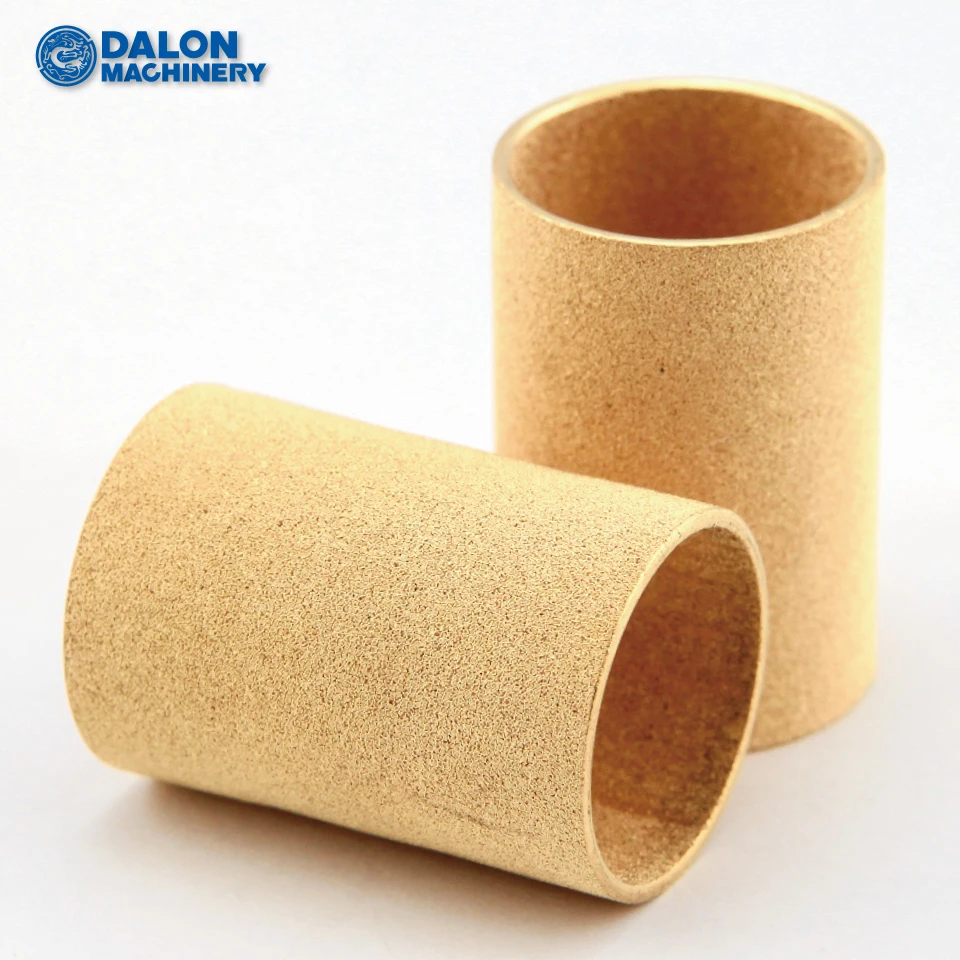

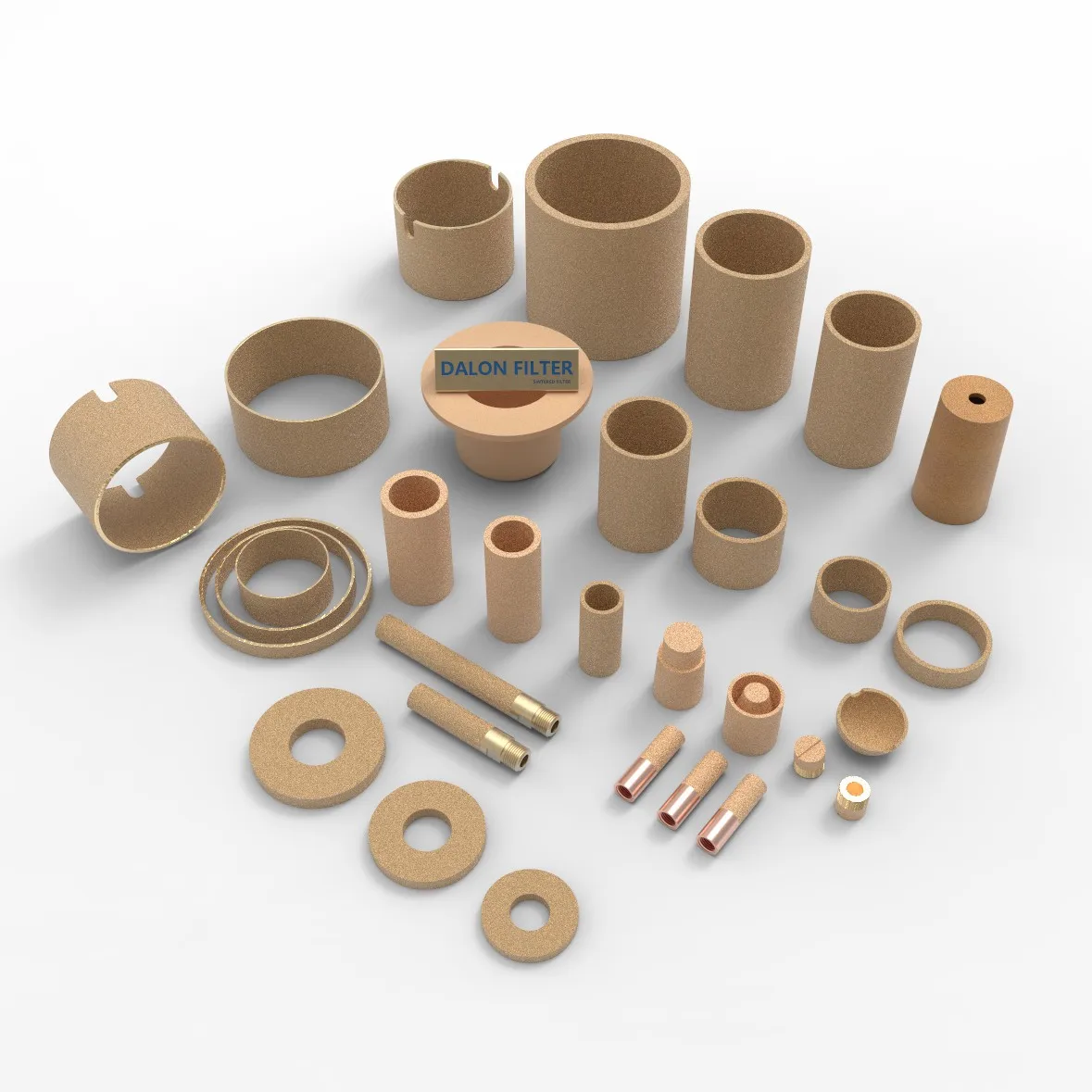

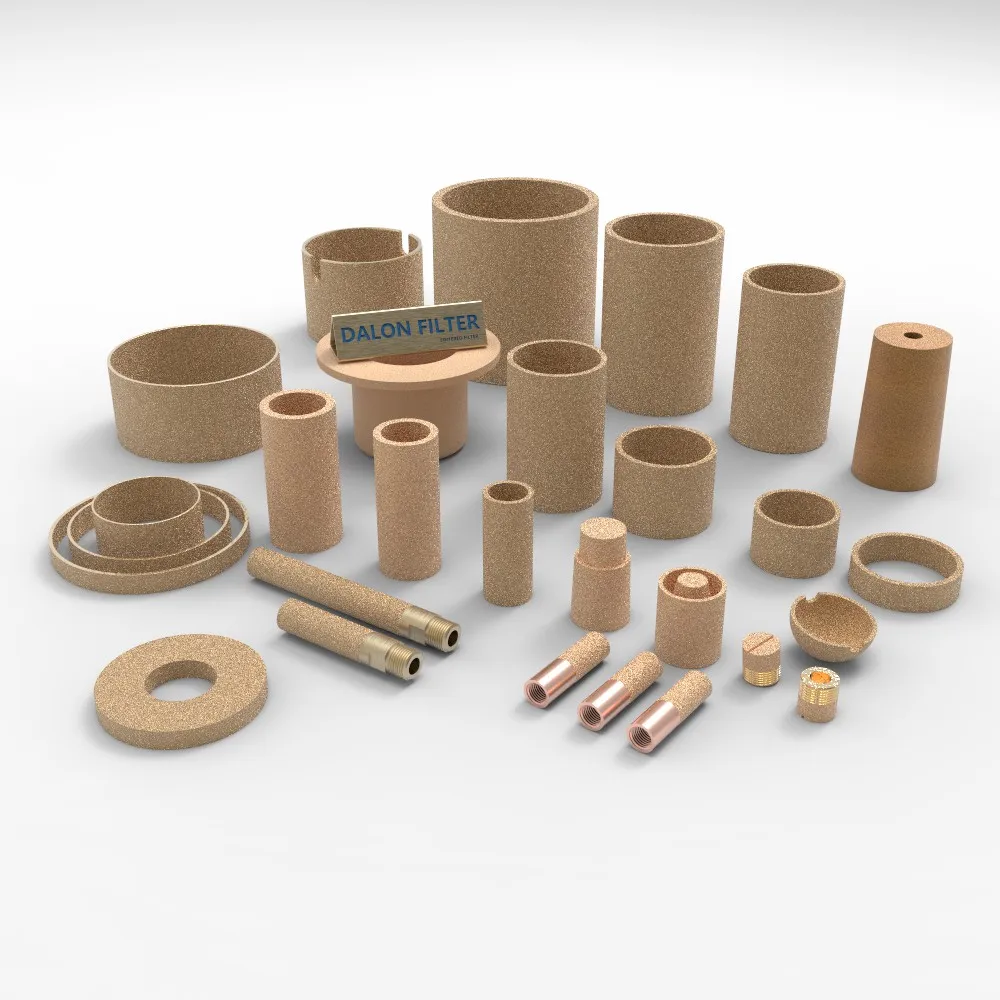

Porous sintered metal metallic bronze powder cylinder laboratory oil filter
- Category: Filter Supplies >>>
- Supplier: Dalon Machinery Co. Limited
Share on (1600468313501):
Product Overview
Description
Product Description

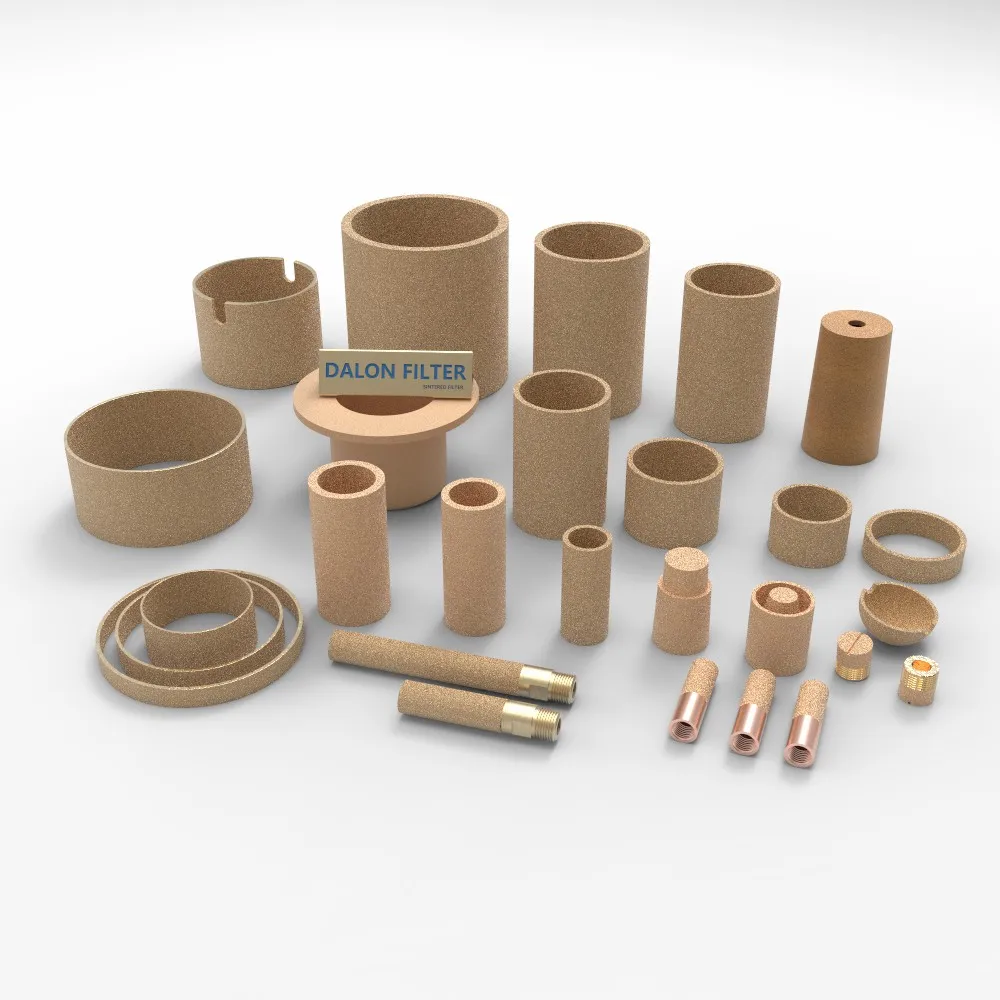

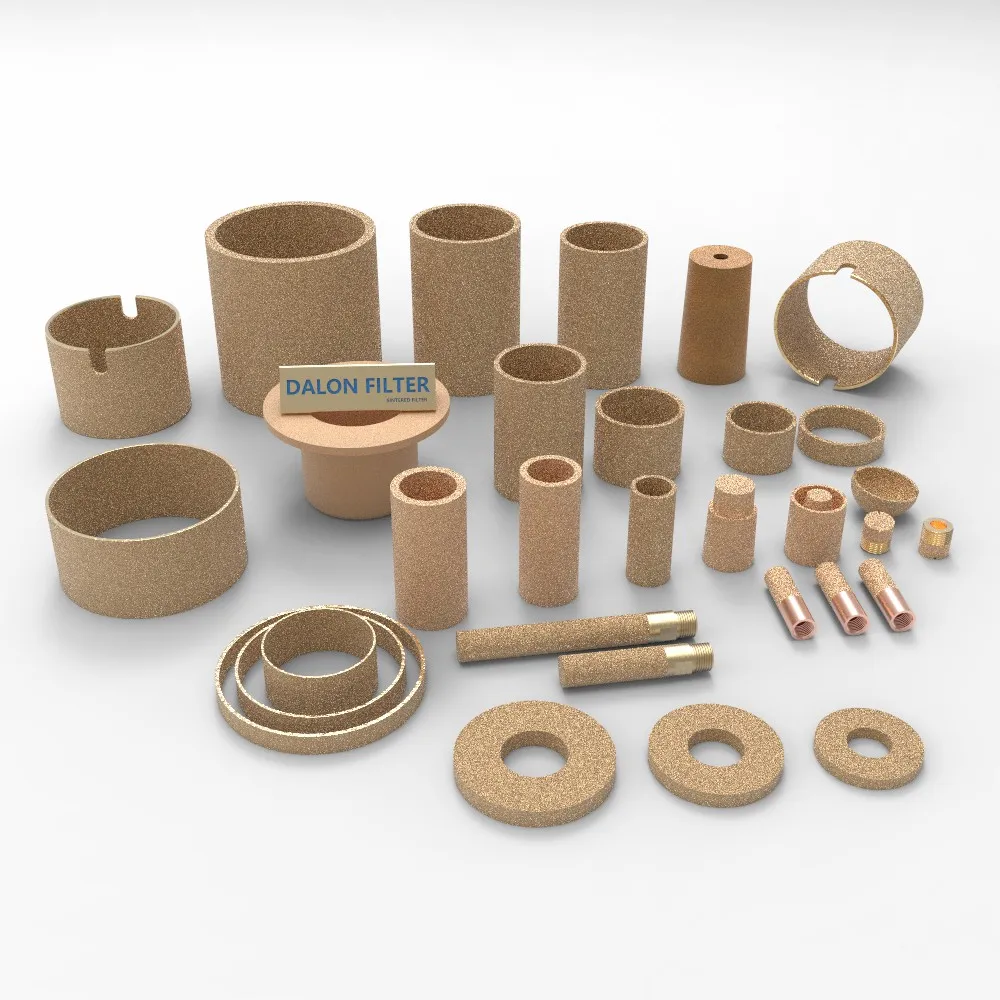

Porous sintered metal metallic bronze powder cylinder laboratory oil filter
DALON sintered bronze filters as high porosity sintered elements from spherical powders. The pores are mechanically respect to size and filtering degree after the sintering process.
Bronze filters are sintered porous bronze parts produced from spherical bronze powder, which are highly corrosion resistant, are characterized by a high structural stability and strength, they are self-supporting and suitable for high pressure differentials.

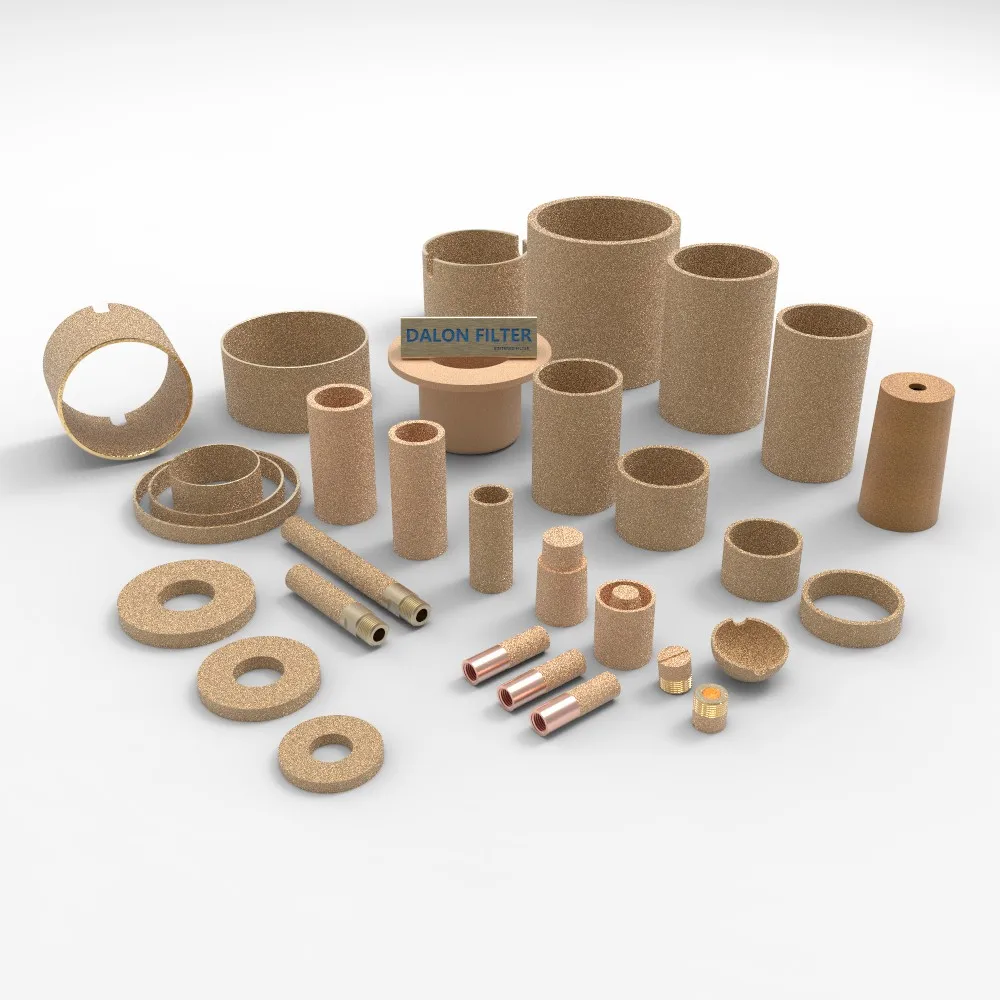

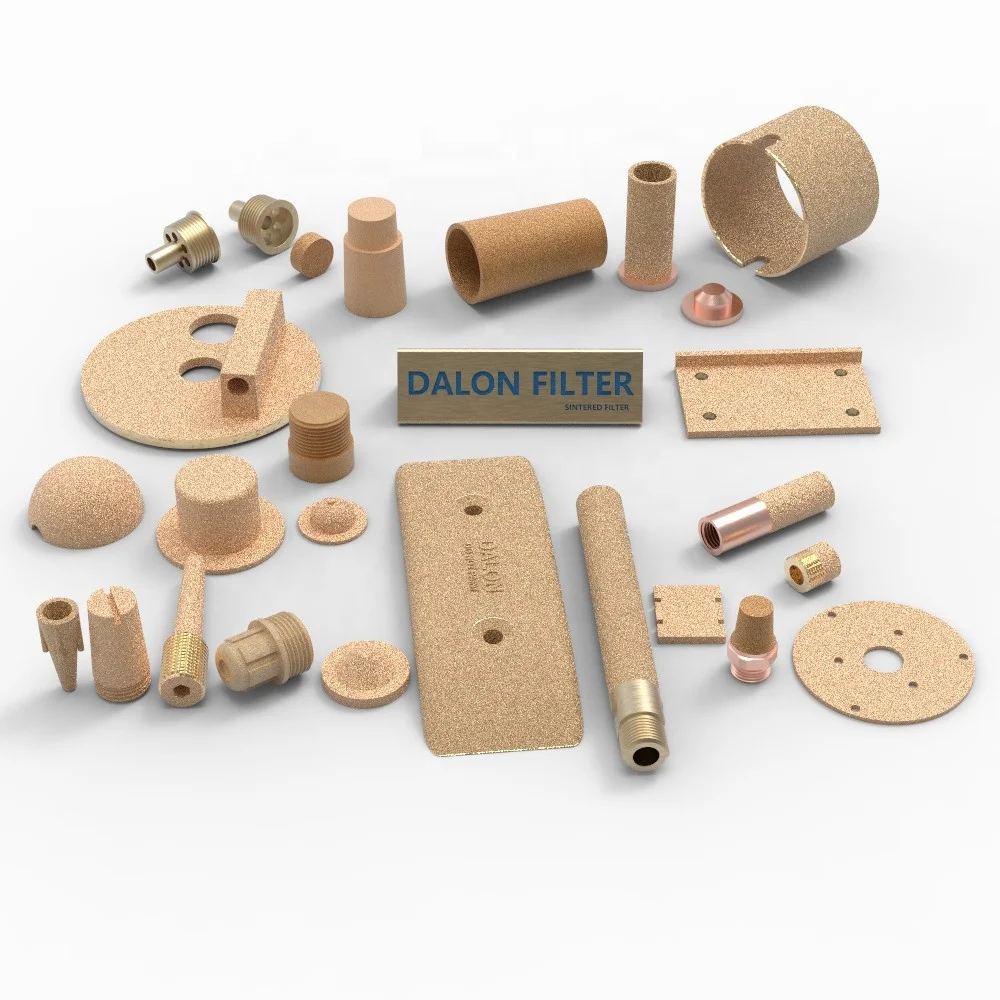

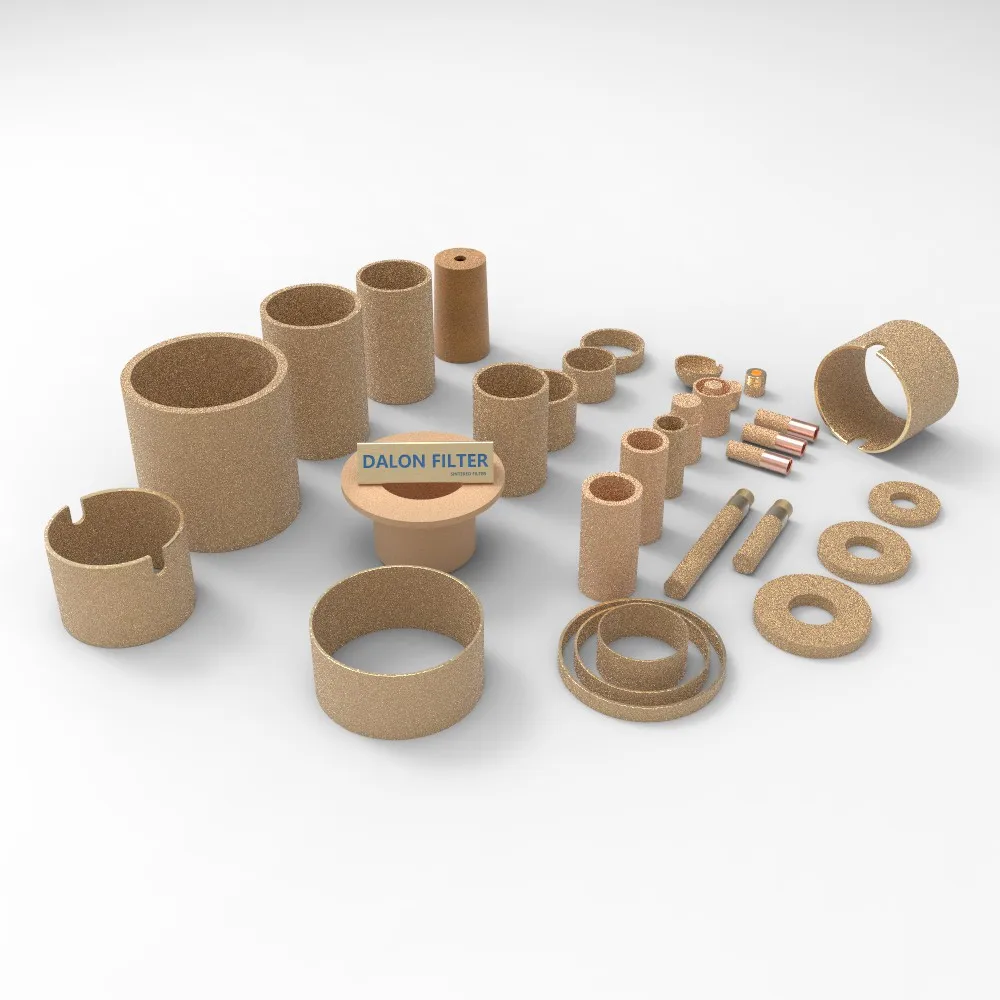

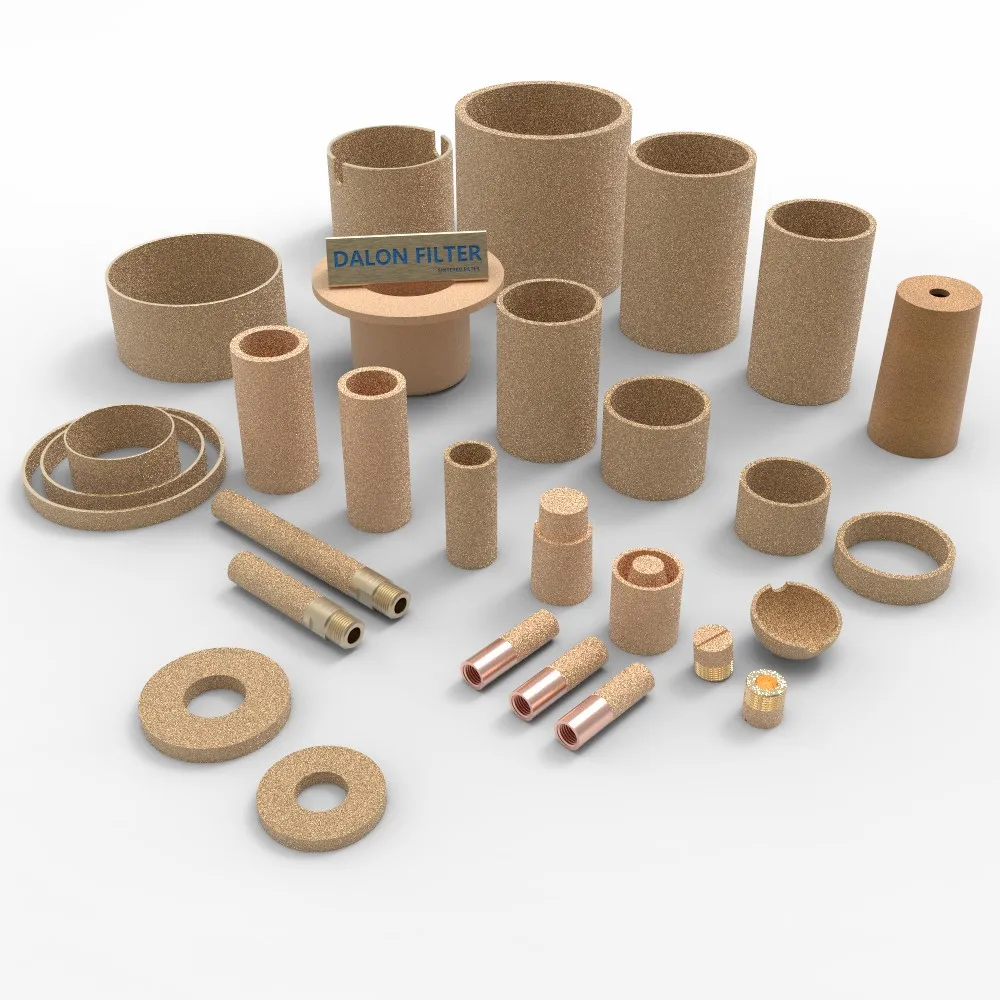

Details Images

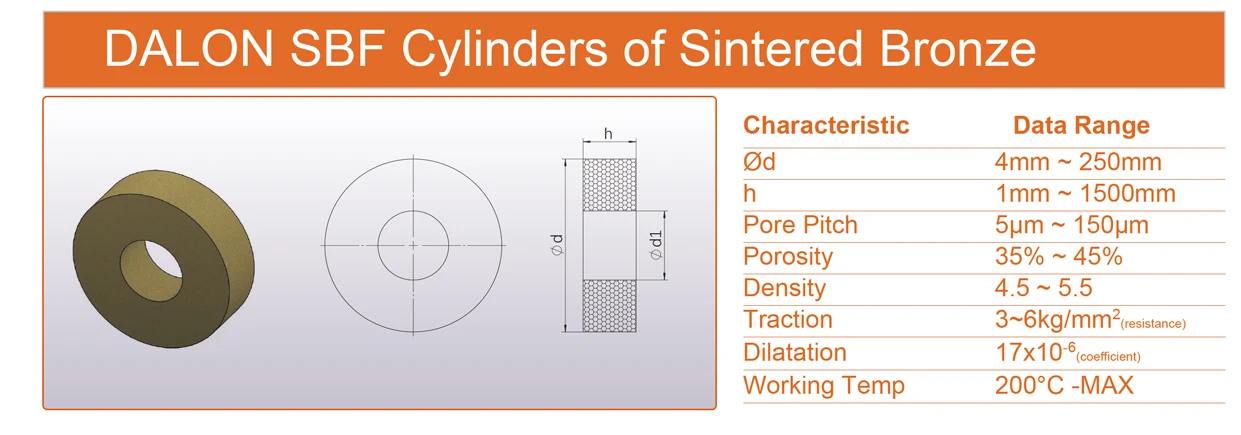

Specification
STYLE | Filter Tube |
BODY MATERIAL | Bronze |
O.D. RANGE | 4~250mm |
THICKNESS RANGE | 1~1500mm |
PORE PITCH | 5~150micron |
POROSITY | 35% ~ 45% |
FEATURE | High Temperature |
WORKING TEMP. | 200 ℃ -MAX |
DALON FILTER PROPERTIES
* Shape as self-supporting structural suited for high different pressures.
* Particularly good properties when under compression, vibration and changing conditions or with high sudden pressures peaks.
* High heat resistance and thermal stability.
* Defined permeability and filtration properties as the pore size and distribution are exact and uniform.
* Backflushing and easy cleaning by superheated steam or ultrasonic.
* The variety of metal materials can be welded and machined.
* Particularly good properties when under compression, vibration and changing conditions or with high sudden pressures peaks.
* High heat resistance and thermal stability.
* Defined permeability and filtration properties as the pore size and distribution are exact and uniform.
* Backflushing and easy cleaning by superheated steam or ultrasonic.
* The variety of metal materials can be welded and machined.
Properties of DALON FILTER | ||||||||||||||
Filter Grade | Porosity | Permeability Coefficients | Pore size distribution | Shear strength | ||||||||||
[micron] | [%] | [10-12 m2] | [10-7 m2] | [dmin] um | MFP um | [dmax] um | [N/mm2] | |||||||
8 | 29 | 2 | 52 | 8 | 11 | 21 | 130 | |||||||
12 | 32 | 6 | 64 | 11 | 15 | 37 | 120 | |||||||
20 | 38 | 10 | 83 | 18 | 26 | 57 | 110 | |||||||
30 | 36 | 14 | 89 | 21 | 31 | 61 | 100 | |||||||
45 | 37 | 43 | 144 | 30 | 47 | 101 | 90 | |||||||
60 | 41 | 50 | 202 | 31 | 53 | 147 | 90 | |||||||
80 | 42 | 114 | 282 | 37 | 72 | 175 | 80 | |||||||
100 | 42 | 127 | 406 | 48 | 98 | 220 | 70 | |||||||
120 | 40 | 230 | 633 | 65 | 125 | 280 | 60 | |||||||
150 | 44 | 248 | 643 | 68 | 140 | 305 | 40 | |||||||
200 | 48 | 463 | 1046 | 105 | 195 | 500 | 30 | |||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
DALON manufacturer of porous filters since 2002, offers a variety of solutions to meet our customer requirements.
Our Sintered Filters are applied in sparging, sensor protection, gas and liquid filtration, dampening, bulk handling and etc. which forsolution of corrosive and high temperature environments ,which made of stainless steels, bronze, plastic, which can be manufactured up to 1,000 mm length and 250 mm OD. Larger elements also can be assembled by welding procedure.
Our Sintered Filters are applied in sparging, sensor protection, gas and liquid filtration, dampening, bulk handling and etc. which forsolution of corrosive and high temperature environments ,which made of stainless steels, bronze, plastic, which can be manufactured up to 1,000 mm length and 250 mm OD. Larger elements also can be assembled by welding procedure.
Certifications
QMS_ISO CERTIFICATES
Quality management system GB/T19001-2016/ISO9001:2015 standard for the scope of activites sintered filter
SGS Certificate for DALON Filters
RoHs Test result comply with the limits as set by RoHS Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU
REACH PASS TEST REPORT
Based on the list by EU Chemicals Agency(ECHA),regarding Regulation(EC) No.1907/2006 - REACH
-201 SVHC
