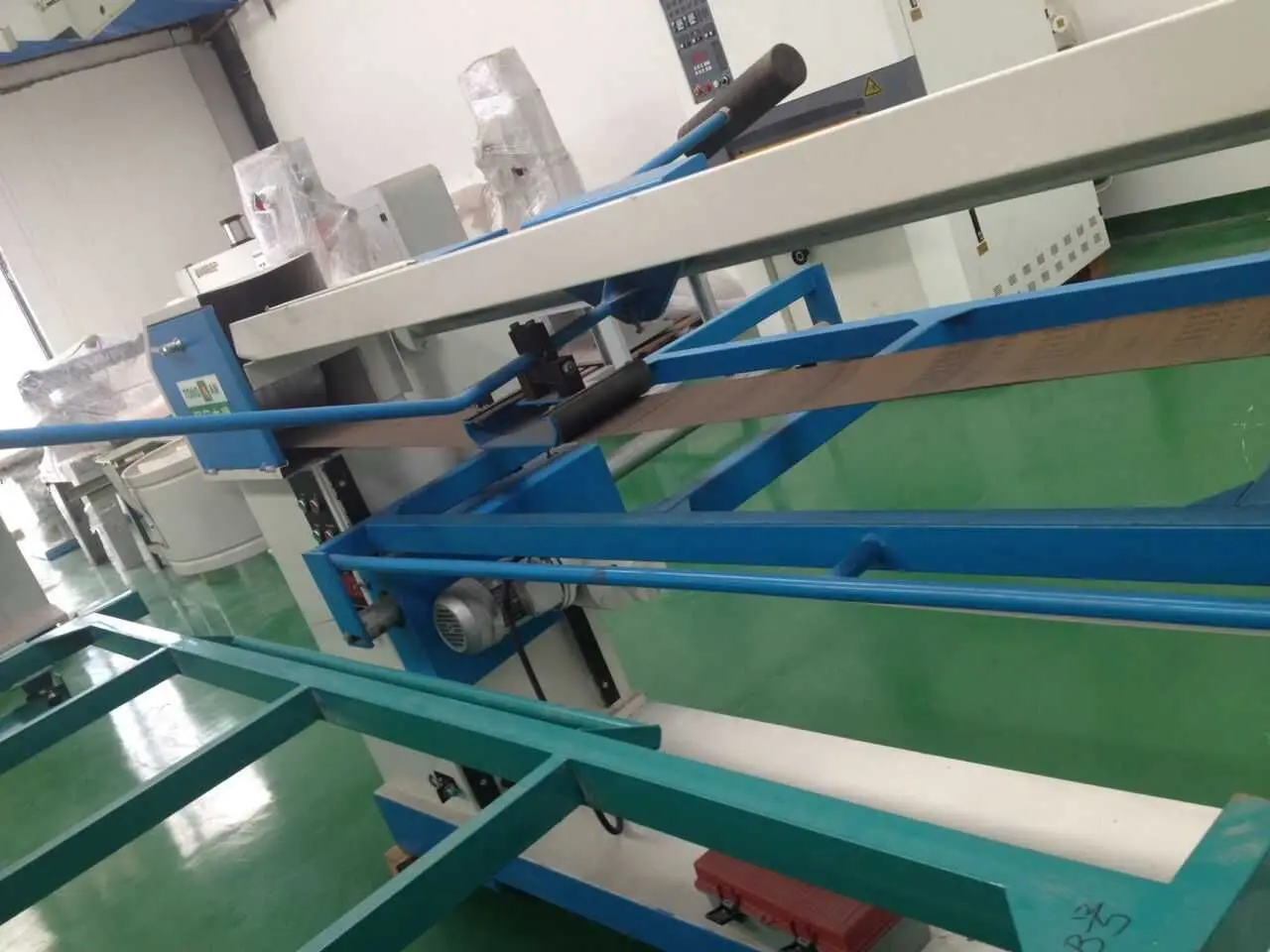

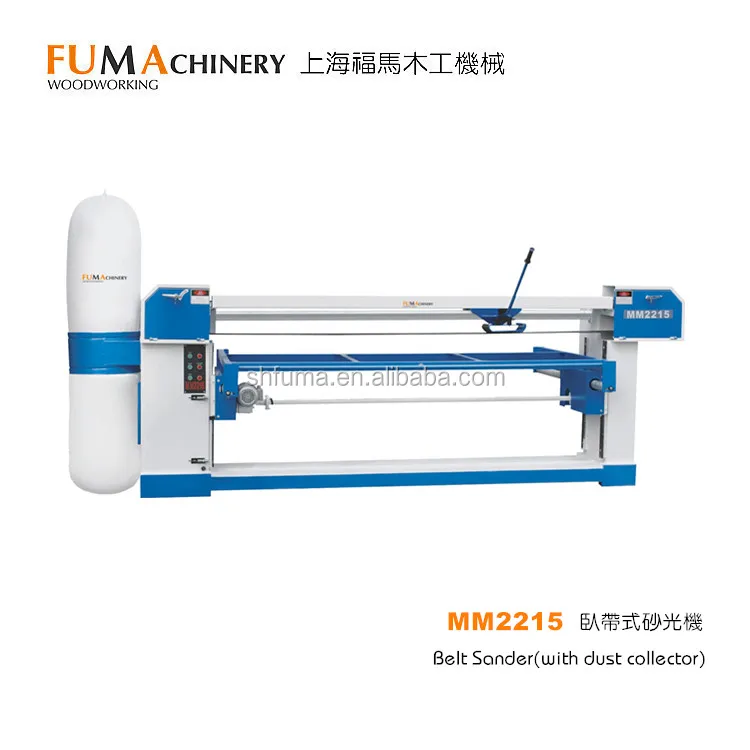

MM2215 Belt Disc Sander Horizontal Belt Sander Belt Machine

Product Overview

Description

MM2215 Belt Disc Sander Horizontal Belt Sander Belt Machine



I,MM2215 Horizontal Belt Sander

This machine is mainly use to sanding the wood surface and the max sanding area is 2500x1500mm .It can sanding good quality hight effect .It is commonly use in furniture manufacturer and working wood .

Model	MM2215
Sanding speed	15m/s
Belt size	152x7000mm
Installed power	3.7kw
Overall size	4300x1500x1400mm
Net weight	565kg

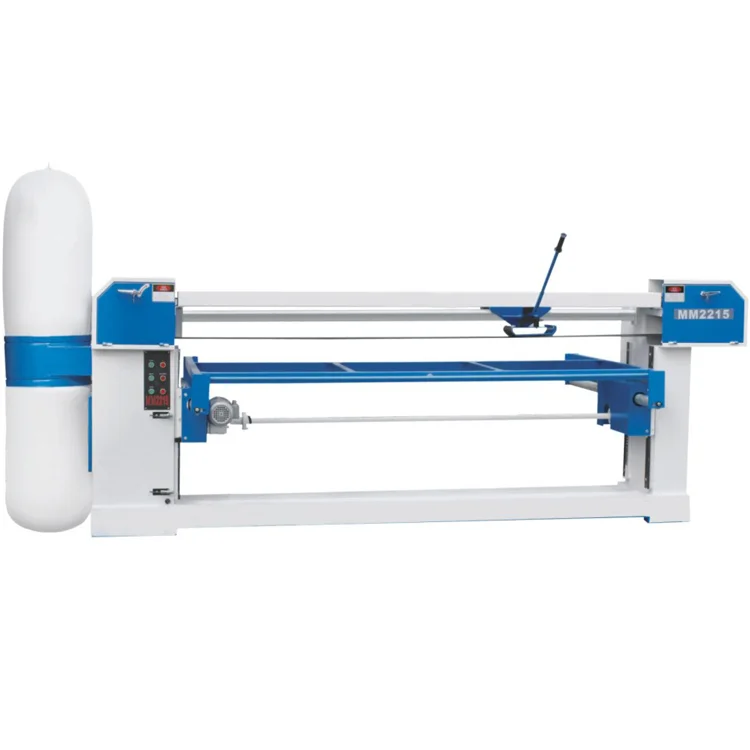

II,Overall of Machine

1. Body Section

2. Lifting Worktable Section

3. Tighten Seat Section

4. Sanding Belt Driving Section

5. Electricity Control Section

6 . Dust Collect Section

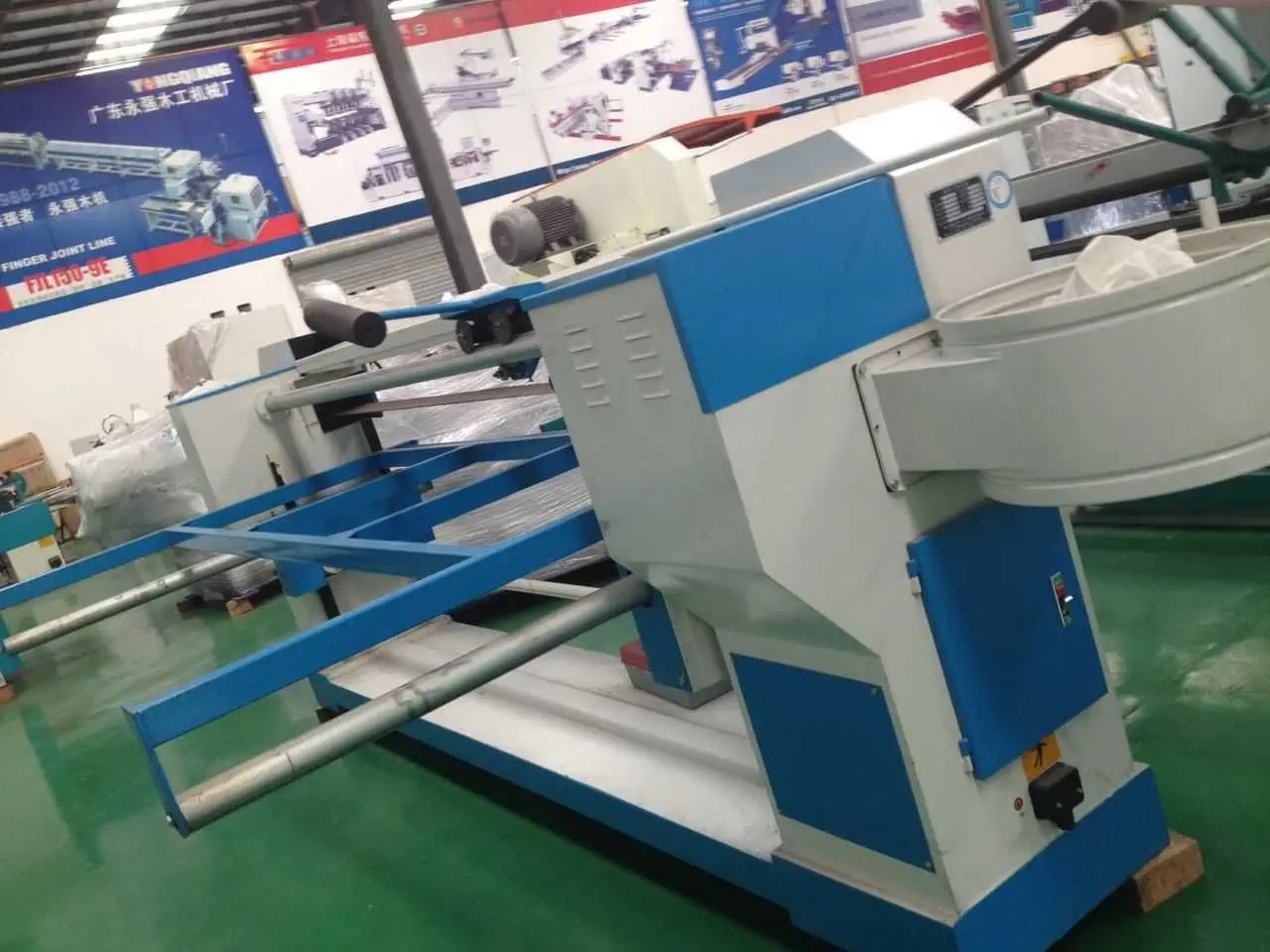

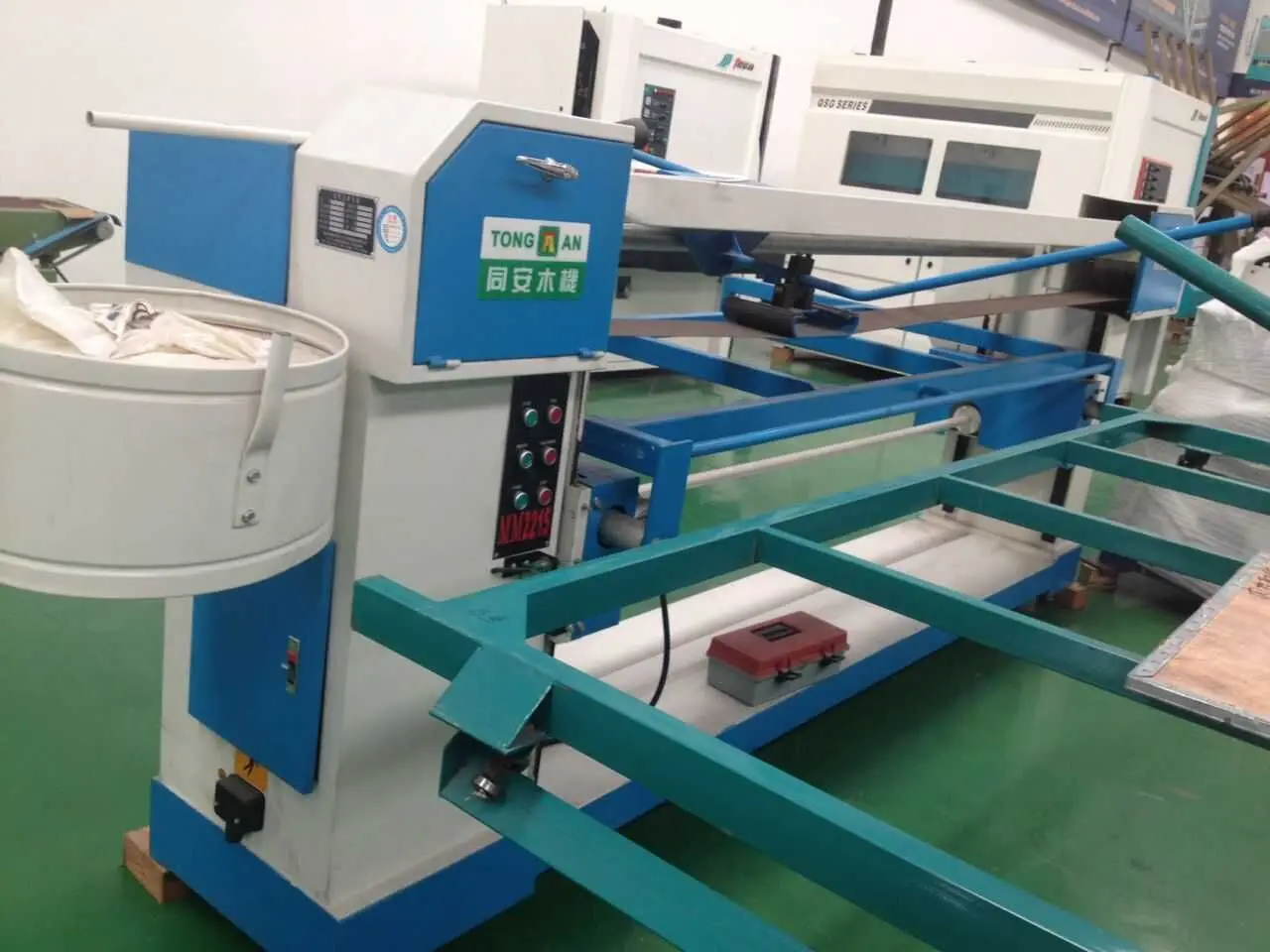

 III,MM2215 Horizontal Belt Sander

1,This machine is compose of body section ,lifting worktable section ,dust collector section electric control section ,sanding belt drived section ,tighten seat section etc .

2,The body is welded by steel ,it has firmly structure ,good strong feature .

3,The lifting table section is compose of kinetic table ,lifting motor ,worm wheel case ,gear wheel case ,gear belt ,driving spindle etc .

4,The worktable installed on the two leading orbit directly .then installed on the gear wheel case via 4 eccentric wheel to make the worktable moving front and back nimble .

5,The worktable lifting is finished by two AC-contractor and a motor which is 370 W to rotating positive and negative to control ,and installed two limited travel switch to make the  worktable limited moving up and down safety .In order to satisfy working different thickness work piece .

6,The dust collector section is compose of air blower which motor is 1.1 kw and there are two cloth bag installed on the up and down of the dust barrel .The dust can be sunk into the bag .It can realize protect the environment .







Our Customers:



Our Big Family:







Warranty?

Mechanical parts one year,Electrical parts three months





Any aftersale support available?

Yes we have, Engineers available to service machinery overseas





Payment:

TT 30% advanced payment,70% balance remitted before shipment.

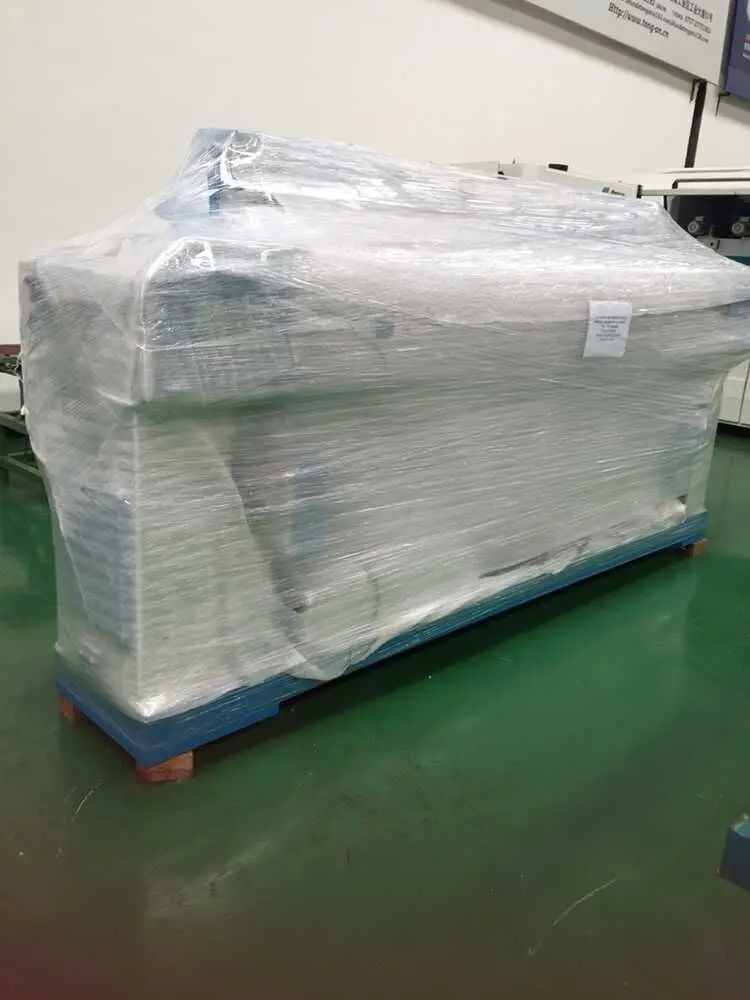

Shrink film,plywood case packing will have extra cost.
