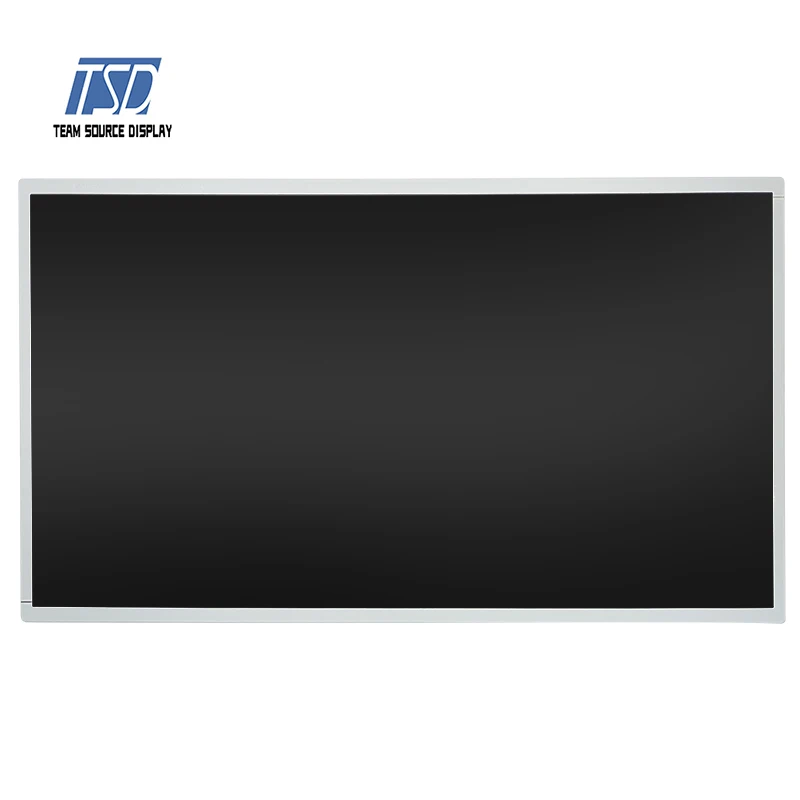

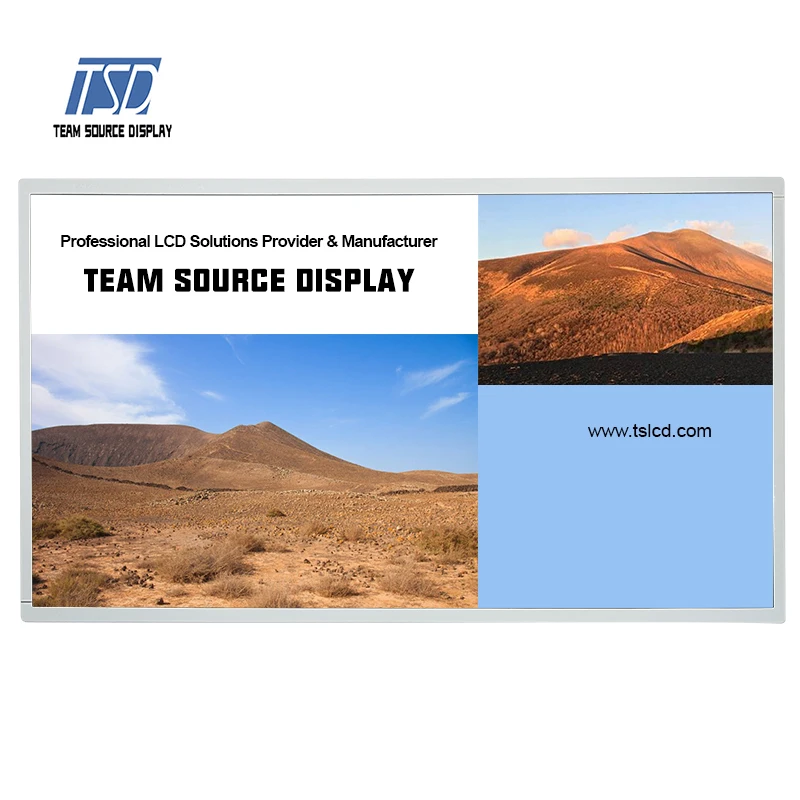

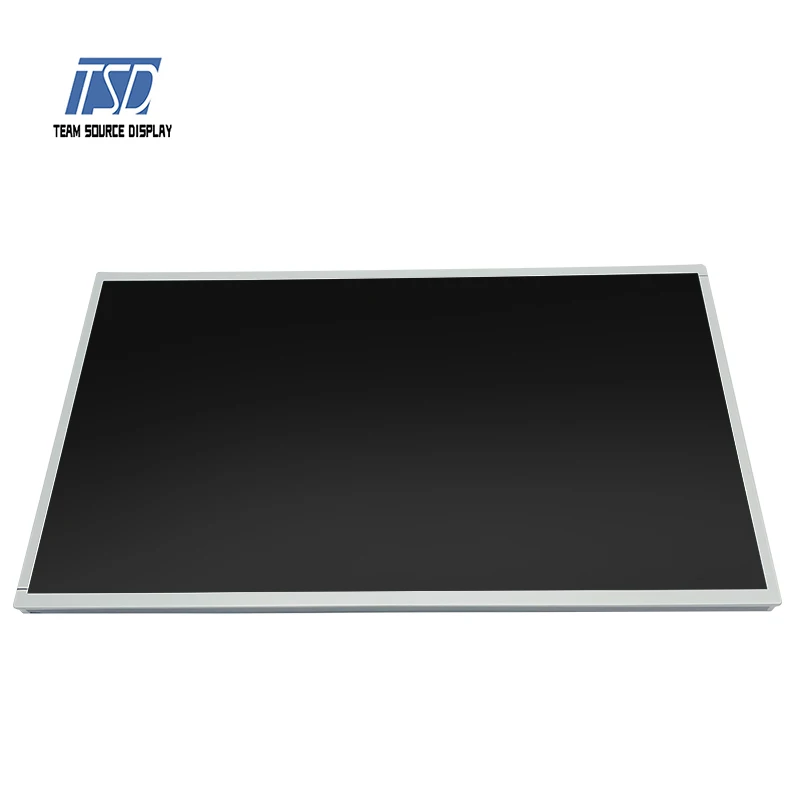

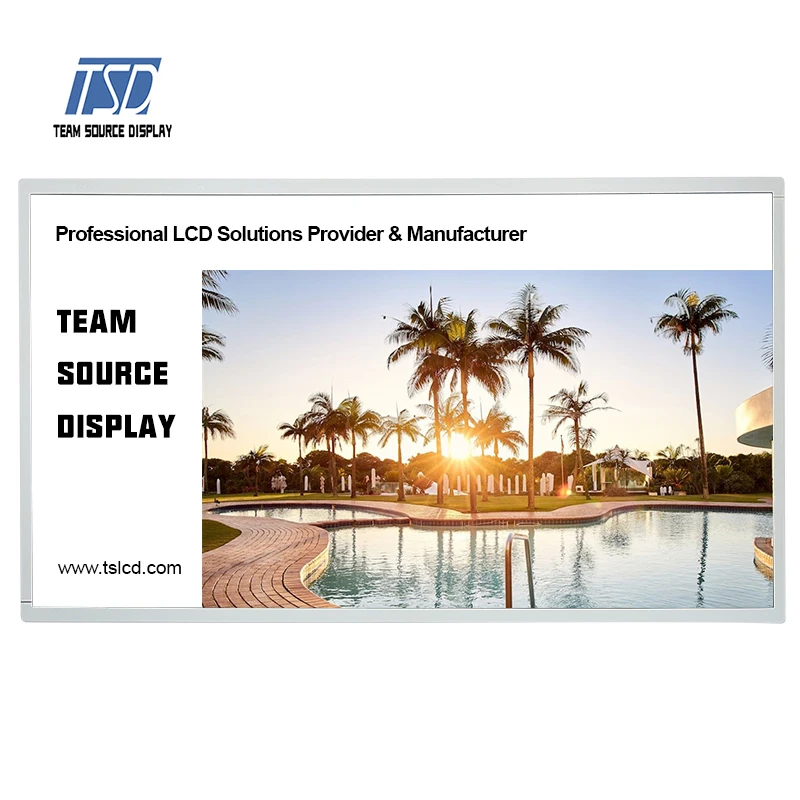

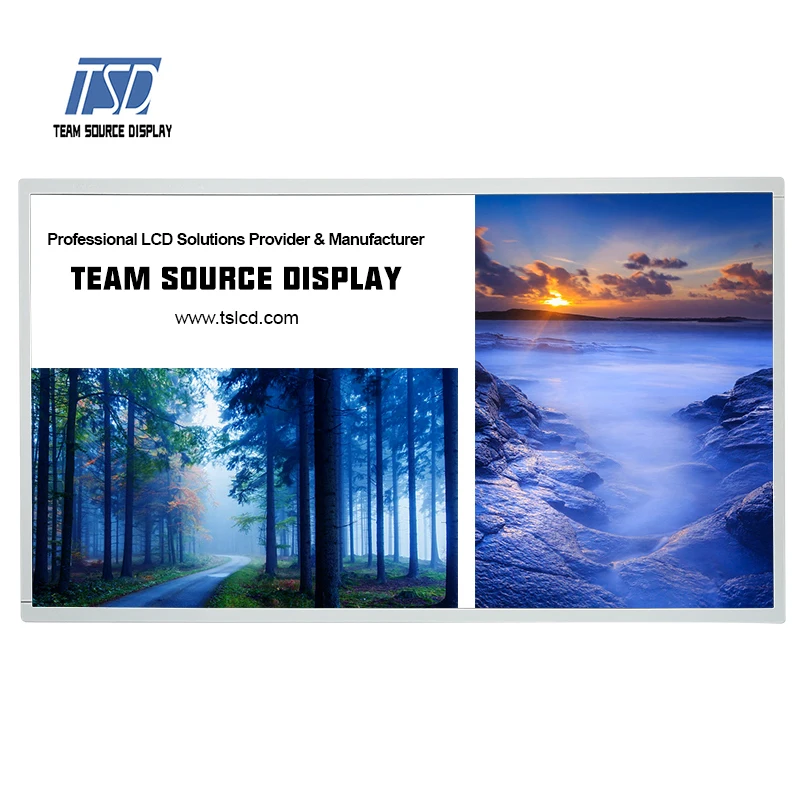

LCD screen 10.1 15 15.6 18.5 21.5 inch MIPI LVDS EDP RGB Interface IPS TFT LCD Module LCD panel display
- Category: >>>
- Supplier: Shenzhen Team Source Display Technology Co. Ltd.
Share on (1600468356574):
Product Overview
Description
Product Description
Model Number | TST215FHBE-N10 |
Display type | 21.5 inch TFT, 16.7M color, normally black |
Color depth | 16.7M |
Contrast | 1000:1 |
Outline Dimension(mm) | 495.6x292.2x10.7 |
Active Area.(mm) | 476.64x268.11 |
Resolution(dots) | 1920xRGBx1080 |
Viewing Direction | ALL |
Operating temperature(°C) | -30℃~85℃ |
Storage temperature(°C) | -40℃~90℃ |
Pixel arrangement | RGB Vertical Stripe |
TP/Lens | without |
Display mode | Normally black |
Luminance(cd/m2) | 350cd/m2 |
Interface | LVDS |
Module lifetime(Hours) | 50,000-100,000 |
Weight | TBD |
For more customized products, please click the link below
Inch | Part number | Resolution | Viewing angle | Contract | interface | luminance |
0.96 | 80xRGBx160 | ALL | 600 | IPS | 150 | |
1.08 | 240xRGBx210 | ALL | 600 | IPS | 400 | |
1.3 | 240xRGBx240 | ALL | 600 | IPS | 220 | |
1.54 | 320xRGBx320 | ALL | 900 | MIPI | 200 | |
1.77 | 128xRGBx160 | 6H | 300 | IPS | 180 | |
1.9 | 170xRGBx320 | ALL | 600 | MCU | 330 | |
2.0 | 176xRGBx220 | 12H | 500 | MCU | 180 | |
2.2 | 176xRGBx220 | 12H | 400 | IPS | 380 | |
2.4 | 240xRGBx320 | 12H | 250 | MCU | 320 | |
2.5 | 480xRGBx480 | ALL | 1000 | MIPI | 400 | |
2.8 | 240xRGBx320 | 6H | 800 | MCU | 320 | |
3.0 | 480xRGBx640 | ALL | 800 | RGB | 500 | |
3.2 | 240xRGBx320 | 12H | 500 | MCU | 320 | |
3.5 | 320xRGBx240 | 12H | 300 | RGB | 350 | |
3.97 | 480xRGBx800 | ALL | 700 | MIPI | 350 | |
4.0 | 720*RGB*720 | ALL | 700 | MIPI | 350 | |
4.3 | 480xRGBx272 | ALL | 800 | 24BIT RGB | 720 | |
5.0 | 720xRGBx1280 | ALL | 800 | MIPI | 300 | |
5.5 | 720xRGBx1280 | ALL | 800 | MIPI | 440 | |
5.7 | 320xRGBx240 | 12H | 500 | RGB | 400 | |
7.0 | 1024xRGBx600 | ALL | 800 | LVDS | 1000 | |
7.0 | 800xRGBx1280 | ALL | 900 | MIPI | 400 | |
8.0 | 1200xRGBx1920 | ALL | 900 | MIPI | 390 | |
8.88 | 1280xRGBx720 | ALL | 1000 | LVDS | 500 | |
9.7 | 1024xRGBx768 | ALL | 500 | LVDS | 280 | |
10.1 | 1280xRGBx800 | ALL | 900 | LVDS | 1000 | |
10.4 | 1024xRGBx768 | 6H | 500 | LVDS | 400 | |
12.3 | 1920xRGBx720 | ALL | 1000 | LVDS | 1000 | |
12.8 | 1920xRGBx1080 | ALL | 1400 | LVDS | 700 | |
13.3 | 1920xRGBx1080 | ALL | 1000 | TTL(EDP) | 200 |
Company Profile

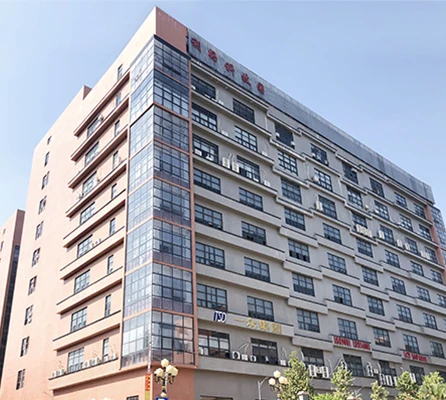

TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.
About us.
1.We are professional LCD module manufacture in China with precise and advanced equipments.

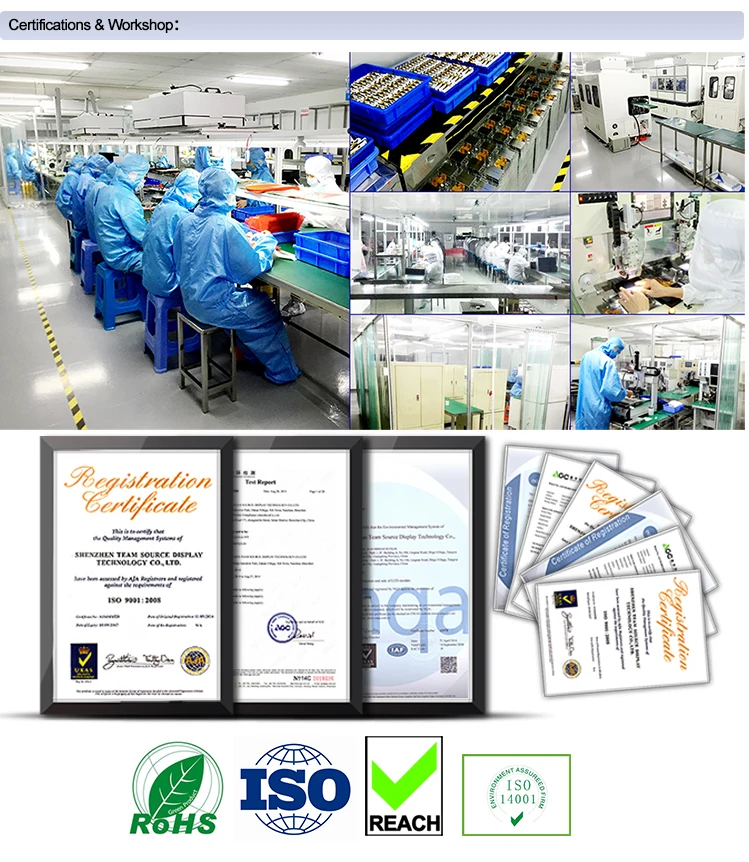

2.High quality Control with CE,ROHS and so on approved.
3.More than 10 years of industry experience and involved main markets all over the world
4.Dedicated and professional sales team will offer you 24 hours online and immediate service
5.OEM and ODM support,12 months warranty for all of our products
6.Our mission is to help our customers achieve success, then fulfill our both dreams
2.High quality Control with CE,ROHS and so on approved.
3.More than 10 years of industry experience and involved main markets all over the world
4.Dedicated and professional sales team will offer you 24 hours online and immediate service
5.OEM and ODM support,12 months warranty for all of our products
6.Our mission is to help our customers achieve success, then fulfill our both dreams
Pre-sales service.
1.Our team design and make solutions based on different requirements from different customers.
2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
After-sales services.
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.
