Attractive Price New GP 320YH Turret Rotary High Speed Roll to Roll Die Cutting Machine
- Category: >>>
- Supplier: Wenzhou Goprinto Machinery Co. Ltd.
Share on (1600468387627):
Product Overview
Description
Product Description
Model | GP-320YH |
Max. speed | 200m/min |
Max. Web width | 320mm |
Max. Unwinding diameter | 750mm |
Max. Turret rewinding diameter | 400mm |
Max. Waste rewinding diameter | 700mm |
Dimensions | 2800* 1100* 1800mm |
Main motor | 4KW |
Voltage | 380V, 3 phase |
Min. Cutting width | 15mm |
Machine weight | About 1500kgs |
Electrical brand:
NO. | Item | Brand, Origin country |
1 | Inverter | Schneider Germany |
2 | Breaker | Schneider Germany |
3 | Buttons | Schneider Germany |
4 | AC contactor | Schneider Germany |
5 | Main motor | Made in China |
6 | Number counter | Fotek, Taiwan |
7 | Web guiding sensor | Made in China |
Standard configuration:
a)With 1pc 3’’ unwinding shaft, auto inflation air shaft.
b)With one rotary die cutting station, which comes with one matrix rewinder.
c)With slitting station, which comes with 2pcs 40mm turret rewinding shafts.
d)With meter/number counter.
e)With desk type ultrasonic web guiding
f)With 8 sets rotary knives.
g)With one 50N.Mmagnetic brake, one 50N.M magnetic clutch.
h)With auto tension controllers for both unwinder and rewinder.
i)Machine has blower fan to blow away the trimmed sides
j)With motorized rotation for turret rewinder when machine stops.
k)With touch screen.
Optional functions:
1). Extra rotary die cutting station for back cutting
2). Extra rotary sheeting station with conveyor belt and stacker
2). Lamination station
4). Die hoist
b)With one rotary die cutting station, which comes with one matrix rewinder.
c)With slitting station, which comes with 2pcs 40mm turret rewinding shafts.
d)With meter/number counter.
e)With desk type ultrasonic web guiding
f)With 8 sets rotary knives.
g)With one 50N.Mmagnetic brake, one 50N.M magnetic clutch.
h)With auto tension controllers for both unwinder and rewinder.
i)Machine has blower fan to blow away the trimmed sides
j)With motorized rotation for turret rewinder when machine stops.
k)With touch screen.
Optional functions:
1). Extra rotary die cutting station for back cutting
2). Extra rotary sheeting station with conveyor belt and stacker
2). Lamination station
4). Die hoist

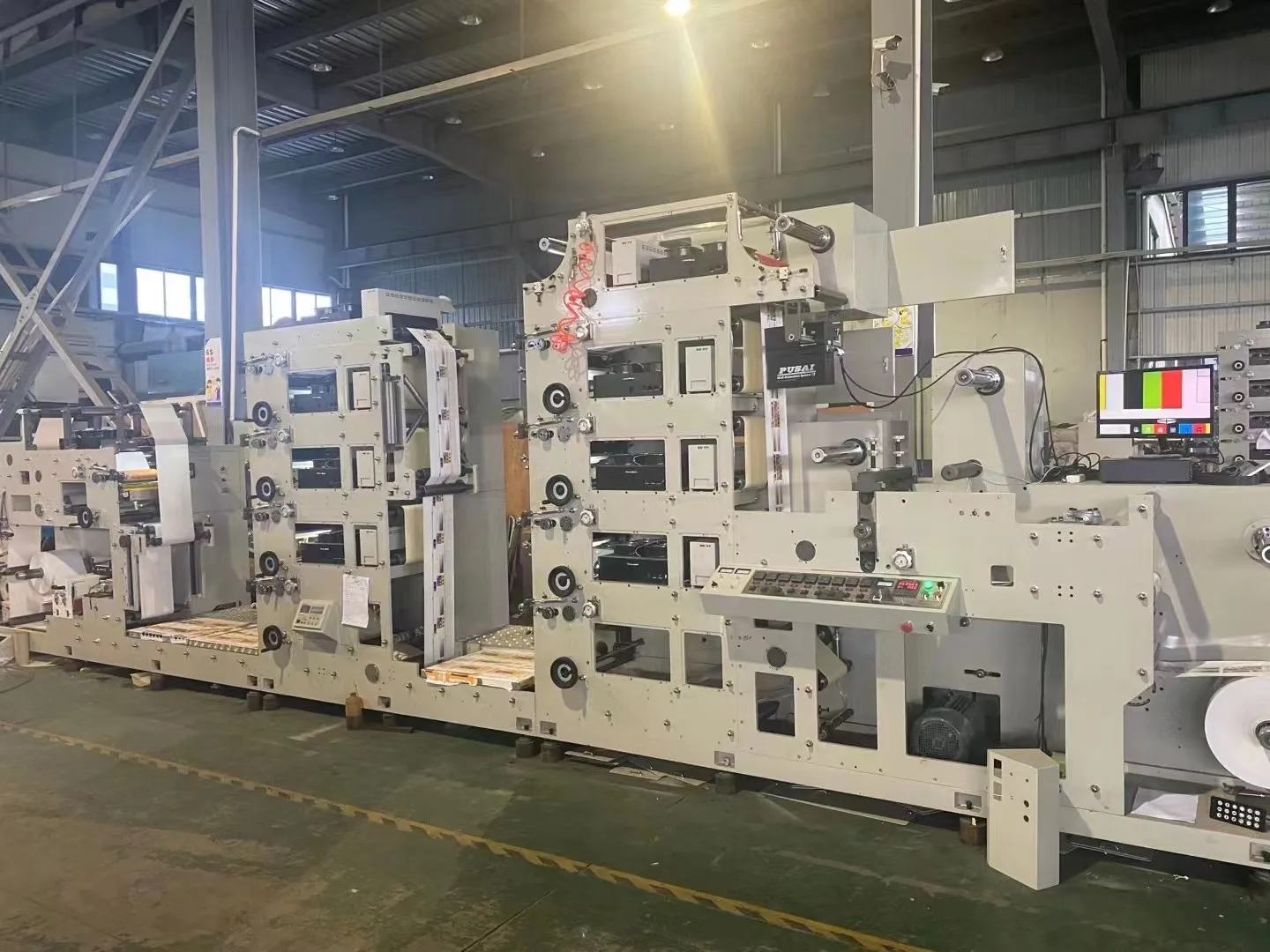

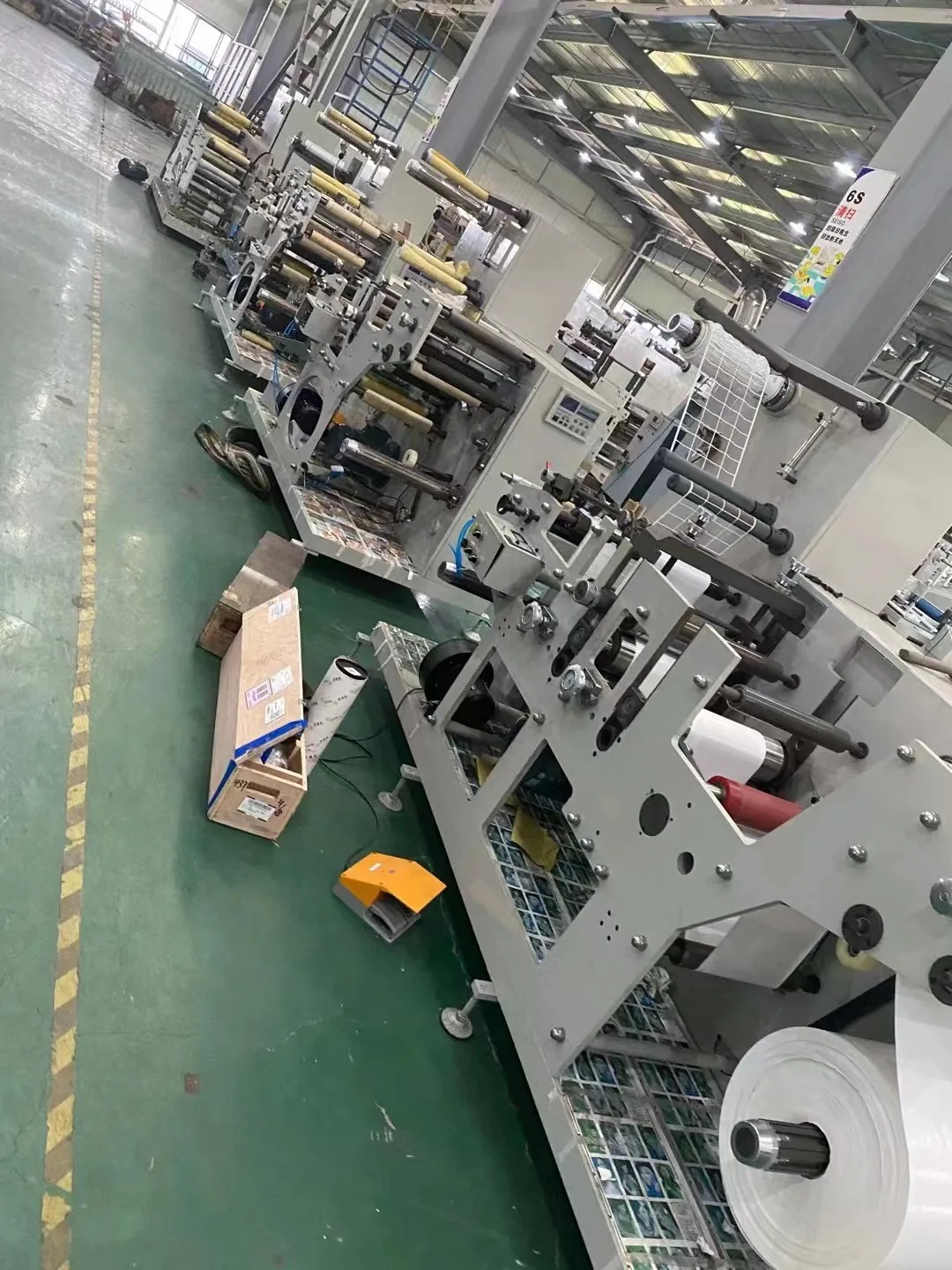

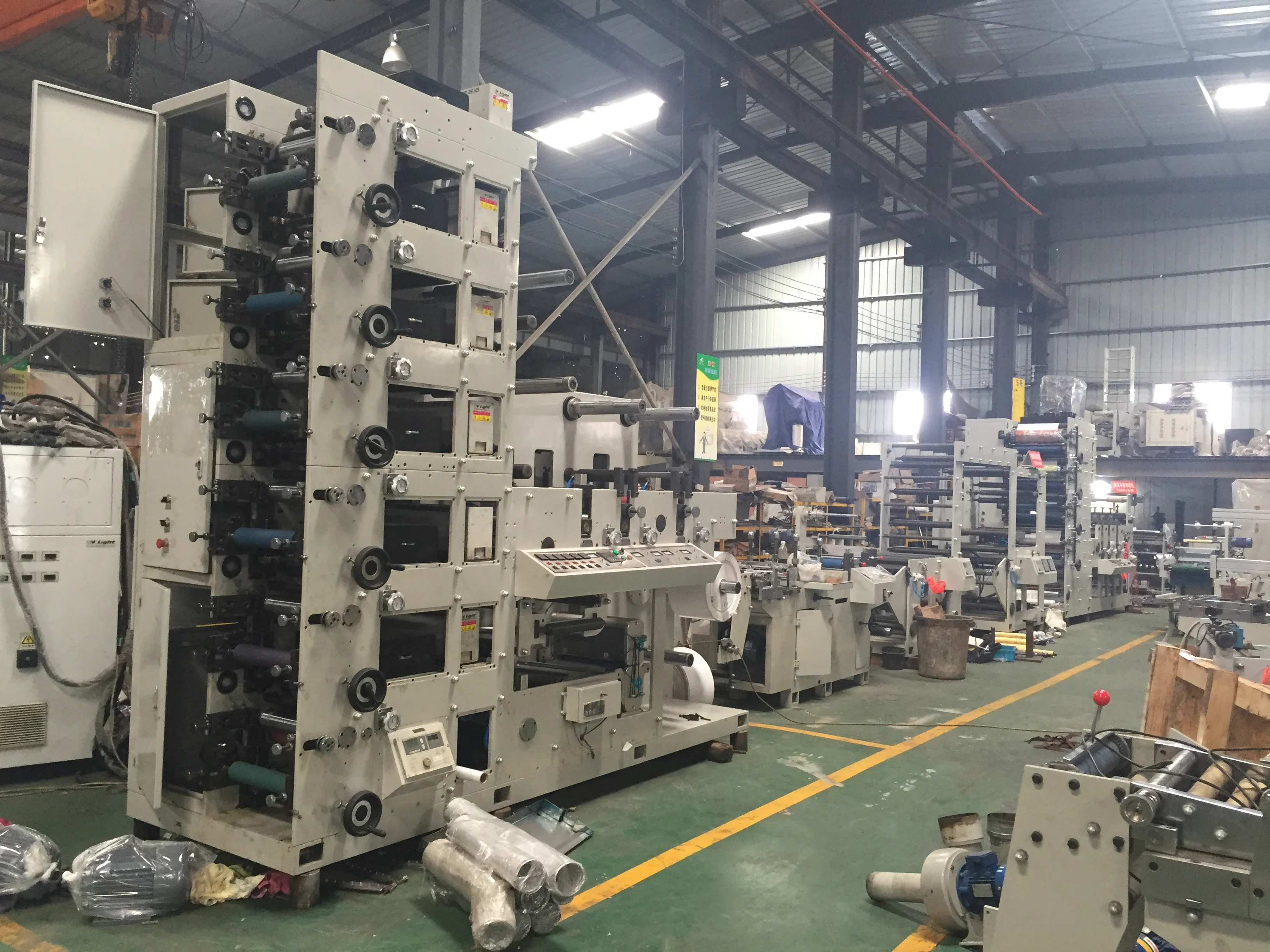

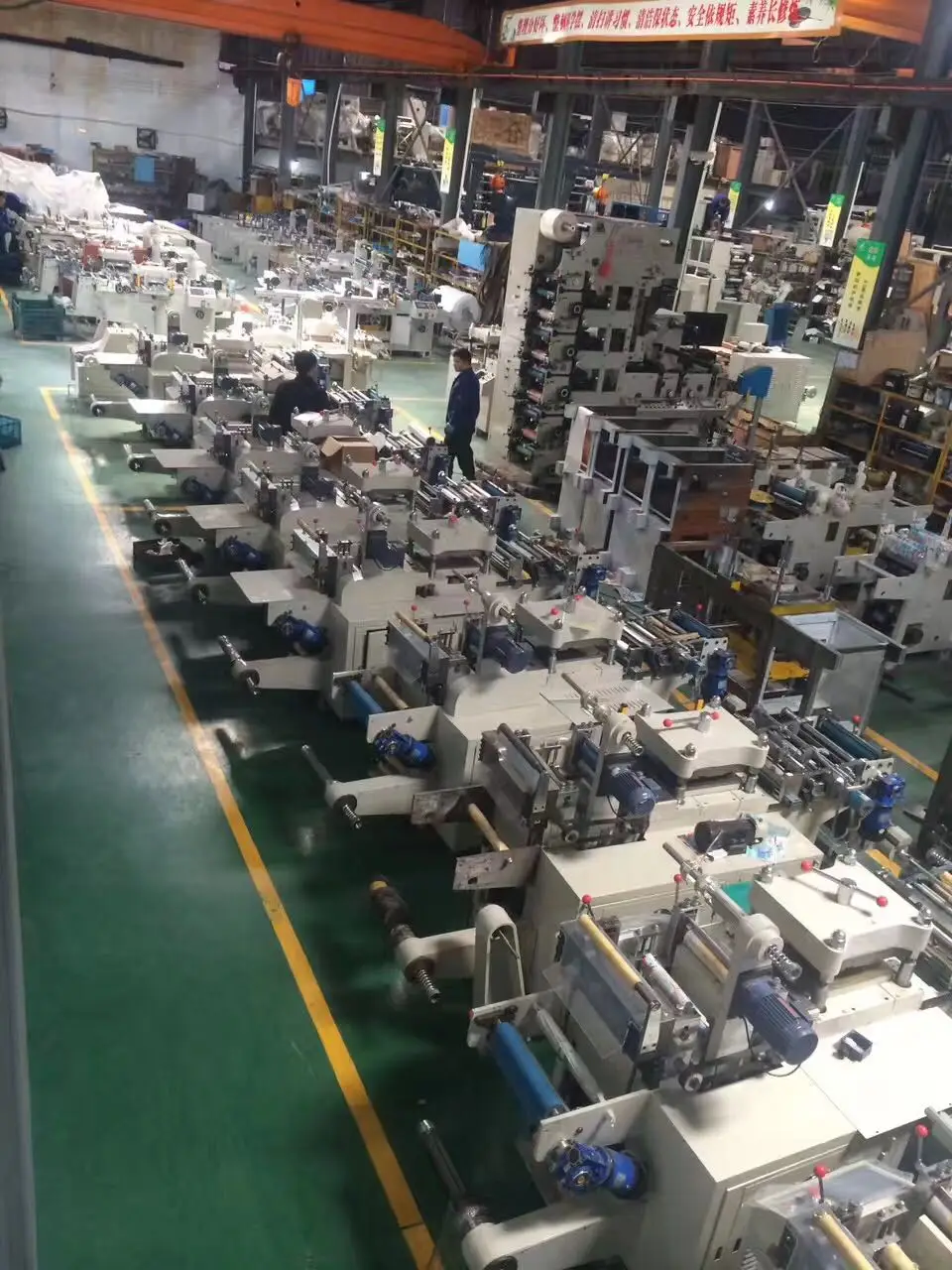

Company Profile
Our parent company was established in year 2017, and we have many years of history in the label industry. We have already exported to America, Germany, Russia and 20 other countries and regions. Our company has always focused on research, development and innovation, We regards“reasonable prices, efficient production time and good after-sales service” as our soul tenet.
Our Advantage
We regards“reasonable prices, efficient production time and good after-sales service” as our soul tenet.
For before-order stage, our professional sales team could respond your inquiry within 5-10 minutes during working hours and within 12 hours during close time. Quick and professional reply will help you win your client with perfect option at high efficiency.
For order-running stage, our professional service team will take pictures every 3 to 5 days for your 1st hand information update of the production and provide documents within 36 hours to update shipping progress. We pay high attention to after-sale service.
For after-sale stage, our service team always keep close contact with you and always stand by at your service. Our professional after sale service even include fly our engineers to help you solving problems on site. Our warranty is 12 months after delivery.
For before-order stage, our professional sales team could respond your inquiry within 5-10 minutes during working hours and within 12 hours during close time. Quick and professional reply will help you win your client with perfect option at high efficiency.
For order-running stage, our professional service team will take pictures every 3 to 5 days for your 1st hand information update of the production and provide documents within 36 hours to update shipping progress. We pay high attention to after-sale service.
For after-sale stage, our service team always keep close contact with you and always stand by at your service. Our professional after sale service even include fly our engineers to help you solving problems on site. Our warranty is 12 months after delivery.

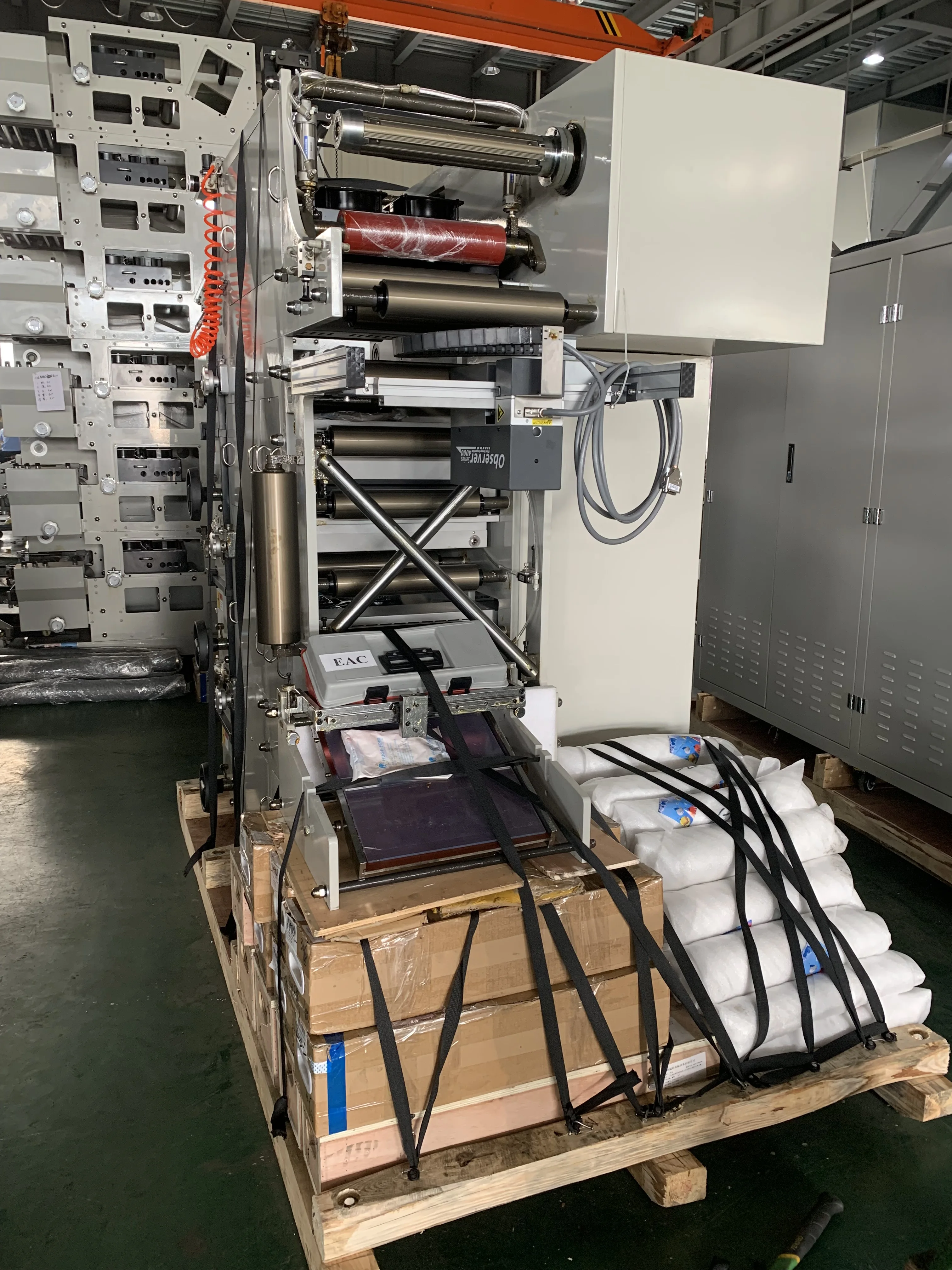

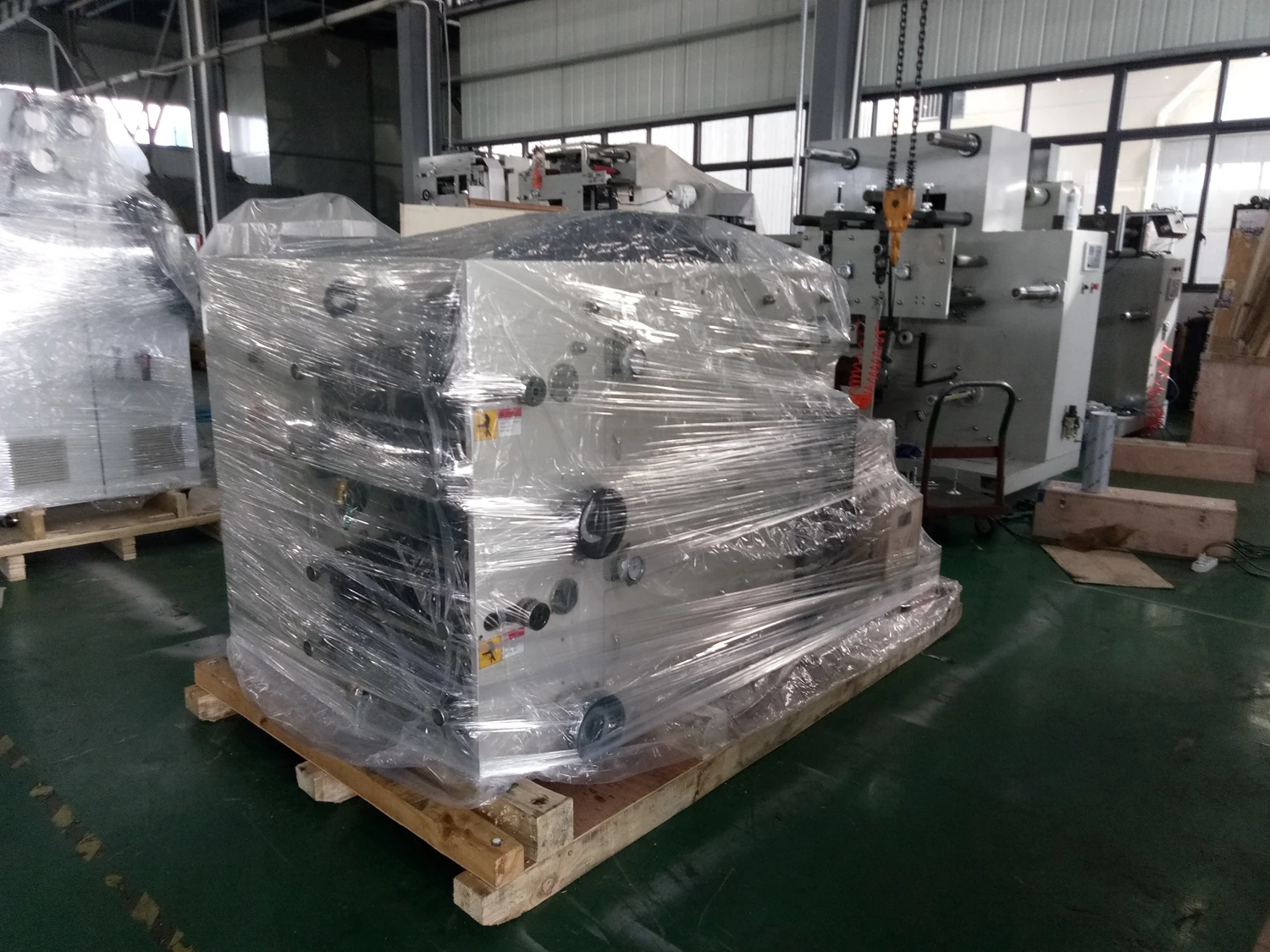

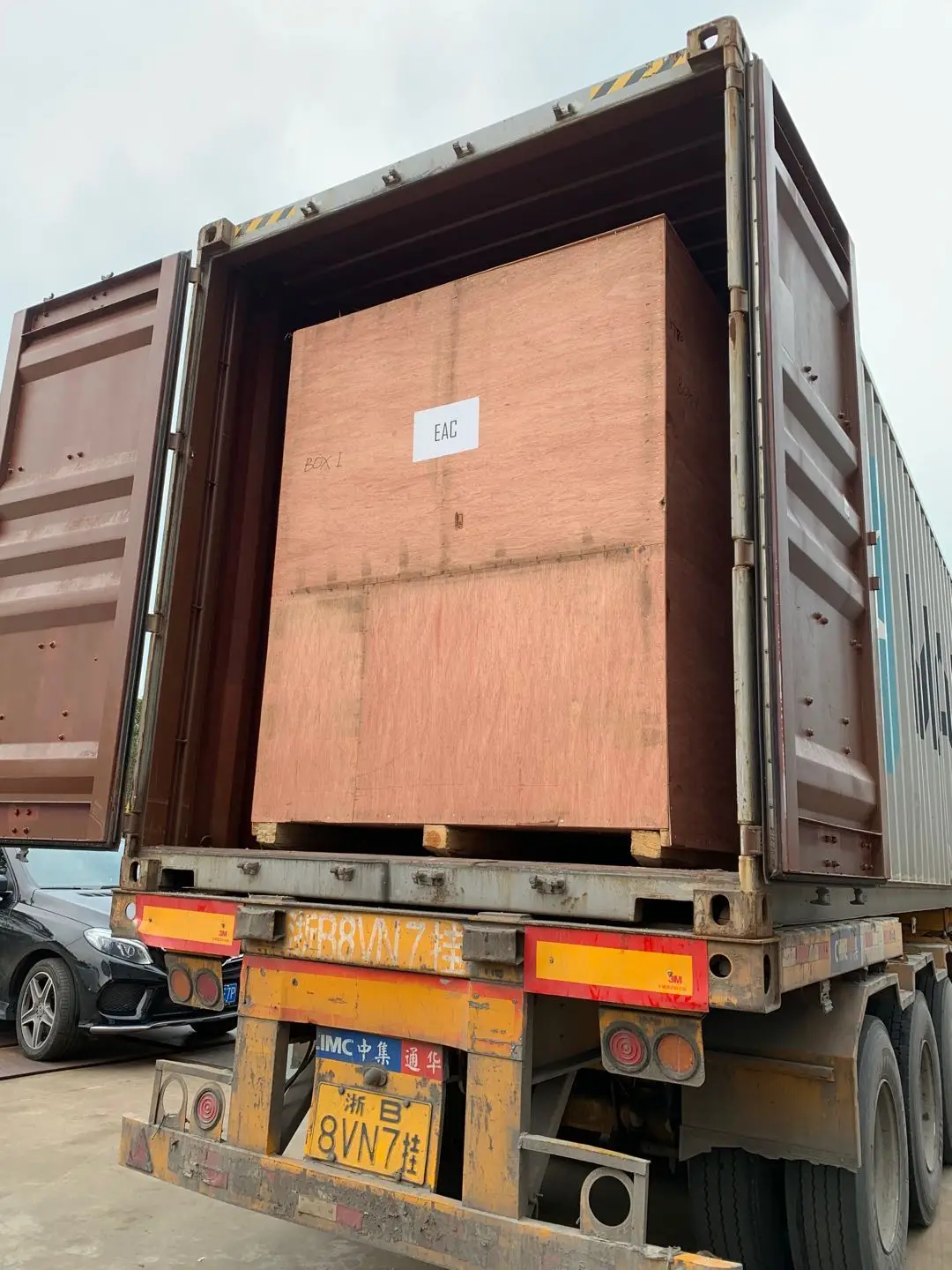

Packing & Delivery
FAQ
Q:Whether you could make our brand on your products?
A:Yes. We can print your Logo on both the products and the packages.
Q:Whether you could make your products by our color?
A:Yes, The color of products can be customized.
Q:How to guarantee the quality of your products?
A:1) Strict detection during production.
2) Picture and video of the machine running, and products sample can be couriered to you before shipment for approval.
A:Yes. We can print your Logo on both the products and the packages.
Q:Whether you could make your products by our color?
A:Yes, The color of products can be customized.
Q:How to guarantee the quality of your products?
A:1) Strict detection during production.
2) Picture and video of the machine running, and products sample can be couriered to you before shipment for approval.
