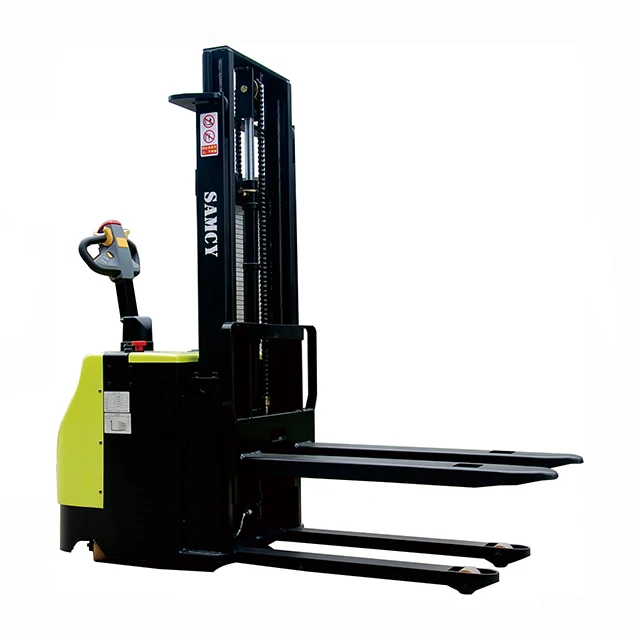

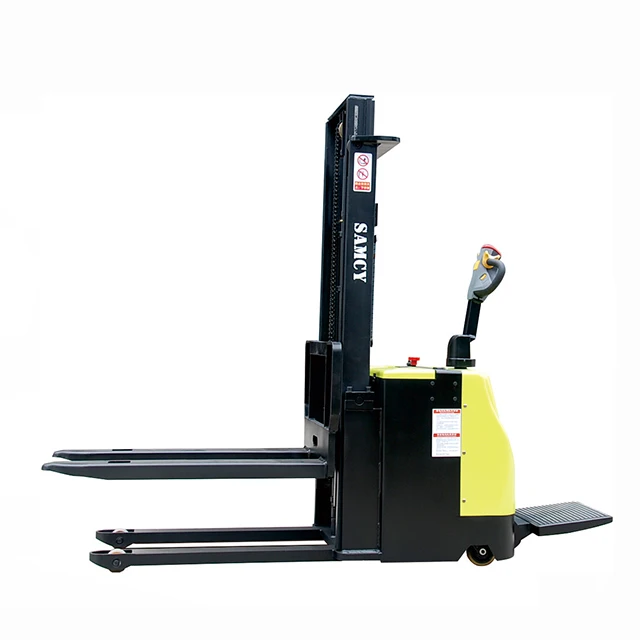

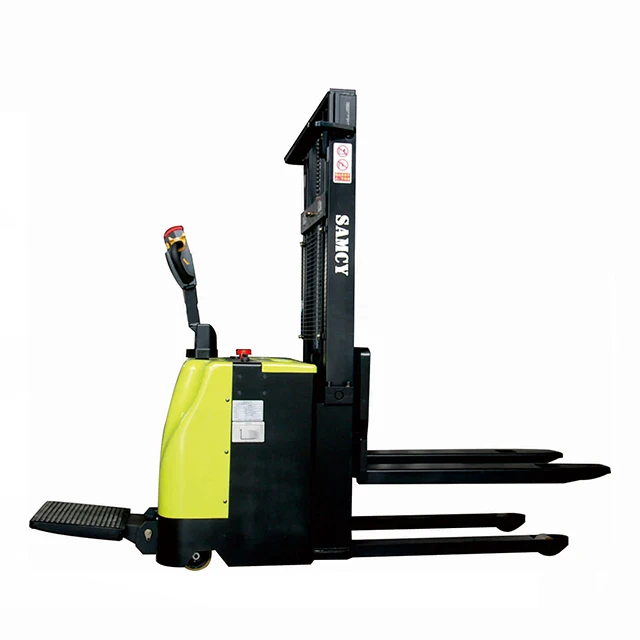

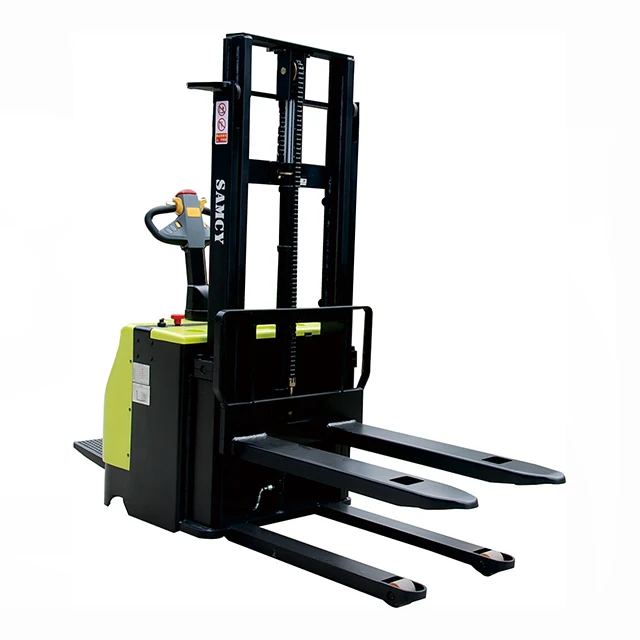

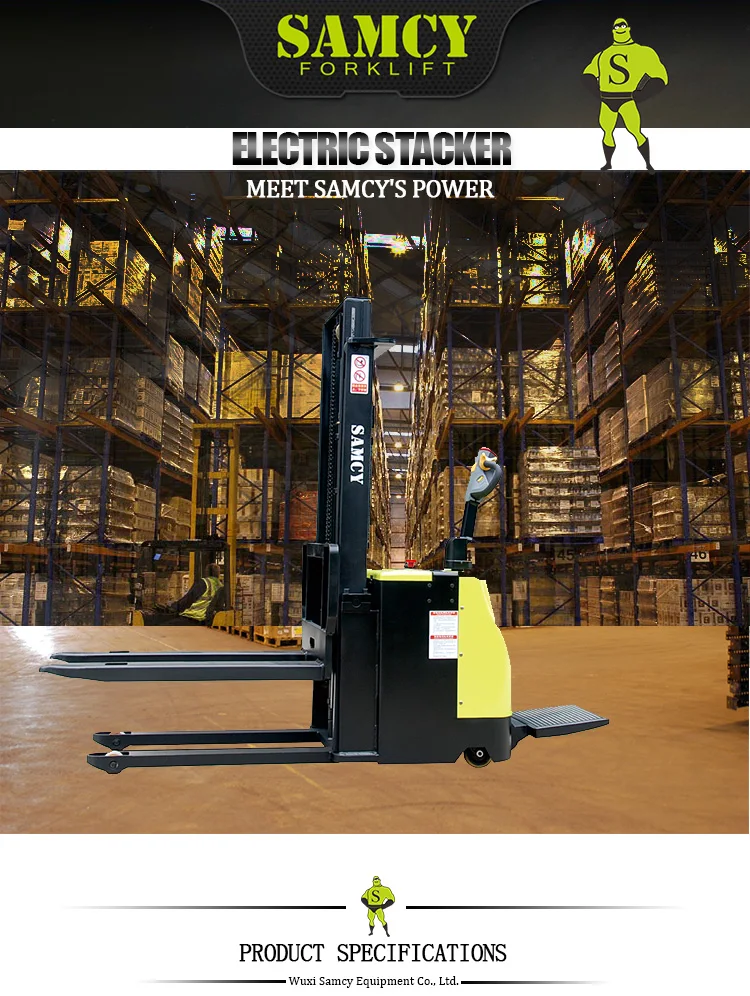

SAMCY Stacker 25 Years OEM & ODM Professional Experience 1.5 Ton with Battery Charger Economical Electric Pallet Stacker
- Category: >>>
- Supplier: Wuxi Samcy Equipment Co. Ltd.
Share on (1600468419729):
Product Overview
Description
| Performance | Model | KLD10 | KLD16 | KLD20 | ||||
| Maximum load capacity | kg | 1000 | 1600 | 2000 | ||||
| With load center at | Q(mm) | 600 | 600 | 600 | ||||
| Maximum lifting height | H3(mm) | 1600 | 1600 | 1600 | ||||
| Travel speed (without load) | km/h | 6 | 6 | 6 | ||||
| Travel speed (with load) | km/h | 5 | 5 | 5 | ||||
| Lifting speed (without load) | mm/s | 140 | 140 | 140 | ||||
| Lifting speed (with load) | mm/s | 120 | 120 | 120 | ||||
| Lowered speed (without load) | mm/s | 150 | 150 | 150 | ||||
| Lowered speed (with load) | mm/s | 155 | 155 | 155 | ||||
| Ascend slope ability (without load ) | % | 7 | 7 | 7 | ||||
| Ascend slope ability (with load ) | % | 5 | 5 | 5 | ||||
| Weight (without battery) | kg | ~1150 | ~1150 | ~1150 | ||||
| Dimensions | Overall length of frame | L(mm) | 1990 | 1990 | 1990 | |||
| Overall width of frame | B(mm) | 850 | 850 | 850 | ||||
| Mast lowered height | H1(mm) | 2055 | 2055 | 2055 | ||||
| Max height | H4(mm) | 2110 | 2110 | 2110 | ||||
| Wheelbase | Y(mm) | 1415 | 1415 | 1415 | ||||
| Fork length | mm | 1150 | 1150 | 1150 | ||||
| Fork outside width | B1(mm) | 680 | 680 | 680 | ||||
| Fork inside width | B2(mm) | 300 | 300 | 300 | ||||
| Fork thickness | mm | 65 | 65 | 65 | ||||
| Fork lowered height | S(mm) | 90 | 90 | 90 | ||||
| Min frounf height | mm | 15 | 15 | 15 | ||||
| Minimum turning radius (with platform) | Wa1(mm) | 2120 | 2120 | 2120 | ||||
| Minimum turning radius (without platform) | Wa(mm) | 1670 | 1670 | 1670 | ||||
| Min intersecting aisle width | Asts(mm) | 2280 | 2280 | 2280 | ||||
| Tire | Front wheel | mm | 85*70 | 85*70 | 85*70 | |||
| Drive wheel | mm | 230*75 | 230*75 | 230*75 | ||||
| Caster wheel | mm | 130*55 | 130*55 | 130*55 | ||||
| Wheel material | Polyurethane | |||||||
| Electrical components | Drive motor type | AC series motor | ||||||
| Rated output | kw | 1.5 | 1.5 | 1.5 | ||||
| Hoist motor type | DC series motor | |||||||
| Rated output | kw | 2.2 | 3 | 3 | ||||
| Battery | Voltag | V | 24 | 24 | 24 | |||
| Capacity | AH | 210 | ||||||
| Weight | kg | 195 | ||||||
