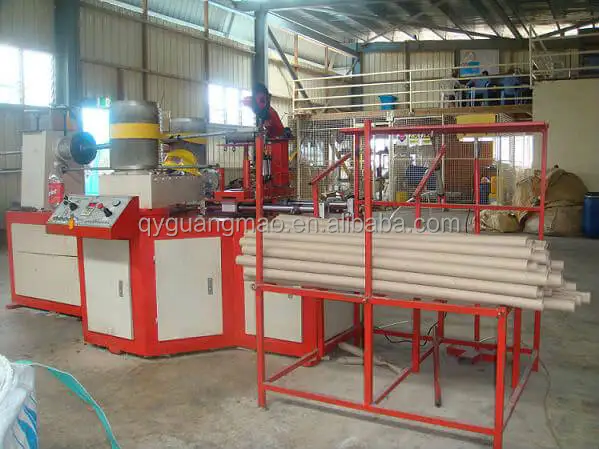

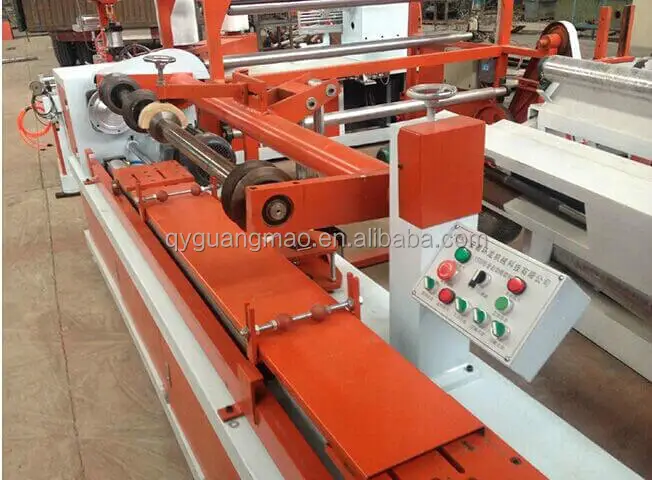

High accuracy Factory Manufactured Maker Tuber Paper Core Machine
- Category: >>>
- Supplier: Qinyang Guangmao Paper Machinery Co. Ltd.
Share on (1600468444142):
Product Overview
Description
High Quality 2 Heads Spiral Paper Paper Core Tube Making Machine
Product Description

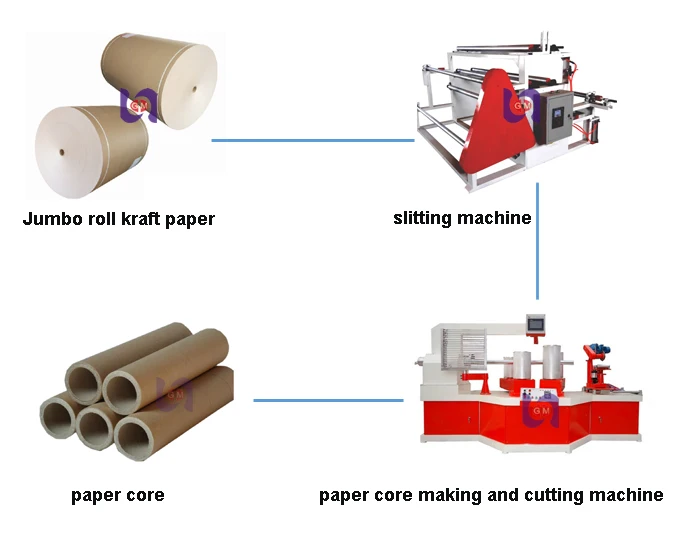

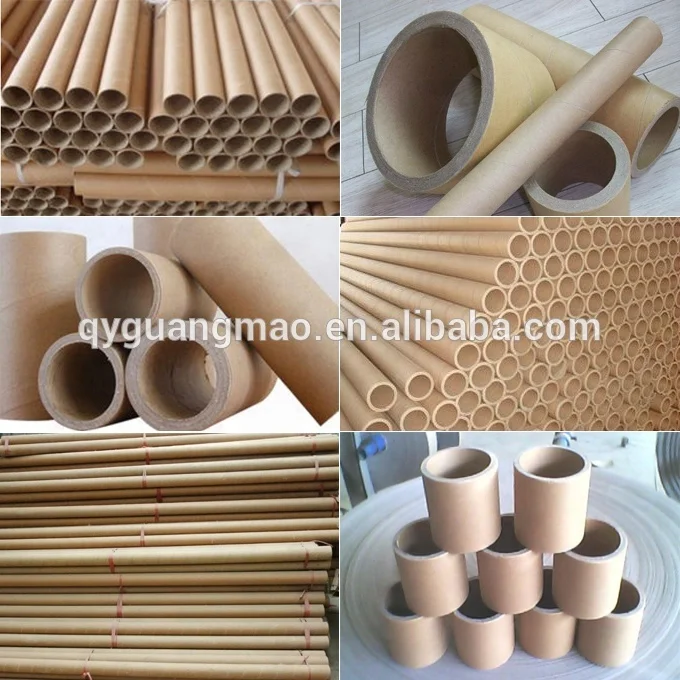

How To Make Paper Core/Tube?
Jumbo Roll Kraft Paper --- Slitting Machine --- Paper Core Making Machine --- Cutting Machine --- Paper Core
Jumbo Roll Kraft Paper --- Slitting Machine --- Paper Core Making Machine --- Cutting Machine --- Paper Core

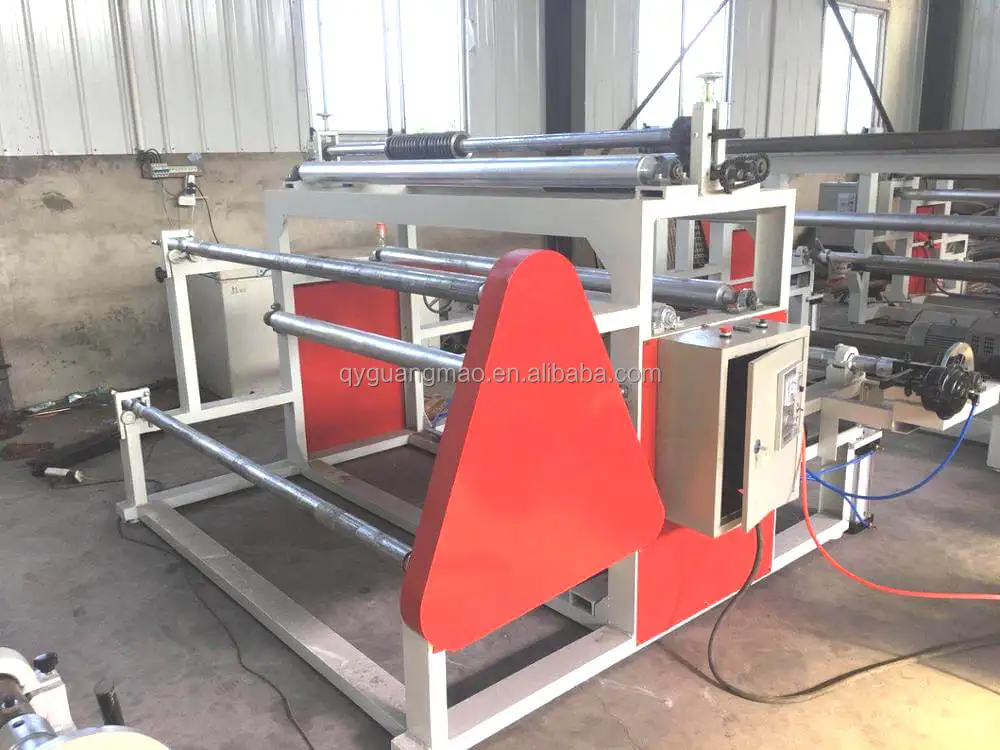

I. Kraft Paper Slitting Machine
Function:
This machine is used to slitting jumbo fluting paper roll into small diameter roll ,the finished small roll can be used to make
paper core .it is necessary equipment for making paper core.
This machine is used to slitting jumbo fluting paper roll into small diameter roll ,the finished small roll can be used to make
paper core .it is necessary equipment for making paper core.
Features:
1.Double disc cutting,upper butterfly disc cutter,concave shape blade;
2.The deckle edge of paper after slitted is smooth and flat,do not have burr;
3.Wrapup firm,both side are flat;
4.Upper blade and below blade can adjusted within the range of 30--1600mm;
5.Easily operation;
6. High production,it can match up with 3 paper core making machine.
1.Double disc cutting,upper butterfly disc cutter,concave shape blade;
2.The deckle edge of paper after slitted is smooth and flat,do not have burr;
3.Wrapup firm,both side are flat;
4.Upper blade and below blade can adjusted within the range of 30--1600mm;
5.Easily operation;
6. High production,it can match up with 3 paper core making machine.
Main Technical Parameters: | ||||||
base paper width | 1600mm (can be appointed) | size of upper blade | 2×105×75mm | |||
rewinding diameter | Ø650mm | size of bottom blade | 2×105×75mm | |||
slitting width | >40mm | dimension | 2300×2400×1600mm | |||
thickness of base paper | 80-600g/m² | weight | 900kg | |||
total power | 1.5-4kw | Operate worker | 1--3 people | |||
quantity of slitting blade | 18-20 sets | Paper loading way | Jack | |||
slitting speed | 30-250m/min | Speed control | Model of speed regulation | |||
winding type | pneumatic swelling | diameter of base paper | Ø1200mm | |||

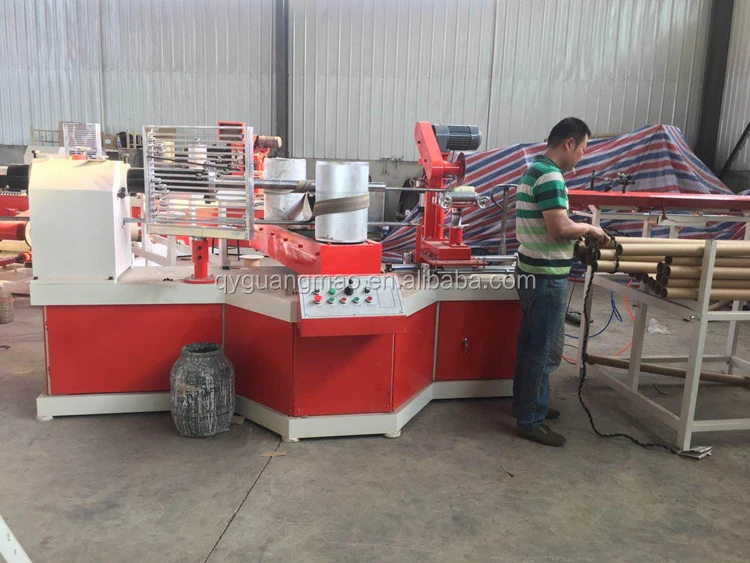

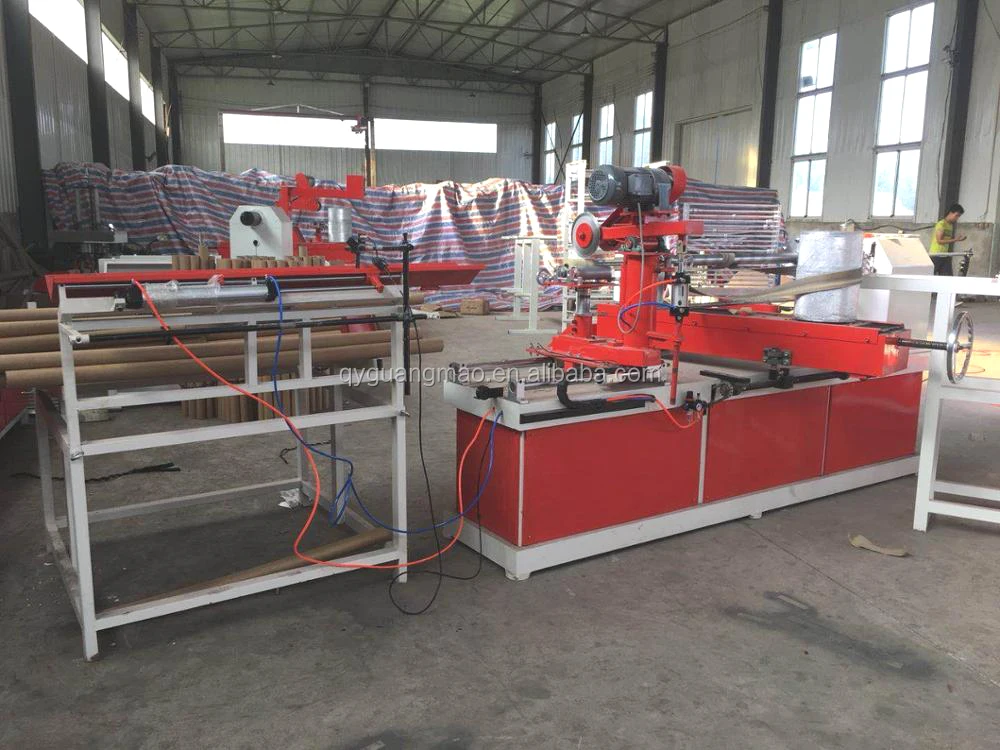

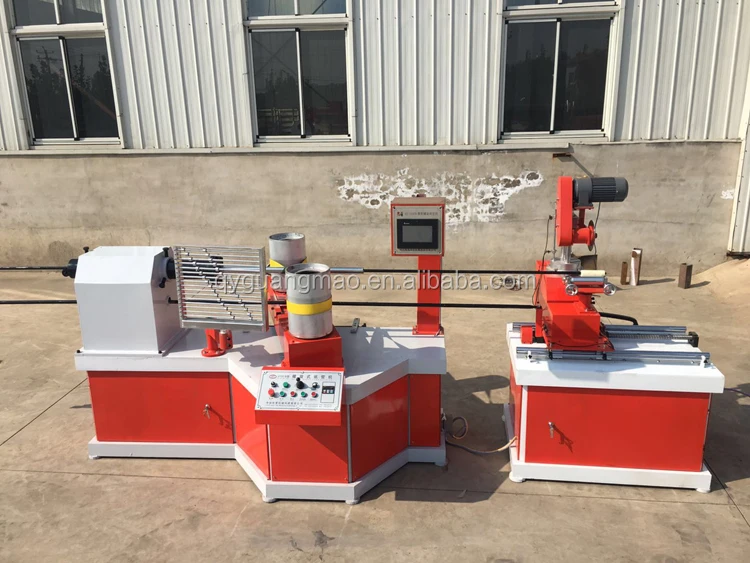

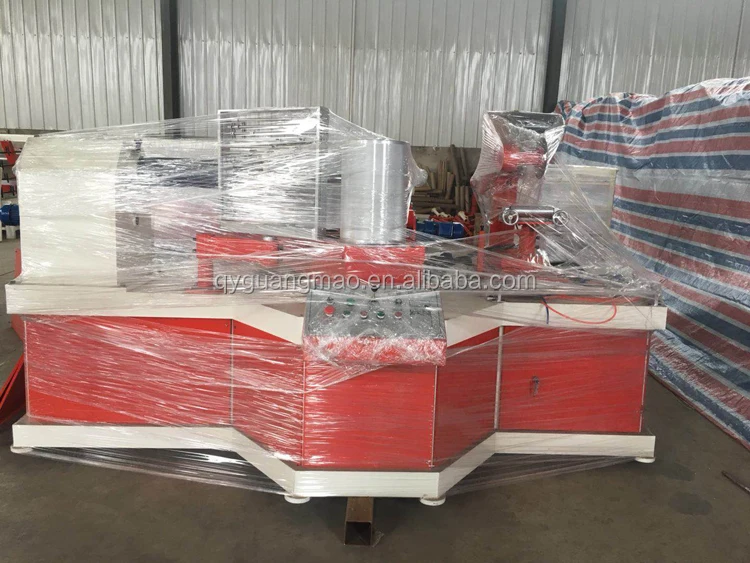

II. Paper Tube Making Machine
Function:
This machine can make the paper core from fluting paper roll .the paper roll have been cut into with small width .this machine can coat glue on paper and rotate it into paper core.
This machine can make the paper core from fluting paper roll .the paper roll have been cut into with small width .this machine can coat glue on paper and rotate it into paper core.
Features:
1.Using computer PLC and frequency control system,low noise;
2.Saving power,it can save 50% electricity than ordinary electromagnetic speed adjustment;
3.Locating by infrared ray,automatic cutting;
4.single blade or saw blade are in common use,adjust the cutting length of the paper core arbitrarily;
5.Automatic Gluing,easy operate;
6.The digital control panel set various operating function,can set arbitrary workings on the machine;
1.Using computer PLC and frequency control system,low noise;
2.Saving power,it can save 50% electricity than ordinary electromagnetic speed adjustment;
3.Locating by infrared ray,automatic cutting;
4.single blade or saw blade are in common use,adjust the cutting length of the paper core arbitrarily;
5.Automatic Gluing,easy operate;
6.The digital control panel set various operating function,can set arbitrary workings on the machine;
Main Technical Parameters:
operate worker | 1-2 people | ||||
paper layer | 3-12 layers (can be adjustable) | ||||
the thickness of paper core | 1-8mm (can be adjustable) | ||||
the diameter of paper core | 12-125mm(can be changed) | ||||
working speed | 1-20 m/min | ||||
length of paper core | 1-3m can be adjustable | ||||
speed control | frequency conversion PLC | ||||
host power | 5.5kw | ||||
auxiliary power | 0.75kw | ||||
gluing way | single side gluing+double side gluing | ||||
fixed-length way | single infrared ray+positioning baffle | ||||
cutting way | single round blade or saw blade are in common use | ||||
head quantity for paper winding | 2 or 4 heads | ||||
input power | 380V, three phrase, 50-60hz | ||||
winging head | double head single belt decoration | ||||
Product packaging
Packing Details :standard export package-wooden case, plastic foam, waterproof film, carton box etc.
Delivery Details : air freight, land carriage and shipping are all available.
Delivery Details : air freight, land carriage and shipping are all available.
Service
Pre-Sales Service
* Inquiry and consulting support.
* Project evaluation and detailed design of paper making plant
* View our Factory.
* Project evaluation and detailed design of paper making plant
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* one year guarantee and engineers can visit your factory if you request.
* Engineers available to service machinery overseas.
* one year guarantee and engineers can visit your factory if you request.
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
Q: How to get a quotation?
A: You can send inquiry (at the bottom of this page) or chat directly with sales expert (by clicking the button at right side of
this page).
this page).
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us!
If you have another question, pls feel free to contact us!
