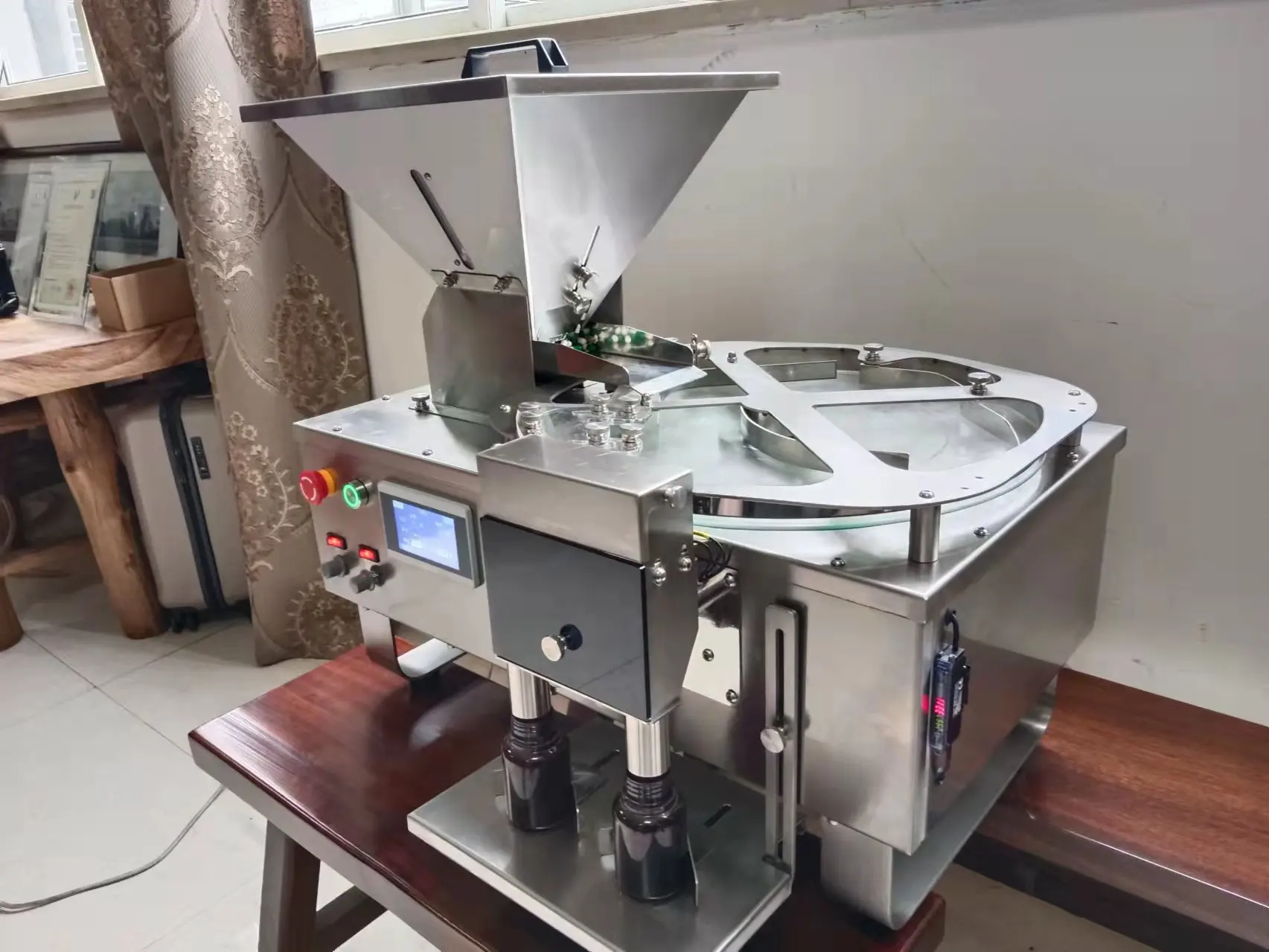

Multifunctional benchtop counting machine, can be used in pharmaceutical, food and life tablets
- Category: >>>
- Supplier: Zhejiang Aligned Technology Co. Ltd.
Share on (1600468449809):
Product Overview
Description

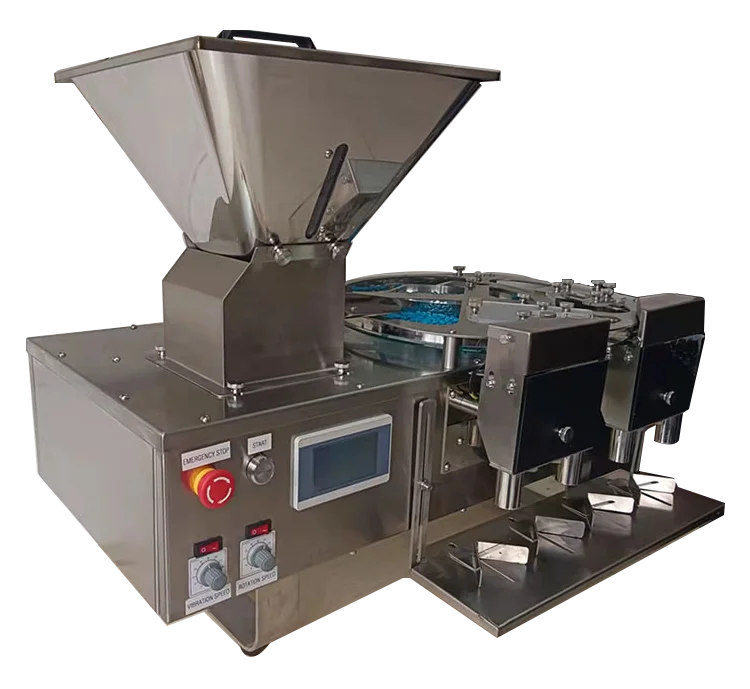

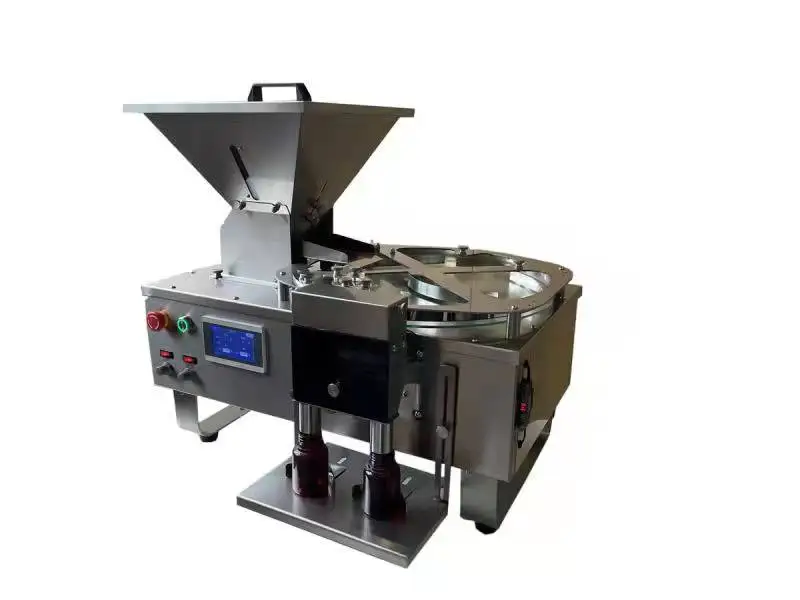

ZS-2B Electronic Counting Machine
ZS-2B Electronic Counting Machine ：Our company adopts the world's most advanced vibrating blanking, stepless speed regulation of oscillator, intelligent control of touch screen PLC, counting of optical fiber sensor head, system self inspection, fault indication and alarm, automatic shutdown and other advanced technologies. The body is made of all stainless steel and designed according to GMP standard. It is a high-tech drug counting equipment integrating light and motor.

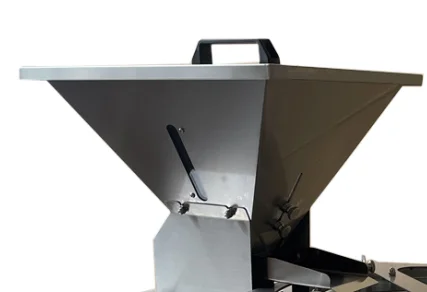

Storage hopper
The storage hopper is made of stainless steel 304 (0Cr18Ni9), sealed and transported with less dust pollution, clean and sanitary, and
vibrated. The blanking is controlled by the amplitude of the vibrator, which meets the GMP standard.
vibrated. The blanking is controlled by the amplitude of the vibrator, which meets the GMP standard.

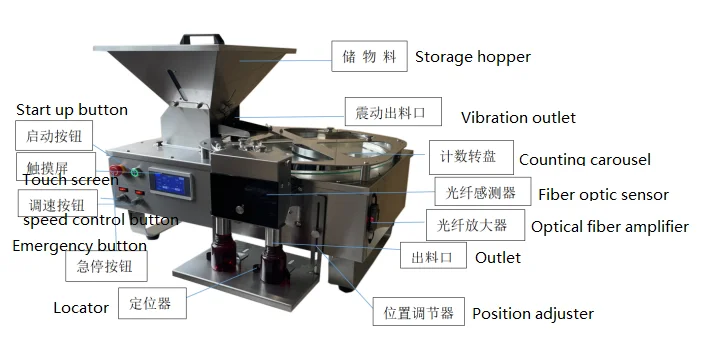

Control panel
The control panel of this machine is composed of emergency stop button, start button, motor speed control knob, vibration speed control knob and intelligent touch screen, and the intelligent control is easy to operate.

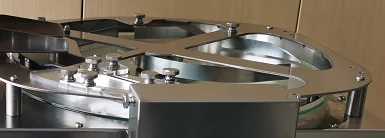

Turntable
The turntable of this machine is composed of high-quality tempered glass and all stainless steel. It is designed to rotate and count,
and the speed can be adjusted at will, which is convenient and quick to control.
and the speed can be adjusted at will, which is convenient and quick to control.
Model | ZS-2B |
Speed | 600-2000capsules/min |
Scope of application | Hard capsules, soft capsules, tablets, pills, etc. |
Control method | Touch screen control |
Counting method | Infrared detection |
Applicable size | Capsule model:00#-5# Tablet diameter:5-25MM |
Count error | ±0.3% |
Dimension | 735X580X720MM |
Voltage | 220V/50-60Hz /100W |
Weight | 55kg |
Machine material | Main parts material stainless steel 304(0Cr18Ni9） |
