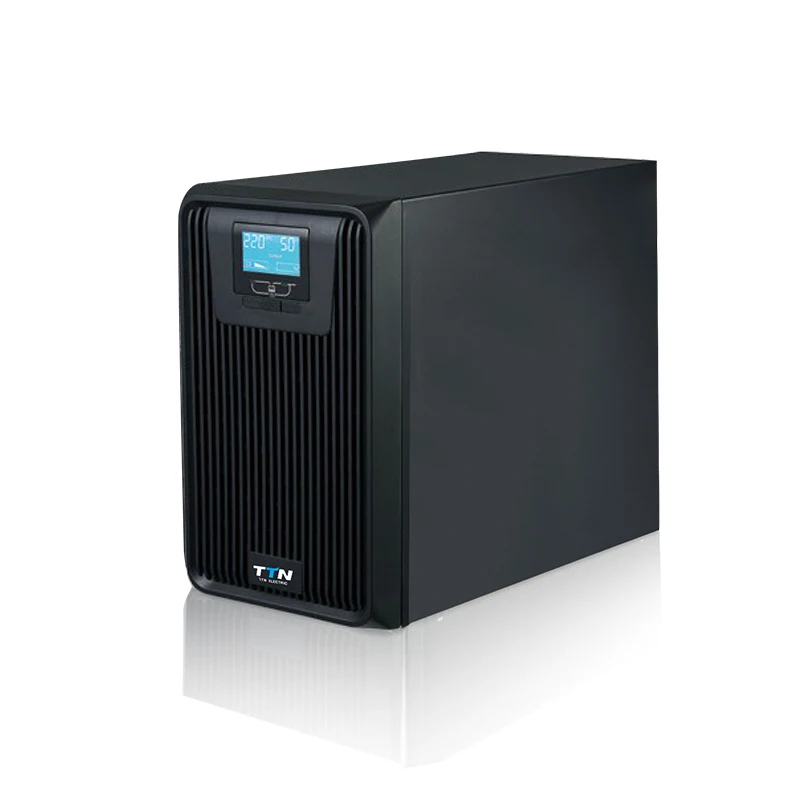

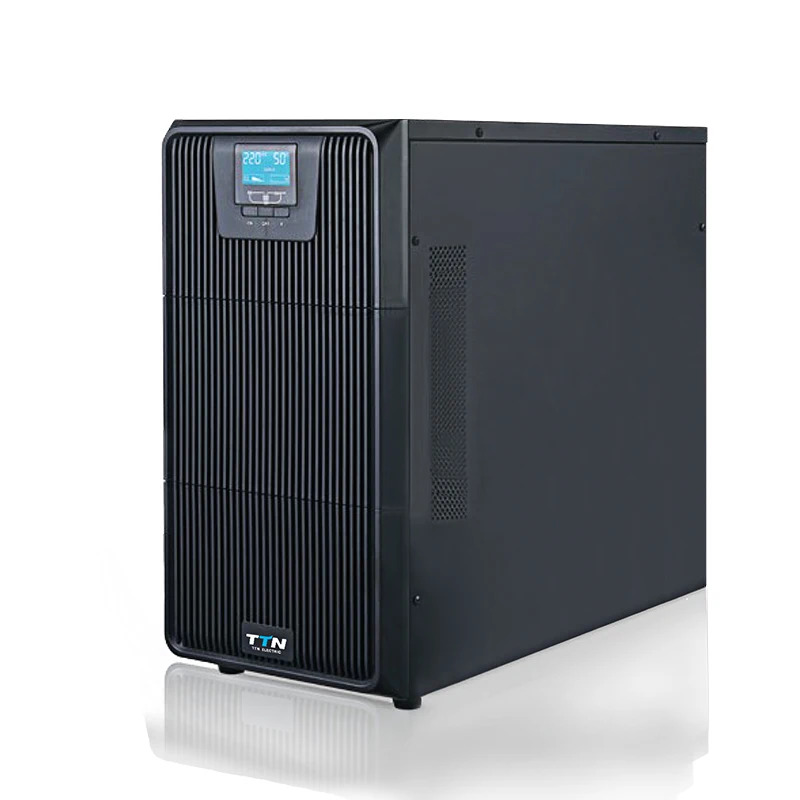

Uninterruptible power supply online ups ethiopia, 3kva online ups, online UPS 3kva
- Category: >>>
- Supplier: Zhejiang TTN Electric Co. Ltd.
Share on (1600468460694):
Product Overview
Description
Specification
ONLINE HIGH FREQUENCY UPS 1KVA-10KVA | ||
Functions: 1. Pure on-line double conversion design 2. Wide input range 3. Flexible intelligent monitoring program and strong communications function 4. Compact design 5. Precise utility power synchronizing system 6. Cold start function 7. Power convervation UPS 8. LCD display | Applications: 1. PC 2. Server and workstations 3. Multi-media 4. Electronic & Telecom 5. Medical Equipment 6. Securities system | |
MODEL | AF1K | AF1KL | AF2K | AF2KL | AF3K | AF3KL | |||||
Capacity | 1KVA/900W | 2KVA/1.8KW | 3KVA/2.7KW | ||||||||
Battery voltage | 12V7AH*2 | 36VDC | 12V7AH*4 | 72VDC | 12V7AH*6 | 96VDC | |||||
Size (D*W*H) mm | 350*144*230 | 350*144*230 | 425*190*238 | 425*190*238 | 425*190*238 | 425*190*238 | |||||
Net weight (kgs) | 9 | 6 | 18.4 | 9 | 23.4 | 10 | |||||
INPUT | |||||||||||
Voltage range | 90-285VAC | ||||||||||
Frequency range | 40-70Hz | ||||||||||
Phase | Single phase with ground | ||||||||||
Power factor | ≥0.99@100%load | ||||||||||
OUTPUT | |||||||||||
Output Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC | ||||||||||
AC voltage regulation | ±1% | ||||||||||
Frequency range(synchronize range) | 40-46Hz or 54-60Hz | ||||||||||
Frequency range (batt.mode) | 50Hz±0.25Hz or 60Hz ±0.3Hz | ||||||||||
Current crest ratio | 3:1 | ||||||||||
Output current | 4.5A | 9.1A | 13.6A | ||||||||
Harmonic distortion | ≤3% THD （Linear load） ≤6% THD （Non-linear load) | ||||||||||
Overload | 105%±5%≤Load≤125%±5%: after 50secs turn to bypass and alarm; 125%±5% load>150%±5%: after 25ms turn to bypass and alarm; Load>150%±5%: after 300ms turn to bypass and alarm; | ||||||||||
Transfer time (AC mode to batt. mode) | Zero | ||||||||||
Waveform (batt.mode) | pure sine wave | ||||||||||
EFFICIENCY | |||||||||||
Batt. mode | 85% | ||||||||||
BATTERY | |||||||||||
Battery | 12V7Ah*2 | Depending on applications | 12V7Ah*4 | Depending on applications | 12V7Ah*6 | Depending on applications | |||||
Recharging time | 8 hours recover to 90% capacity | ||||||||||
Charging current | 1A | 6.5A | 1A | 5.5A | 1A | 5.5A | |||||
ENVIRONMENT | |||||||||||
Operation humidity | 20-90% RH@0-40°C non-condensing | ||||||||||
Noise level | Less than 50dBA@1Meter | ||||||||||
MANAGEMENT | |||||||||||
Smart RS-232 | Support windows 2000/XP/Vista/2008, Windows 7/8, Linux, Unix and MAX | ||||||||||
Optional SNMP | Power management from SNMP management and web browser | ||||||||||
Product Description
Company Profile
The Zhejiang TTN Electric Co.,LTD. The Zhejiang Tinglang Electrical Appliance Co., Ltd. is a member unit of the China powersource academic society association and it is also a member unit of the China electrical equipment industry association.It is a high new science and technology enterprise.
The company grasps "humanist" as the management philosophy and the management concept. The company positively introduces and nimbly utilizes the domestic as well as foreign advanced managerial experience and the specialized technology. The company contributes to the technical R&D department which has become mature and perfect day by day. The company has fully developed an integritied scientific management mechanism,including the design, the manufacture, the examination, the measurement, etc. The company has got ISO9001: 2000 international quality systems authentication. The company in line with the objective of " The quality sets up the market, the prestige strives for the development" and in line with the quality policy of " checks each step, each article goes through a strategic pass, lets the users be satisfied". The company insists on the comprehensive implementation of "to makes the brand by the science and technology " and persists in the development path of science and technology,the scale, multiplex, and the internationalization .
The company mainly produces the manostat, the electronicten thousand-years calendar, UPS, the bath tyrant, the ventilating fan, the electric fan, the heater, the massager, the anoin generator,the mosquito drive aways,the induced door-bell and the juice-making machines and so on. All together there are more than 30 "Tinglang" and "Kebei" series and there are more than 200 kinds of specifications products. "By my sincerity, will receive in exchange for your heart" is the promise to the users from all staff of the company. The company is continuously devoting to improve the customers living quality and is unceasingly to display the unique pecialized technical superiority. The company is also devote to make the more valuable high tech products which will truly provide the customers with the perfect brand space
The company grasps "humanist" as the management philosophy and the management concept. The company positively introduces and nimbly utilizes the domestic as well as foreign advanced managerial experience and the specialized technology. The company contributes to the technical R&D department which has become mature and perfect day by day. The company has fully developed an integritied scientific management mechanism,including the design, the manufacture, the examination, the measurement, etc. The company has got ISO9001: 2000 international quality systems authentication. The company in line with the objective of " The quality sets up the market, the prestige strives for the development" and in line with the quality policy of " checks each step, each article goes through a strategic pass, lets the users be satisfied". The company insists on the comprehensive implementation of "to makes the brand by the science and technology " and persists in the development path of science and technology,the scale, multiplex, and the internationalization .
The company mainly produces the manostat, the electronicten thousand-years calendar, UPS, the bath tyrant, the ventilating fan, the electric fan, the heater, the massager, the anoin generator,the mosquito drive aways,the induced door-bell and the juice-making machines and so on. All together there are more than 30 "Tinglang" and "Kebei" series and there are more than 200 kinds of specifications products. "By my sincerity, will receive in exchange for your heart" is the promise to the users from all staff of the company. The company is continuously devoting to improve the customers living quality and is unceasingly to display the unique pecialized technical superiority. The company is also devote to make the more valuable high tech products which will truly provide the customers with the perfect brand space
Packing & Delivery
6pcs each carton
FAQ
Q 1. what's the payment terms?
A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your
requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this
certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS,Son cap
A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your
requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this
certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS,Son cap
