  • 750w servo motor 80 series Servo Motor dc 48v/310v, 3000rpm DC servo motor

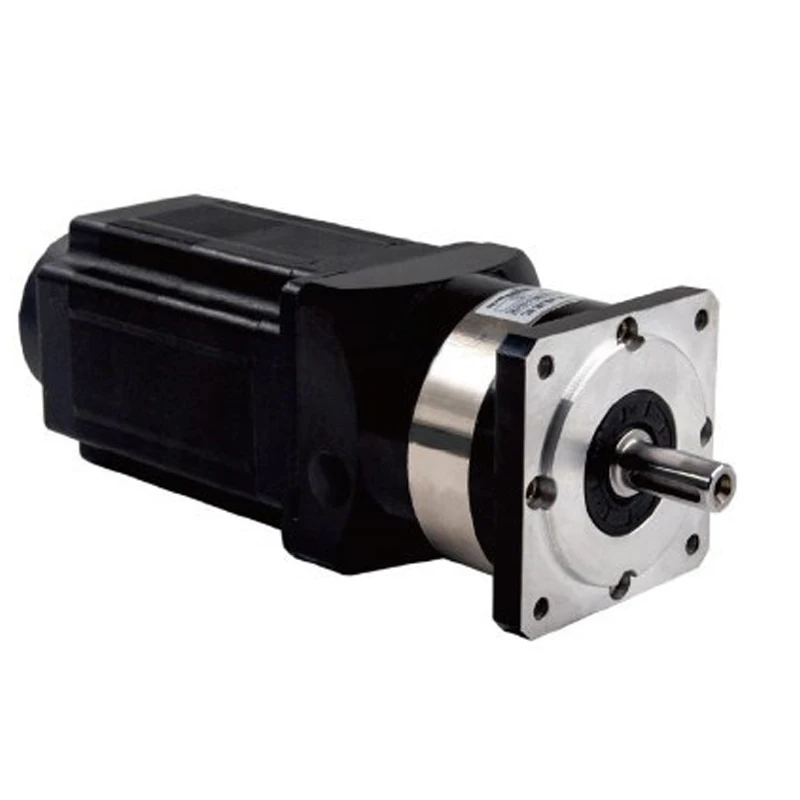

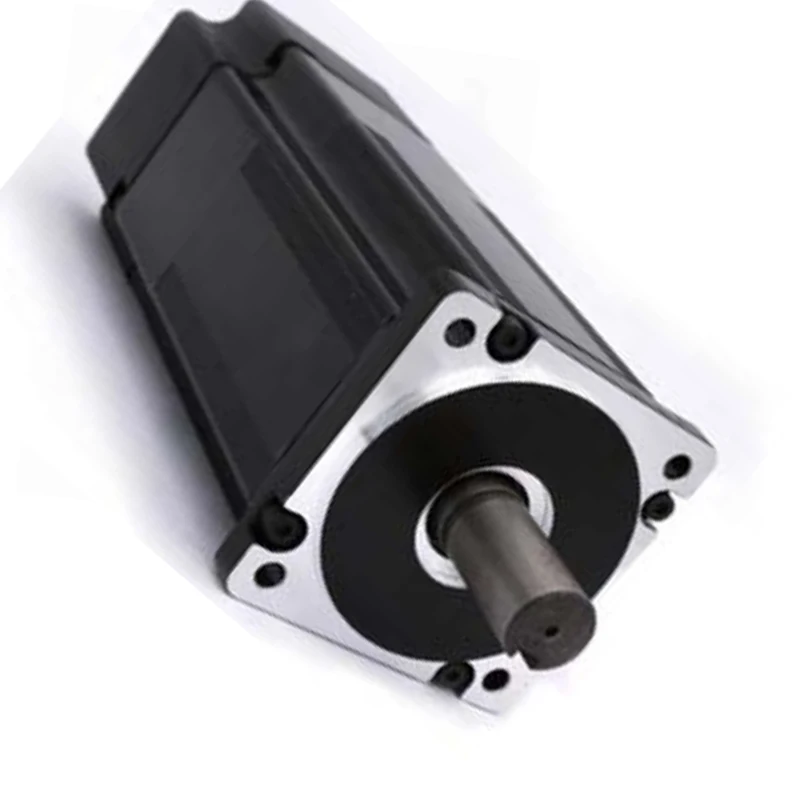

750w servo motor 80 series Servo Motor dc 48v/310v, 3000rpm DC servo motor
750w servo motor 80 series Servo Motor dc 48v/310v, 3000rpm DC servo motor
750w servo motor 80 series Servo Motor dc 48v/310v, 3000rpm DC servo motor
750w servo motor 80 series Servo Motor dc 48v/310v, 3000rpm DC servo motor
750w servo motor 80 series Servo Motor dc 48v/310v, 3000rpm DC servo motor
750w servo motor 80 series Servo Motor dc 48v/310v, 3000rpm DC servo motor
750w servo motor 80 series Servo Motor dc 48v/310v, 3000rpm DC servo motor

750w servo motor 80 series Servo Motor dc 48v/310v, 3000rpm DC servo motor

Share on (1600468462743):


Price:$288.20 - $289.60

Quantity:


Product Overview

Description



Product Information



Product description

>General performance






















Product  attributes





750w servo motor 80 series Servo Motor dc 48v/310v, 3000rpm DC servo motor

Features &


advantages


low noise,long life time,High energy density(energy conservation)

Product application



Fit for Mobile robots,industrial sewing machine, dispensing machine, hot stamping machine, manipulator, repair table, labeling machine, laser cutting machine, SMT equipment etc






>Pictures

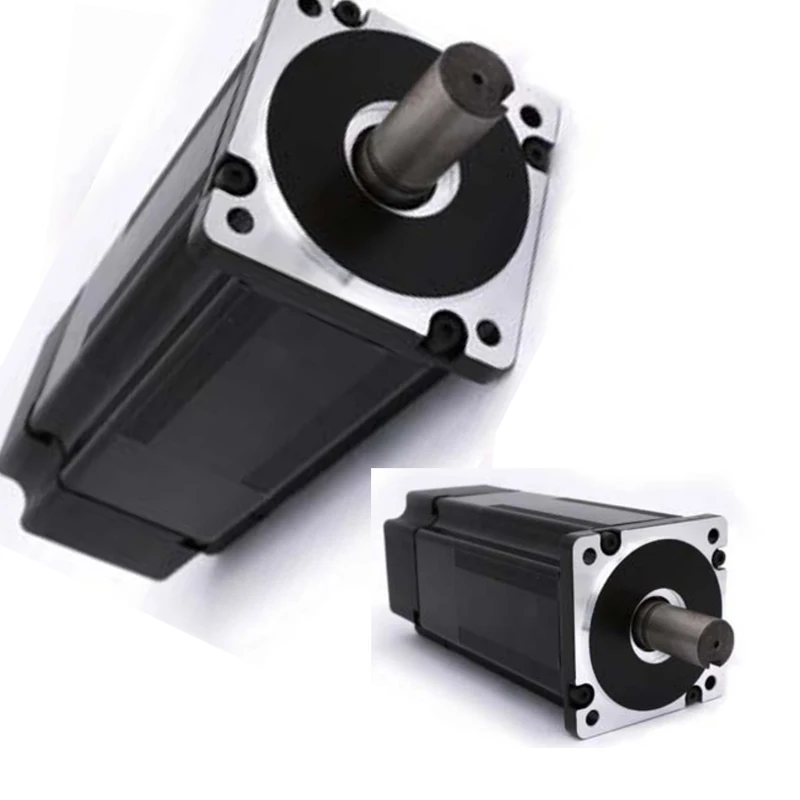

80 7.jpg







>Datasheet






















































Model name




Voltage


 (VDC)






Rated speed


(RPM)






Rated current


(A)



Rated power


(W)



  Brake






Rated Torque (N.M)






  Encoder



Gearbox



PX90L1-DSV80L1H750


31030004750No2.4Tamagawa single ring absolute value 17 bit optional
PX90L1-DSV80L2H75031030004750Yes2.4Tamagawa single ring absolute value 17 bit optional
PX90L2-DSV80B1L75048300020750 No 2.38 Tamagawa single ring absolute value 17 bit  optional

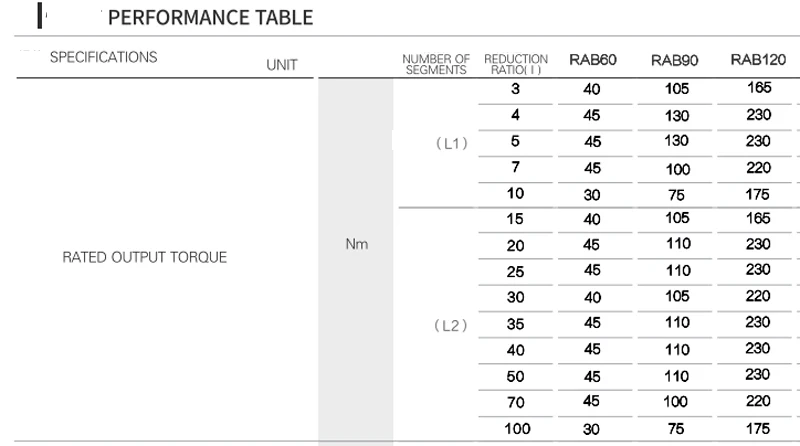

RAB 1 .jpg


>Dimensions

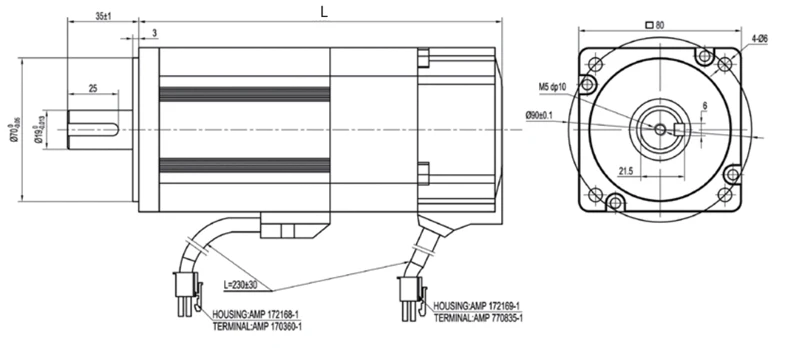

With Brake


80 brake.jpg

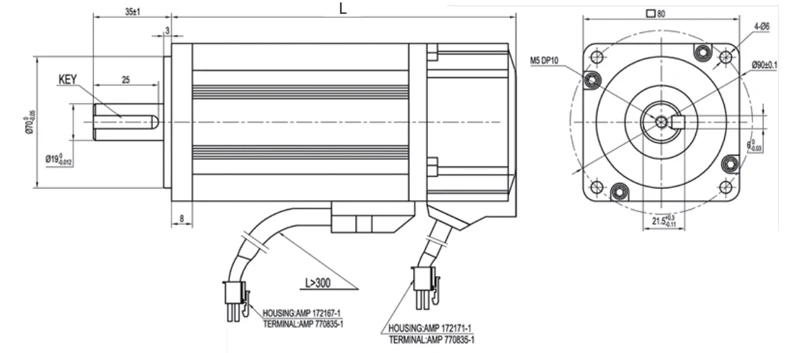

Without Brake:





80 no b.jpg

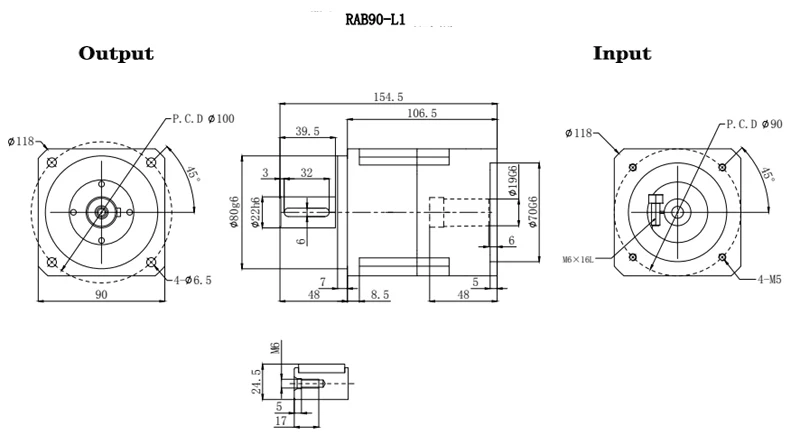

RAB 90 L1 .jpg


>Videos





 The video is available on youtube and our official website,click here to watch.




More products



Related products

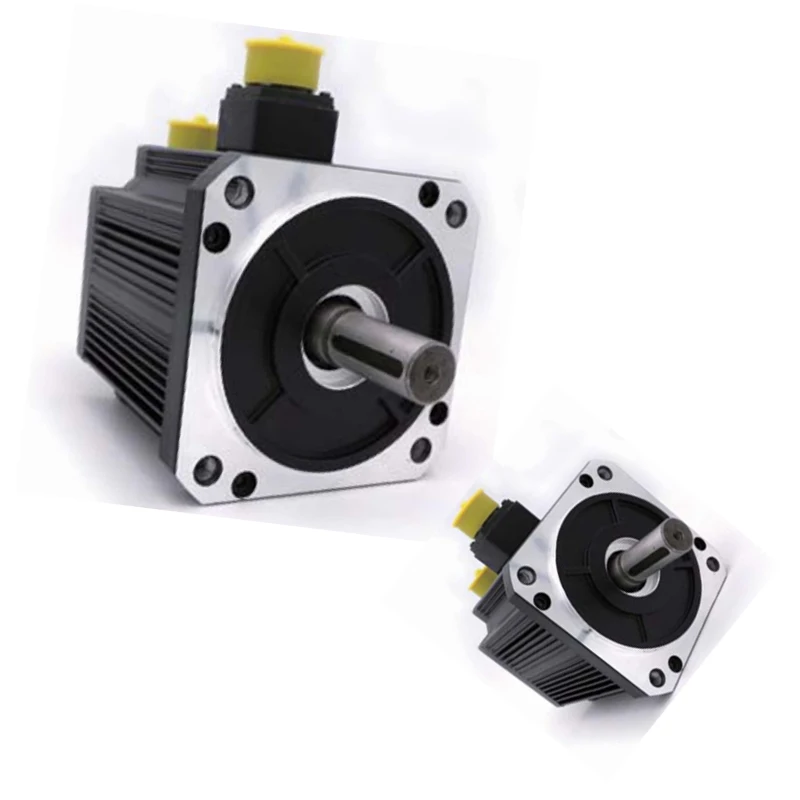

 Similar motor as below picture shows,130 7.jpg









Company Information



Company Information

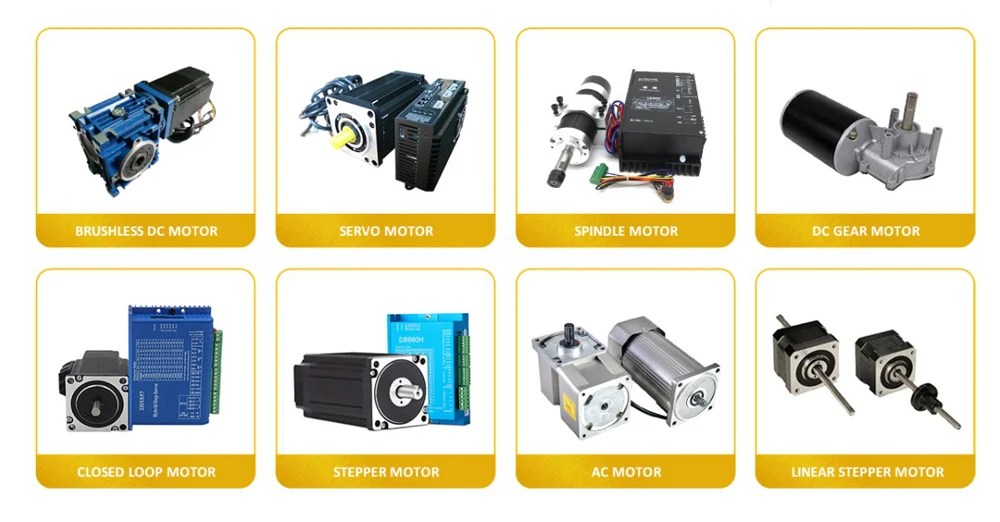

 >Office and factory picturesOur comany and factory were built in 2008, mainly engaged in the design, R & D, manufacture (production) and sales of mechanical,electrical, automation equipment and mechanical parts, such as DC motors,AC motors,stepper motors,servo motors with most kinds of Gearbox,controller,and drivers.


Our comany and factory were built in 2008, mainly engaged in the design, R & D, manufacture (production) and sales of mechanical,electrical, automation equipment and mechanical parts, such as DC motors,AC motors,stepper motors,servo motors with most kinds of Gearbox,controller,and drivers.


>Our values


our culture is win-win,both benefit,with our customers,suppliers and employees.based on good products and good service,cheap price to help everyone be valued.


>Advantages


WE always dedicated to the manufacture of the gearboxes and motor products . the main products can be classified into the following series: namely DC motors, DC gear motors, Servo motors,stepper motor,brushless dc motors, Stepper gear motor, Servo motor with precision gearbox and Linear actuator series and related drivers and controllers. As a major manufacturer of high-performance motor, Bobet Motor offers total satisfaction to its worldwide customers in industry, Agriculture,automotive industry, financial equipment, household appliance, industrial automation and robotics, medical equipment, office equipment, packing machinery and transmission industry, offering customers reliable tailored solutions for driving and controlling. It has been 12 years since the production and business of Shenzhen Bobet Technology Co.,Ltd. And in the growth of Bobet Motor, we have served a great number of foreign customers, our orders are mainly from China domestic market to North America, Europe, and Southeast Asia. It’s proud to say that our products have spread all over the world. And during the years, we have established a strong bond with many customers. Our production base is located in Shenzhen City,Guangdong Province. With the advanced technology and advanced manufacturing facilities,super convenient transport condition, such as shipping by sea,by air and by express which can be picked up and started the delivery within one day, we can finish all the processes independently of making products.Bobet Motors is striving to be your first choice in choosing motor supplier and deliver you the best products and services.


>R&D,production process

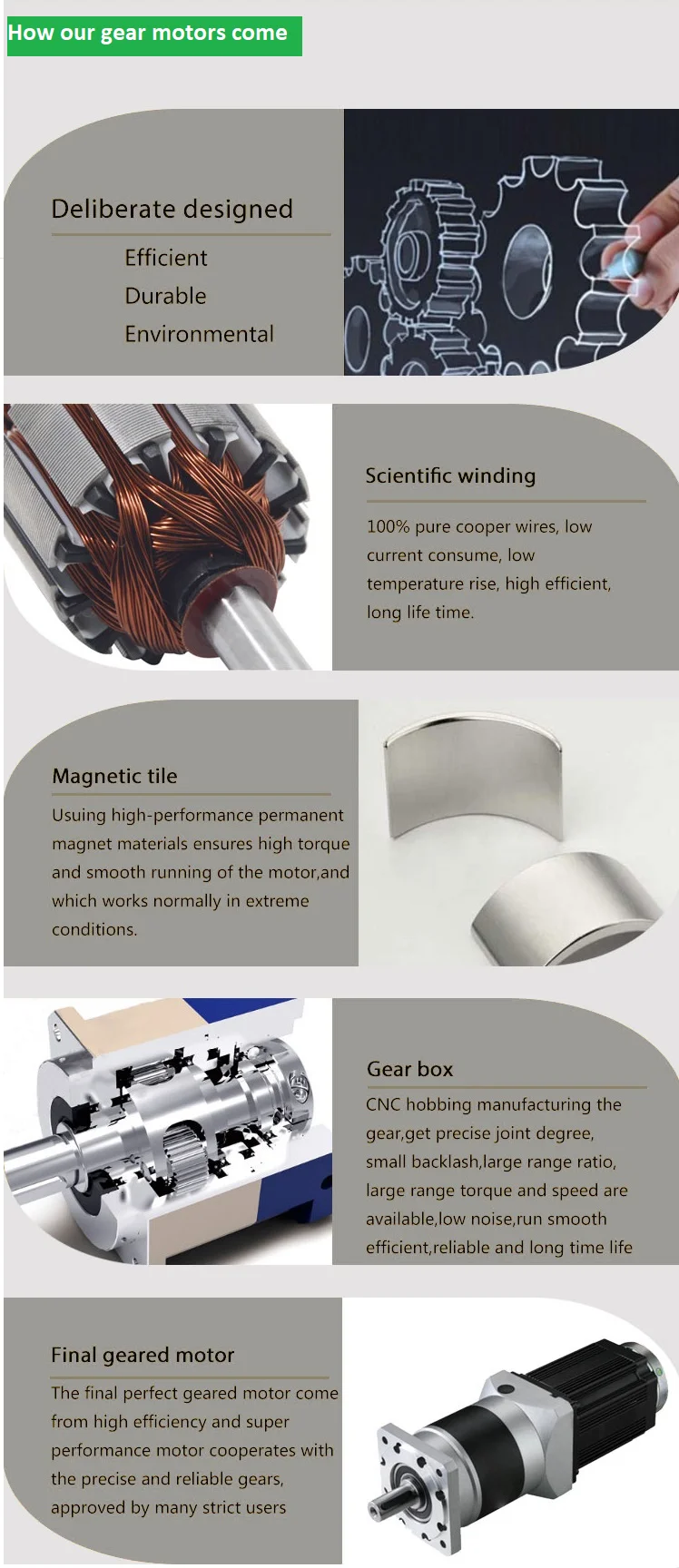

R&D of gear motors .jpg


And in the growth of Bobet Motor, we have served a great number of foreign customers, our orders are mainly from China domestic market to North America, Europe, and Southeast Asia. It’s proud to say that our products have spread all over the world. And during the years, we have established a strong bond with many customers. Our production base is located in Shenzhen City,Guangdong Province. With the advanced technology and advanced manufacturing facilities,super convenient transport condition. we can finish all the processes independently of making products. BOBET came into electric motors fields in earlier 2008, after years some main founders establish this company in 2014, and then always dedicated to the manufacture of the gearboxes and motor products . the main products can be classified into the following series: namely DC motors, DC gear motors, Servo motors,stepper motor,brushless dc motors, Stepper gear motor, Servo motor with precision gearbox and Linear actuator series and related drivers and controllers. As a major manufacturer of high-performance motor, Bobet Motor offers total satisfaction to its worldwide customers in industry, Agriculture,automotive industry, financial equipment, household appliance, industrial automation and robotics, medical equipment, office equipment, packing machinery and transmission industry, offering customers reliable tailored solutions for driving and controlling. It has been 12 years since the production and business of Shenzhen Bobet Technology Co.,Ltd. And in the growth of Bobet Motor, we have served a great number of foreign customers, our orders are mainly from China domestic market to North America, Europe, and Southeast Asia. It’s proud to say that our products have spread all over the world. And during the years, we have established a strong bond with many customers. Our production base is located in Shenzhen City,Guangdong Province. With the advanced technology and advanced manufacturing facilities,super convenient transport condition, such as shipping by sea,by air and by express which can be picked up and started the delivery within one day, we can finish all the processes independently of making products.Bobet Motors is striving to be your first choice in choosing motor supplier and deliver you the best products and services.

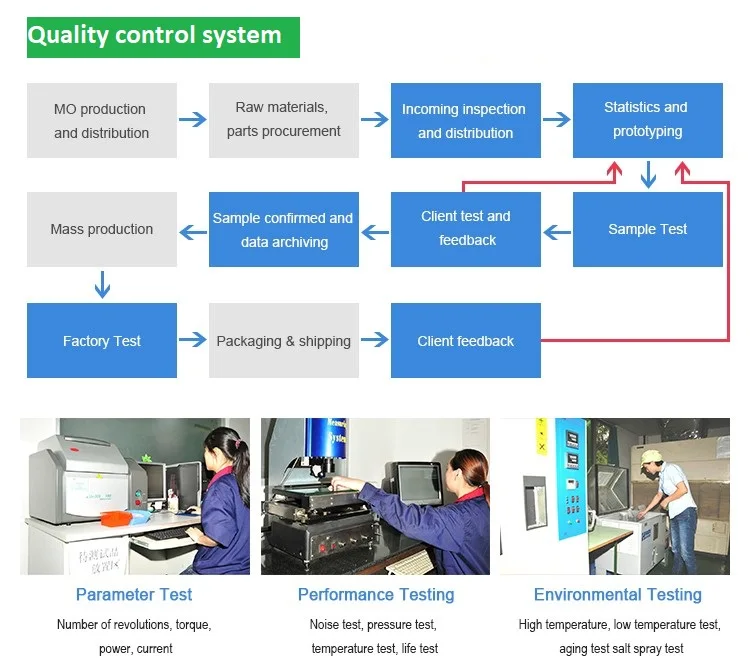

>Quality Control system motor quality control.jpg







>Brand,Certification and Patent


 ISO9001 & ISO14001 certification CE certification reports CE Rohs VDE CCC ISO9000 ISO14000 Ul hundards of Many invention patents about motors and gearboxes


>Team and cultures after years some main founders establish this company in 2014, and then always dedicated to the manufacture of the gearboxes and motor products . the main products can be classified into the following series: namely DC motors, DC gear motors, Servo motors,stepper motor,brushless dc motors, Stepper gear motor, Servo motor with precision gearbox and Linear actuator series and related drivers and controllers. As a major manufacturer of high-performance motor, Bobet Motor offers total satisfaction to its worldwide customers in industry, Agriculture,automotive industry, financial equipment, household appliance, industrial automation and robotics, medical equipment, office equipment, packing machinery and transmission industry, offering customers reliable tailored solutions for driving and controlling. It has been 12 years since the production and business of Shenzhen Bobet Technology Co.,Ltd. And in the growth of Bobet Motor, we have served a great number of foreign customers, our orders are mainly from China domestic market to North America, Europe, and Southeast Asia. It’s proud to say that our products have spread all over the world. And during the years, we have established a strong bond with many customers. Our production base is located in Shenzhen City,Guangdong Province. With the advanced technology and advanced manufacturing facilities, we can finish all the processes independently of making products.Bobet Motors is striving to be your first choice in choosing motor supplier and deliver you the best products and services.






FAQ


Q1: do your company have factory or just wholesale?


A1: we have factory, we do business as wholesale,custom,OEM and ODM . we don't retail.


Q2: do you provide free sample?


A2: Depends. If we have some in stock, and the cost is low, we can provide free samples.


       usually we will charge for samples,but we could provide free samples after the first time till the


       samples are approved.


Q3: How fast can you produce and ship the goods when order is made?


A3: Depends. sometimes we have some standard models in stock, then lead time for samples will be fast.
