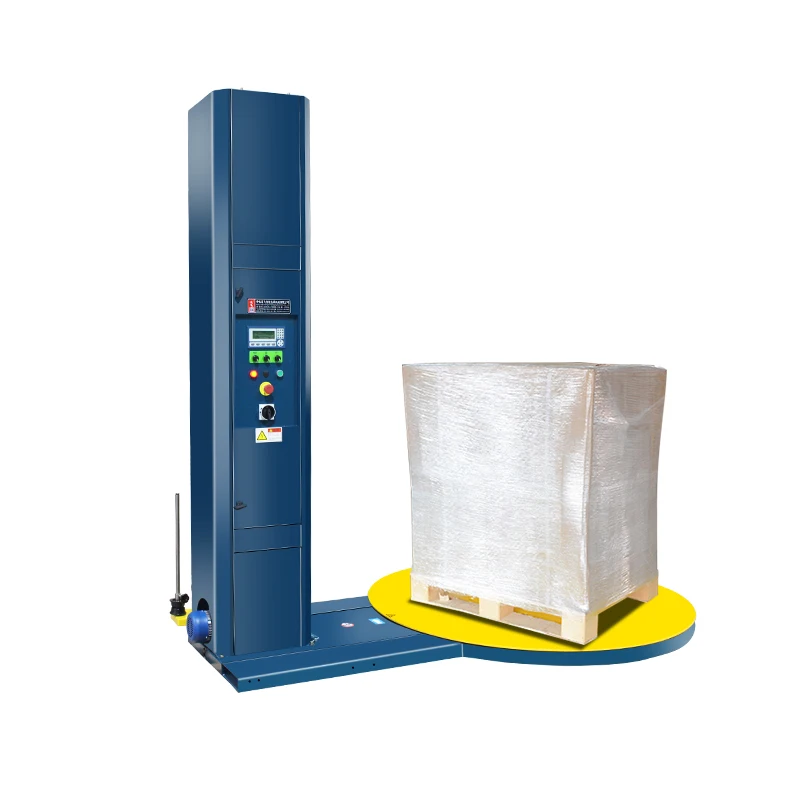

YF 2000 Heavy Duty Film Automatic Pallet Wrapping Machine Wooden Box Film Wrapper Plastic Film Stretch Wrapping Machine Factory
- Category: >>>
- Supplier: Anhui Yifei Intelligent Packaging Machinery Co. Ltd.
Share on (1600468472105):
Product Overview
Description
Product Description
Rotary table type stretching film winding machine automatic pallet stretch film wrapping machine stretch film strapping machine airport luggage strapping stretch film pallet wrapping packing machine for commercial use
The automatic pallet stretch film wrapping machine is suitable for the packaging of containers and bulk pallets of various goods.It can improve the logistics efficiency and reduce the loss in the transportation process. It has the advantages of dust-proof,moisture-proof and reducing the packaging cost.It has the advantages of simple operation, stability and reliability, uniform film spreading and beautiful packaging effect. It is an ideal choice to improve the packaging grade of products.
<1>PLC programmable control.
<2>Export quality CE certification.Famous brand components are used, and Siemens buttons and motors are Meiwa and Inovance frequency converters.
<3>One key winding, the elastic speed can be controlled by frequency conversion
<4>Resistance film winding and pre stretch film winding are optional.And "pre stretching" saves 30-50% of consumables compared with "resistance stretching" under the same conditions.
Product parameter :
Model type | YF-2000 |
Voltage | 1P AC220V /110V, 50hz/60Hz |
Power | About 1kw |
Turntable speed | 0 ~ 10R / min |
Tightness of the film | Automatically adjusted |
Turntable diameter (mm) | 1500mm / 1650mm / 1800mm (customizable) |
Column height (mm) | H = 2400mm (customizable) |
packaging | LLDPE tensile film, width < 500mm, outer diameter ≤ 280mm |
Load range | standard type ≤ 1.5T, increased motor type ≤ 2T |
Max package height | 2000mm (customizable) |
Machine weight | 650 ~ 750KG |
Optional | Steep hill |
Lubricating material | general grease No. 0 |
Machine dimension | 2600*1500*2550mm |
Film specification | Height 100 ~ 500mm, thickness 17-25um (standard) |
The stretch film strapping machine is widely used in glass products, hardware tools, electronic appliances, papermaking, ceramics,
chemical industry, food, building materials, LCD panel and other industries.
chemical industry, food, building materials, LCD panel and other industries.

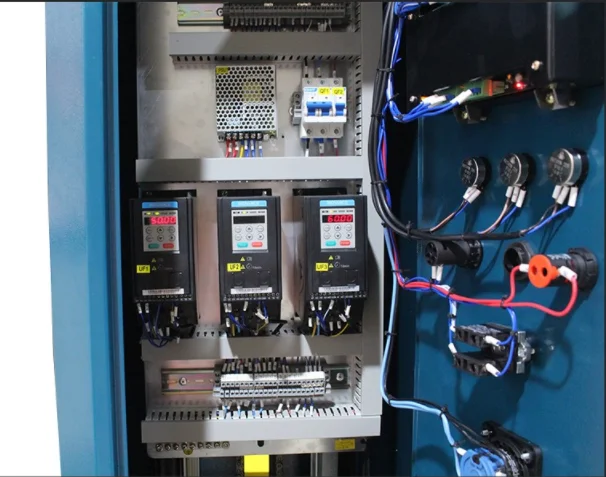

Electrical configuration:
Items | Brand |
Button switch | Siemens APT |
Photoelectric switch, proximity switch and other sensors | YOUNGSUN |
Frequency converter | Inovance |
Text controller | XINJIE |
Motor | Meiwa |
Product Details
Export quality CE certification
Famous brand components are use export quality

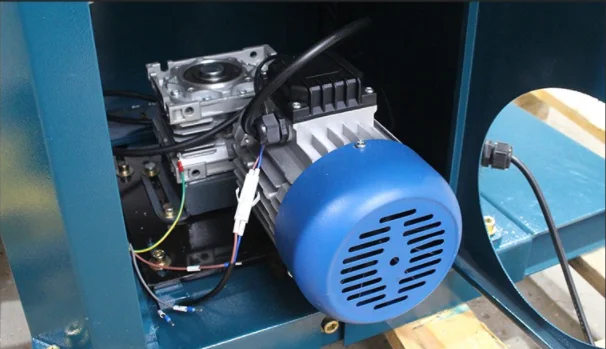

High power motor
High quality high-power motor, stable performance and longer service life

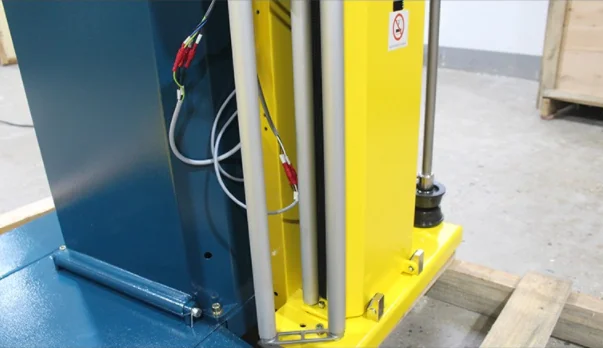

Strong column unit design
High quality metal design makes the machine work more stable

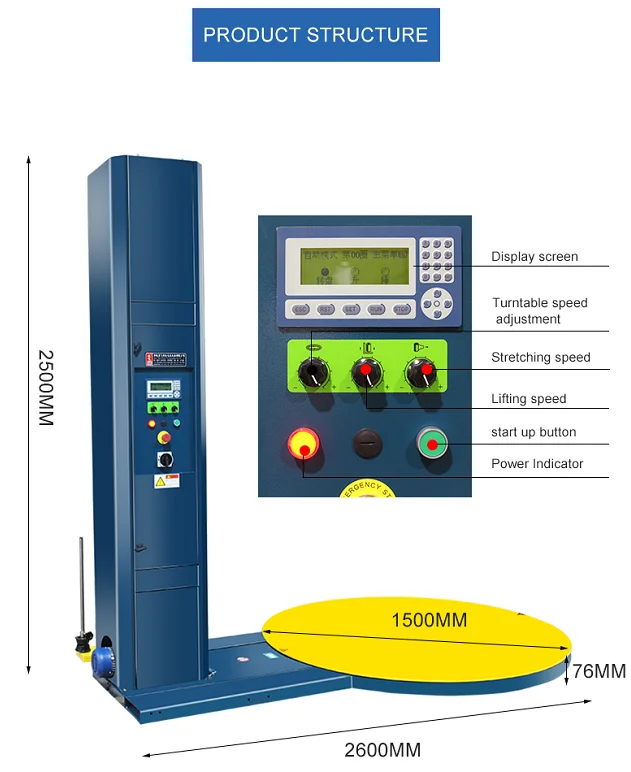

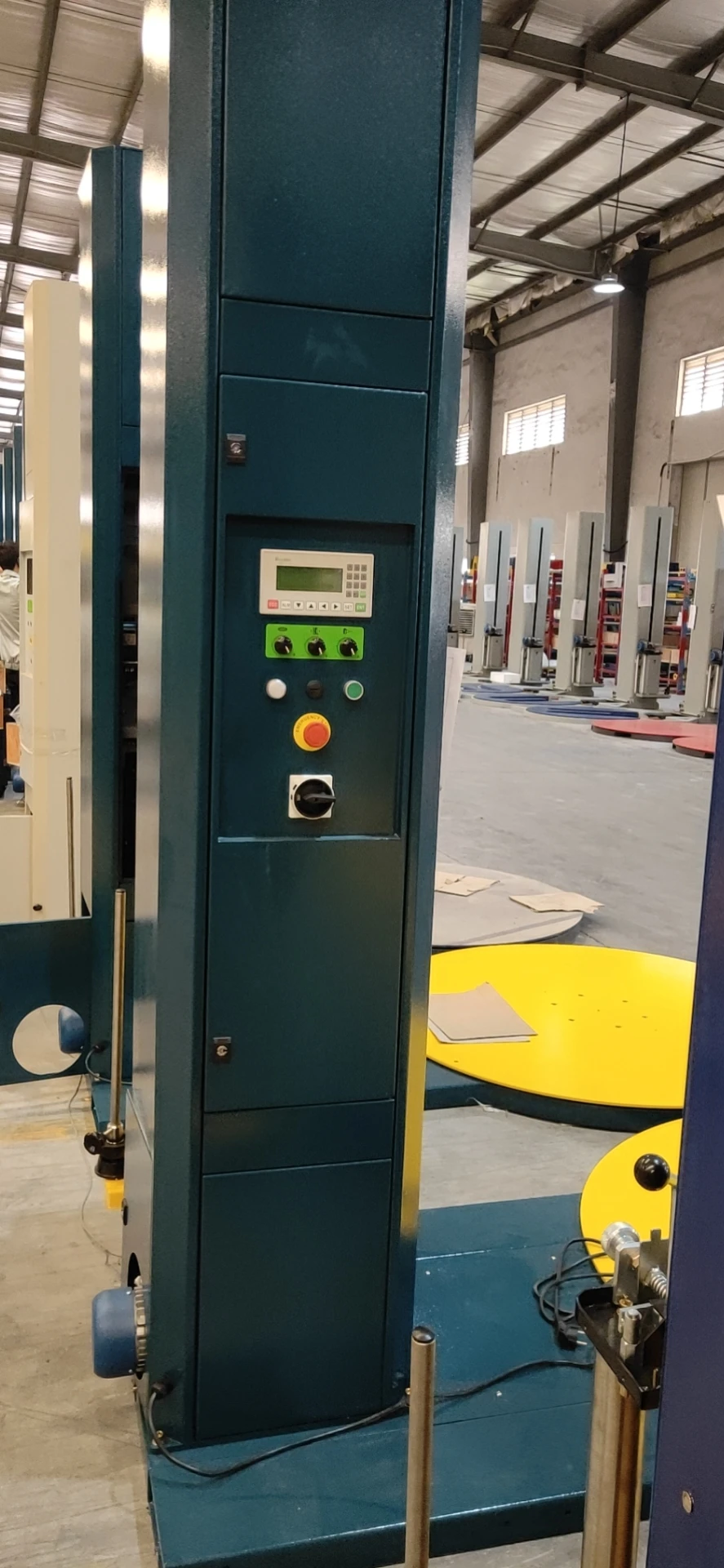

LCD control panel
PLC programmable control, winding layers and times are adjustable
Stability of rotary table and rotary table unit
The turntable is designed to start slowly to prevent the package from falling
Steep hill need to be purchased separately
If you use a hydraulic truck, you may need a loading and unloading ramp
Sample

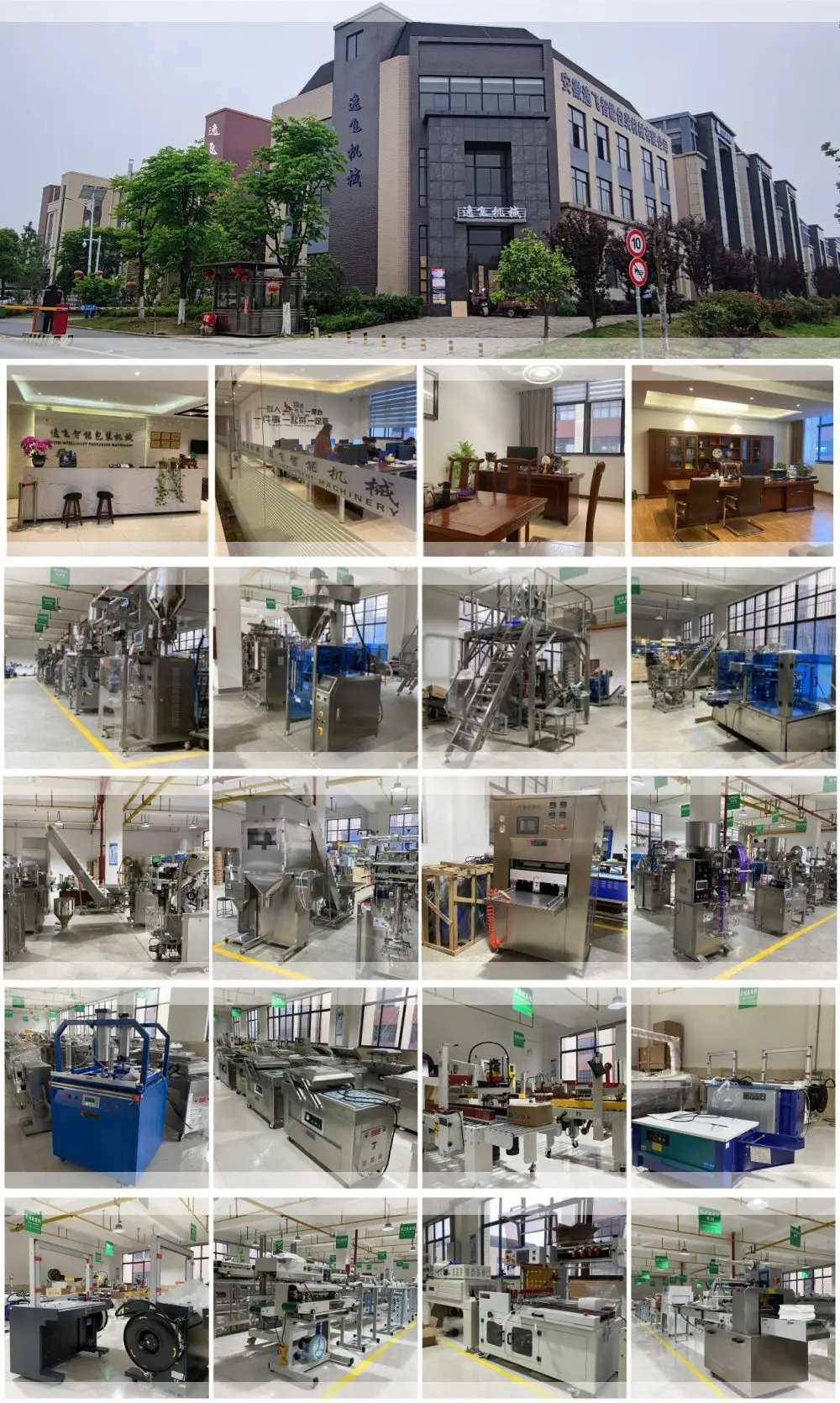

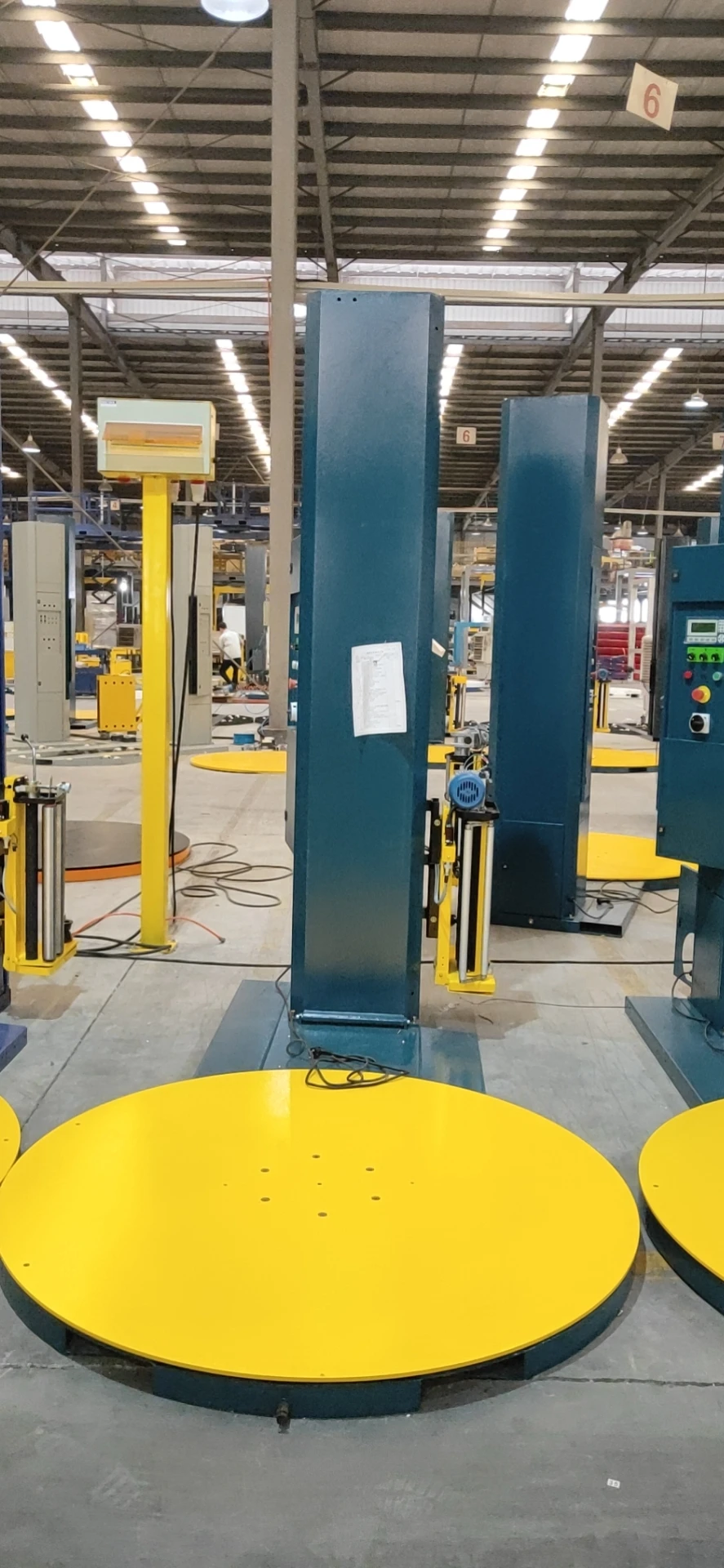

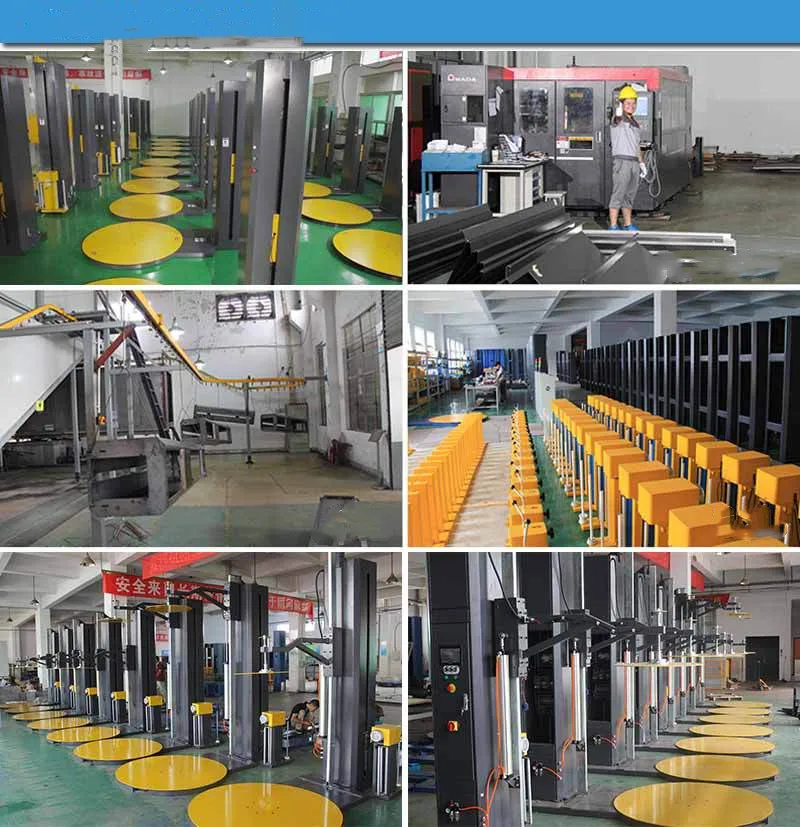

Our workshop:
Exhibition
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd.
1、Our company integrates R & D, design, production and manufacturing which has more than 20 years of experience in manufacturing packaging machinery.
2、The machine is affixed with CE certification, meets export standards and is exported to the world.
3、 It has long-term cooperation with many well-known enterprises in China and all over the world , such as BOE, Midea, SF Express, COFCO.....
4、24-hour one-to-one consultation and guidance, professional sales team and professional technical department to provide support for R & D
Certifications
Packing & Delivery
Our Advantages
*Best product and factory price
*On-time delivery and the shortest delivery time.
*OEM and customized service.
*User manuals will go with relative machines.
*User manuals will go with relative machines.
*1-Year warranty If our product cannot function properly within 12 months,
we'll offer spare parts for free ; and you need to pay for the delivery.
Why Choose Us
1) Warranty Time: 2 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
FAQ
Q: How to find a packing machine suitable for my product?
A:Tell me about your product details.
A:Tell me about your product details.
1. What kind of product you have.
2. The size of your product( the length, width, and height,weight).
A:We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
