2022 YIBANGREN Toilet Roll Automatic Band Saw Cutting Machine
2022 YIBANGREN Toilet Roll Automatic Band Saw Cutting Machine
2022 YIBANGREN Toilet Roll Automatic Band Saw Cutting Machine
2022 YIBANGREN Toilet Roll Automatic Band Saw Cutting Machine
2022 YIBANGREN Toilet Roll Automatic Band Saw Cutting Machine
2022 YIBANGREN Toilet Roll Automatic Band Saw Cutting Machine

2022 YIBANGREN Toilet Roll Automatic Band Saw Cutting Machine

Share on (1600468495891):


Price:$9,500.00

Quantity:


Product Overview

Description





Business Introduction




Raw material - Jumbo roll
Different materials produce Jumbo roll with different GSM and quality，You can find Jumbo roll suppliers in your local or nearby countries, they can customize Jumbo rolls in different sizes and GSM for you.
Production line machinery
We have enough machine models to support Jumbo rolls of different sizes, fully automatic in every production step from rewinding, cutting, single roll packing, multi roll packing




Click on the picture above to link to the corresponding machine introduction
The above complete production line can be used as a reference for starting a business, or you can choose the machine you need separately, and we will customize a more suitable solution for you


Product Description

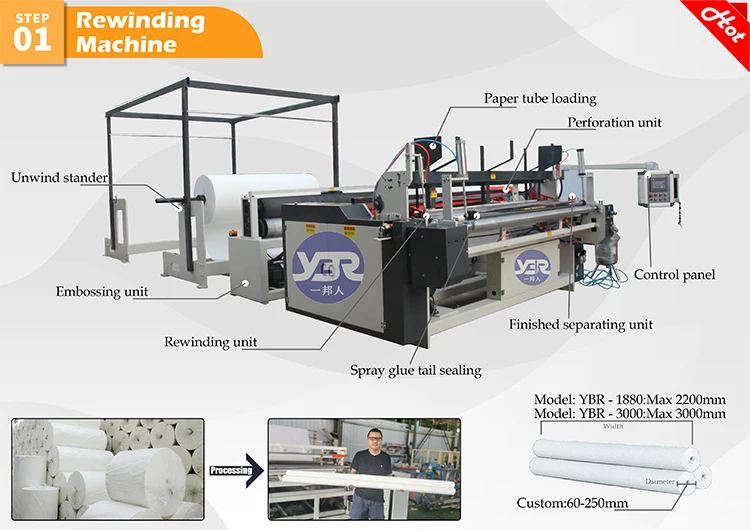

Toilet Tissue Paper Rewinding Machine Parameter
Machine model
1880
3000
Max Jumbo Roll Width
2200mm
3000mm
Jumbo Roll diameter
Φ 1100mm (Other size to be specified)
Jumbo Roll core diameter
Φ 76.2mm (Other size to be specified)
Finished roll diameter
Φ 70-135mm （Tightness adjustable）
Finished roll core diameter
Φ 32-50mm
Perforation pitch
4 perforating blade 110mm, 2 perforating blade 220mm (Other Size to be Specified)
Braking
Electronical / pneumatic
Pneumatical System
Air Compressor, minimum pressure 5kg/cm2pa(offered by customers)
Control Voltage
380V 50Hz
Total Power
Conversion adjusting 7.5-15kw
Embossing
Pneumatic Embossing, pattern or edge
Parameter setting
LCD screen operation panel
Programmable controller
Programmable controller (PLC)
Machine Speed
200m/per min
Automatic function
Dropping tube core, Glue edge sealing, Push roll to cutter
Option
Unwind stand
1-3 ply
Finished roll rewinding
Coreless rewinding system
Advanced embossing
Steel to Steel Embossing
Laminating and Gluing
Gluing form point to point or point to the whole surface of the paper and with color


Perforration unit
The width of the Perforation knife roller is the same as that of the machine. It supports Jumbo rolls of various sizes. The hole spacing can be adjusted as needed, and the precision is accurate.
Paper tube loading
Fully automatic loading paper tube, it will stop when there is no tube, supporting both tube and tubeless production modes
Tail sealing
Fully automatic slitting finished rolls and spraying glue to the roll tail at the same time, then sealing the edges


Finished Product Details






Contact Us


YIBANGREN AUTOMATION EQUIPMENT CO.,LTD
Email: sharon@gxydzy.com
Moblie: +86 18778095910
Whatsapp: +86 18778095910
Wechat: +86 18778095910
Add:No.9 Huarong Road, Eastern Industrial Park, Liuzhou city, Guangxi, China


Delivery


1. Standard export packing：Inner package: Pearl film，Outter package: wooden pallet woden box，Can
be customized according to customer's requirements
2. We will test the machine many times before delivery to ensure the stable operation of the machine
3. Support the factory inspection or video inspection before delivery.
4. Wood - packed goods are fumigated before being shipped
