Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000

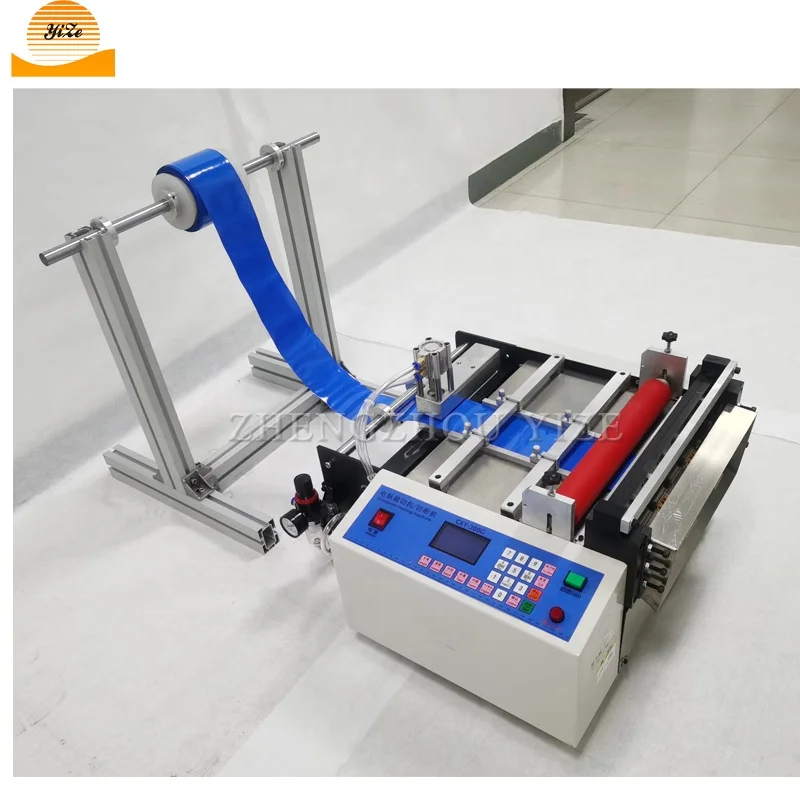

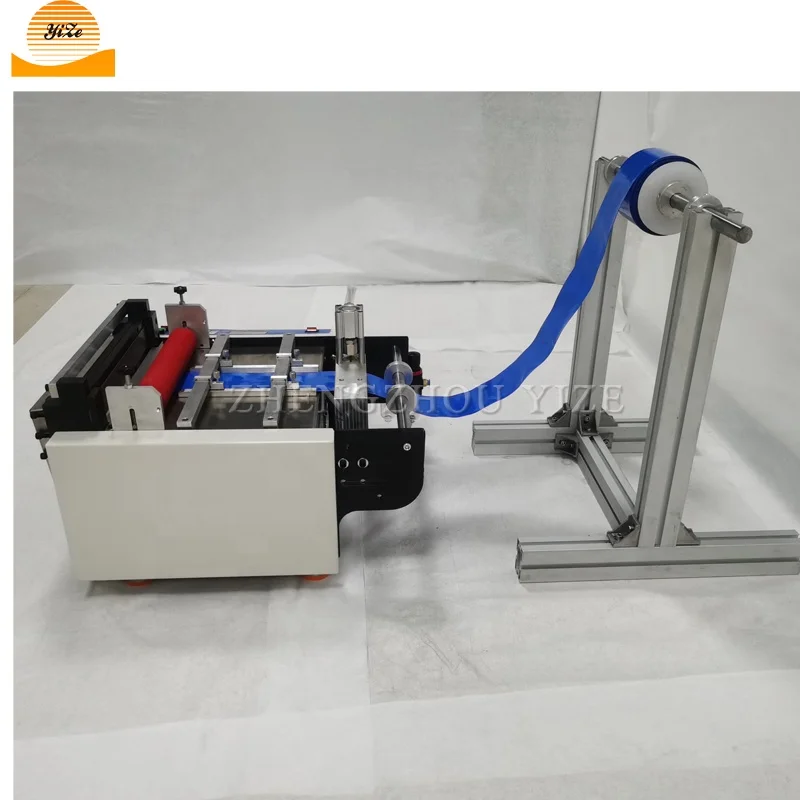

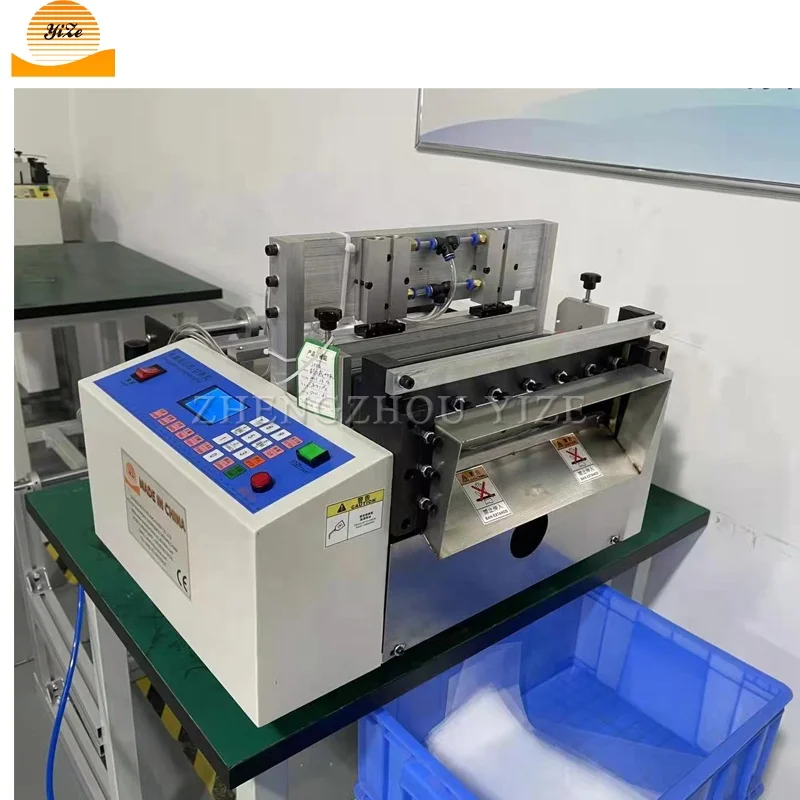

bags hole punching machine paper or pvc roll cutting machine Bubble Film Cutter Cutting Machine For Packaging
- Category: Packaging Material Making Machine >>>
- Supplier: Zhengzhou Yize Machinery Co. Ltd.
Share on (1600468500898):
Product Overview
Description
Product Description
Introduction of protection plastic pvc shrink film opp bag cutting sealing making machine
The machine has punching cutting and heat sealing function, can be used for making various PE PP OPP PVC plastic bags.
Feature:
1. Simple operation panel
Simple panel, simple operation, Chinese and English switching, LCD screen
2. High-strength high-performance steel knife
The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven surface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate
3. Multi-function button
Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting
4. Rugged guide strip
High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the efficiency and save labor.
The machine has punching cutting and heat sealing function, can be used for making various PE PP OPP PVC plastic bags.
Feature:
1. Simple operation panel
Simple panel, simple operation, Chinese and English switching, LCD screen
2. High-strength high-performance steel knife
The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven surface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate
3. Multi-function button
Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting
4. Rugged guide strip
High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the efficiency and save labor.
Model | YZCQ-200GD/300GD/400GD/500GD/600GD,,,,,,and customized models |
Max. Cutting width | 200mm/300mm/400mm/500mm/600mm/customized model..... |
Cutting length | 0.1-9999mm adjustable |
Cutting precision | 0.1mm |
Cutting speed | Max.80m/min(depends on the cuting length) |
Voltage | 220V 50HZ single phase |
cutting blade material | High precision stepper motor |
cutting motor | High power Reducer variable spee |
Voltage | 220V/110V,50/60hz, Ac-------380v/,50/60hz,3phase |
Language | Chinese and English (Spanish is Optional) |
Package | Wooden case/CartonSend messages to us for actual packing size |
Optional functions | Punching hole function+cuttingPunching +cutting+heat sealing function |
Detailed Images

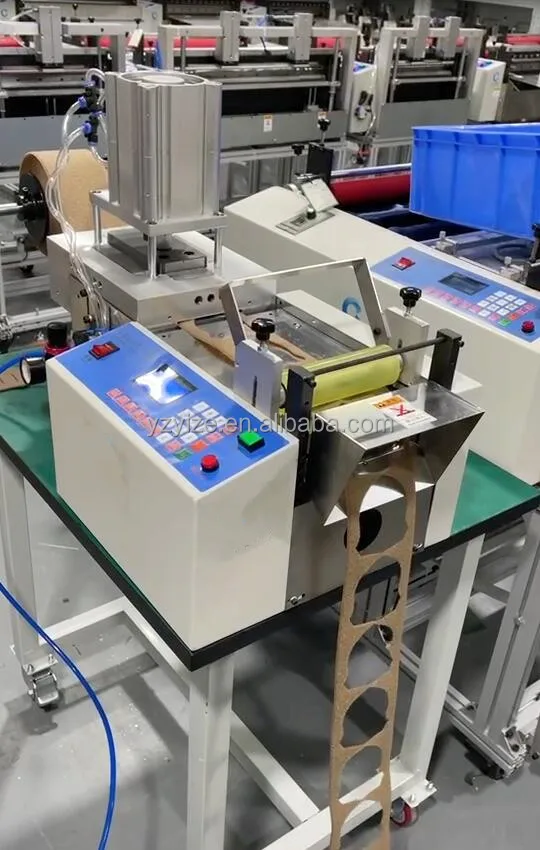

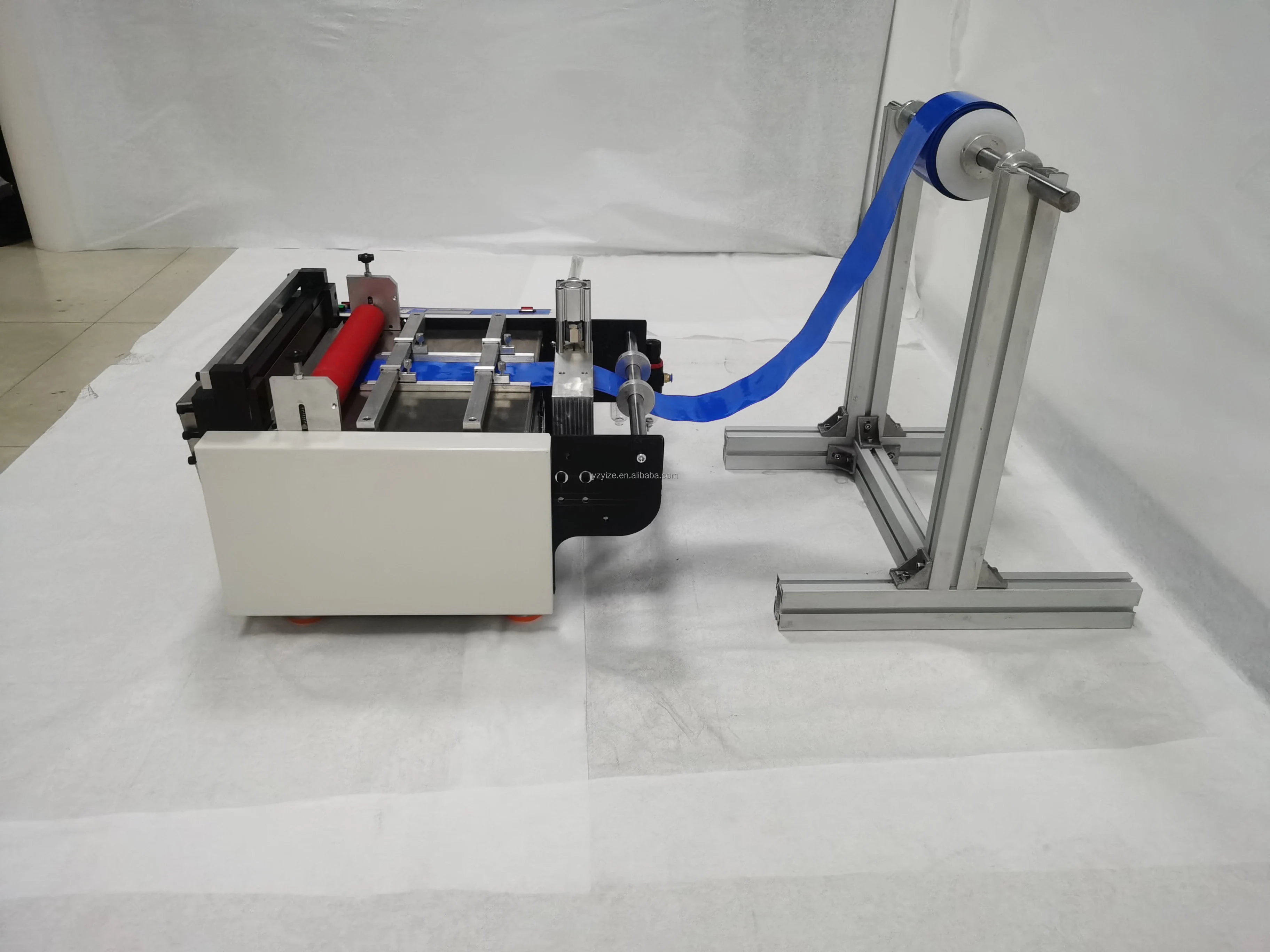

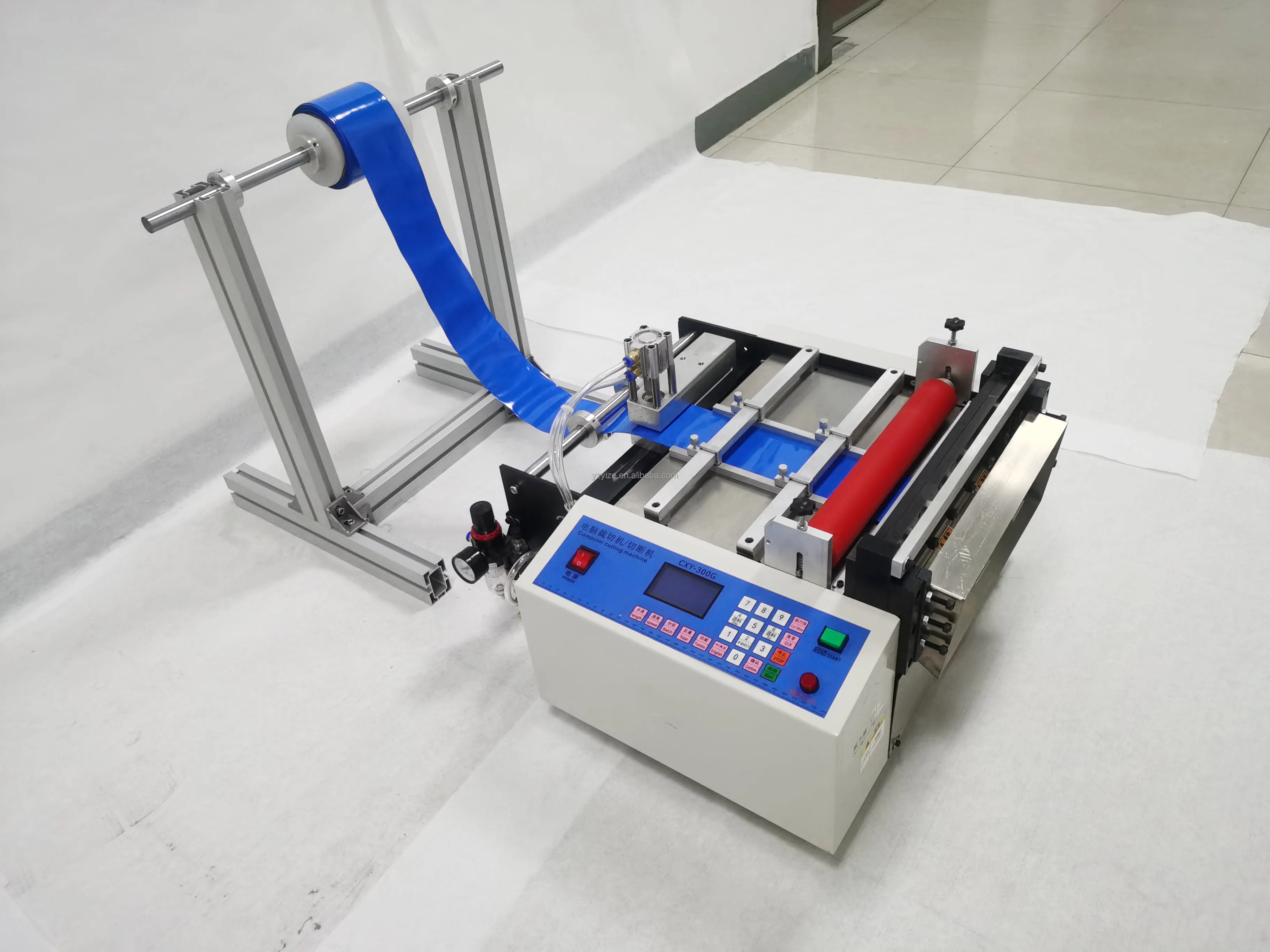

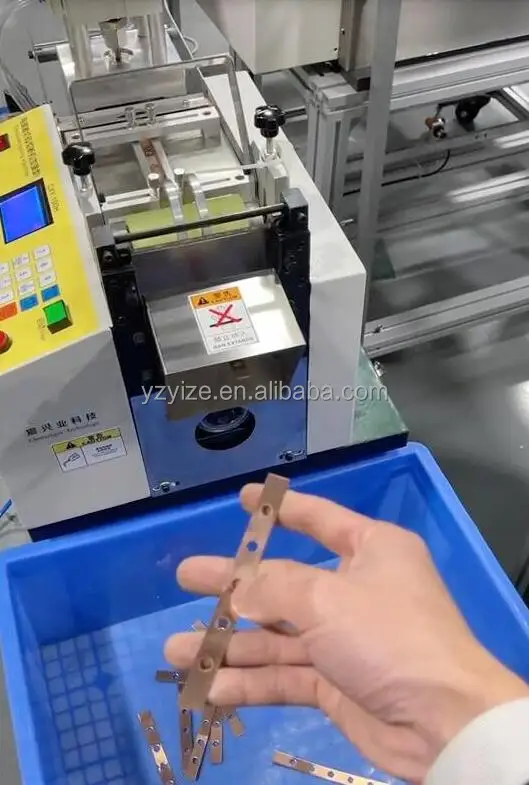

1.Computer Punching/ Die Cutting Machine-Table type
There is no shelf, only a set of traction wheels, no photoelectric sensor, and the maximum load is 40kg

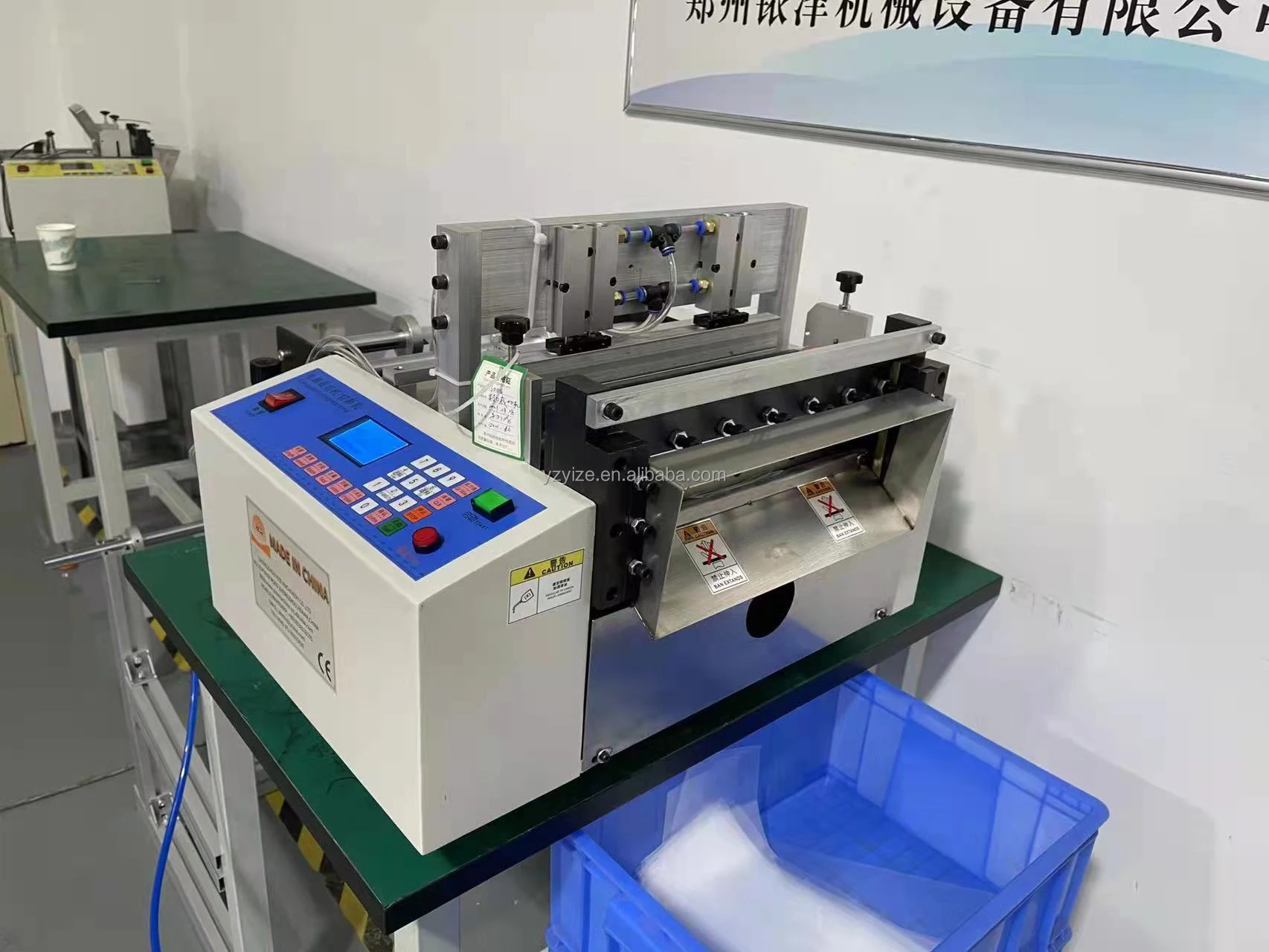

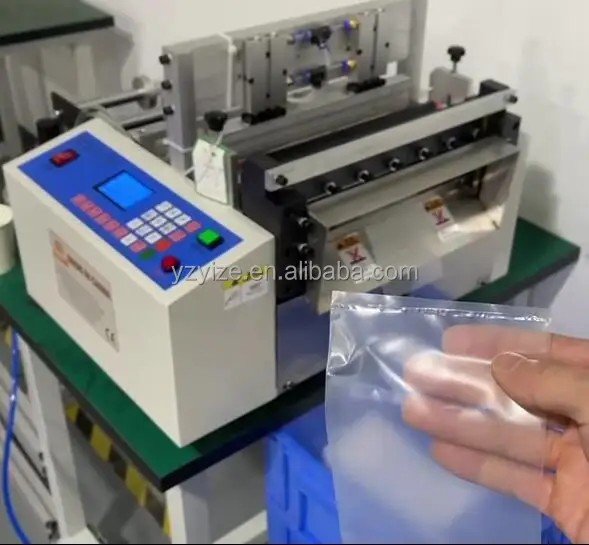

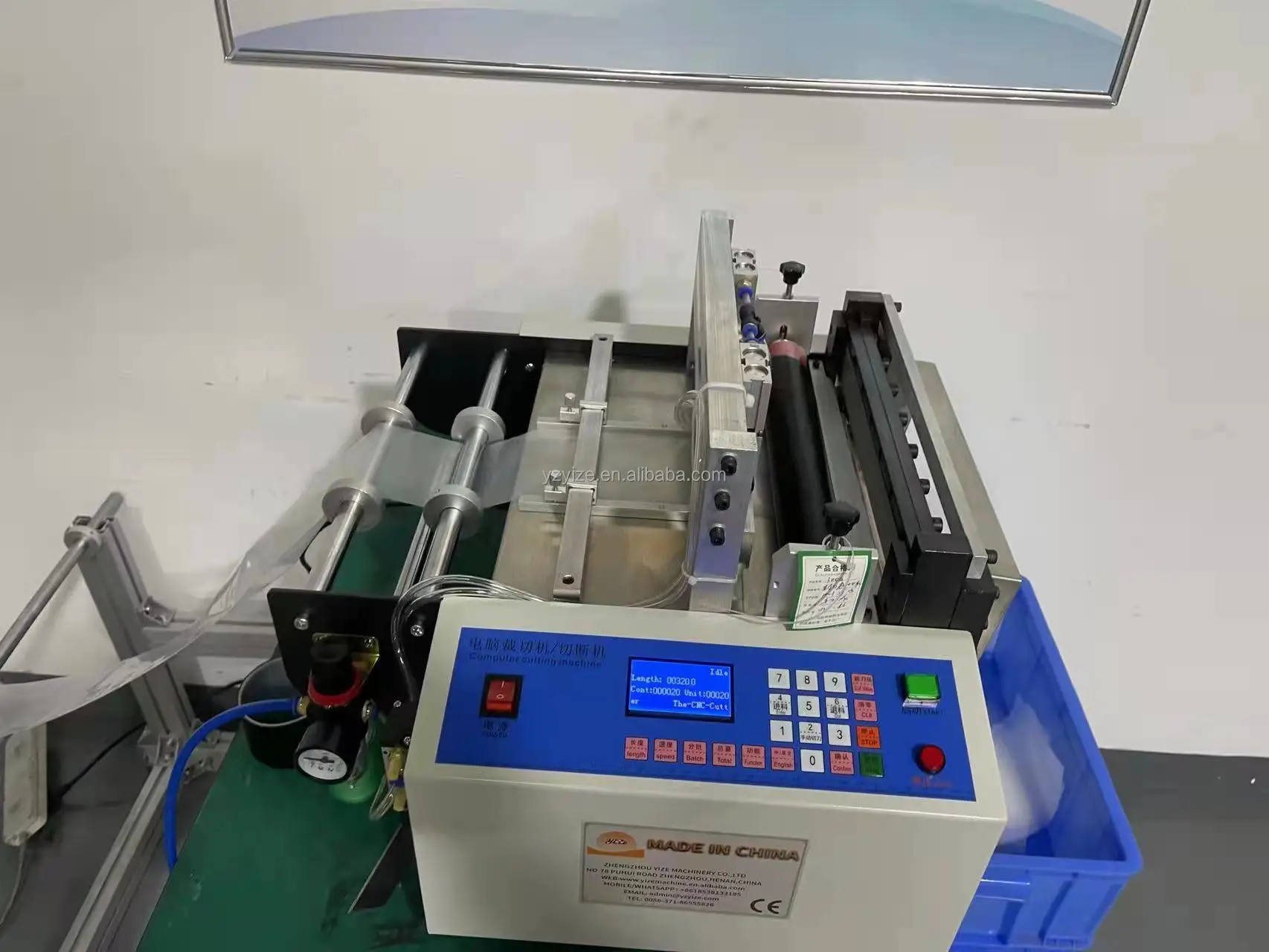

2. Automatic bag heat sealing and cutting machine-Table type
There is no shelf, only a set of traction wheels, no photoelectric sensor, and the maximum load is 40kg

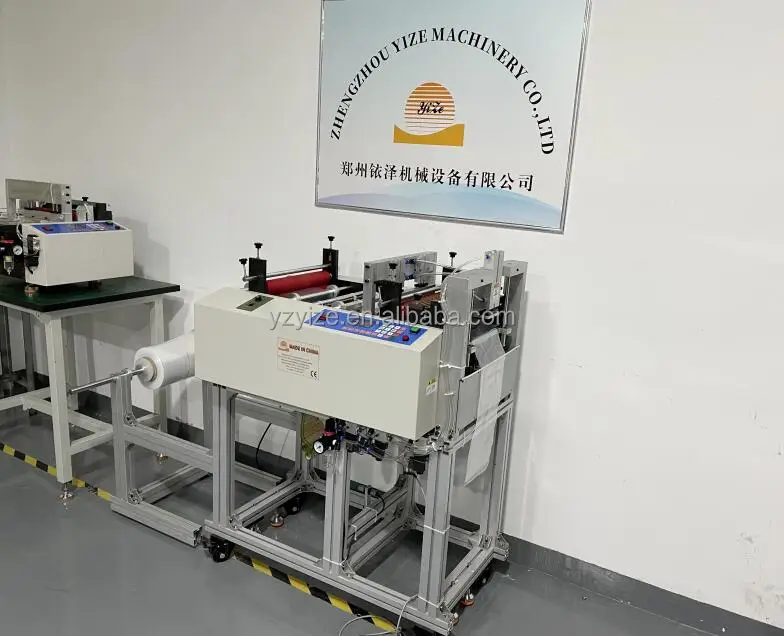

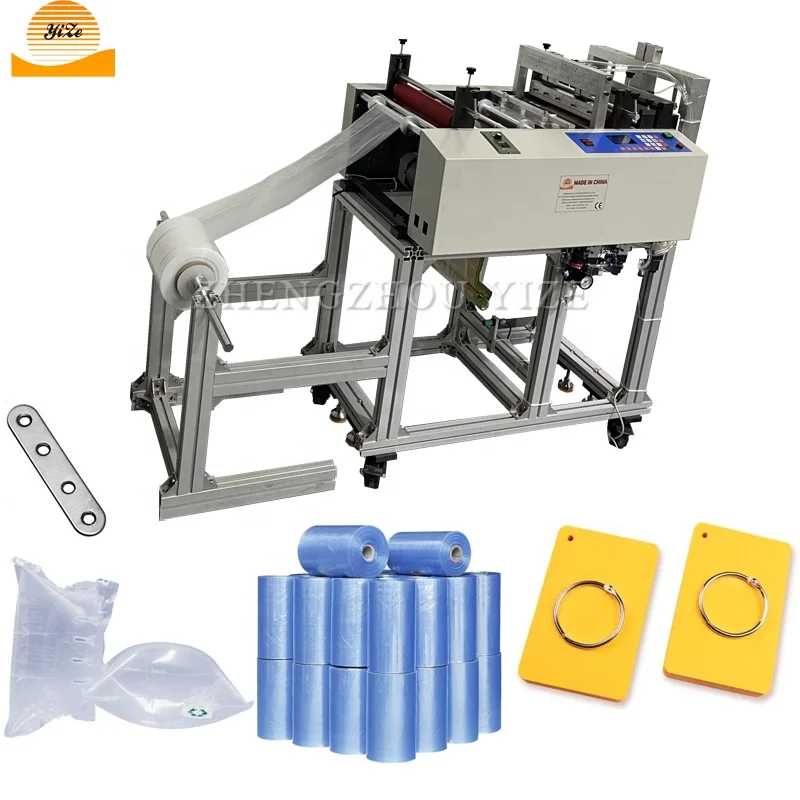

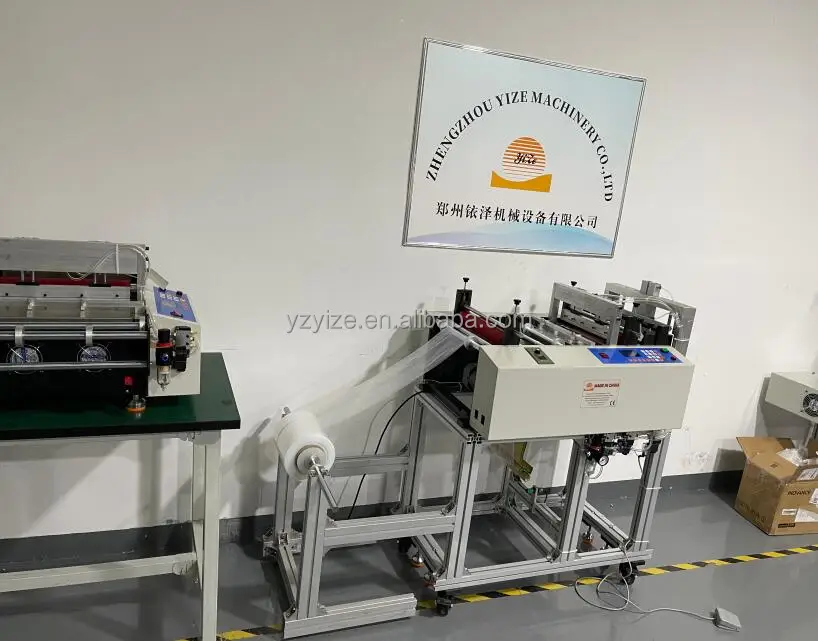

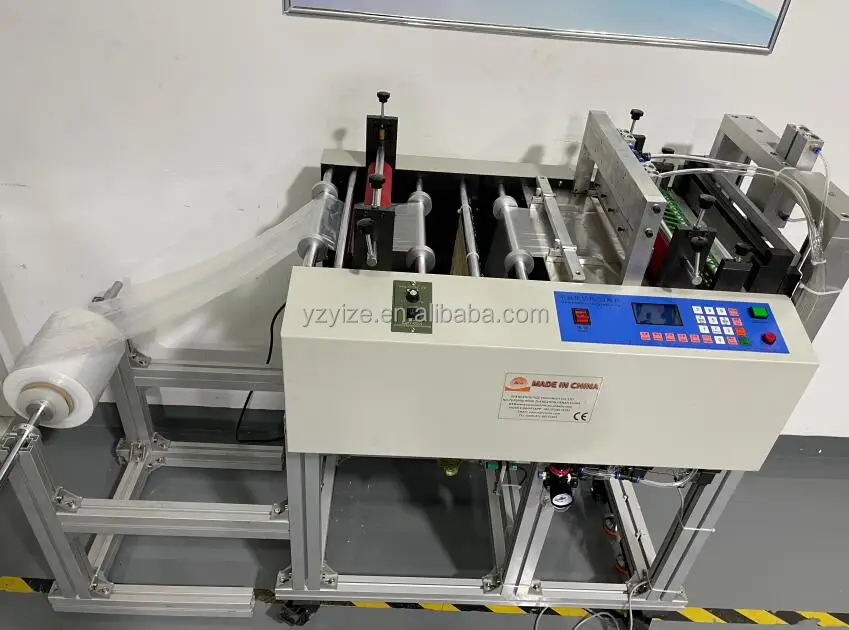

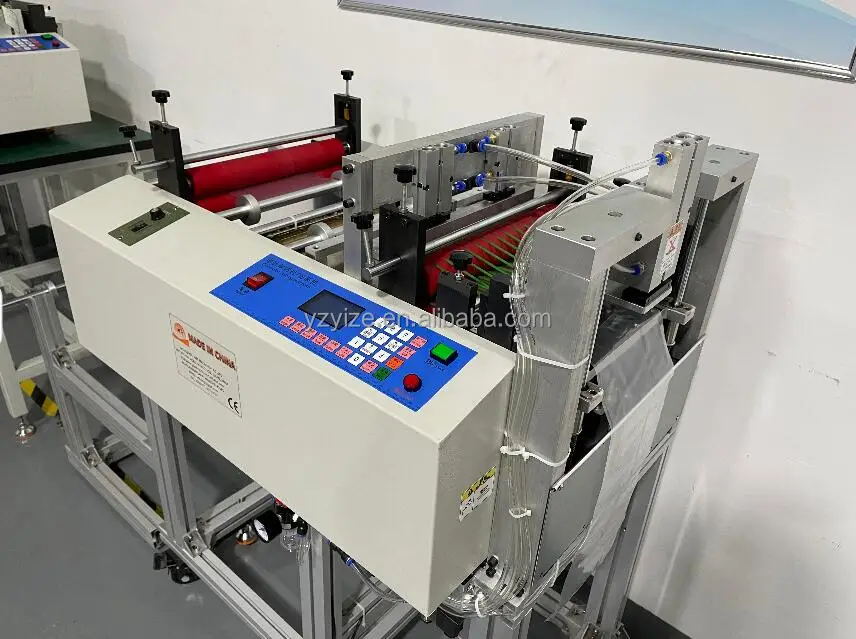

3.Automatic computer bag punching,sealing and cutting machine with bag collecting function.-Vertical type
It has a full set of racks and two sets of traction wheels with photoelectric sensors, automatically pulls out the material, and prestores a section, so that the material enters the machine easily and not too heavy, so that the cut size is more accurate and the largest 150kg-200kg.
1. Chinese and English operating system: LCD display, one-key conversion between Chinese and English, simple panel, simple
operation.
operation.
2. Vacuum heat-treated steel knife: Use high-quality SKD11 high-speed steel knife with a special mechanical structure, the blade is sharp, durable,
and ensures that the cut surface is flat and free of burrs.
and ensures that the cut surface is flat and free of burrs.
3. Feeding rubber wheel: wear-resistant, pressure-resistant and high-temperature resistant, equipped with pressure regulating screws
at both ends to effectively prevent material from slipping.
at both ends to effectively prevent material from slipping.
4.Speed control controller: Knob speed control, speed can be adjusted at any time, simple and convenient, equipped with AC variable speed motor, with photoelectric
induction pre-discharging.
induction pre-discharging.
5. Vertical bearing rack: floor-standing design, stable and sturdy, equipped with bearing material cone, labor-saving and durable, and can be used to place various material rolls.
6. Multiple sets of super-powered fans for heat dissipation and exhaust, reduce the heat of the machine and ensure that the machine works for a long time.

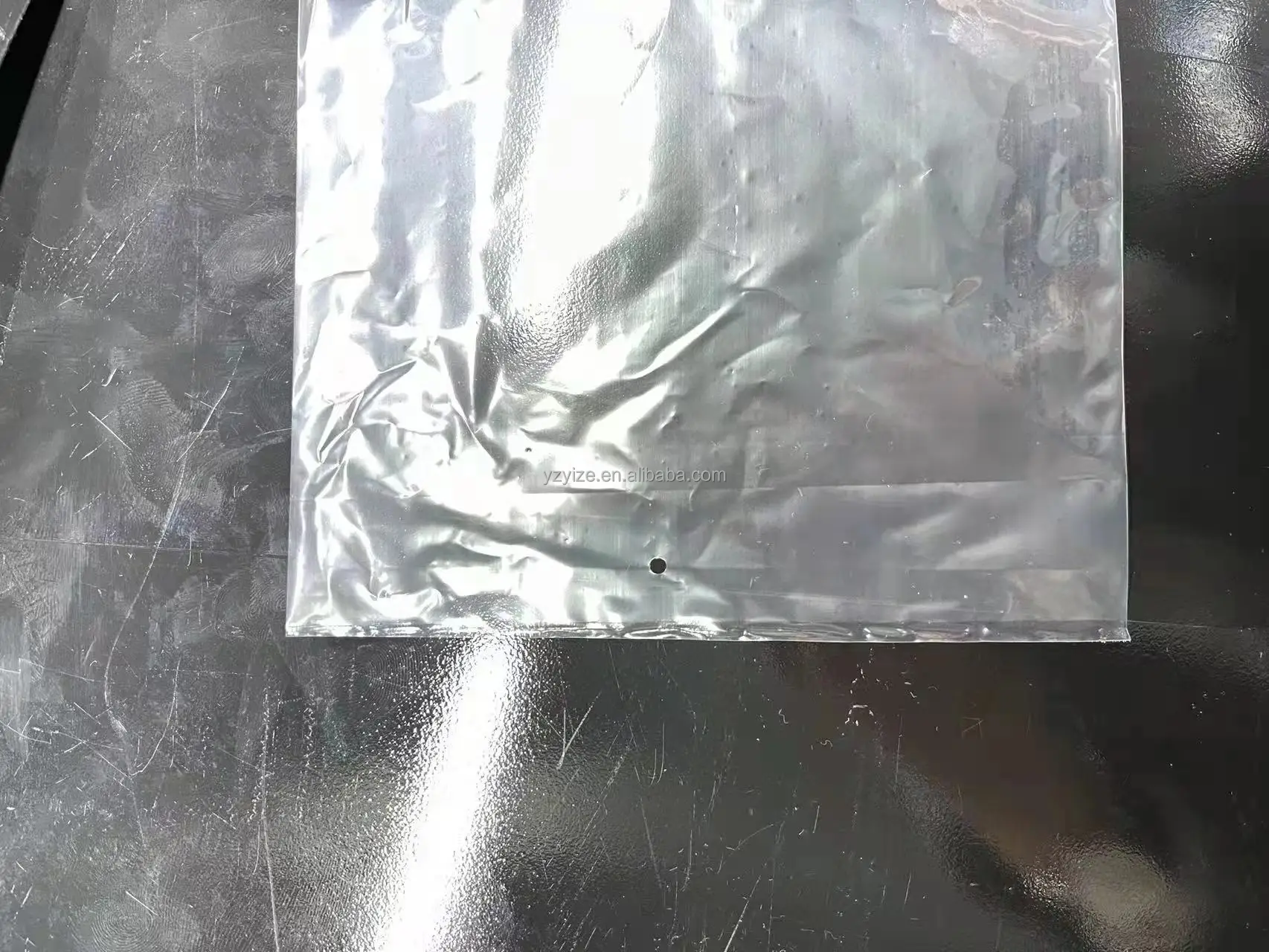

Our machine can be suitable for many material as below:

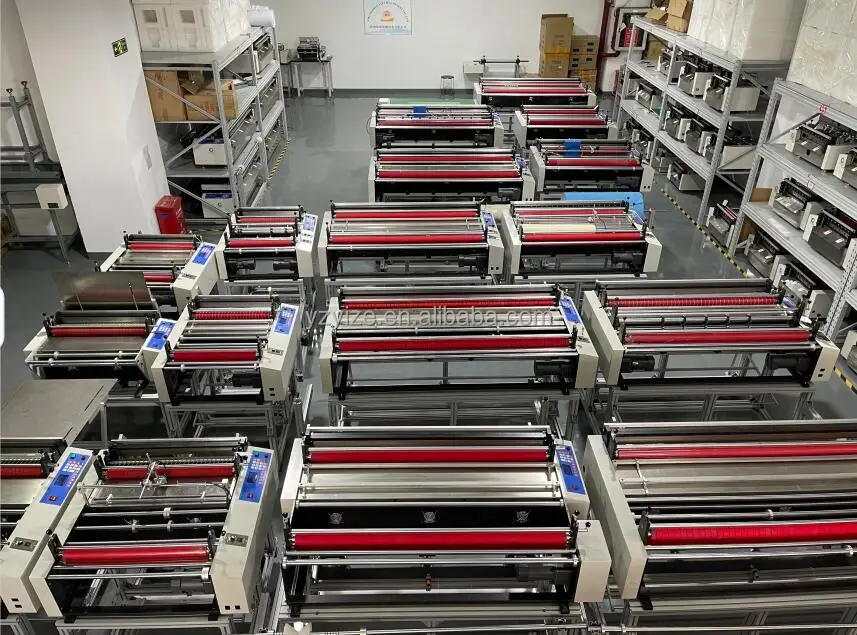

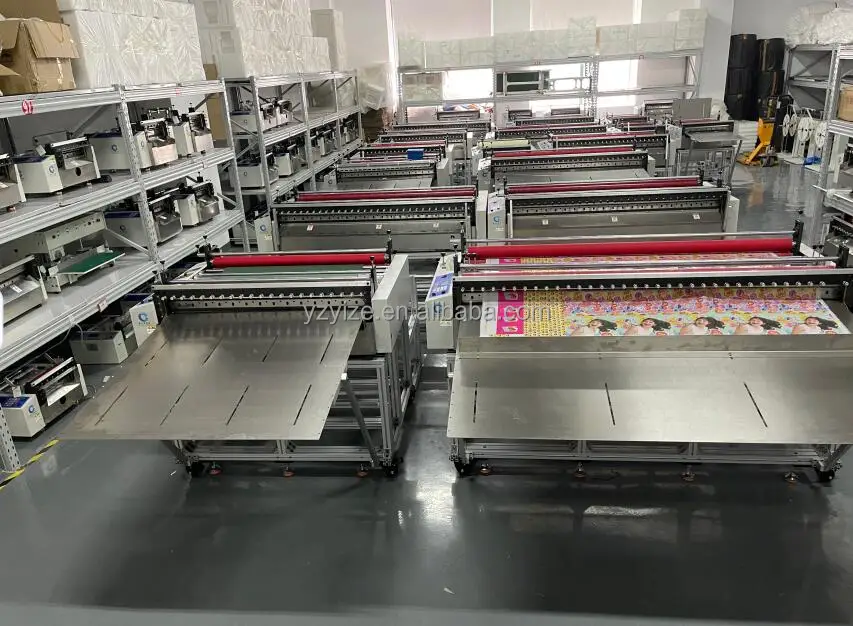

Our warehouse:
The machine will be packed in standard carton box or export wooden case to keep safe.
Packing & Delivery
Our Service

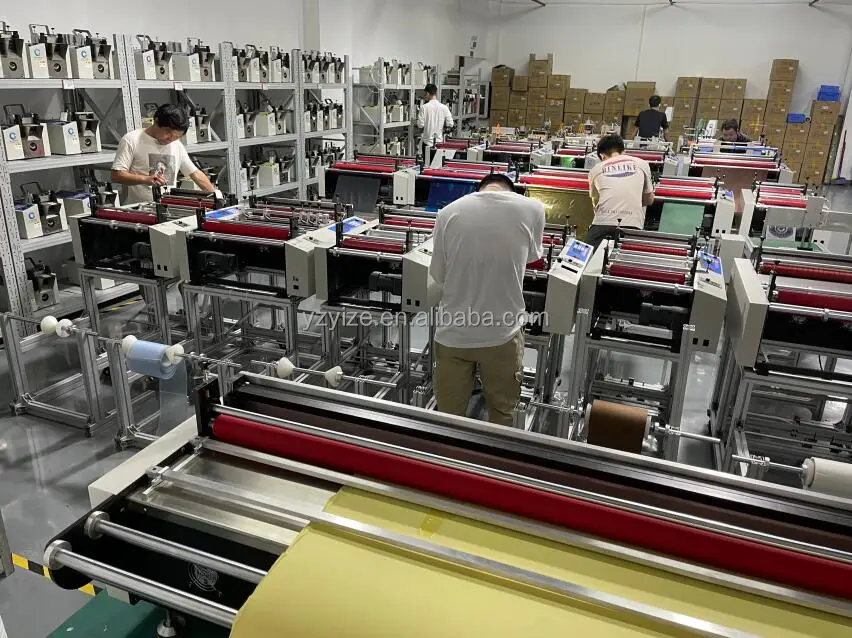

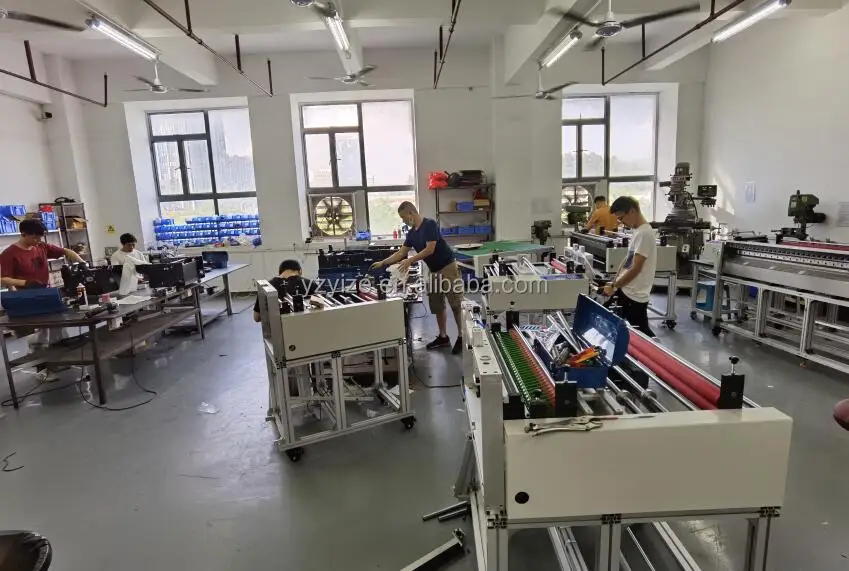

Workshop & Company & Customer

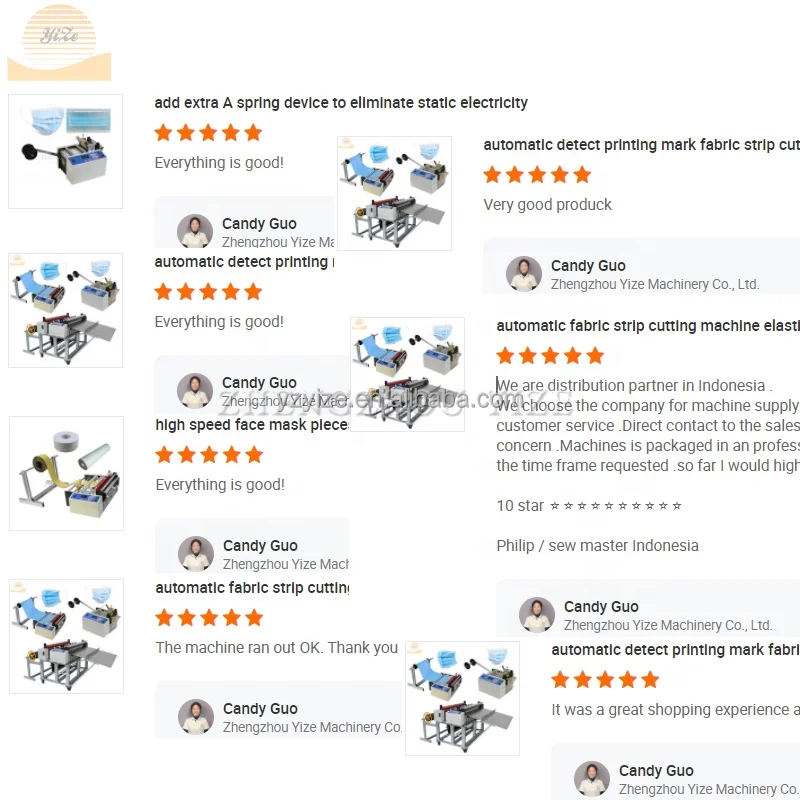

Transanction & Feedback
