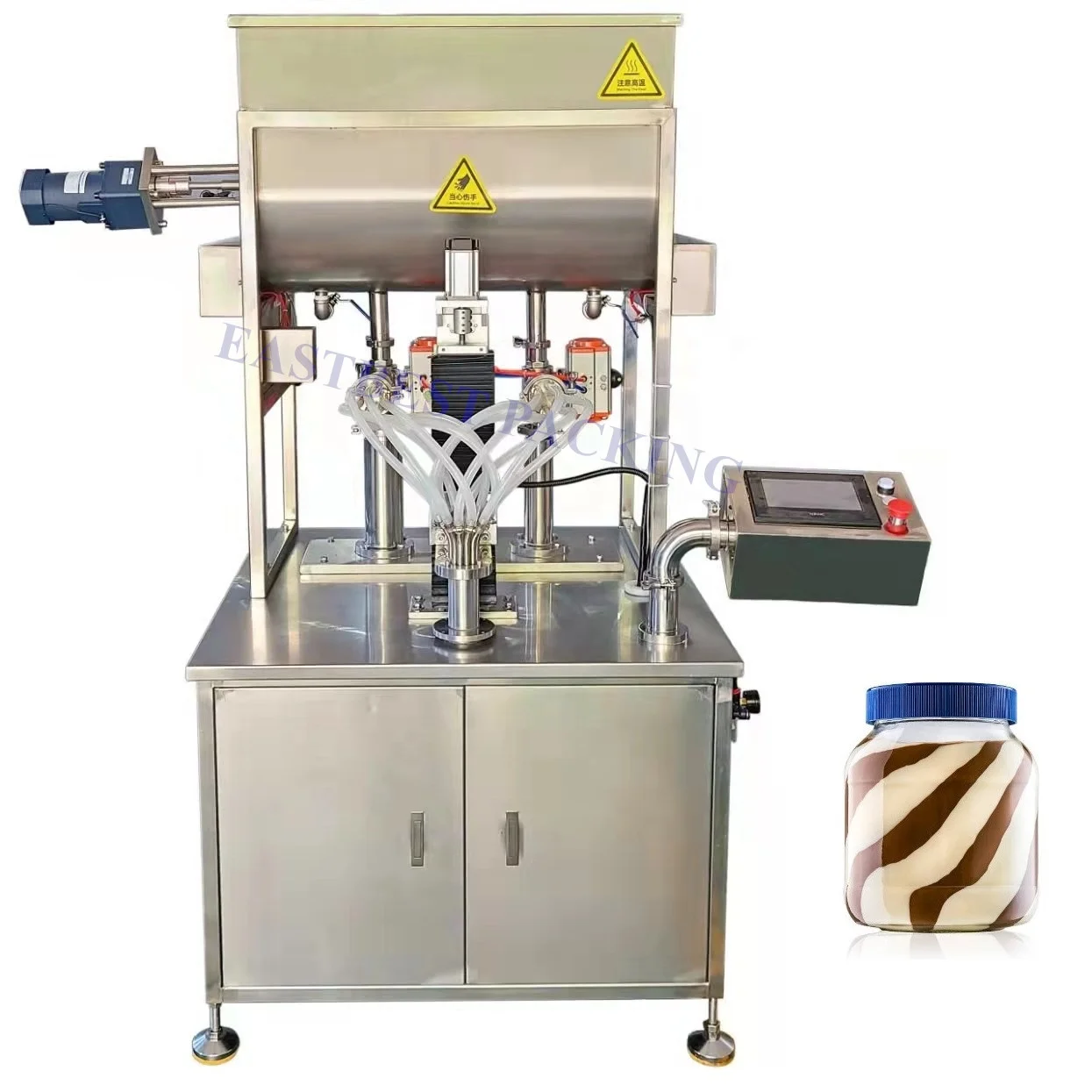

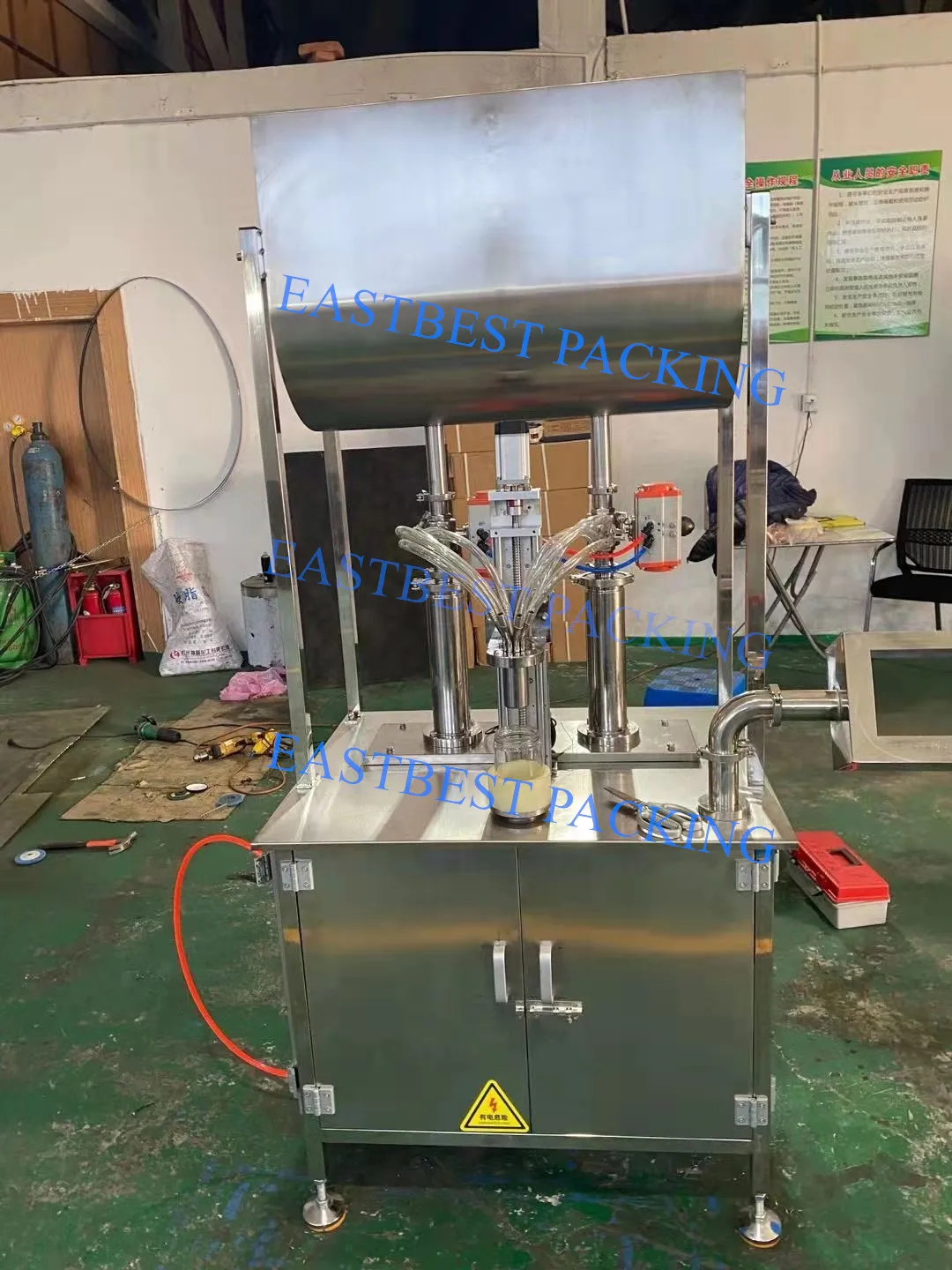

glass jar chocolate swirl peanut butter duo spread filling machine filler

Share on (1600468508694):


Price:

Quantity:


Product Overview

Description



Product Description


Product name
glass jar chocolate swirl peanut butter duo spread filling machine filler
Model
EB-STC1

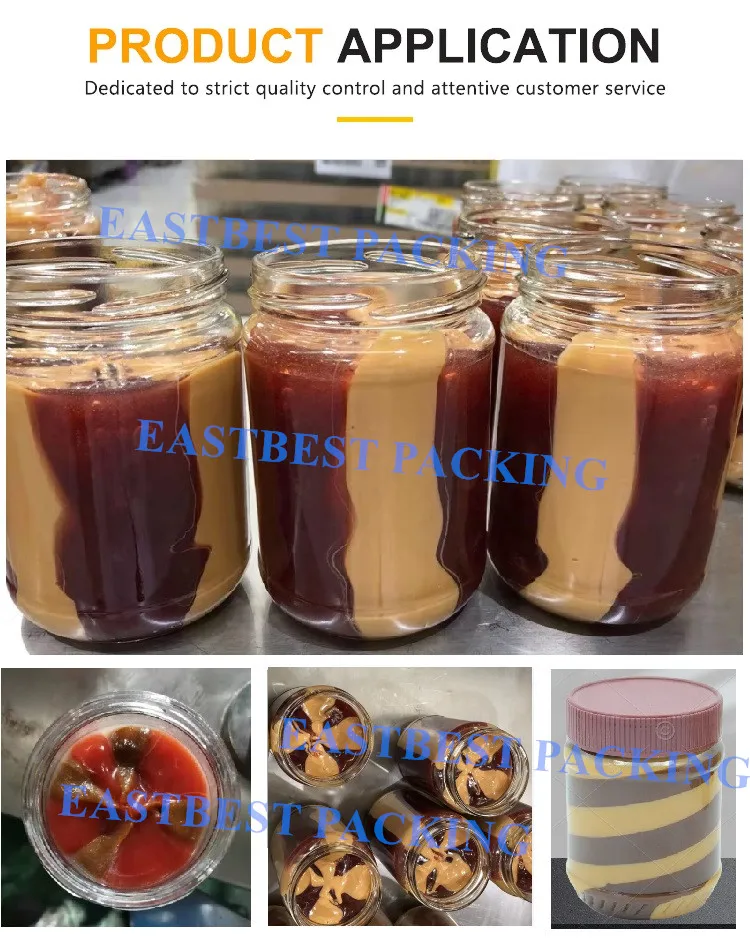

Application

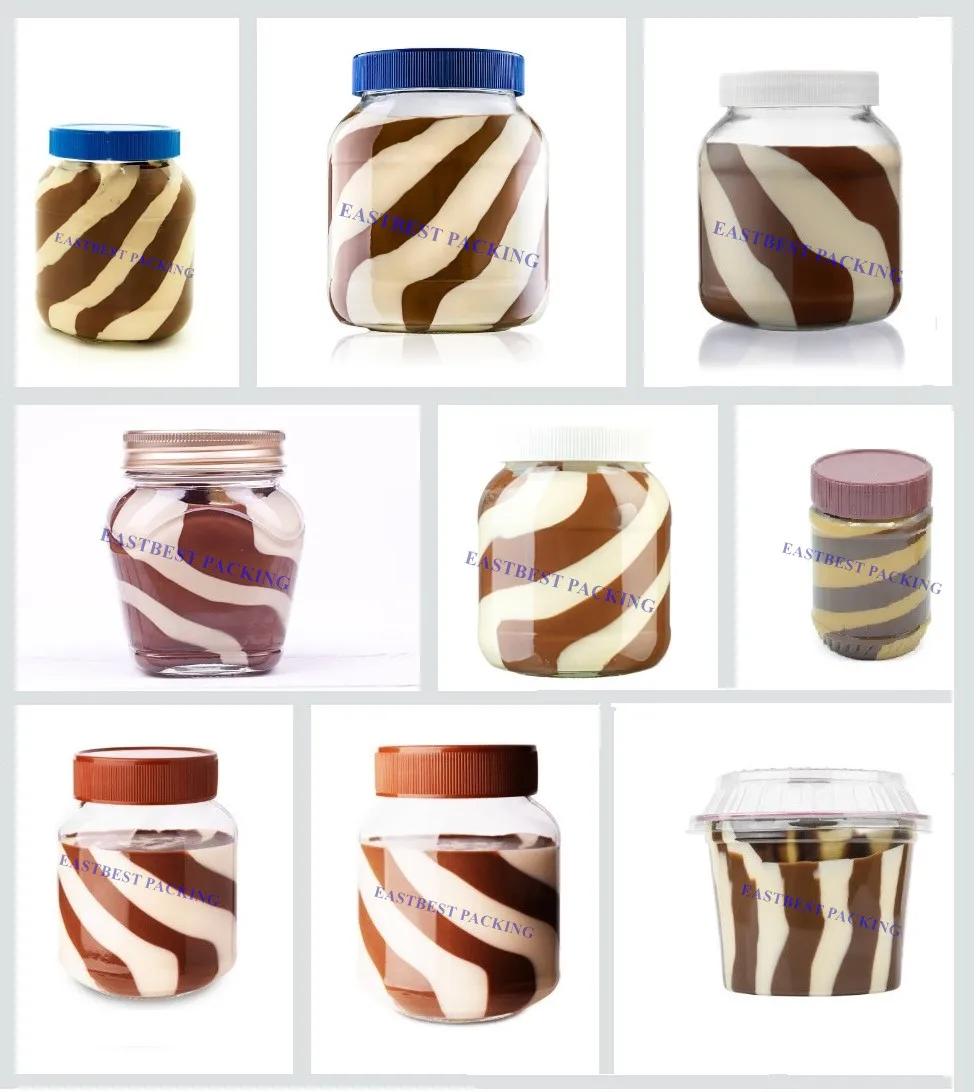

two colors spiral products
Power(W)
about 1 KW
Dimension(L*W*H)
140X 110X 190cm(length x width x heigth)
Weight
about 350 KG
Warranty
1 YEAR
Automatic Grade
semi- Automatic
After-sales Service Provided
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Capacity
15 pcs/min
Packing
Wooden Case
Machine color
metal plate warm grey, aluminum profile origin color
Machine working power supply
380V/ 50HZ

Compressed air supply
0.4-0.6MP
Filling volume
50-300 ml ( can be customized )
Filling color
2- 8 colors ( can be customized )








it adopts HMI operation panel,operate,change color and clean simply.
1.piston filling system,driven by servo motor,filling volume and pumping speed can be controlled from touch screen.
2. 15Ldouble layer tank with heat preservation and pressure,independent hopper stirring and temperature control can be separately adjusted according to different materials.
3. piston feeding controlled by servo motor ,collocate with switch pump,precise feeding.
4.simple to change color and clean .nozzle filling can be made spiral or marble line according to different requirement.

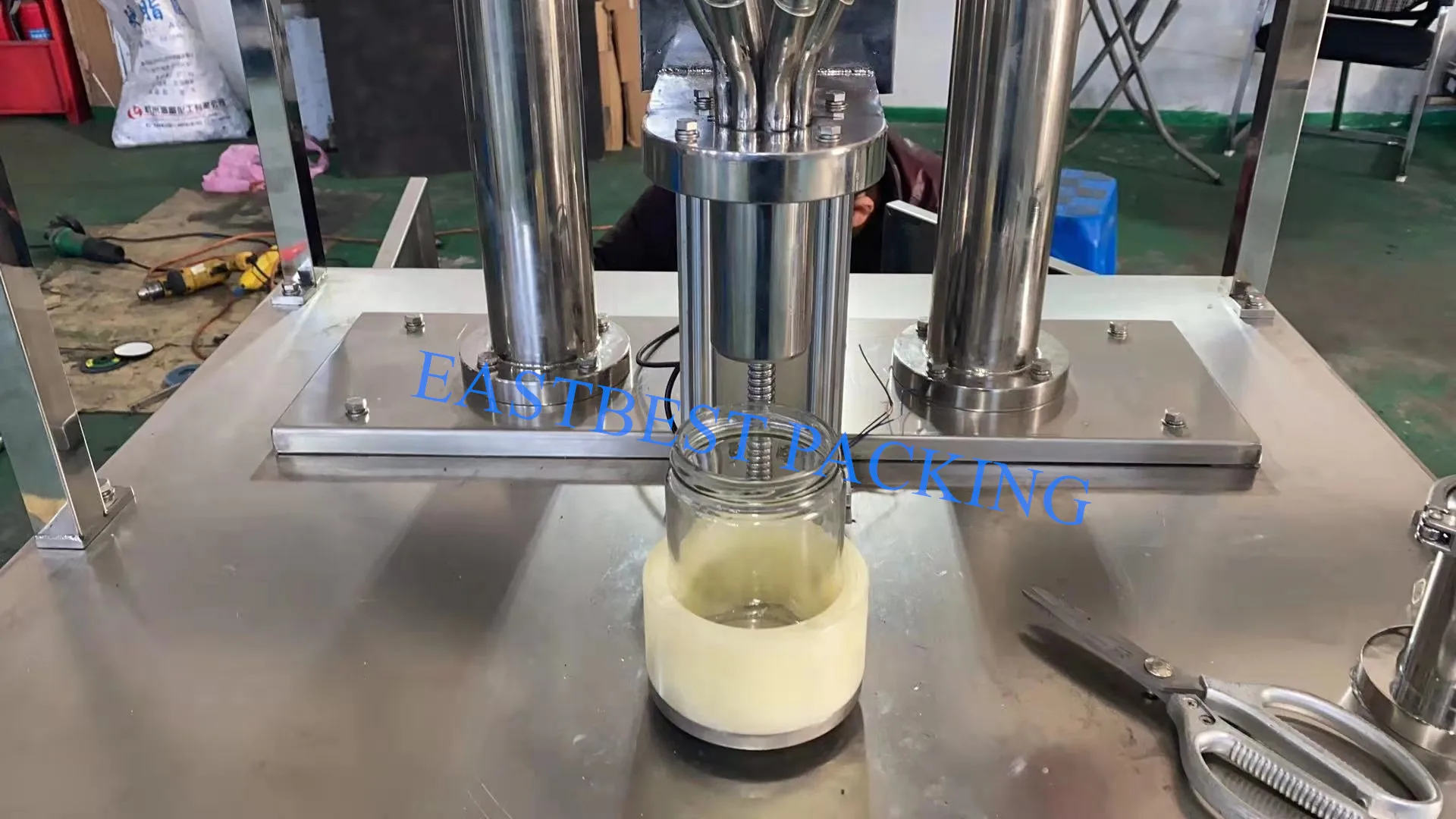

5.it adopts divider to fix position,servo motor control and fixture lifting up and down,connect with servo motor drive and rotate to produce various spiral products.



.

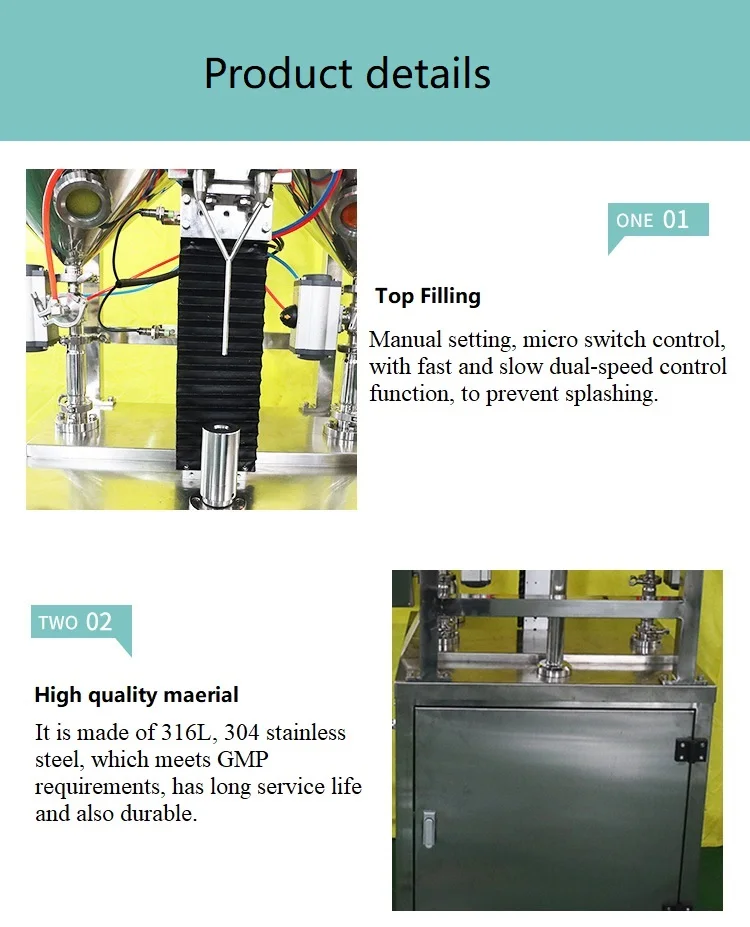

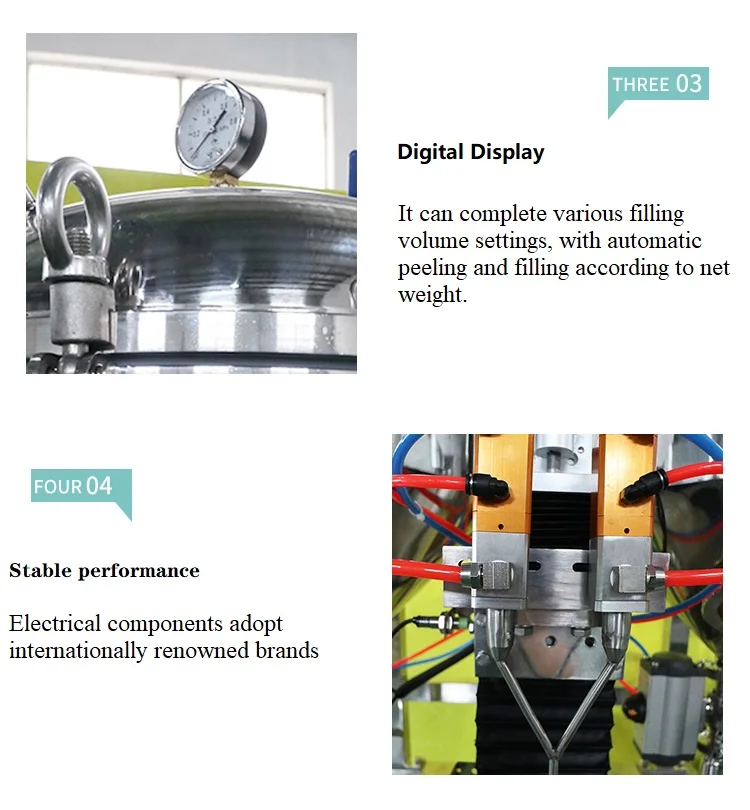

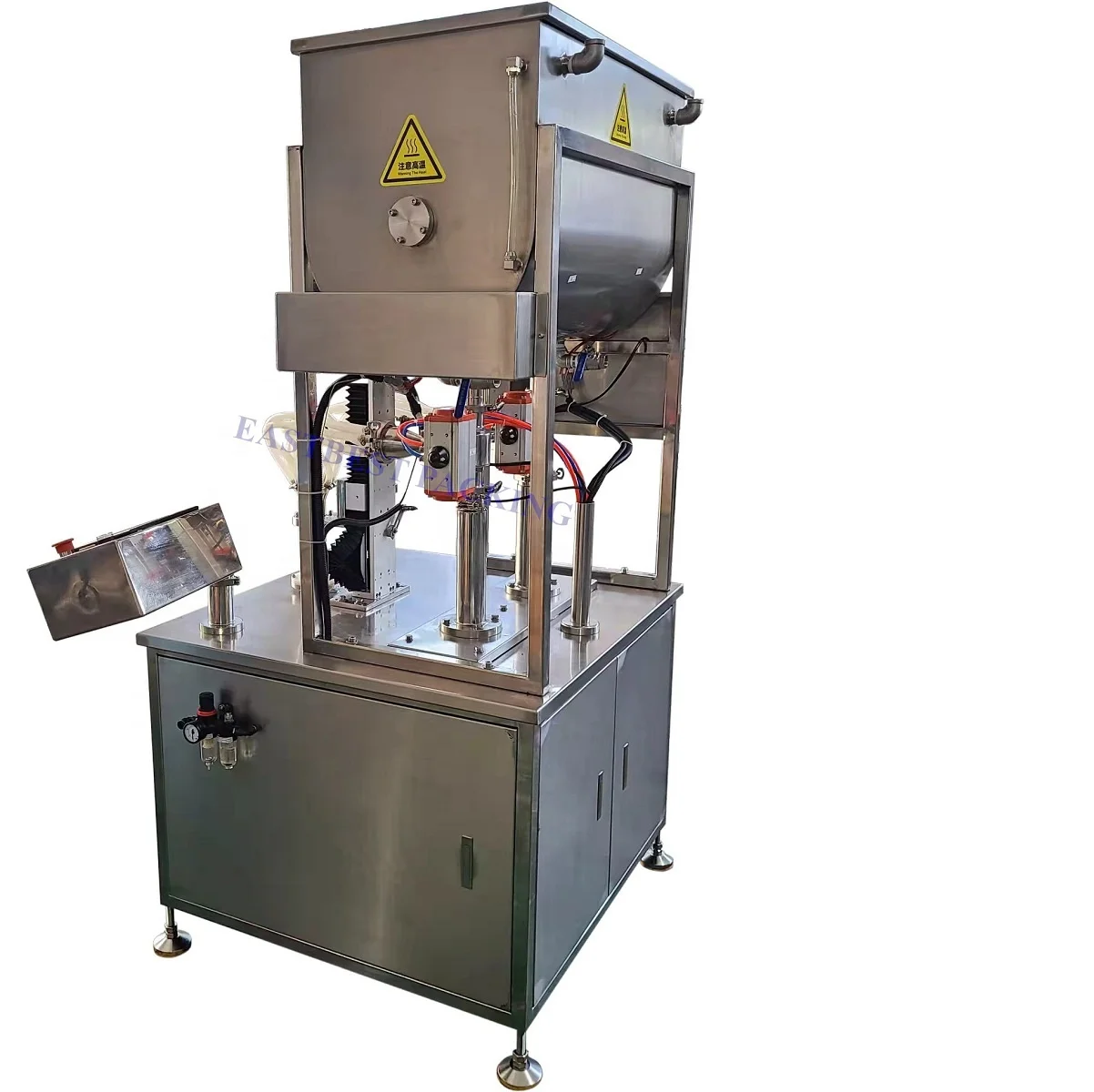

Detailed Images
