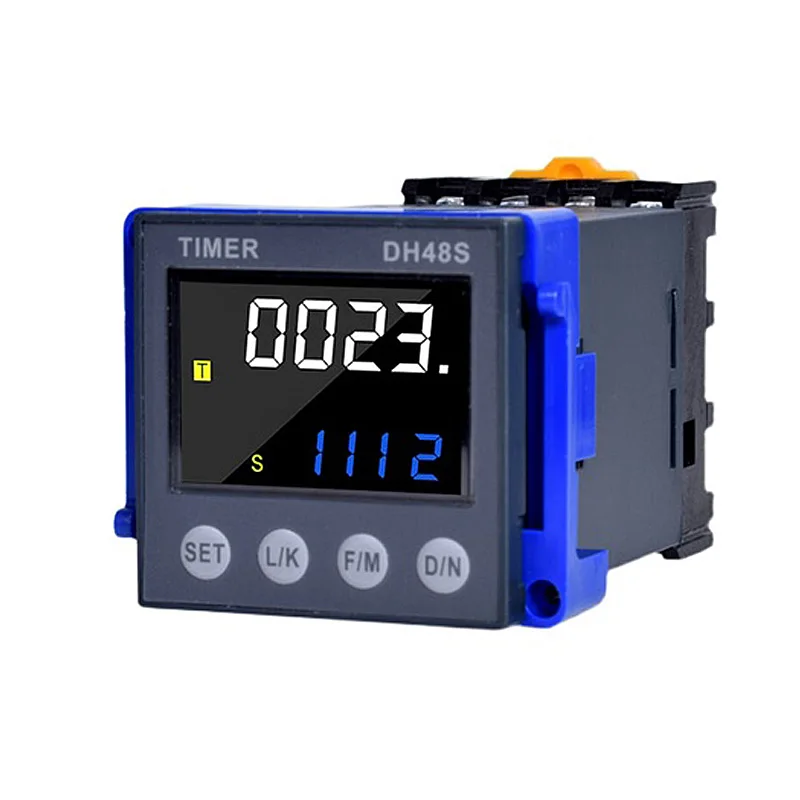

Digital Display Cycle Time Relay AC 220v24v380v Automatic Delay Digital DH48S Controller
- Category: >>>
- Supplier: Shenzhen Sunhokey Electronics Co. Ltd.
Share on (1600468517710):
Product Overview
Description
Digital Display Cycle Time Relay AC 220v24v380v Automatic Delay Digital DH48S Controller
Product Features
1. Time range: 0.01S-99990H
2. Four working modes
3. Power-on delay
4. Delayed disconnect
2. Four working modes
3. Power-on delay
4. Delayed disconnect
5. Cycle delay
6. Signal off delay
Product Specification
Product Name | Digital Display Time Relay |
Product model | DH48S |
Delay Accuracy | ≤0.5% |
resistiveProduct power consumption | ≤1.3W |
Rated voltage | 12VAC/DC |
Contact capacity | 3A 250VAC resistive |
Operating temperature | -10~50℃ |
Use scene | No corrosive gas occasion |
Product Description
1. Working mode
Long press the F/M and L/K keys for more than 3 seconds to enter, click the F/M or L/K key to change the working mode
T mode: power-on delay (default)
S mode: cyclic delay
TS mode: trigger delay
TS mutual flashing mode: trigger delay disconnect
TS mutual flashing mode: (connect GATE and COM): delay disconnect
2. Time base setting
Power-on delay, trigger delay, trigger delay release, delayed release: long press the SET and D/N keys for more than 3 seconds, click SET or D/N to change the time base (default time base S)
Cycle delay: Long press the F/M and D/N keys for more than 3 seconds, set the T1 time specification, click SET or D/N to change the time base (default time base S)
Long press the SET and L/K keys for more than 3 seconds to set the T2 time specification, and click SET or L/K to change the time base. (The default time base is S)
Long press the F/M and L/K keys for more than 3 seconds to enter, click the F/M or L/K key to change the working mode
T mode: power-on delay (default)
S mode: cyclic delay
TS mode: trigger delay
TS mutual flashing mode: trigger delay disconnect
TS mutual flashing mode: (connect GATE and COM): delay disconnect
2. Time base setting
Power-on delay, trigger delay, trigger delay release, delayed release: long press the SET and D/N keys for more than 3 seconds, click SET or D/N to change the time base (default time base S)
Cycle delay: Long press the F/M and D/N keys for more than 3 seconds, set the T1 time specification, click SET or D/N to change the time base (default time base S)
Long press the SET and L/K keys for more than 3 seconds to set the T2 time specification, and click SET or L/K to change the time base. (The default time base is S)
