1/2/3/4 gang Zigbee Smart Home Electric Switch Zigbee Touch Switch Google Alexa Voice Control Glass Touch Switch
- Category: >>>
- Supplier: Shantou Yijia Technology Co. Ltd.
Share on (1600468537980):
Product Overview
Description

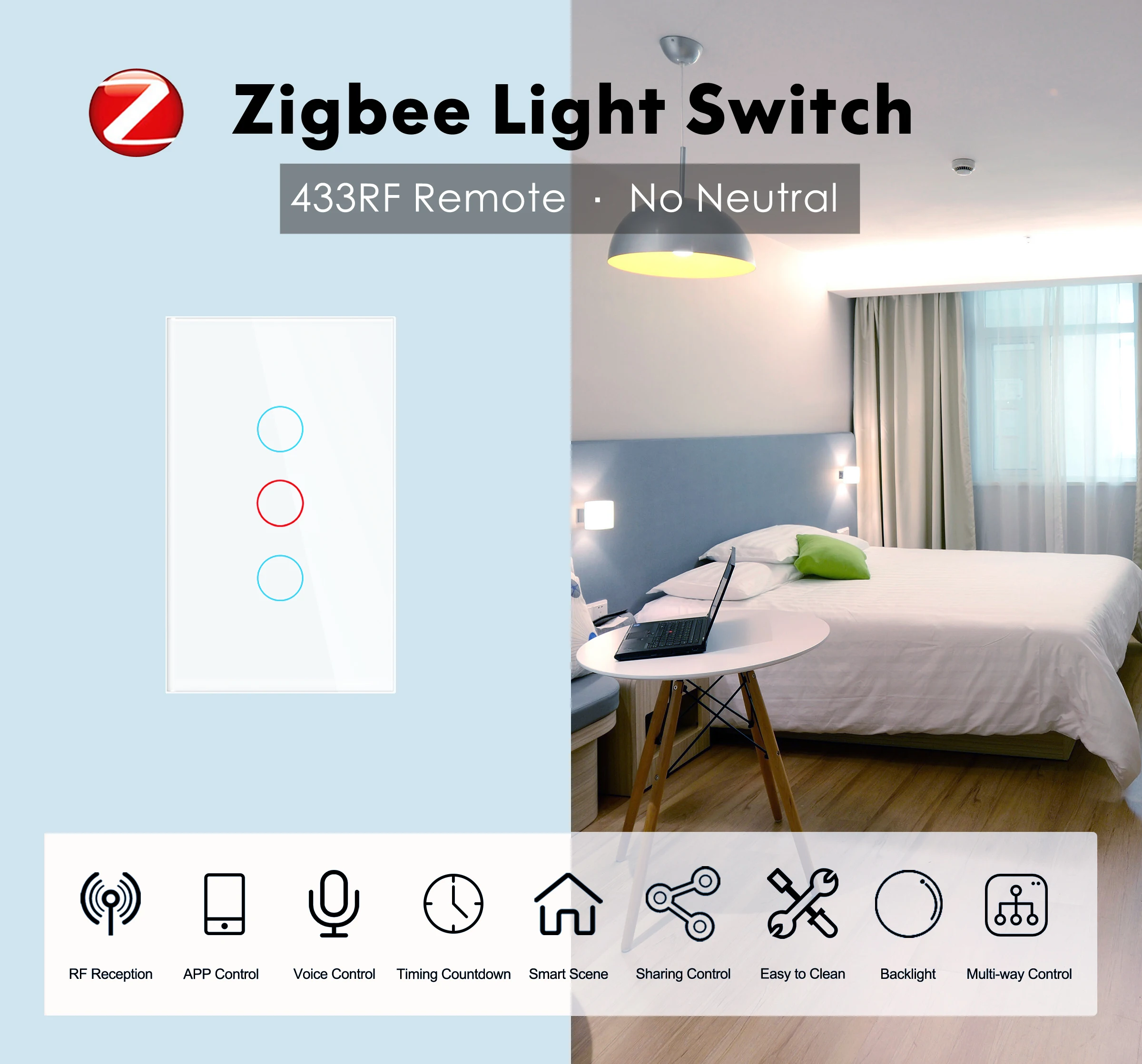

Zigbee+RF 433Mhz Touch Wall Switch No Neutral
Main Feature 1: No NeutraL Wire
This wifi switch don't need neutral wire. As we know, many houses in the world don't have neutral wire in the switch box. But neutral wire is required for most smart switches. Now, this switch will be a great choice for these houses without neutral wire.

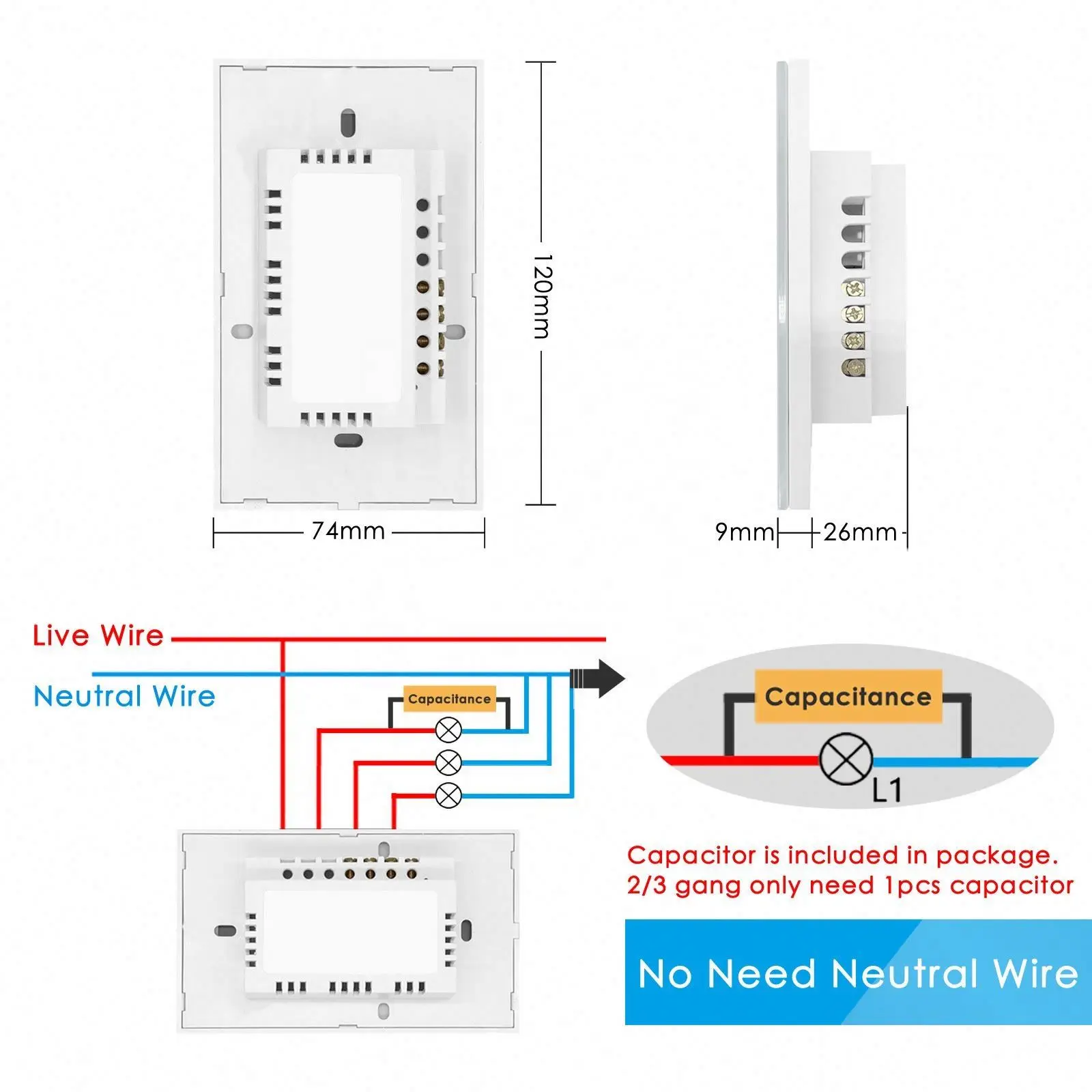

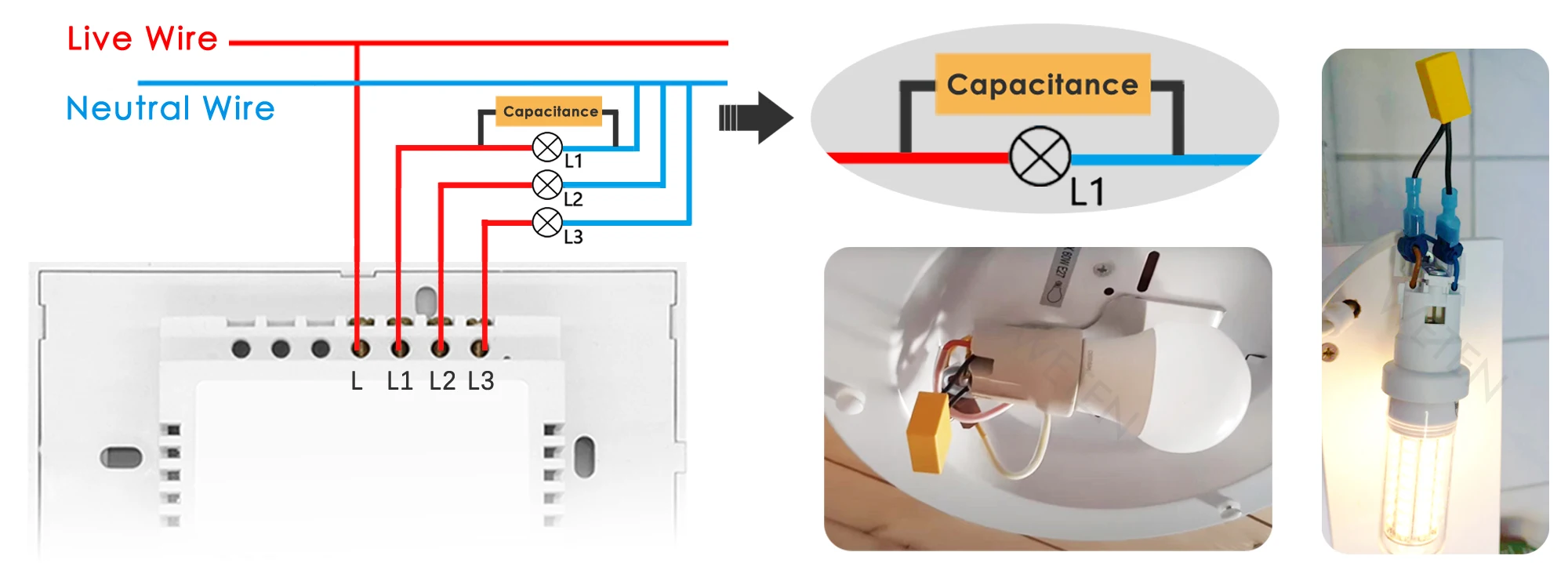

To provide power for zigbee module in the switch, we need to connect a capacitor with the lamp. The capacitor come with the device, you don't need to buy it yourself. Each switch (1/2/3 gang) only need one capacitor. The capacitor should be connected to L1 lamp, just as picture.
| Products Name | Tuya ZIGBEE+RF Touch Switch US 1GANG |
Main Feature 2: Support 433 RF remote control
This wifi switch support 433RF function. When it's paired with 433 wireless switch, you will be able to control one light from different position, just like the 2-Way switch. The 433 wireless switch is powered by battery, you don't need to change wire in your house. This is widely used in staircase and bedroom. You can stick the 433 wireless switch on the wall, screw in on the original switch box, or just put it on the table.
ATTENTION: 433 wireless switch is NOT included in the package. If you need it, please click following picture to buy.
Features
No Neutral Wire Required, don't need to change the wire.
Support zigbee 3.0, confirmed working with Zigbee2Mqtt.

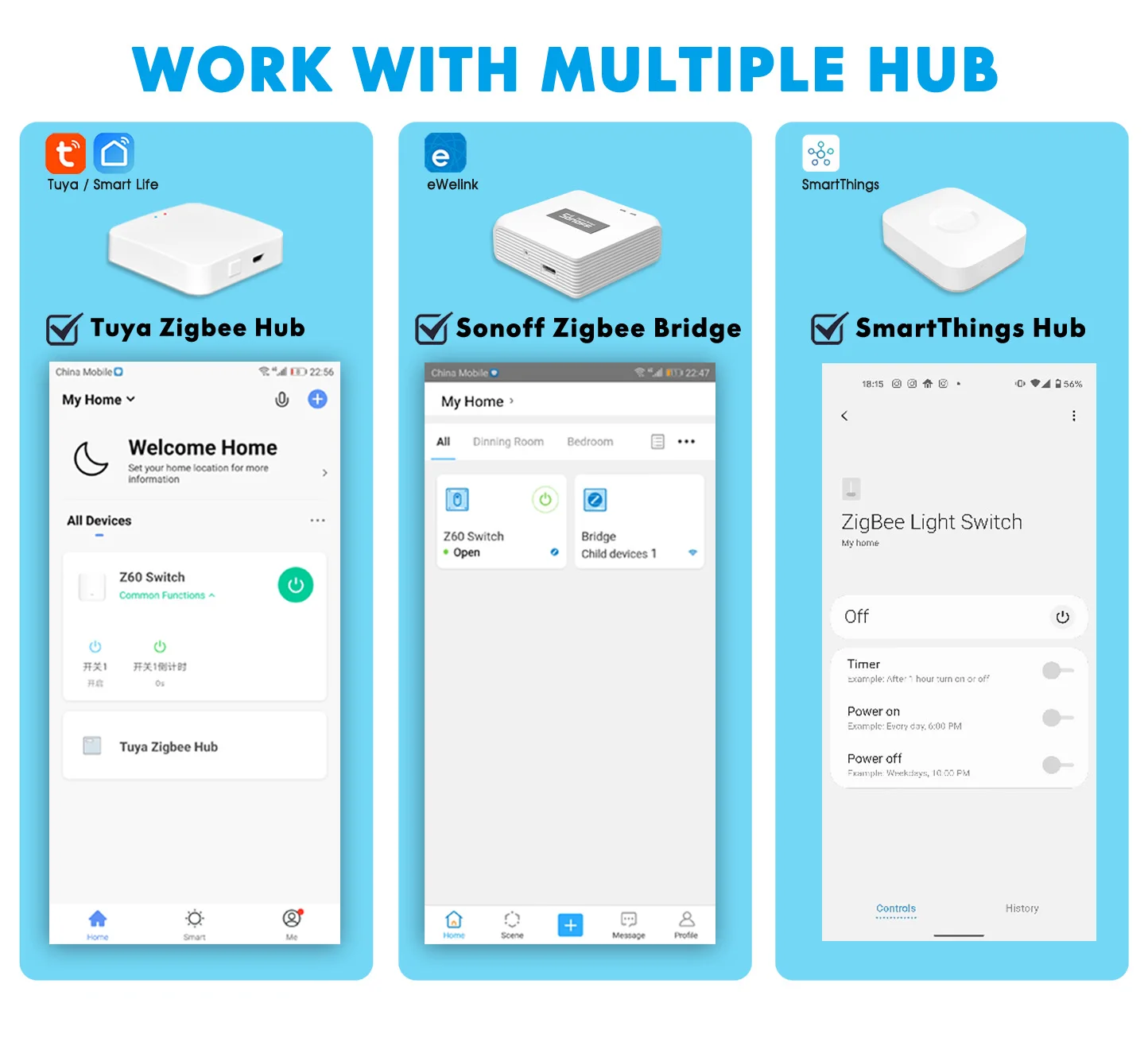

Work with most hub: Tuya Hub / Sonoff ZBbridge / SmartThings Hub.

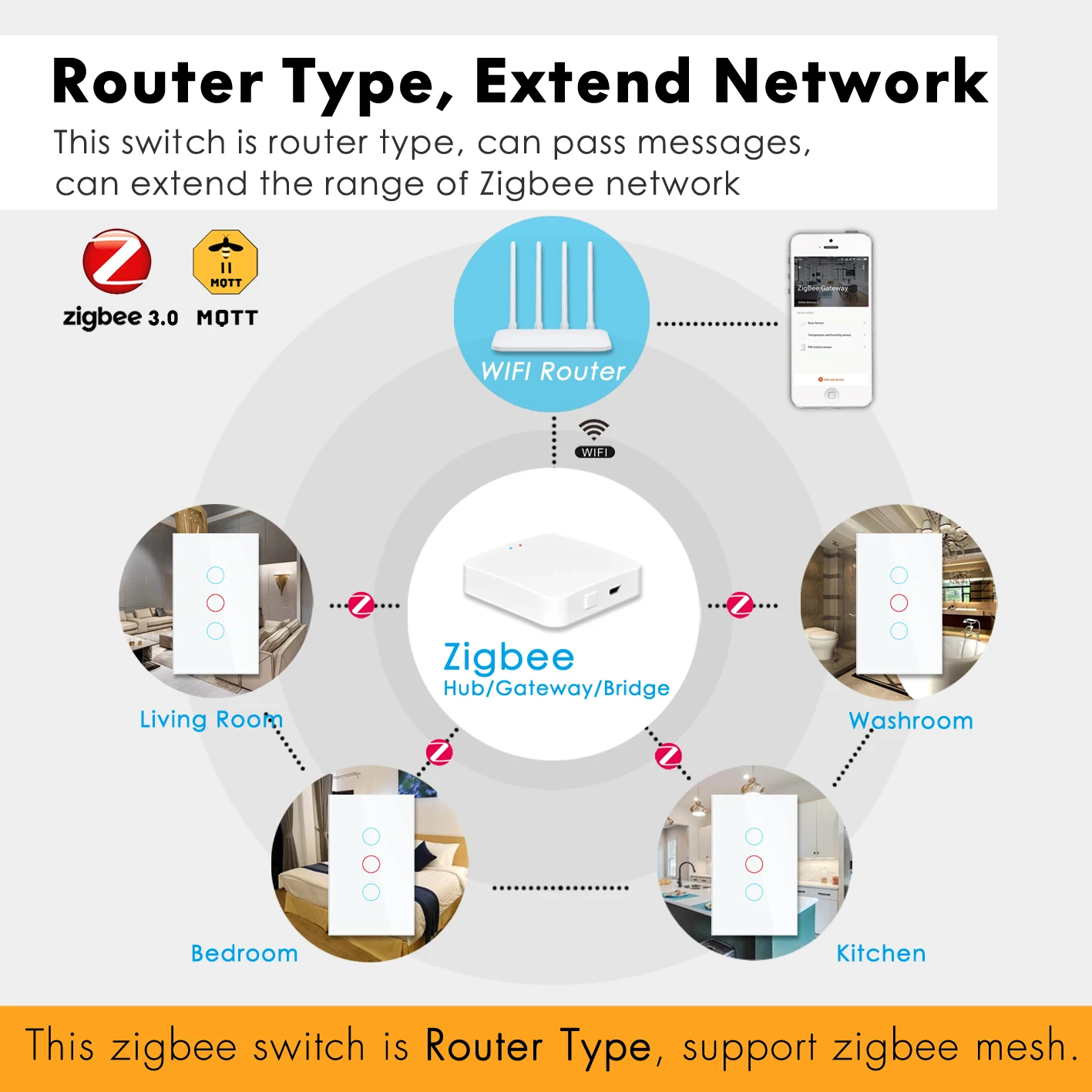

Router/Repeater Type, support zigbee mesh, can expanding the zigbee network.
APP Remote Control from anywhere by App on phone.
Support 433 RF remote control, easy to turn on/off light from different position.
Specification
Voltage Input: AC 90-250V, 50/60Hz.
Max Current & Power: 10A, 300W/ Gang
Zigbee Standard: Zigbee 3.0
Zigbee Hub Compatible: Tuya/eWeLink/SmartThings
Package List
Switch *1
Screw *2
Capacitor *1
User Manul *1
ATTENTION:
Zigbee hub/Gateway is required for this switch, and hub/gateway is not included in the package.
Confirmed work with: Tuya Zigbee Gateway, Sonoff Zigbee Bridge, Smartthings Hub...
--------------------------------------------------------------------
How to pair with 433RF wireless switch?
1. Long press on zigbee switch button until hear 1 "beep" sound, release the finger
2. Press the button on 433RF wireless switch once, pair succeed.
How to delete the connection with 433RF wireless switch?
1. Long press on zigbee switch button until hear 2 "beep" sound, release the finger
2. Press the button on 433RF wireless switch once, delete succeed.
Tips: The 433 wireless switch don't come with the zigbee switch, if you need, please buy it separately.
--------------------------------------------------------------------
