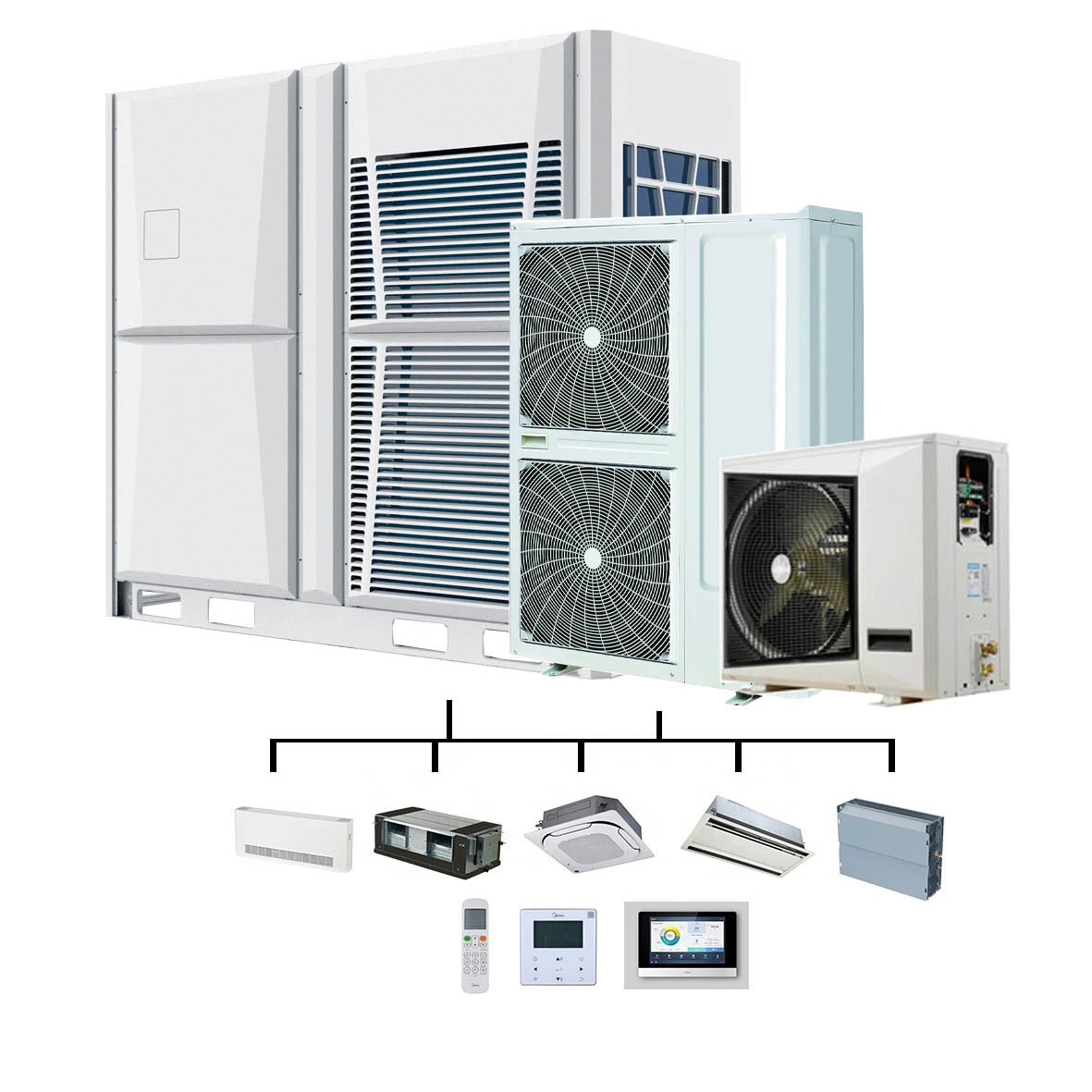

Hisense 20HP 56kw VRV VRF central air conditioner residential hvac system airconditioner
- Category: >>>
- Supplier: Zhengzhou Tongxing Air Conditioning Technology Co. Ltd.
Share on (1600468538149):
Product Overview
Description
Product Description
Fully Utilization of Oil

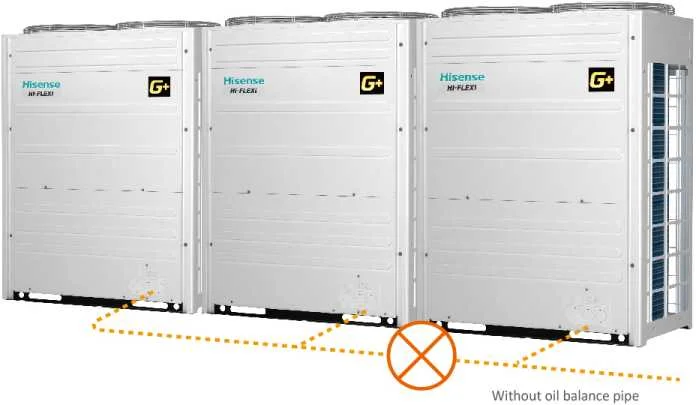

Needless of oil balancing pipes
Needless of oil balancing pipes

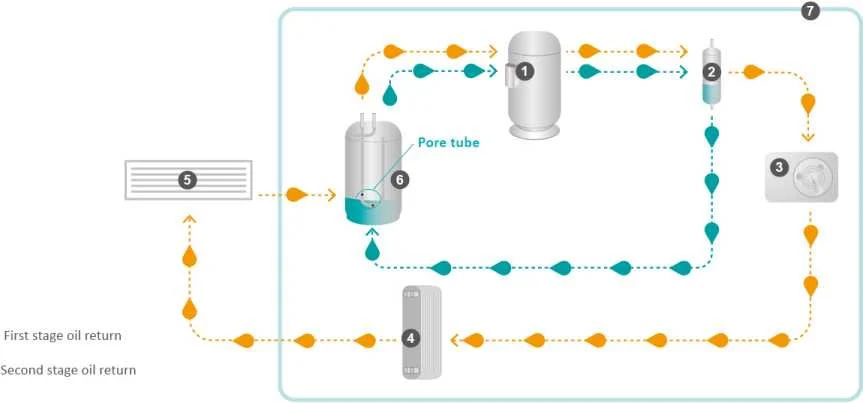

With effective and prominent oil return technology, perfect oil balance is achieved by the integration of the pore tube technology in the accumulator. It serves as an oil storage tank and supplies the perfect amount at the perfect time to the compressor.
Enhanced oil level retaining capability
The new compressor now has greater improvement in reliability by enhancing the oil retaining capability by 50% with an "oil cup" embedded which prevents compressor bearing to fail due to lack of oil lubricating the inner rotating component.
First-stage oil separation is realized through efficient oil
First-stage oil separation is realized through efficient oil

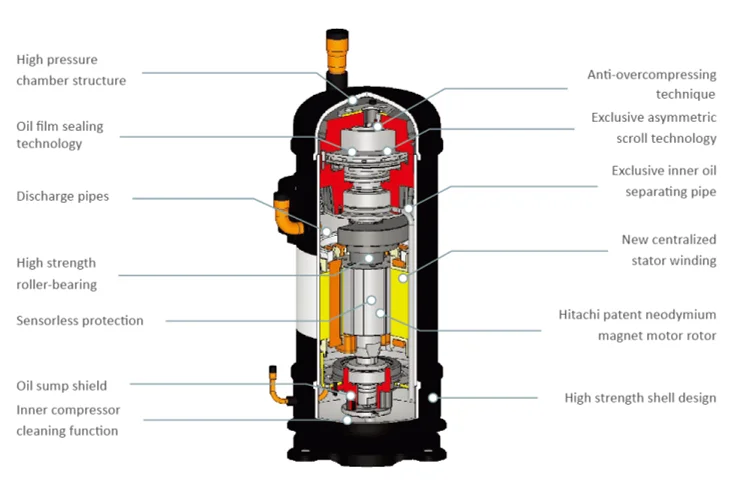

Adoption of the high-pressure chamber scroll compressor realizes high efficiency of motor, optimization of scroll plate and optimum fuel feeding, etc. and increases operation efficiency of compressor under overall operating conditions, especially, enhances intermediate performance greatly.
Efficient Heat Exchange
Two-stage sub-cooling technology
Two-stage sub-cooling technology
he cooling section of the outdoor heat exchanger is uniquely designed to be more effective than the traditional outdoor units of the multi-split air conditioner without a sub-cooling design. First-stage sub-cooling can reduce temperature by 12.5°C(54.5°F) while second-stage sub-cooling can help achieve up to 27°C (80.6°F) for efficient sub-cooling.
Features:

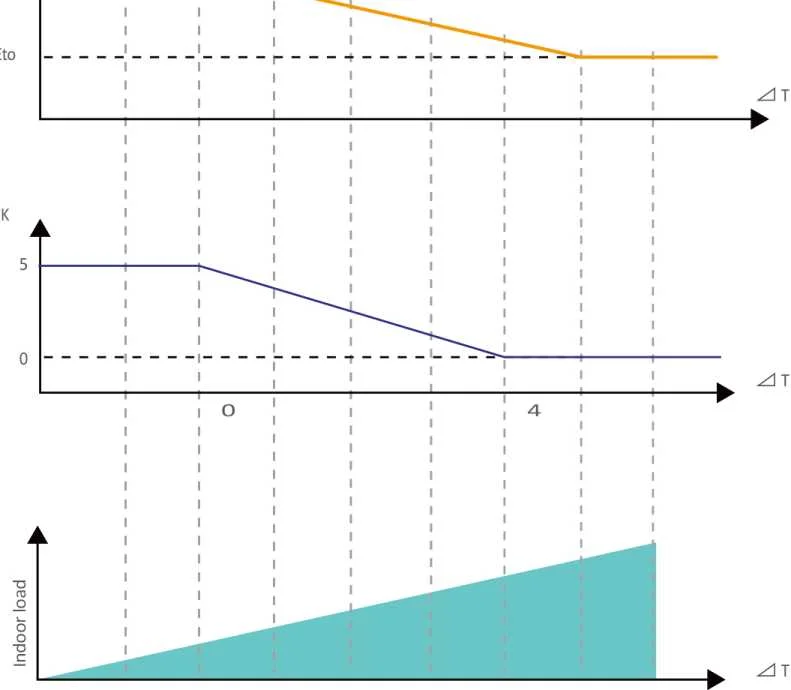

1)Evaporating temperature can be adjusted between 2°C(35.6°F) to 16°C(60.8°F) which is the widest on the market.
2)Rapidly cooling depends on the lower evaporating temperature.
3)Preventing cold draft bases on the higher evaporating temperatures.
4)Saving energy by increasing seasonal efficiency.
Lower Noise

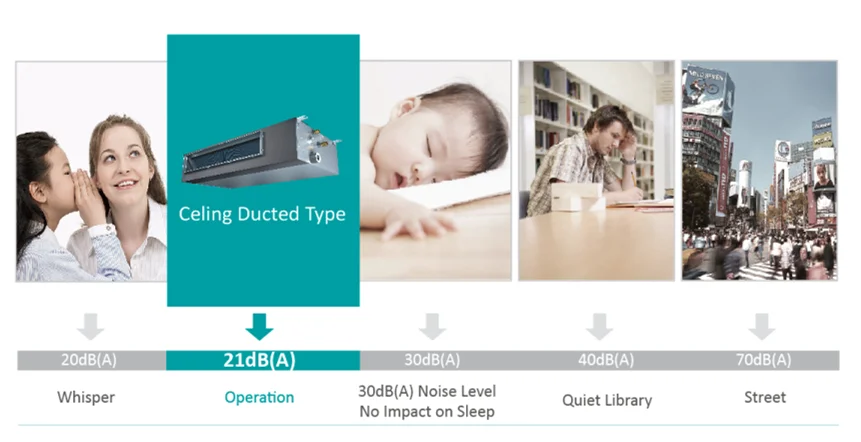

Noises are often a pain in the neck, especially when we're trying to put our mind into something. Working, studying even exercising and relaxing needs concentration. Hisense VRF offers indoor units with sound pressure level as low as 21dB(A). Perfectly blends into library, auditoriums and hospital rooms where requires sound levels lower than 25dB(A).
Noises are often a pain in the neck, especially when we're trying to put our mind into something. Working, studying even exercising and relaxing needs concentration. Hisense VRF offers indoor units with sound pressure level as low as 21dB(A). Perfectly blends into library, auditoriums and hospital rooms where requires sound levels lower than 25dB(A).
Features
● Comfortable and balanced airflow, up&down air outlet
Up air outlet : In cooling, cool air blows out horizontally and then gradually drops.
Down air swing: In heating, warm air blows downward and then gradually climbs up.
● Cold air prevention design
During heating in winter, cold air prevention function is enabled so that air won't be blown out until it's warm.
● Triple defenders for better purification
Mildew-proof filter, electrostatic fibre and anti-biotic fibre adopted to remove dust, smell, bacteria and mildew.
● Multiple protections
Anti-freezing protection, temperature malfunction protection, fan motor overload and humidity sensor protection
Up air outlet : In cooling, cool air blows out horizontally and then gradually drops.
Down air swing: In heating, warm air blows downward and then gradually climbs up.
● Cold air prevention design
During heating in winter, cold air prevention function is enabled so that air won't be blown out until it's warm.
● Triple defenders for better purification
Mildew-proof filter, electrostatic fibre and anti-biotic fibre adopted to remove dust, smell, bacteria and mildew.
● Multiple protections
Anti-freezing protection, temperature malfunction protection, fan motor overload and humidity sensor protection

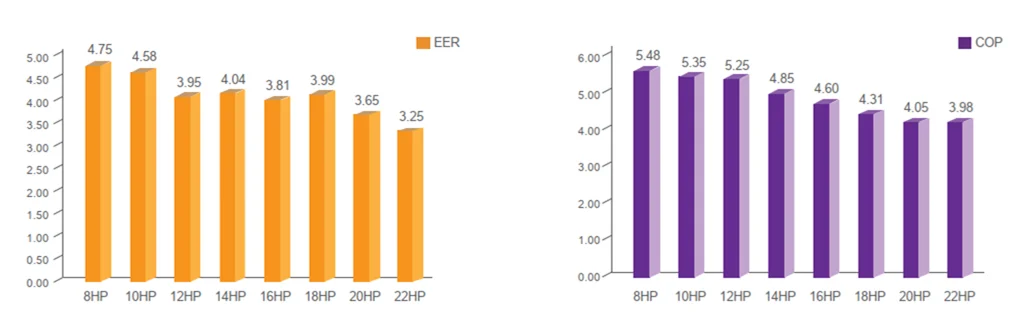

High EER And COP
ARV 6 Series achieves the industy's top class energy efficiency in cooling and heating by utilizing all DC inverter compressors, and En-hanced vapor injection.
The cooling EER is up to 4.75 and the heating COP is up to 5.48 in the 8HP category.
Specification
Ton (HP) | 16(20) | ||||
Model | AVW-28H3FH | ||||
Capacity | kW | 56 | |||
Cooling | kBtu/h | 191.1 | |||
EER | kW/kW | 3.41 | |||
Capacity | kW | 63 | |||
Heating | kBtu/h | 215 | |||
COP | kW/kW | 3.84 | |||
MCA | A | 80.3 | |||
MOP | A | 110 | |||
Air Flow Rate | m3/min | 255 | |||
Ventilation | CFM | 9005 | |||
Fan Quantity | 2 | ||||
Packing & Delivery
Packaging : carton box or wooden pallet, Standard Packaging by shipping.
packed in carton, can customized different logo according to customers' requirements.
packed in carton, can customized different logo according to customers' requirements.
Company Profile
Tongxing Air Conditioning Technology Co.,ltd, we are a one-stop air-conditioning service enterprise that integrates central
air-conditioning machines sales and installation, accessory sales, central air-conditioning repair, maintenance, and cleaning. We have designed for office buildings, shopping malls, hotels, KTV, railway stations, hospitals, and factory buildings and so on to provide comprehensive solutions of central air conditioning. Our company is committed to spreading advanced international central air-conditioning system service concept to domestic and abroad, and tirelessly pursues it, and strives to build a good service brand of central air-conditioning system. Our company has engineering department, design department, administration department,finance department, foreign trade department, and domestic business department.
air-conditioning machines sales and installation, accessory sales, central air-conditioning repair, maintenance, and cleaning. We have designed for office buildings, shopping malls, hotels, KTV, railway stations, hospitals, and factory buildings and so on to provide comprehensive solutions of central air conditioning. Our company is committed to spreading advanced international central air-conditioning system service concept to domestic and abroad, and tirelessly pursues it, and strives to build a good service brand of central air-conditioning system. Our company has engineering department, design department, administration department,finance department, foreign trade department, and domestic business department.
Applications
Villa
Factory
Hospital
School
Office
shopping mall
Contact Us
VRF systerm / multi split air conditioner/ commercial air conditioner、duct type、air handing、rooftop /package unit、water chiller and any parts of air conditioner, anything you want,please contact me directly, i will give you a professional satisfactory answer, thank you.
