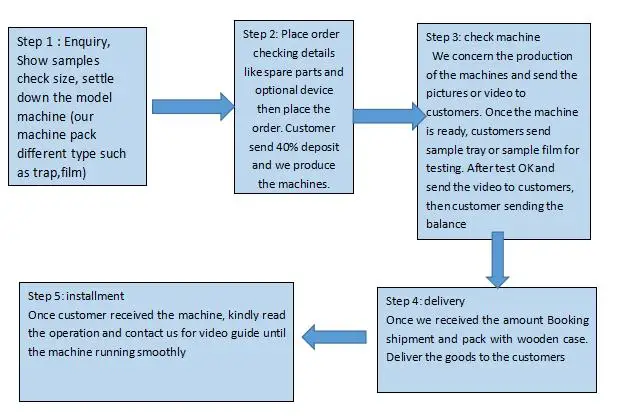

How to get quotation and process order
Let's make order
Product Description
This machine is our regular type

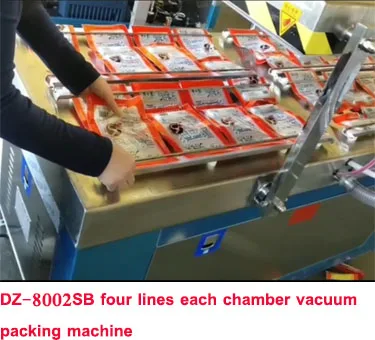

1) Depending on different sizes: DZ-5002SB, DZ-6002SB,DZ-7002SB,DZ-8002SB,DZ-9002SB,DZ-10002SB
2) Depending on different chamber worktable: Flat type, sink type (if your product is very thick)
3) Depending on different requirements: manual chamber cover, automatic chamber cover (if you order chamber size over 900 model we suggest you to choose automatic type,it can save labor)

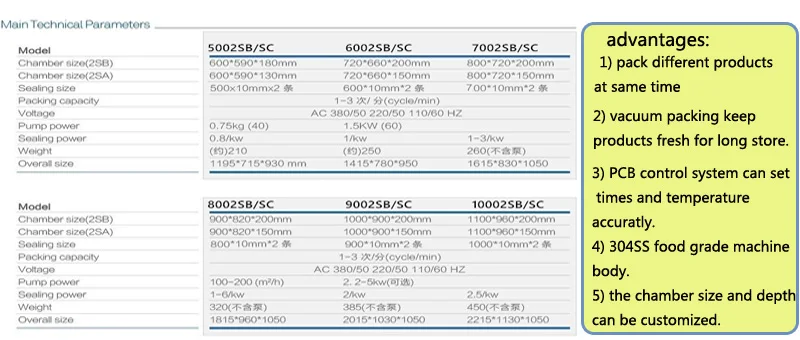

Specification
Model | DZ-7002SC | DZ-8002SC | DZ-9002SC | DZ-10002SC | |||
Machine body | Food grade 304SS for its surface, work table and swing lid (DZ-10002SC suggest with automatic swing lid) | ||||||
Inside frame | Painted iron | ||||||
Work table | Flat work table | ||||||
Chamber depth | 120-180 mm (the chamber depth is in the swing lid) | ||||||
Chamber size | 800*720*180mm | 900*820*180mm | 1000*900*180mm | 1100*960*180mm | |||
Sealing length | 700mm | 800mm | 900mm | 1000mm | |||
Sealing width | 10mm | 10mm | 10mm | 10mm | |||
Sealing number | 2pcs | 2pcs | 2pcs | 2pcs | |||

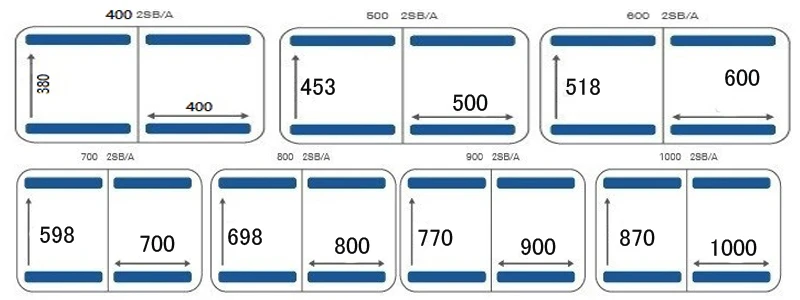

Distance between seal | 598mm | 698mm | 770mm | 870mm | |||
Vacuum pump | ZD brand 63m3/h | ZD brand 63m3/h | ZD brand 100m3/h | ZD brand 200m3/h | |||
Main power | approx 1.5KW | approx 2KW | approx 2.5KW | approx 3KW | |||
Voltage | 380 V/450 V 50 HZ/60 HZ 3 phase (or customized) | ||||||
Pack capacity | 1-2 cycles / min | ||||||
Swing lid | manual swing lid (Automatic swing lid is optional function) | ||||||
Control panel | PCB (Relay / PLC are optional controller ) | ||||||
Weight(w.o pump) | 260KG | 320KG | 385KG | 450KG | |||
Overall size(mm) | 1615*830*1050 | 1815*960*1050 | 2015*1030*1050 | 2215*1130*1050 | |||
Function | vacuum+seal (Gas fill is optional function) | ||||||
Certificate | CE | ||||||
Guarantee | 1 year (for main component, exclude durable spare parts) | ||||||
Language | Control panel and printed manual in English language | ||||||
Lead time | 15days to get machine ready for standard machine. Need negotiate for customized function. | ||||||
price | 2585USD | 3052USD | 3872USD | 5290USD | |||

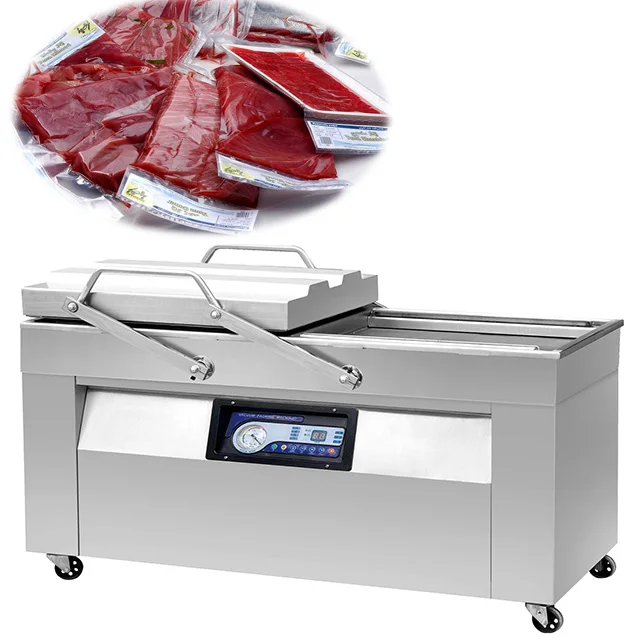

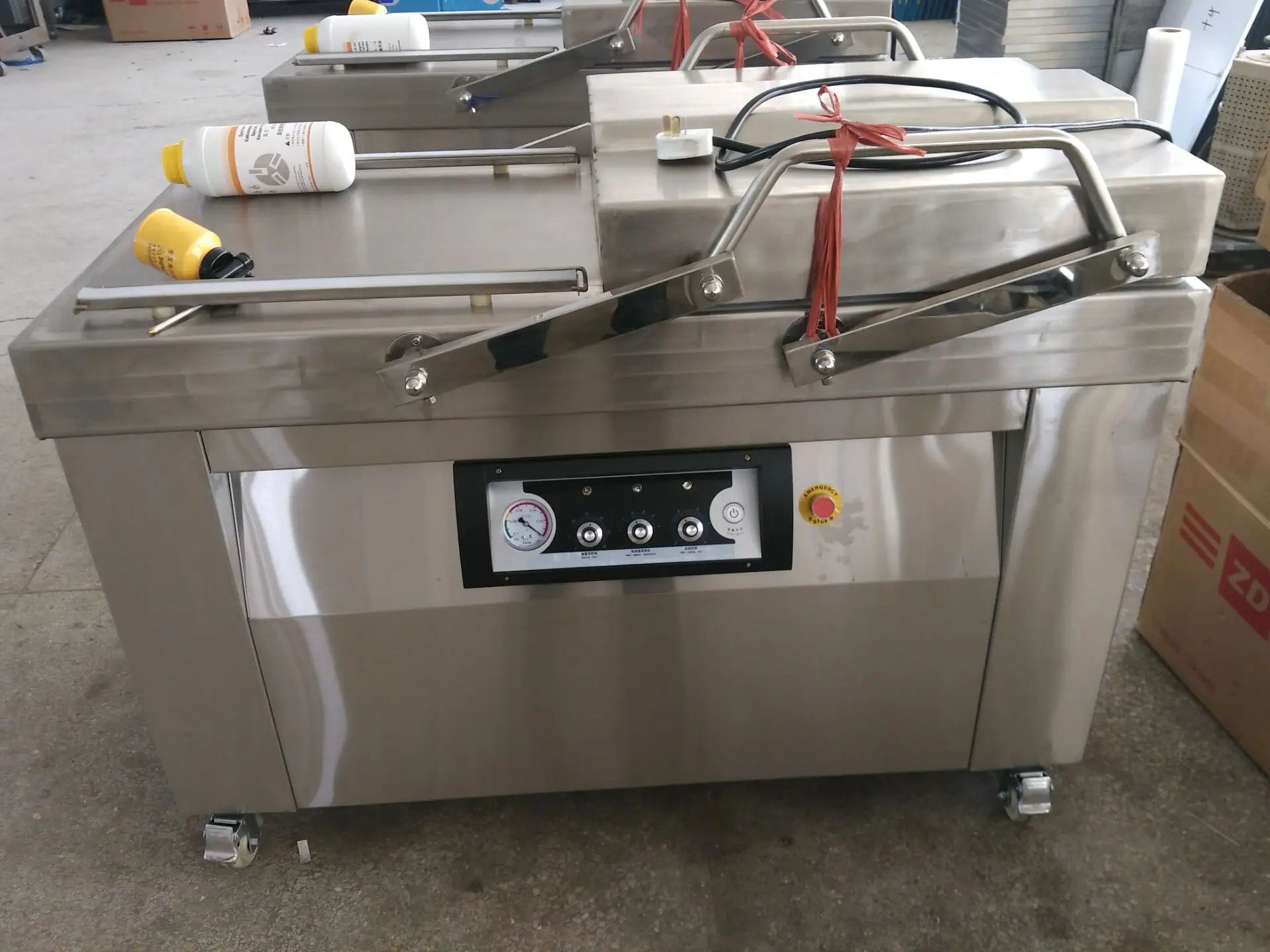

The dual chamber vacuun packaging machine is the one that the cover works interactively on the two vacuum chambers. The user can place materials on one vacuum chamber while the other one is pumping vacuum. Thus it can improve the productivity.

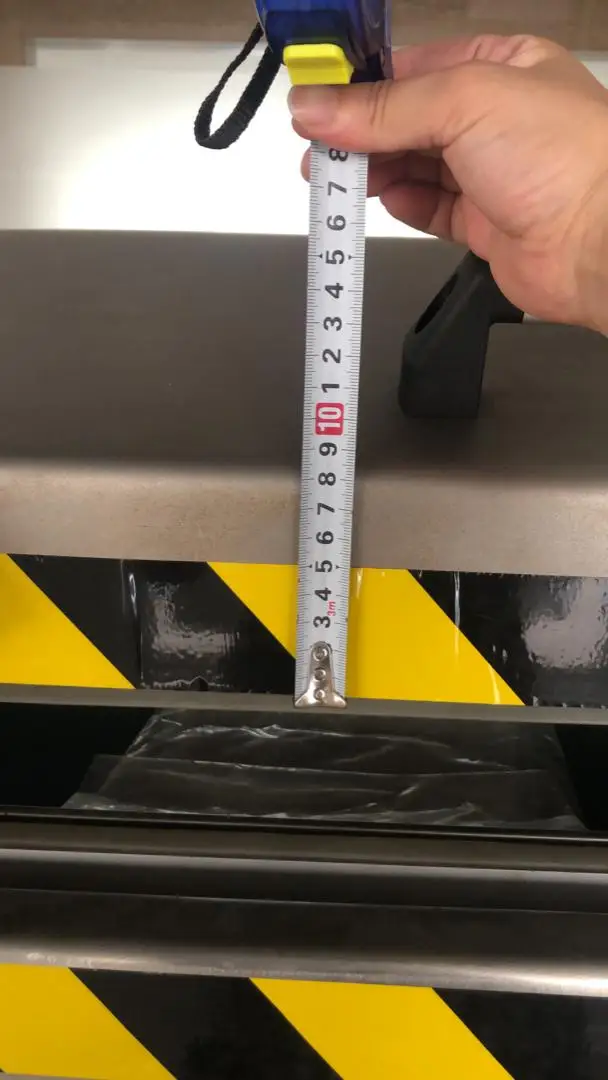

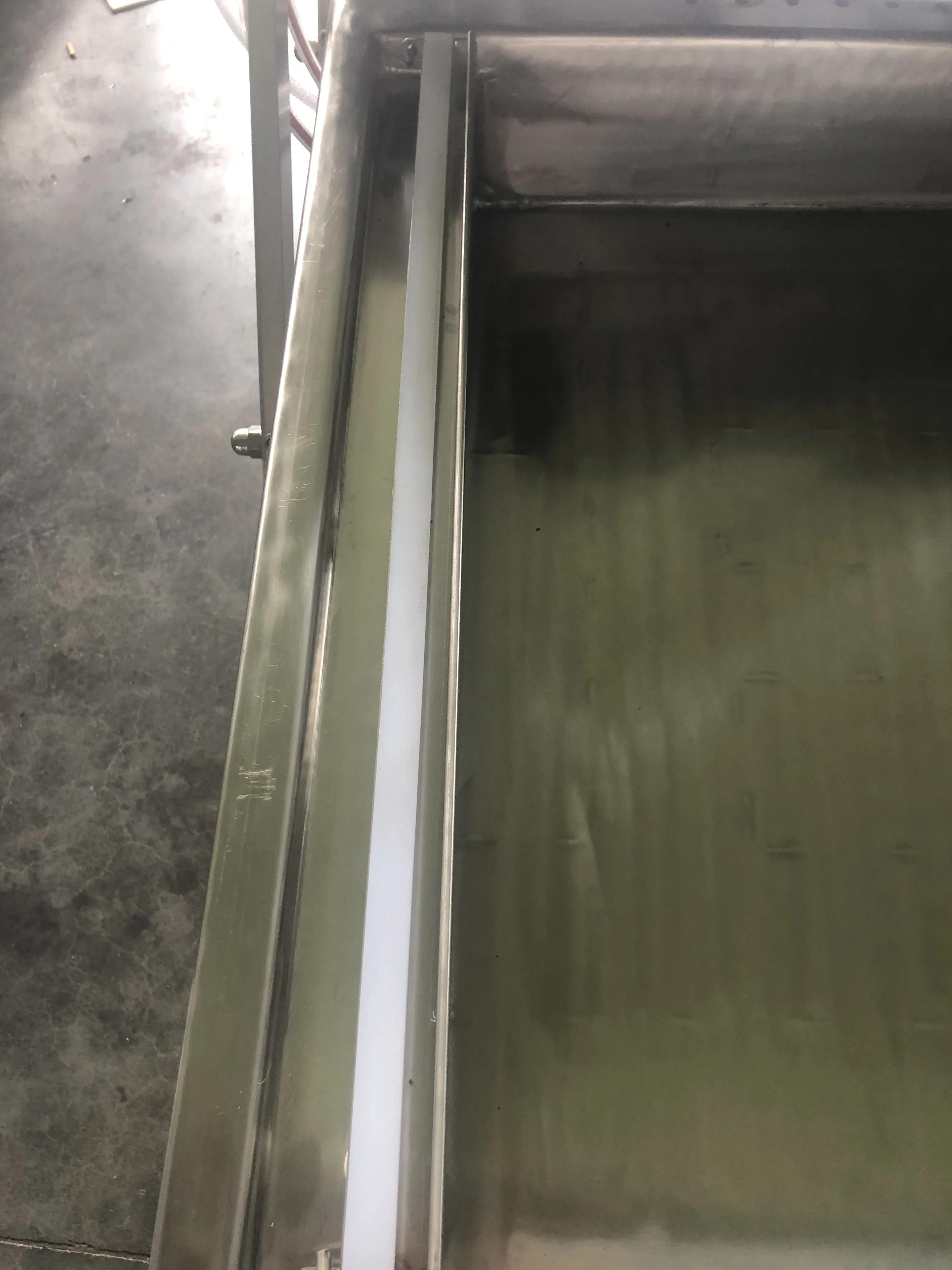

double chamber can be deeper
In order to meet our customer' different requirement, we have new design with 40cm deeper for big products.
If you are interested in this type of machine, you can contact me: +86 13566154199
Packing & Delivery
export wooden carton

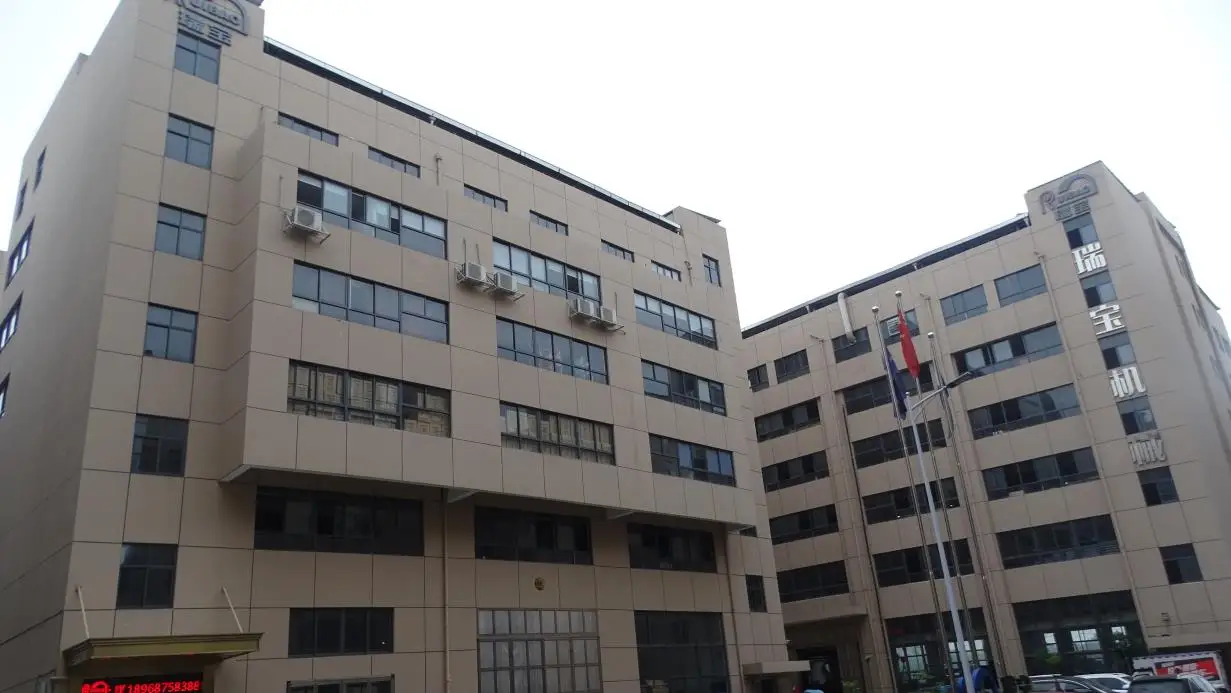

Company Profile
