175L 1.4Mpa Cryogenic Liquid Nitrogen Lin Storage Dewar Container For Laser Cutting
- Category: >>>
- Supplier: Xinxiang Chengde Global Trading Co. Ltd.
Share on (1600468598060):
Product Overview
Description

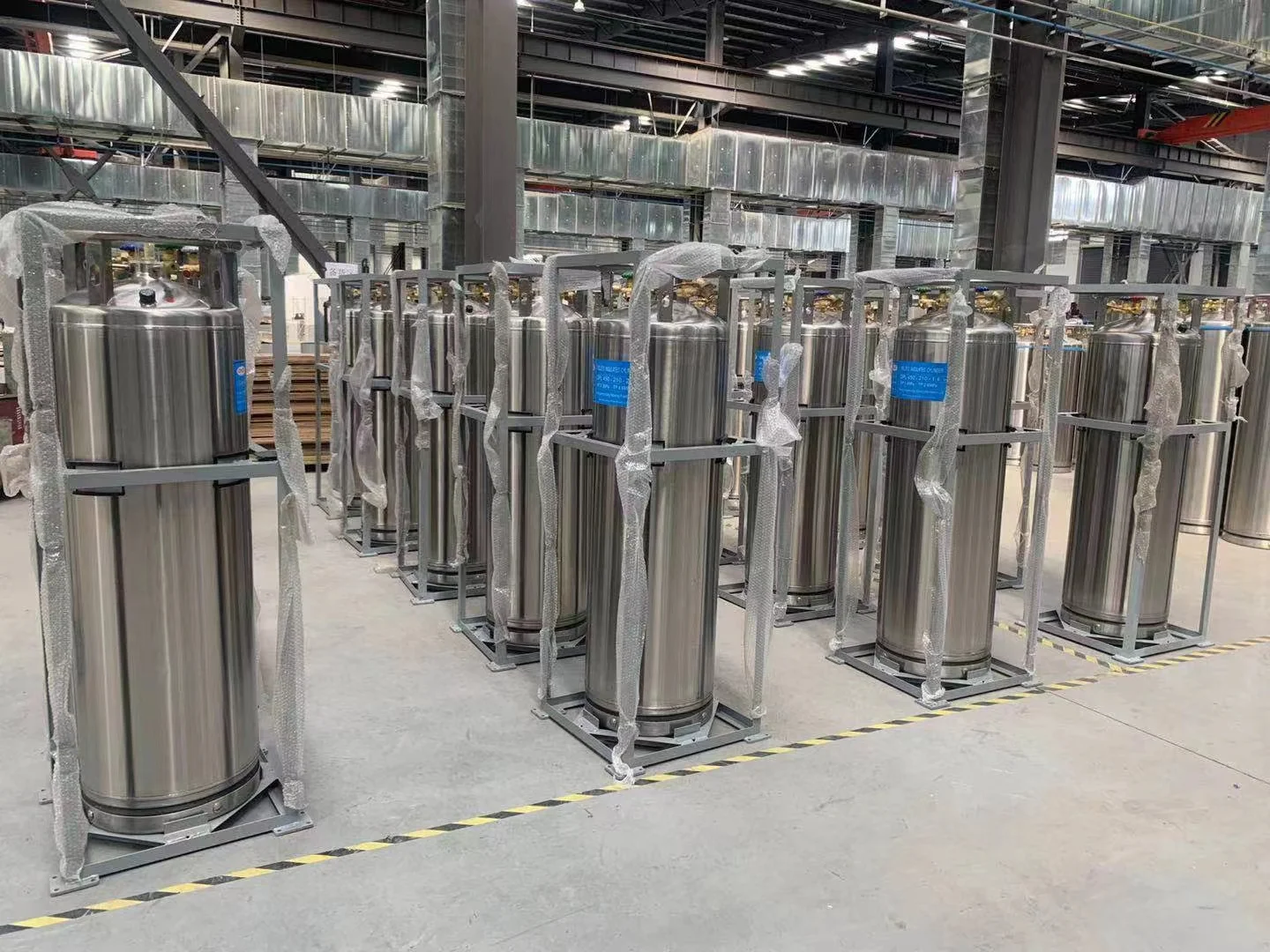

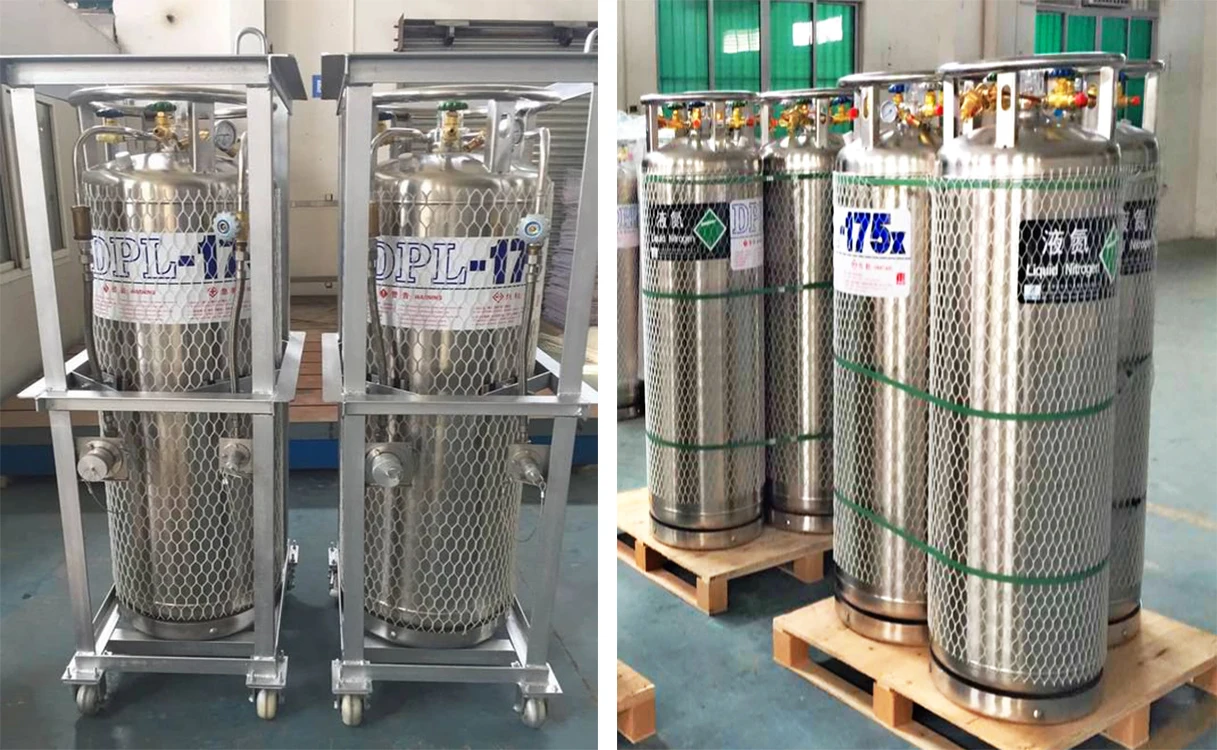

175L 1.4Mpa Cryogenic Liquid Nitrogen Lin Storage Dewar Container For Laser Cutting
Product Description

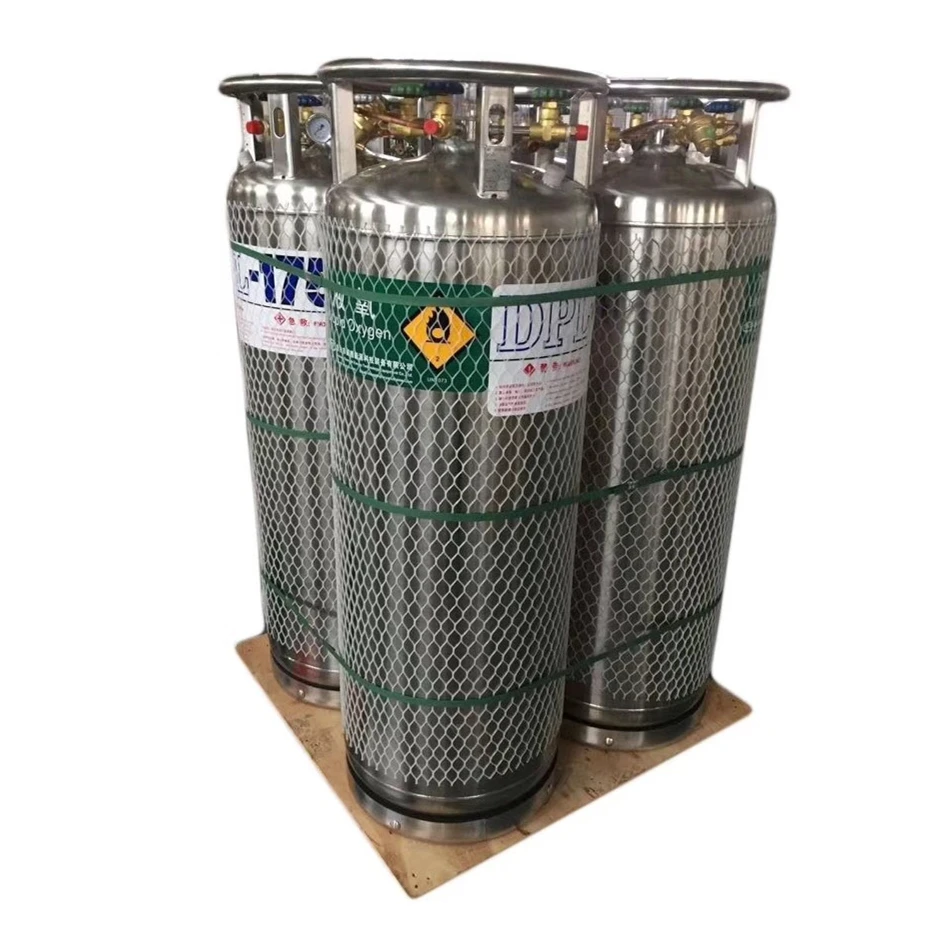

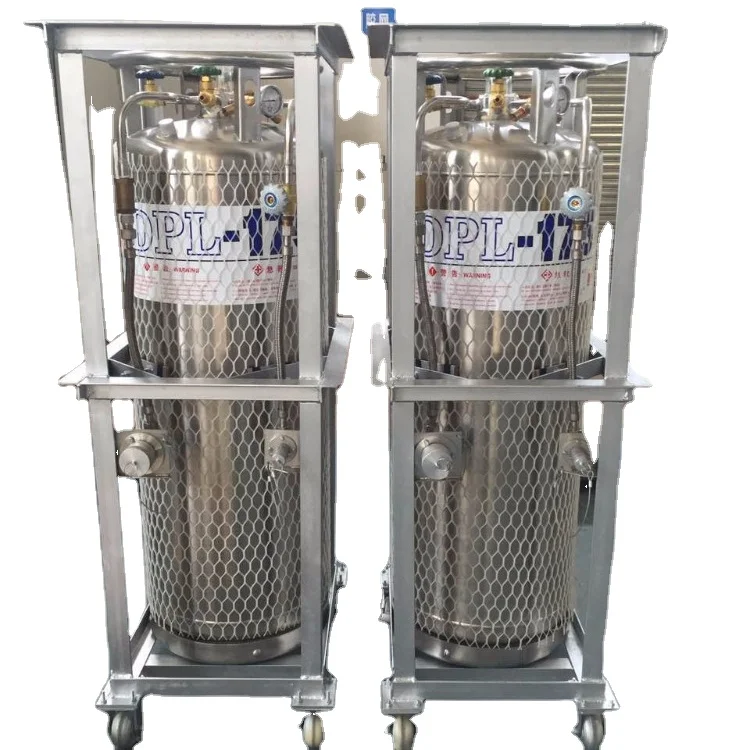

DPL series dewar cylinder is a kind of high-performance vacuum insulated cylinder, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas ,etc. It can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications .
Specification
Specifications | Product model | ||
DPL450-175-1.4 | DPL450-175-2.0 | ||
volume(L) | 175 | 175 | |
Effective volume(L) | 157.5 | 157.5 | |
Size(D×H)mm | Φ508×1496 | Φ508×1500 | |
Working Pressure(MPa) | 1.4 | 2.0 | |
Set pressure of main safety value(MPa) | 1.59 | 2.41 | |
Set pressure of bursting discset(MPa) | 2.6 | 3.6 | |
Evaporation rate (Liquid nitrogen) | ≤2.1% | ≤2.1% | |
Empty weight(kg) | 117 | 135 | |
Maximum filling weight:Liquid oxygen(kg) | 179 | 179 | |
Maximum filling weight:Liquid nitrogen(kg) | 127 | 127 | |
Maximum filling weight:Liquid argon(kg) | 220 | 220 | |
Maximum filling weight:LNG(kg) | 67 | --- | |
Level gauge | Float type,Capacitance | ||
The base style | Stainless steel-rubber bas | ||

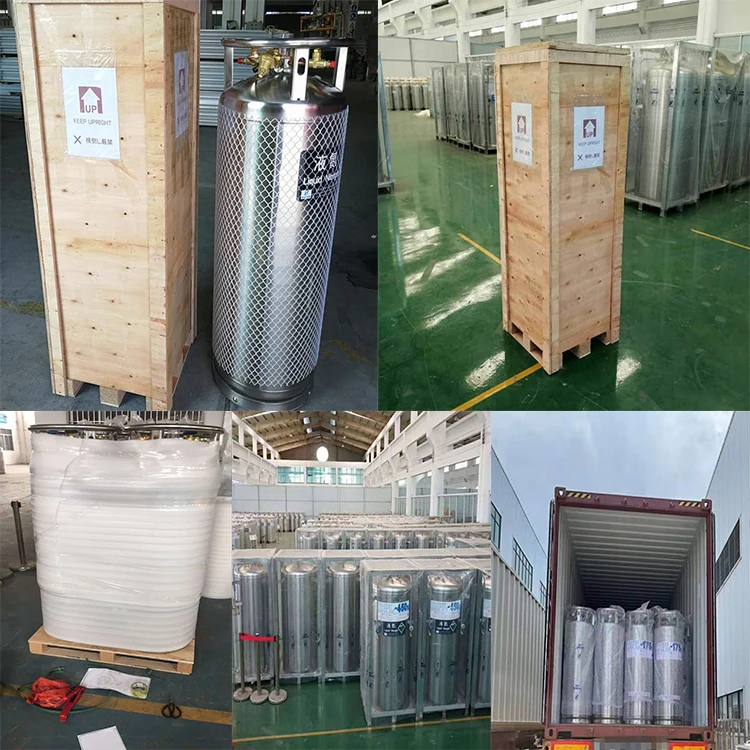

Packing & Delivery

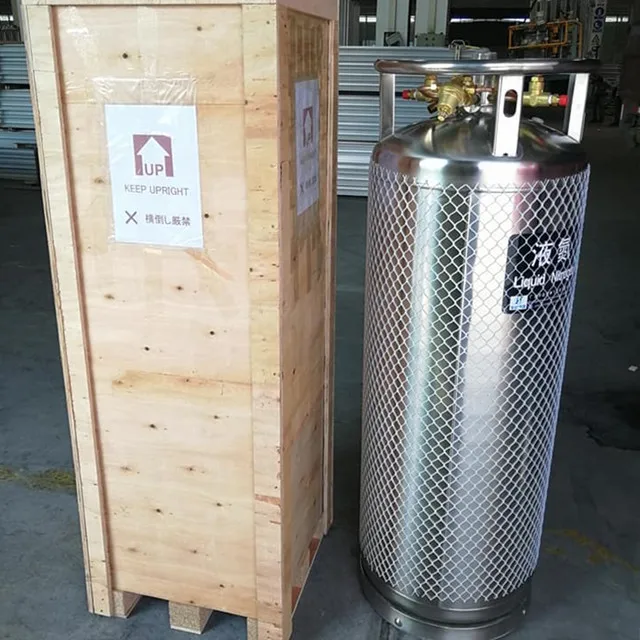

Packaging and delivery
1.packaging with nude
2.packaging with wooden pallets
3.packaging as you required
Delivery Time: About 30 days after receipt of the deposit.
1.packaging with nude
2.packaging with wooden pallets
3.packaging as you required
Delivery Time: About 30 days after receipt of the deposit.
Recommend Products
cryogneic tank
cryogenic pump
ambeint vaporizer

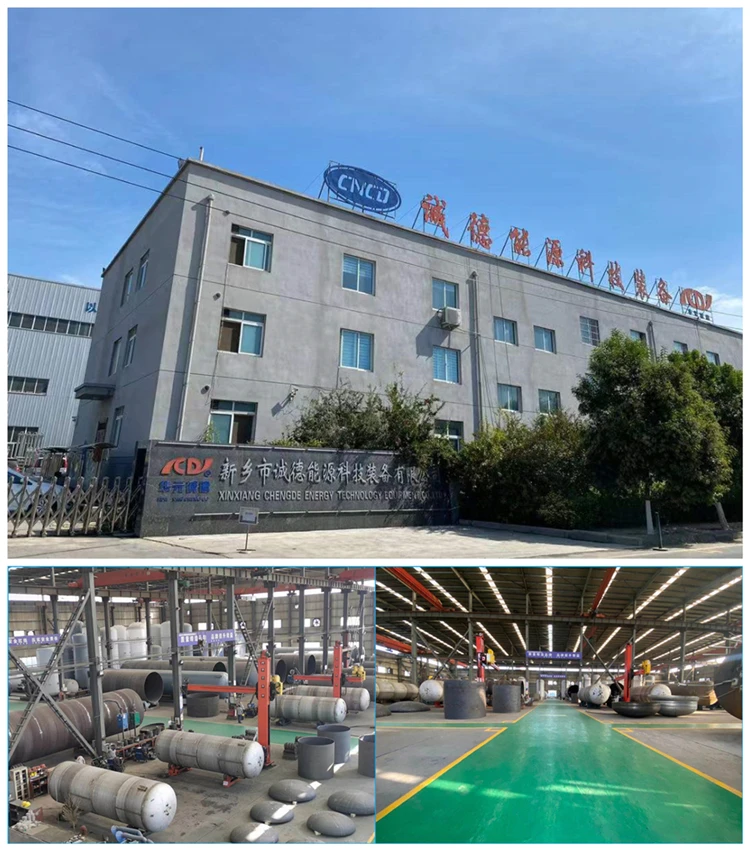

Company Profile
Xinxiang Chengde Energy Technology Equipment Co., Ltd. (original Chengde Gas Equipment Co., Ltd.) was founded in 2002, company is located in Industrial Park, Fengquan district, Xinxiang city, Henan province. with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation. The company has been committed to the pressure vessels, Low-temperature cryogenic equipment and gas equipment in the field of research and development, design, manufacture and installation.
Our company more than 30,000 square meter for workshop.Our company have exported products to foreign countries more than 19 years ,have rich experience in production and exported ,products have exported to more than 35 countries ,also have branch office in the Vietnam.
Certifications
Exhibition
Our company often participates in domestic .foreign exhibitions .if possible, we hope you can come to visited exchange .
Customer Photos
Many foreign customers visited our factory,some customers stay in our city do filling station test,And they get good answer.
