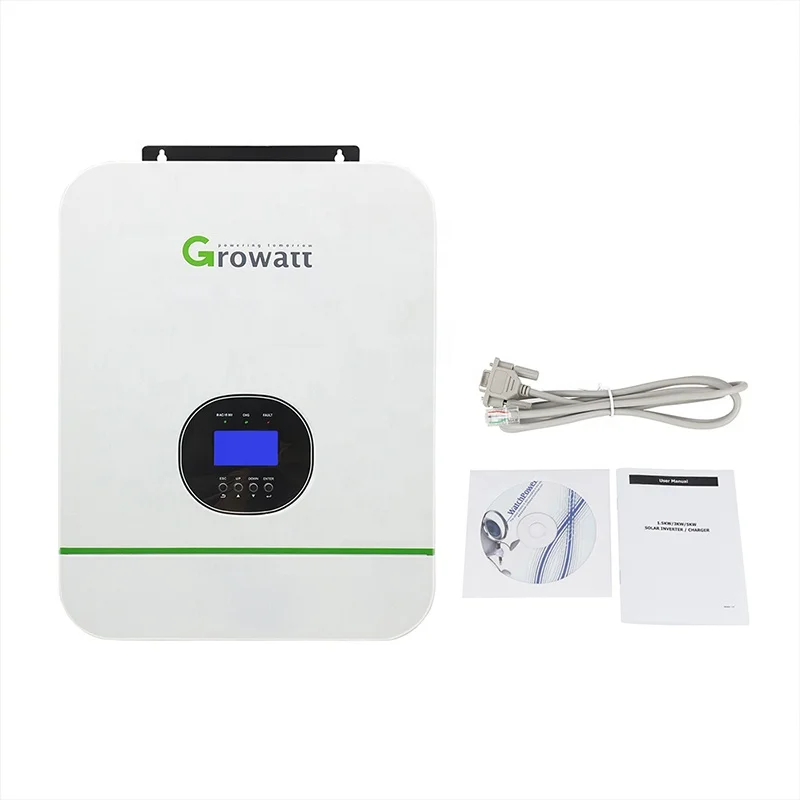

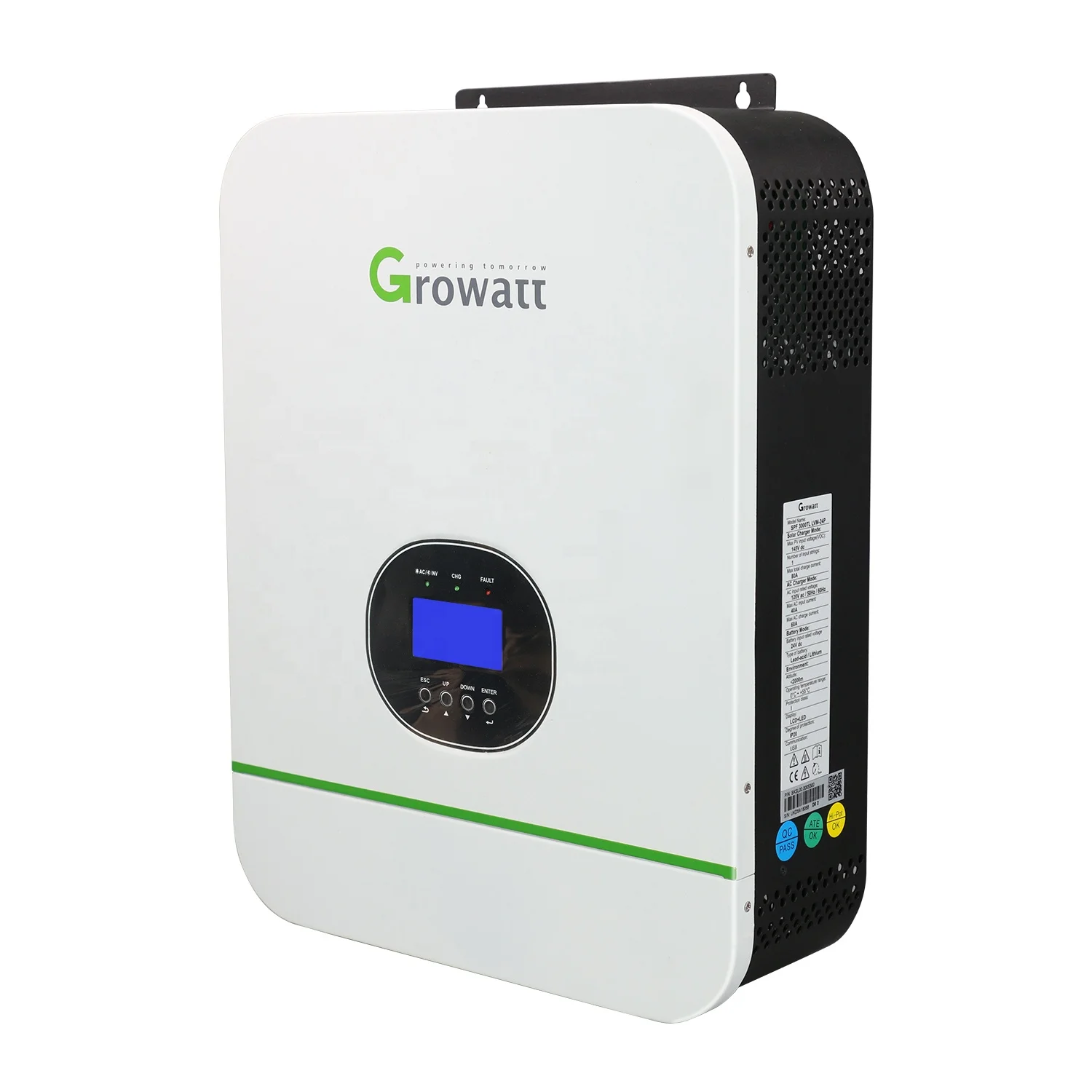

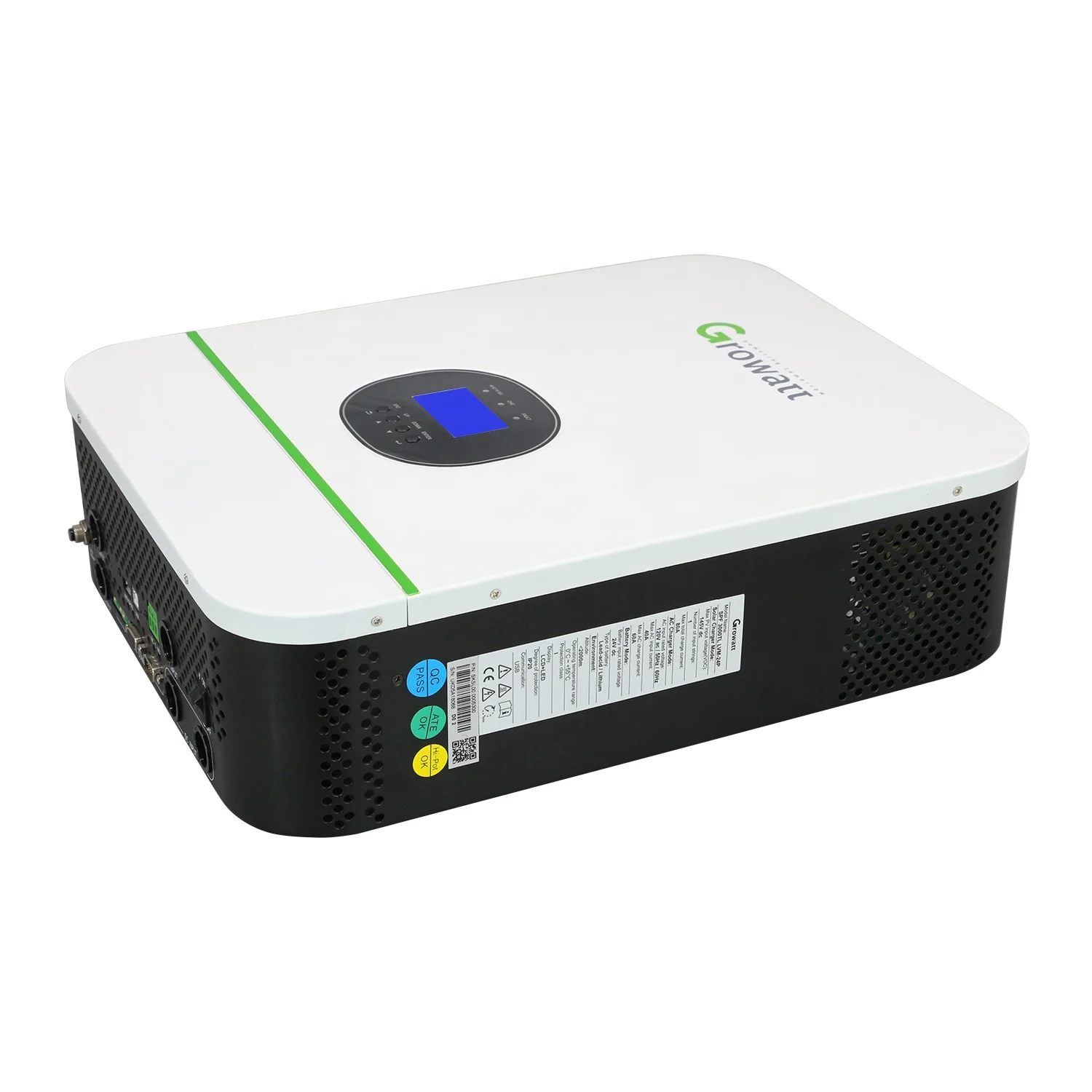

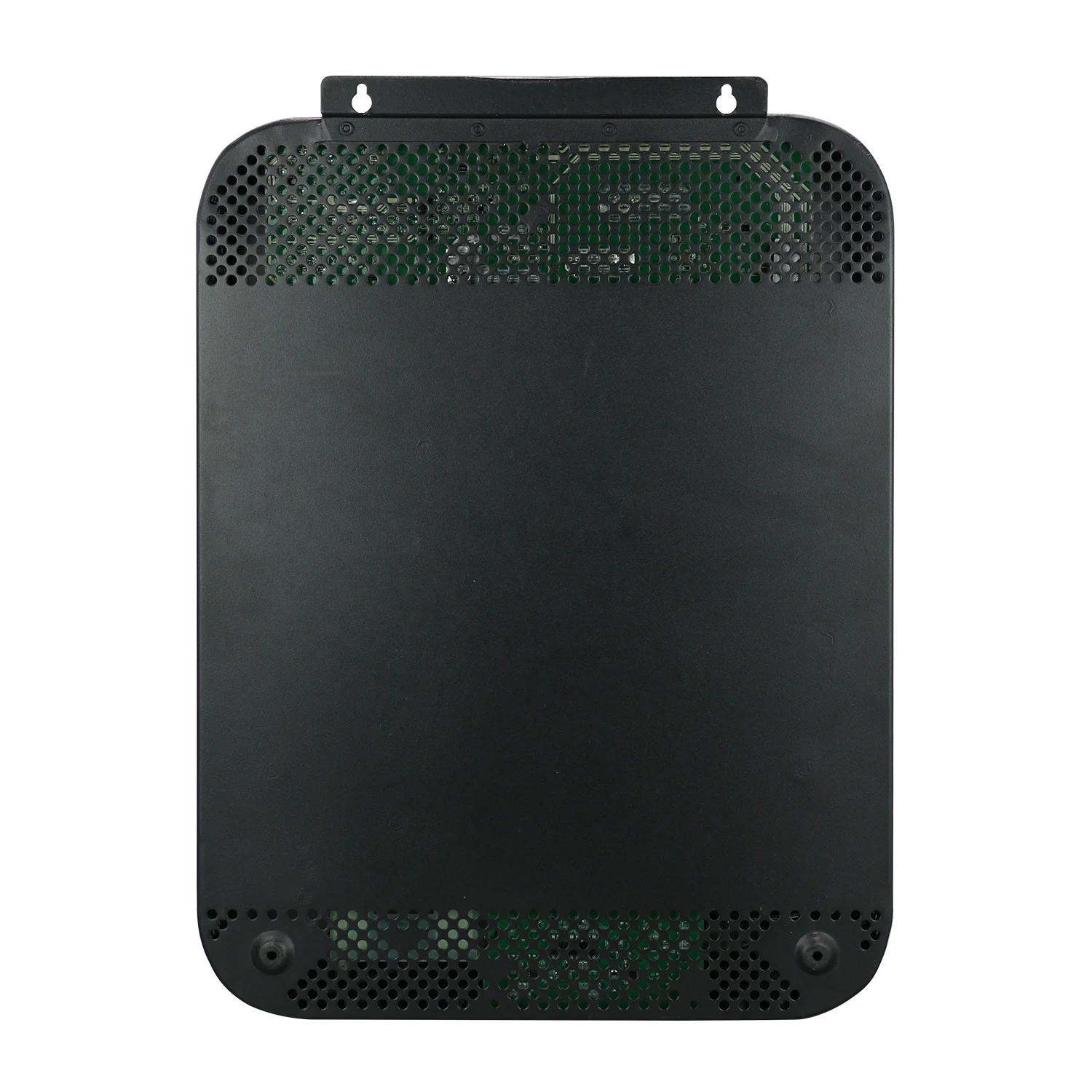

Growatt Solar Inverter 5kw 8kw 10kw Hybrid Inverter With Generator
- Category: >>>
- Supplier: Jiangsu Solarman Technology Co. Ltd.
Share on (1600468626433):

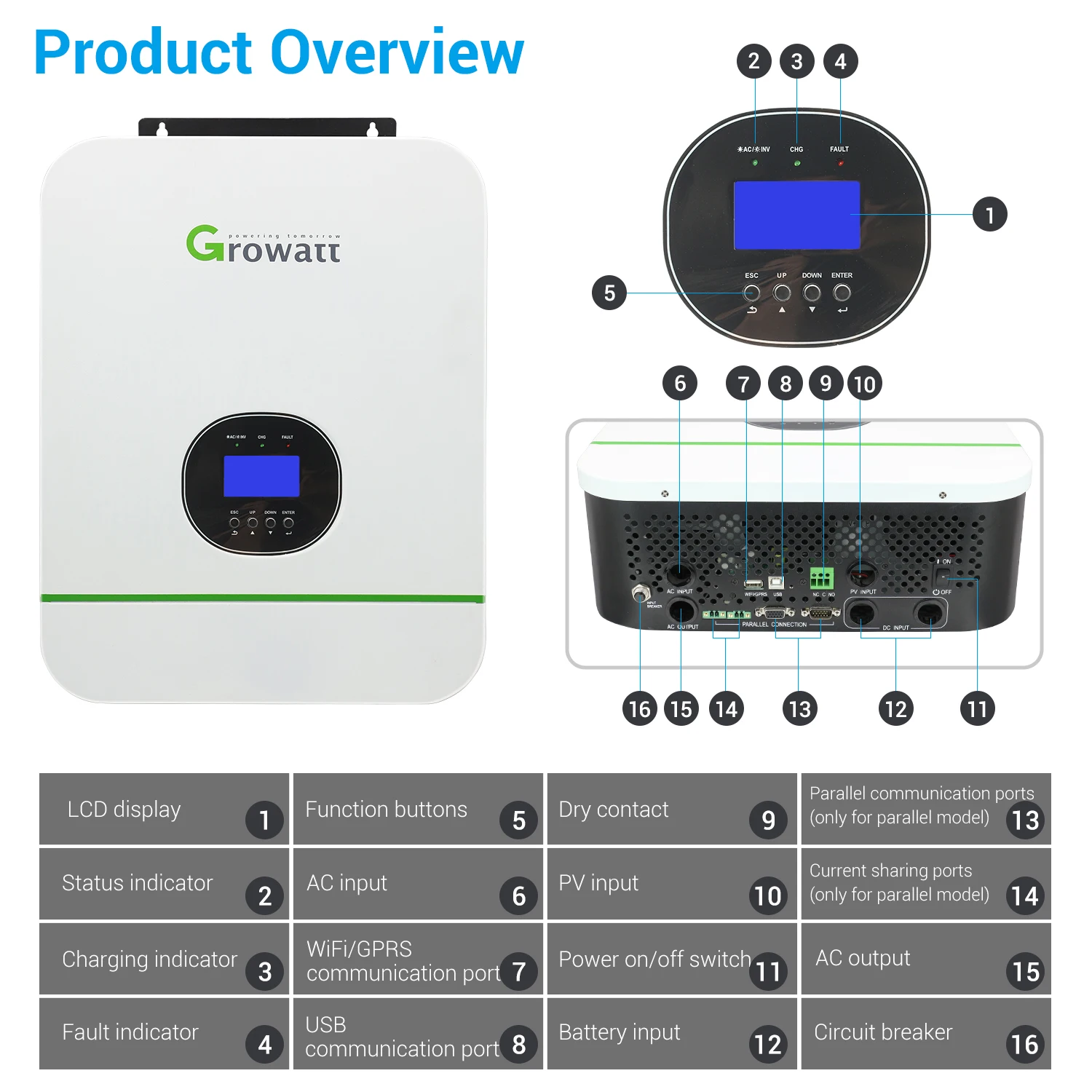

Product Overview
Description
Product Description
Datasheet | SPF 2000TL-HVM-24 | SPF 3000TL-HVM-24 | SPF 2000TL-HVM-48 | SPF 3000TL-HVM-48 | SPF 5000TL-HVM-48/HVM-P | |||||
Battery voltage | 24V DC | 48V DC | ||||||||
INVERTER OUTPUT | Lithium/Lead-acid | |||||||||
Rated power | 2000VA/2000W | 3000VA/3000W | 2000VA/2000W | 3000VA/3000W | 5000VA/5000W | |||||
Paralell capability | NO | NO/YES 6units MAX | ||||||||
Surge power | 4000VA | 6000VA | 4000VA | 6000VA | 10000VA | |||||
Efficiency(peak) | 93% | |||||||||
Waveform | Pure sine wave | |||||||||
Transfer time | 10ms typical,20ms max | |||||||||
SOLAR CHARGER | ||||||||||
Maximum pv array power | 1500W | 1800W | 4500W | |||||||
MPPT range | 30V-80V DC | 60-115V DC | ||||||||
Maximum pv array open circuit voltage | 102V DC | 145V DC | ||||||||
Numbers of independent mppt trackers/strings per mppt tracker | 1/1 | |||||||||
Maximum solar charge current | 50A | 30A | 80A | |||||||
Maximum efficiency | 96% | 96% | 96% | |||||||
AC CHARGER | ||||||||||
Charge Current | 30A | 15A | 60A | |||||||
AC Input Voltage | 230 VAC | 230 VAC | 230 VAC | |||||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||||||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||||||
PHYSICAL | ||||||||||
Protection Degree | IP20 | |||||||||
Dimension (W/H/D) | 315/400/130mm | 350/455/130mm | ||||||||
Net Weight (kgs) | 8 | 8.5 | 8 | 8.5 | 11.5 | |||||
OPERATING ENVIRONMENT | ||||||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||||||
Altitude | <2000m | |||||||||
Operating Temperature | 0°C - 55°C | |||||||||
Storage Temperature | -15°C - 60°C | |||||||||
Related products

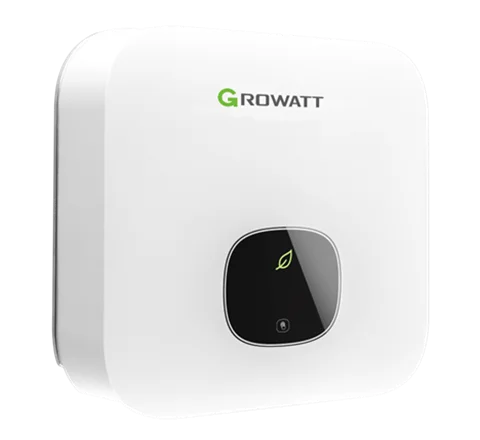

MIC 750-3300TL-X

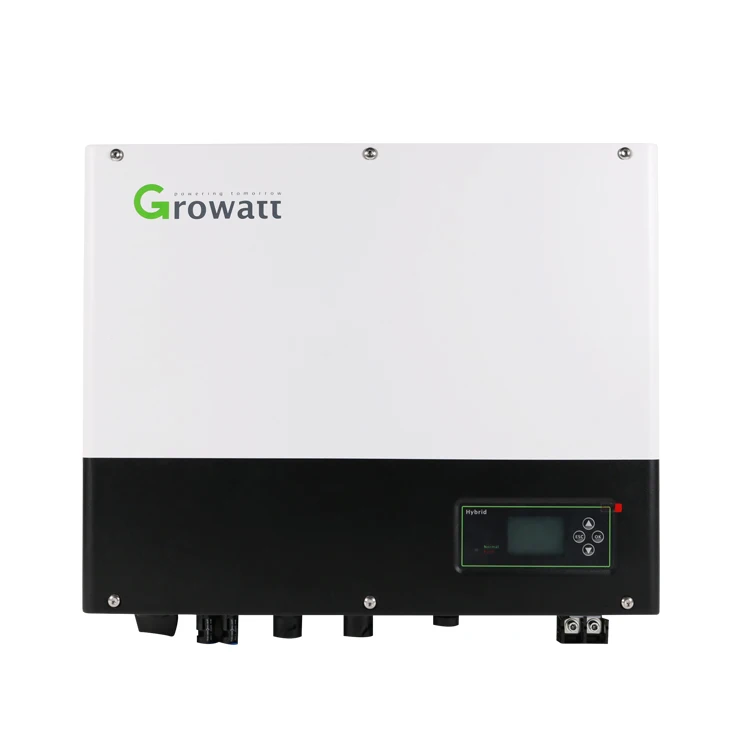

SPH3000/3600/4000/4600/5000/6000

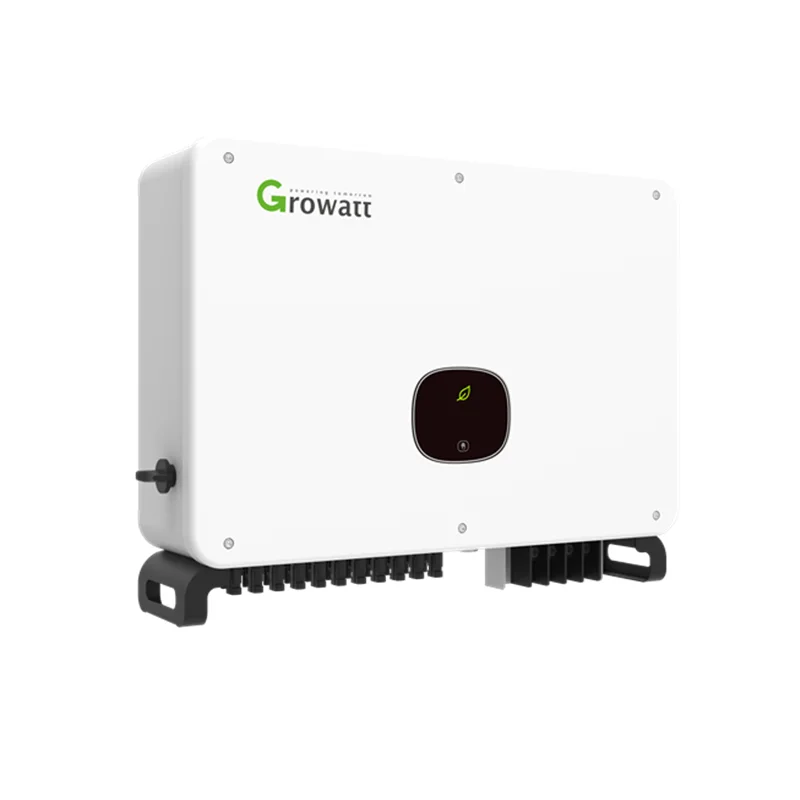

MAC 50~70KTL3-X LV/MV

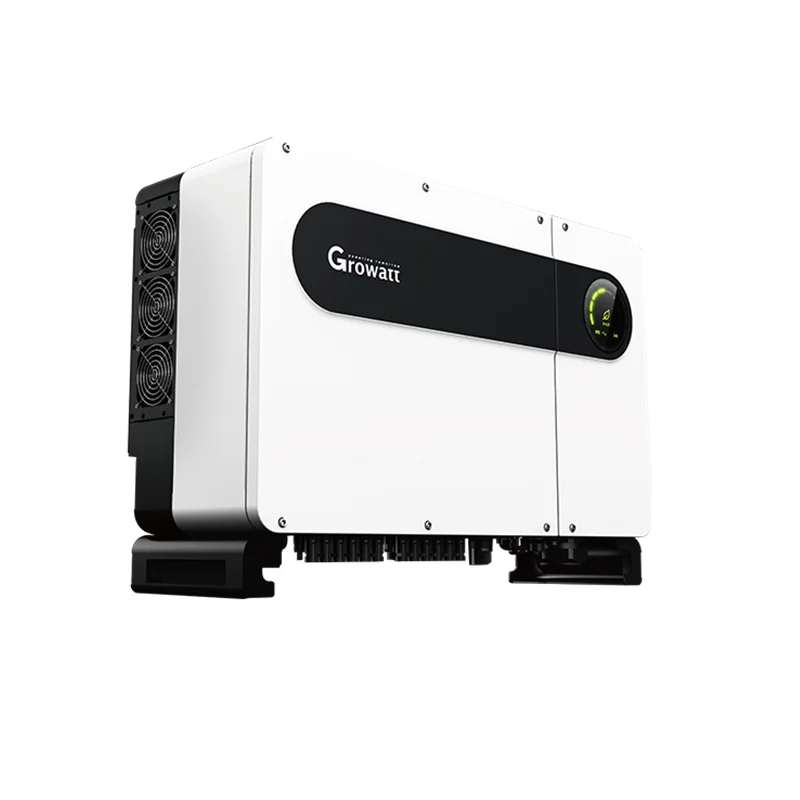

MAC 30-60KTL3 LV

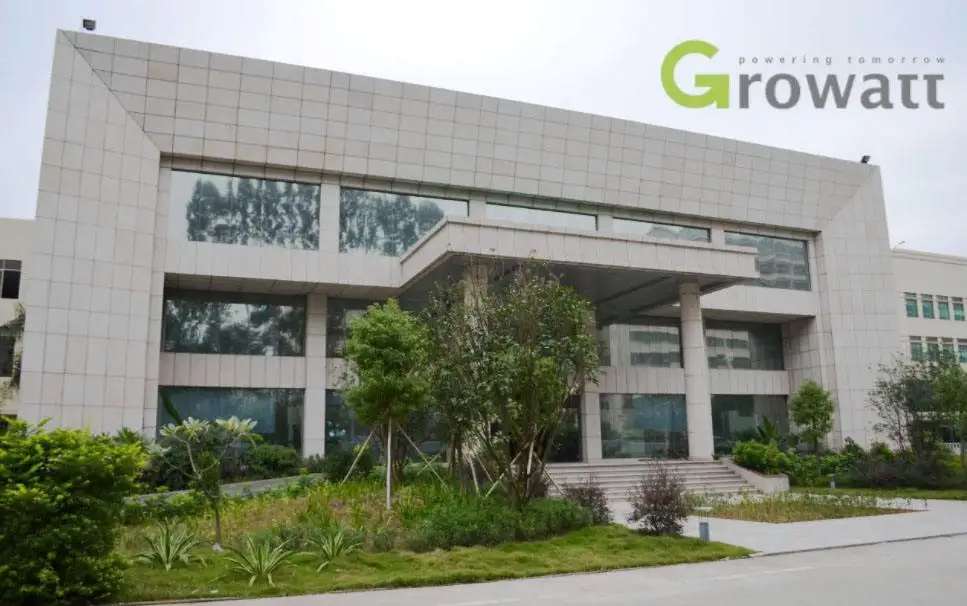

Company Profile
Growatt was founded in 2010 and is a worldwide leader of smart energy solutions.
Growatt is the No.1 residential solar inverter supplier and is also one of the top 3 PV inverter suppliers for distributed
generation solar energy since 2018 and ranks among global top 10 PV inverter suppliers. The World's Manufacturer provides of residential, commercial and utility photovoltaic inverters, energy storage, microgrid systems and smart energy management solutions.
generation solar energy since 2018 and ranks among global top 10 PV inverter suppliers. The World's Manufacturer provides of residential, commercial and utility photovoltaic inverters, energy storage, microgrid systems and smart energy management solutions.

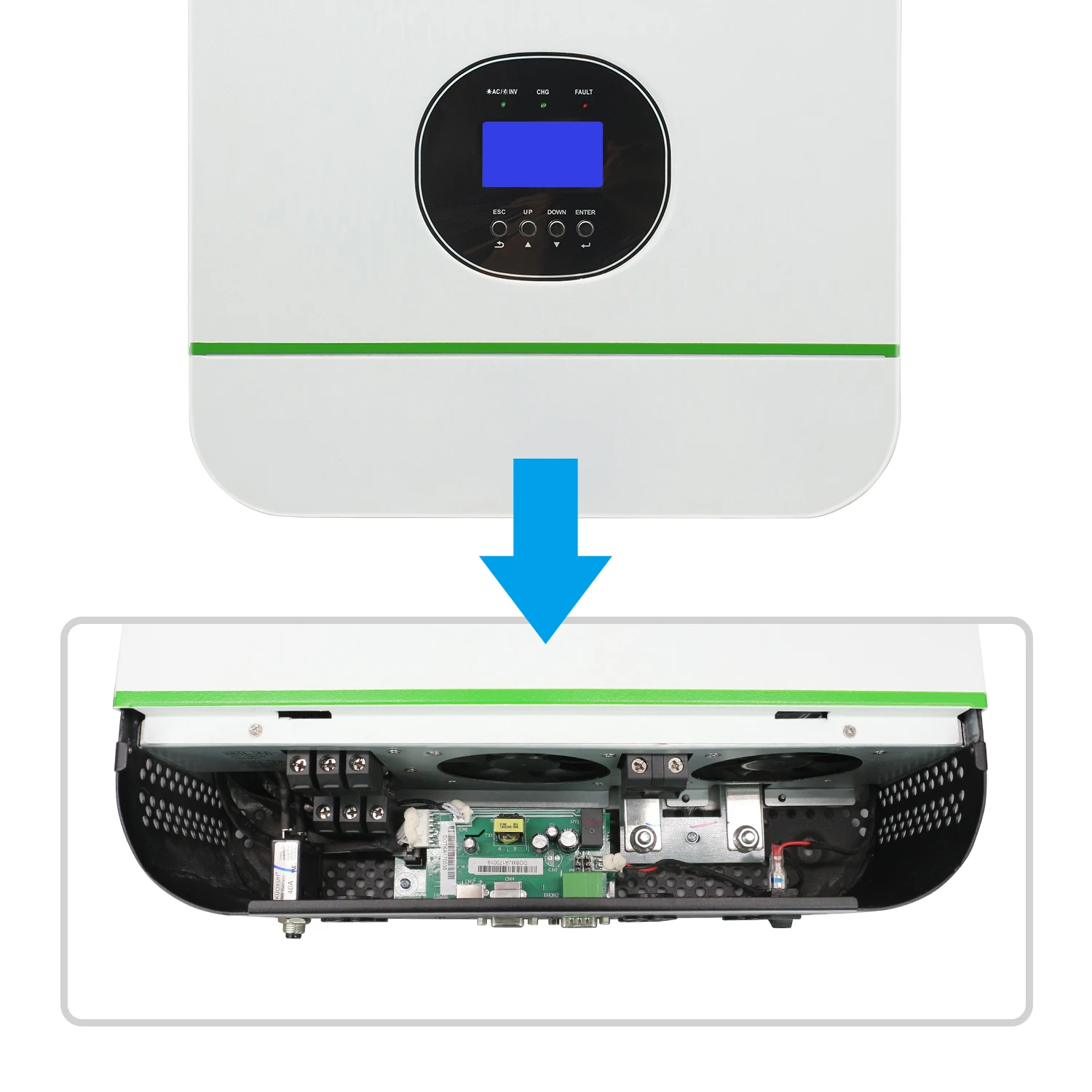

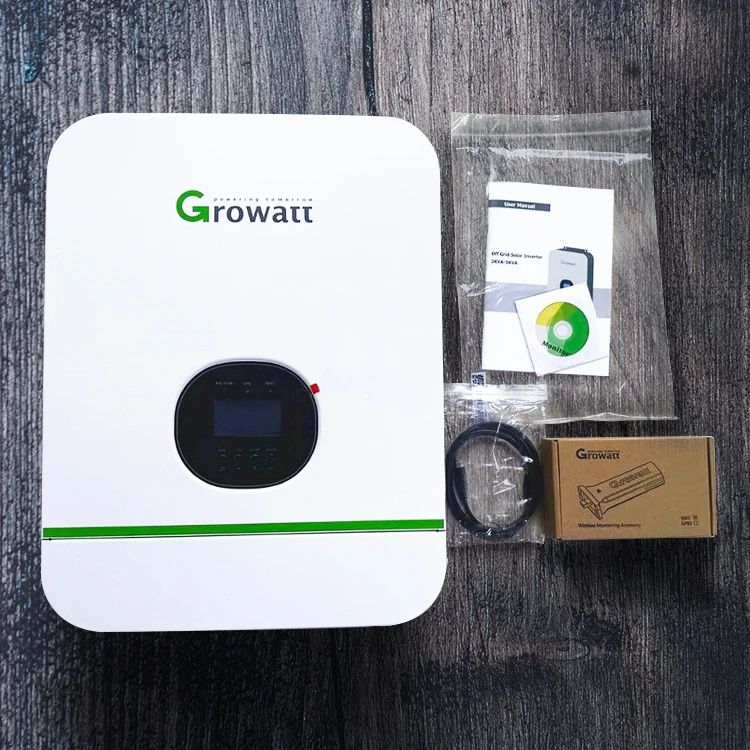

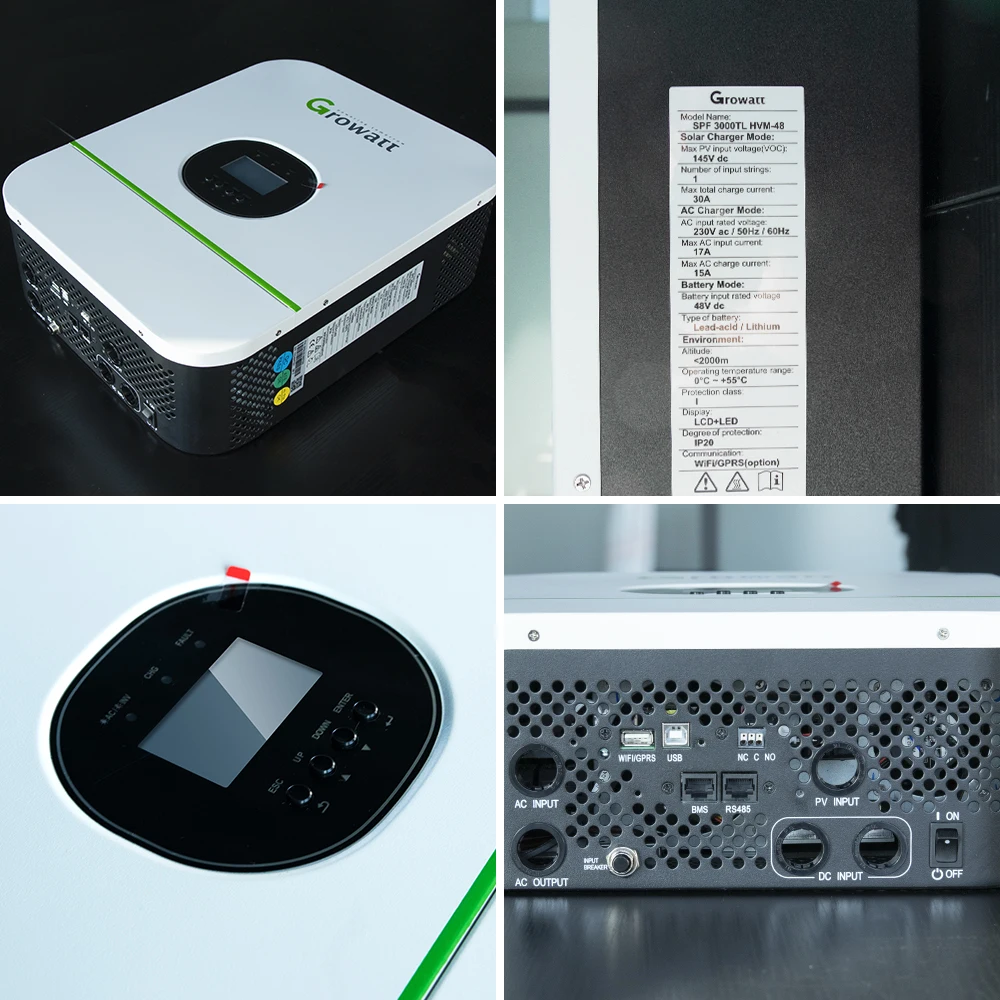

product details
