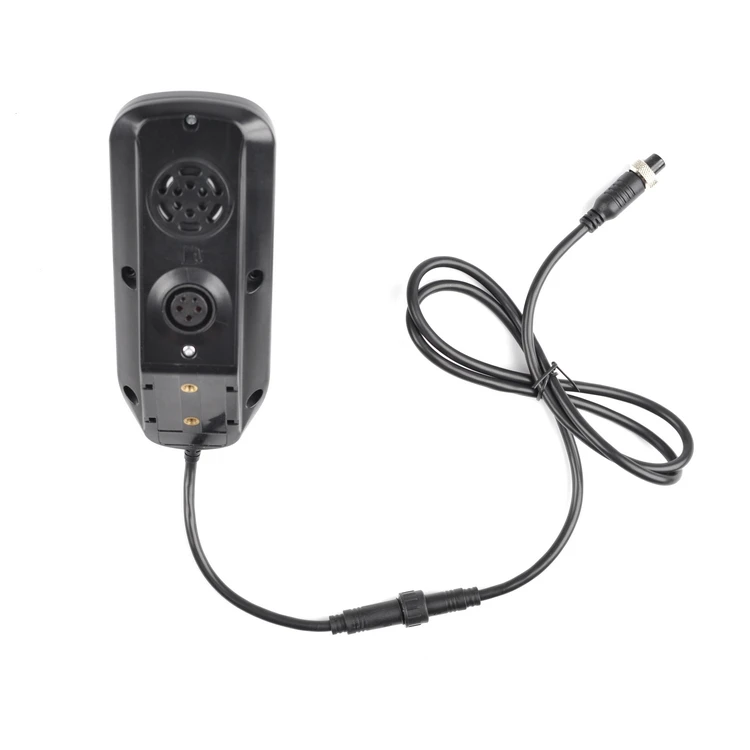

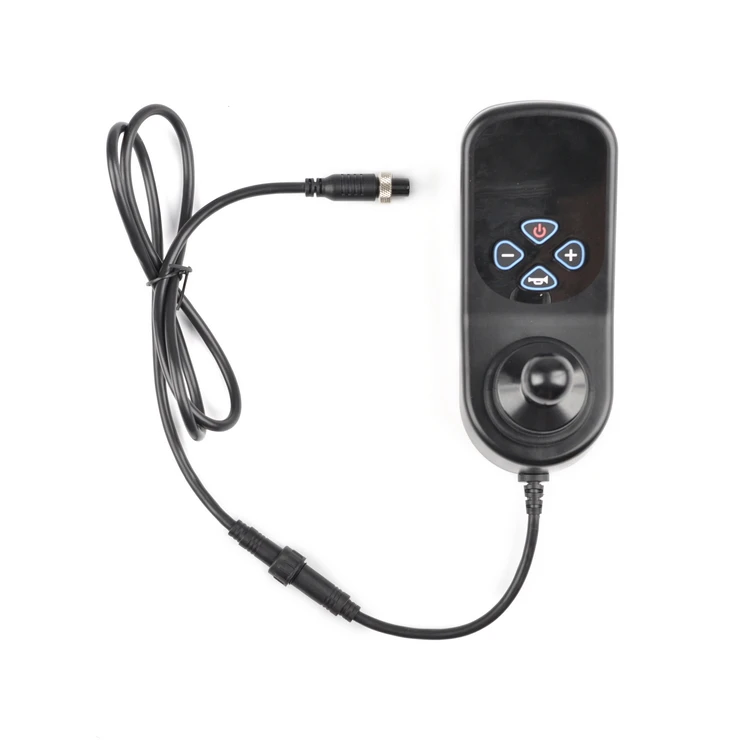

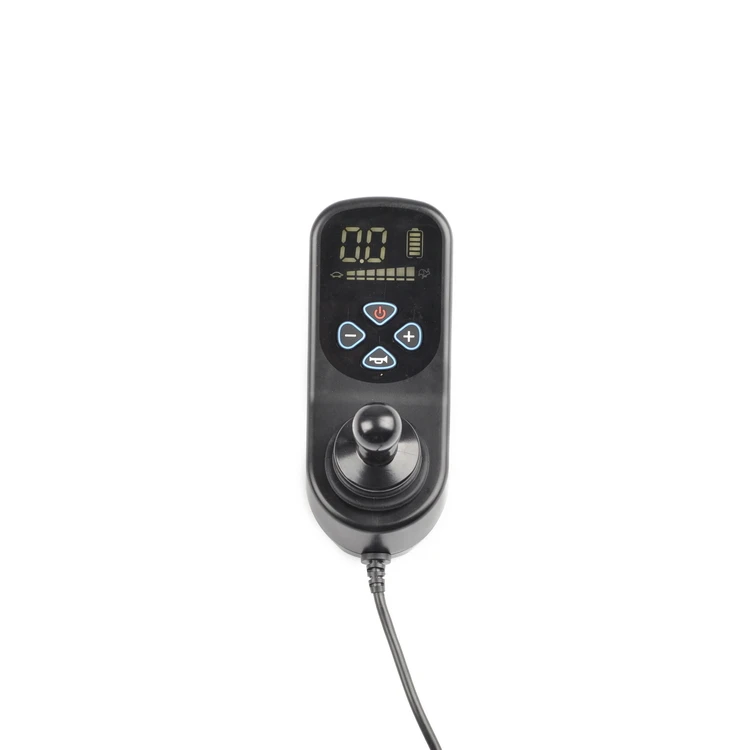

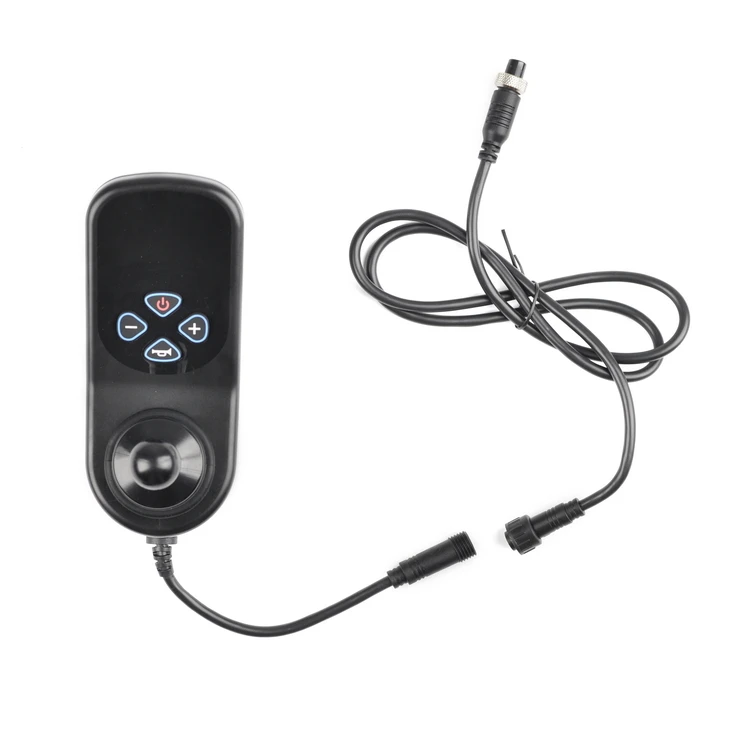

Fitting for Brushless Motors Sine Wave 24V Wheelchair Motor Controller
- Category: >>>
- Supplier: Suzhou Ideal Medical Co. Ltd.
Share on (1600468680948):
Product Overview
Description

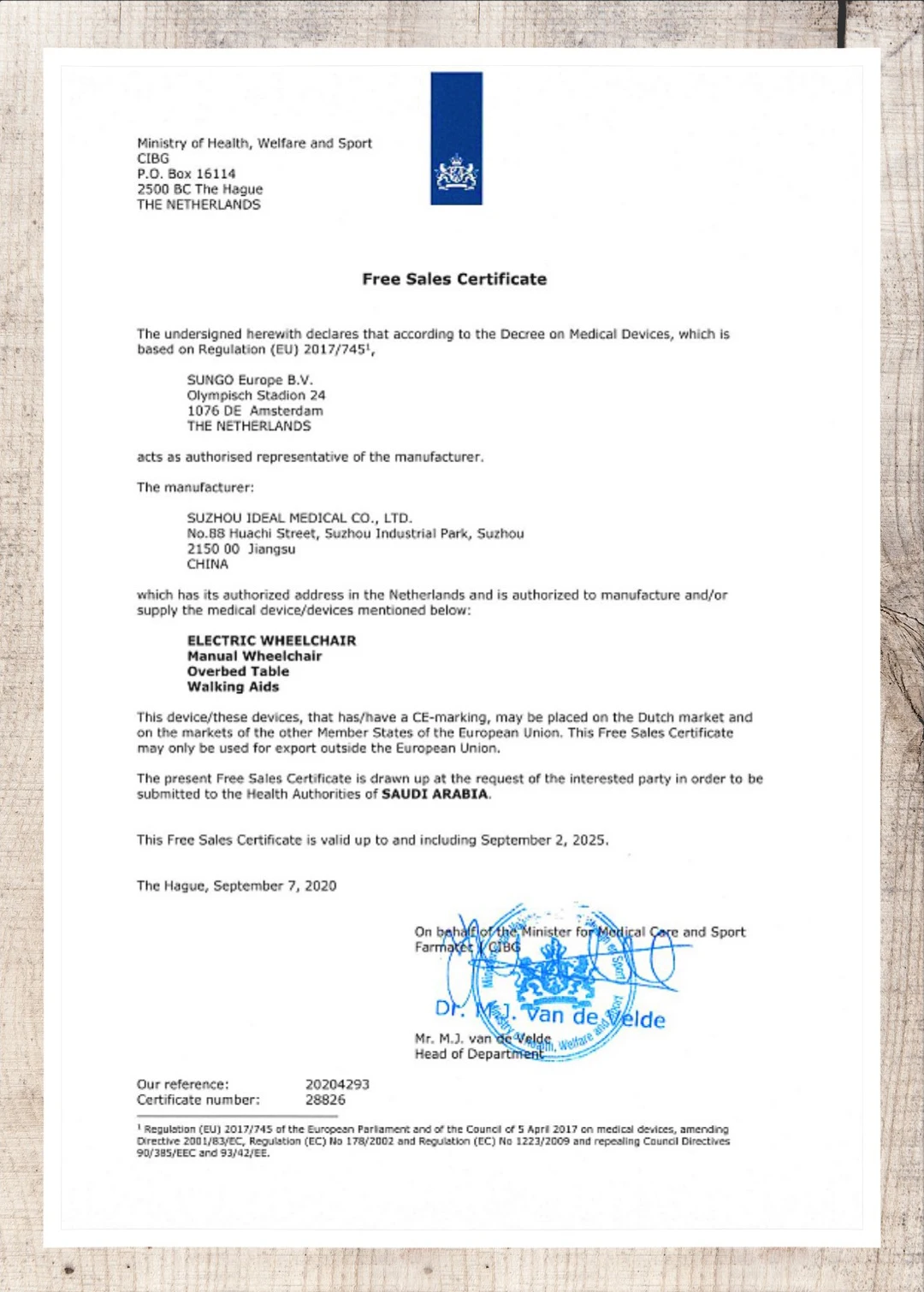

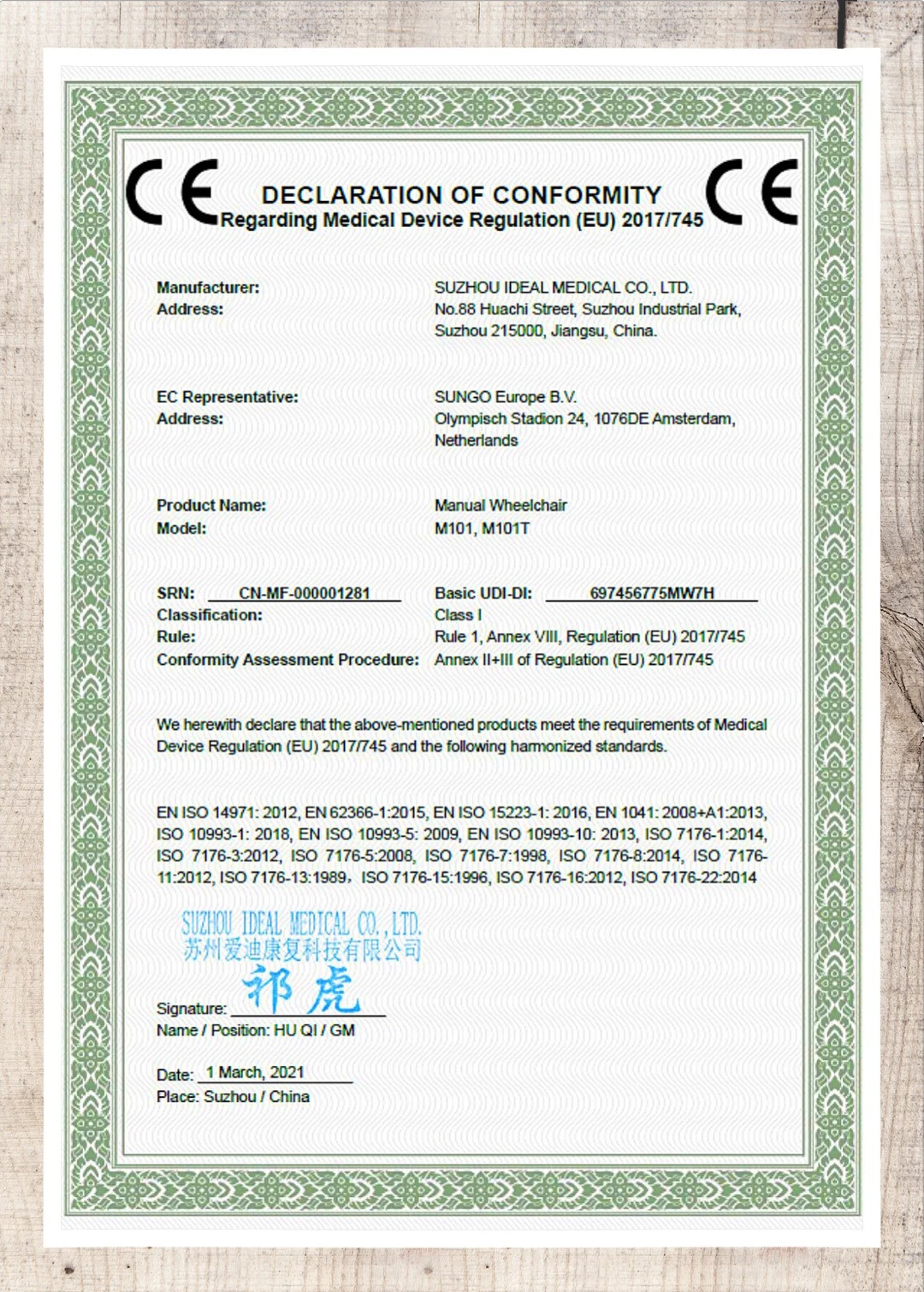

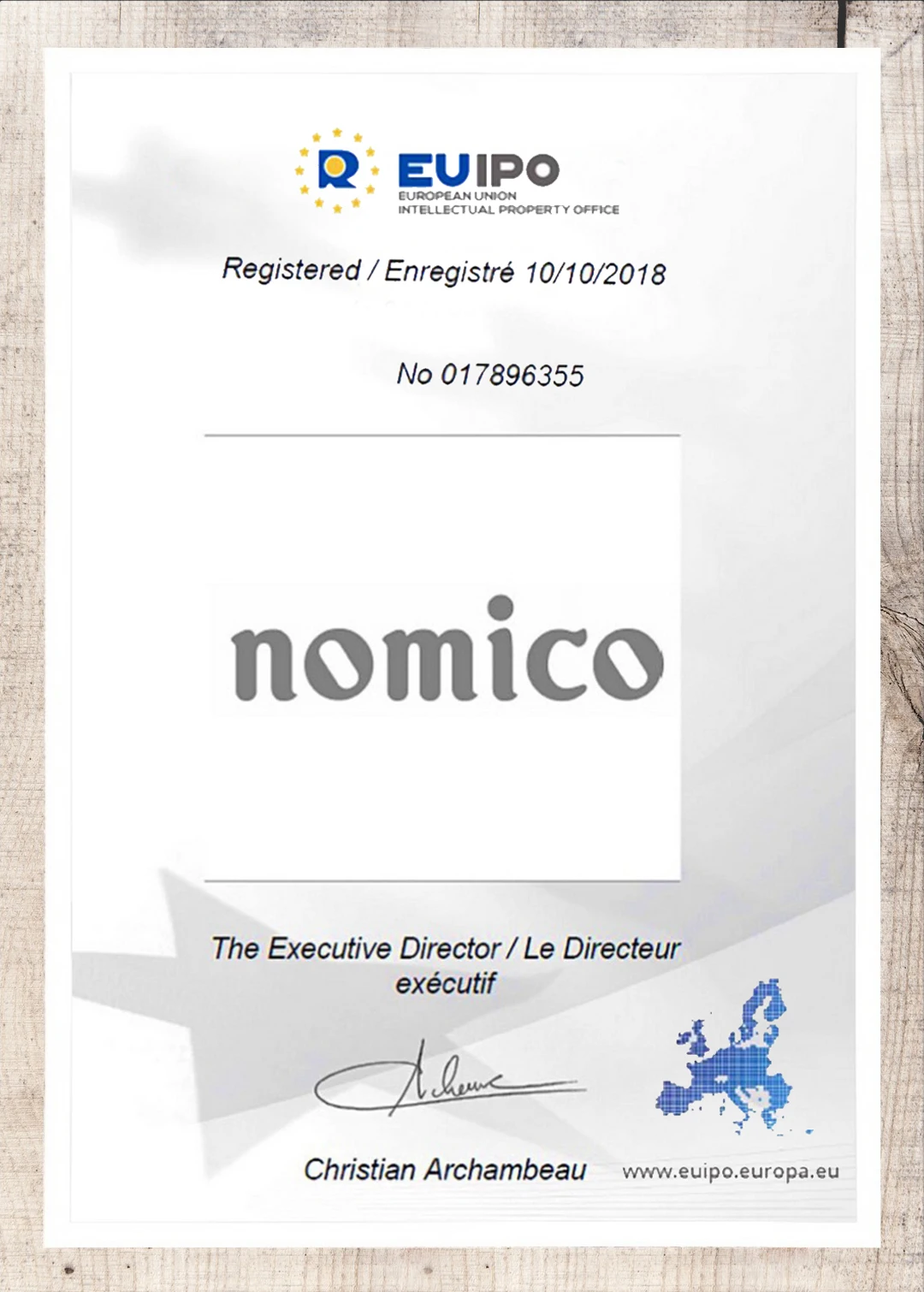

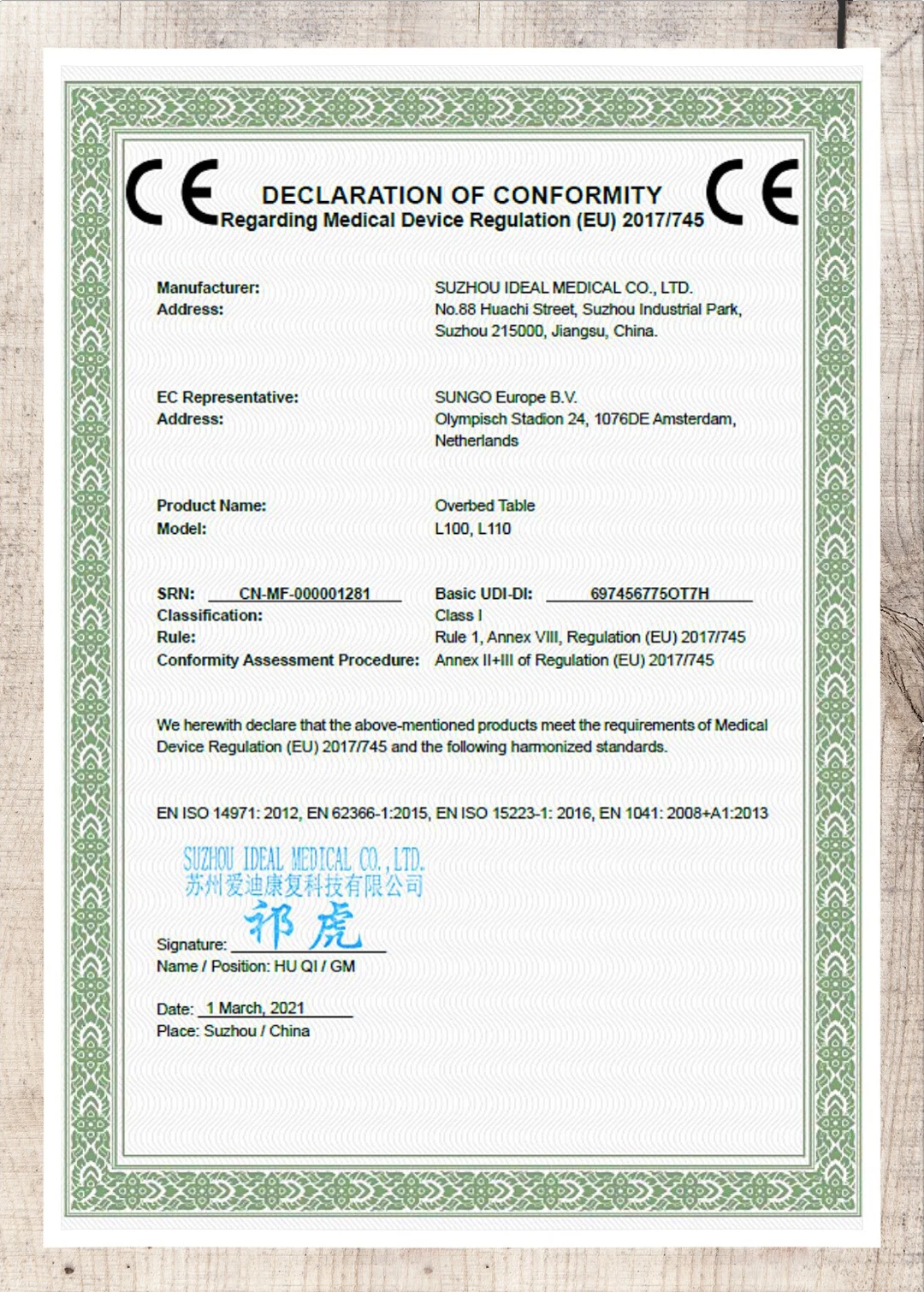

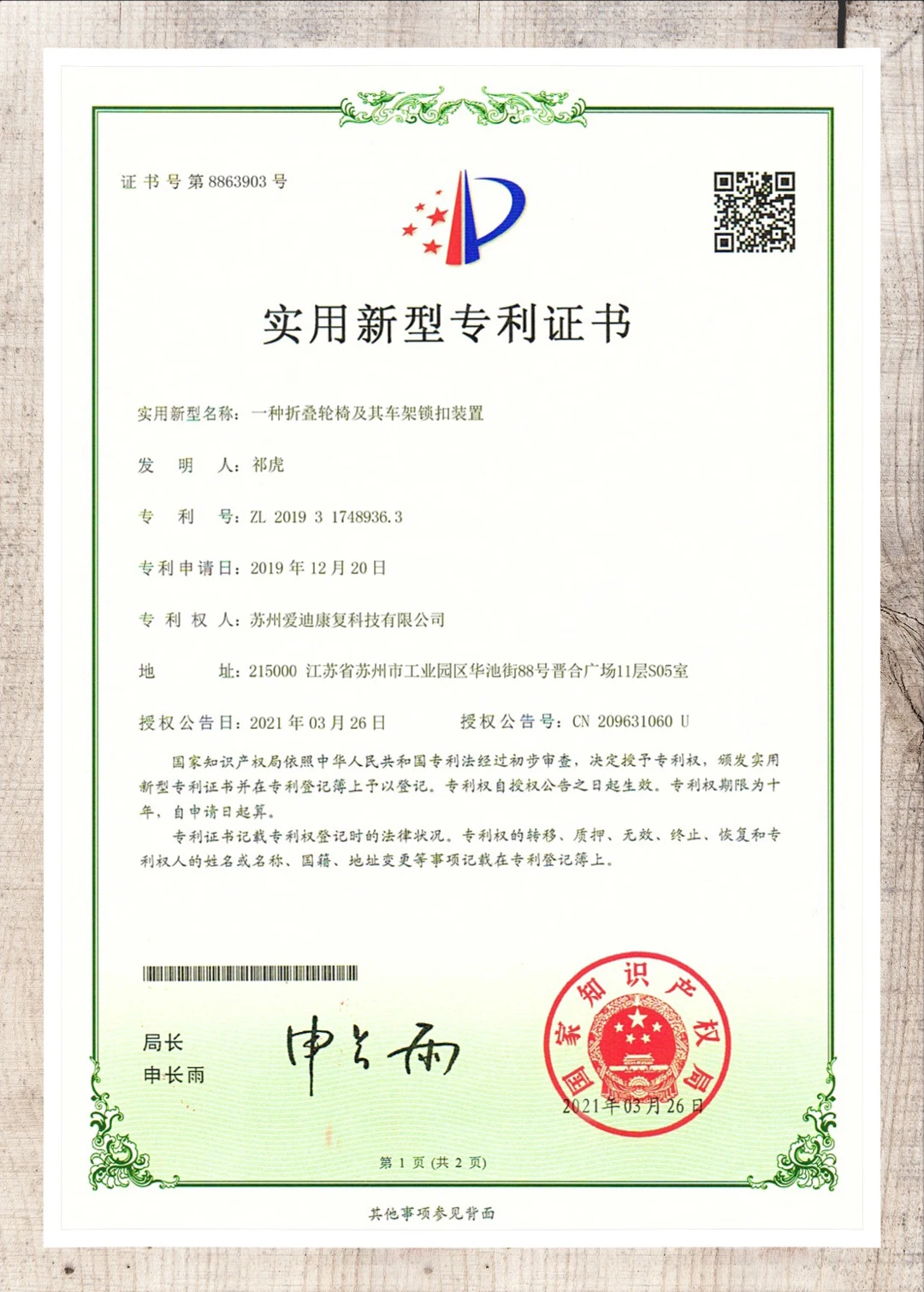

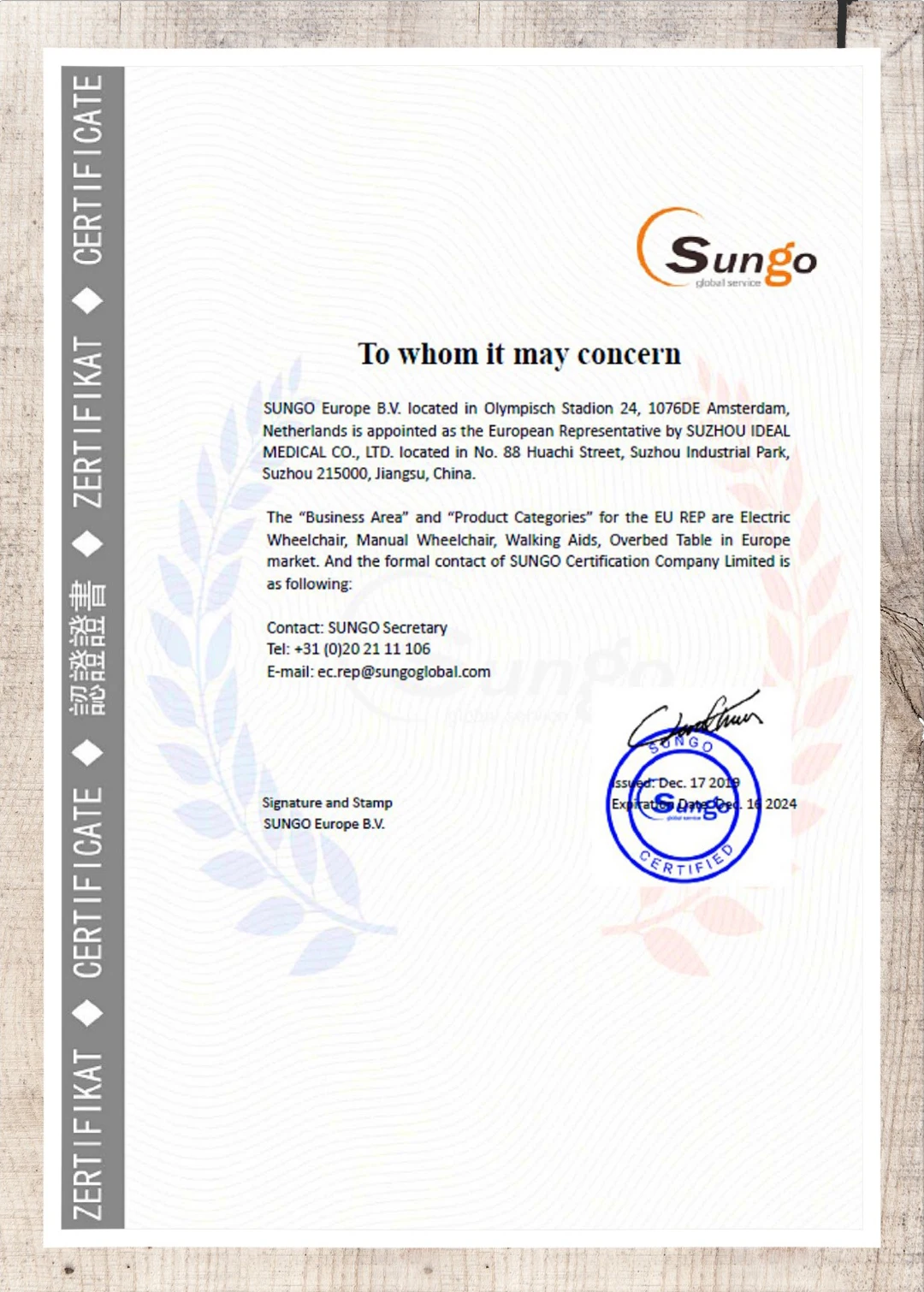

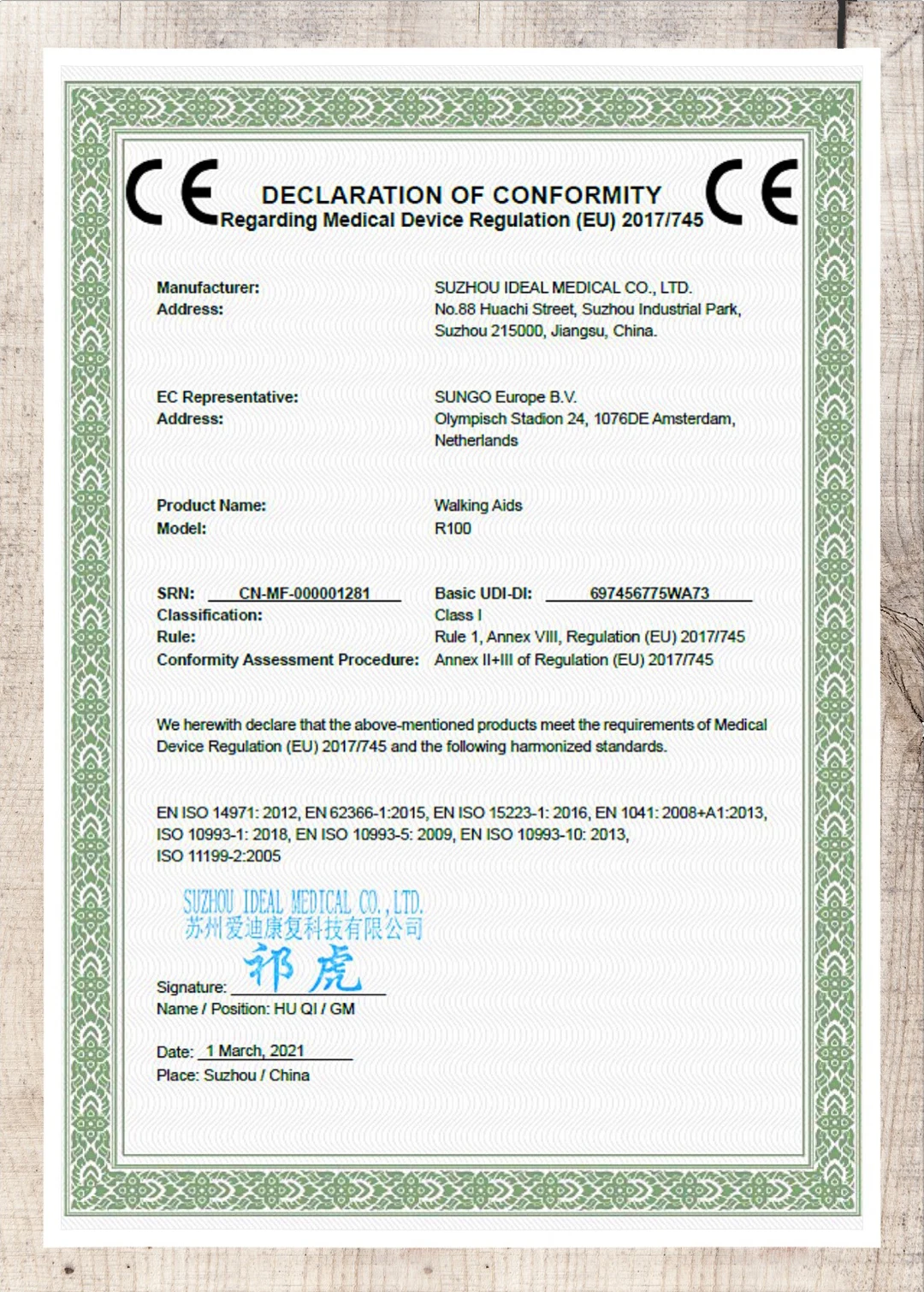

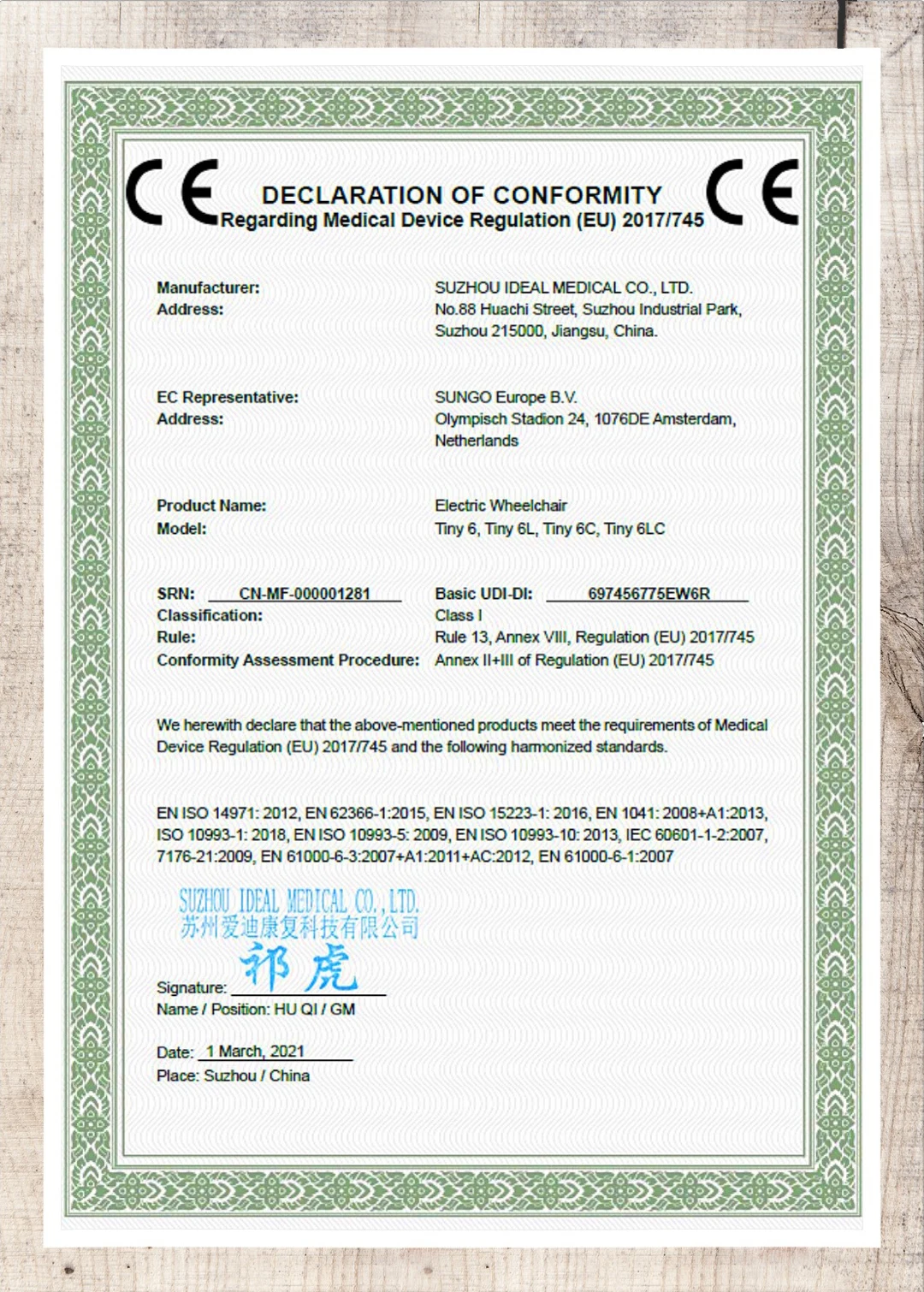

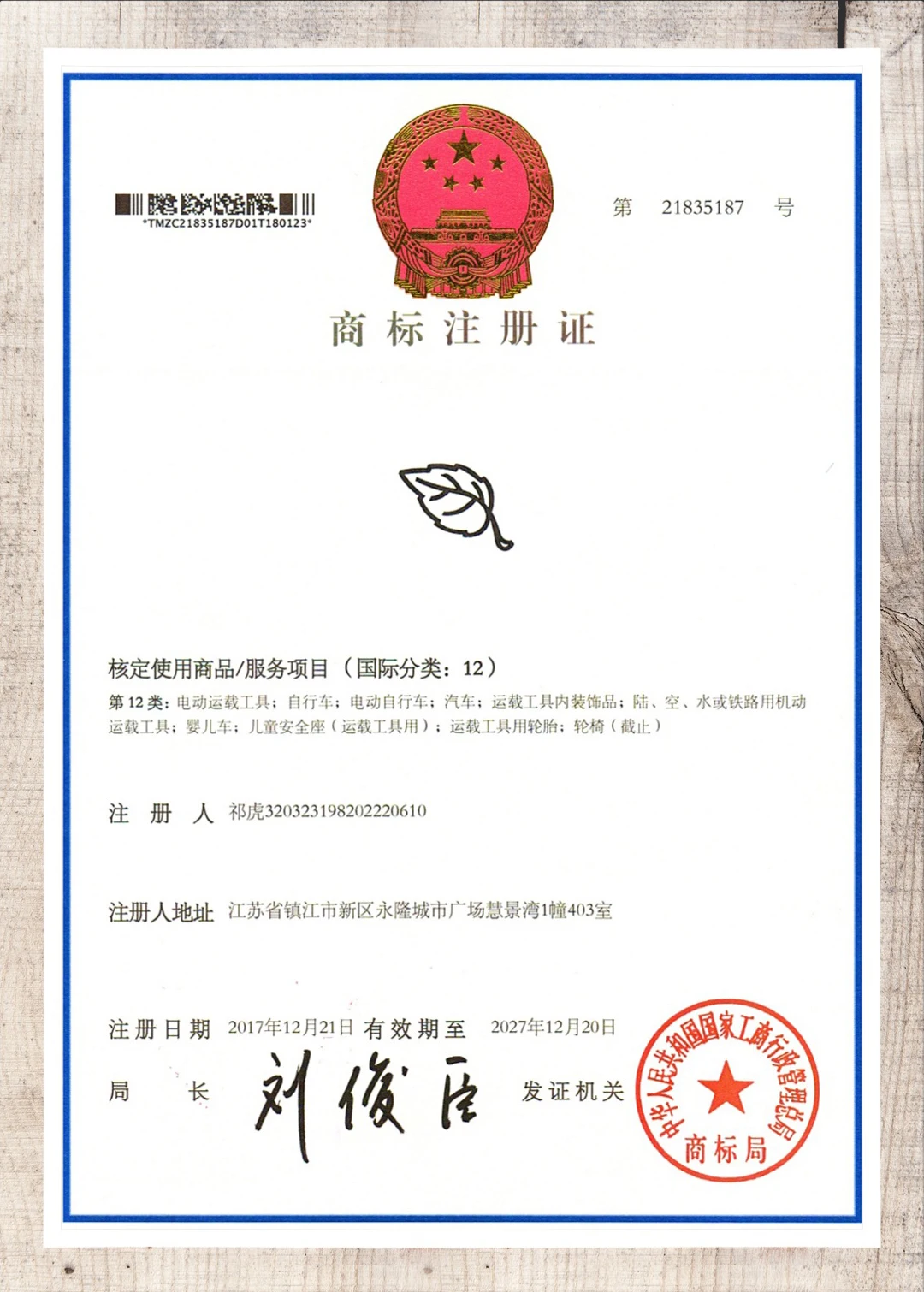

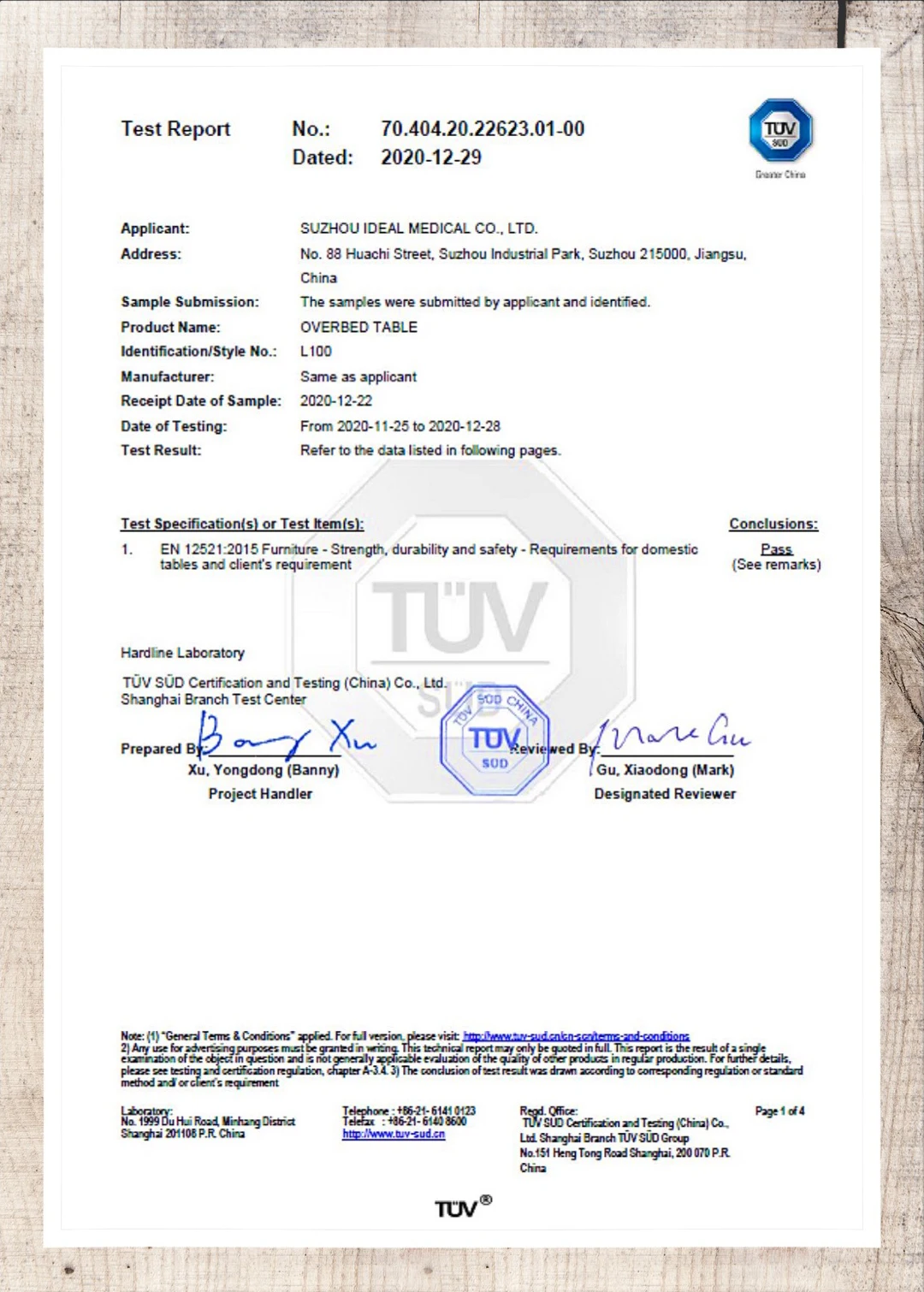

Certifications
Products Features

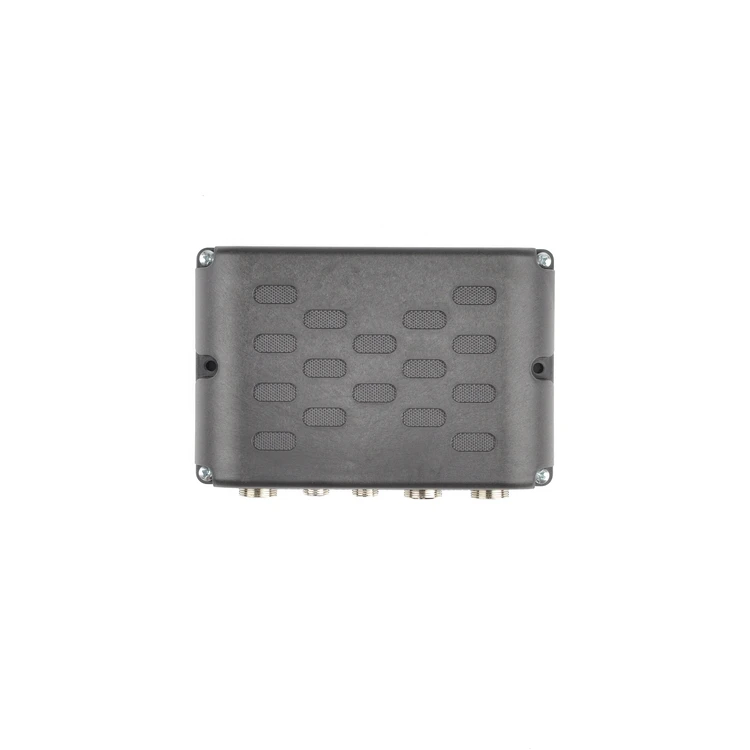

Sine Wave Brushless Controller
2) Small volume of motor: The manufacturing process of servo motor is designed, it is small in size and the motor is 80 cm in diameter, which means it takes up very little space;
3) Light weight of motor: The total weight of a single motor is about 2.9 kg, making the total weight of the finished product even lighter;
4) Loud speaker: The volume is up to 108 dB, and the sound is rich and not harsh;
5) Comfortable driving: The sinusoidal vector control method uses the linear hall sensor and the algorithm to correct the Angle to ensure the control is more accurate.The control box will receive speed and steering feedback to ensure optimal motor performance, making the wheelchair more stable and safe to ride in any environment;
6) Drive at low speed: It can walk slowly at a speed of 0.1 km/h, making it convenient for the wheelchair to travel in a narrow space;
7) Speed closed loop: The change in battery charge had no effect on the maximum speed of the wheelchair (The maximum speed of the 12-inch wheel can be adjusted to 8 km/h, and the factory set the maximum speed to 5.8 km /h);
8) Electromagnetic brake shutdown time adjustable function: Delay the closing of the electromagnetic brake for 10 s to avoid frequent closing of the brake, reduce the noise of frequent opening and closing of the electromagnetic brake, and extend the service life of the electromagnetic actuator;
9) Electronic brake function: When starting again after stopping in the middle of the ascent, avoid slipping, and use with electromagnetic brake when descending, double guarantee safety;
10) Power limiting function: According to the discharge characteristics of lithium battery, discharge current limitation is carried out to extend the battery life;
11) Expandable putter function: Extensible electric push rod for 2 or 4 way control, the controller can switch between driving and putting modes at any time, the wheelchair user can adjust the position of leg support and backrest with one click, which is easy to operate;
12) Safety protection function: It has the protection functions of emergency power cut off, motor missing phase, broken line, over current, over voltage, under voltage, over load, over heat and so on.
Products Description
Product Paramenters
Parameter Name | SY-C10 |
Voltage: | DC24V |
Allowable voltage range: | DC18-35V |
Input current range: | ≤30A |
Maximum output current: | 30A |
Cooling mode: | Natural cooling |
Angle feedback mode: | Three Hall |
Main loop control mode: | SVPWM control |
Communication mode: | CAN bus |

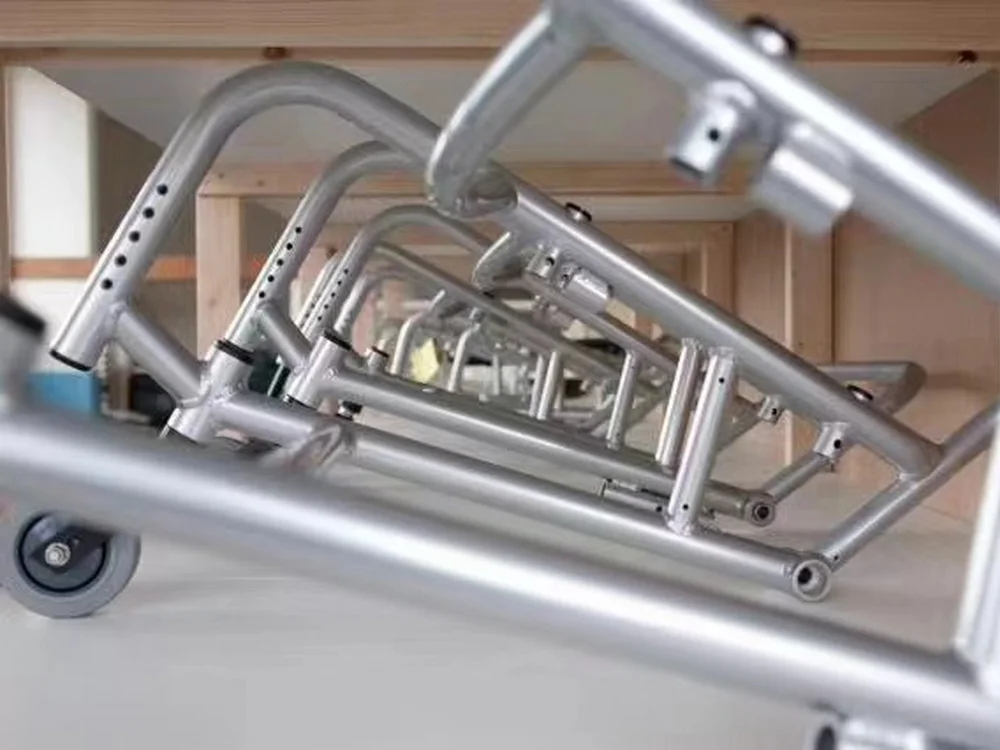

Manufacturing
Company Profile
Make the complexity to ourself and the convenience to users.
Suzhou Ideal Medical Co., Ltd. was established in 2017 and located in beautiful city – Suzhou. Providing high quality products and services for users' portable travel are our mission. We adhere to the concept of minimalism and practicality, and focuses on the lightweight and portability of products, which were manufactured with market-proven and reliable materials through reasonable and optimized design, in order to guarantee the safety performance and cost-effective.
With the progress and increasing maturity of new materials (such as carbon fiber) and new technology, the weight of the product itself is further reduced, for the sake of achieving the purpose of more portable products and meet the higher requirements of users.
Ideal's connotation:
I – Identify the essential demand of customer;
D – Define the product and its application environment;
E – Explore probable solutions;
A – Act on best solution;
L – Let user be satisfied.
Suzhou Ideal Medical Co., Ltd. was established in 2017 and located in beautiful city – Suzhou. Providing high quality products and services for users' portable travel are our mission. We adhere to the concept of minimalism and practicality, and focuses on the lightweight and portability of products, which were manufactured with market-proven and reliable materials through reasonable and optimized design, in order to guarantee the safety performance and cost-effective.
With the progress and increasing maturity of new materials (such as carbon fiber) and new technology, the weight of the product itself is further reduced, for the sake of achieving the purpose of more portable products and meet the higher requirements of users.
Ideal's connotation:
I – Identify the essential demand of customer;
D – Define the product and its application environment;
E – Explore probable solutions;
A – Act on best solution;
L – Let user be satisfied.

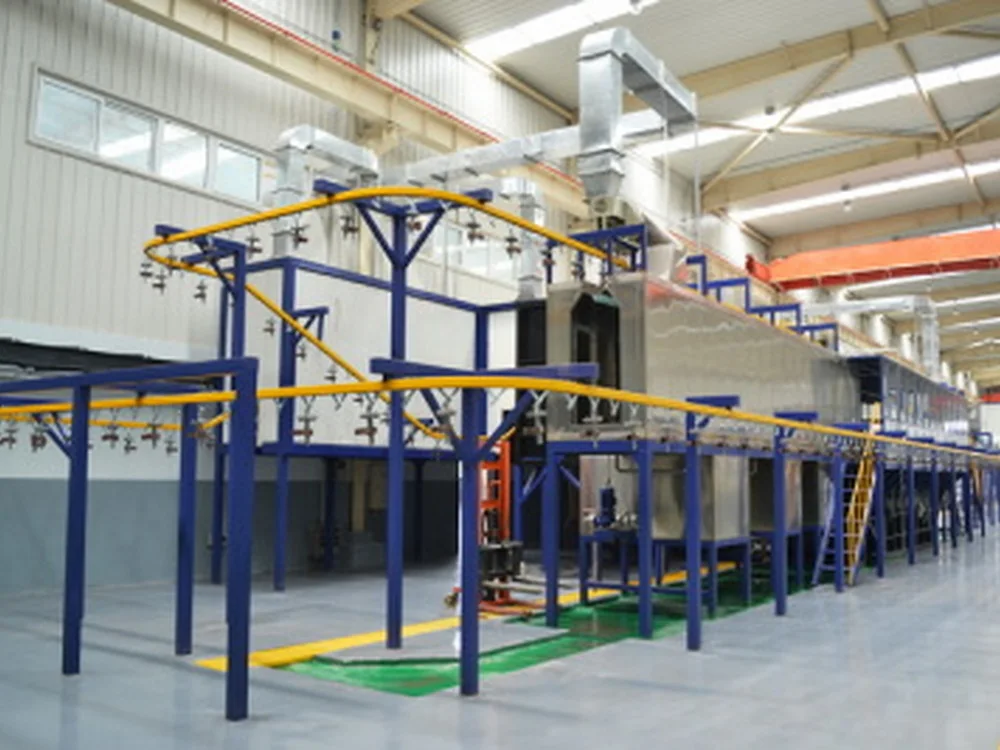

Located at Medical Industrial Park
Company Office

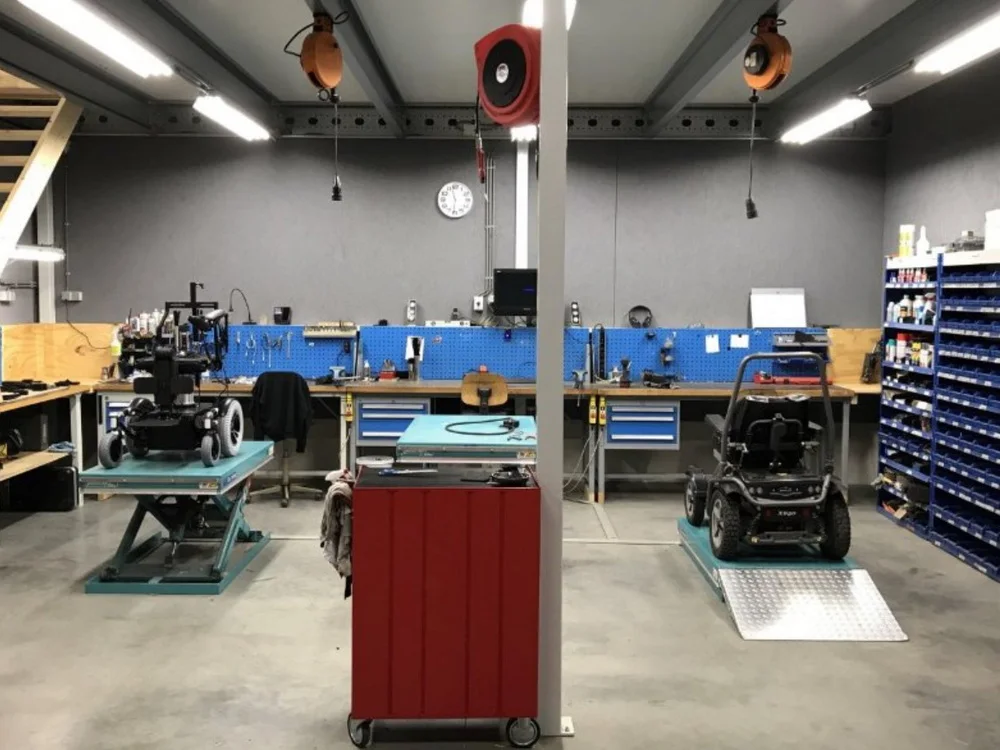

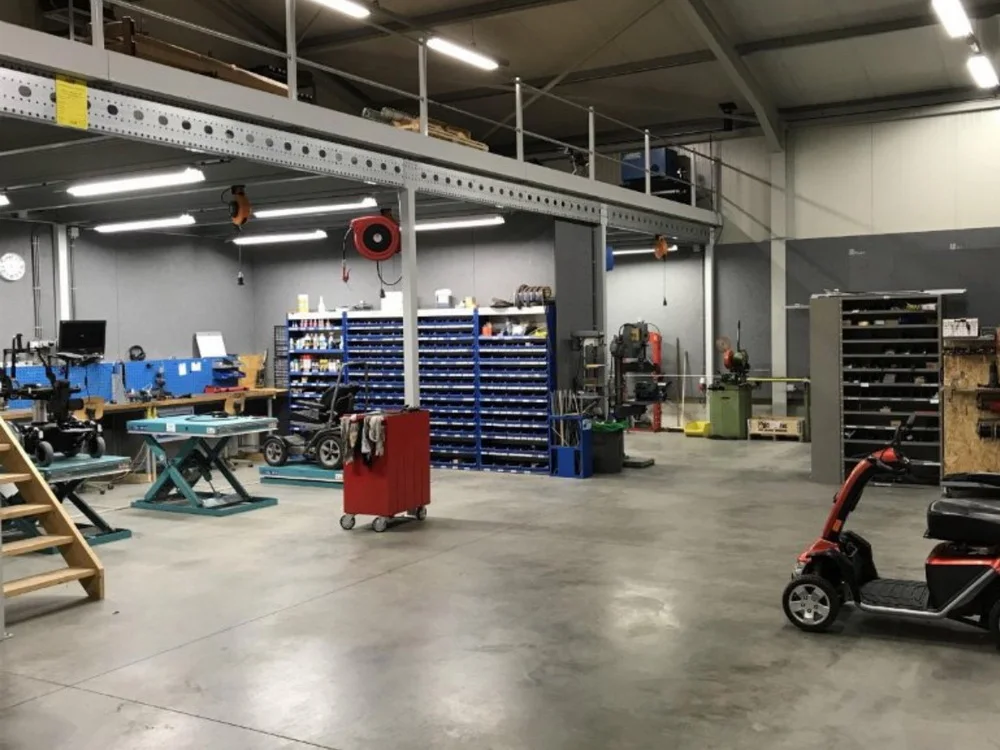

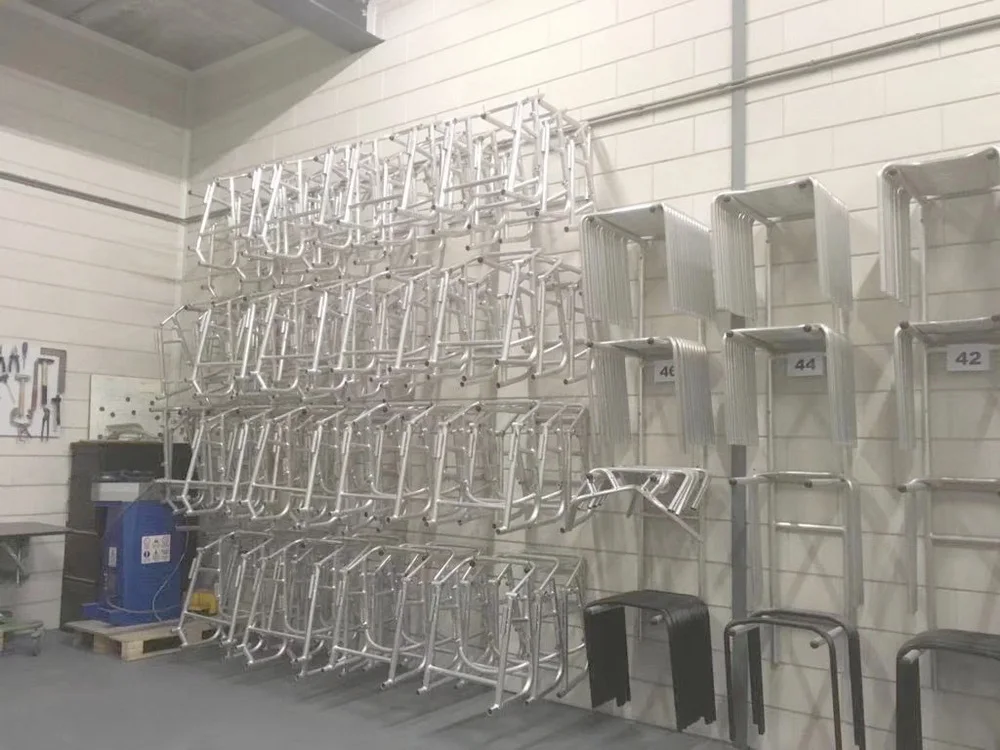

Staff Working Section
FAQ
A) Do you have a factory? Can I vist?
For sure, we have a factory and its 10% share. Warmly weclome to visit us at any time.
C) Whether you could make our brand on your products?
D) What information should I let you know for quotation?
E) How to guarantee the quality of your products?
B) Sample time?
Existing items: Within 10-30 days according to exactly request.
C) Whether you could make our brand on your products?
Yes. We can print or stick your Logo on both the products and the packages.
D) What information should I let you know for quotation?
1)The important information will be order quantity or estimated quantity.
2)The configuration, like as: joytick, motor, color.
E) How to guarantee the quality of your products?
1) Strict detection of each produt during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
