Машинные дизельные двигатели для Deutz F6L912, дизельный двигатель с воздушным охлаждением

Машинные дизельные двигатели для Deutz F6L912, дизельный двигатель с воздушным охлаждением

Category: Engine Assembly >>>
Supplier: Shijiazhuang,Houfeng,Trading,Co.,Ltd.

Price:3 950,00 $ - 4 000,00 $

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

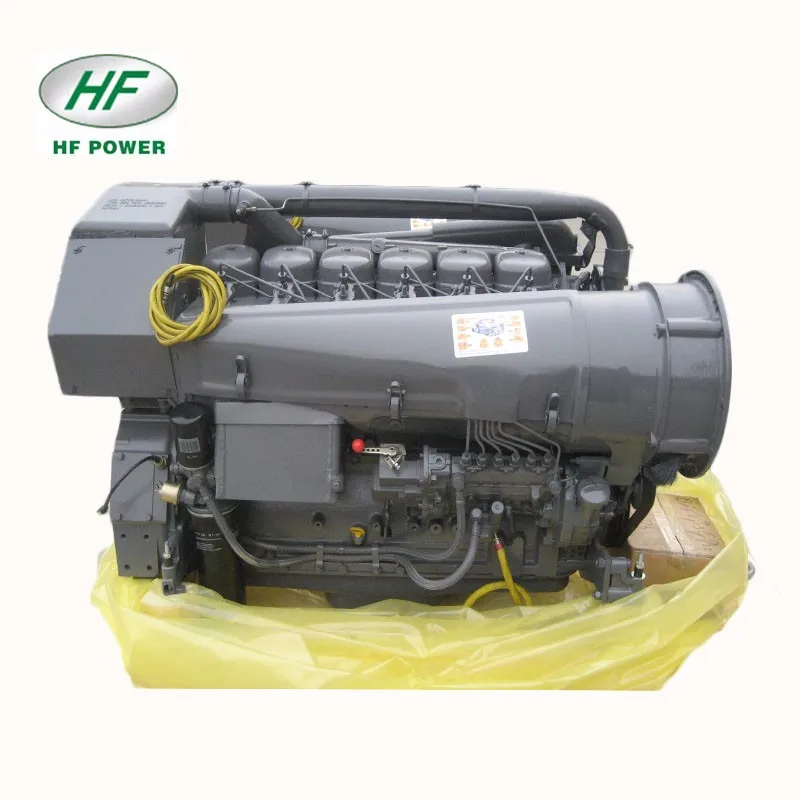

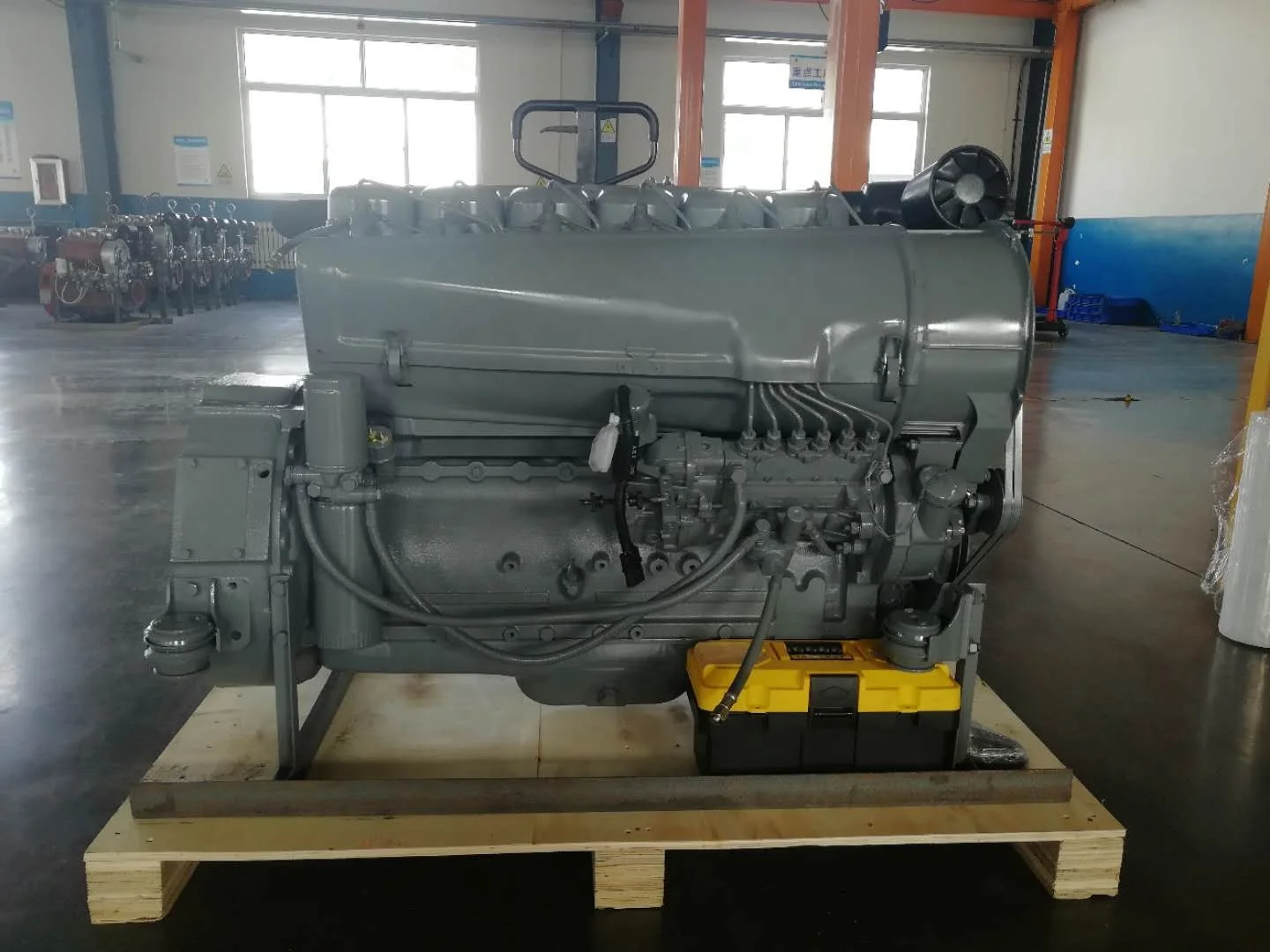

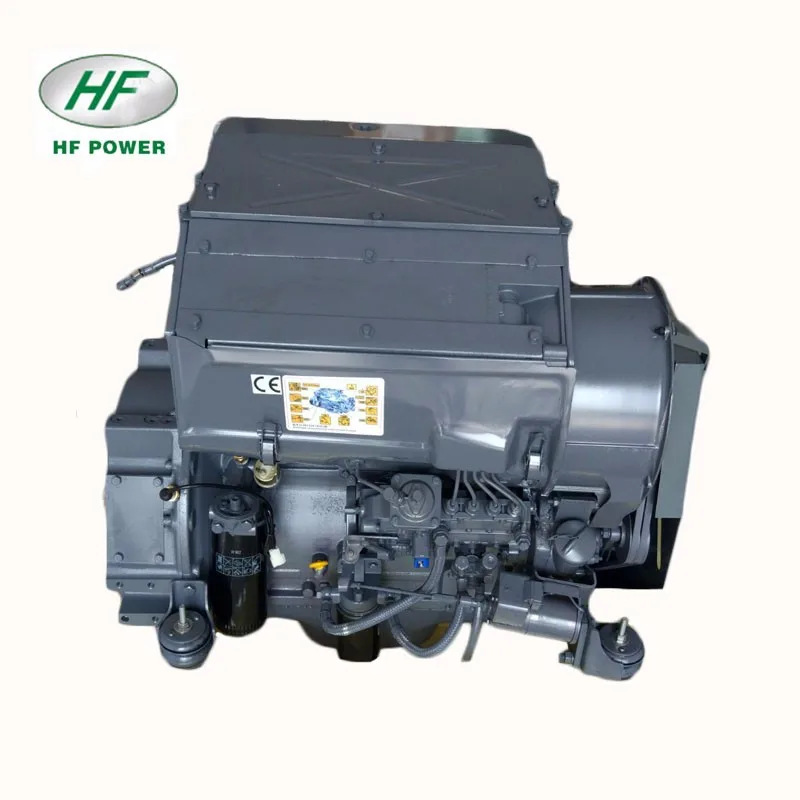

F6L912 deutz 912 air cooled 6 cylinder diesel engine

More than 12 years export experience

Fast delivery time

Technical data

In-line, 6Cylinder, 4 Cycle Diesel Engine
Bore×Stroke		100mm×120mm
Displacement		5.655 Liters
Compression Ration		17:1
Cooling Way		Air cooled
Combustion system		Direct injection
Inspiration		Natural intake
Direction of rotation		Counterclockwise(face to flywheel end)
Fuel consumption ratio		236.6g/kwh(limit value)
Oil consumption ratio		2.04g/kwh(limit value)
Lubricant Capacity		12Liters
Net Weight		500kg
Overall Dimension(L×W×H)		1119mm×664mm×809mm

Usage	Power class	Power	Speed(rpm)
Usage	Power class	Power	1500	1800	2000	2150	2300	2500
Construction equipment	ISO 3046/1(IFN) (Highly intermittent)	P(KW)	54	64	70	74	78	82
	ISO 3046/1(IFN) (Highly intermittent)	P(HP)	73	87	95	101	106	111
	ISO 3046/1(IFN) (Intermittent)	P(KW)	51	60	66	70	74	78
	ISO 3046/1(IFN) (Intermittent)	P(HP)	69	82	90	95	106	111
	ISO 3046/1(ICFN) (Continuous)	P(KW)	48	57	63	66	70
	ISO 3046/1(ICFN) (Continuous)	P(HP)	65	77	86	90	95
Genset	ISO 3046/1(ICXN) (Continuous)	P(KW)	48	57
Genset	ISO 3046/1(ICXN) (Continuous)	P(HP)	65	77
Marine	ICXN	P(KW)	48	57	63	66	70
	ICXN	P(HP)	65	77	86	90	95
	I0FN	P(KW)				74	78	82
	I0FN	P(HP)				101	106	111

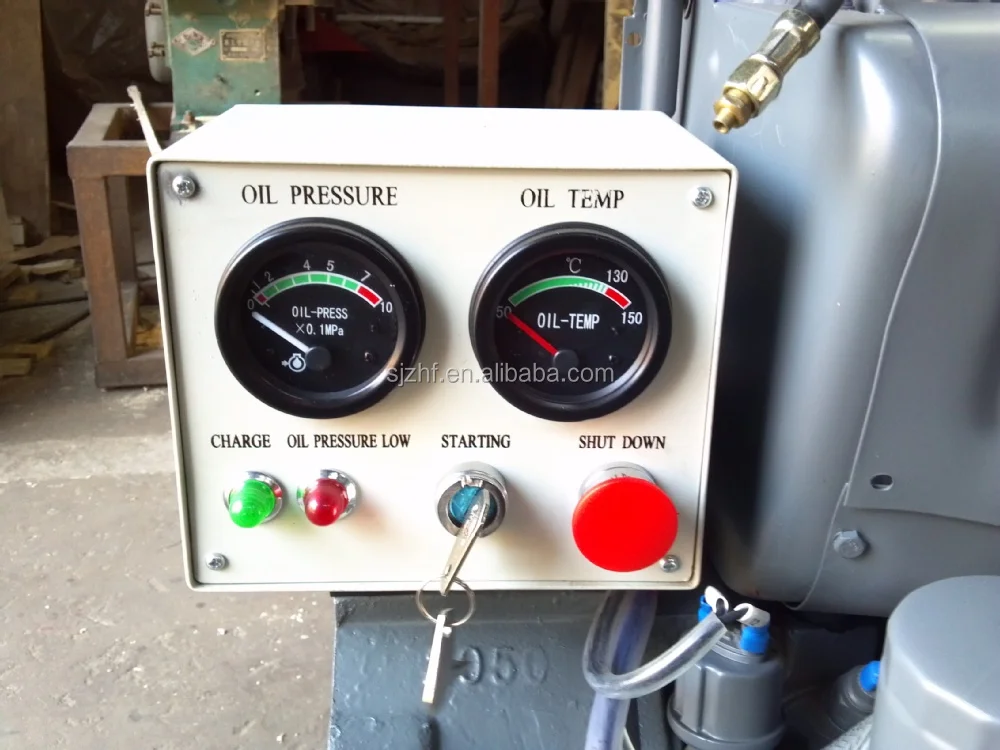

Instrument panel

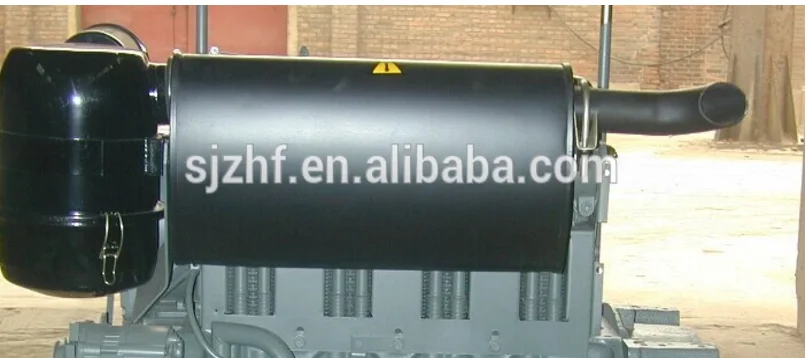

Exhaust muffler has two types
When the engine use in inside

When the engine use outside

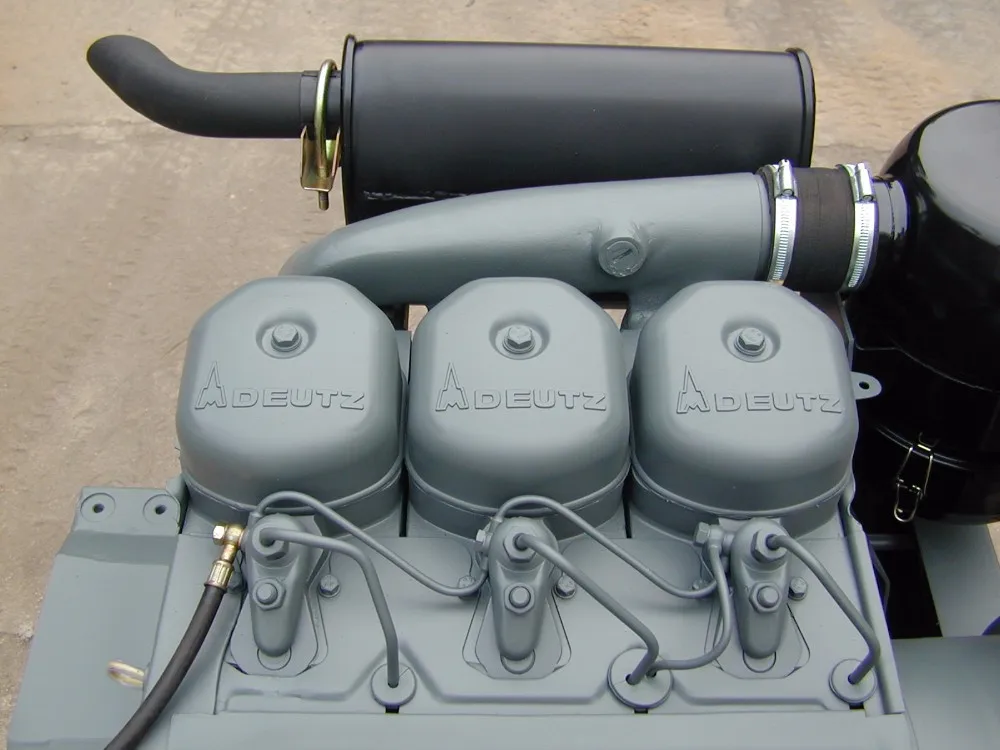

Deutz logo on the cylinder head

Click here for more information

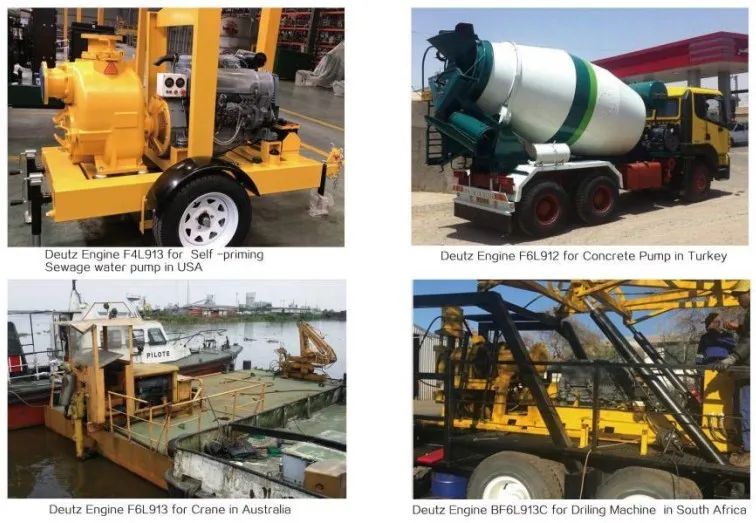

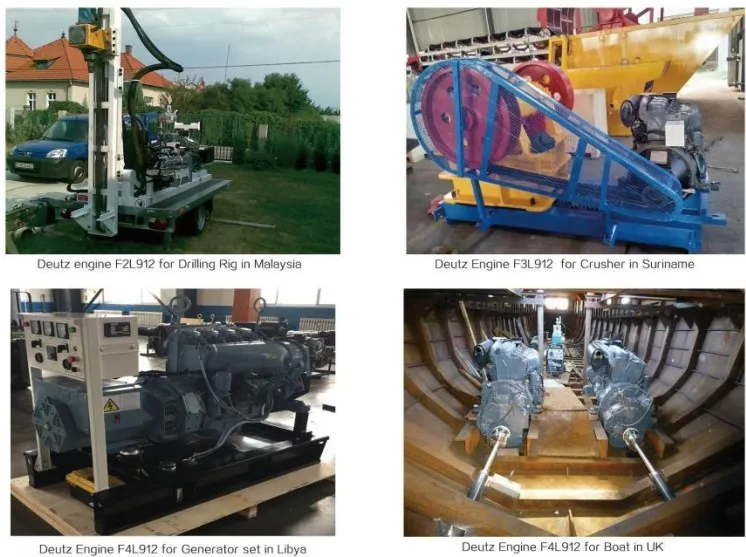

Typical Projects

Customer Feedback

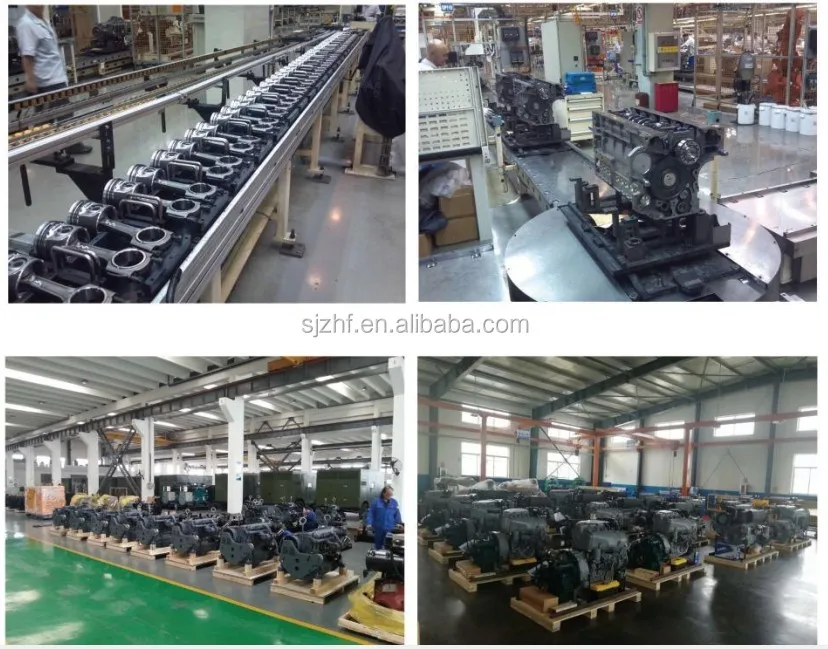

Factory

1. A total area of more than 124 thousands squre meters
2. About 280 technical employees in the factory
3. More than 30 years experience in diesel engine field
4. High quality and competitive price
5. Professional service and prompt reply
