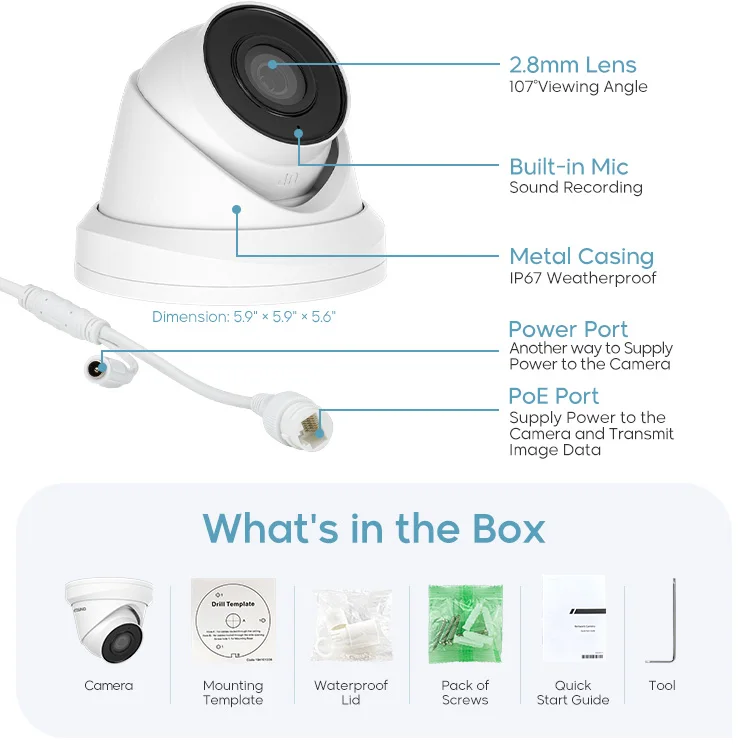

HITOSINO OEM HIKVISON DS 2CD1383G0 IUF 5MP 8MP 4K Built in Mic Night Vision Motion Detection Turret IP Camera
- Category: >>>
- Supplier: Shenzhen Hailan Shike Electronics Co. Ltd.
Share on (1600468798354):
Product Overview
Description
VR
OEM All Hikvsion, Dahua and Uniview products ! If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount. Thanks!
Main Functions
Specification
Camera | ||
Image Sensor | 1/2.5" Progressive Scan CMOS | |
Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR | |
Shutter Speed | 1/3 s to 1/100,000 s | |
Slow Shutter | Yes | |
P/N | P/N | |
Wide Dynamic Range | 120 dB | |
Day & Night | IR cut filter | |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | |
Lens | ||
Lens Type& FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 53°, diagonal FOV 123° 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 98° | |
Aperture | F2.0 | |
Lens Mount | M12 | |
Illuminator | ||
IR Range | Up to 30 m | |
Wavelength | 850 nm | |
Smart Supplement Light | Yes | |
Video | ||
Max. Resolution | 3840 × 2160 | |
50 Hz: 12.5 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 ×720) | ||
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) | ||
Main stream: H.265+/H.265 Sub-stream: H.265/MJPEG | ||
Video Bit Rate | 32 Kbps to 16 Mbps | |
H.265 Type | Main Profile | |
H.265+ | Main stream supports | |
Bit Rate Control | CBR/VBR | |
Scalable Video Coding (SVC) | H.265 supports | |
Region of Interest (ROI) | 1 fixed region formain stream and sub-stream | |
Audio | ||
Environment Noise Filtering | Yes | |
Audio Sampling Rate | 8 kHz/16 kHz | |
Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC | |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) | ||
Network | ||
Simultaneous Live View | Up to 6 channels | |
API | Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP | |
Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL/TLS, PPPoE | |
User/Host | Up to 32 users 3 levels: Administrator, Operator and User | |
Network Storage | Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS),auto network replenishment (ANR) | |
Client | iVMS-4200, Hik-Connect | |
Web Browser | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ | |
Image | ||
Day/Night Switch | Day, Night, Auto, Schedule | |
Image Enhancement | BLC, HLC, 3D DNR | |
Image Settings | Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance ajustable by client sfotware or web browser | |
Privacy Mask | 4 regions of privacy masks | |
Interface | ||
Built-in Microphone | Yes | |
On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB | |
Hardware Reset | Yes | |
Communication Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
Smart Feature-Set | ||
Basic Event | Motion detection, video tampering, exception | |
General | ||
Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email,trigger recording, trigger capture | |
Firmware Version | V5.5.104 | |
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch,Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | ||
General Function | Anti-flicker, heartbeat, password protection, password reset via email | |
Software Reset | Yes | |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
Startup and Operating | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
Conditions | ||
Power Supply | 12 VDC ± 25% PoE: 802.3af, Type 1 Class 3 | |
Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 V to 57 V), 0.20 A to 0.1 A, max. 6.5 W | |
Power Interface | Ø5.5 mm coaxial power plug | |
Camera Material | Aluminum alloy body | |
Camera Dimension | Ø110 mm × 81.25 mm (Ø4.33" × 3.20") | |
Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") | |
Camera Weight | Approx. 390 g (0.9 lb.) | |
With Package Weight | Approx. 656 g (1.4 lb.) | |
