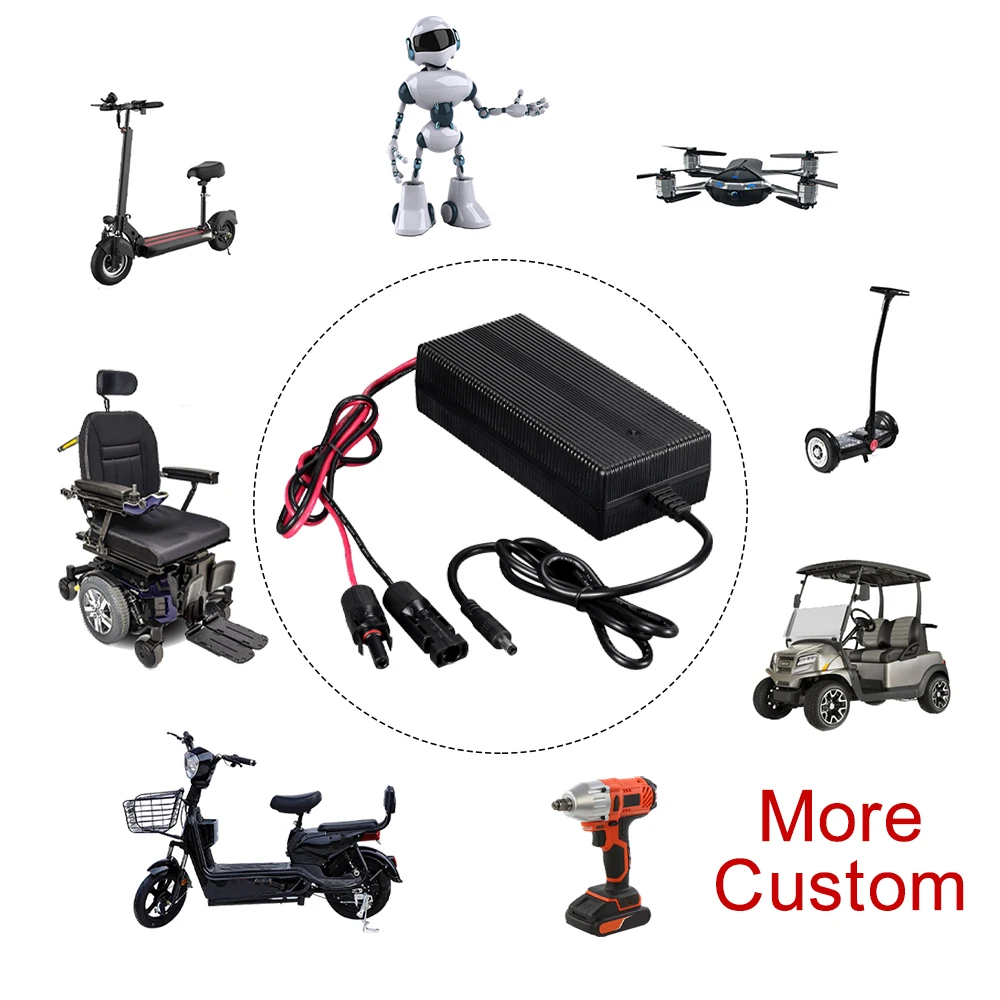

Portable 12V 24V 36V 48V 72V 2A 3A 4A 5A 6A 8A 10A Golf Cart Lifepo4 Rechargeable Lithium Ion Battery Charger
- Category: >>>
- Supplier: Dongguan Fuyuan Electronic Co. Ltd.
Share on (1600468820244):
Product Overview
Description
| Portable Automatic 12V 24V 36V 48V 72V 2A 3A 4A 5A 6A 8A 10A Golf Cart Lifepo4 Rechargeable Lithium Ion Battery Charger |
Fuyuan Advantages
1) With global certificates: UL (UL1012), FCC, cUL, CE, RoHs, CB, GS(IEC-60335), Reach, SAA, RCM, PSE, CCC,KC.
2) With automatic identification circuit
3) Automatically shut off
4) Spark Proof
5) Protections: Short Circuit / Over Load / Over Voltage / Reverse Polarity Protection
6) Automatic 3 stage charging mode: Constant Current - Constant Voltage - Trickle charging / Shut Down

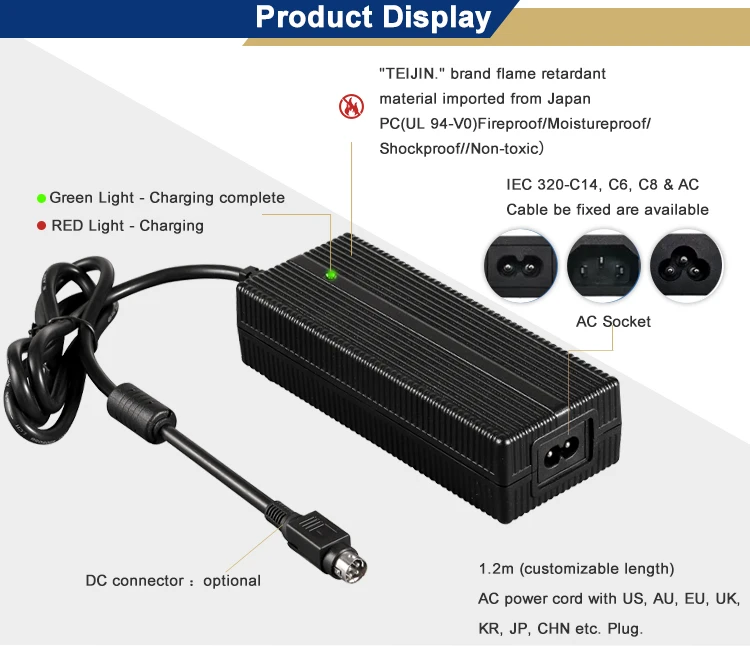

7) LED indicator (RED) for charging, (GREEN) for full charged
8) Fireproof PC plastic case
Parameter
| Fuyuan 120W Series | ||||||||||||||||
| Output | Voltage | 1.26V | 14.6V | 16.8V | 21V/ 21.9V | 25.2V | 29V | 36V | 42V | 43.8V | 50.4V /51V | 58V | 67.2V | 73V | 84V | 87V |
| Current | 7-8A | 6-8A | 5-7A | 4-5.5A | 4-4.8A | 3-4A | 3A | 2.5-3A | 2-2.7A | 2A | 2A | 1.8A | 1.6A | 1.4A | 1.3A | |
| Power max | 102W | 116.8W | 118W | 120W | 120W | 120W | 120W | 120W | 120W | 120W | 120W | 120W | 120W | 120W | 120W | |
| AC Input: | 100-240V,50/60HZ |

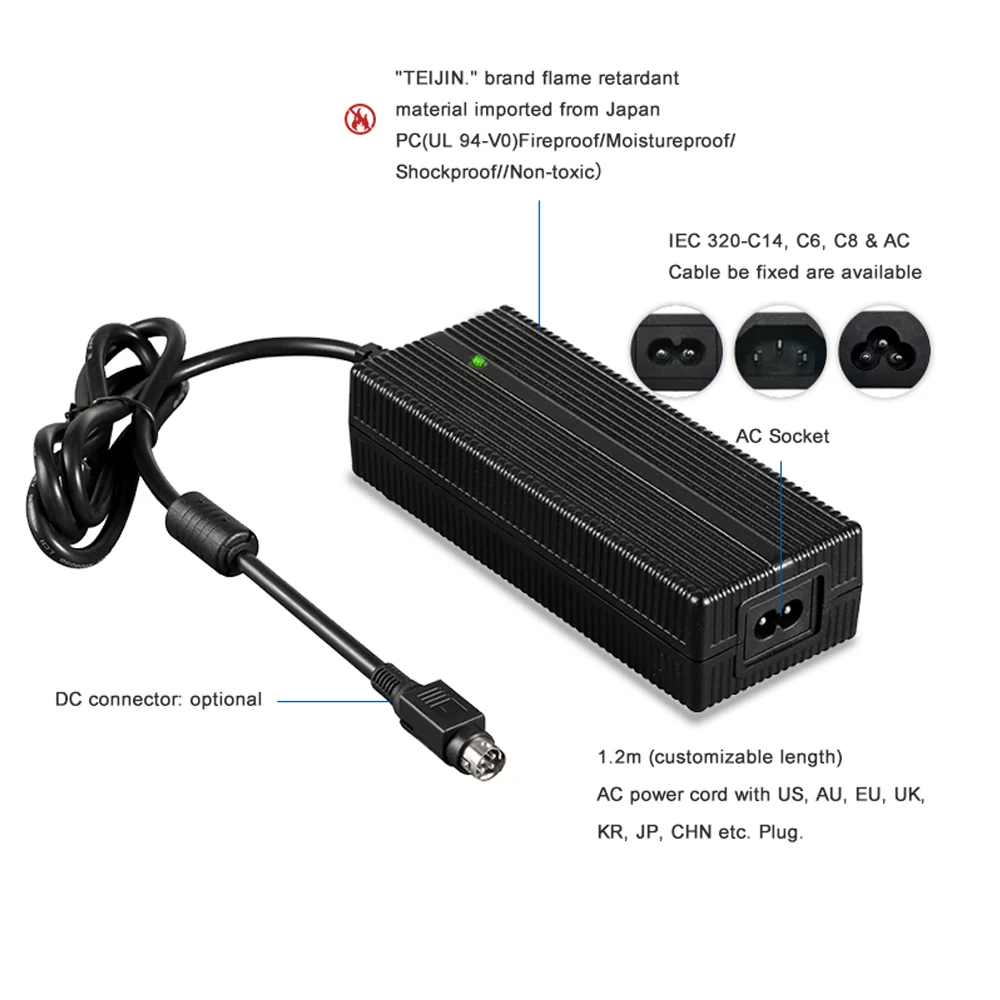

| AC Inlet: | IEC320-C14 |
| AC Power Cord: | 1.2M (or customized length) power cord with US,AU,EU,UK,KR,JP,CHN etc. plug |
| DC Wire: | UL1015/UL2464/SJT, 1.2M/1.5M/1.8M or Customized length |
| DC Plug: | Anderson connector , 5.5*2.1,5.5*2.5,3.5*1.35,Canon connector, XLR connector, Inline plug, XT60,TX40/60 etc. --- DC plug customized as per your demands. |
| Protection: | Short Circuit/Over Current / Over Voltage / Reverse Polarity Protection. |
| Housing: | Dimension:154*60*36MM Black TEIJIN brand PC material |
| Packaging: | White box+Export standard Carton Carton Size:15X6X4CM 0.5kg/CTN |

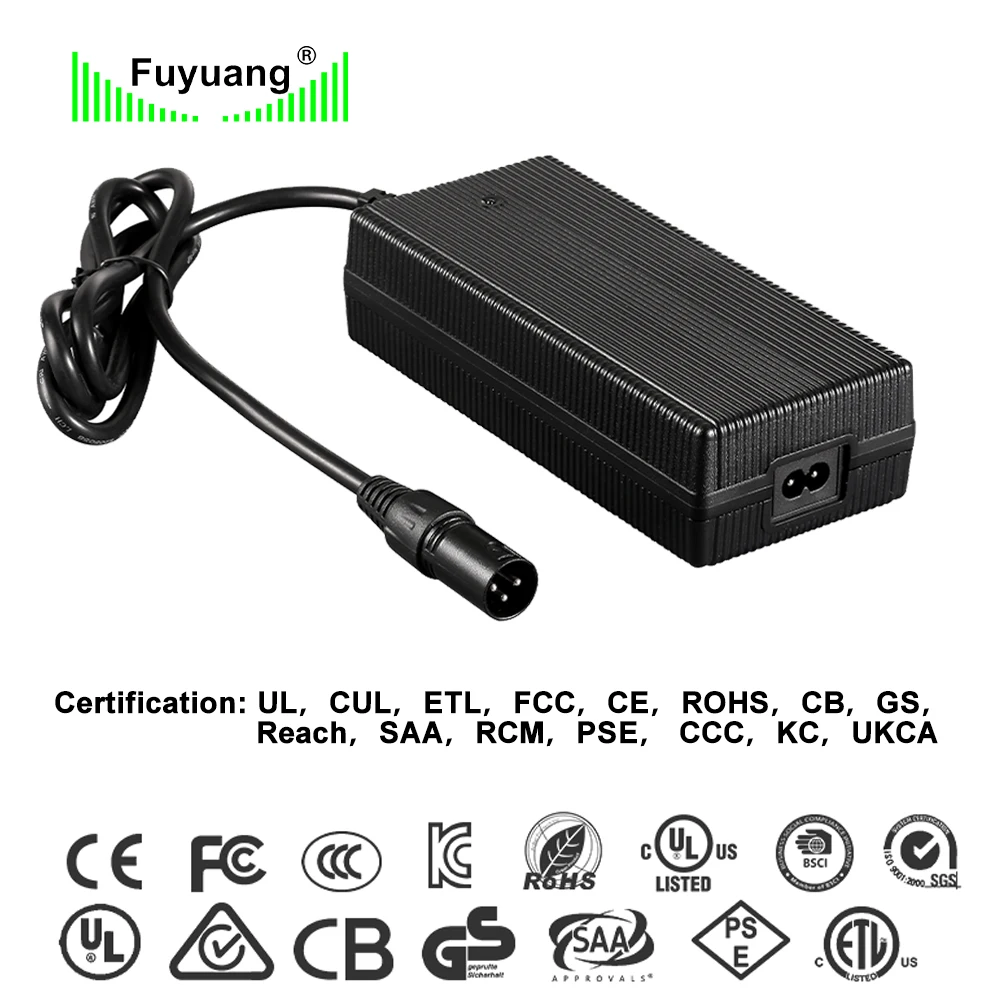

| Certificates: | UL, ETL, CUL, FCC, CE, GS, CB, BS, PSE, KC, RCM, SAA, C-TICK, CCC, ROHS |
| Safety Standard: | UL60950,UL1012,UL1310, IEC61347, IEC60950, IEC61558, IEC60335, EN62233, EN62493 |
| HIPOT testing: | 3000-4200V |
| Operating temperature: | -29ºC~ +45.5ºC |
| Storage temperature: | -40ºC~ +75ºC |
| Dropping Testing: | X-Y-Z direction 100cm,one time with each direction |
| MTBF: | 30000 hours full rated load at 25ºC |
| AQL: | MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0 |
