Water-cooled refrigerator industrial sea food chiller fish tank aquarium refrigerator

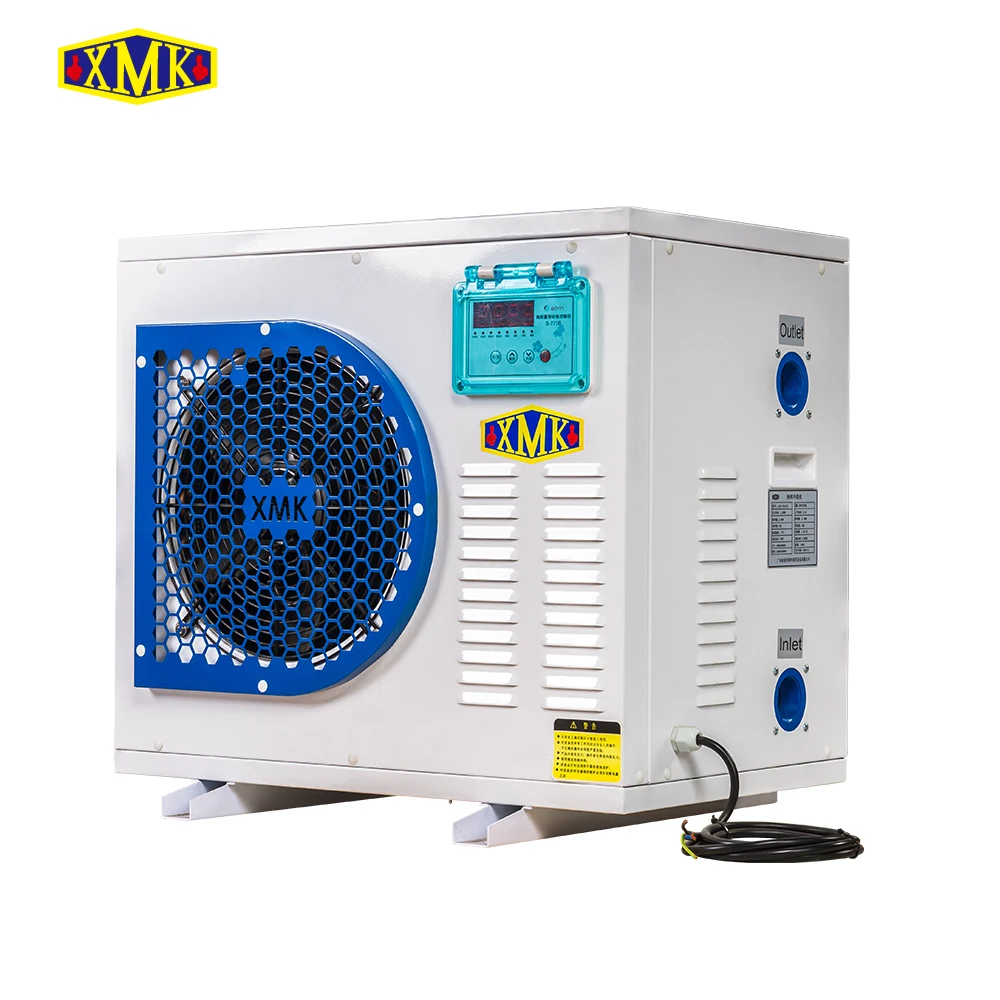

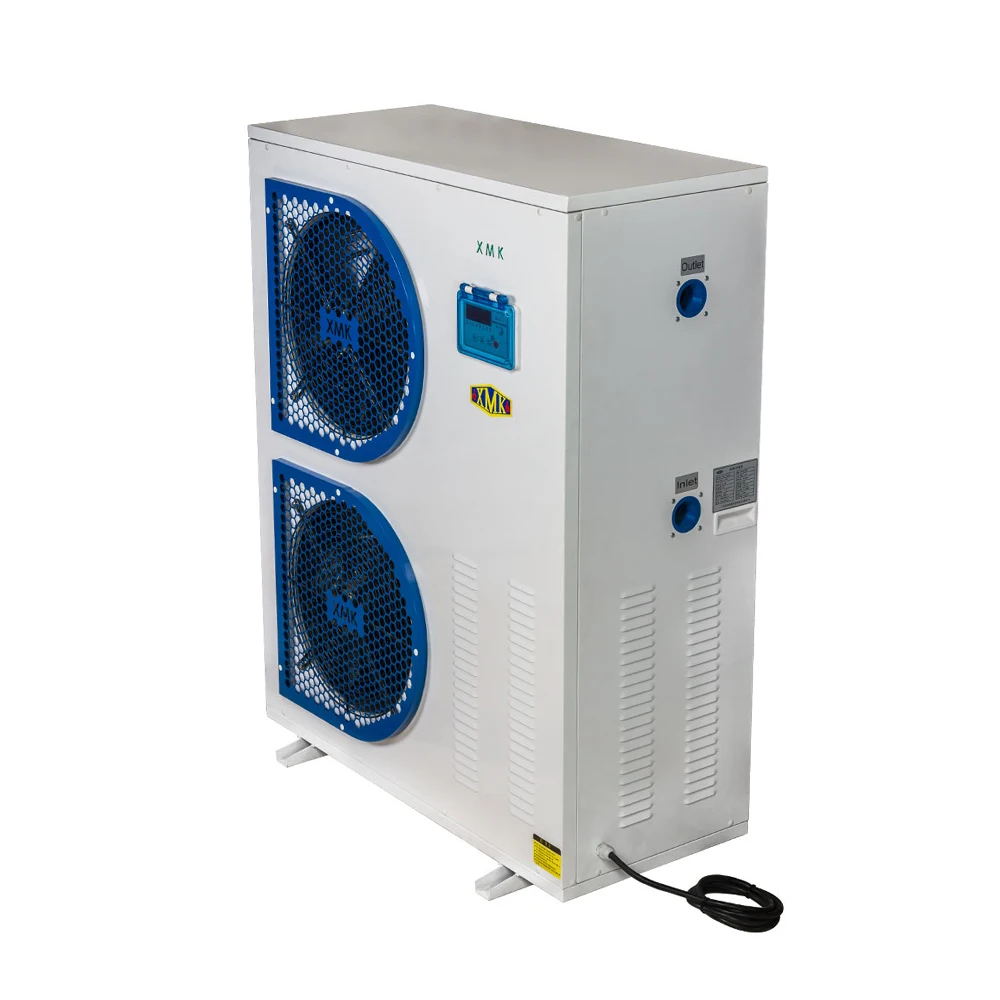

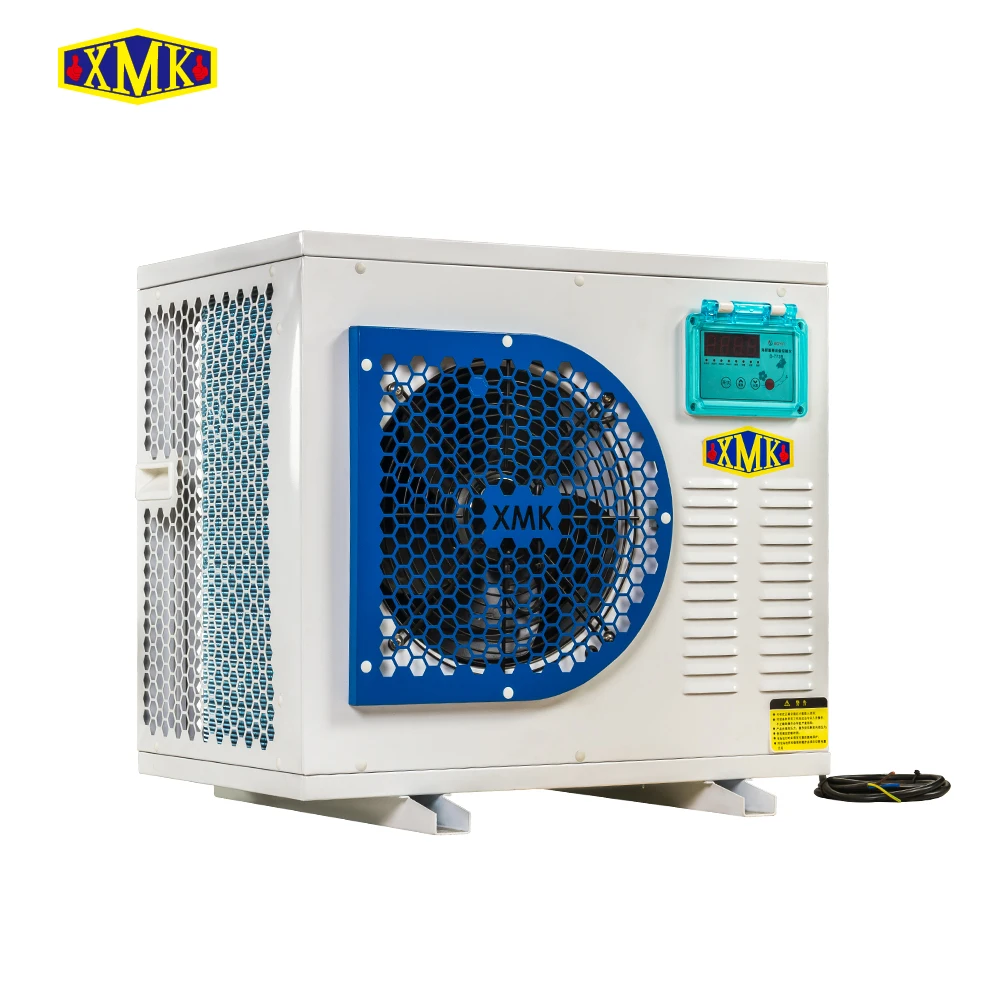

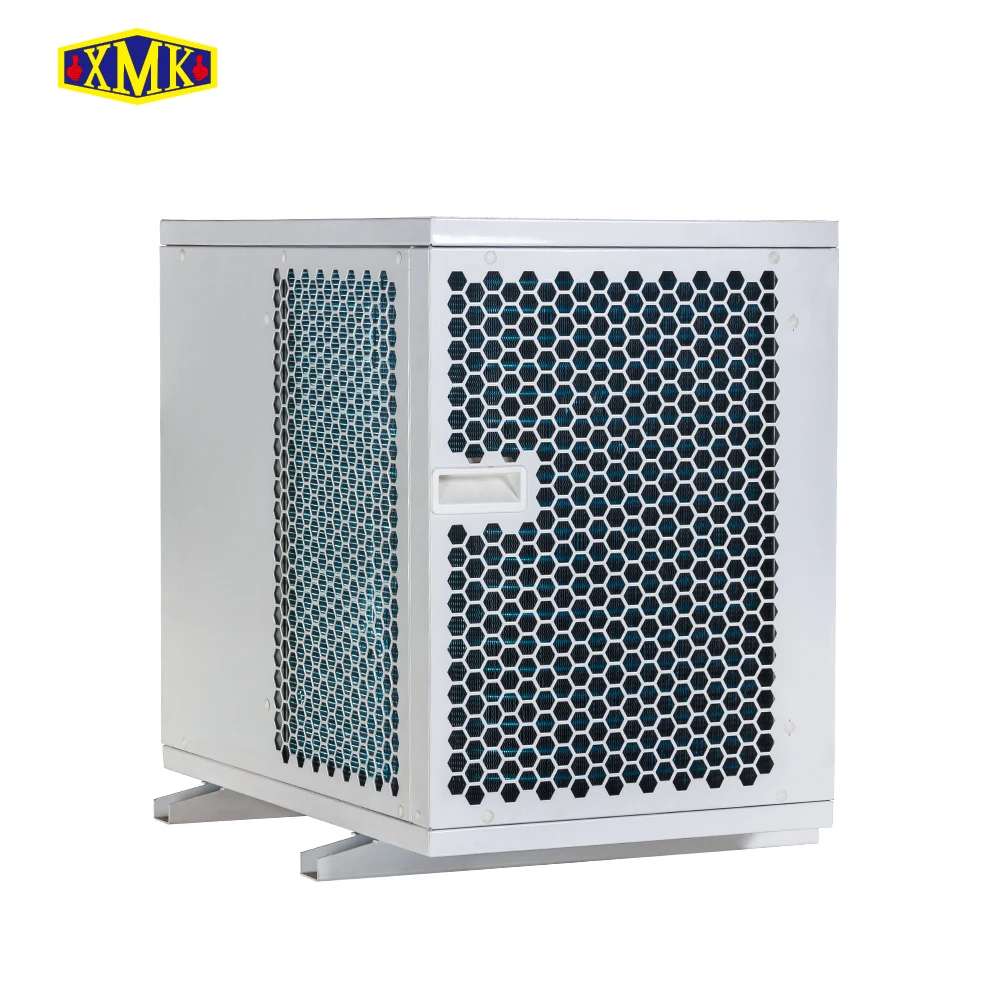

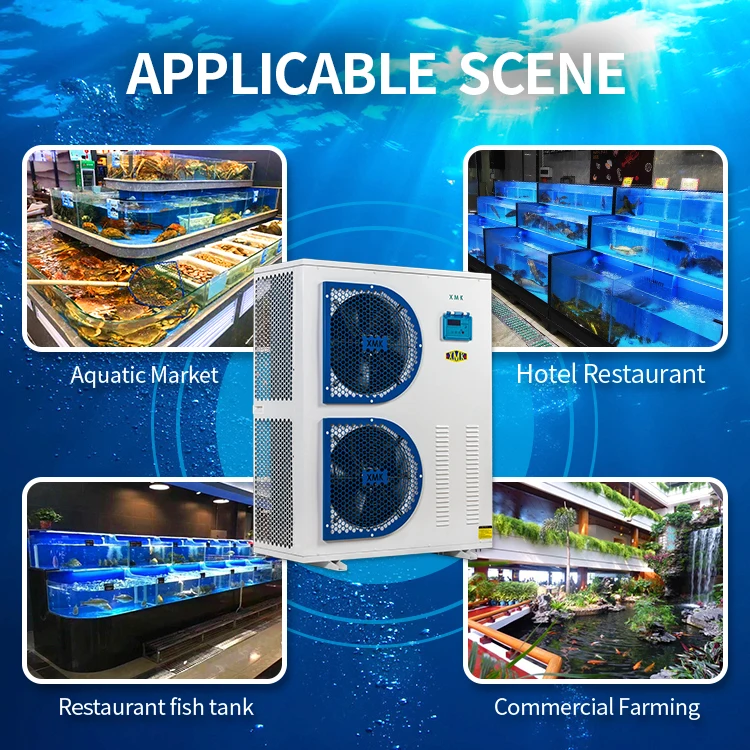

The HX series of seafood chiller developed by our factory, which designed into an overall com-pact structure with a beautiful and exquisite structure. It's including the condenser, titanium gunevaporator, various valves and control systems. Which can be directly used in fields such as seafood farming.

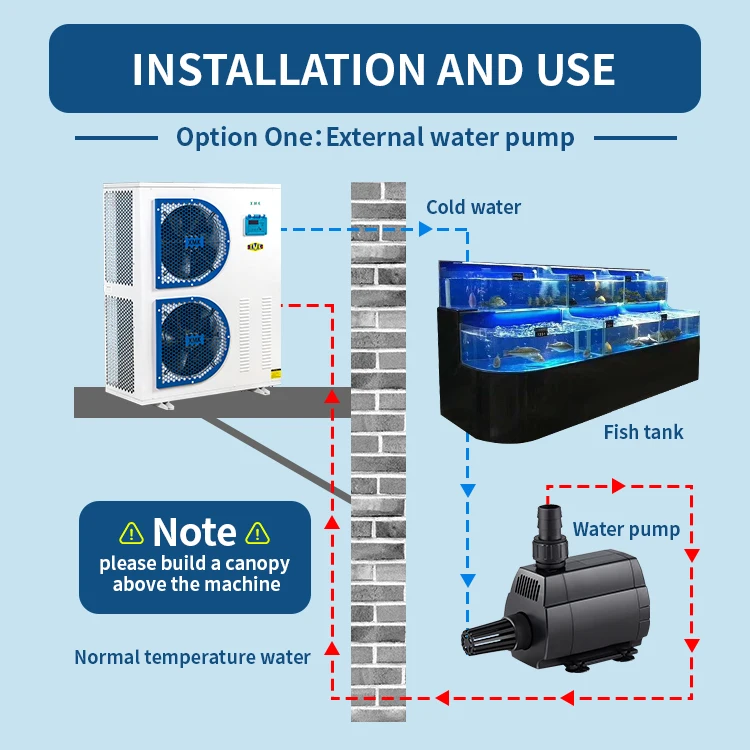

1.The product can be wall-mounted or vertical,and the unit is installed on the ground and the side of the wall.of the storehouse body.
2.The product can adjust the temperature of cold and warm water,and the water temperature can be adjusted between 5 and 40 degrees.

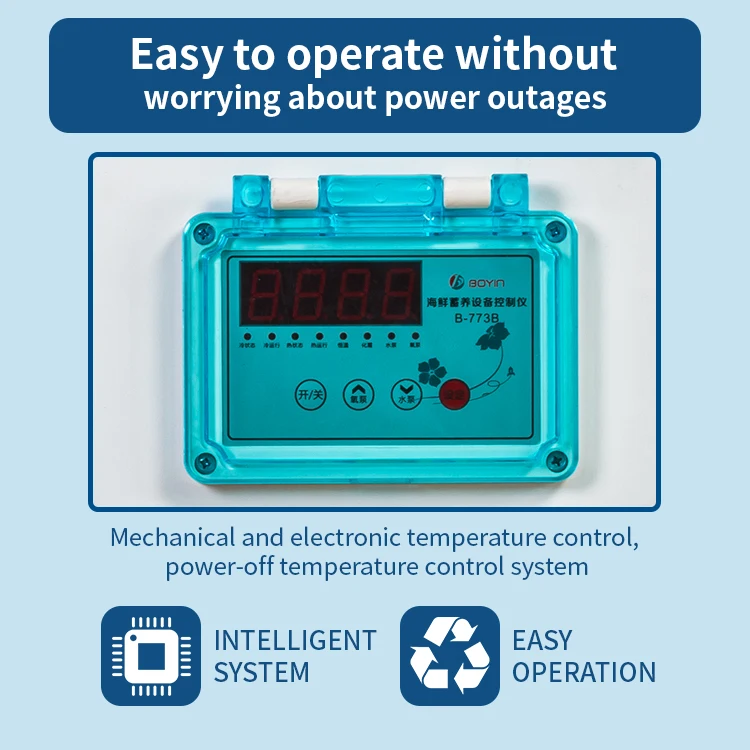

3.The product is fully automated and intelligently controlled, with control functions such as water temperature setting and control, constant temperature setting and system operation protection.



Sea Water Chiller Technical data
Model		HX150S	HX200S	HX300S	HX200T	HX300T
Power Supply		220V 50Hz 1 phase			380V 50Hz 3phase
Apply water temp.(℃)		5-26℃
Apply water volume(m³)		0.75-2.3	1.0-3.0	1.5-4.5	1.5-4.5	2.5-7.5
Input Power (KW)		1.3	1.7	2.4	2.4	4.4
Nominal capacity(KW)		3.9	5.4	7.2	7.2	14.4
Overall  size	L(mm)	650	650	650	650	980
	W(mm)	490	490	490	490	530
	H(mm)	600	600	600	600	1250

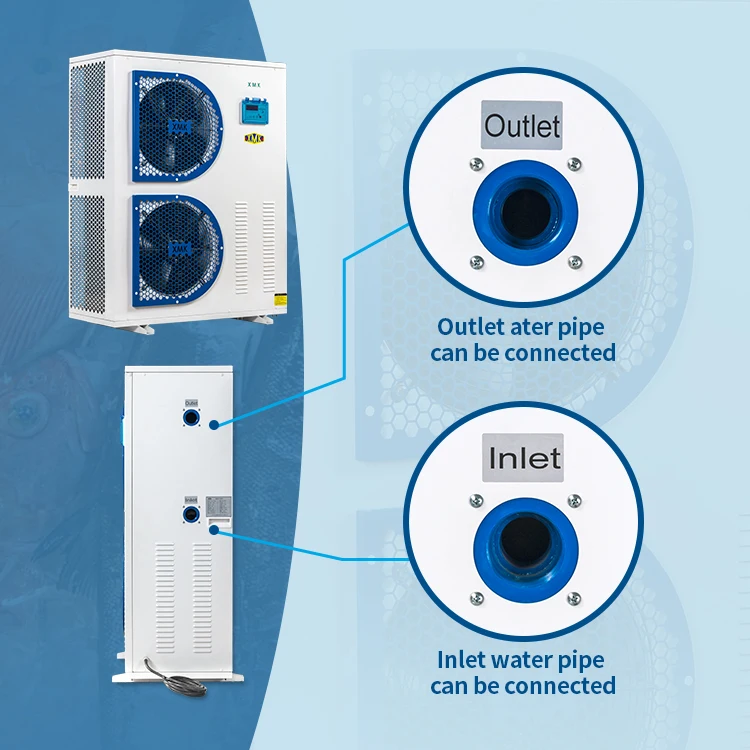

Water inlet/outlet size		DN50	DN50	DN50	DN50	DN50
Weight (KG)		45	55	55	55	125
Remark:The calibration conditions of cooling capacity are condensing temperature.42℃, evaporation temp.0 ℃c, inlettemp.7°Cand outlet 12℃ for water.
