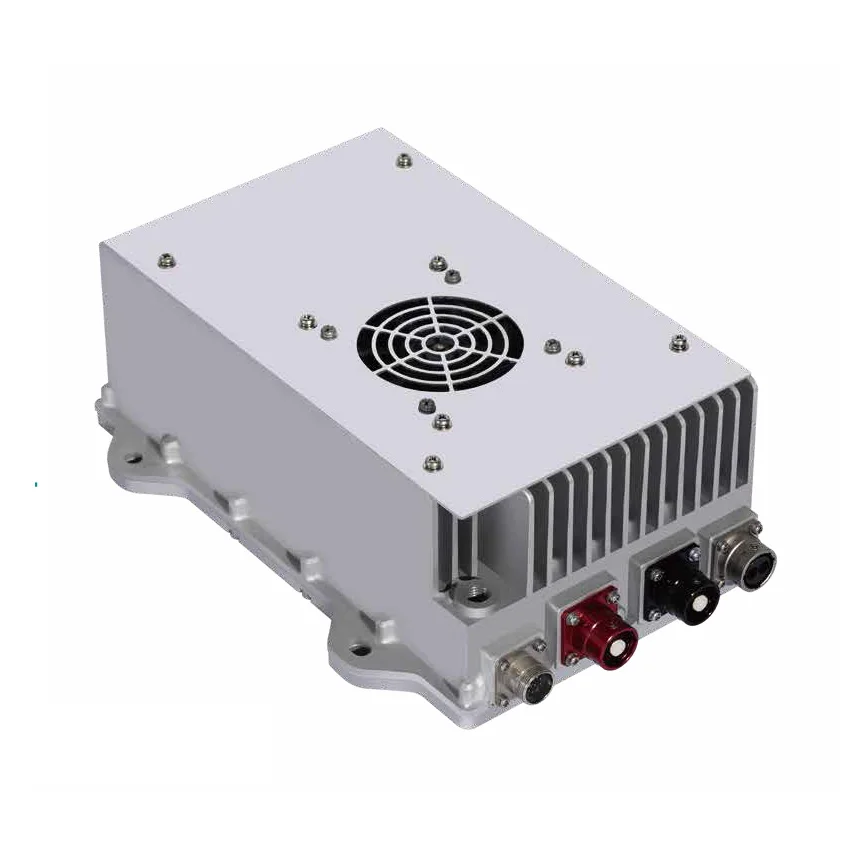

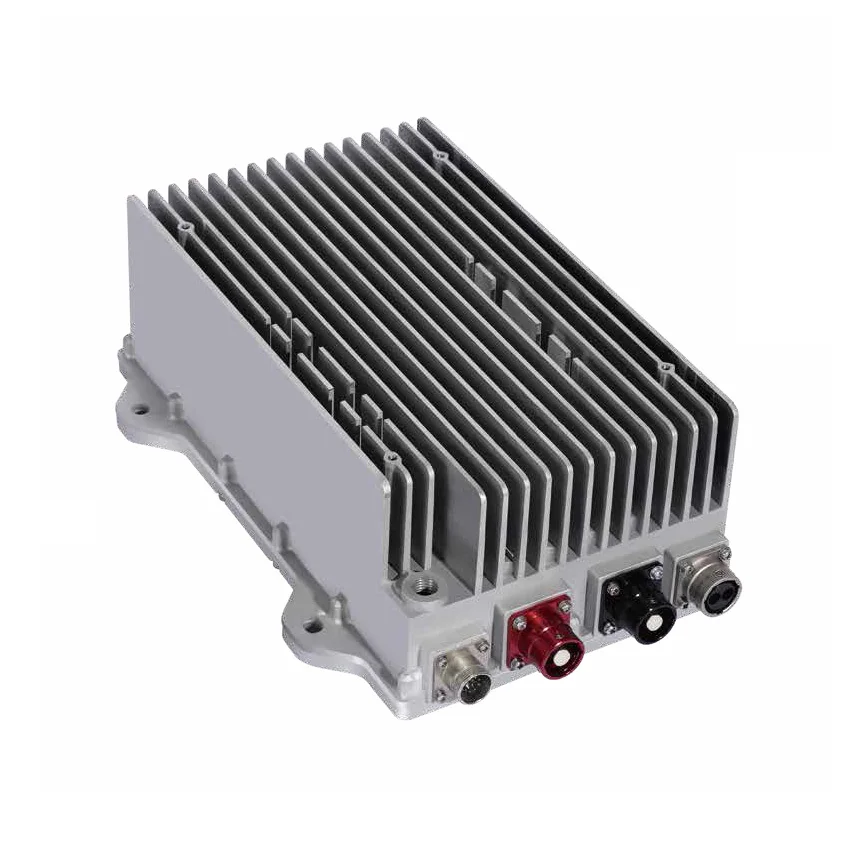

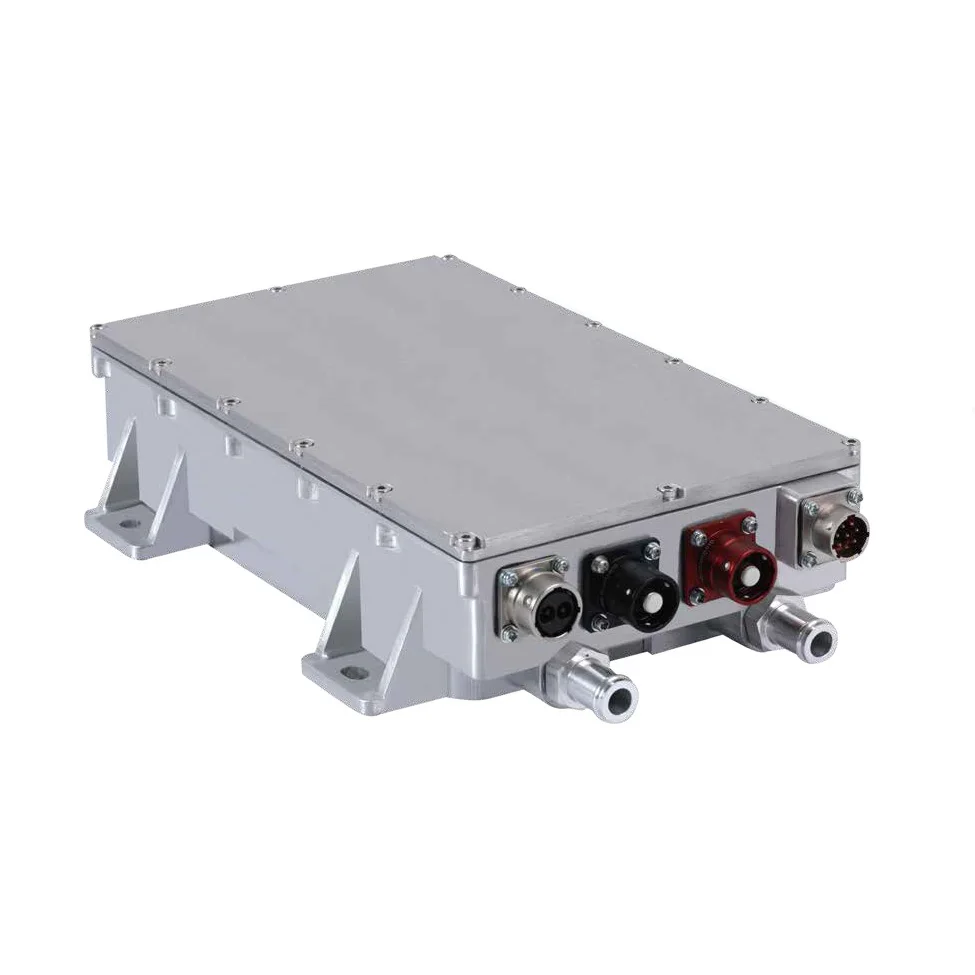

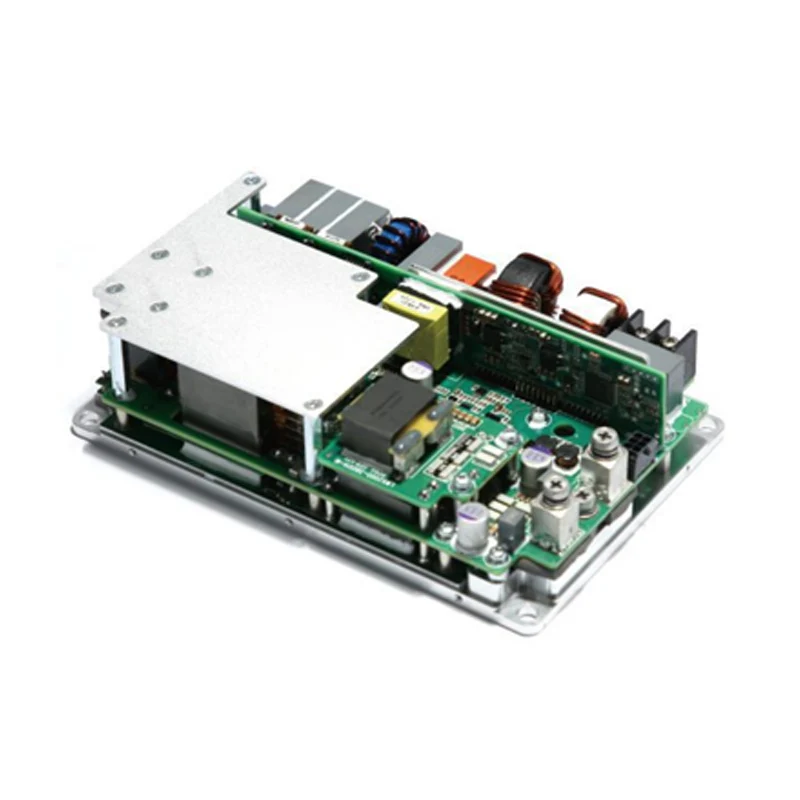

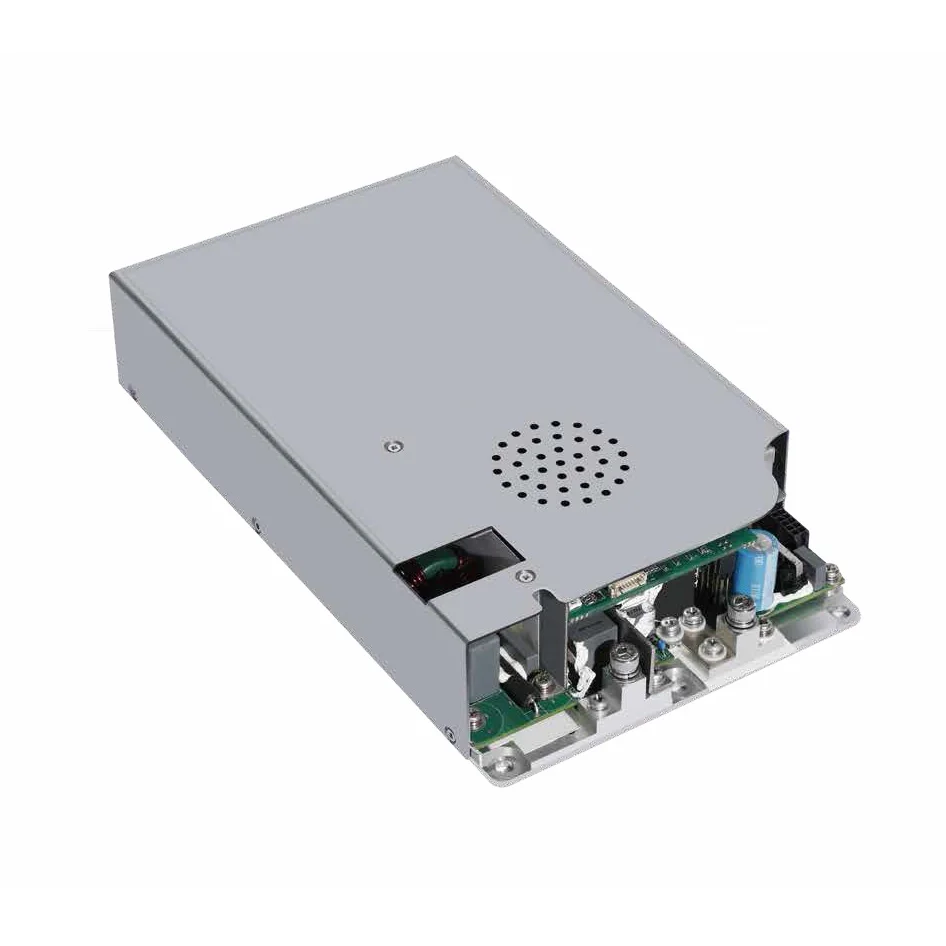

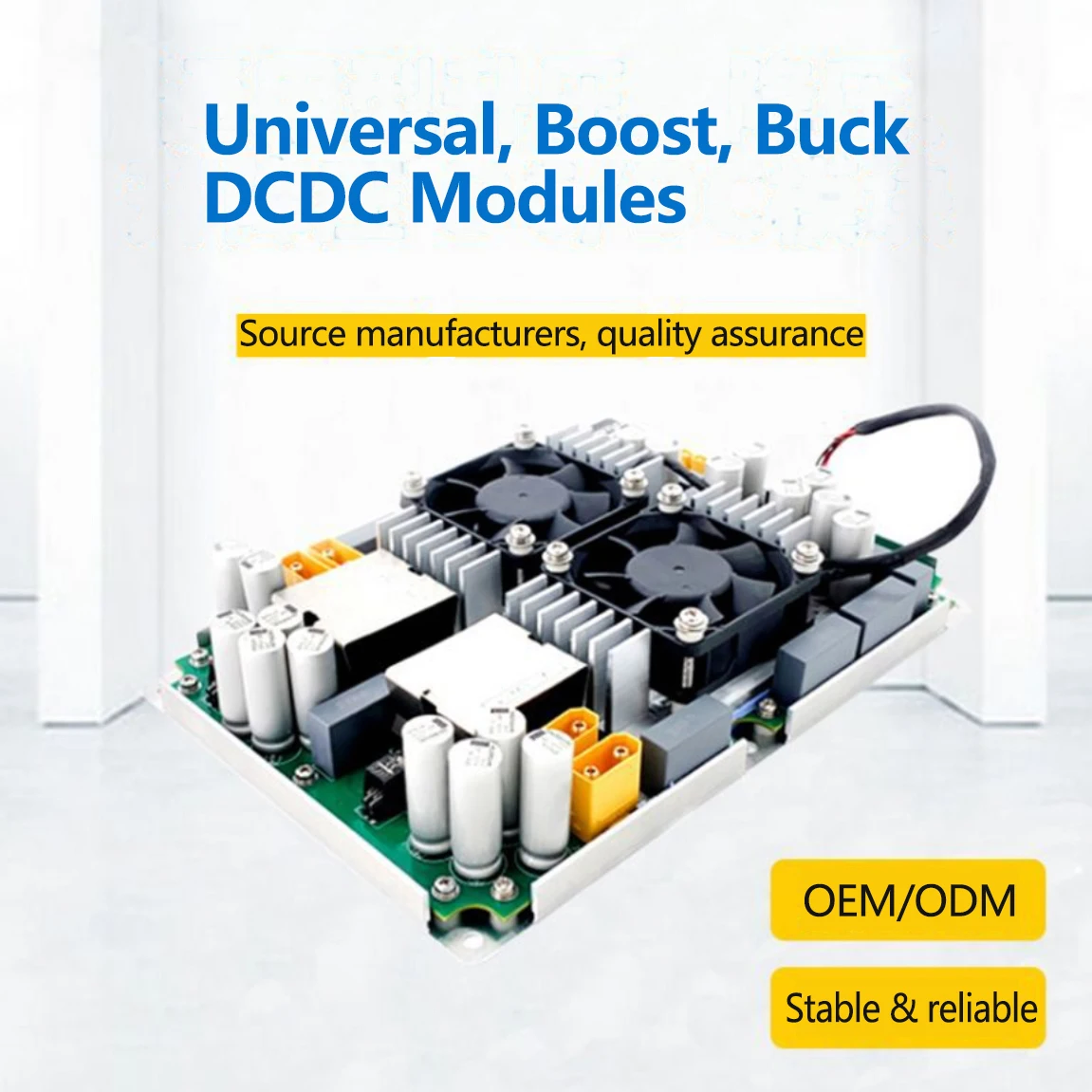

EV car bus DC/DC 250V~750V to 27.5V 13.8V 300w 600w 1kw 1.2kw 1.5kw 2kw 2.5kw 3kw 4.5Kw PDU DCDC module isolated DCDC Converter
- Category: >>>
- Supplier: Xiamen Yuanshuang Technology Co. Ltd.
Share on (1600468849337):
Product Overview
Description
Product Description
About This Item：
Product features:Small size, light weight, high conversion efficiency, Suitable for new energy vehicles 380V, 540V or 640Vdc high-voltage platform to low-voltage 13.8V(12V),27.5V(24V) for DC supply devices.
This series of DCDC products, 600w, 800w, 1kw, 1.5kw,2kw,2.5w,3kW,3.3kw,3.5kw,4kw, 5kw,6kw optional,
Input voltage:200~800Vdc; Output: 13.8V/27.5Vdc/48V/54V
Input voltage:200~800Vdc; Output: 13.8V/27.5Vdc/48V/54V
Waking up the DCDC to start or stop working through CAN communication or high and low logic level,Or even as long as there is a high voltage input, there will be a low voltage output (default mode)
More features include：⚡ 95% High Conversion efficiency
⚡ 200~800Vdc to 27.5Vdc / 13.8Vdc
⚡ 300w,600w, 800w,1Kw 1.5Kw 2kw 2.5kw 3kw 3.3kw,3.5kw Output Power optional
⚡ 100% Stable voltage output
⚡ 100% full real power
⚡ Support CAN Bus / High and low logic level signal control
⚡ Comprehensive Protection
⚡ 300w 200~750V to 24V/12V ——
Input Voltage: 200-750Vdc
Output current: 12.5A
Output Voltage: 24V
Output Power: 300w
Conversion efficiency: 92%
Control method: CAN Bus / Logic 9~32V high logic level
Input Voltage: 200-750Vdc
Output current: 12.5A
Output Voltage: 24V
Output Power: 300w
Conversion efficiency: 92%
Control method: CAN Bus / Logic 9~32V high logic level
⚡ 600w 200~750V to 24V/12V ——
Input Voltage: 200-750Vdc
Output current: 25A
Output Voltage: 24V(22~27.5V Customizable)
Output Power: 600w
Conversion efficiency: 94.5%
Control method: CAN Bus / Logic 9~32V high logic level
Input Voltage: 200-750Vdc
Output current: 25A
Output Voltage: 24V(22~27.5V Customizable)
Output Power: 600w
Conversion efficiency: 94.5%
Control method: CAN Bus / Logic 9~32V high logic level
⚡ 800w 200~750V to 24V/12V ——
Input Voltage: 200-750Vdc
Output current: 38A
Output Voltage: 27.5V(22~27.5V Customizable)
Output Power: 600w
Conversion efficiency: 93%
Control method: CAN Bus / Logic 9~32V high logic level
Input Voltage: 200-750Vdc
Output current: 38A
Output Voltage: 27.5V(22~27.5V Customizable)
Output Power: 600w
Conversion efficiency: 93%
Control method: CAN Bus / Logic 9~32V high logic level
⚡ 1Kw 200~750V to 13.8V ——
Input Voltage: 200-750Vdc
Output current: 73A
Output Voltage: 13.8V
Output Power: 1000w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 12V high and low level
⚡ 1.2Kw 200~750V to 13.8V ——
Input Voltage: 200-750Vdc
Output current: 90A
Output Voltage: 13.8V
Output Power: 1200w
Conversion efficiency: 91%
Control method: CAN Bus / Logic 12V high and low level
Input Voltage: 200-750Vdc
Output current: 90A
Output Voltage: 13.8V
Output Power: 1200w
Conversion efficiency: 91%
Control method: CAN Bus / Logic 12V high and low level
⚡ 1.5Kw 200~750V to 13.8V ——
Input Voltage: 200-750Vdc
Output current: 108A
Output Voltage: 13.8V
Output Power: 1500w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 12V high and low level
Input Voltage: 200-750Vdc
Output current: 108A
Output Voltage: 13.8V
Output Power: 1500w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 12V high and low level
⚡ 1.8Kw 200~750V to 13.8V ——
Input Voltage: 200-750Vdc
Output current: 130A
Output Voltage: 13.8V
Output Power: 1800w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 12V high and low level
Input Voltage: 200-750Vdc
Output current: 130A
Output Voltage: 13.8V
Output Power: 1800w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 12V high and low level
⚡ 2.0Kw DCDC 200~750V to 13.8V/27.5V ——
Input Voltage: 200-750Vdc
Output current: 145A@ 13.8V
Input Voltage: 200-750Vdc
Output current: 145A@ 13.8V
Output current: 73A@ 27.5V
Output Voltage: 13.8V/27.5V
Output Power: 2000w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 12V/24 high and low level
Output Voltage: 13.8V/27.5V
Output Power: 2000w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 12V/24 high and low level
⚡ 2.5Kw DCDC 200~750V to 27.5V ——
Input Voltage: 200-750Vdc
Output current: 91A
Output Voltage: 27.5V
Output Power: 2500w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 24V high and low level
Input Voltage: 200-750Vdc
Output current: 91A
Output Voltage: 27.5V
Output Power: 2500w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 24V high and low level
⚡ 3Kw DCDC 200~750V to 27.5V ——
Input Voltage: 200-750Vdc
Output current: 109A
Output Voltage: 27.5V
Output Power: 3000w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 24V high and low level
Input Voltage: 200-750Vdc
Output current: 109A
Output Voltage: 27.5V
Output Power: 3000w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 24V high and low level
⚡ 4.5W 200~750V to 27.5V ——
Input Voltage: 400-750Vdc
Output current: 163A
Output Voltage: 27.5V
Output Power: 4.5kw
Conversion efficiency: 95%
Control method: CAN Bus / Logic 24V high and low level
⚡ 5W 300~700V to 48V/54V ——
Input Voltage: 300-700Vdc
Output current: 92A
Output Voltage: 54V/48V optional
Output Power: 5kw
Peak Power: 5.5kw Continued for 6 minutes
Conversion efficiency: 95%
Control method: CAN Bus / Logic 24V high and low level
⚡ 6000W 400~900V to 27.5V ——
Input Voltage: 400-900Vdc
Output current: 218A
Output Voltage: 27.5V
Output Power: 6000w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 12V high and low level
Conversion efficiency: 95%
Control method: CAN Bus / Logic 24V high and low level
⚡ 6000W 400~900V to 27.5V ——
Input Voltage: 400-900Vdc
Output current: 218A
Output Voltage: 27.5V
Output Power: 6000w
Conversion efficiency: 95%
Control method: CAN Bus / Logic 12V high and low level
⚡ OEM and ODM Services — Yes, we can provide products according to customer requirements.We can provide professional product design, development, production and processing services.if you need any customization requirements please contact us or Leave us a message , We will do our best to provide provide professional OEM/ODM services for you.
Specification
item | value |
Network | Off-grid |
Customized support | Software reengineering, Input/output voltage, Socket type |
Type | DC/DC Converters |
Output Type | DC 13.8V , DC 27.5V |
Size | 277*54*161 mm |
weight | 4KG |
Product name | 300W, 600W, 800W,1Kw 1.5Kw, 2Kw, 2.5Kw, 3Kw 3.3Kw 4.5Kw 5KwDCDC |
Input voltage range | 200V ~750Vdc |
Output Voltage | 13.8V/27.5V/24V/12V/48V/54V |
Efficiency | ≥95% |
Warranty | 3 Years |
Note.
We provide professional customized and OEM/ODM services if you need any customization requirements please contact us or Leave us a message before placing an order, so that we can better understand and confirm what is your needs and we will give you a better price on the shipping cost based on your region and country.
1. Requirement Confirmation.
Contact us and tell us your requirements: voltage, capacity, power, shape,size, etc.
2. Products and quotations.
According to your needs, we customize the product to confirm and quote for you.
3. Payment and delivery.
We draft the order contract, you confirm and pay, then we complete the product, production, testing and delivery

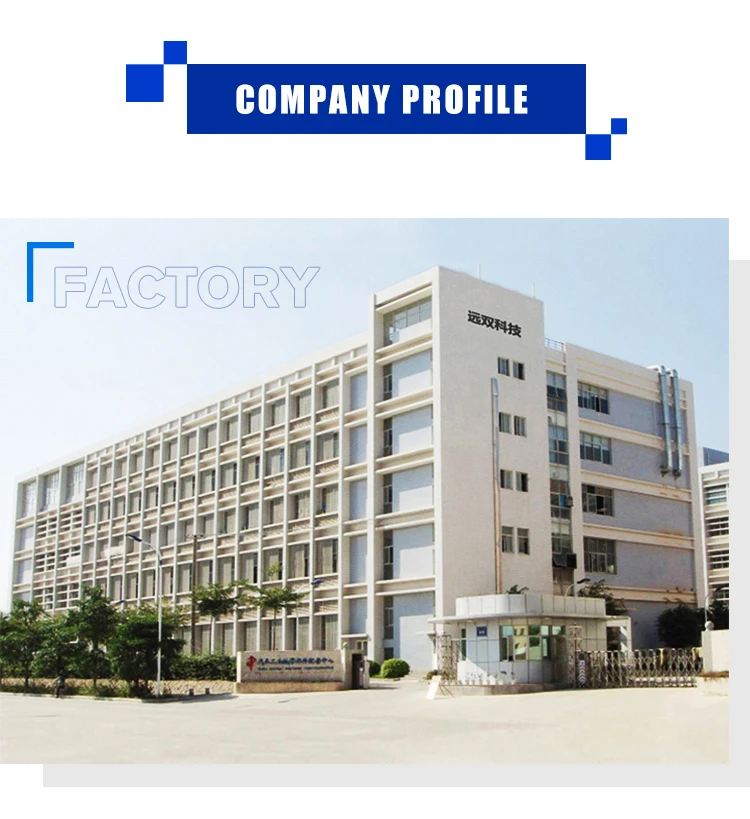

Company Profile
Company Profile.
★ Xiamen Yuanshuang Technology Co., Ltd. is a professional power solutions integrated provider. we specialize in the R & D of rechargeable batteries, battery packs, energy storage power supplies, uninterruptible power supplies(UPS), Battery Charger, power converters & inverters and solar energy products.
★ We have over 300 core team members in products design, power supplies software and hardware development, battery R&D, process improvement, quality management, production management. They all have many years of experience in related industries.

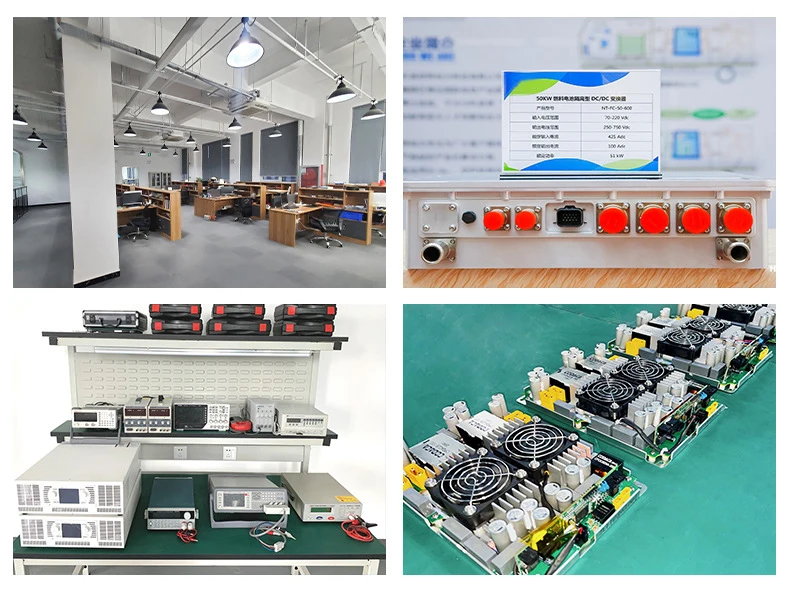

★ We have 1200 square meters, equipped with professional production equipment and dust-free, constant temperature and humidity production workshop. We also have multiple product testing and validation centers to help our products improve continuously.
★ We provide OEM and ODM services for many brands around the world. We can provide complete clean energy products and solutions, and We sincerely provide you with professional, more cost-effective products and OEM/ODM services to help you build a better brand.
Professional
We have more than 10 years factory experience in this field and We have over 300 core team members in structural design, software and hardware development, battery R&D, process improvement, quality management, production management, etc. They all have 5-10 years of working experience in related fields.
We have more than 10 years factory experience in this field and We have over 300 core team members in structural design, software and hardware development, battery R&D, process improvement, quality management, production management, etc. They all have 5-10 years of working experience in related fields.
OEM&ODM
★ Accept both OEM and ODM orders. We are a professional provider of customized energy storage power products, we have a wide range of OEM and ODM cooperation cases around the world, we are very welcome to cooperate with you further. Our experienced design team will offer you a professional OEM or ODM solution.
Quality
★ Under ISO management system and IATF16949 system certification, we have a professional quality management team, from product design, production, testing until delivery, each step has a professional quality management. we control the quality strictly from raw material to finished product.
Strength
★ We have over 300 core team members in structural design, software and hardware development, battery R&D, process improvement, quality management, production management, etc. They all have 5-10 years of working experience in related fields. We assure you with our professional skill, competitive price and superior quality.
Service
★ Whether you are a small buyer or a bulk buyer, you will get the best quality products and excellent service from us. We have experience in non-full cooperation services, and we Can provide complete energy storage power solutions and products in the energy storage flied.
1. How to confirm the high quality of the product you sent me?
—Our Products are all grade A, No matter how many you order, we will produce your product in quality and test each product,then we will package your product safely and securely before sending it out.
2. Is this product safe?

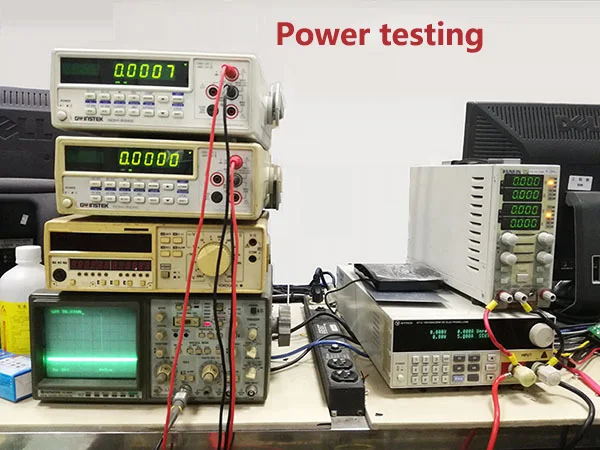

—We attach great importance to product safety, each of our products undergoes rigorous testing from R&D to production. Our battery cell Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance. Our battery pack products are also protected by the BMS. Any short circuit, over charge, over discharge and over temperature are effectively protected to ensure the safety of the product during use.
