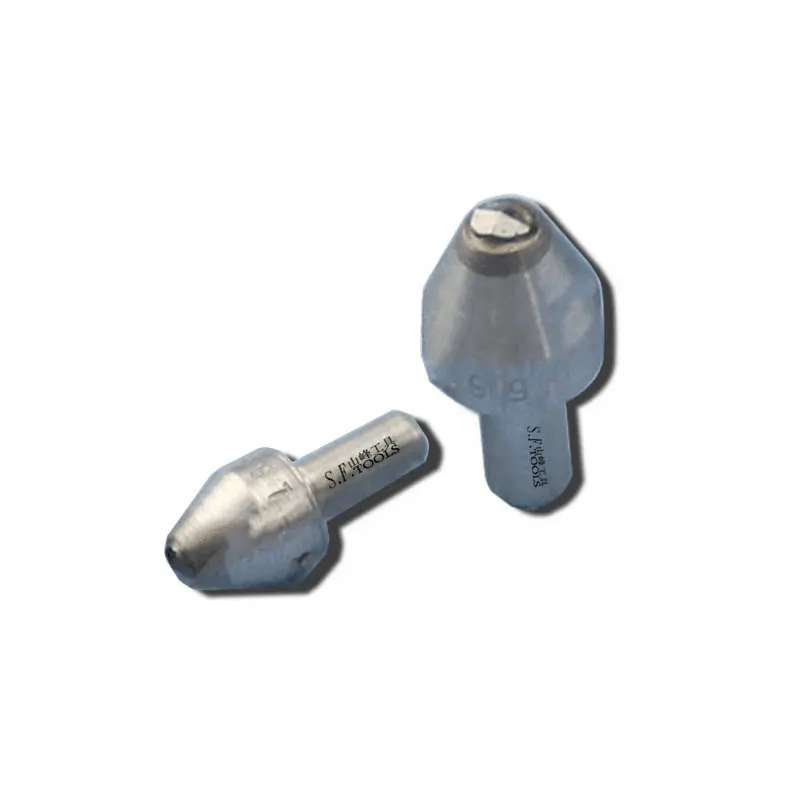

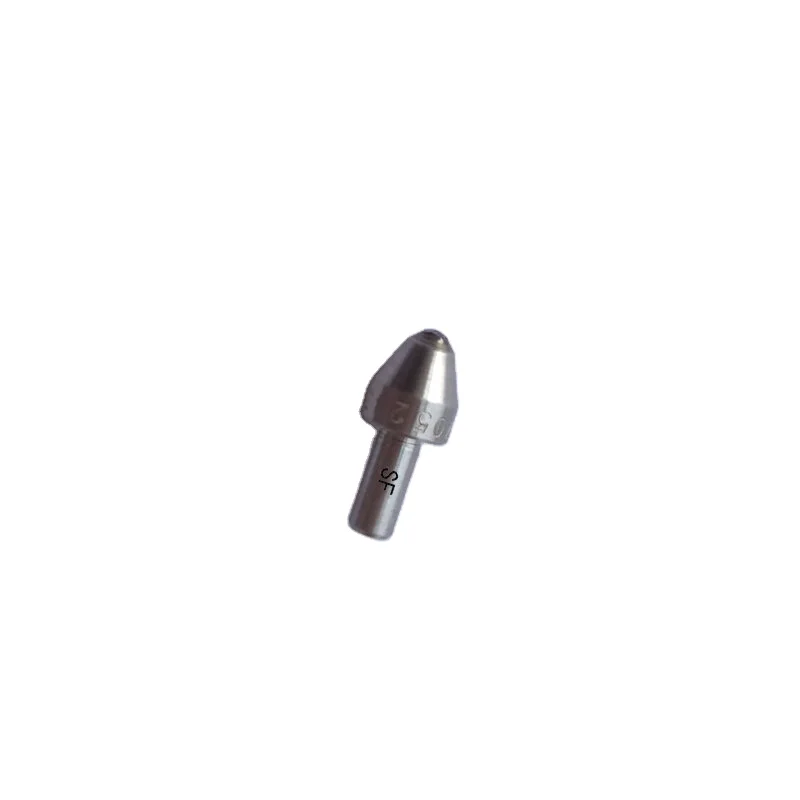

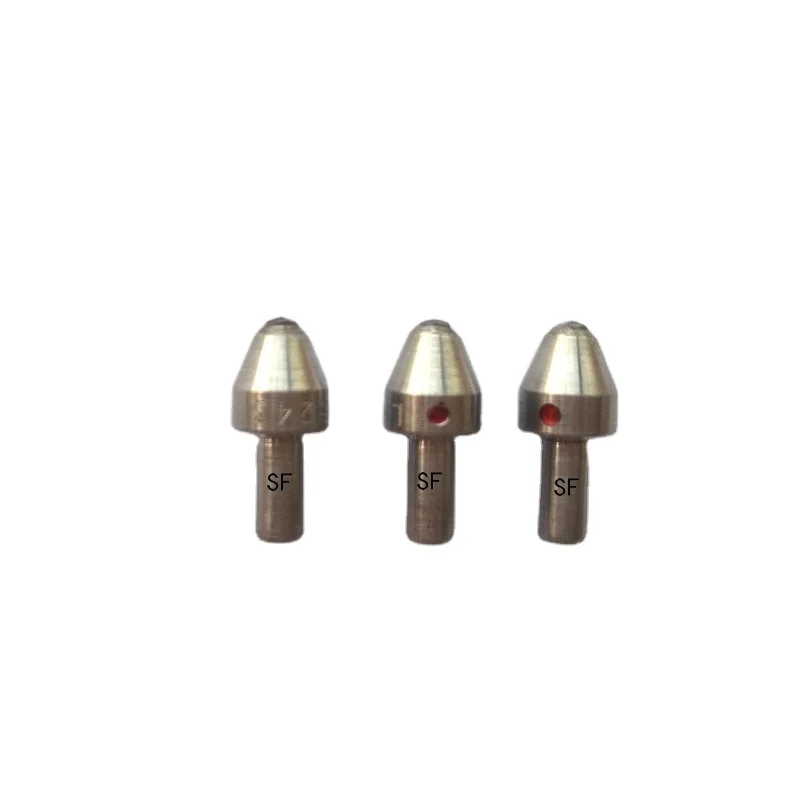

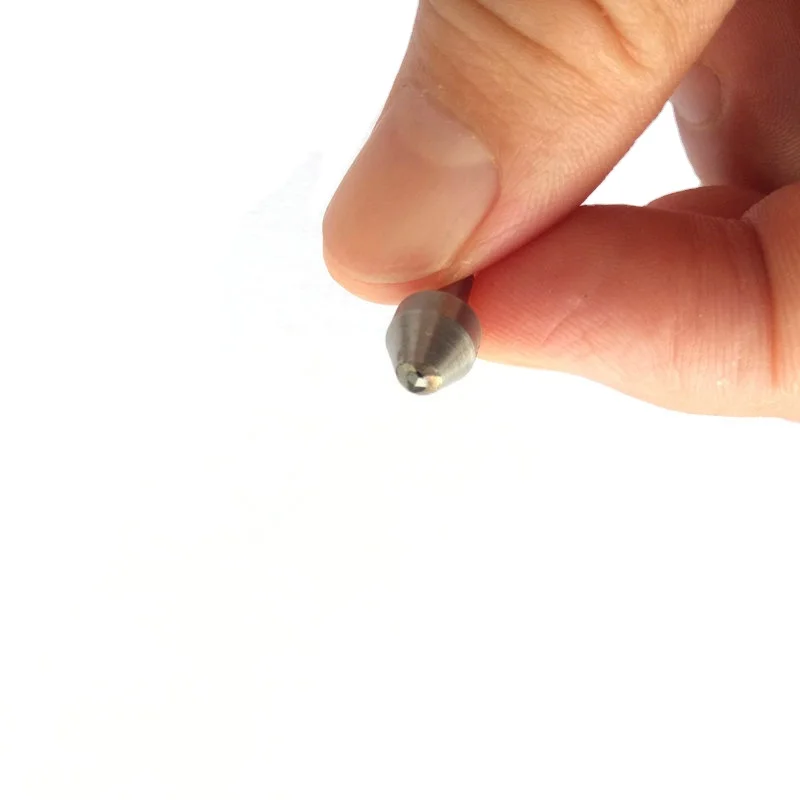

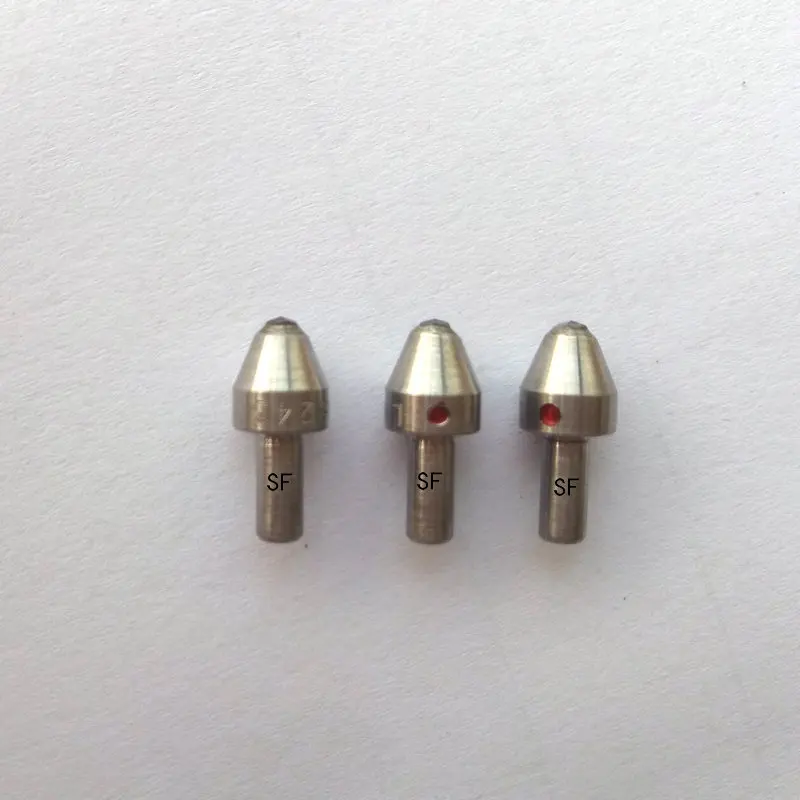

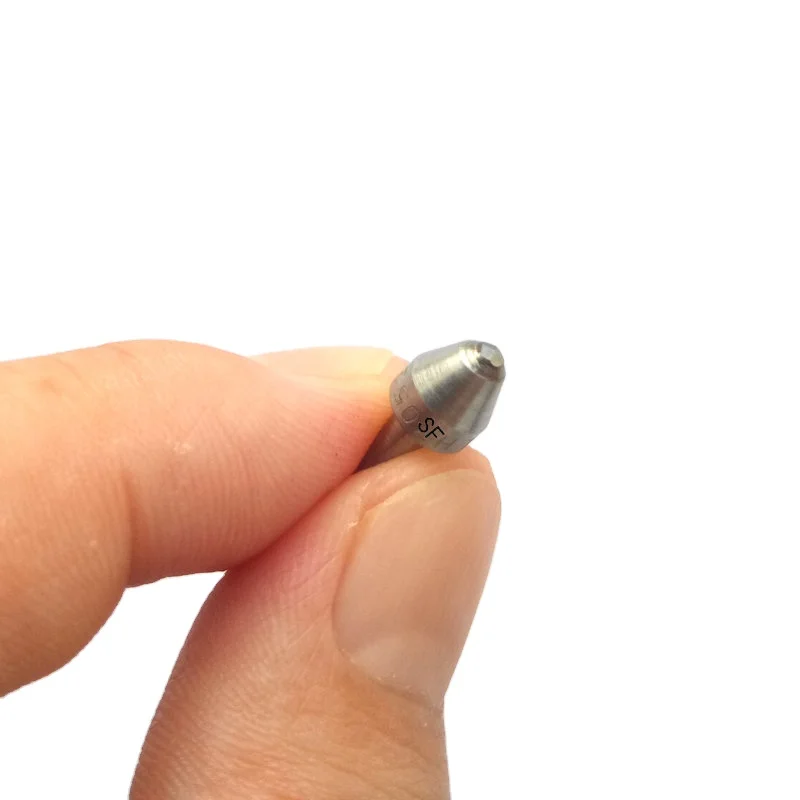

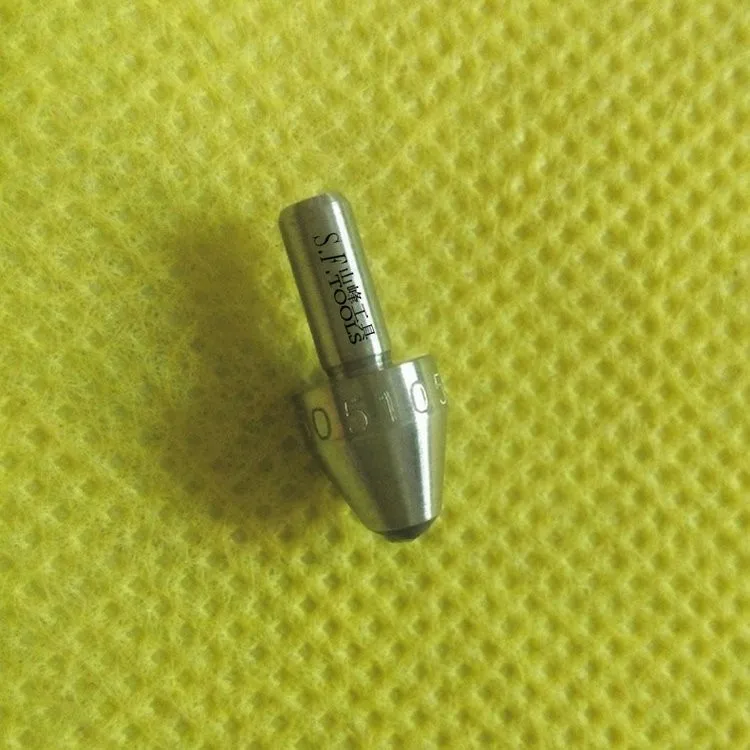

Diamond Vickers Indenter HV 6, suitable for HV1000 Micro Vickers Hardness Tester

Product Overview

Description

There are two kinds of diamond indenters used in Vickers hardness tester, one is Vickers diamond indenter, and the other is Knup diamond indenter for hardness measurement of brittle materials such as glass, ceramics and enamel.

The geometric shape of the Vickers diamond indenter is a square pyramid (or pyramid), and the angle between the two opposite faces is 136°.



The geometry of Knoop's diamond indenter is rhombic, the angle between the relatively long diagonal edges is 172 ° 30 '; the angle between the relatively short diagonal edges is 130 °.

Parameters of HV-6 Micro Vickers Indenterl
Tip material:	diamond
Vickers diamond indenter geometry:	Square Cone
The angle between two opposing faces:	136°.
Cross blade:	less than 1μm
Tail handle size:	3m
Uses:	HV 1000 g micro Vickers hardness tester indenter

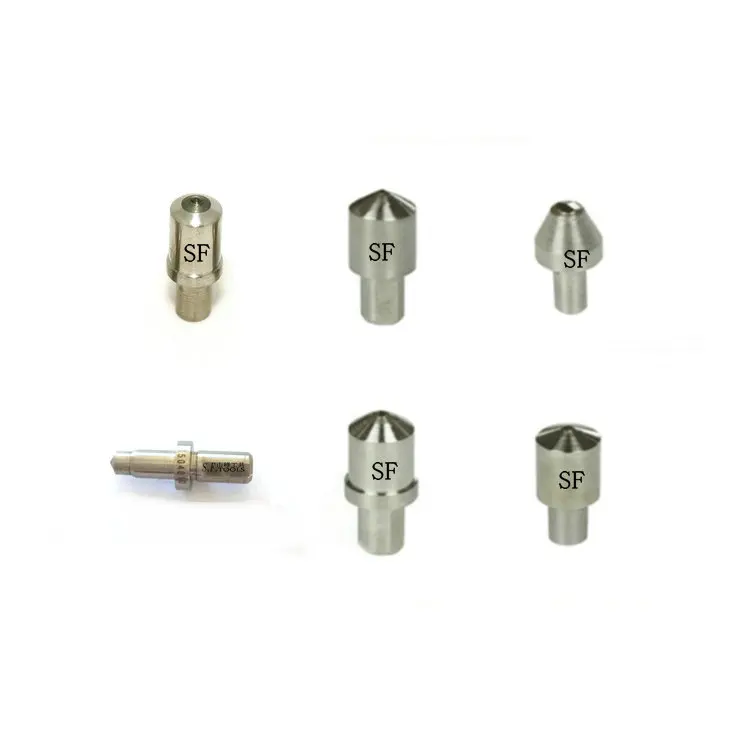

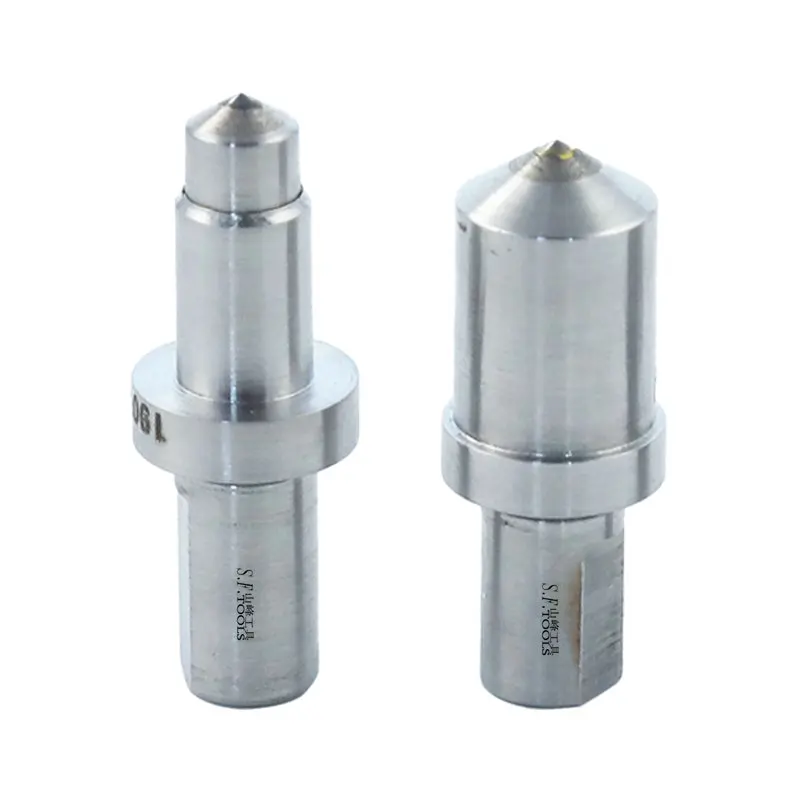

 We can order the pressure head of other specification











Diamond carefully selected raw materials





Packing



plastic boxes, cartons, plastic bags, cardboard boxes









Real manufacturer quality guaranteed
