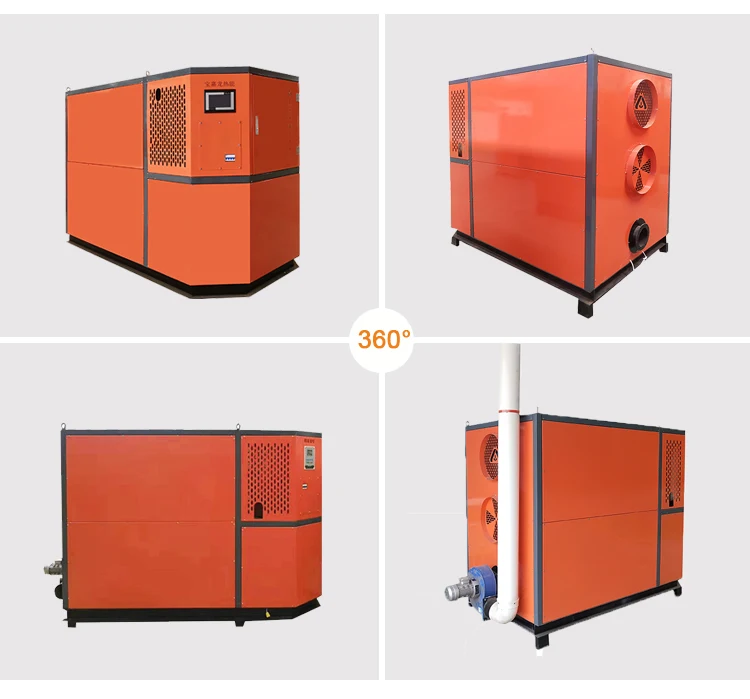

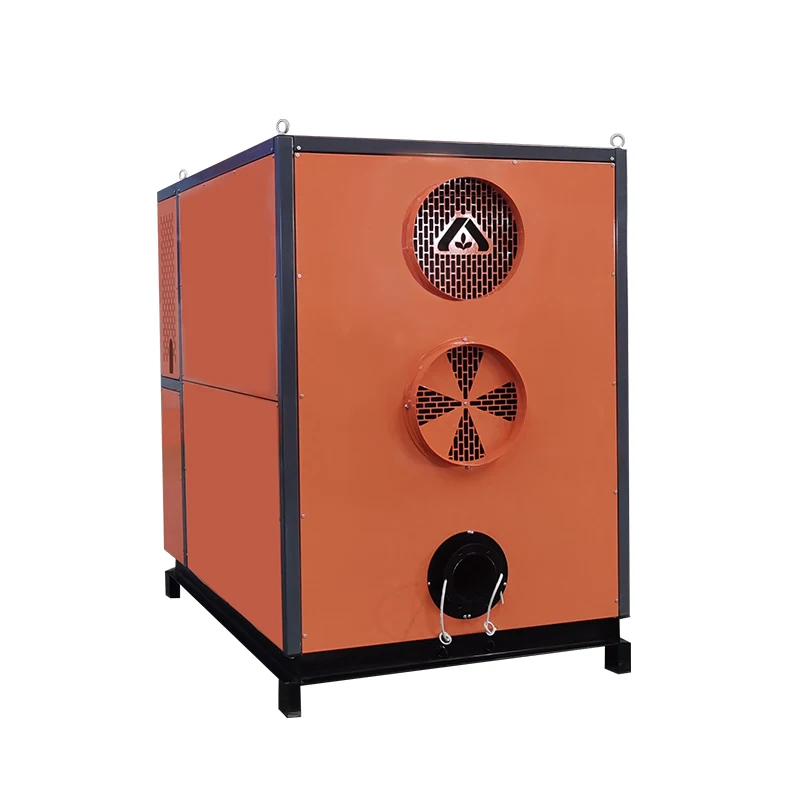

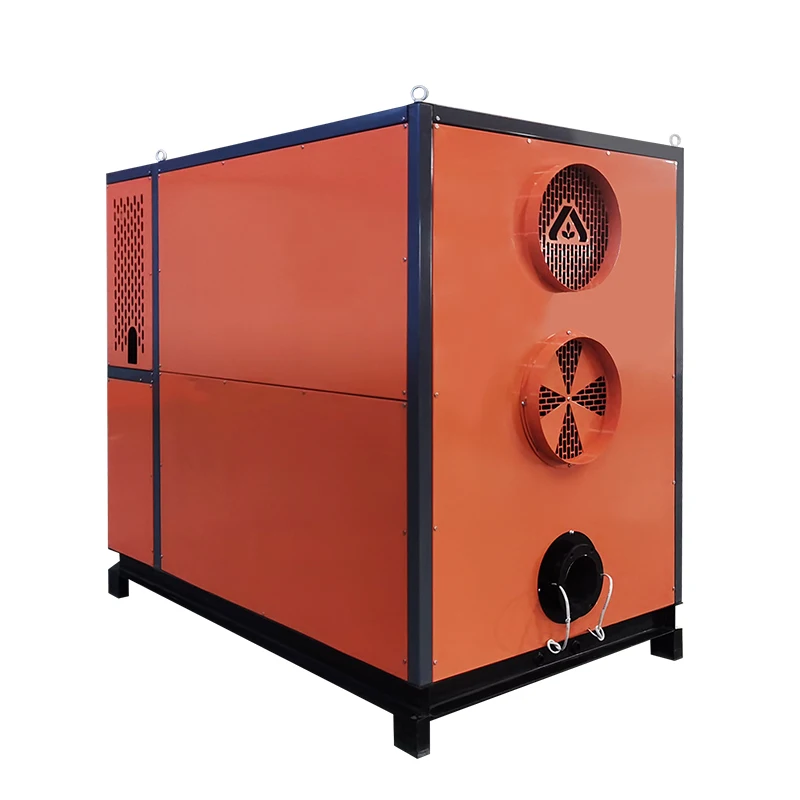

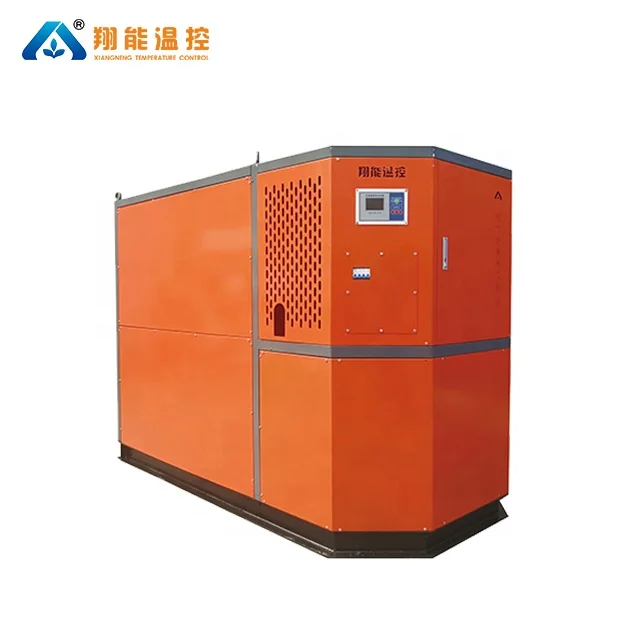

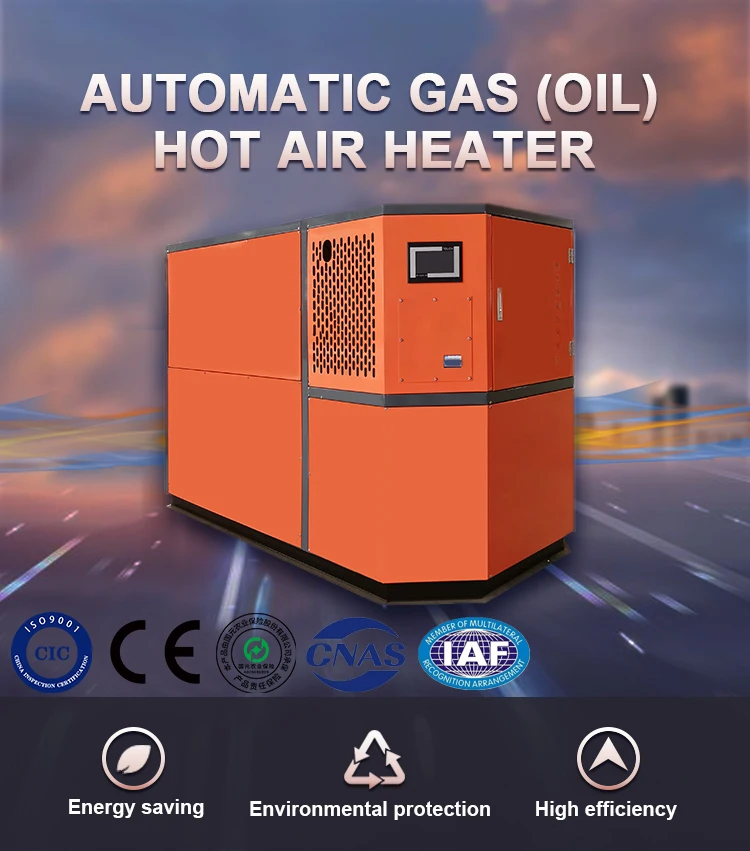

Gas hot air heater Large area heating with hot air fan to save energy
- Category: >>>
- Supplier: Shandong Xiangneng Temperature Control Equipment Co. Ltd.
Share on (1600468945987):
Product Overview
Description
Product details
Model | XNLNF-10 | XNLNF-20 | XNLNF-30 | XNLNF-40 | XNLNF-50 | XNLNF-60 | |||||||
(Kw/h)Rated power | 160 | 205 | 280 | 450 | 600 | 800 | |||||||
Weight(Kg) | 1500 | 1600 | 1700 | 2000 | 2500 | 2700 | |||||||
Air volume(m3/h) | 8000-11000 | 11000-14000 | 14000-17000 | 18000-26000 | 24000-34000 | 40000-50000 | |||||||
Outlet temperature (℃) | 80-150 | 80-150 | 80-150 | 80-150 | 80-150 | 80-150 | |||||||
Outlet size (mm) | 350 | 400 | 500 | 550 | 620 | 750 | |||||||
Natural gas (Nm³/h) | 8-15 | 10-21 | 12-26 | 20-42 | 25-60 | 30-80 | |||||||
Liquefied gas(Kg/h) | 4-8 | 8-16 | 12-24 | 16-32 | 20-40 | 24-48 | |||||||
Light oil (Kg/h) | 4-8 | 8-16 | 12-24 | 16-32 | 20-40 | 24-48 | |||||||
Motor power(Kw/h) | 5 | 5.8 | 7.4 | 9.4 | 20 | 28 | |||||||
Voltage (v) | AC220/380V 50Hz | ||||||||||||
Exhaust temperature(℃) | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 | |||||||
Thermal efficiency (%) | 109.5 | 109.5 | 108 | 108 | 108 | 108 | |||||||
Size (L*W*H) (mm) | L | 2000 | 2200 | 2350 | 2550 | 3050 | 3550 | ||||||
w | 1120 | 1250 | 1250 | 1270 | 1570 | 1870 | |||||||
H | 1650 | 1750 | 1900 | 1950 | 1950 | 2450 | |||||||
Product Description
poultry house gas air heater manufacturer for chicks natural gas poultry heater

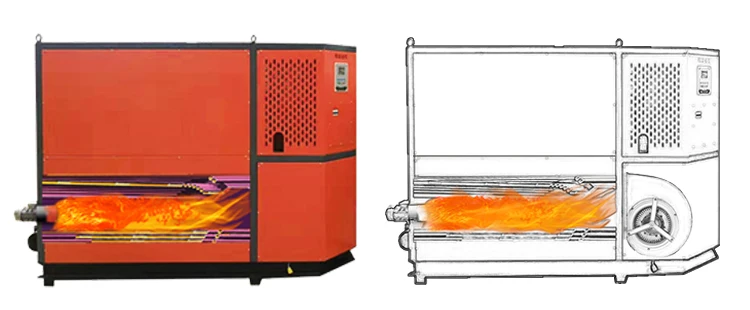

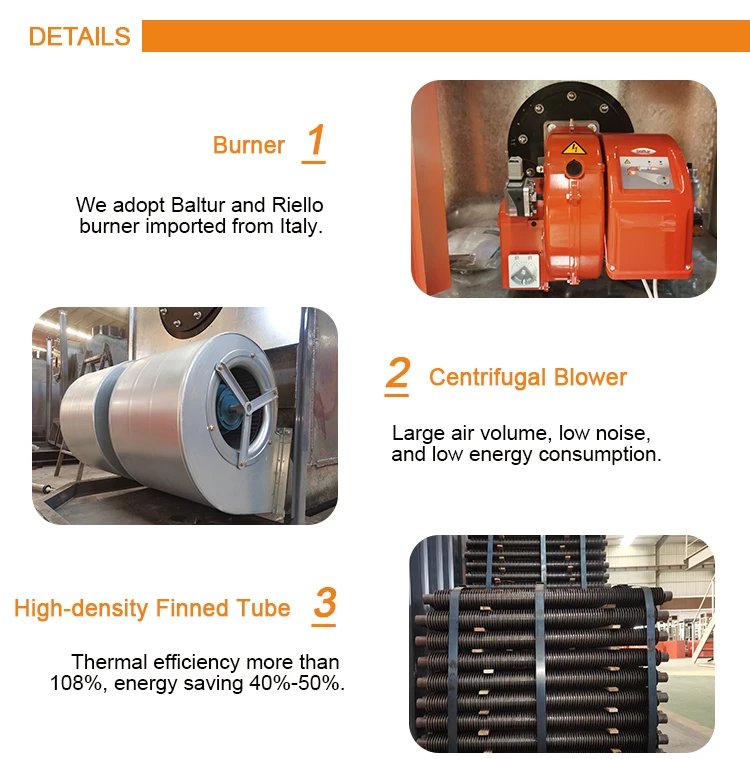

1. Energy saving: The product adopts multi-pass high-density finned tube for heat dissipation. When the outlet temperature is higher than 100 degrees, the exhaust temperature can be controlled below 50 degrees, and the thermal efficiency is as high as 108%;
2. Efficient: The temperature of the wind can reach 120 degrees after turning on for 3 minutes, which can quickly increase the indoor temperature;
3. Low noise: the use of low-speed central air-conditioning centrifugal fan has the characteristics of large air volume, low noise and low energy consumption;
4. Auxiliary humidification: According to production needs, models with auxiliary humidification can be customized;
5. Stable operation and long lifespan: The standard high-efficiency Italian Black and Decker imported burner, the control system, centrifugal blower, various electrical appliances, sensors, etc. are all selected well-known brands; the furnace body's high-quality heat insulation and anti-corrosion treatment technology can be Long-term use at 1500 degrees high temperature;
6. Single reference heating area: 1000-6000m2.
2. Efficient: The temperature of the wind can reach 120 degrees after turning on for 3 minutes, which can quickly increase the indoor temperature;
3. Low noise: the use of low-speed central air-conditioning centrifugal fan has the characteristics of large air volume, low noise and low energy consumption;
4. Auxiliary humidification: According to production needs, models with auxiliary humidification can be customized;
5. Stable operation and long lifespan: The standard high-efficiency Italian Black and Decker imported burner, the control system, centrifugal blower, various electrical appliances, sensors, etc. are all selected well-known brands; the furnace body's high-quality heat insulation and anti-corrosion treatment technology can be Long-term use at 1500 degrees high temperature;
6. Single reference heating area: 1000-6000m2.
Related Products

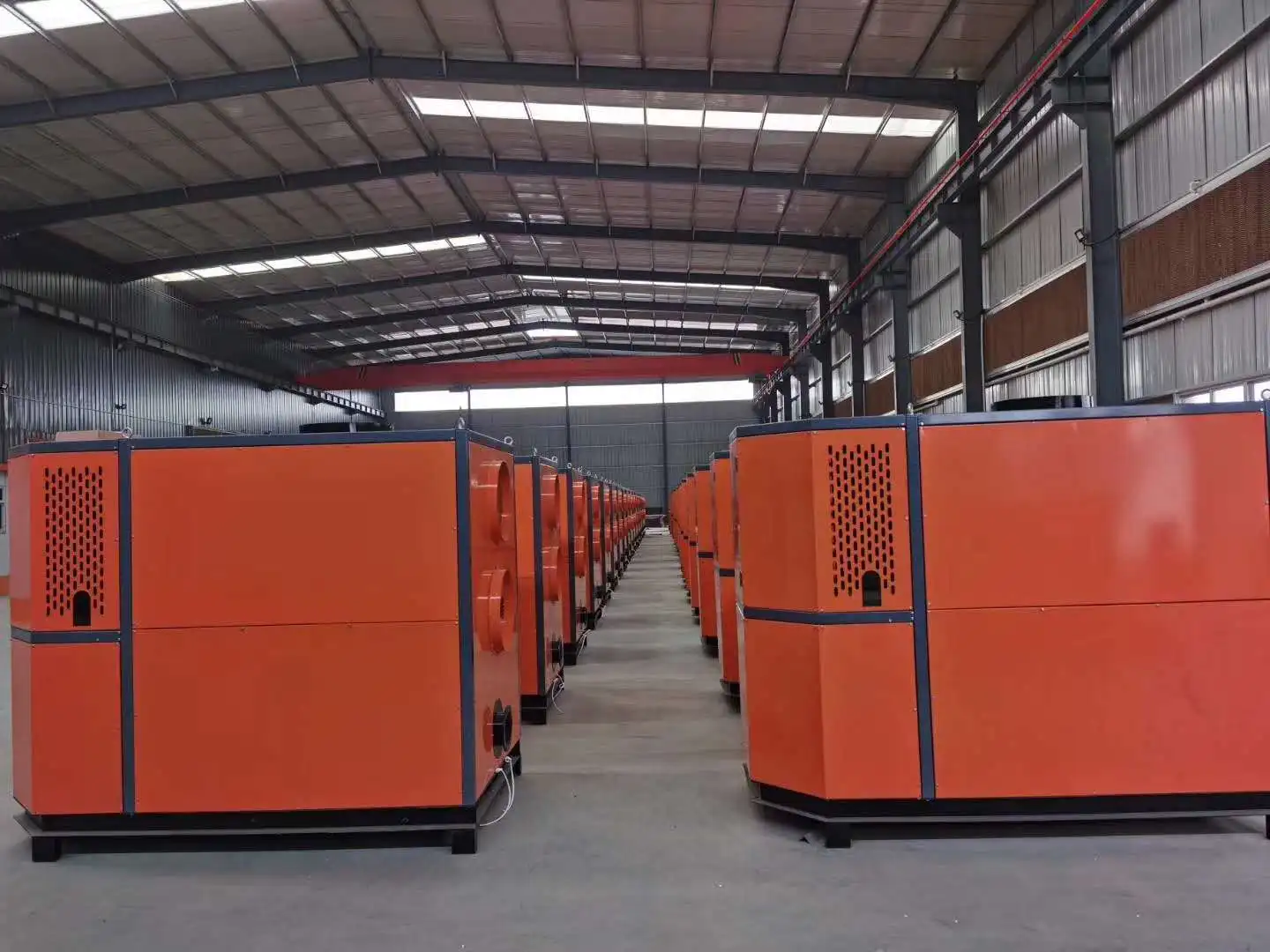

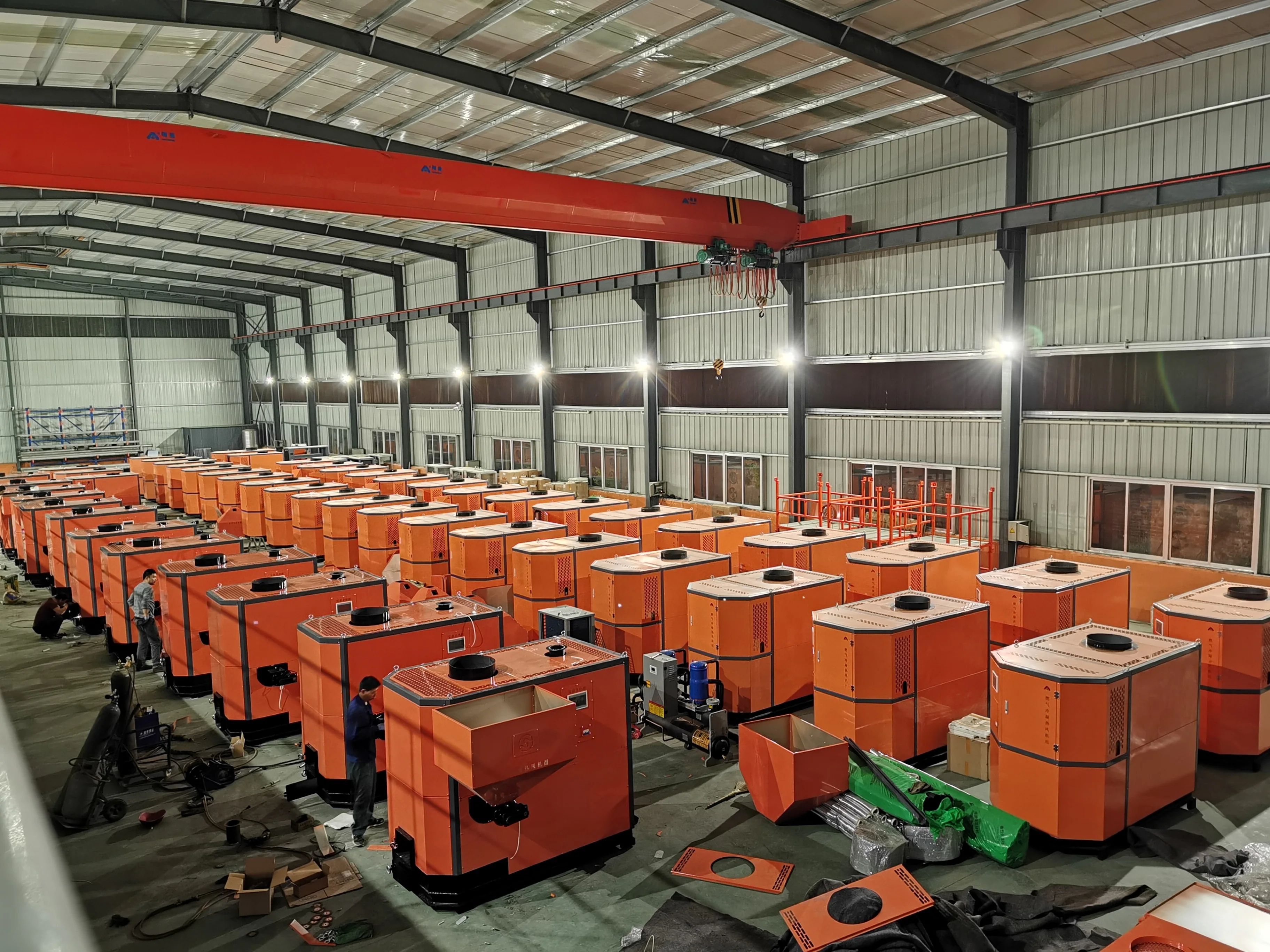

Company strength

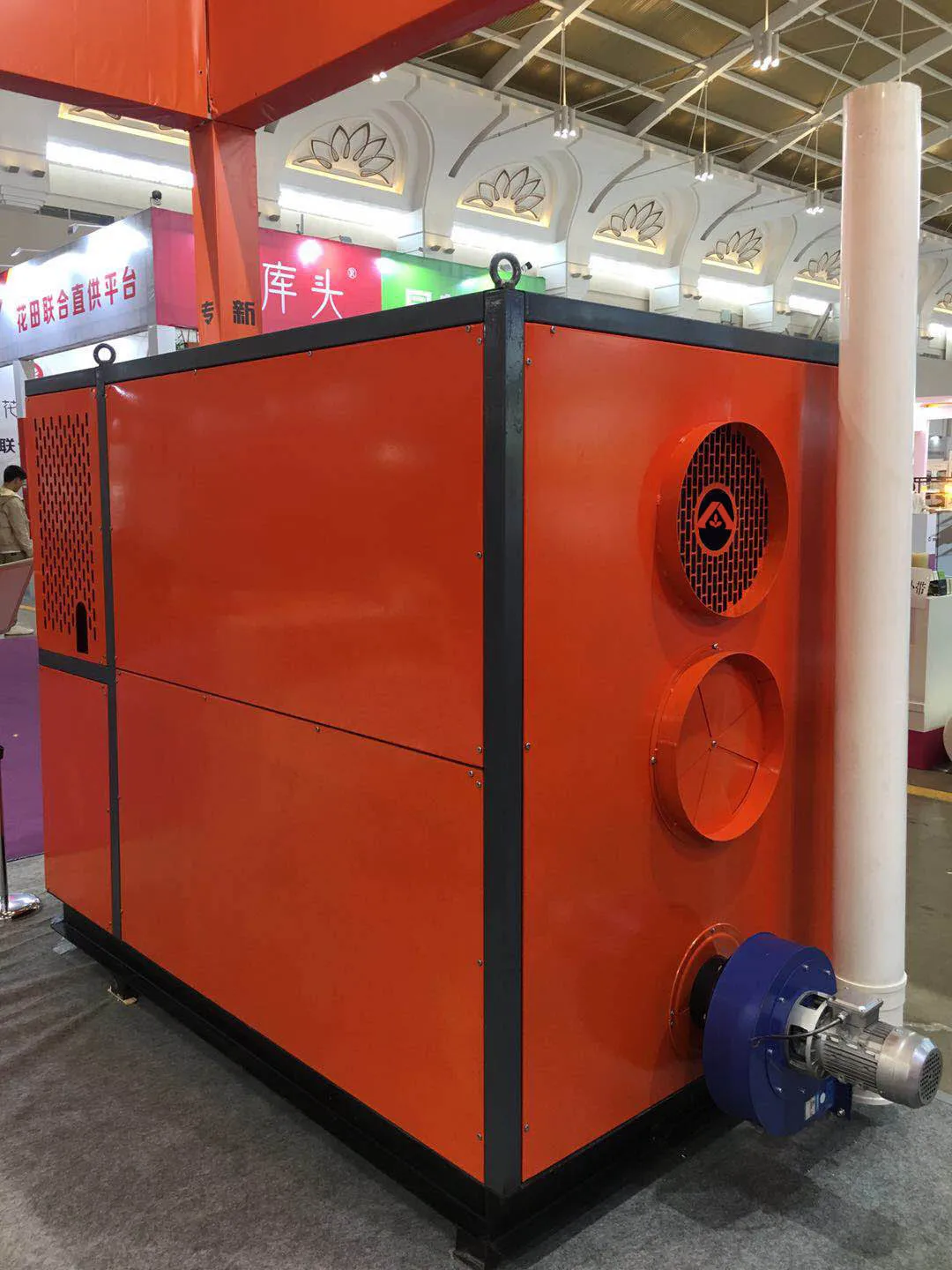

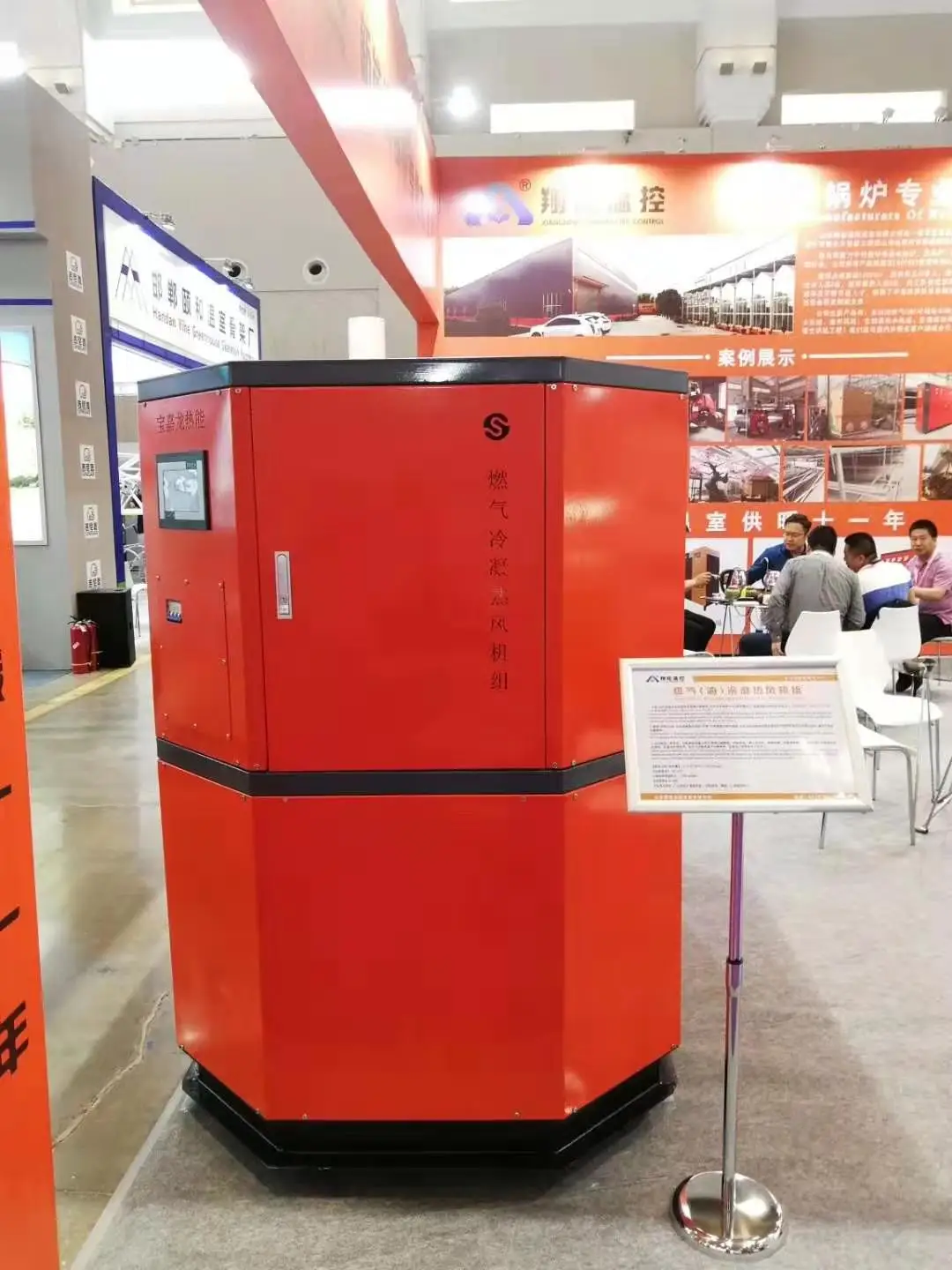

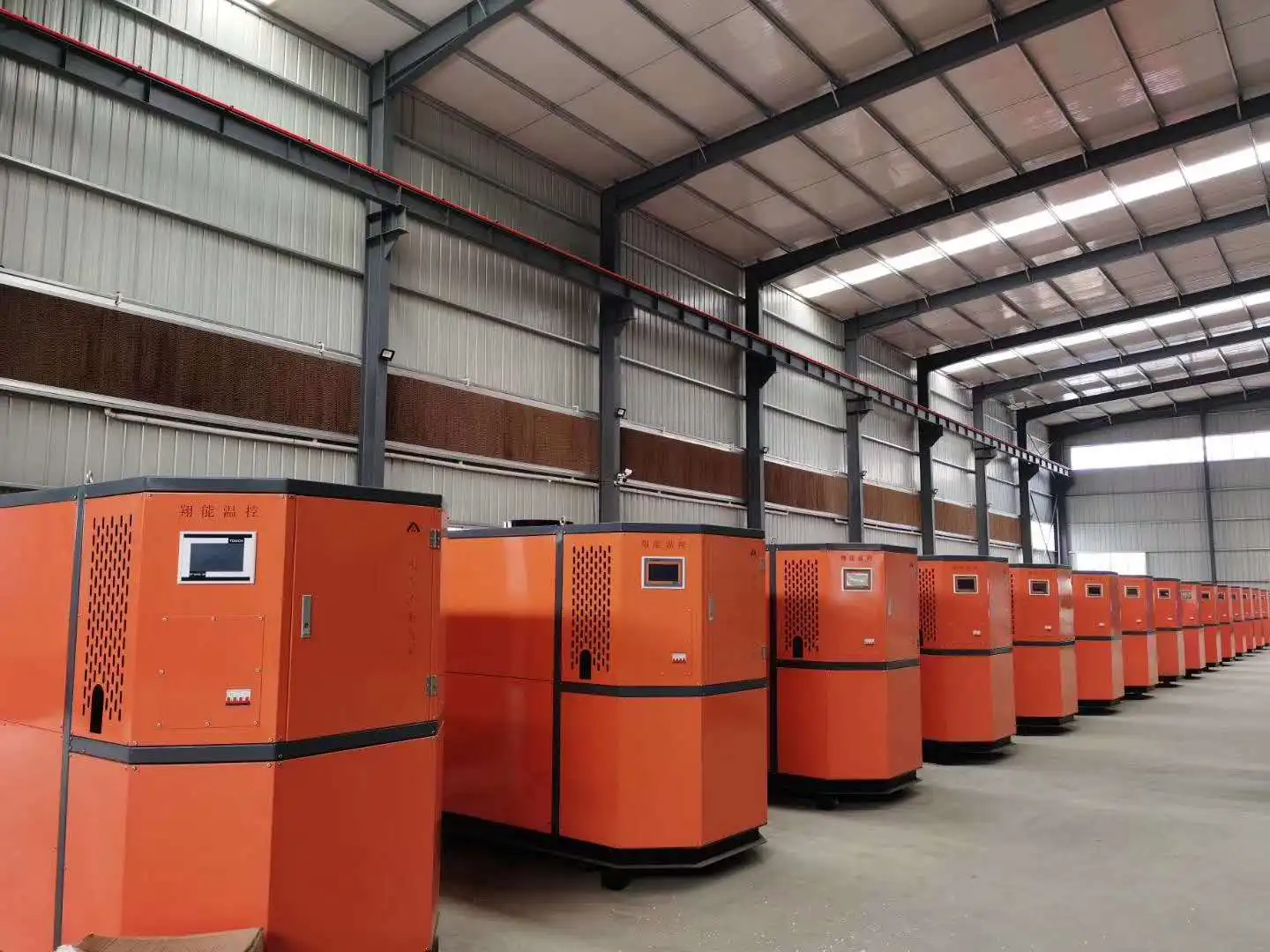

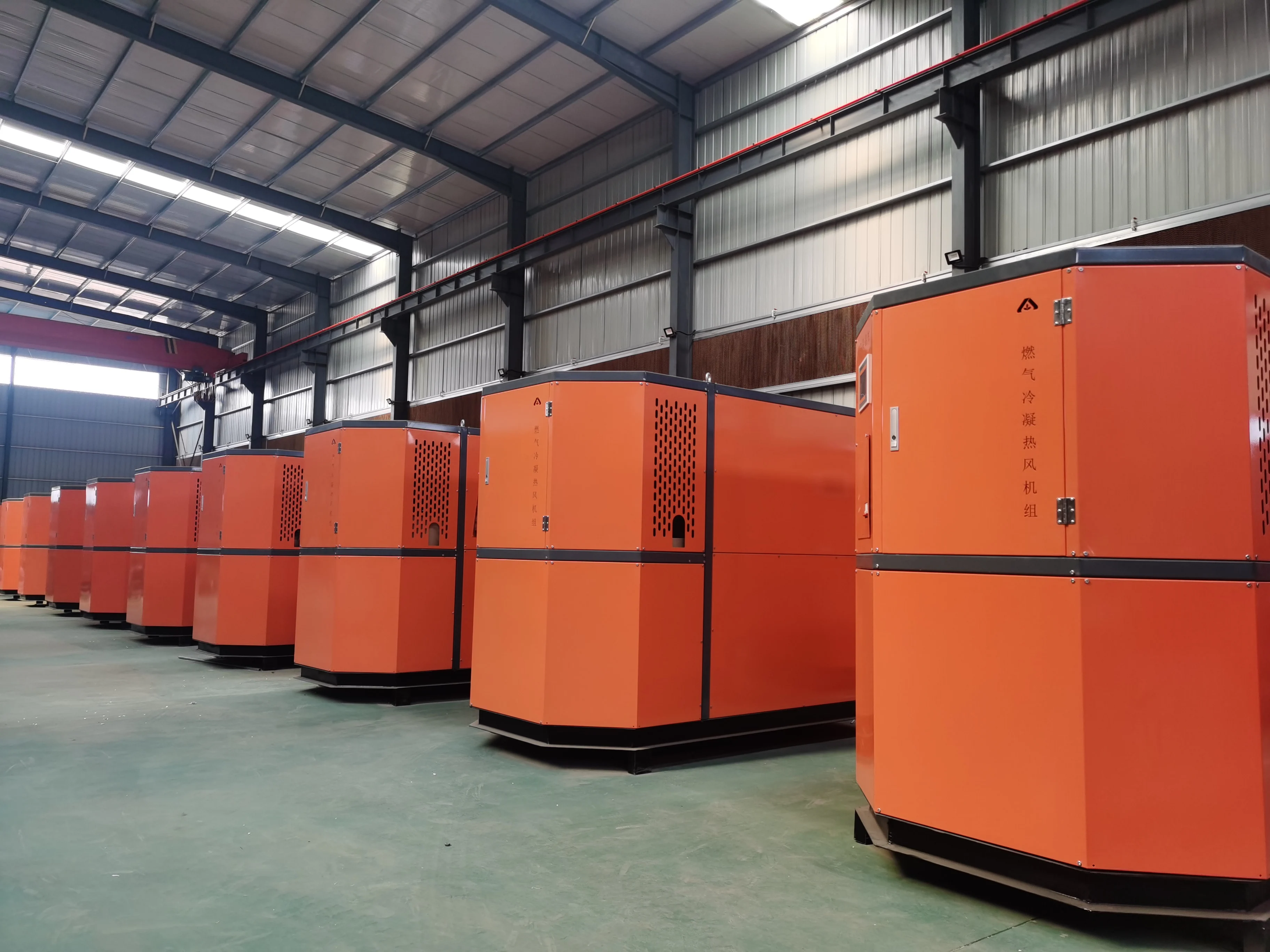

Exhibition real shot

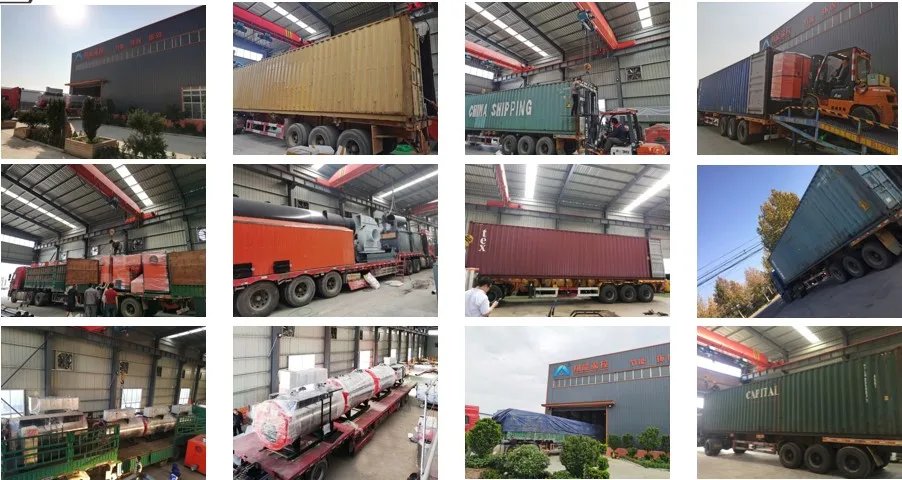

Logistics delivery

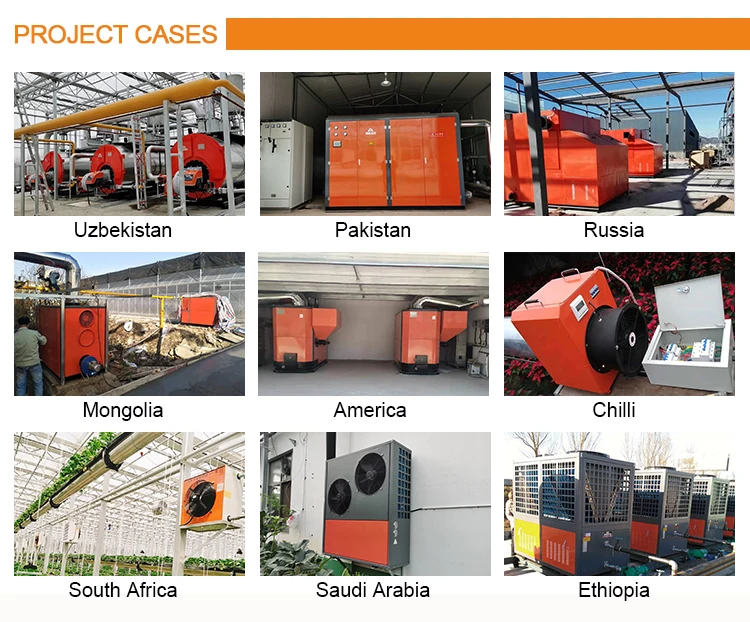

Case project
FAQ
Q: What is the Warranty for the boilers?
A: Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new
A: Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new
Q.What can you get from us before quotation?
A:After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.
A:After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.
Q.What are the available fuel for the oil gas fired boiler?
A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.
A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.
