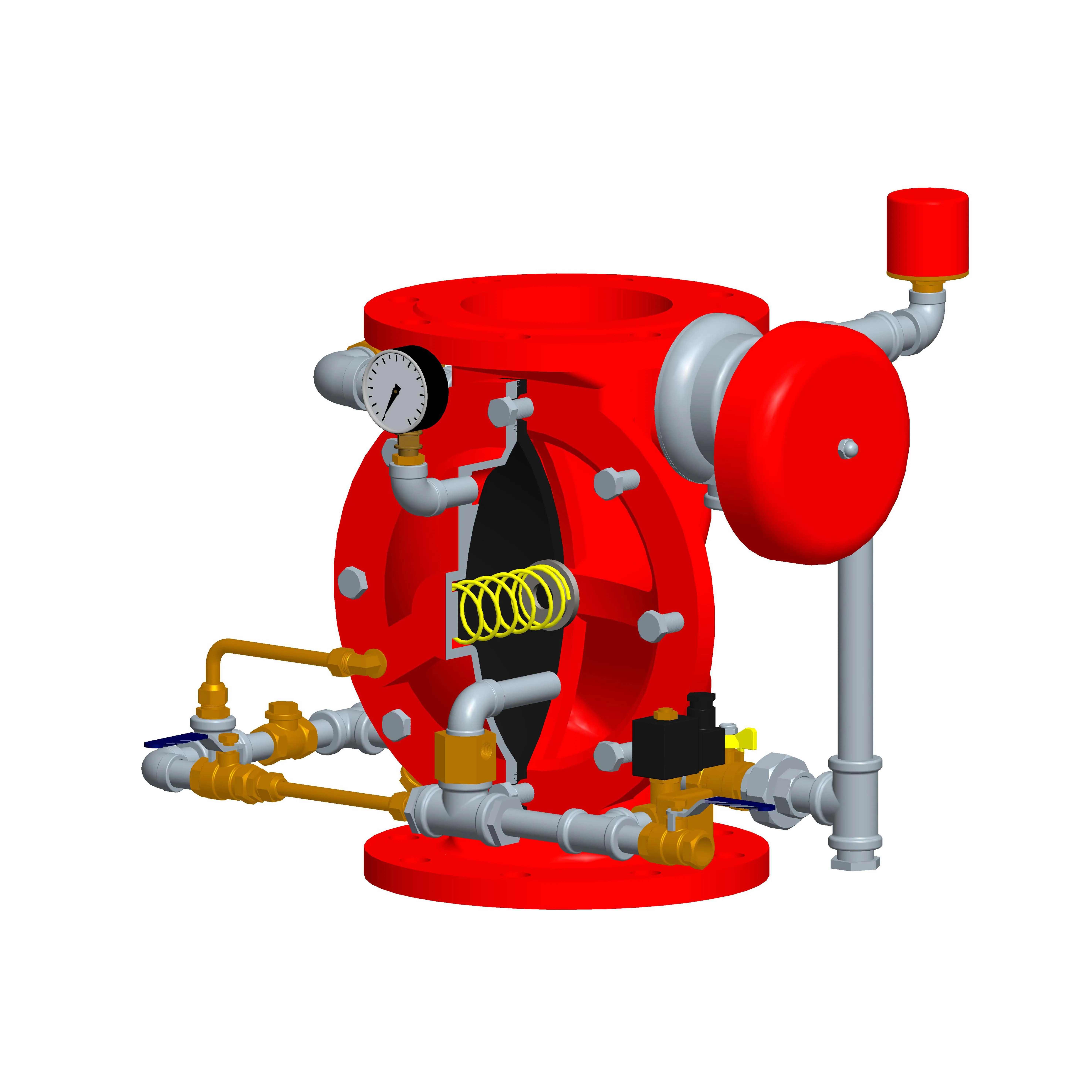

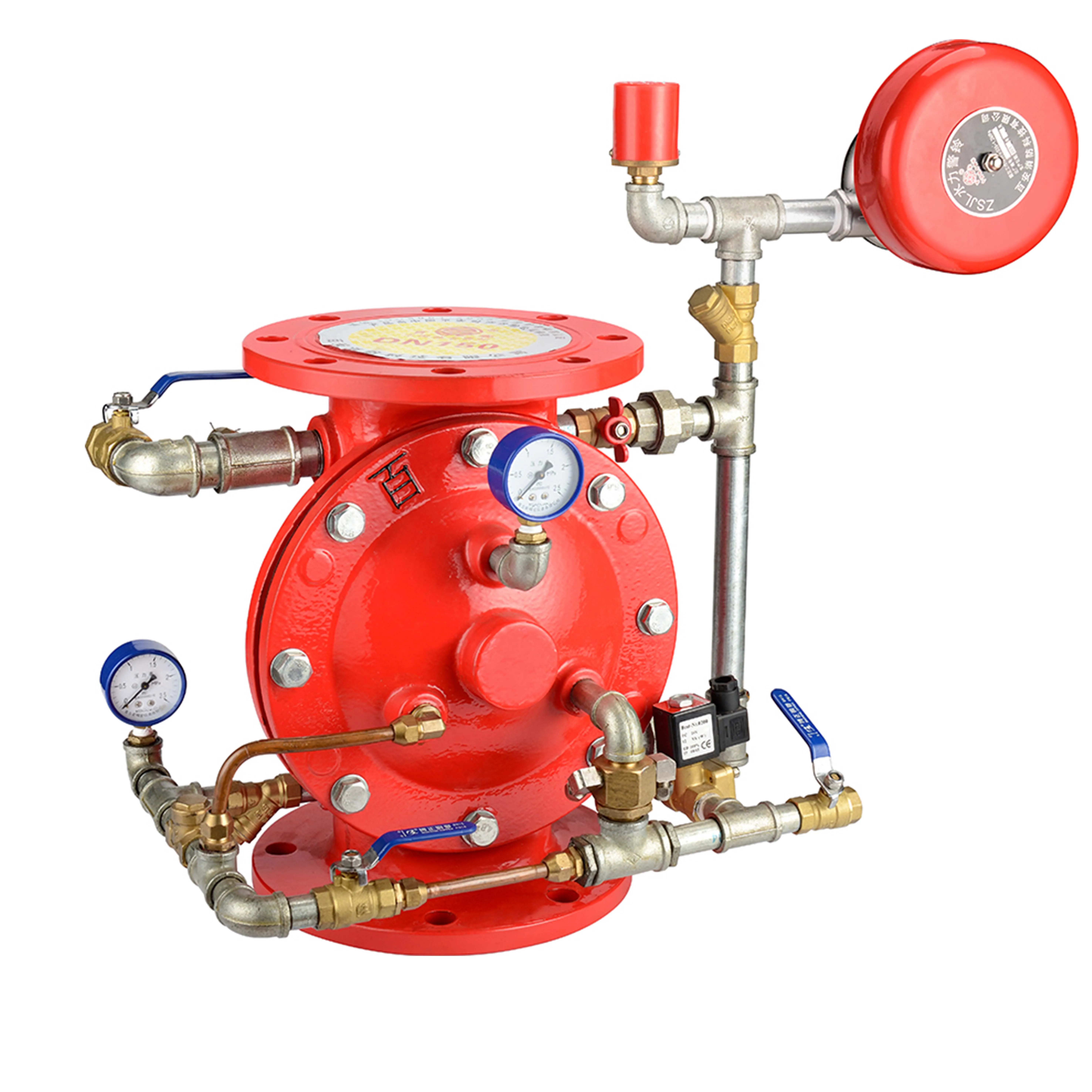

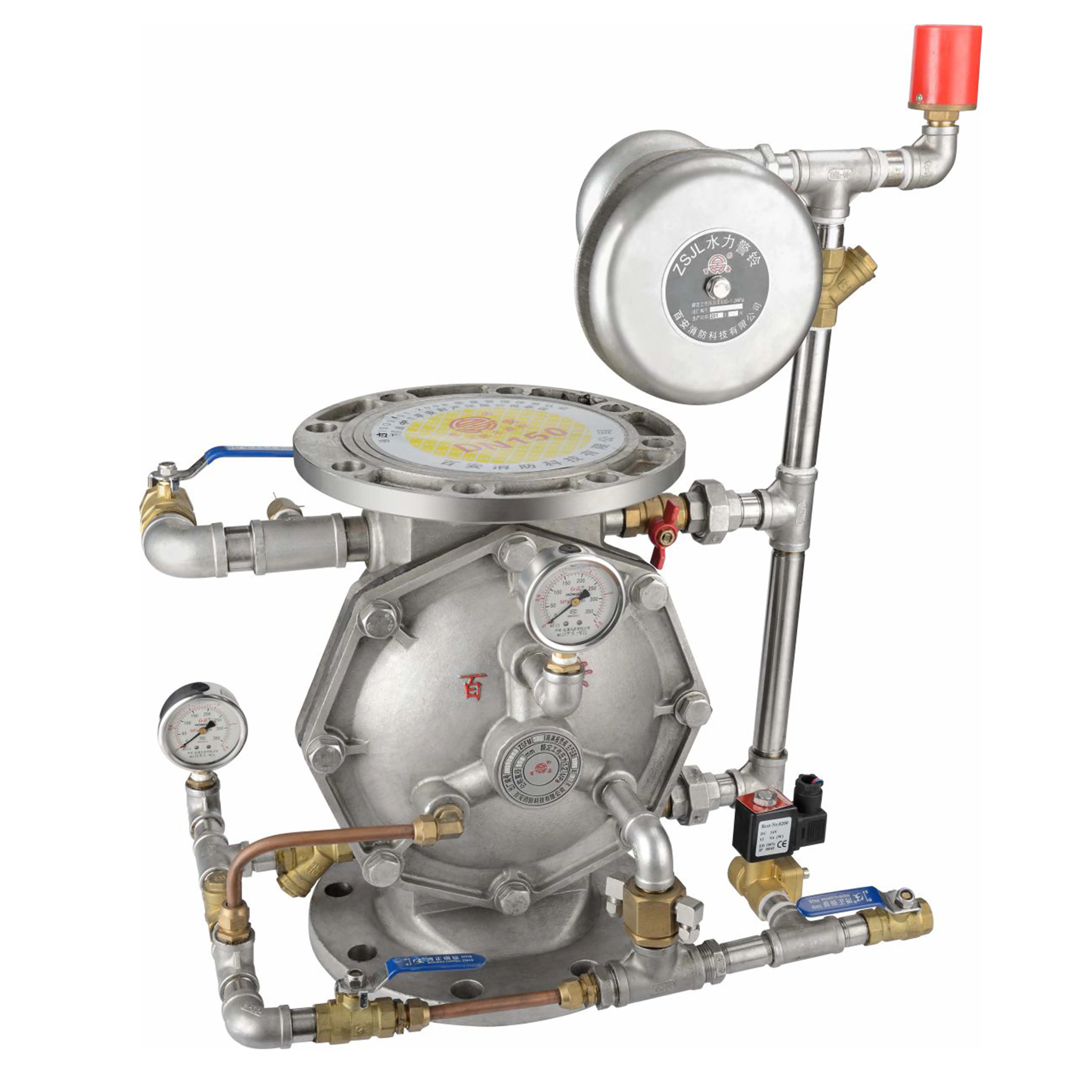

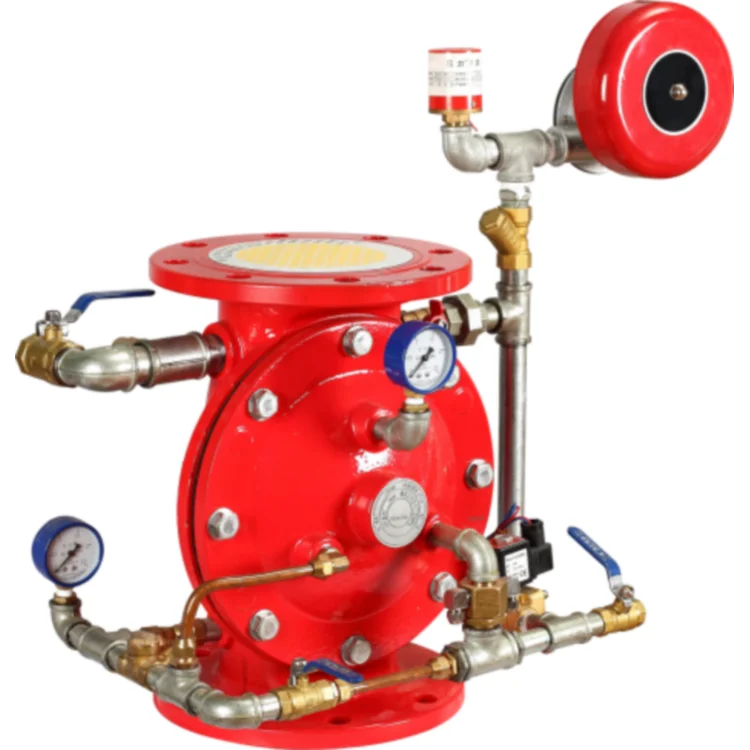

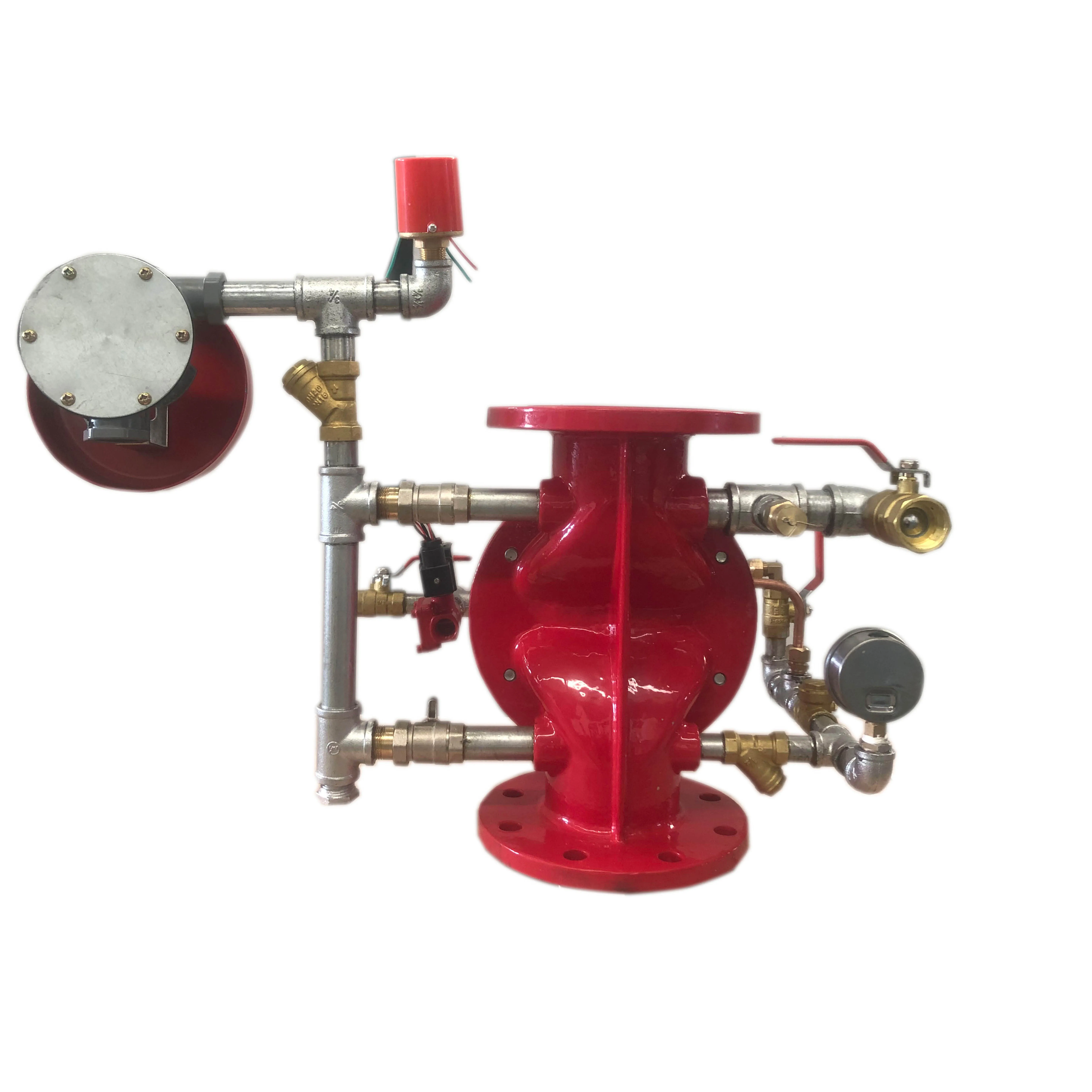

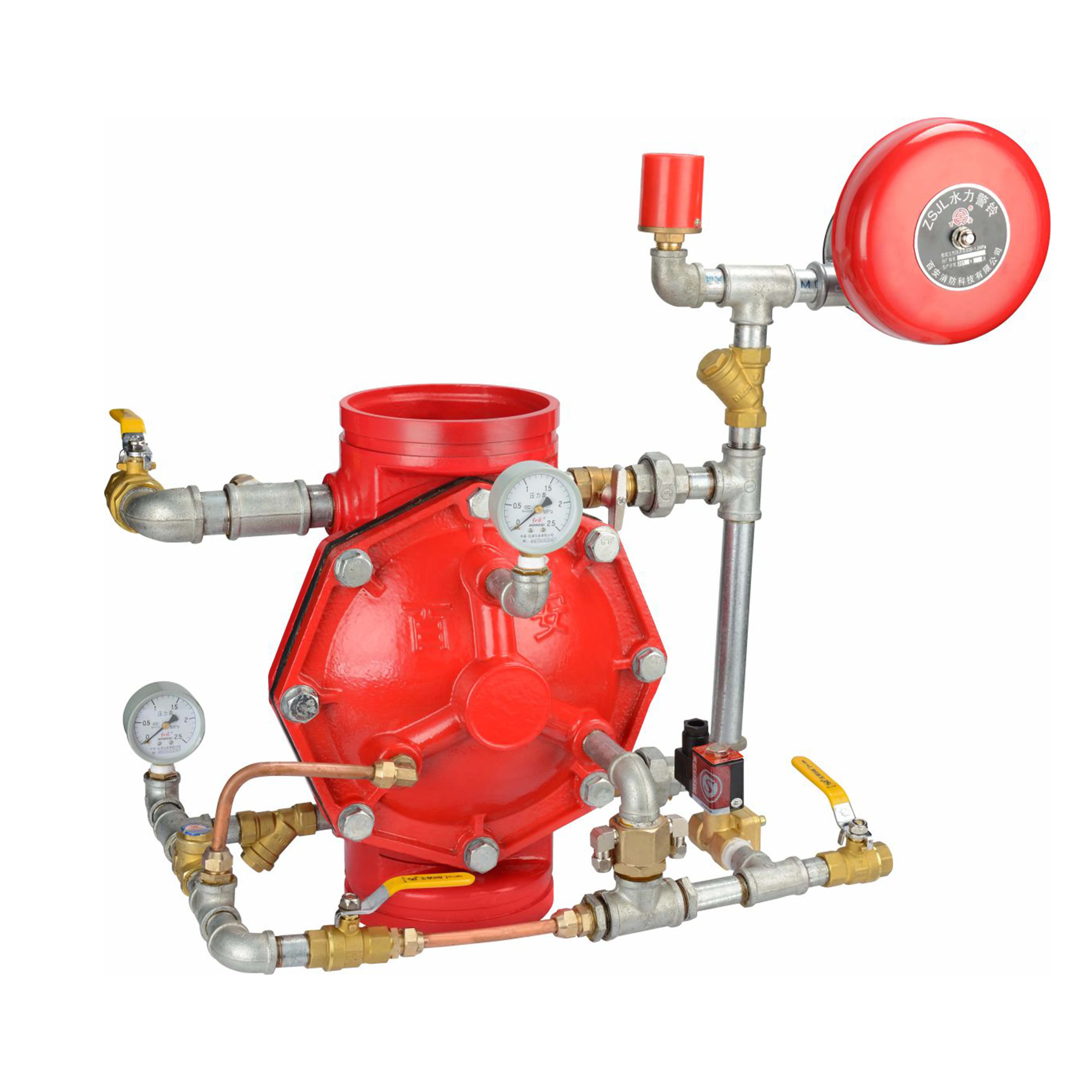

High Quality High Pressure Firefighting Equipment Deluge Fire Alarm Valve
- Category: >>>
- Supplier: Jinjiang Newfco Import And Export Co. Ltd.
Share on (1600469004402):
Product Overview
Description
Product Description
1) Ductile iron construction valve body,less weight and extra strength.
2) Available for electric operation,hydraulic operation,manual operation.
3) The all moving parts can be serviced without removing the valve from the installed position.
4) Simple design for easy installation and operation.
5) Vertical or horizontal installation.
6) CCCF certificated.
2) Available for electric operation,hydraulic operation,manual operation.
3) The all moving parts can be serviced without removing the valve from the installed position.
4) Simple design for easy installation and operation.
5) Vertical or horizontal installation.
6) CCCF certificated.
Body Material: Ductile Iron,QT450;
Seal Disc Material: 304 Stainless Steel With NBR;
Ball Valve &Strainer &Check Valve: Brass Standard;
Retard Chamber: Carbon Steel Standard ;
Water Motor Gong: Carbon Steel Standard ;
Piping Accessories: Galvanized Pipe Standard,);
Seal Disc Material: 304 Stainless Steel With NBR;
Ball Valve &Strainer &Check Valve: Brass Standard;
Retard Chamber: Carbon Steel Standard ;
Water Motor Gong: Carbon Steel Standard ;
Piping Accessories: Galvanized Pipe Standard,);
Specification
Material | Body | Ductile iron | |
Diaphragm | NBR rubber | ||
Pipes | Galvanized pipe,cooper pipe | ||
Ball valve & strainer & check valve | Brass | ||
Water motor gong | Carbon steel,aluminium alloy | ||
Working pressure | 16 bar | ||
Sealing testing pressure | 24 bar | ||
Applicable temperature | 4°C to 70°C | ||
Installation | Vertically or horizontally | ||
Flow switch contact capacity | DC24V,0.5A | ||
Solenoid valve Voltage | DC24V | ||
Connection | Flange × Flange | ||
Available Size | DN50 thru DN250 (2” thru 10”) | ||

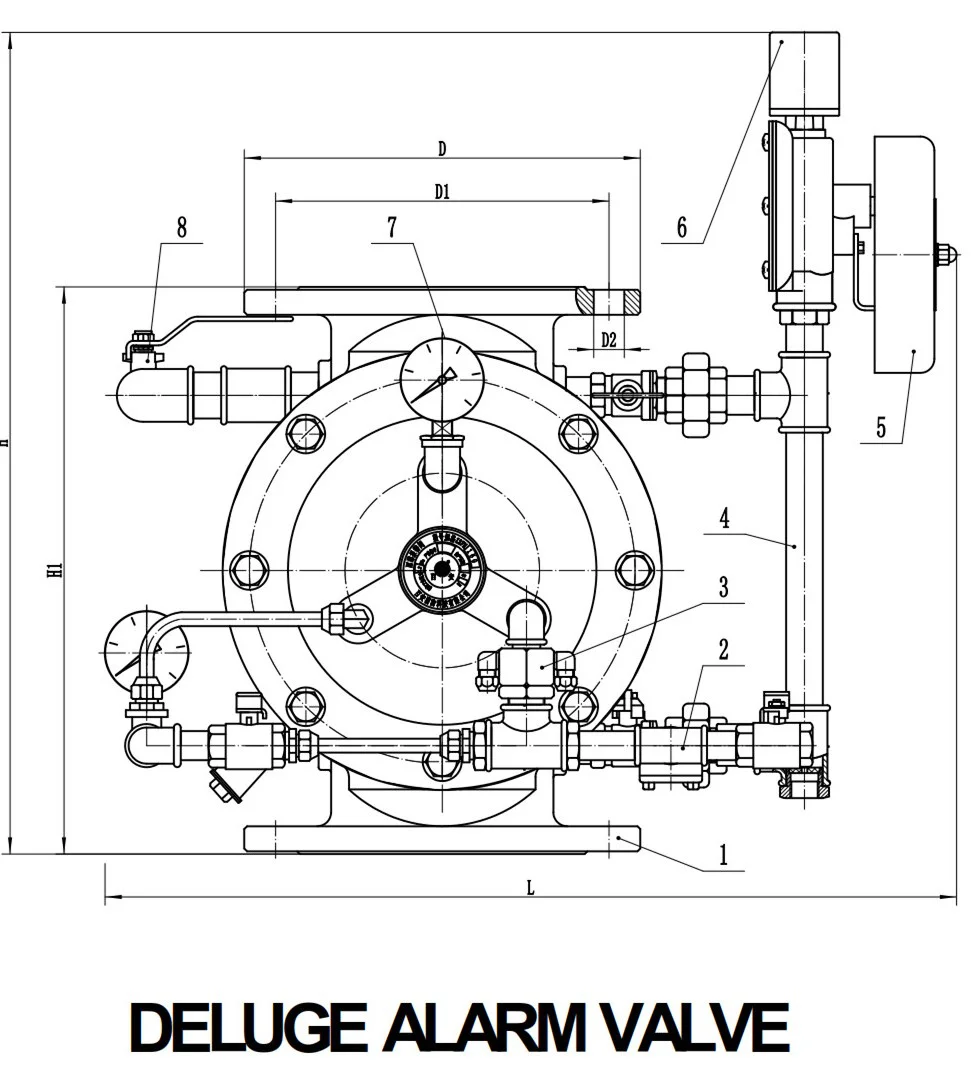

Size | L | H | H1 | D | D1 | D2 | Bolt Holes | |
50 | 555 | 482 | 270 | 165 | 125 | 18 | 4 | |
65 | 555 | 482 | 270 | 185 | 145 | 18 | 4 | |
80 | 588 | 529 | 345 | 200 | 160 | 18 | 8 | |
100 | 588 | 529 | 345 | 220 | 180 | 18 | 8 | |
125 | 613 | 590 | 408 | 250 | 210 | 18 | 8 | |
150 | 613 | 590 | 408 | 285 | 240 | 22 | 8 | |
150G | 615 | 585 | 400 | 165.1 | 160.8 | |||
200 | 667 | 717 | 543 | 340 | 295 | 22 | 8 |
NO. | Name | Material |
1 | Valve Body | Ductile |
2 | Reset Valve | |
3 | Solenoid Valve | |
4 | Connection Pipe | Iron/SS304 |
5 | Water Motor Gong | Iron/SS304 |
6 | Pressure Swich | |
7 | Pressure Guage | |
8 | Ball Valve | Brass |
