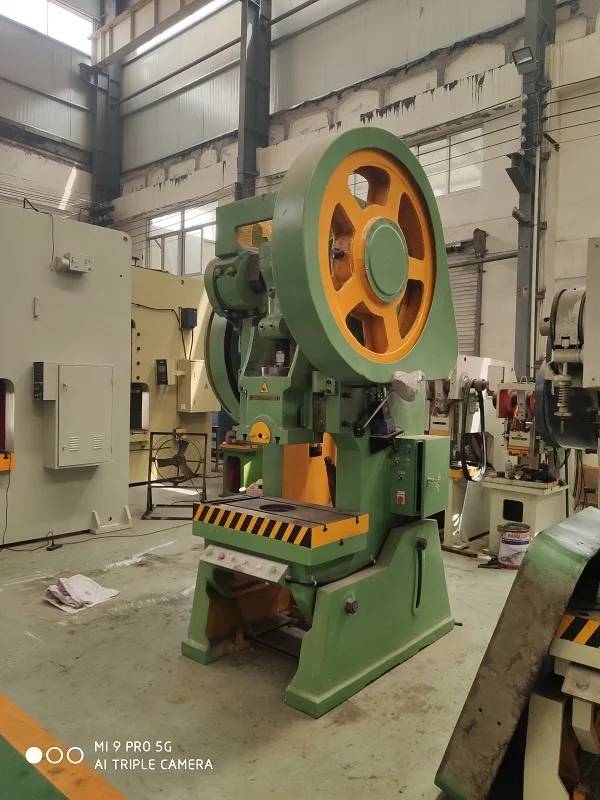

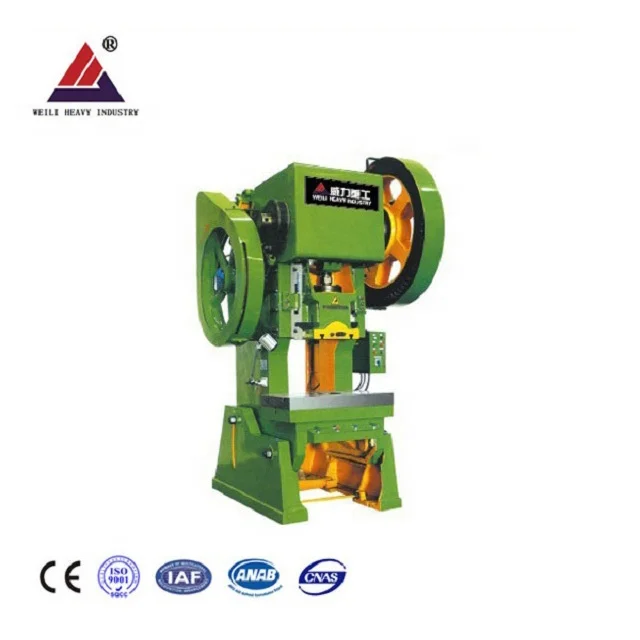

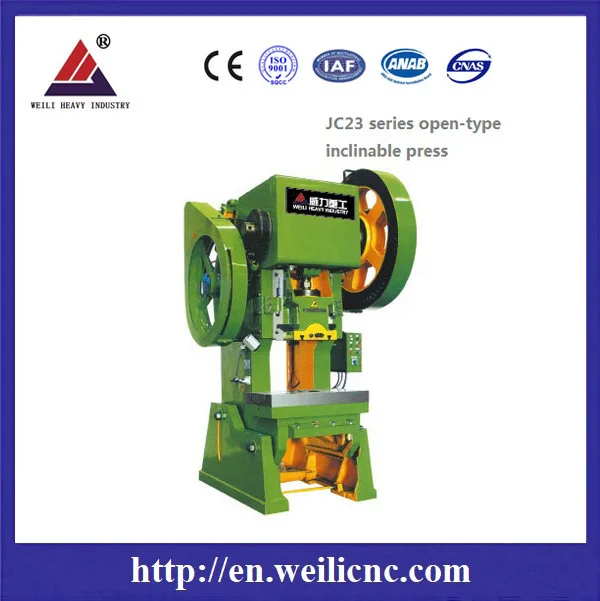

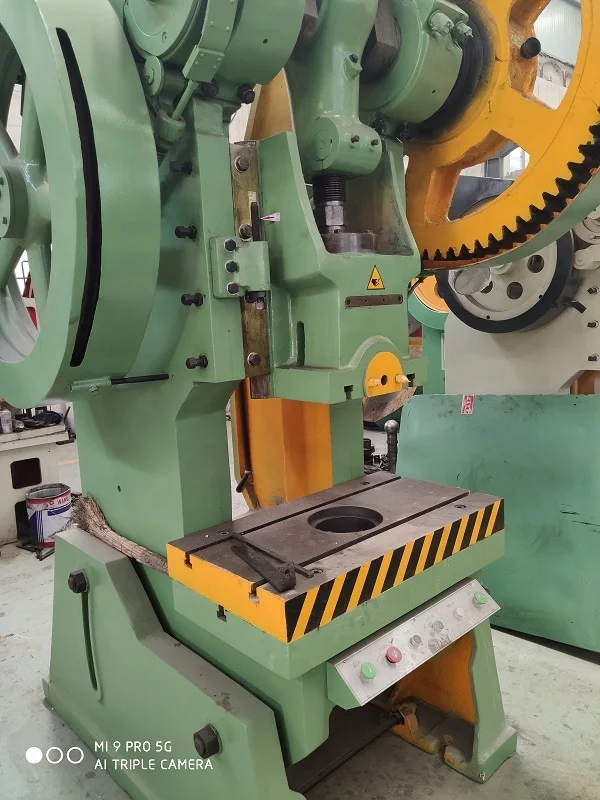

JC23 40T Single Crank Power Press/Mechanical Metal Hole Punching Power Punching Machine
- Category: >>>
- Supplier: Shandong Weili Heavy Industry Co. Ltd.
Share on (1600469012803):
Product Overview
Description
Products Description
JC23-40T
1.The casting body, stable performance.
2.C the fuselage, open can tilt, work space salt pieces and scrap to slide down the good advantage.
3.Rigid turn key clutch, the structure is simple.
4.Band brake, easy to adjust. Type fuse, which assurs obtaining the whole machine is not damaged due to overloading.
5.Crankshaft askew, easy maintenance.
6.Simple structure, excellent versatility, convenient maintenance and operation.
7.Economic press machine.
2.C the fuselage, open can tilt, work space salt pieces and scrap to slide down the good advantage.
3.Rigid turn key clutch, the structure is simple.
4.Band brake, easy to adjust. Type fuse, which assurs obtaining the whole machine is not damaged due to overloading.
5.Crankshaft askew, easy maintenance.
6.Simple structure, excellent versatility, convenient maintenance and operation.
7.Economic press machine.
Product Paramenters
Item/model | Units | JC23-40T |
Nominal pressure | KN | 400 |
Nominal pressure stroke | mm | 6 |
Slide stroke | mm | 80 |
Slide stroke times | times/min | 50 |
Max. die. Height | mm | 250 |
Die height adjustment | mm | 60 |
Distance between center of slide and frame | mm | 210 |
Table thickness | mm | 65 |
Distance between coluster | mm | 300 |
Work table size | mm | 410x630 |
Hole dimensions in bed | mm | Φ150 |
Bottom size of slide | mm | 190x210 |
Size of the handle hole | mm | Φ50x70 |
Motor power | kw | 4 |
Machine size | mm | 1500x1100 |
Height above floor | mm | 2250 |
Max.angle of inclination | deg | 25° |
Total weight | kg | 2960 |

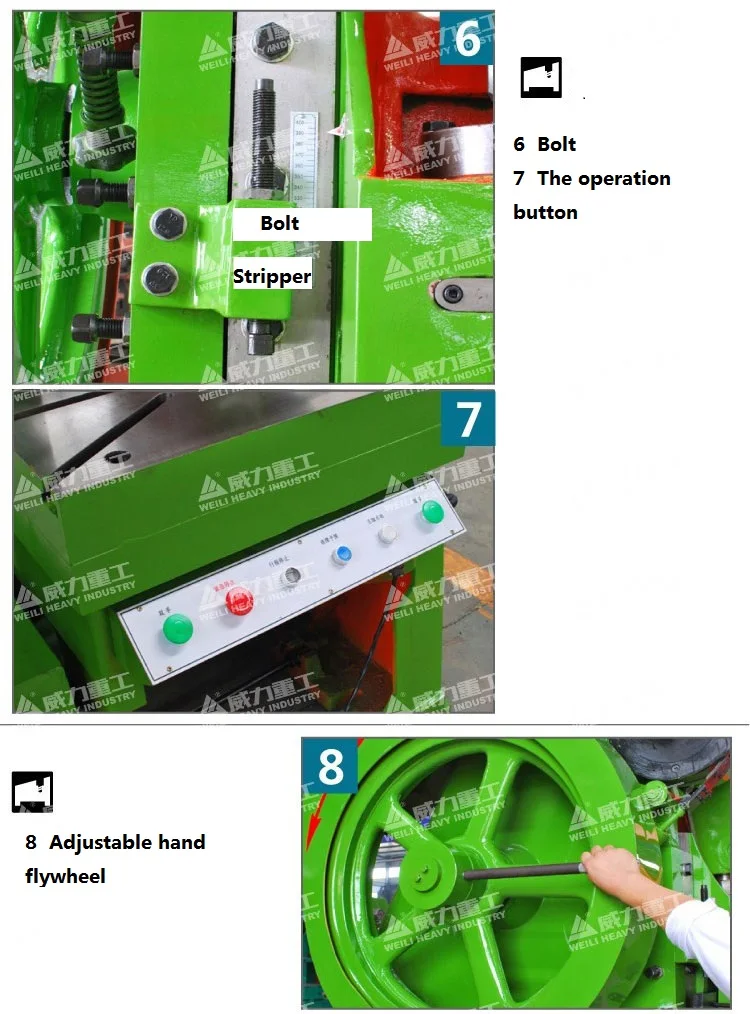

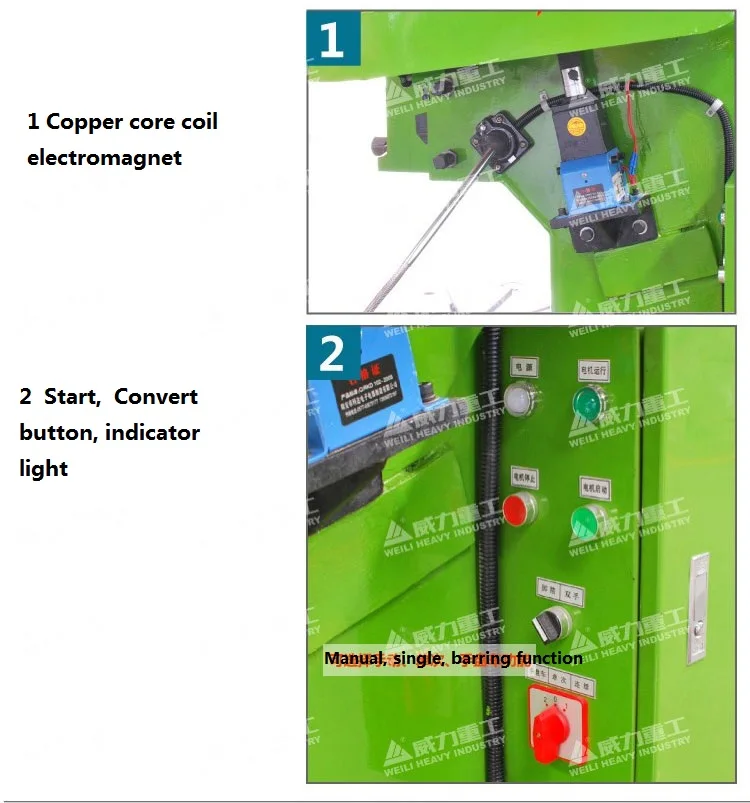

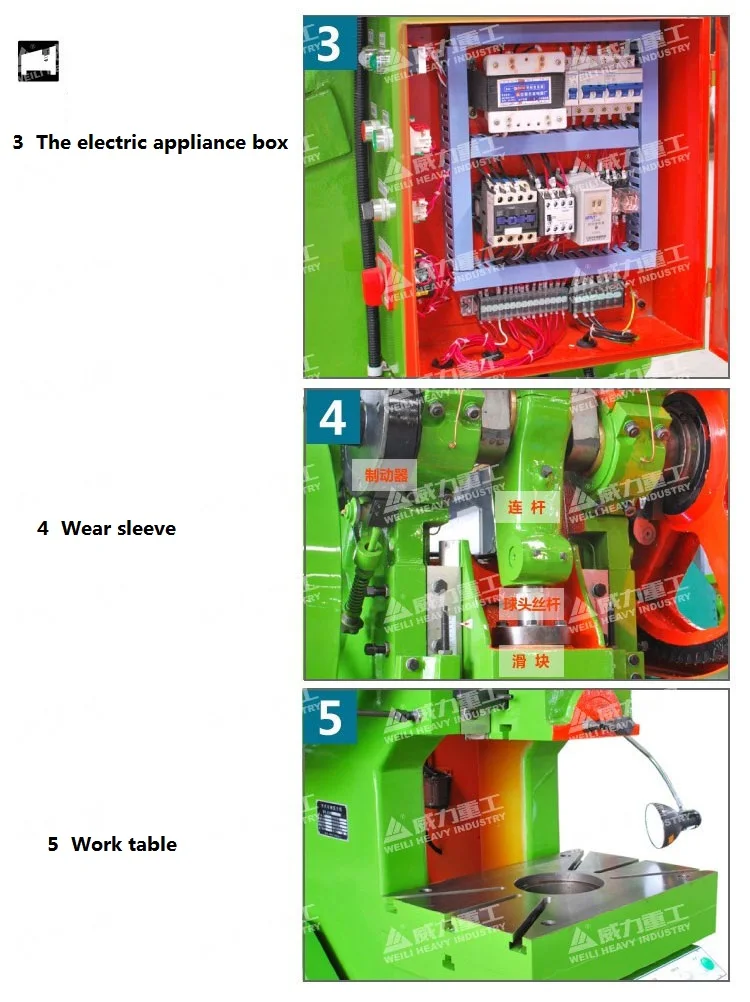

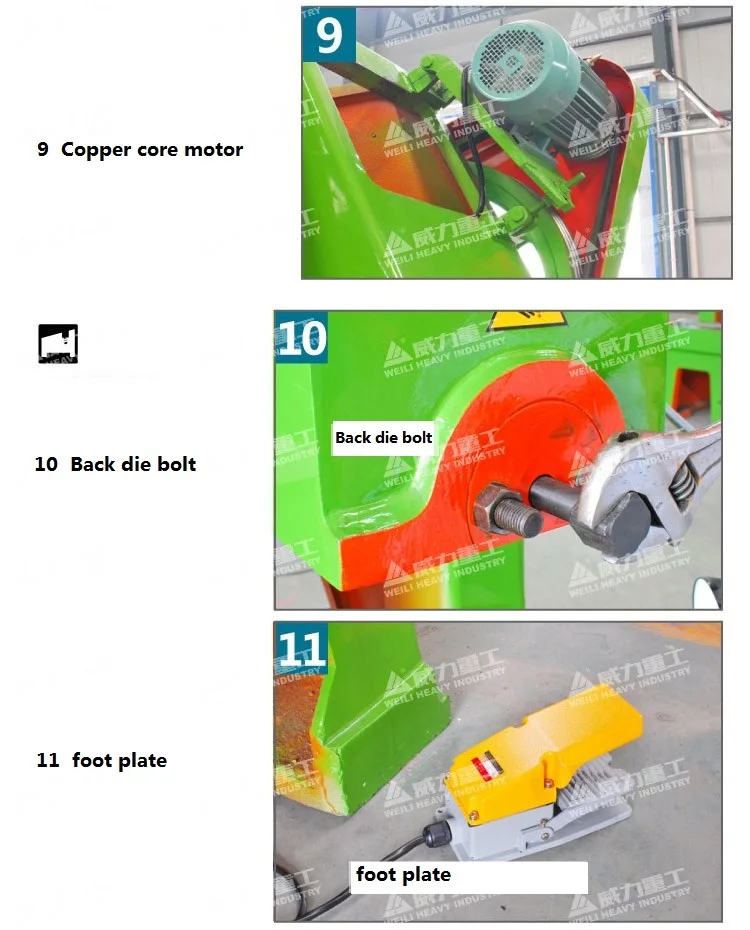

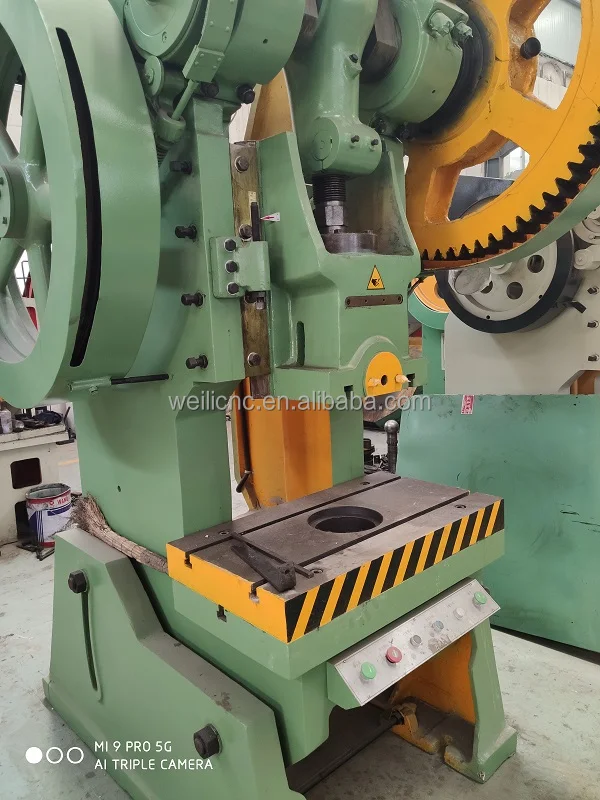

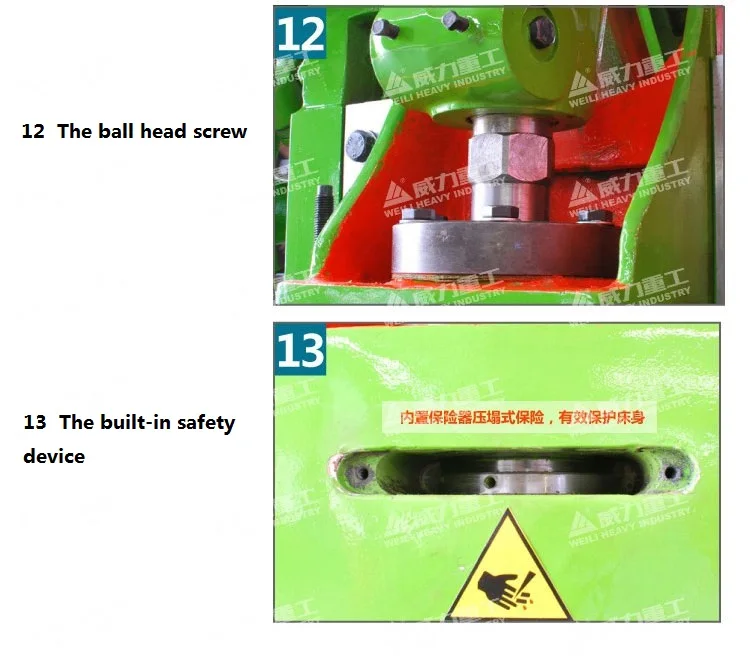

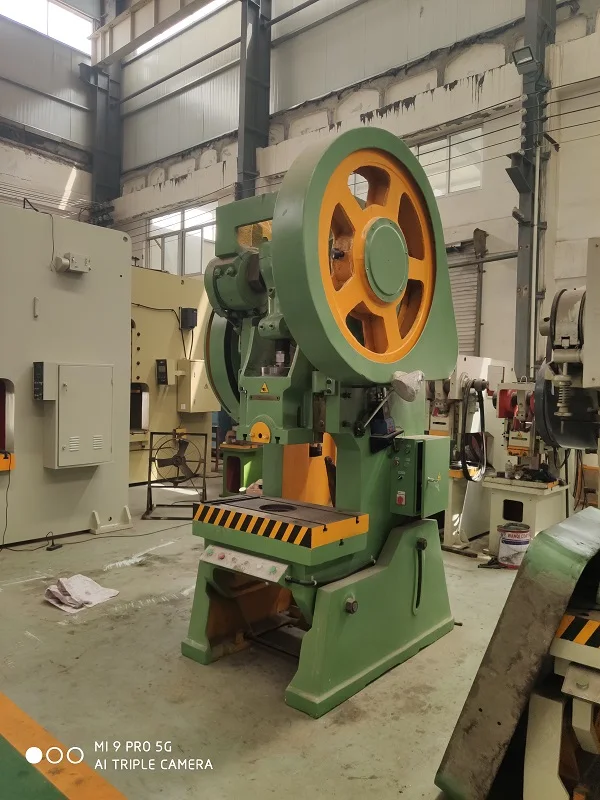

Details Images

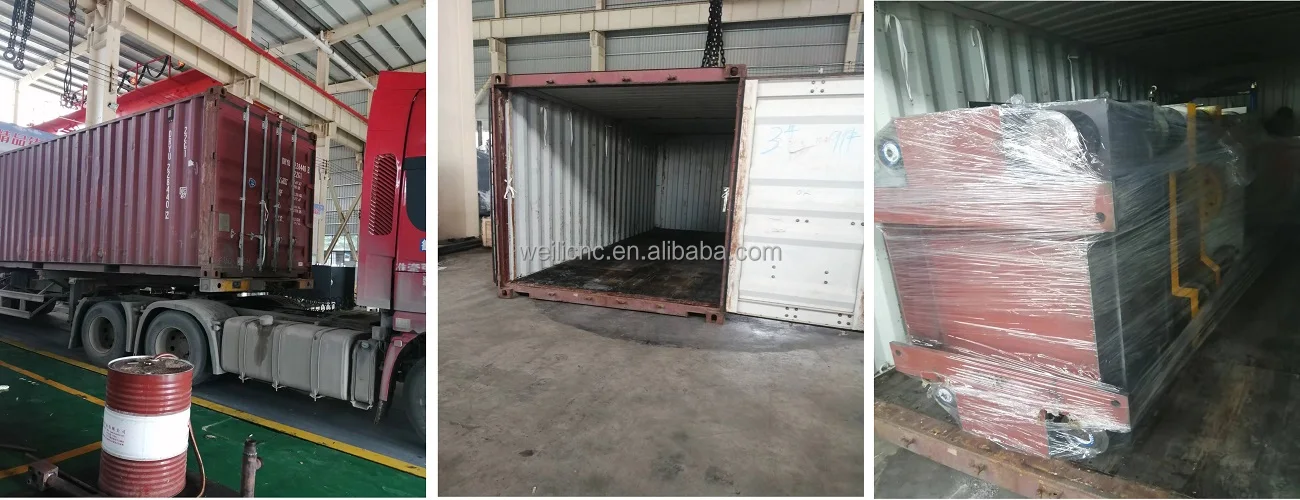

Product packaging

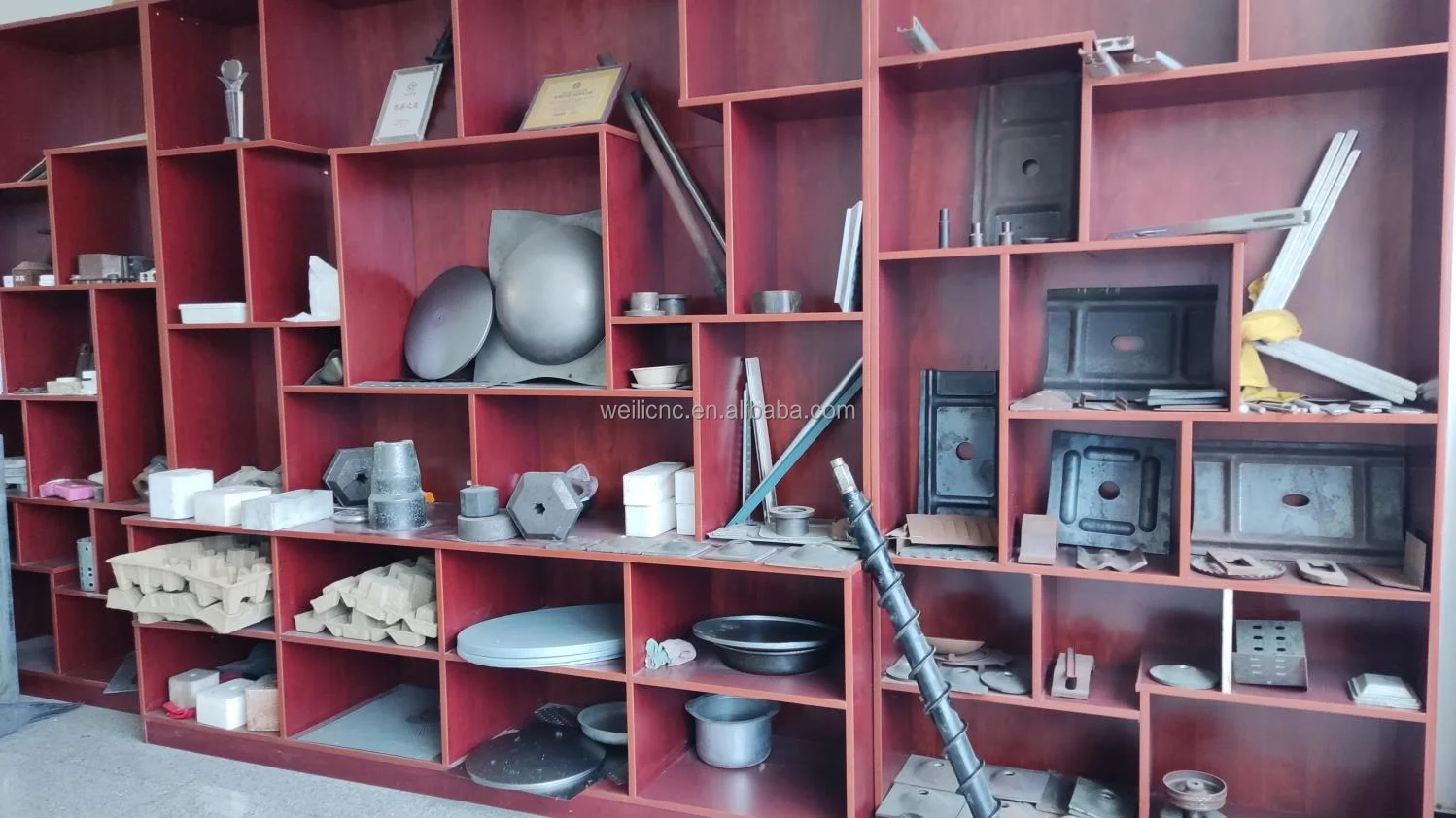

Some products

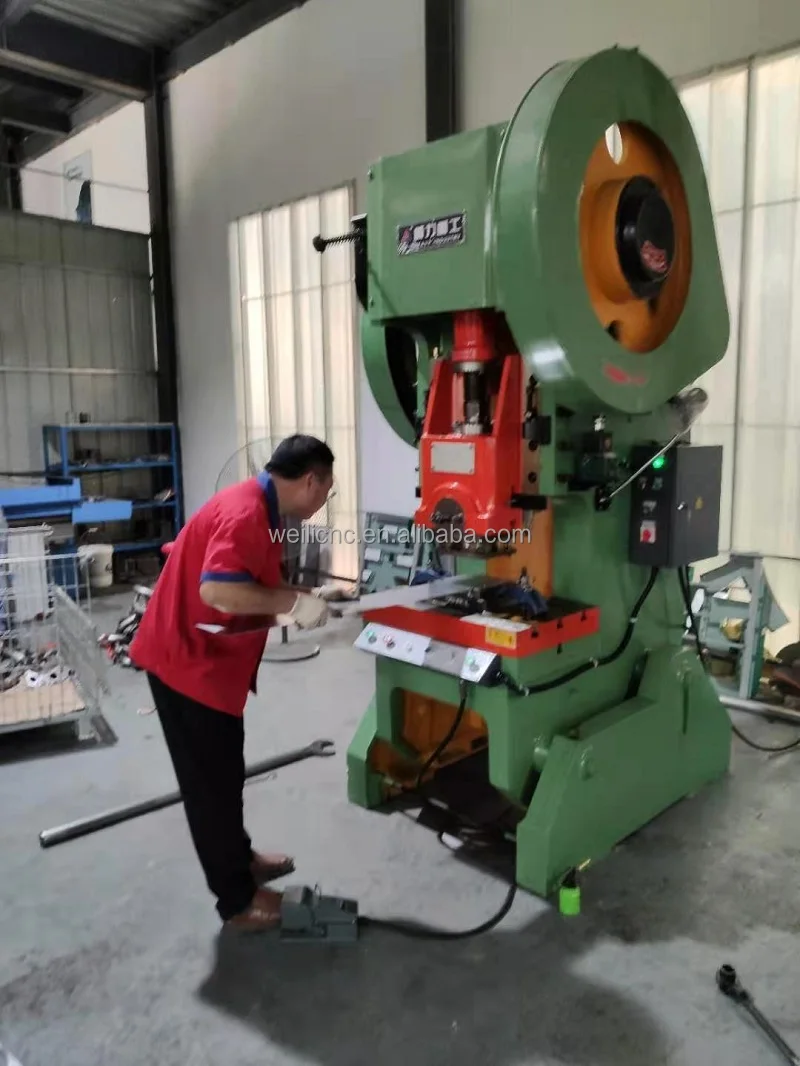

Customer Photos
