qt4 15 pondeuses bricks parpaings block making machine product available for sale in Georgia
- Category: >>>
- Supplier: Linyi Dongyue Building Materials Machinery Co. Ltd.
Share on (1600469023510):
Product Overview
Description
Product Description

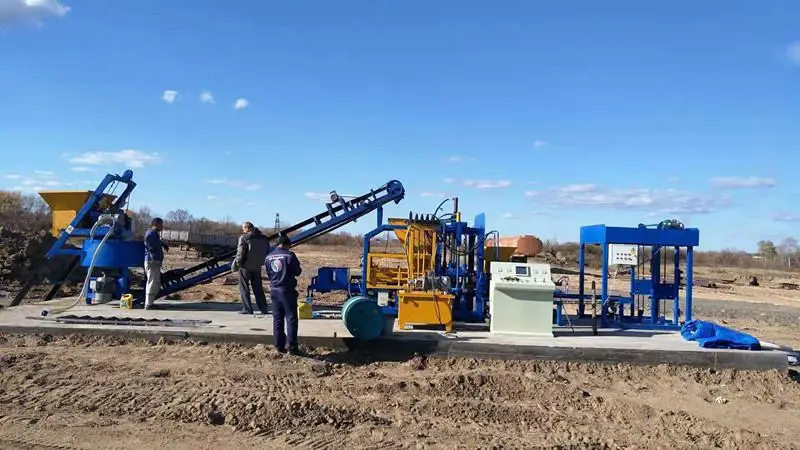

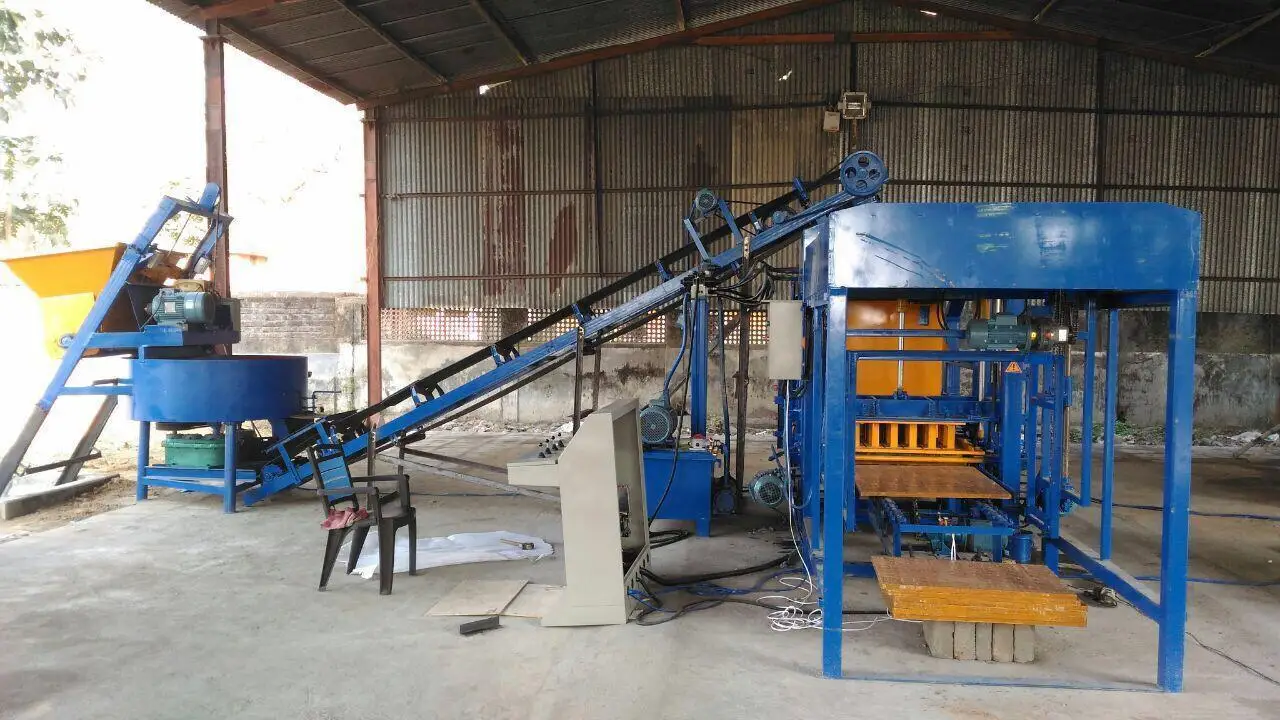

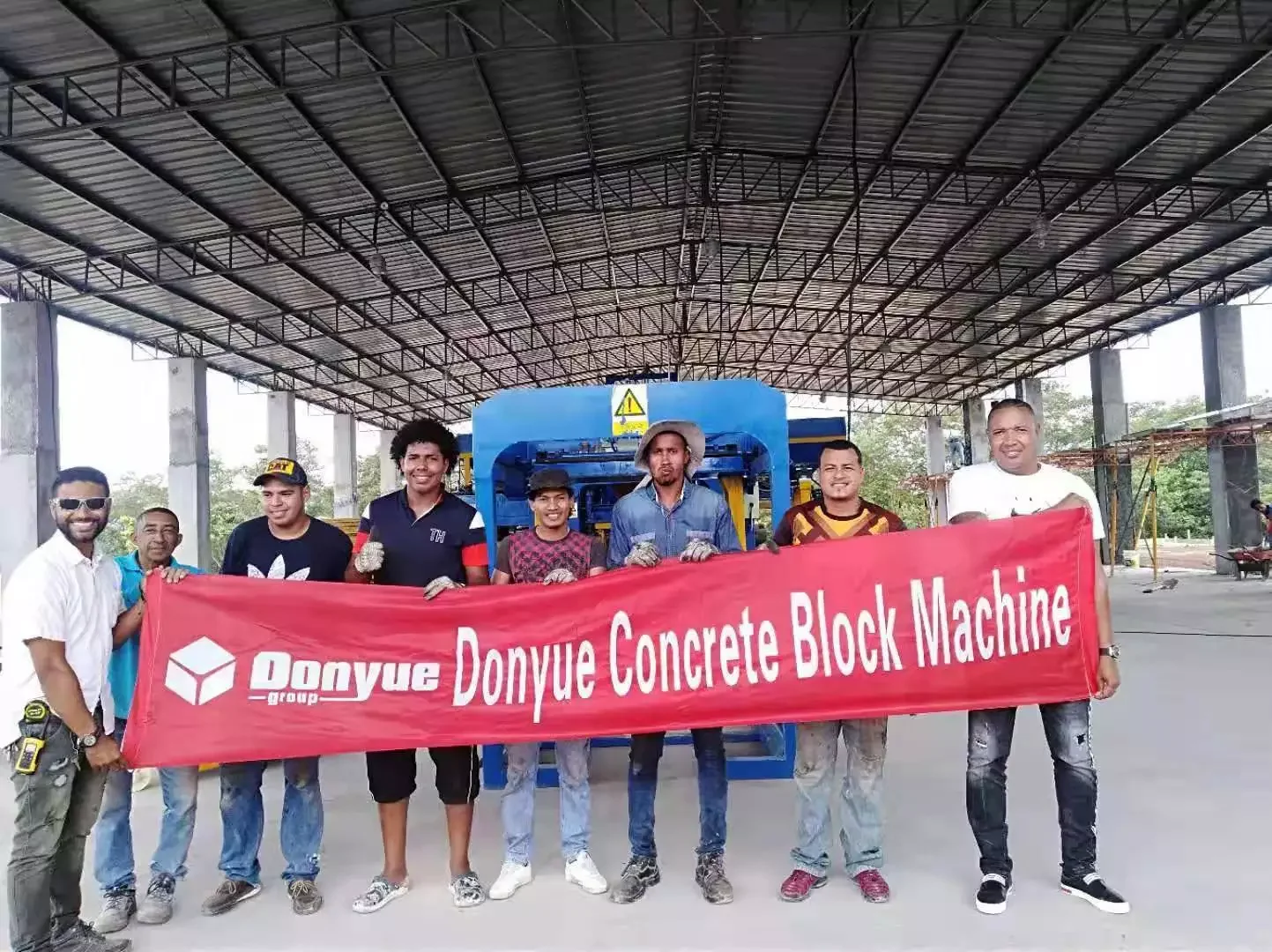

Brick Factory Under Construction
We provide complete technical support, including site planning, installation guidance, technical training and after-sales service.
Specification

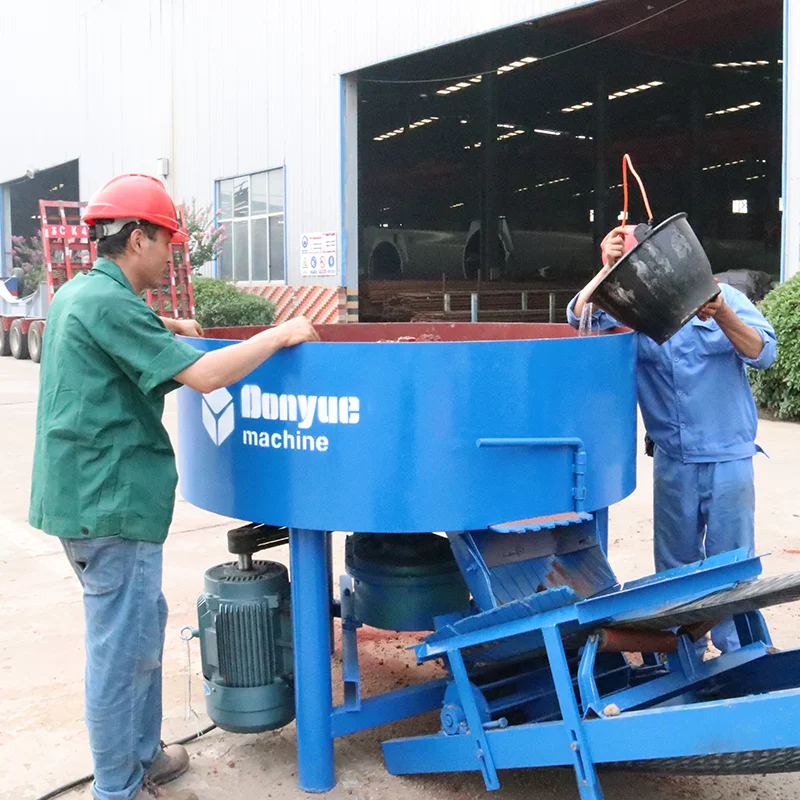

JD500 Pan Mixer
Power 7.5kw
Manual filling material
Can also be upgraded to a mixer with lifting hopper
Manual filling material
Can also be upgraded to a mixer with lifting hopper

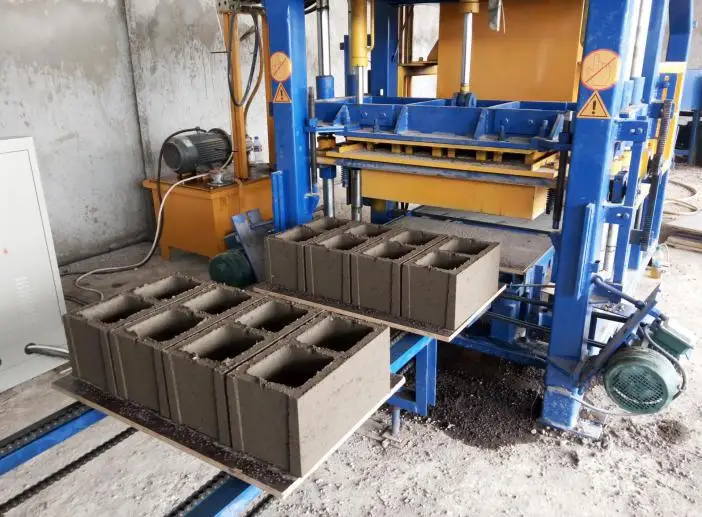

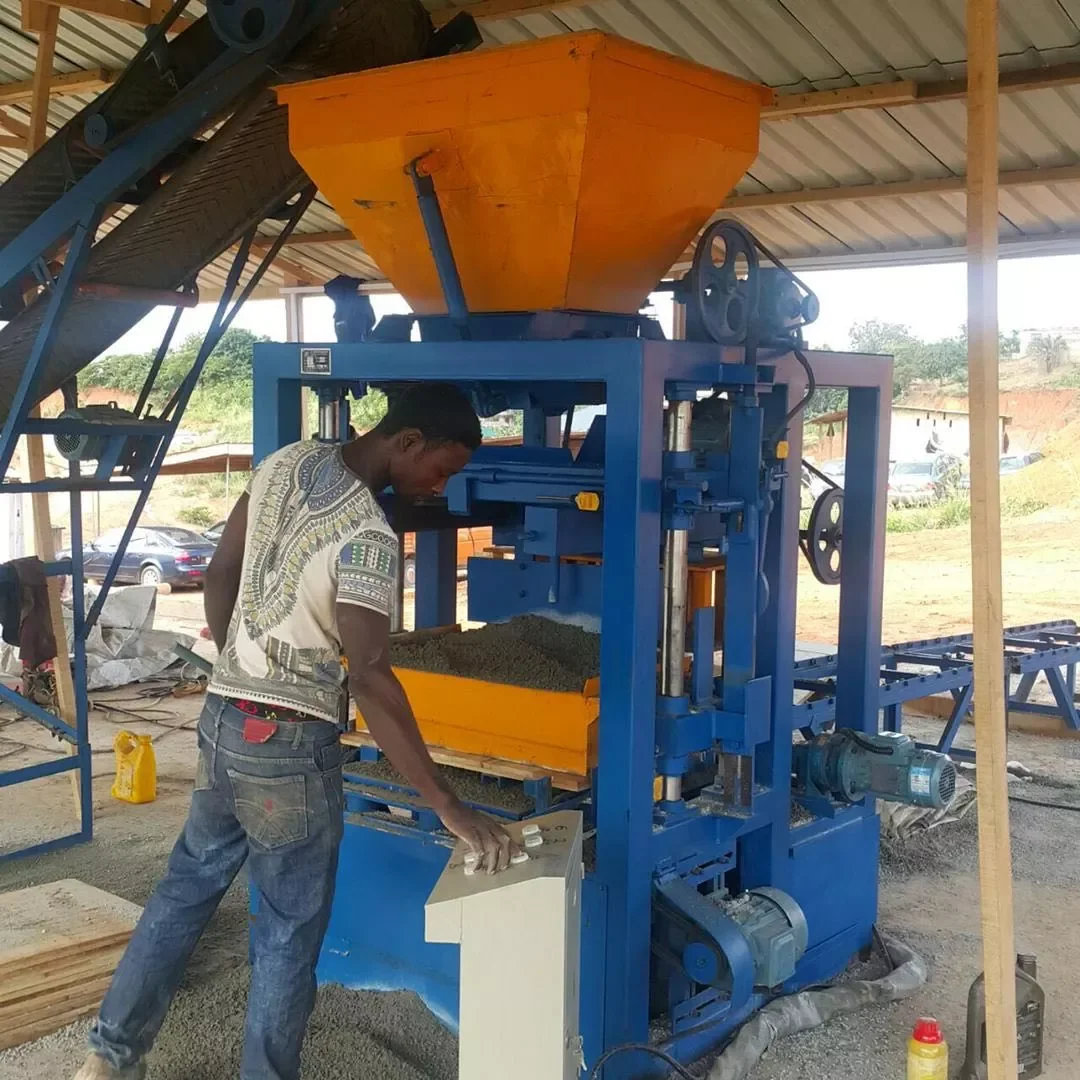

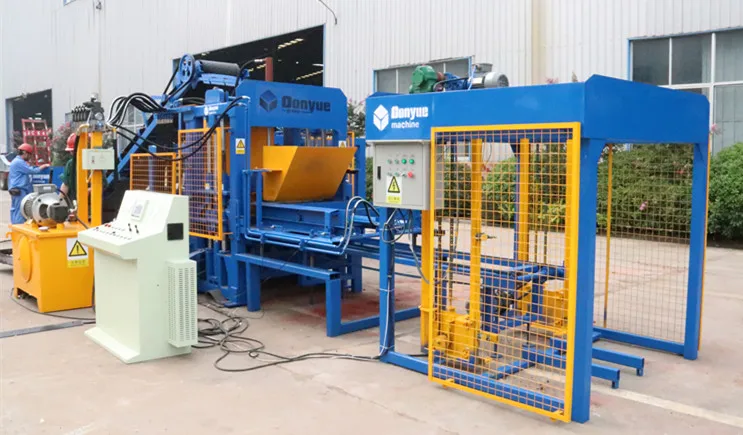

Host machine
5.5kw motor on both sides
Material is shaped by vibration + hydraulic pressure for higher efficiency

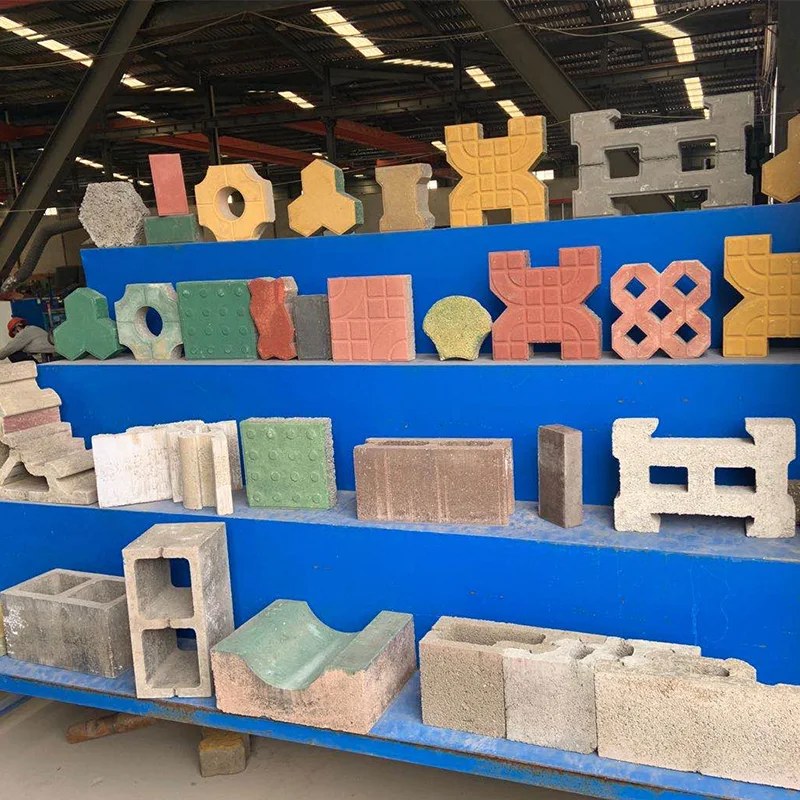

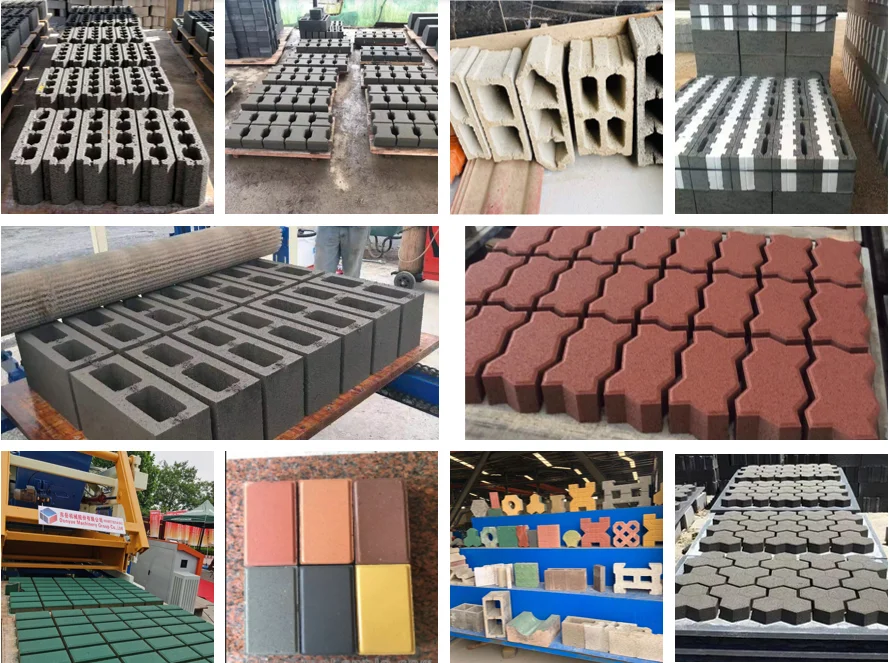

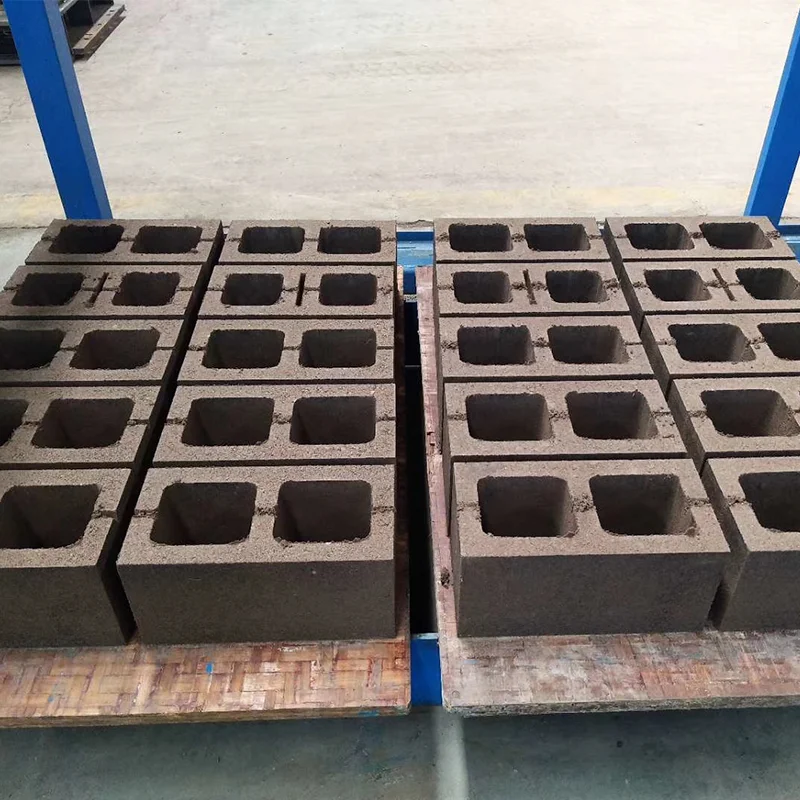

By changing moulds, various sizes of hollow bricks, solid bricks, paving bricks and curb stones can be produced
Material is shaped by vibration + hydraulic pressure for higher efficiency
By changing moulds, various sizes of hollow bricks, solid bricks, paving bricks and curb stones can be produced

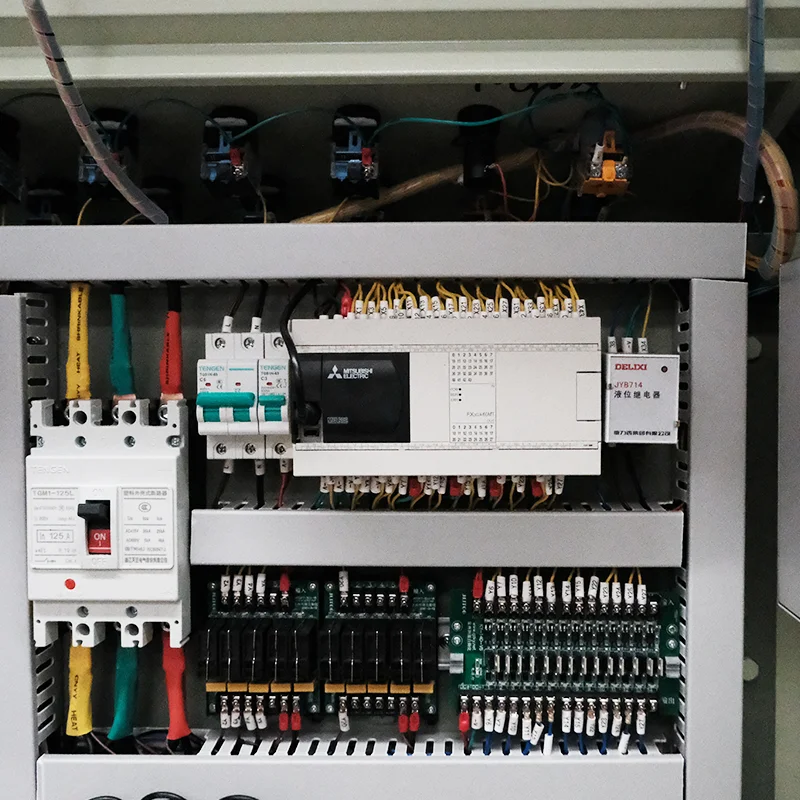

PLC control cabinet
Using Mitsubishi PLC, TENGEN contactors, Schneider thermal protection, ABB switches
High quality electrical components guarantee stability of machine operation
High quality electrical components guarantee stability of machine operation

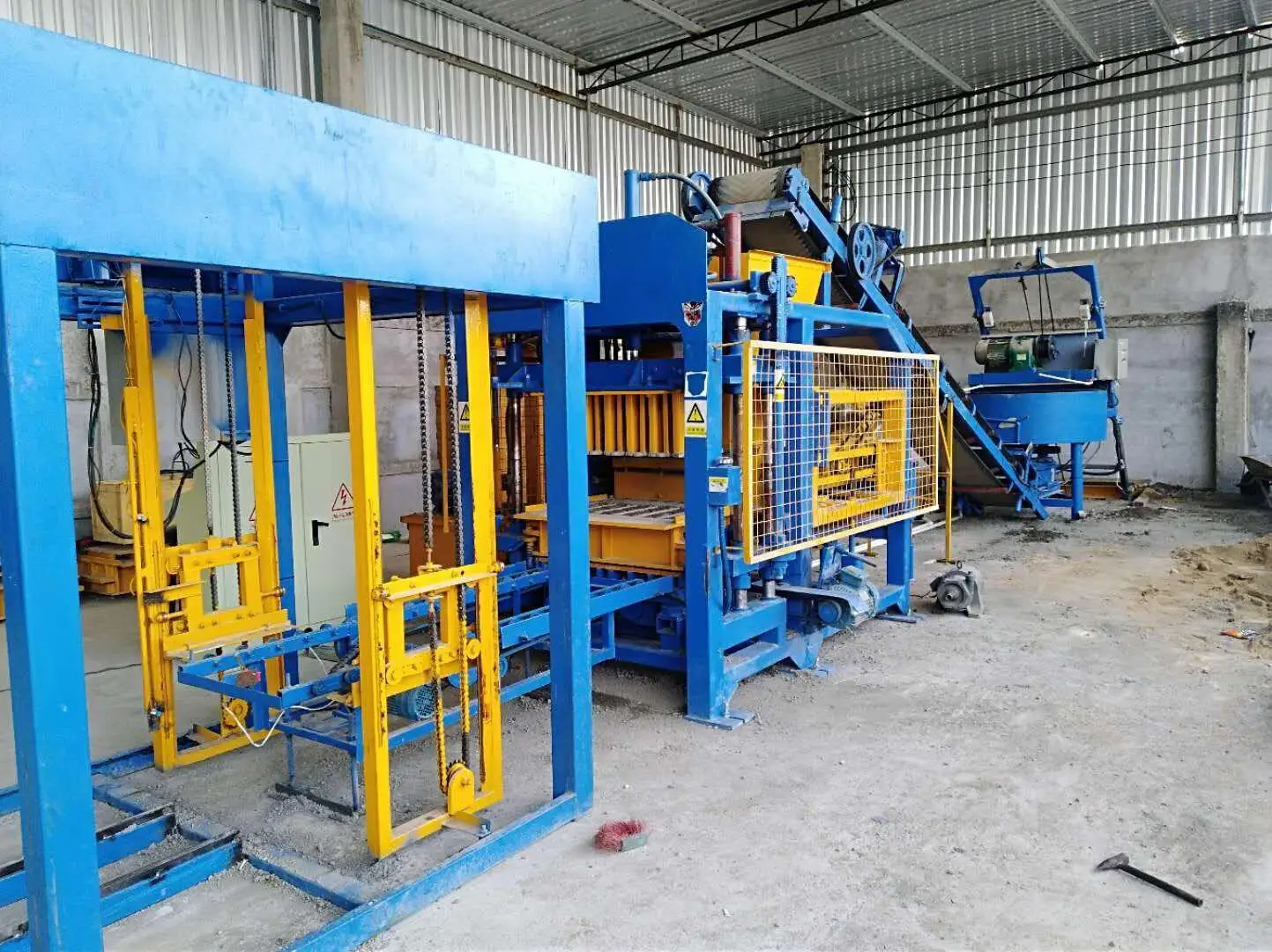

Stacker
Stacking the green bricks into a pile
Then transported by trolley or forklift to the open space for curing.

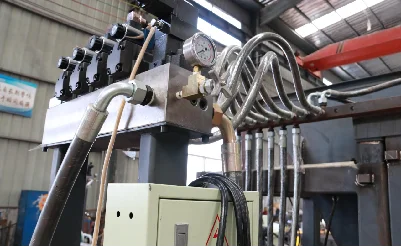

Hydraulic station
Uses YUKEN hydraulic valves to control all movements of the host machine.
Rapid action and reduced machine noise.
Rapid action and reduced machine noise.
One set of free moulds
Custom sizes available
If a photo of the brick pattern is provided, we will confirm the dimensions with drawings
Color Feeding Machine(Optional)
For paving blocks
The surface of the bricks can be covered with iron oxide pigments
to make the bricks more colourful
The surface of the bricks can be covered with iron oxide pigments
to make the bricks more colourful
JS500 Twin shaft mixers (Optional)
More efficient than the pan mixer, the concrete is mixed more evenly via the twin shaft mixer.
Batching machine(Optional)
For storing raw materials such as stone, sand, stone dust and fly ash
Loading by loader is required.
Installed with integrated control, the machine can proportion the raw materials automatically, saving labour costs
Loading by loader is required.
Installed with integrated control, the machine can proportion the raw materials automatically, saving labour costs
Voltage | 220V/380V/415V/Customized |
Steel | Q235B（Frame）/Q355B（Mold）/#45 （Gear） |
Host machine power | 24Kw |
Pallet Size | 880*580mm |

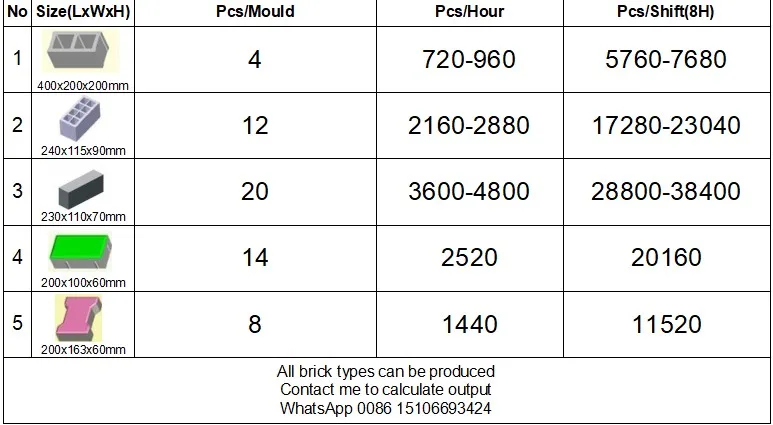

Capacity
Materials
We usually recommend two options
1.
1.
8%-10% cement
30-40% sand
50-60% crushed stone
2.
30-40% sand
50-60% crushed stone
2.
8-10% cement
30% fly ash
60% sand or stone powder
30% fly ash
60% sand or stone powder
Other materials can also be used

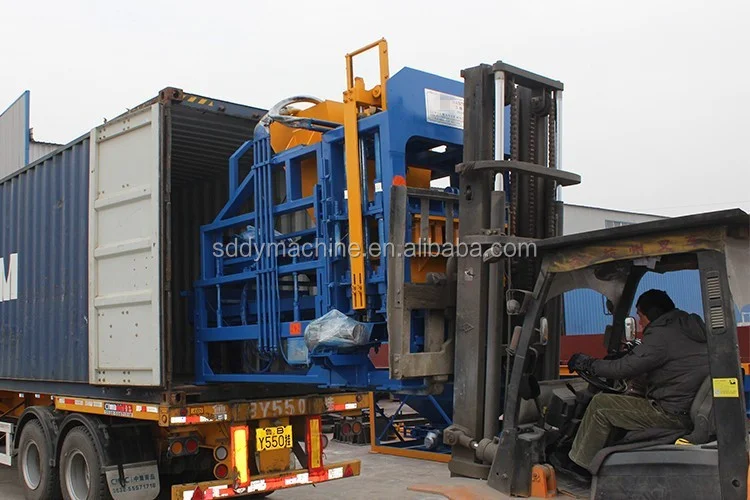

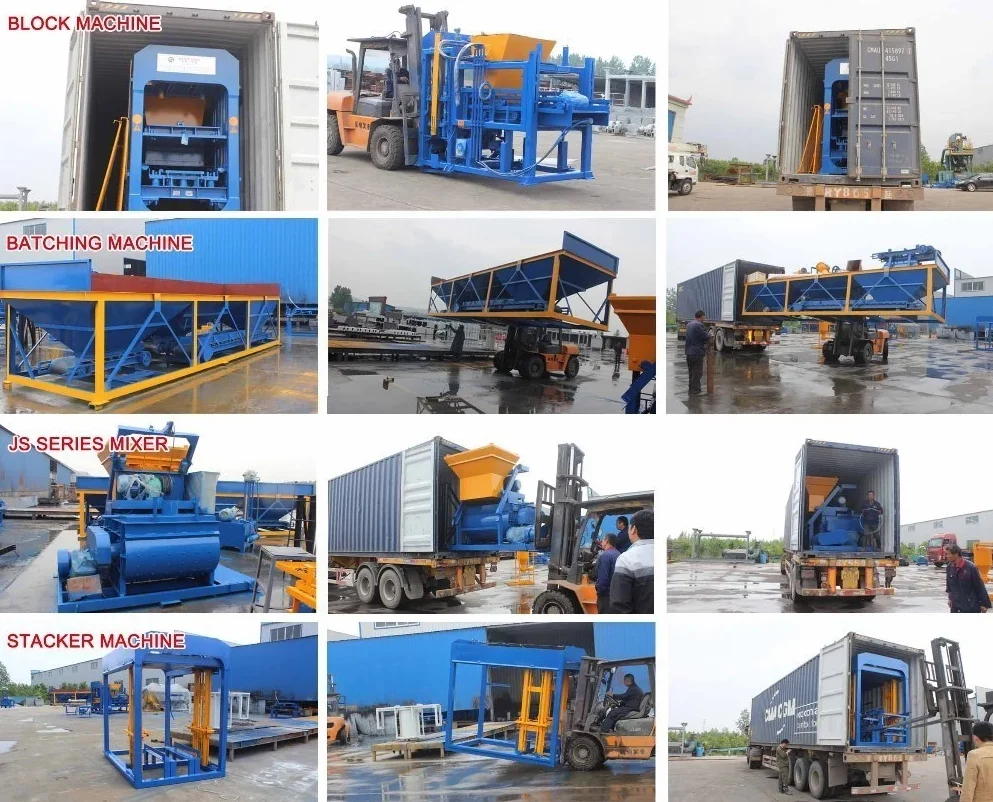

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

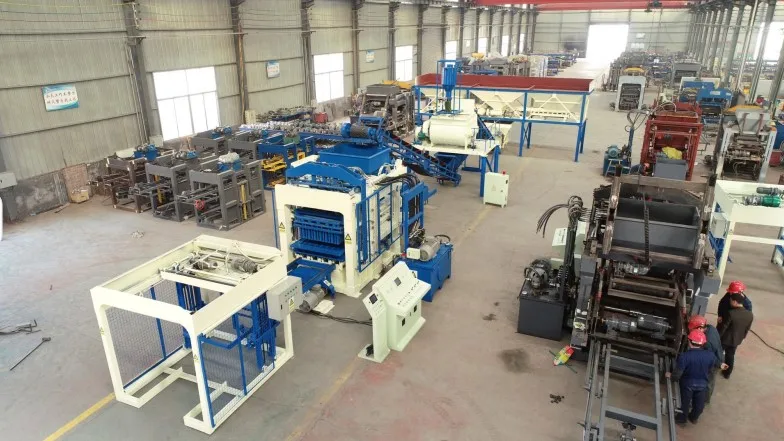

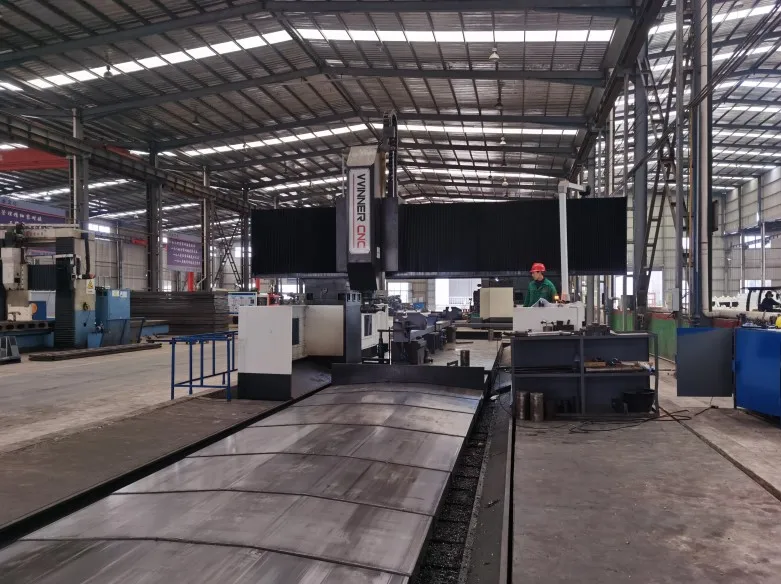

Company Profile
LINYI Dongyue Building Material Machinery Co.,ltd , which was organized in 2011 is a Chinese manufacturer of dedicated machinery for construction blocks and panels. Our company offers complete production lines for premium building components such as the autoclaved aerated concrete block, autoclaved lightweight concrete panel. Additionally, we provide various types of pressure vessels and block-making machines. By choosing DONGYUE, customers can enjoy professional benefits with our dedicated services for design, installation, layout planning, technology transfer, and production guidance.
we will exceed all expectations. With quality as our highest priority, we have established an optimized control & regulation system. Support from a large distribution network and world-class customer service have allowed our products to gain momentum in a fiercely competitive market. We have led the competition by passing the certifications of both CE and the ISO9001:2000 Management System.Together, we will create a brighter tomorrow!
we will exceed all expectations. With quality as our highest priority, we have established an optimized control & regulation system. Support from a large distribution network and world-class customer service have allowed our products to gain momentum in a fiercely competitive market. We have led the competition by passing the certifications of both CE and the ISO9001:2000 Management System.Together, we will create a brighter tomorrow!
Buyer Feedback

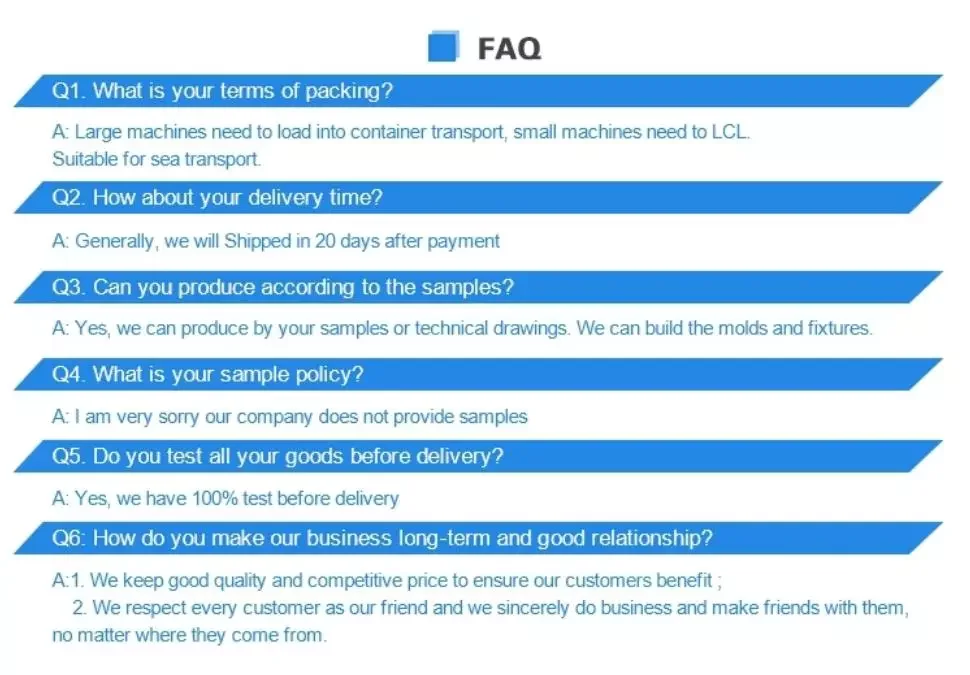

FAQ
