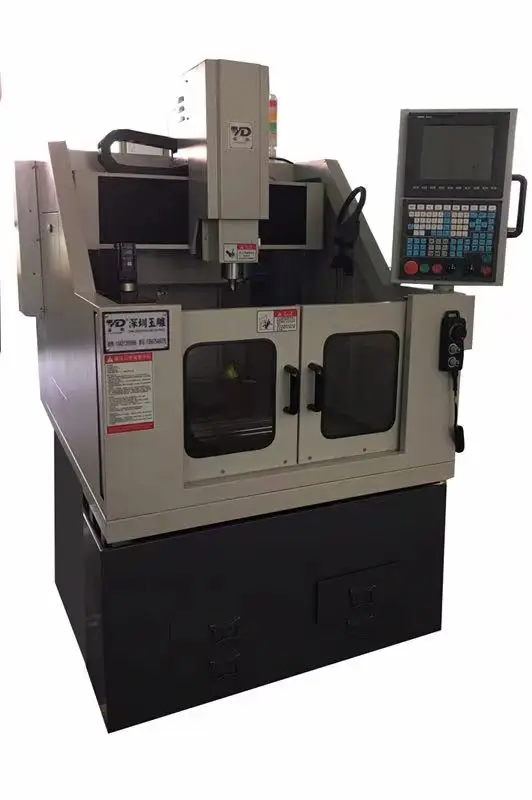

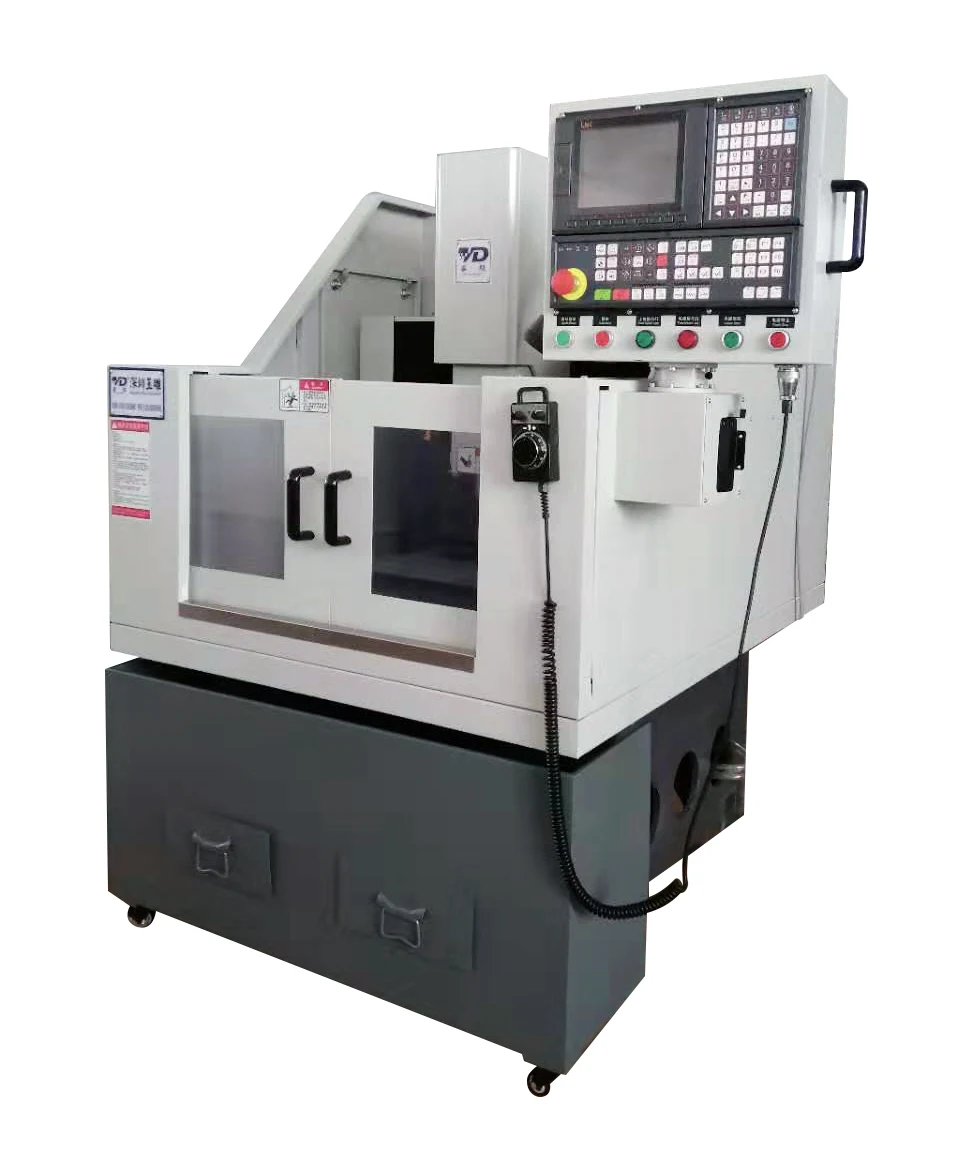

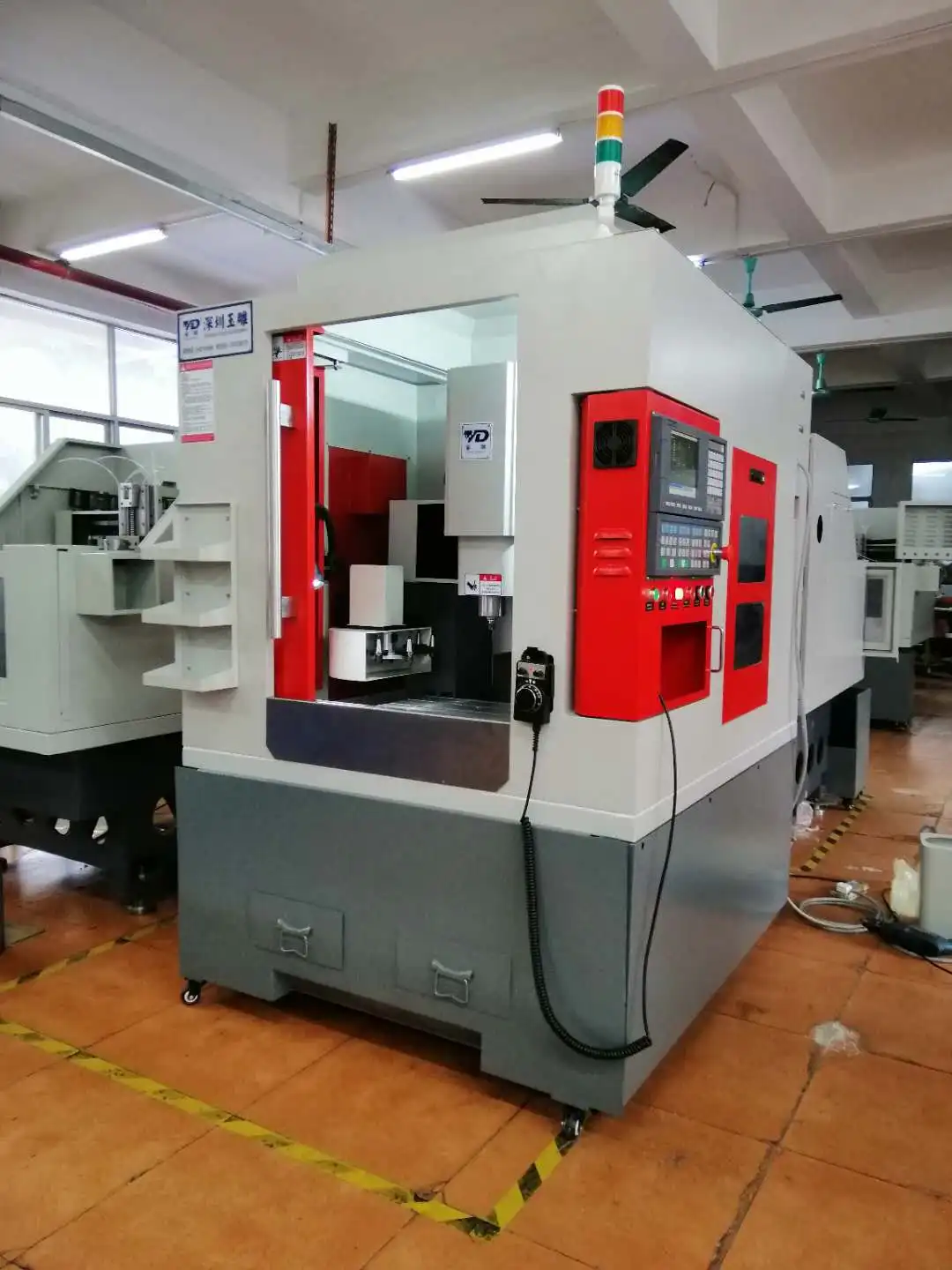

RY 540 сверлильный станок с ЧПУ для обработки металла cnc подвергая механической обработке servicescnc металла пресс форм точность гравировальный станок
- Category: >>>
- Supplier: Shenzhen Yu Diao Cnc Technology Co. Ltd.
Share on (1600469048310):
Product Overview
Description
Products Description
Product parameters
A | Technical parameters of machine tool： | ||||||||
1 | The machine body and all parts are made of nano castings | ||||||||
2 | Table size | 500×400mm | |||||||
3 | T-groove (width x quantity x spacing) | 10×5×78mm | |||||||
4 | The largest load | 200KG | |||||||
5 | Maximum feed height | 250mm | |||||||
6 | Distance from spindle face to work | 80－250mm | |||||||
7 | Triaxial travel X/Y/Z | 500/400/170mm | |||||||
8 | The spindle diameter | Ǿ80/Ǿ105 | |||||||
9 | Spindle speed | 24000RPM | |||||||
10 | Spindle motor power | 2.2KW/3.5KW | |||||||
11 | Spindle tool library capacity | / | |||||||
12 | Tool change time | / | |||||||
13 | The spindle taper | / | |||||||
14 | Knife library classes | / | |||||||
15 | Fast moving rate X/Y/Z | 12/12/12m/Min | |||||||
16 | Processing speed | 6－12m/Min | |||||||
17 | Positioning accuracy | ±0.006/300mm | |||||||
18 | Repetitive positioning accuracy | ±0.006/300mm | |||||||
19 | Machined surface accuracy | ≤Ra1.6 | |||||||
20 | The machining accuracy | ±0.01mm | |||||||
B | 5 axis motion parameters of machine tool： | ||||||||
1 | Angle of rotation of axis A | / | |||||||
2 | Fifth axis C axis rotation Angle | / | |||||||
3 | Turntable response time | / | |||||||
4 | Five-axis linkage mode | / | |||||||
5 | Working voltage | 380V±10% | |||||||
6 | Machine size (l * W * H) | 1450×1600×2100mm | |||||||
7 | The body weight | 1400KG | |||||||
C | Machine tool configuration details brand parameters： | ||||||||
1 | The system configuration | Taiwan SYNTEC 6GA control System (Absolute bus value)/NCstudio280 | |||||||
2 | The spindle | China Ronghua 2.2KW/3.5KW/4KW | |||||||
3 | Ball screw | Japan NSK, Germany RexRoth 2005 | |||||||
4 | Linear guide | Taiwan HIWIN/ABBA high precision guide H25 | |||||||
5 | Servo unit | Panasonic Servo motor 750W/Ncstudio | |||||||
6 | Wire rod bearing | Taiwan TPI precision grade bearing | |||||||
7 | Switching power supply | Taiwan Ming weft | |||||||
8 | Electric switch | China chint | |||||||
9 | Lubrication system | China Xiangda automatic | |||||||
10 | coupling | China dacheng | |||||||
11 | The knife instrument | China dacheng | |||||||
12 | The handwheel | China dacheng | |||||||
13 | converter | China's four sides | |||||||
14 | Spindle cooling system | China special domain from cold water cooling machine | |||||||
15 | Cooling pump head | 7M | |||||||
16 | Disc servo cutter library | / | |||||||
17 | Machine tool processing bin closed | Semi-enclosed/fully enclosed (optional) | |||||||
18 | The equipment can run continuously for a long time | 7*24 hours/week | |||||||
More products

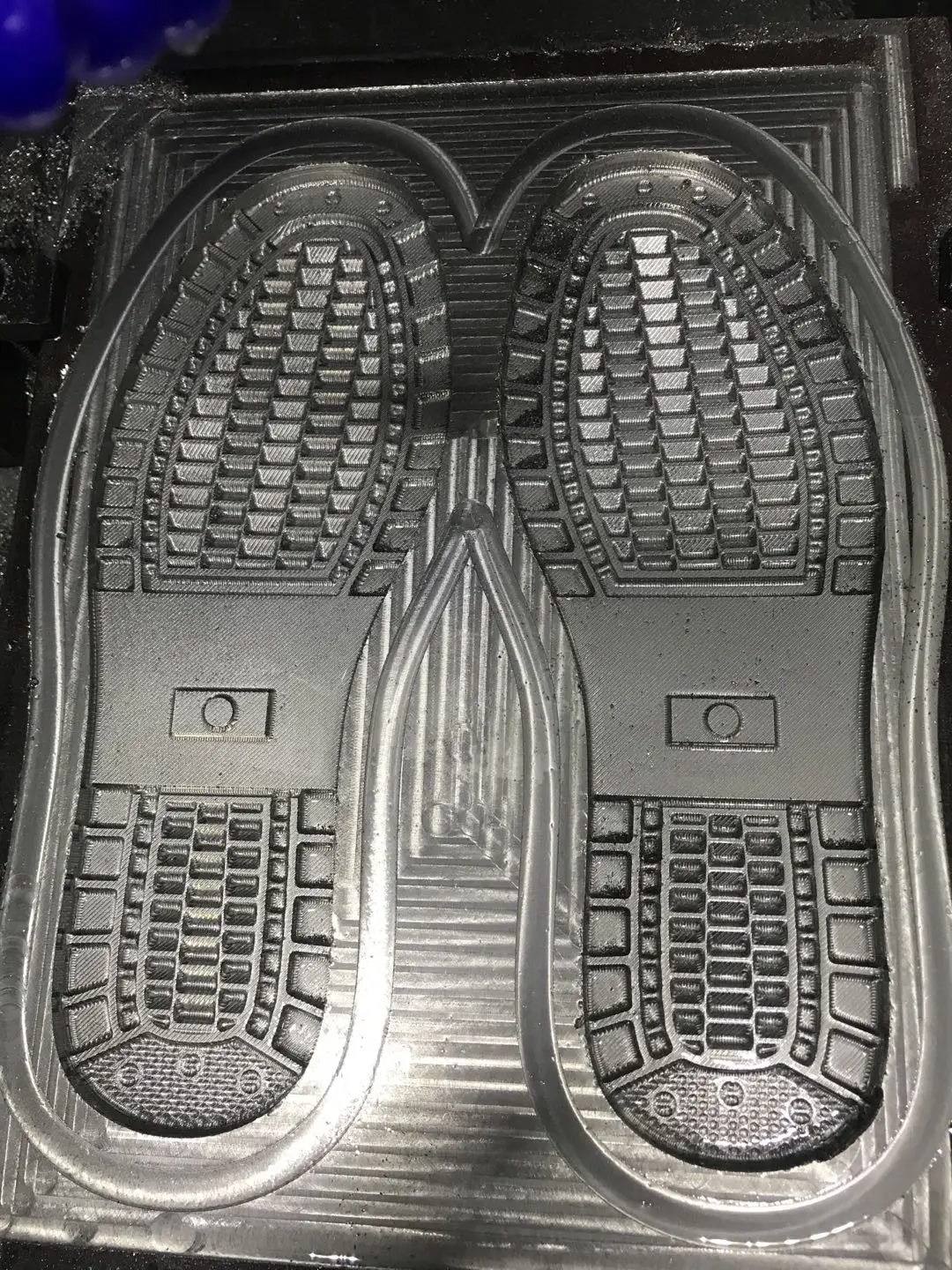

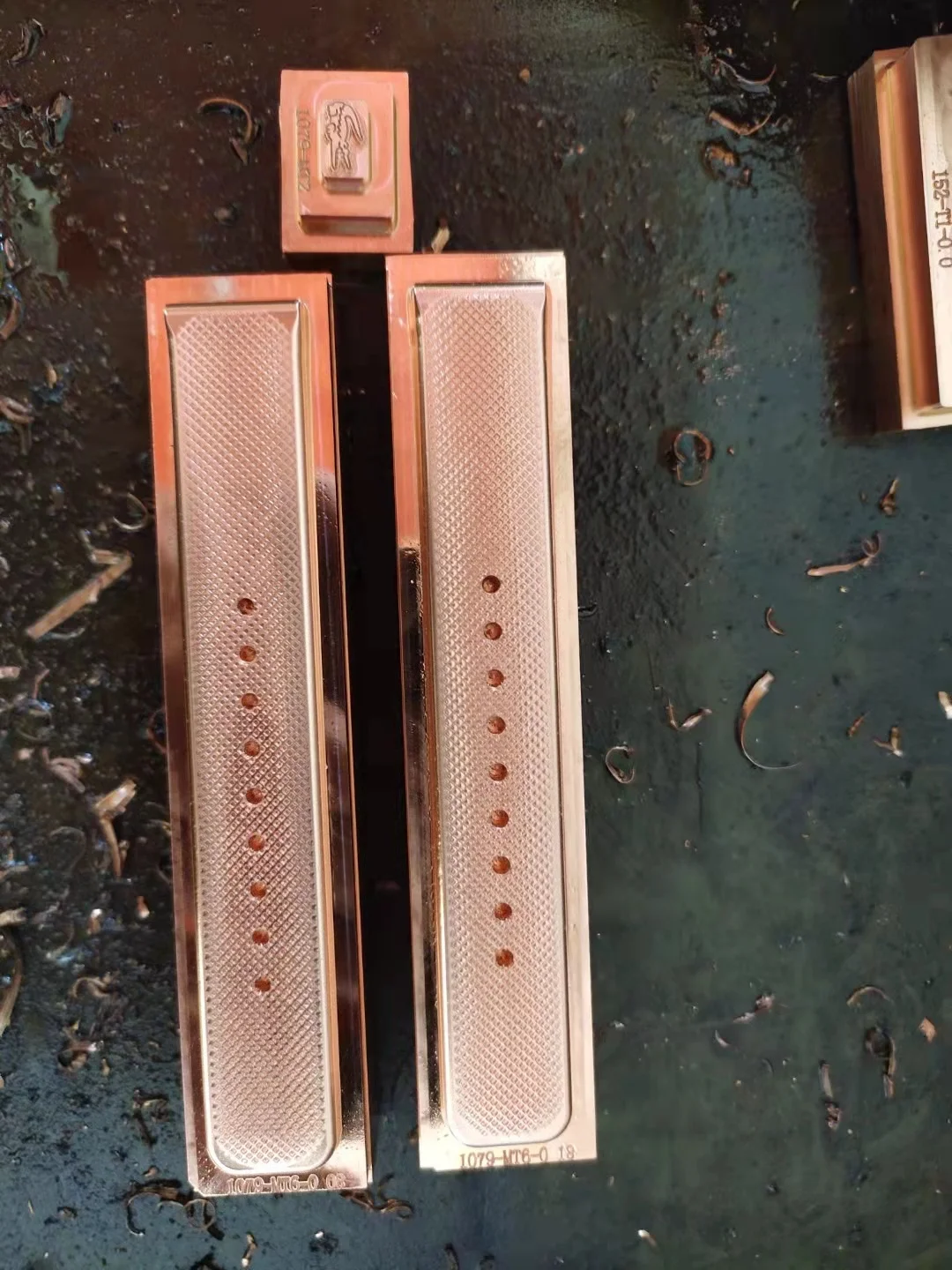

practical application
