Industrial grade anti corrosion, high precision and high sensitivity radar water level tank level gauge
- Category: Measuring & Gauging Tools >>>
- Supplier: Doweston (china) Co. Ltd.
Share on (1600469056449):
Product Overview
Description
Product Description

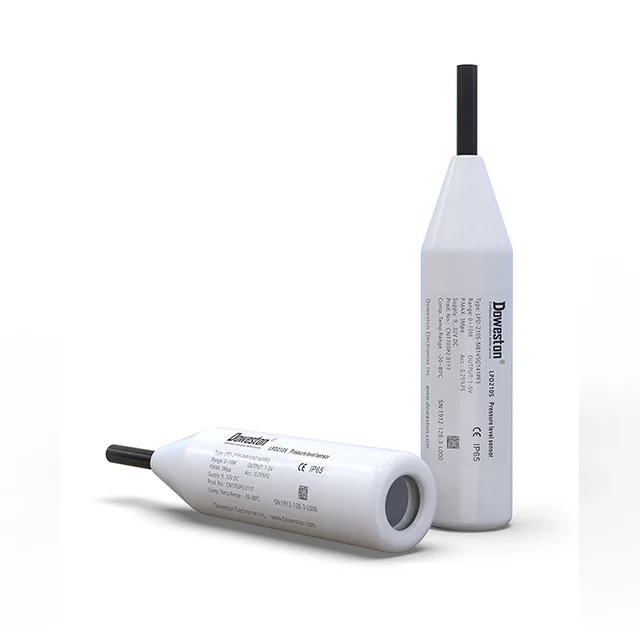

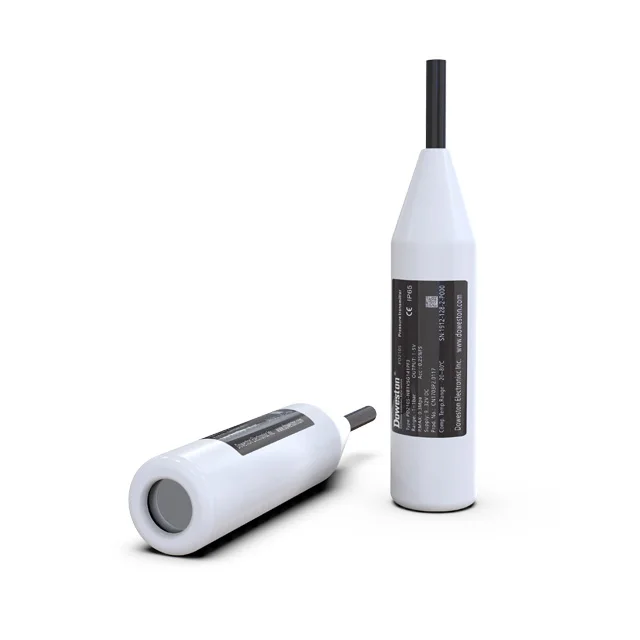

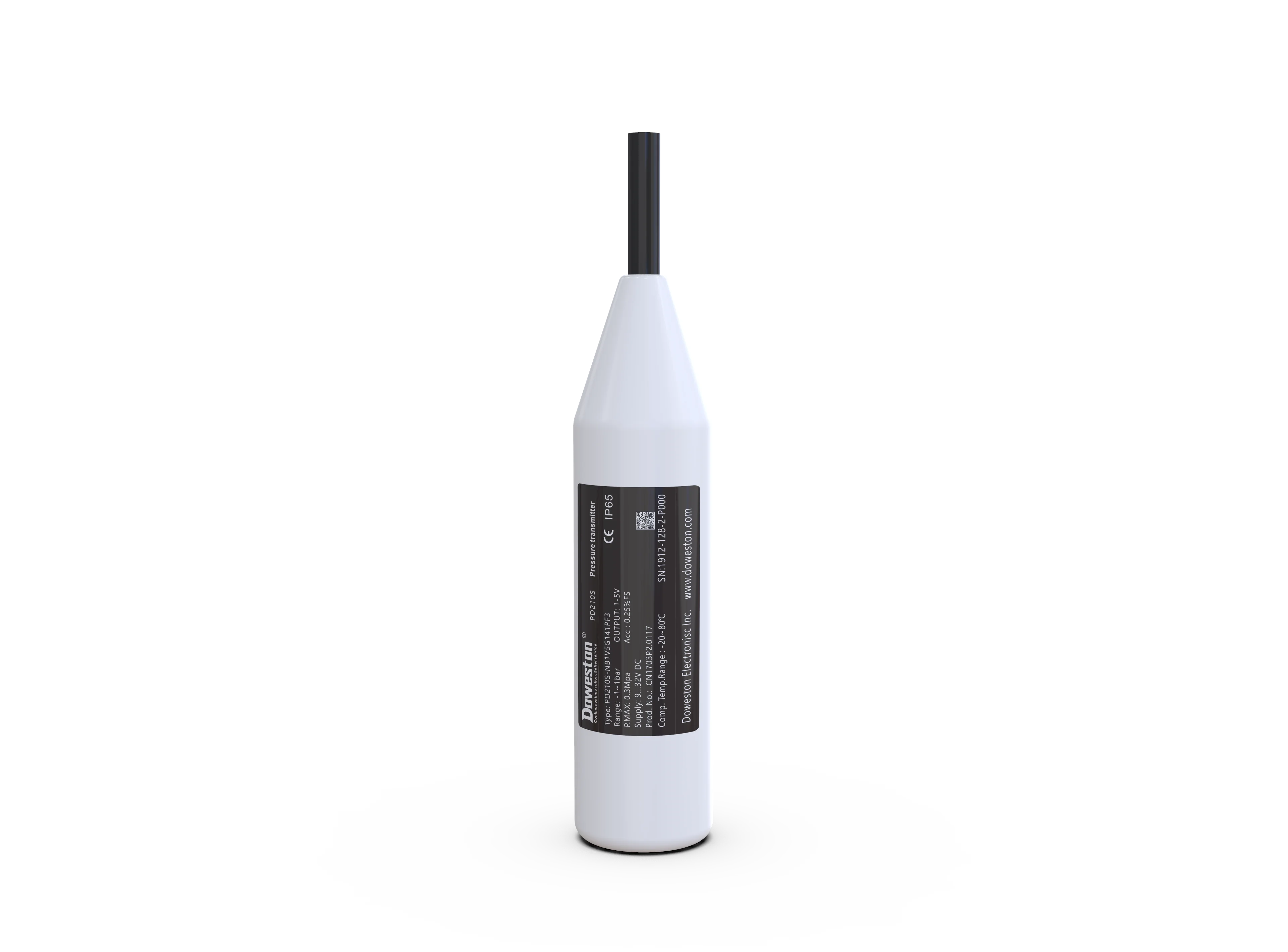

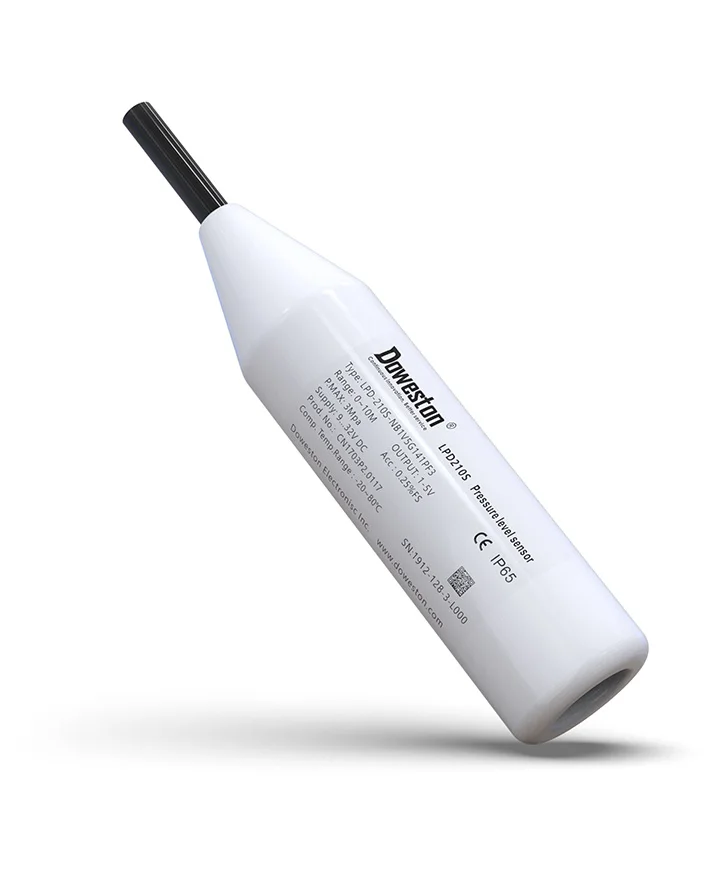

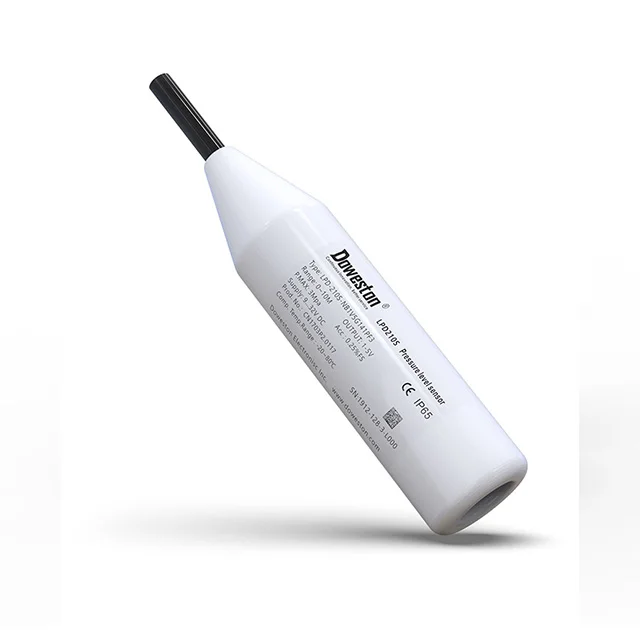

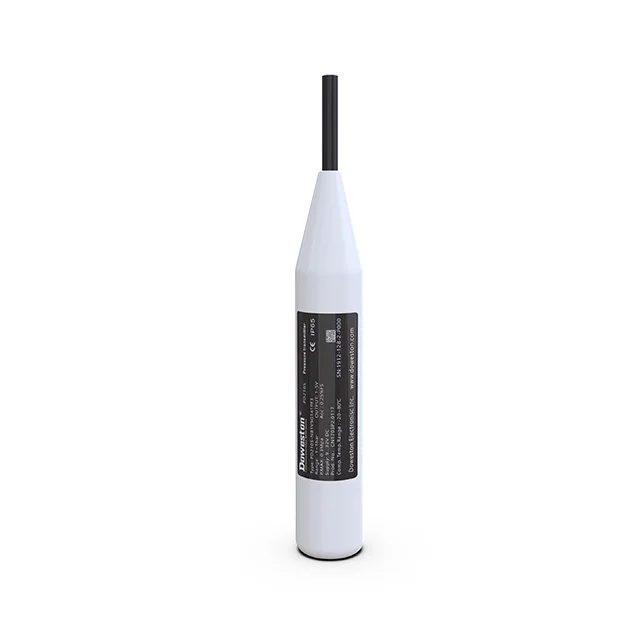

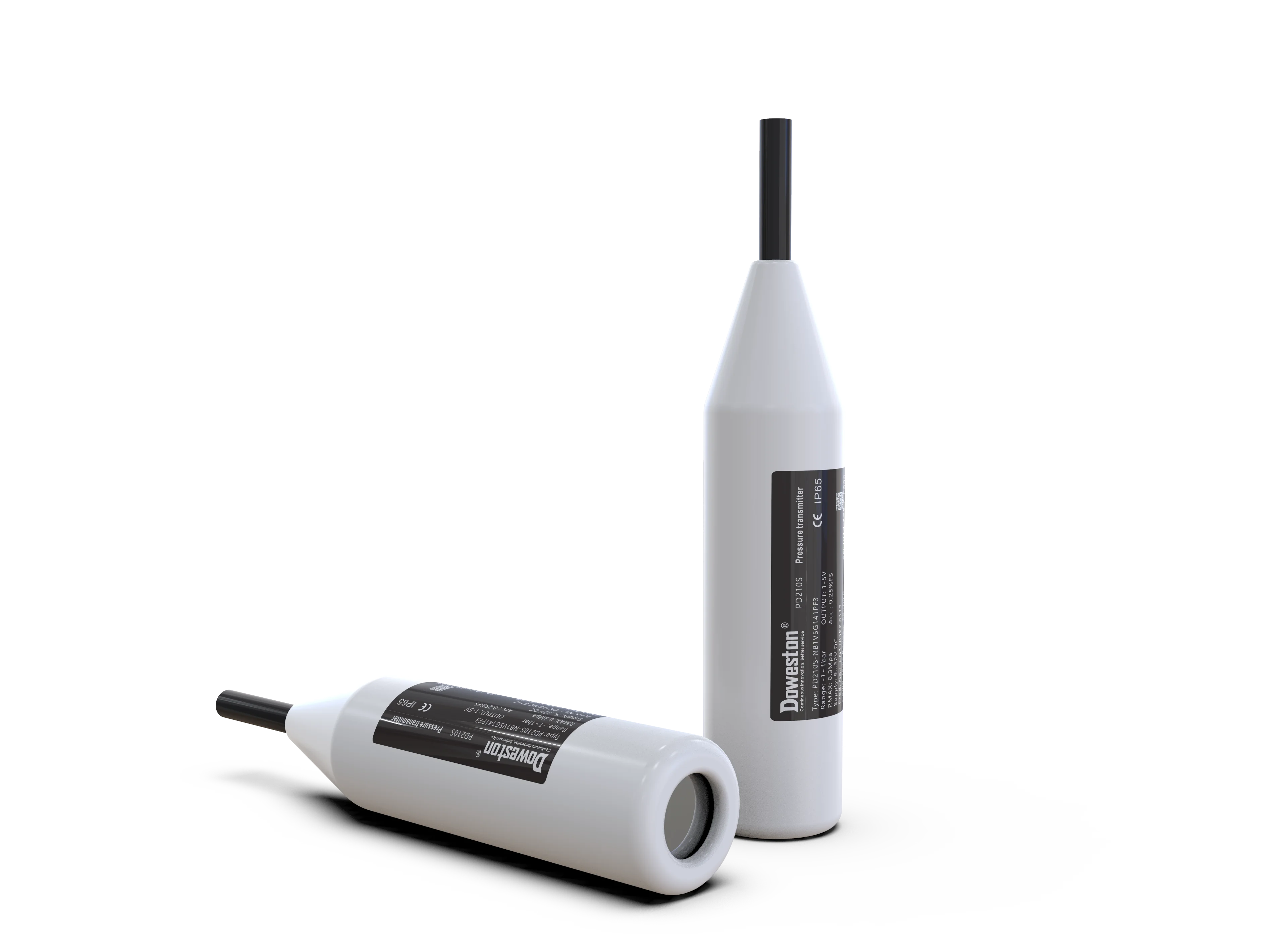

LPD-210D anti-corrosion input type level gauge is the first choice for liquid level measurement of conventional viscous, strong corrosion, and water-containing scale impurities.
The LPD-210D anti-corrosion input level gauge is based on the principle that the measured liquid static pressure is proportional to the height of the liquid. After circuit processing, the output is processed by temperature compensation and linear correction, and converted into a standard 4-20mA or other different standard electrical signals . It has a wide measurement range, can be directly connected to the controller (PLC/PC, etc.) with diversified information output, comes with temperature compensation, and is resistant to strong corrosion, which can meet most measurement needs.
The LPD-210D anti-corrosion input level gauge is based on the principle that the measured liquid static pressure is proportional to the height of the liquid. After circuit processing, the output is processed by temperature compensation and linear correction, and converted into a standard 4-20mA or other different standard electrical signals . It has a wide measurement range, can be directly connected to the controller (PLC/PC, etc.) with diversified information output, comes with temperature compensation, and is resistant to strong corrosion, which can meet most measurement needs.
Performance characteristics
The LPD-210D anti-corrosion input level gauge is based on the principle that the measured liquid static pressure is proportional to the height of the liquid. It uses foreign advanced isolation diffused silicon sensitive elements or ceramic capacitor pressure sensitive sensors to convert static pressure into electricity. The signal is converted into a standard electrical signal (generally 4～20mA/1～5VDC) after temperature compensation and linear correction. It is a level gauge widely used in mechanical engineering and automation control, and can be connected to meter heads and recorders. , Computer, PLC program controller or alarm, etc.
■ Measuring range: 0-200m
■ Comprehensive accuracy: ±0.1%FS
■ Probe material: stainless steel (optionally covered with PP, PTFE)
■ Working temperature: -40-125℃
■ Overload pressure: 150%FS
■ Burst pressure: 200%FS
■ Output: 4-20mA, Hart, RS485, etc.
■ Process connection: M20*1.5 8mm through hole, fixed with cable
■ Protection level: IP65 for electrical part (IP68 is optional)
■ Explosion-proof grade: ExdIICT6, NEPSI
■ Service life: >1*10^8 pressure cycle
■ Measuring range: 0-200m
■ Comprehensive accuracy: ±0.1%FS
■ Probe material: stainless steel (optionally covered with PP, PTFE)
■ Working temperature: -40-125℃
■ Overload pressure: 150%FS
■ Burst pressure: 200%FS
■ Output: 4-20mA, Hart, RS485, etc.
■ Process connection: M20*1.5 8mm through hole, fixed with cable
■ Protection level: IP65 for electrical part (IP68 is optional)
■ Explosion-proof grade: ExdIICT6, NEPSI
■ Service life: >1*10^8 pressure cycle
Technical parameter
Applicable medium | Suitable for fluid liquids that are viscous, weak acid, weak base, water scale or magazine |
Measuring range | 0-5000mm |
Comprehensive accuracy | ±0.25%FS |
Repeatability | ≤± 0.1%FS/year |
Zero temperature drift | ±0.02FS/℃ |
Input voltage | 12-36V DC |
Output | 4-20mA, Hart, RS485, Modbus-RTU |
Working temperature | -40-125℃ |
Overload pressure | 150%FS |
Burst pressure | 200%FS |
Ambient temperature | -40-80℃ |
Response time | ＜1ms (10...90%FS) |
Liquid contact material | Stainless steel 316L (optionally covered with PP, PTFE) |
Cable material | Polyurethane, PTFE |
Protection level | Electrical part IP65 (optional IP68) |
Electrical connections | Direct outlet, terminal block |
Electrical protection | Overload/reverse phase protection |
seal | O-ring, laser welding |
Installation method | M20*1.5 8mm wire hole, G1-1/2 8mm wire hole, self-contained cable fixing |
Explosion-proof grade | ExdIICT6,NEPSI |
Weight | About 0.5kg |
