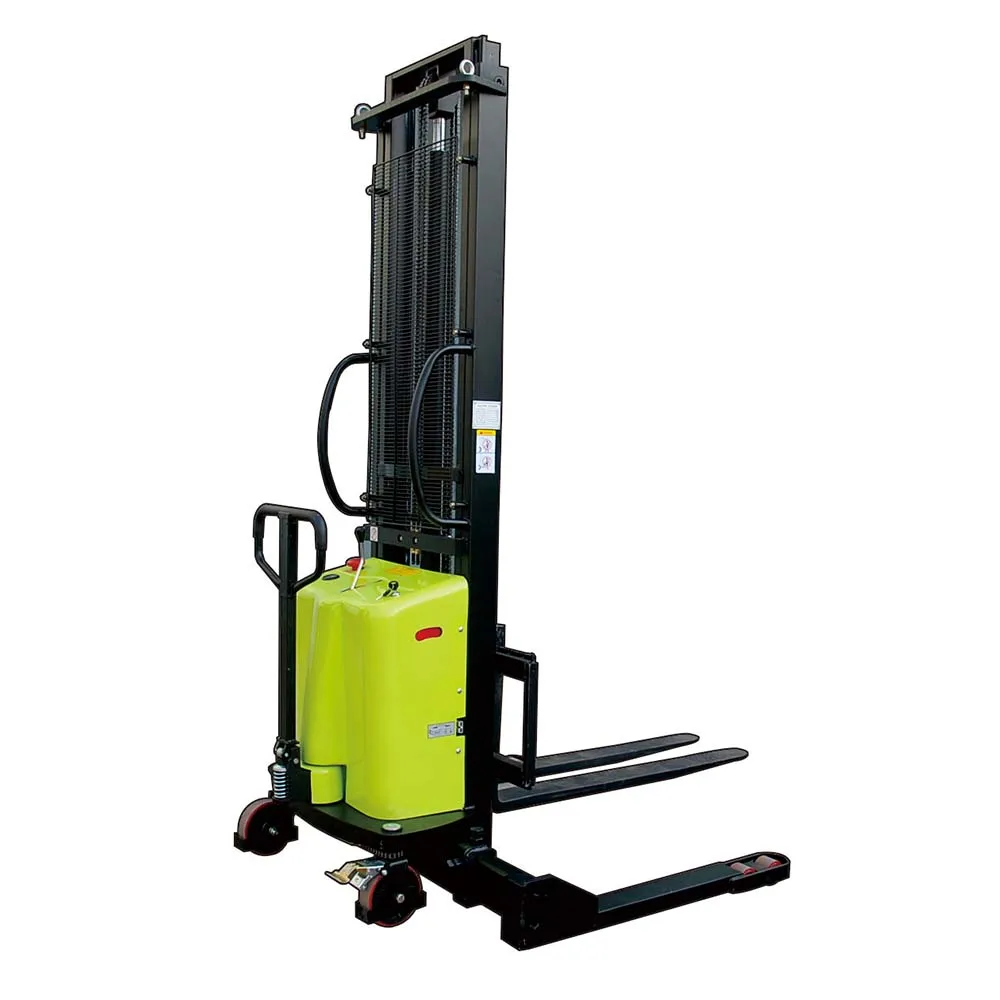

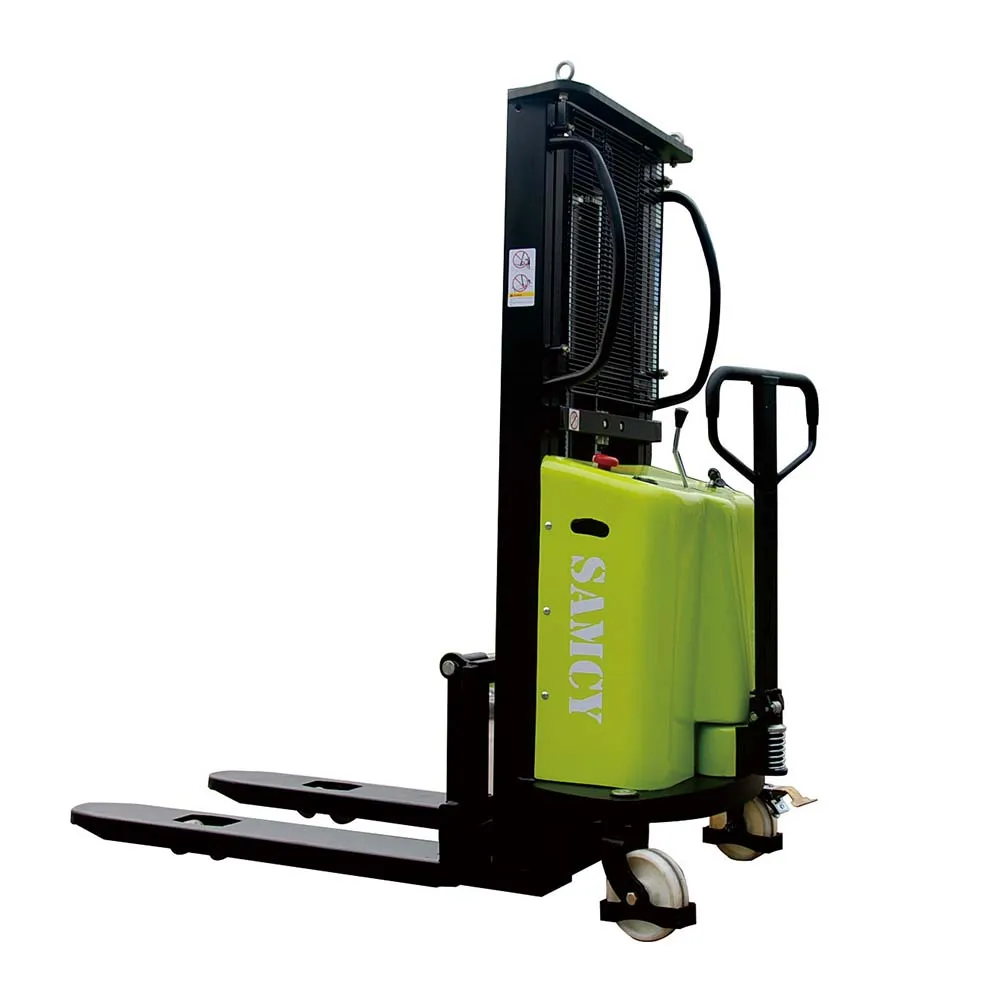

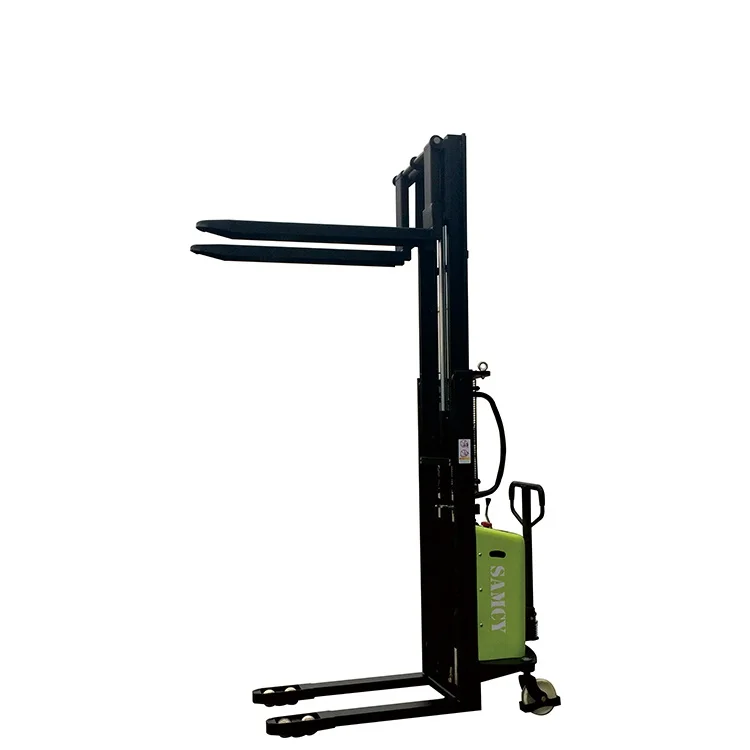

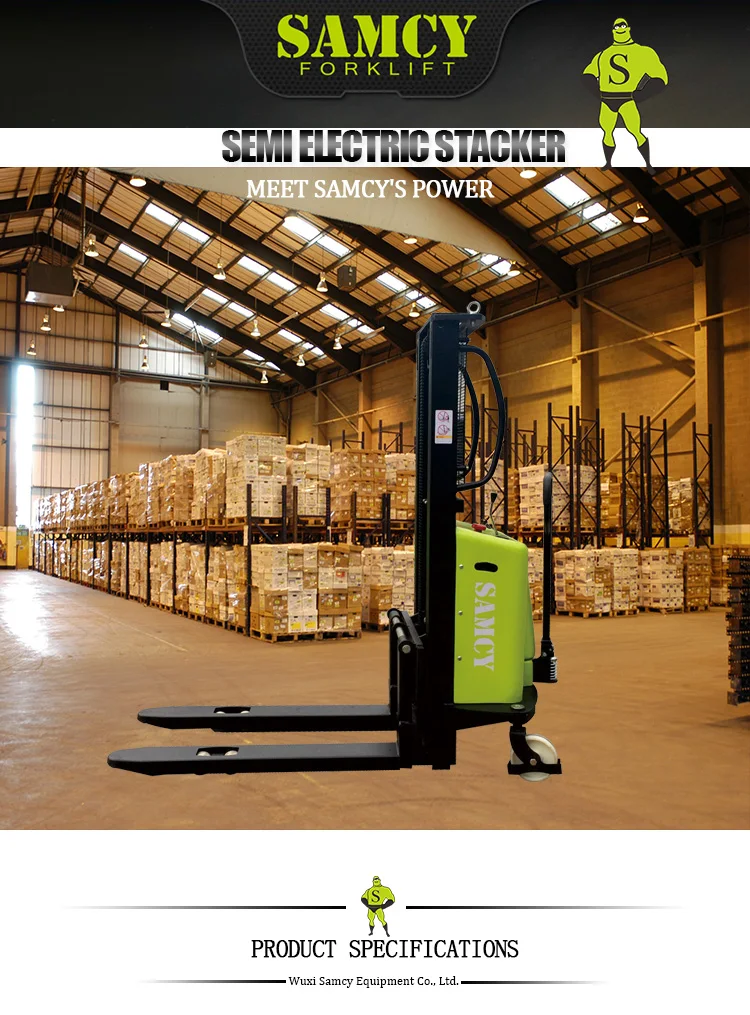

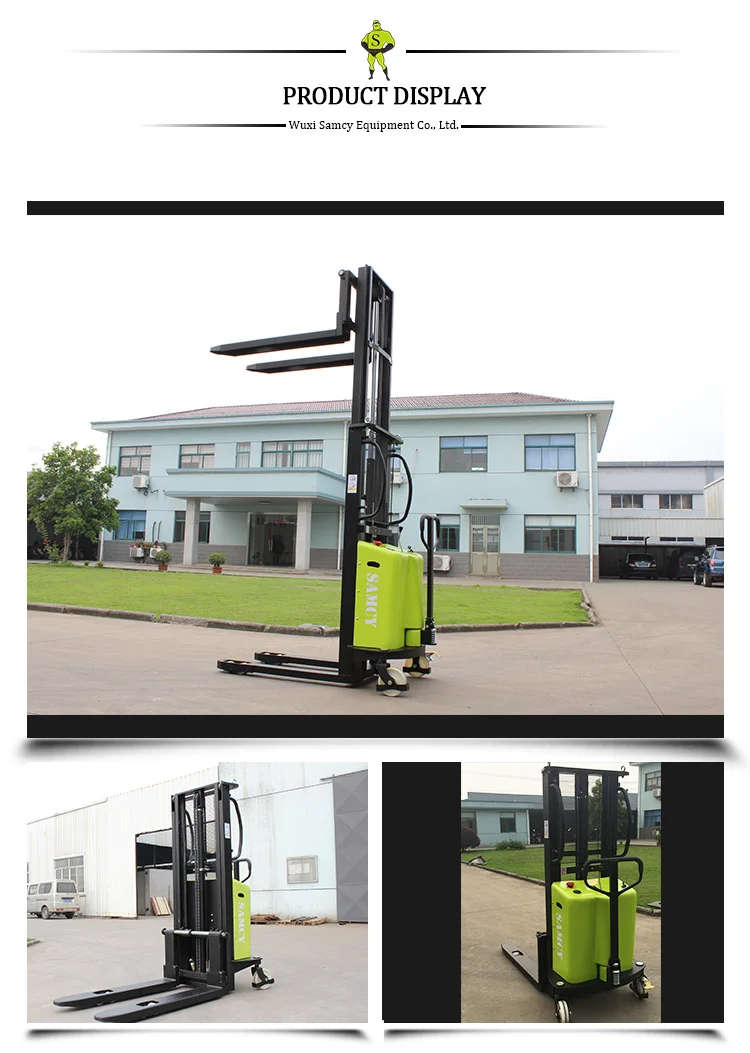

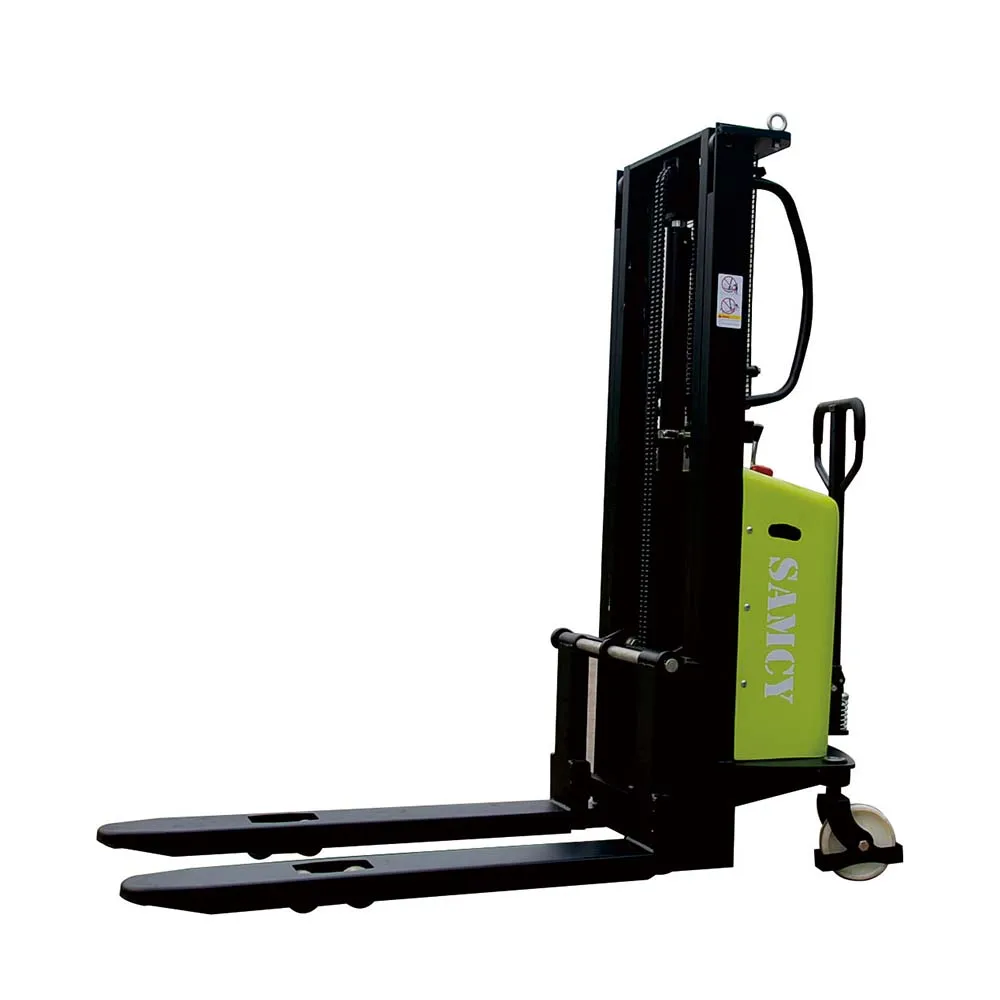

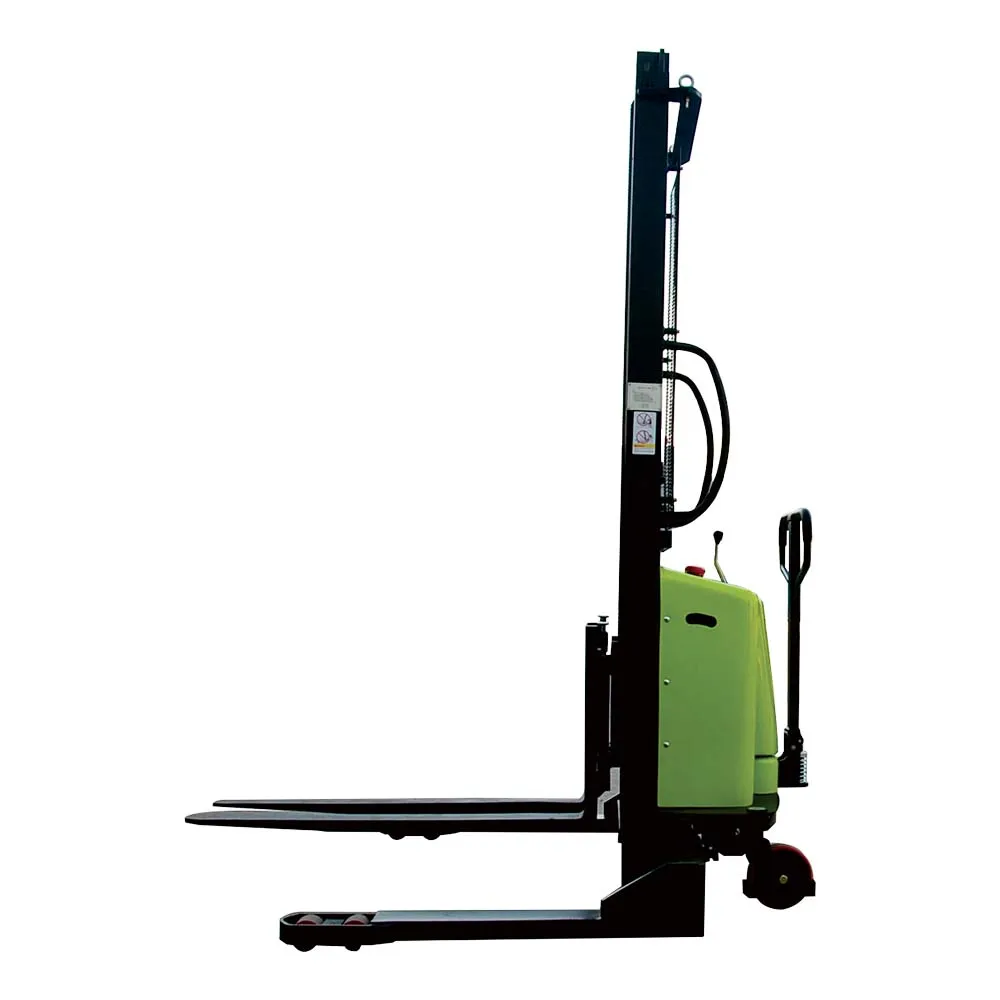

SAMCY Forklift Stacker 2 Year Warranty Brand New 1.5 ton Semi Electric Stacker
- Category: >>>
- Supplier: Wuxi Samcy Equipment Co. Ltd.
Share on (1600469088616):
Product Overview
Description
| Product Name | SAMCY Forklift Stacker 2 Year Warranty Brand New 1.5 ton Semi-Electric Stacker |
| Item Type | Semi Electric Stacker |
| Item No. | KLD20 |
| Place of Origin | Jiangsu, China (mainland) |
| After-Sales Service | Overseas Third-party Support Available |
| Color | Green or Customized |
| Certificate | CE & ISO9001 |
| Application Area | Entrepot, Warehouse, Station, Port, Port of Transshipment |
| Service | OEM, ODM |
| Type | CDSD10A | CDSD15A | ||||||||||
| Driving style | Pedestrian | |||||||||||
| Load capacity Q | kg | 1000 | 1500 | |||||||||
| Load center C | mm | 600 | ||||||||||
| Overall length L1 | mm | 1807 | 1807 | |||||||||
| Overall width W | mm | 810 | 810 | 810 | 910 | 910 | 810 | 810 | 810 | 910 | 910 | |
| Min. overall height H1 | mm | 2100 | 1775 | 2000 | 2100 | 2200 | 2100 | 1775 | 2000 | 2100 | 2200 | |
| Fork dimension L×b×m | mm | 1150×160×56 | ||||||||||
| Outside width of forks D | mm | 660 | ||||||||||
| Base distance L0 | mm | 1170 | ||||||||||
| Wheel material | Nilon or PU | |||||||||||
| Front wheel size | mm | φ82×80 | φ78×70 | |||||||||
| Steering wheel size | mm | φ180×50 | ||||||||||
| Min. steering radius Wa | mm | 1435 | ||||||||||
| Min. width of aisle | mm | ≥2370 | ||||||||||
| Max. height of forks H | mm | 1600 | 2450 | 2900 | 3100 | 3300 | 1600 | 2450 | 2900 | 3100 | 3300 | |
| Max. overall height H2 | mm | 2100 | 3022 | 3472 | 3672 | 3872 | 2100 | 3022 | 3472 | 3672 | 3872 | |
| Min. height of forks H3 | mm | 90 | ||||||||||
| Brake type | Mechanical | |||||||||||
| Power of lift motor | kw | 1.6 | ||||||||||
| Battery capacity/voltage | Ah/V | 120/12 | ||||||||||
| Weight of battery | kg | 22 | ||||||||||
| Net weight(without battery) | kg | 376 | 416 | 436 | 446 | 456 | 380 | 420 | 440 | 450 | 460 | |
| Size Chart (cm) | |||
| 1cm=0.3937inch | |||
| Capacity | 2 ton | ||
| size | 1807*810*2100mm | ||
| Other Size could be Customized | |||
| Trade Terms | EXW, FOB, CFR, CIF or others |
| MOQ | 1 Set |
| Port | Shanghai Port, Ningbo Port or others |
| Shipment | Ocean or Air transportation, International Express |
| Payment Terms | LC D/A D/P T/T Western Union Money Gram |
| Payment Condition | 30% before Prodution, 70% after Delivery Upon BL |
| Supply Capacity | 10,000 Sets per Year |
| Delivery Time | 40 days after confirming the order |
| Service | OEM/ODM |
