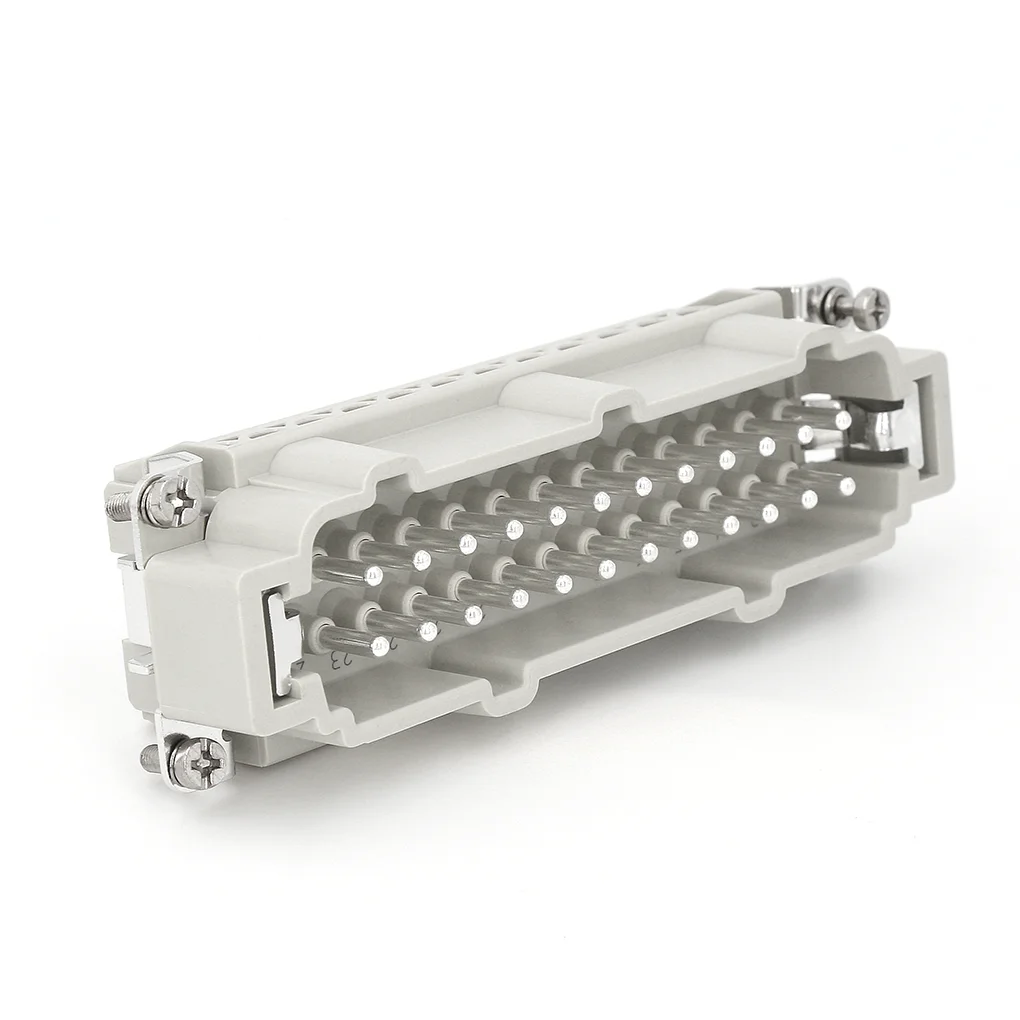

HE 024 Waterproof 16A 24 Pin Male Insert Heavy Duty Rectangular Connector Plug Waterproof 09330242601 replace harting han series
HE-024 Waterproof 16A 24 Pin Male Insert Heavy Duty Rectangular Connector Plug Waterproof 09330242601 replace harting han series
HE-024 Waterproof 16A 24 Pin Male Insert Heavy Duty Rectangular Connector Plug Waterproof 09330242601 replace harting han series
HE-024 Waterproof 16A 24 Pin Male Insert Heavy Duty Rectangular Connector Plug Waterproof 09330242601 replace harting han series

HE 024 Waterproof 16A 24 Pin Male Insert Heavy Duty Rectangular Connector Plug Waterproof 09330242601 replace harting han series

Share on (1600469103249):


Price:

Quantity:


Product Overview

Description



Product Description

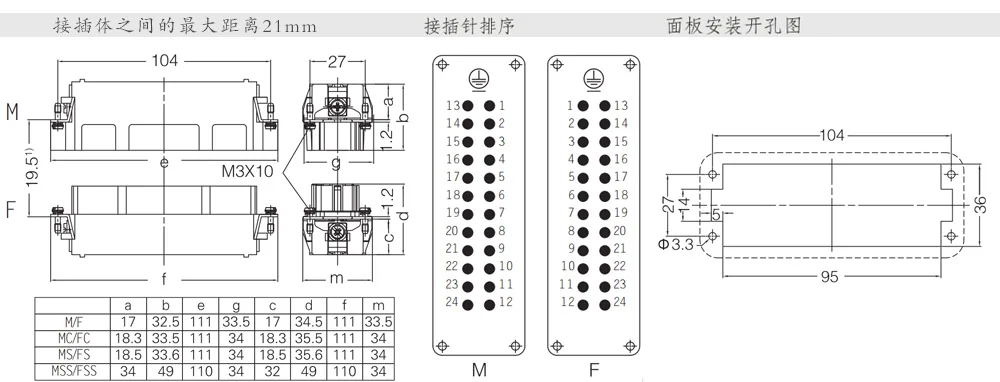

Specification


Identification
Series
HE
Version
Termination method
Screw Termination
Gender
Male
Size
24 B
Number of contacts
24
PE contact
Yes
Material (contacts)
Copper Alloy Silver Plated
Technical features
Conductor cross section
0.75…2.5mm²
Conductor cross section
AWG 18… AWG 14
Estimated Current
16 A
Rated voltage
500 V
Rated pulse voltage
6 kV
Pollution degree
3
Rated voltage acc. to UL
600 V
Insulation resistance
≥1010
Limiting temperature
-40… +125 °C
Pairing cycles
500
Material properties
Material (insert)
Polycarbonate
Flammability class material acc. to UL 94
V-0
RoHS
Docile


Company Profile








Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packaging Details: ZJHK heavy duty connector will be packed in one small bag and then put in one box.If you need custom package,we will do as your request...


FAQ


1.Q: Are you manufactory or trading company?
A: We are manufactory in Wenzhou, Zhejiang Province, China.

2.Q: Can we have our logo or company name to be printed on your products or package?
A: Sure.OEM is welcomed. Your Logo can be puted on our products. And we can make package according to your design.

3.Q: What is usual payment term for orders?
A: We accept terms of T/T, Western Union in advance. It can cccording to buyers requirement

4. Warranty time.
A: 12 month. Any quality problem will be changed by your next free order.

5.Free sample.
A: we provide small products to control quality for you, just you pay the express fees.

6. What's your material for inserts?
A: In order to guarantee the quality of the products, we use imported material SABIC 3412 for injection molding
