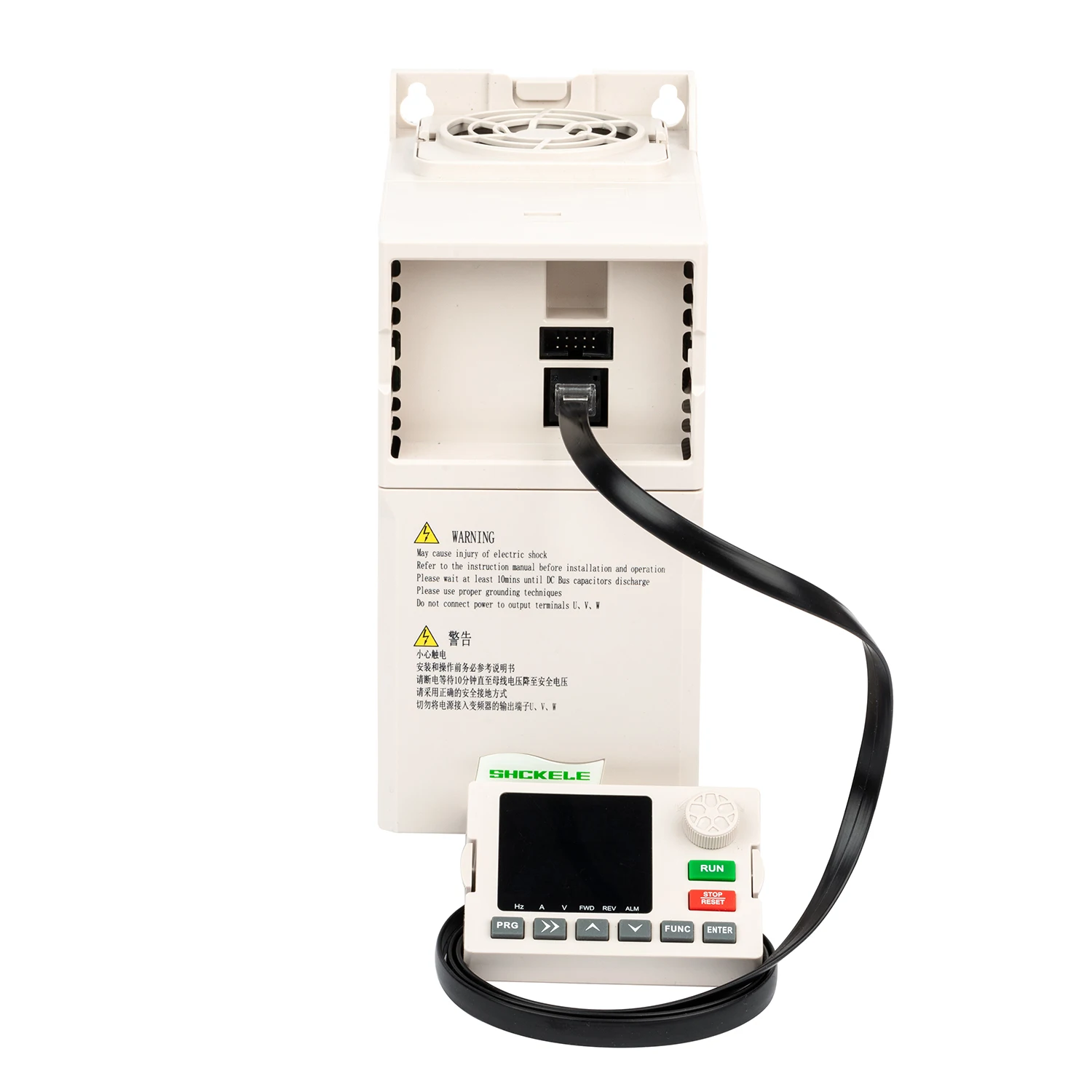

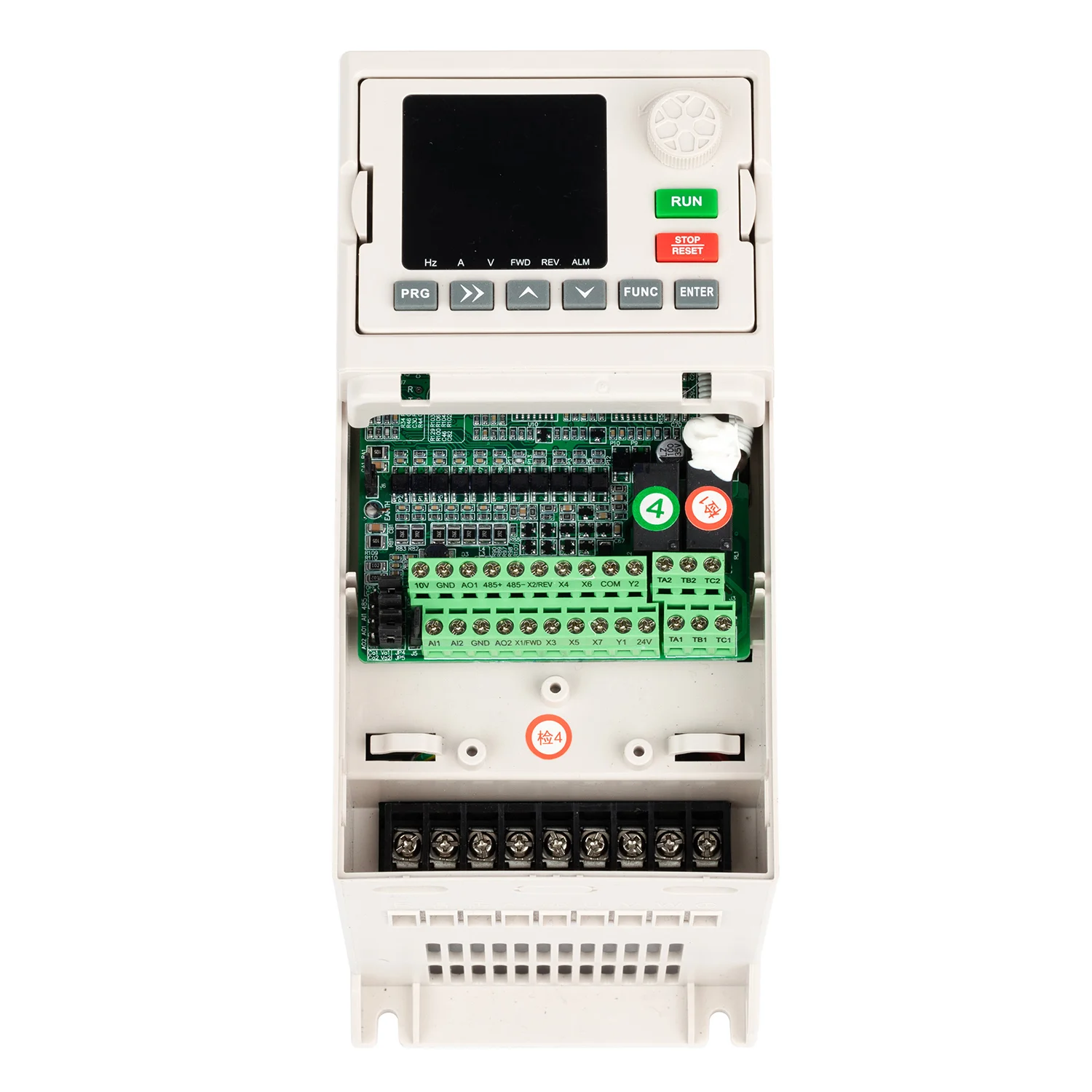

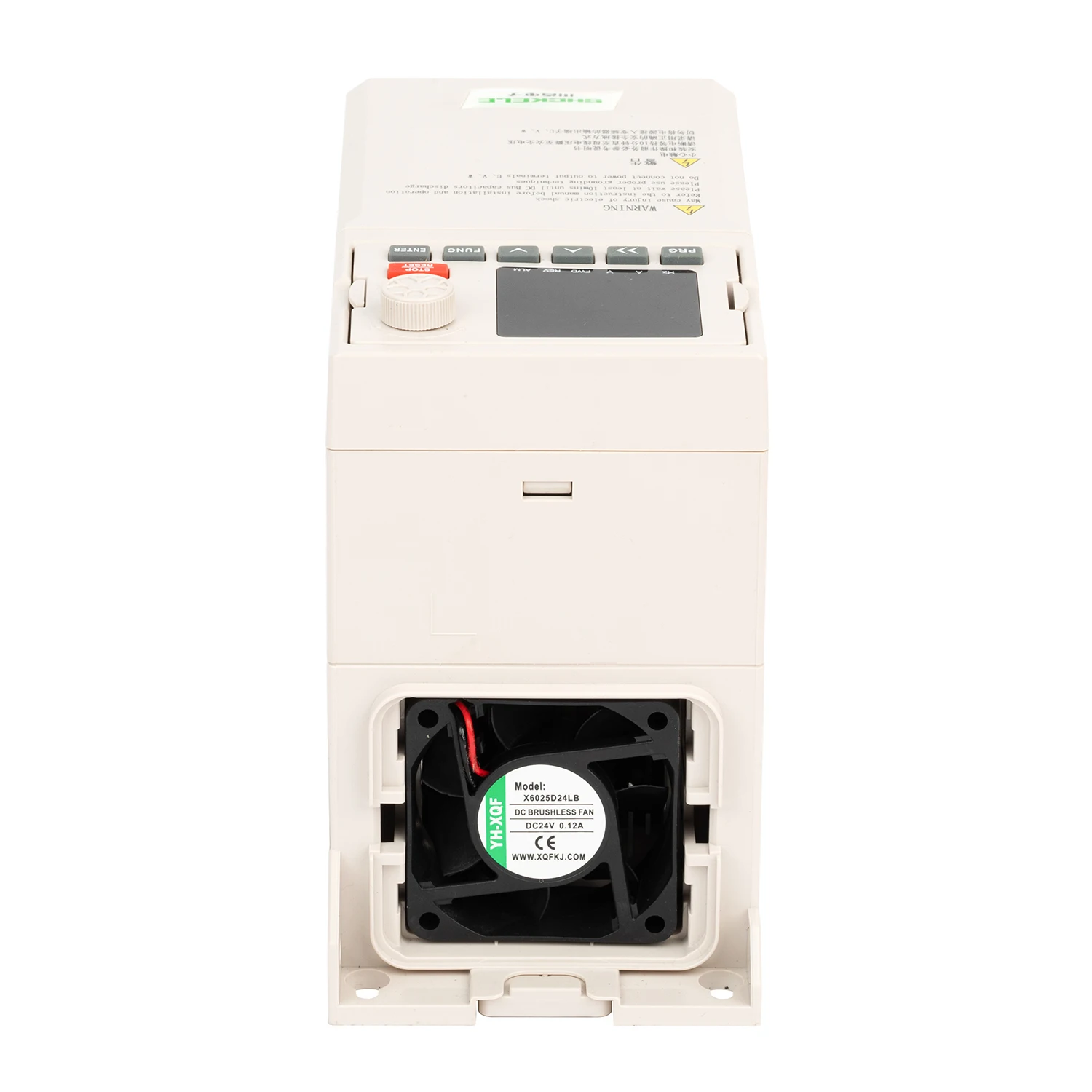

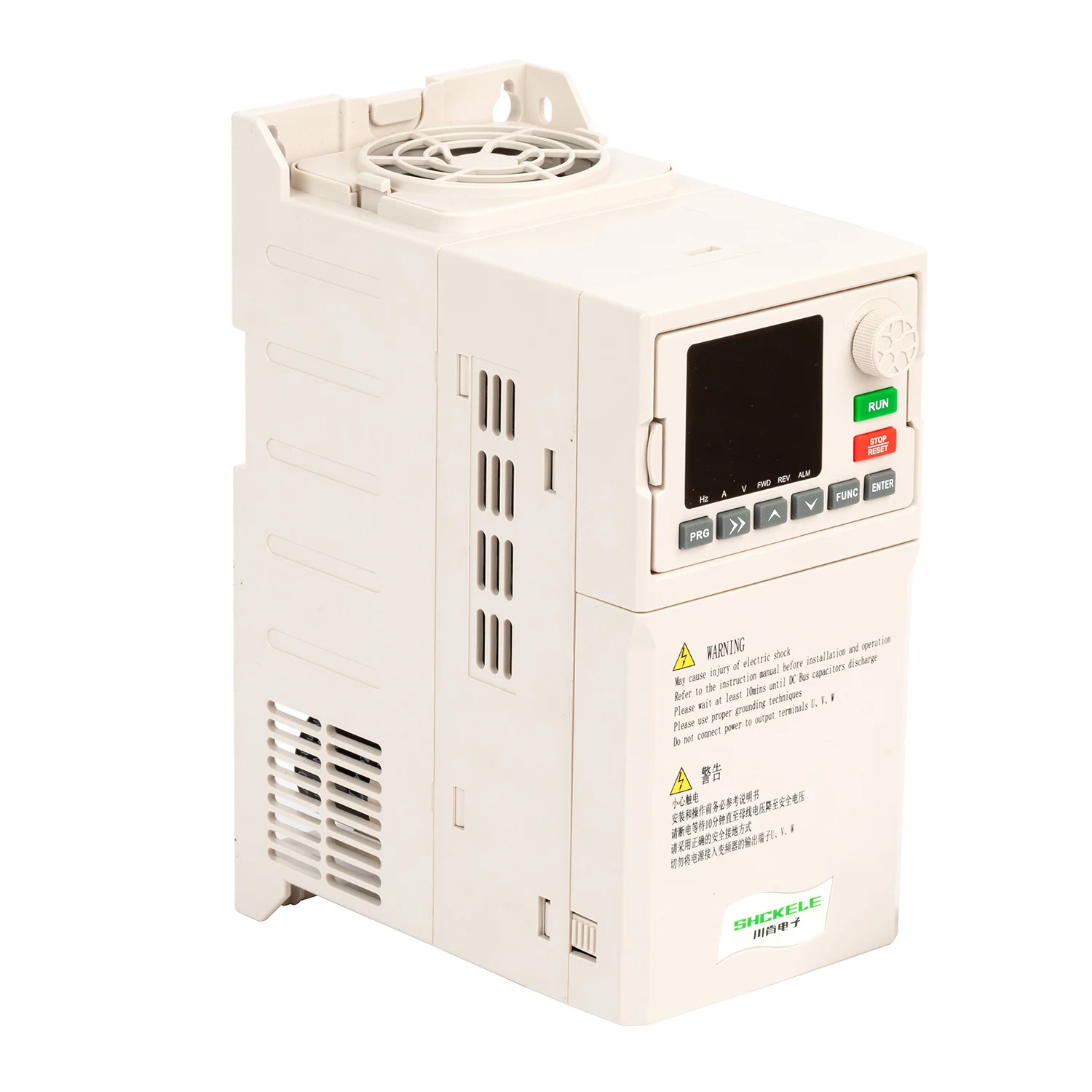

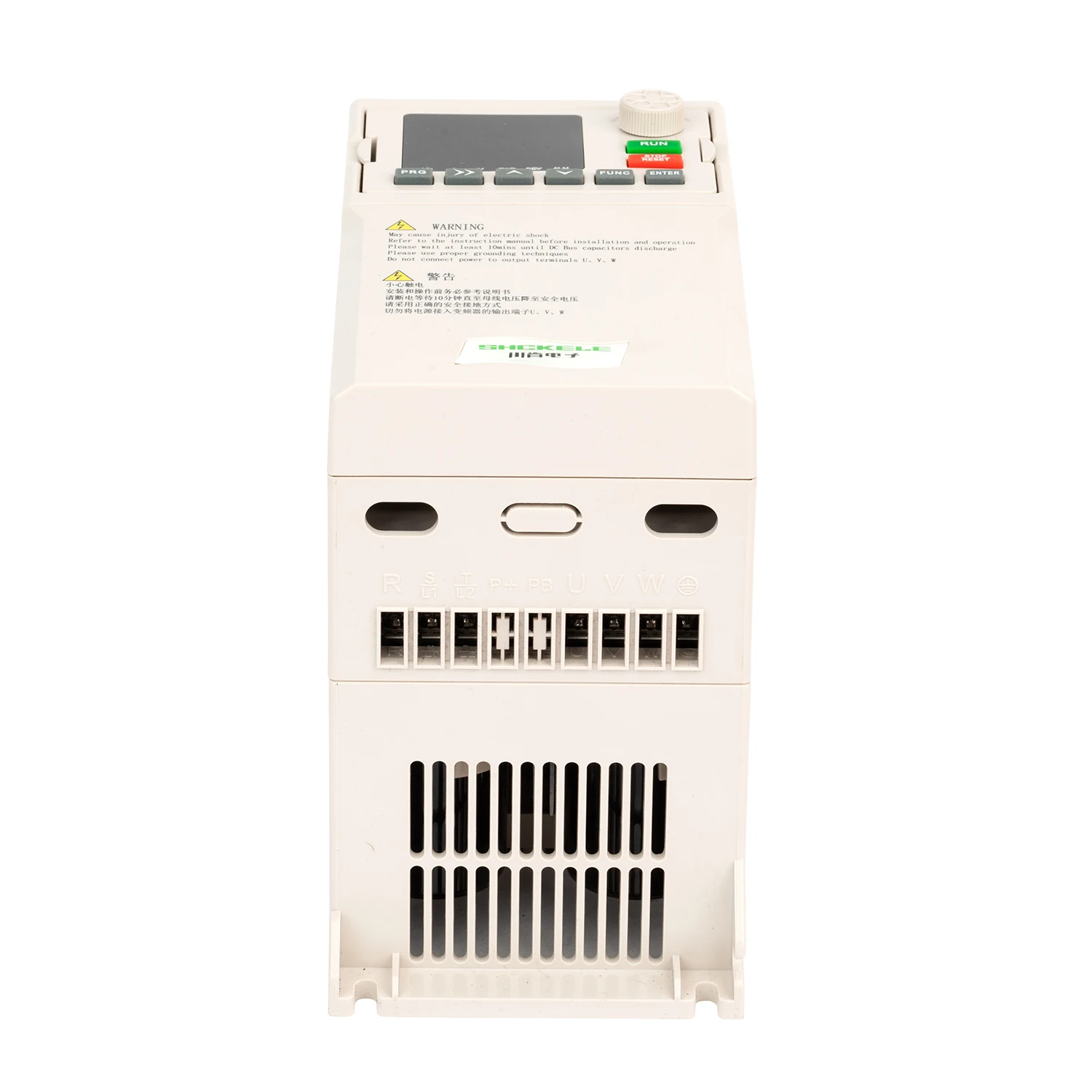

Variable speed drive ac drive three phase 380v 7.5kw 10hp vfd variable frequency inverter frequency and voltage converter

Three phase AC380V;50/60Hz
Single phase AC220V;50/60Hz

Three phase AC360V~ 450V
Single phase AC190V~ 250V

0 ~460V
0 ~260V

Low frequency mode 0~ 300Hz
High frequency mode 0 ~3000Hz

Model G: 110% long-term 150% 1 minute 200% 4 seconds
P type machine: 105% long-term 120% 1 minute 150% 1 second

V/F control, advanced V/F control, V/F separation control,
current vector control without PG

Control characteristics

0.1% of maximum output frequency

0.01Hz

Within 0.2% of the maximum output frequency

Set within 0.01% of output frequency

The reference frequency is arbitrarily set at
0.5 ~3000Hz, and the multi-point V/F curve is
arbitrarily set. You can also choose constant
torque, reduced torque 1, reduced torque 2,
square torque and other fixed curves

Manual setting: 0.0 ~30.0% of rated output
Automatic boost: automatically determine the
boost torque according to the output current
combined with the motor parameters

Whether in the process of acceleration, deceleration
or stable operation, it can automatically detect the
stator current and voltage of the motor, and suppress
it within the allowable range according to a unique
algorithm, minimizing the possibility of system fault
tripping

        vector
        control

Automatically adjust the output voltage-frequency ratio according to motor parameters and unique algorithms

Starting torque:
150% rated torque at 3.0Hz(VF control)
150% rated torque at 1.0Hz(advanced VF control )
150% rated torque at 0.5Hz (no PG current
vector control)Steady-state accuracy of operatin g
speed:0.2% of rated synchronous speed
Speed fluctuation: 0.5% of rated synchrono us
speed Torque response: 20ms (No PG current
vector control)

Without any restriction, the automatic detection
of parameters can be completed under the static
and dynamic conditions of the motor to obtain
the best control effect

Full-process current closed-loop control,
completely avoid current impact, with perfect
over-current and over-voltage suppression function

Multi-speed
and swing
frequency
operation

16-segment programmable multi-speed control, multiple operating
modes are optional. Swing frequency operation: preset frequency,
center frequency adjustable, state memory and recovery after
power failure

PID control
RS485
communication

Built-in PID controller (frequency can be preset). Standard
configuration RS485 communication function, multiple
communication protocols are optional, with linkage
synchronization control function

Frequency
setting

Analog input

DC voltage 0 ~10V, DC current 0 ~20mA
(upper and lower limit optional)

Digital input

Operation panel setting, RS485 interface
setting, UP/DW terminal control, and multiple
combination settings with analog input

Ambient
temperature

-10℃ ~ +40℃(the ambient temperature is between 40℃~ 50 ℃
, please use with derating)

Ambient
humidity

5% ~95%RH, no condensation

Surroundings

Indoor (no direct sunlight, no corrosion, flammable gas,
no oil mist, dust, etc.)

Altitude

Derating for use above 1000 meters, derating 10%
for every 1000 meters

Overcurrent, overvoltage, undervoltage, module failure,
electronic thermal relay, overheating, short circuit, input and
output phase loss, abnormal motor parameter tuning, internal
memory failure, etc.
