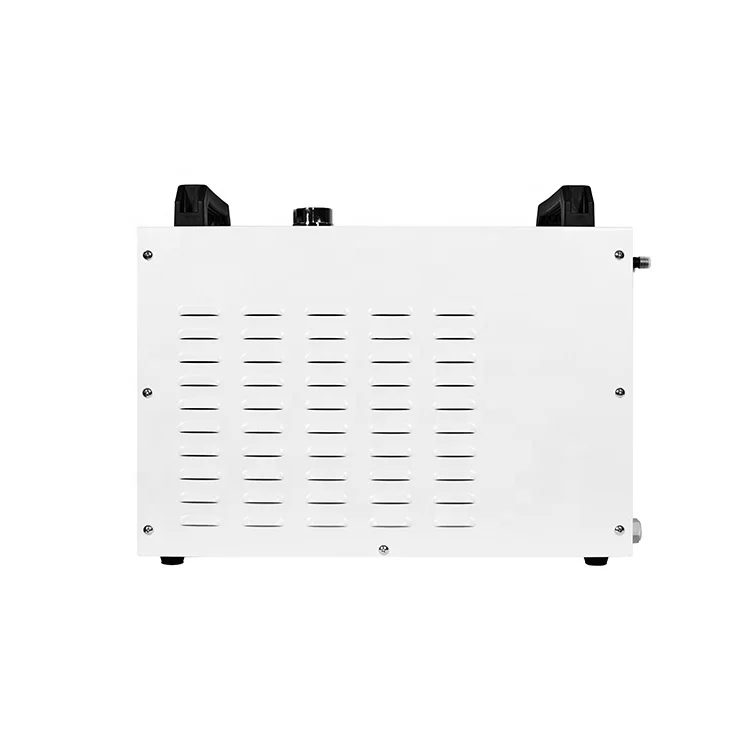

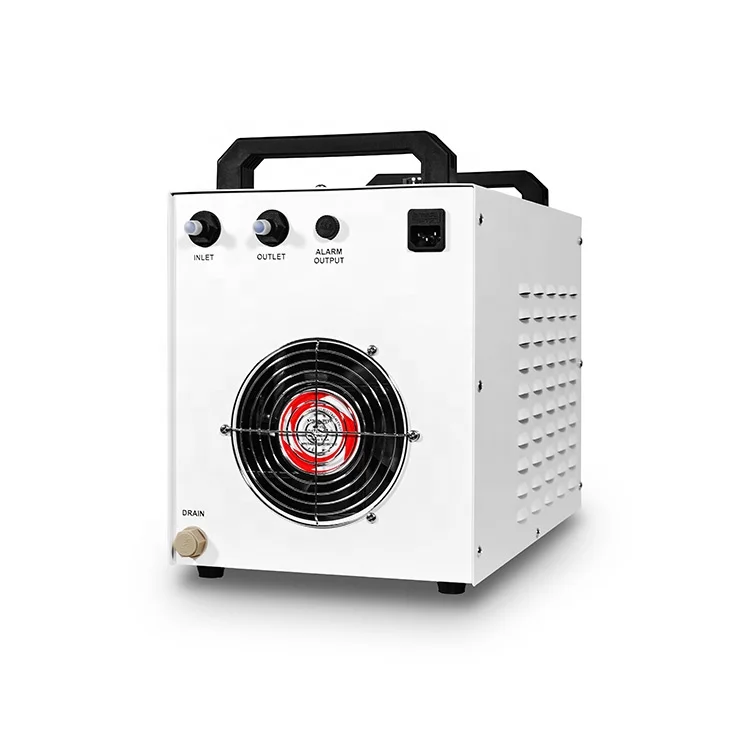

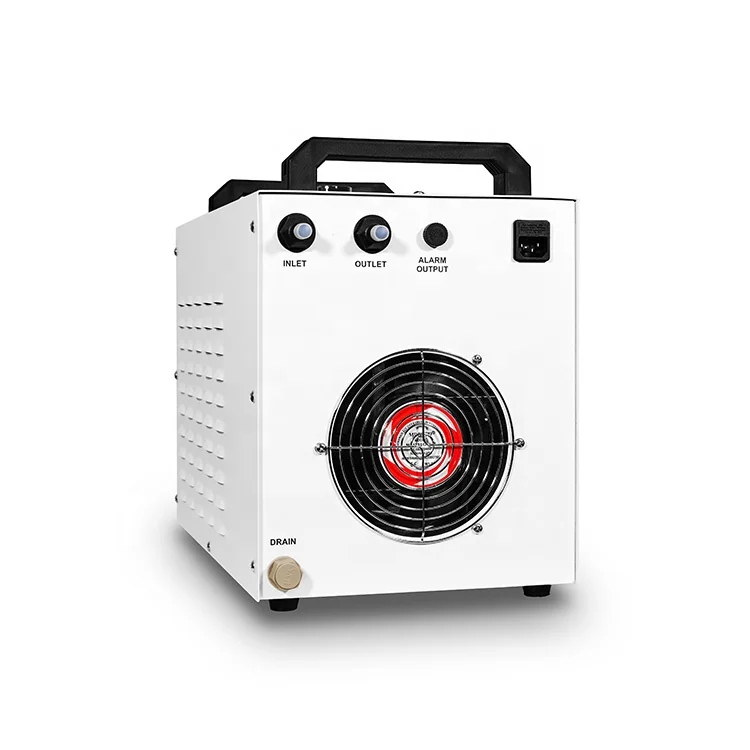

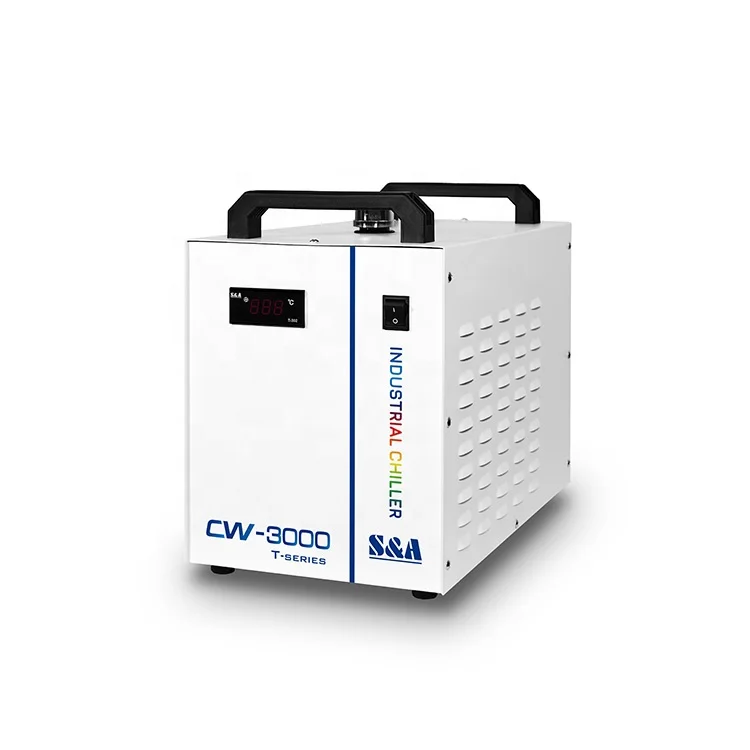

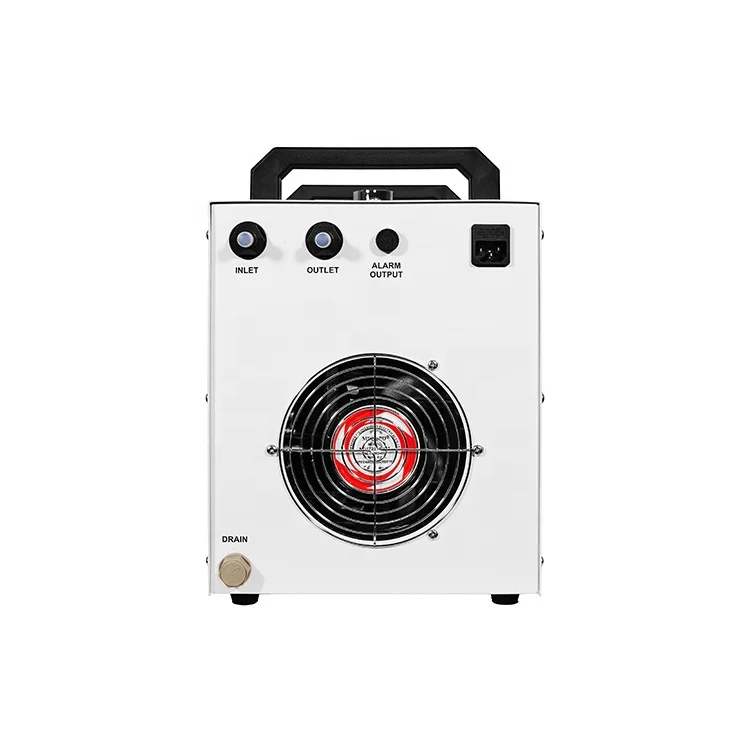

S&A Chillers Manufacturer Wholesale Small CW 3000 Industrial Air Cooled CNC Spindle Chiller
- Category: >>>
- Supplier: Guangzhou Teyu Electromechanical Co. Ltd.
Share on (1600469110719):
Product Overview
Description
PRODUCT SPECIFICATIONS
Model | CW-3000TG | CW-3000DG | CW-3000TK | CW-3000DK | |||
Voltage | AC 1P 220~240V | AC 1P 110V | AC 1P 220~240V | AC 1P 110V | |||
Frequency | 50/60Hz | ||||||
Current | 0.4~0.7A | 0.4~0.9A | 0.3~0.6A | 0.3~0.8A | |||
Max. power consumption | 0.07kW | 0.11kW | |||||
Radiating capacity | 50W/℃ | ||||||
Max. pump pressure | 10M | 70M | |||||
Max. pump flow | 10L/min | 2L/min | |||||
Protection | Flow alarm | ||||||
Tank capacity | 9 L | ||||||
Inlet and outlet | OD 10mm barbed connector | 8mm fast connector | |||||
N.W | 9Kg | 11Kg | |||||
G.W | 11Kg | 13Kg | |||||
Dimension | 49 X 27 X 38cm (L X W X H) | ||||||
Package dimension | 55 X 34 X 43cm (L X W X H) | ||||||
Product Features | * Heat dissipation capacity: 50W/℃, meaning it can absorb 50W of heat by rising 1°C of water temperature; * Passive cooling, no refrigerant * High speed fan * 9L reservoir * Digital temperature display * Built-in alarm functions * Easy operation and space-saving * Low energy and environmental | ||||||
Optional Items | *Heater *Filter *US standard plug / EN standard plug | ||||||
Q1.Is S&A Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
Q2.What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
Q3.How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
Q4.What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
Q5.How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team
We are professional industrial chiller manufacturer since 2002.
Q2.What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
Q3.How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
Q4.What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
Q5.How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team
