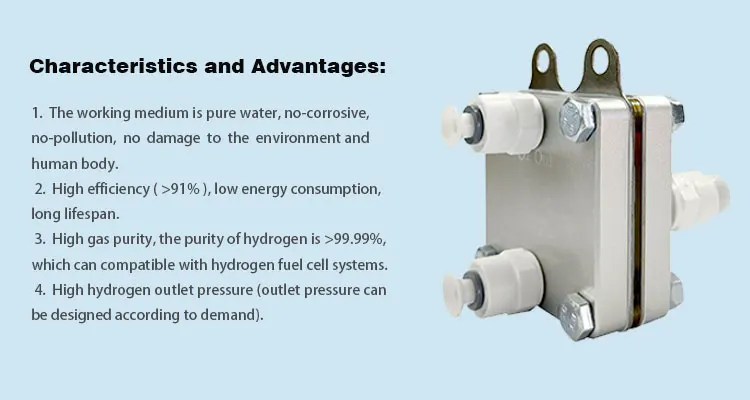

Product Advantages
Products Description
high quality 1400ml/min pure water Hydrogen Electrolyzer pem Hydrogen Generators Electrolysis Cell
CH-1400 PEM hydrogen Eletrolyzer | ||
Hydrogen flow rate | 1400ml/min | |
Cycling way | Natural cycling | |
Hydrogen purity | 99.99% | |
Electrolytic way | pure water electrolysis | |
Single pool voltage | 1.8v-2.0v | |
Dimension(without PVC connecting) | 106×94×64mm | |
Unit Weight | 2.4kg | |
Water | Pure water、deionized water | |
Power | constant current power supply | |

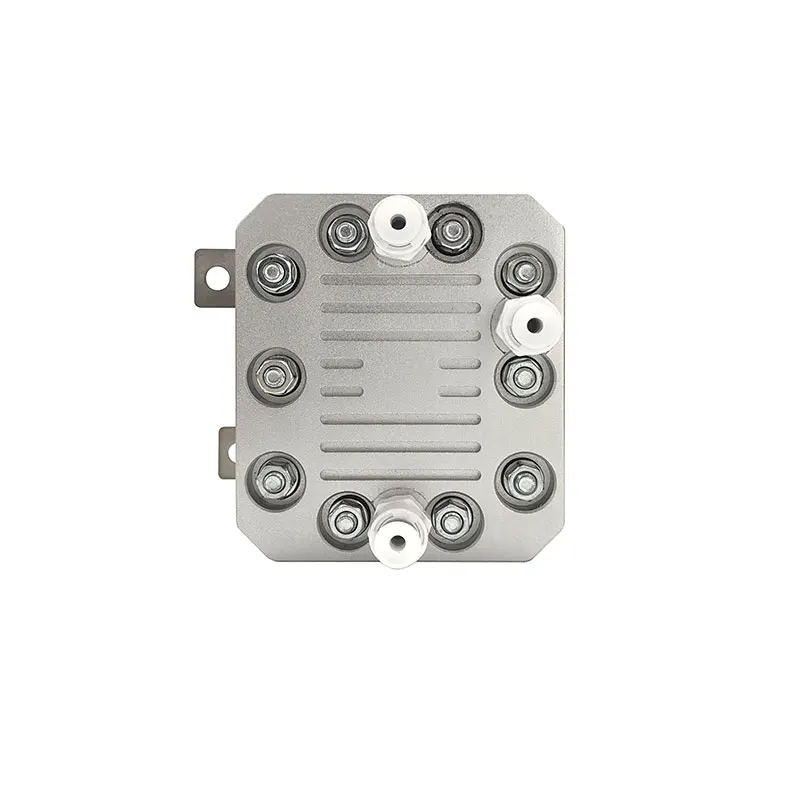

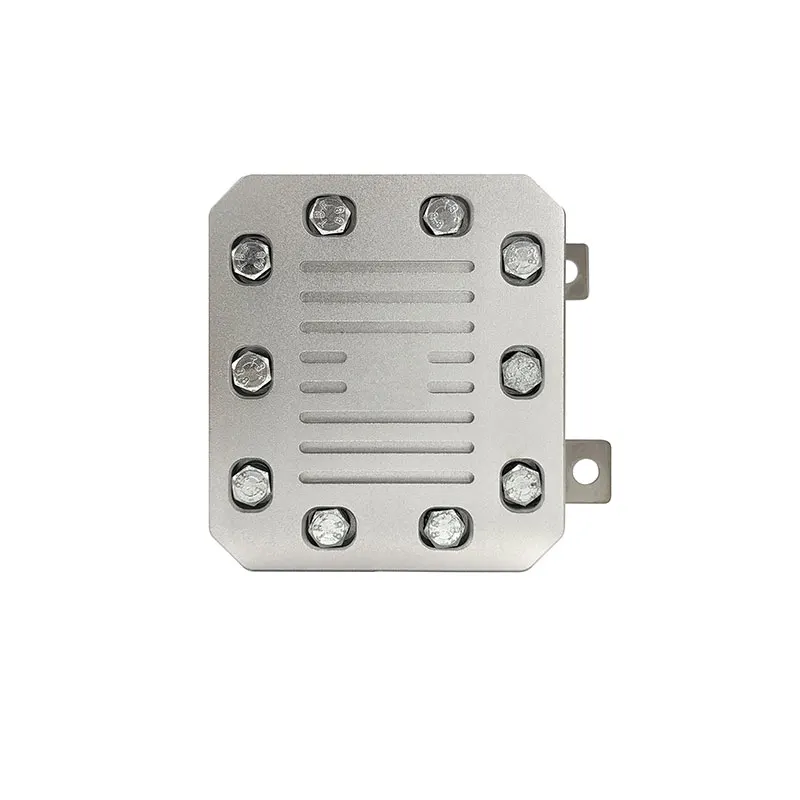

PEM Eletrolyzer cell

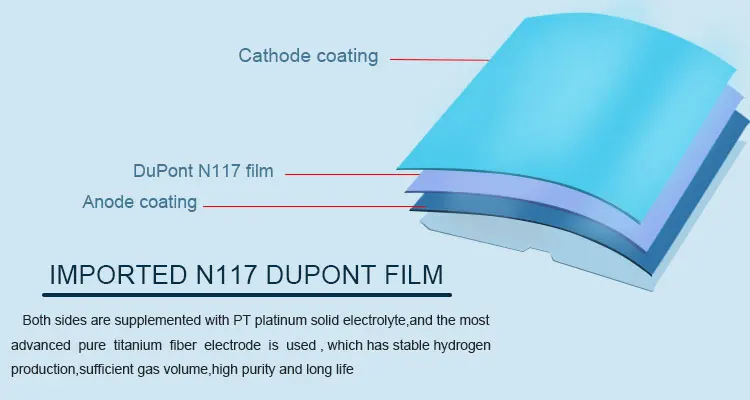

PEM Eletrolyzer cell is an advanced patented product, which are light , highly effective, energy-saving and of environmental protection , producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali). That's PEM technology. The SPE electrodes, as the core of cell , are highly active catalytic electrode with nearly zero distance between the electrodes , which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency.
Working Principle
Electrolytic water meeting the requirements (with electrical resistivity > 1MΩ/ cm) , after being put into the anode chamber of electrolytic cell , when power is switched on ,wil l be decomposed at once at the anode : 2H2O = 4H+ + 2O-2. The decomposed negative oxyanion (O-2) will immediately release electron to form oxygen (O2) gas.The hydrogen proton , in the form of aqua ion (H+.XH2 O) , and under the action of electric field force , through SPE ion membrane, will arrive in the cathode to absorb electron to form hydrogen gas.
Catalogue
ITEM | Hydrogen Eletrolyzer |
Hydrogen production volume | 100ml/min-5000ml/min |
Single pool voltage | 1.8v-2.0v |
Size of 100ml/min (Without&With connecting ports ) | 60×60×35 & 60×80×61mm |
Size of 300ml/min (Without&With connecting ports ) | 106×94×34 & 116×109×52mm |
Size of 600ml/min (Without&With connecting ports ) | 106×94×44 & 116×109×61mm |
Size of 800ml/min (Without&With connecting ports ) | 106×94×49 & 116×109×66mm |
Size of 1000ml/min (Without&With connecting ports ) | 106×94×54 & 116×109×71mm |
Size of 1200ml/min (Without&With connecting ports ) | 106×94×59 & 116×109×76mm |
Size of 1400ml/min (Without&With connecting ports ) | 106×94×64 & 116×109×81mm |
Size of 1600ml/min (Without&With connecting ports ) | 106×94×69 & 116×109×86mm |
Size of 1800ml/min (Without&With connecting ports ) | 106×94×74 & 116×109×91mm |
Size of 2000ml/min (Without&With connecting ports ) | 106×94×79 & 116×109×96mm |
Size of 3200ml/min (Without&With connecting ports ) | 165×126.5×66.5 & 165×141×83.5mm |
Size of 4000ml/min (Without&With connecting ports ) | 165×126.5×77.5 & 165×141×94.5mm |
Size of 5000ml/min (Without&With connecting ports ) | 165×126.5×88.5 & 165×141×105.5mm |

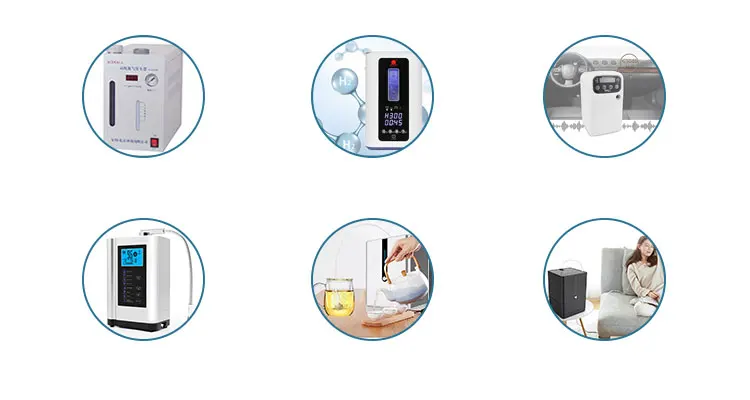

Application
Application of PEM electrolyser hydrogen cell stack:
1.used for hydrogen&oxygen generator 2.used for Hydrogen Rich Water machine
3.used for health care equipment 4.used for experiment lab
3.used for health care equipment 4.used for experiment lab
Recommend Products

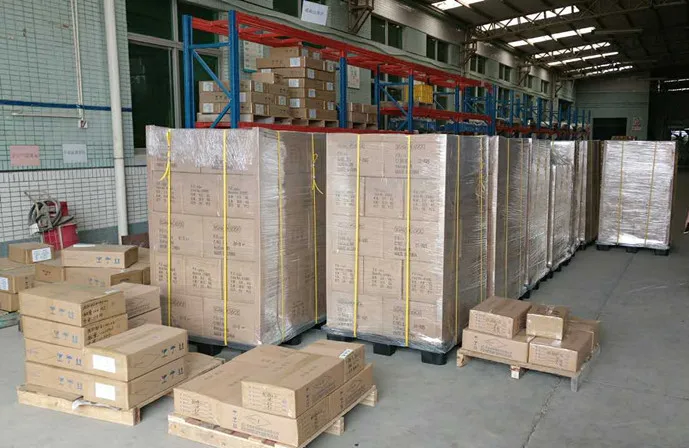

Product packaging

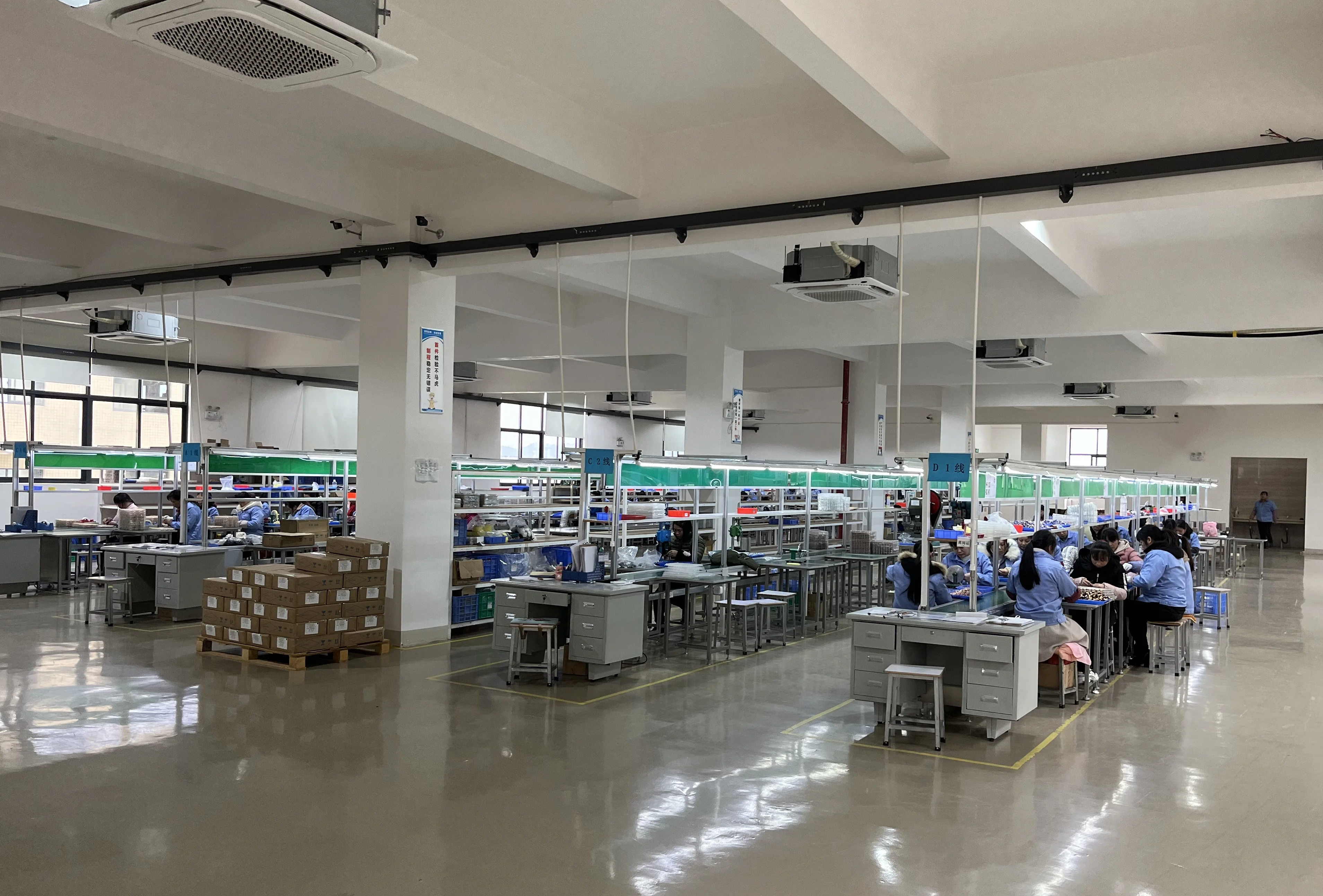

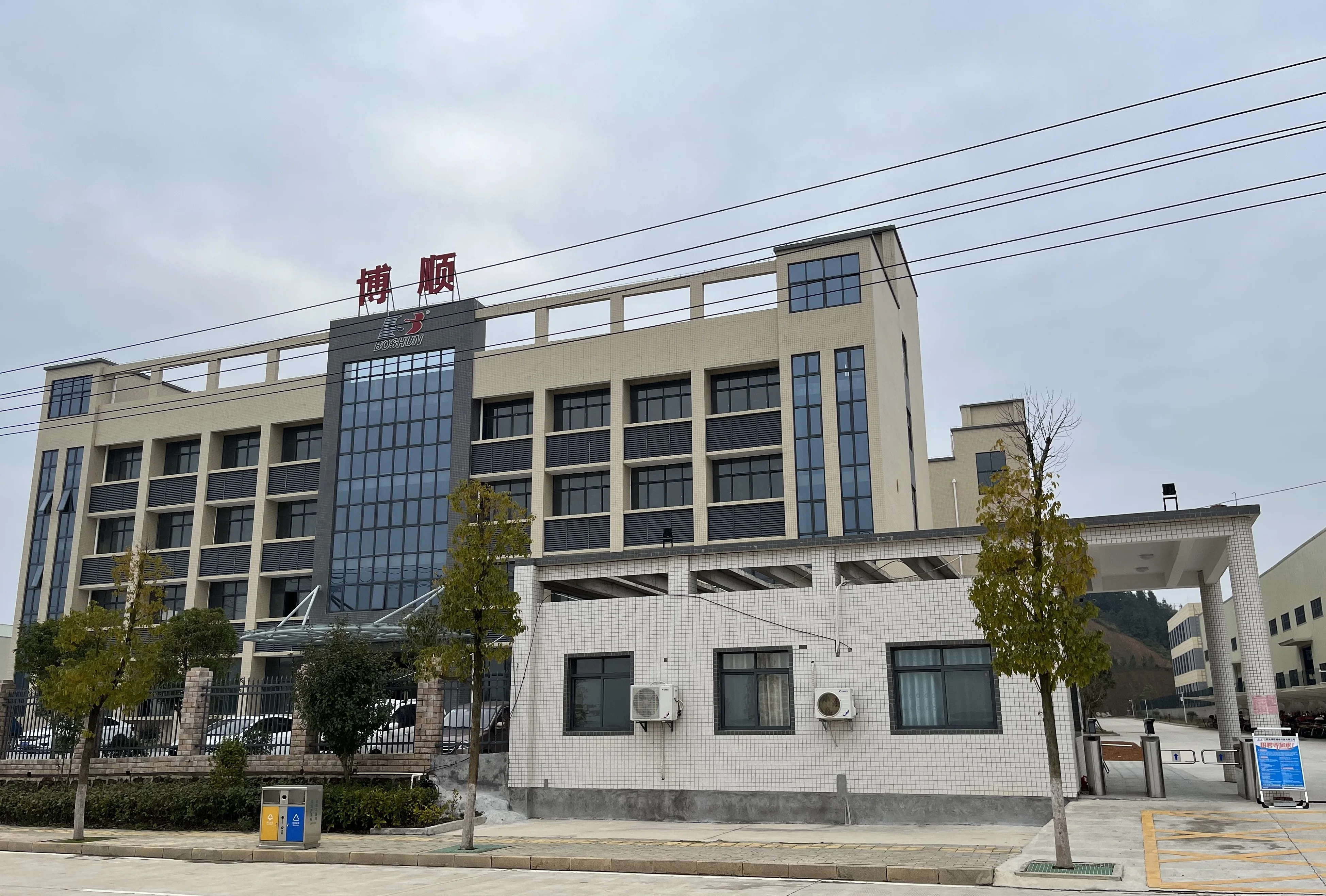

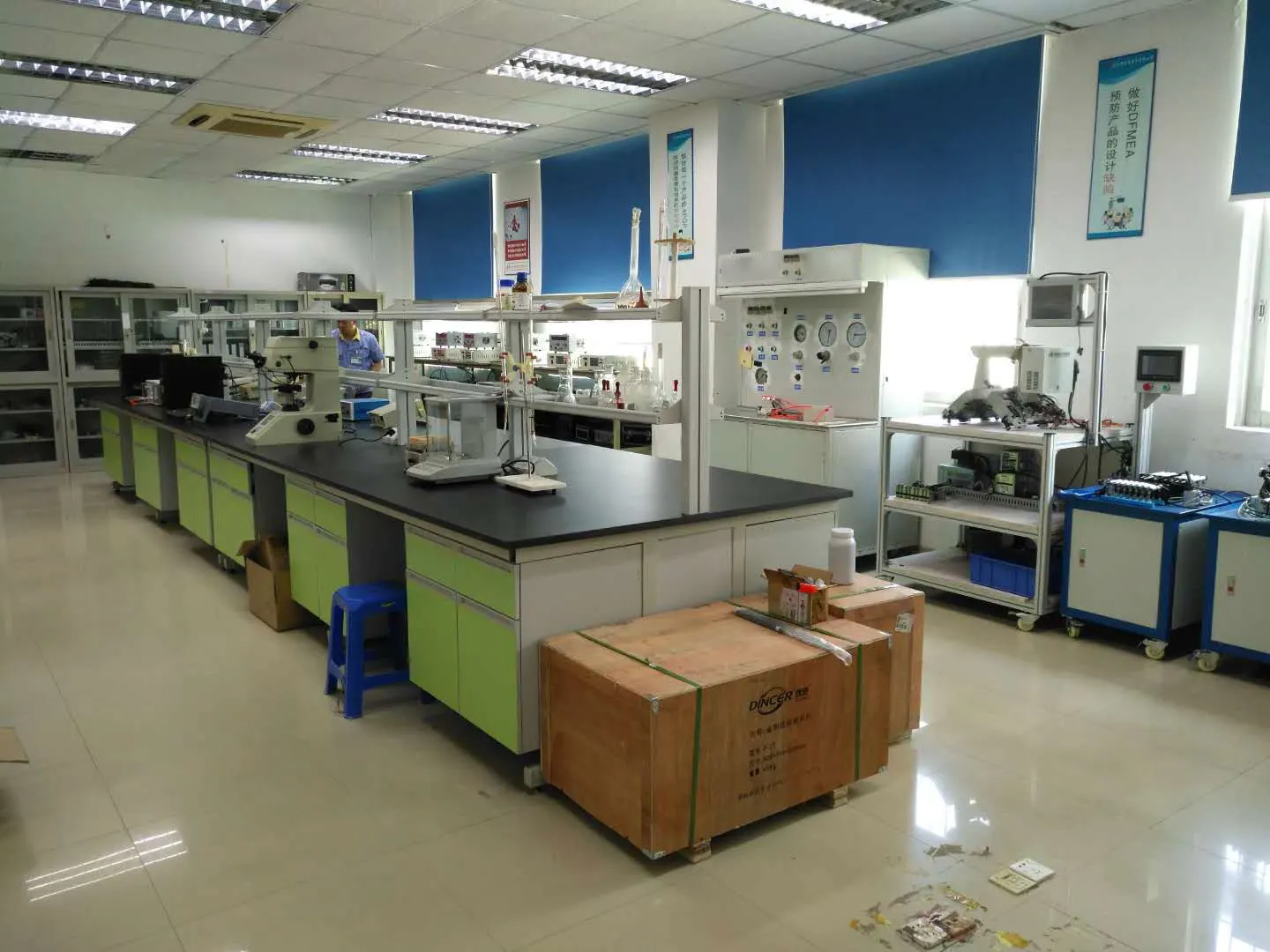

Company Profile
