Low Investment 3 4 T/H Dry Mortar Mixing Machine Ceramic Tile Adhesive Manufacturing Plant
- Category: >>>
- Supplier: Zhengzhou Mg Industrial Co. Ltd.
Share on (1600469136185):
Product Overview
Description
Product Despction

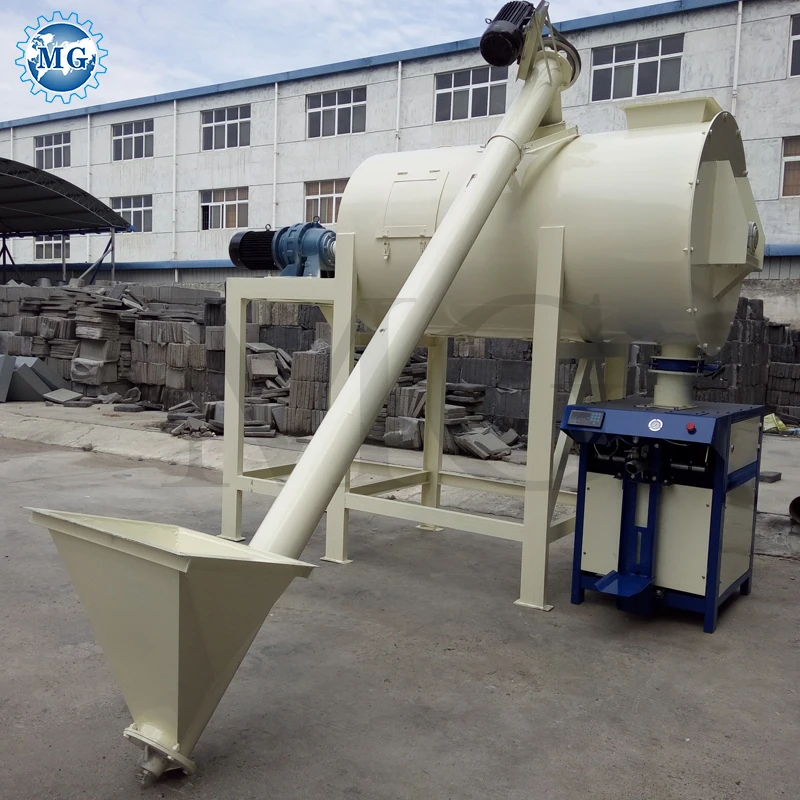

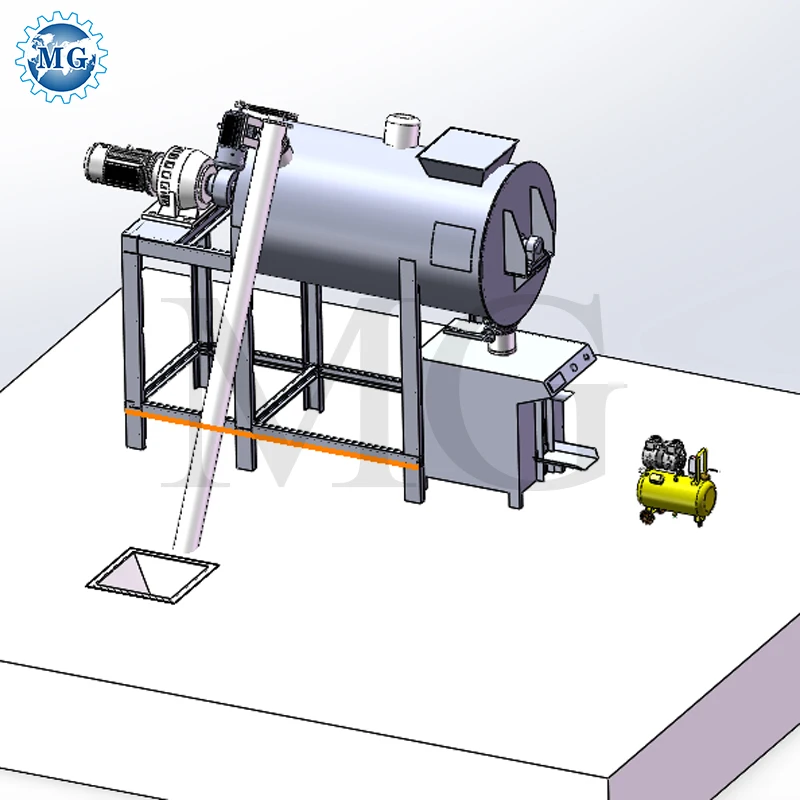

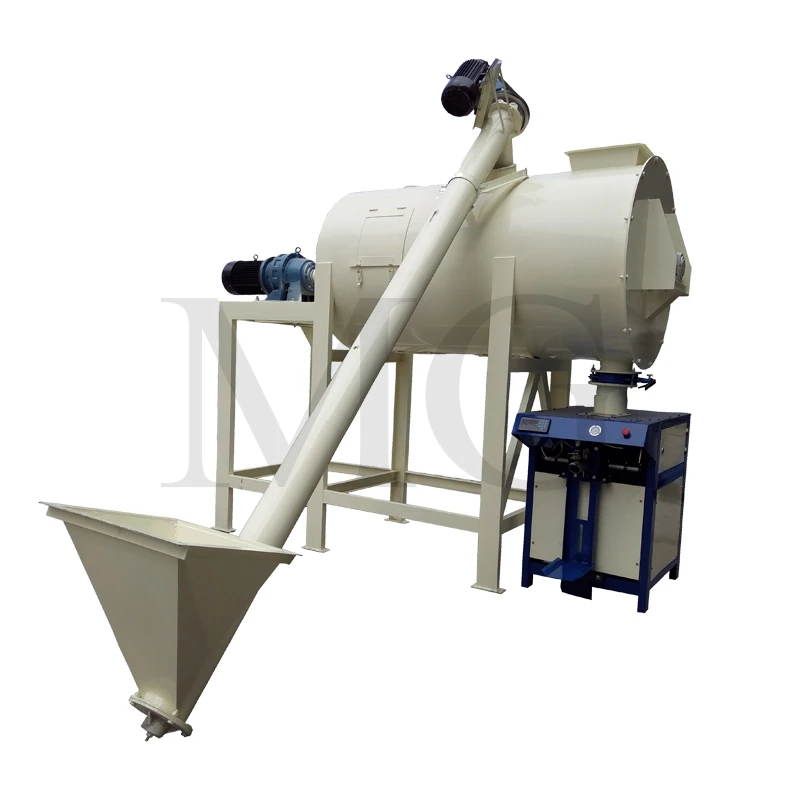

MG series simple dry mortar production line is designed based on the traditional mixer, and added a material conveying system, an automatic packaging machine. The well-mixed materials will go into the mixer by material conveying pipe, then will be packed into bags by automatic packing machine after mixed, and the mixer can be feeded consecutively and work continuously in flow line production, and the equipment is not over 3 meters high, thus solving the problem of heightening the workshop. Moreover, it can realize automatic metering and packaging,hence, it may not only save the time and energies but also may be more accurate. It requires little investment, but it may load,weight and package the materials automatically; no wondering, it is a simple but practical production line,especially for the starter.Compared with the standard simple dry mortar production line,this design reduces the silo and second screw conveyor machine,then its cost is even lower than the standard design,it is the most high cost-effective design,and it can work effectively and save more cost for customer.
Model | MGDM3.0 |
Output | 3 T/H |
Power | 17kw |
Size | 4000*3000*2000mm |
Manpower | 2-3 workers |
Package | Wooden case or 20GP container |
Application
1,Putty powder
2,Masonry mortar,
3,Thin and Smooth wall mortar,
4,Water proof mortar,
5,Plaster powder,
6,Wall plastering mortar,
7,Ceramic tile adhesive mortar,
Raw materials are: Cement, Sand, Flyash, Gelatine powder, Cellulose and Additives etc.
2,Masonry mortar,
3,Thin and Smooth wall mortar,
4,Water proof mortar,
5,Plaster powder,
6,Wall plastering mortar,
7,Ceramic tile adhesive mortar,
Raw materials are: Cement, Sand, Flyash, Gelatine powder, Cellulose and Additives etc.
Product Configuration
No. | Name | Configuration | Function |
1 | Screw conveyor with hopper | Dia:Φ165X3500mm | Feed the material to mixer |
2 | Ribbon mixer | mixing time:10-15min/batch | Achieve uniform mixing effect in relatively short time |
3 | Packaging machine | Model: Valve type Rang: 15-50kg adjustable packing speed: 5-6s/bag | Model: Valve type Rang: 15-50kg adjustable packing speed: 5-6s/bag |
4 | Air compressor | 0.25m³ | balance the are pressure |
5 | Control cabinet | Full set |

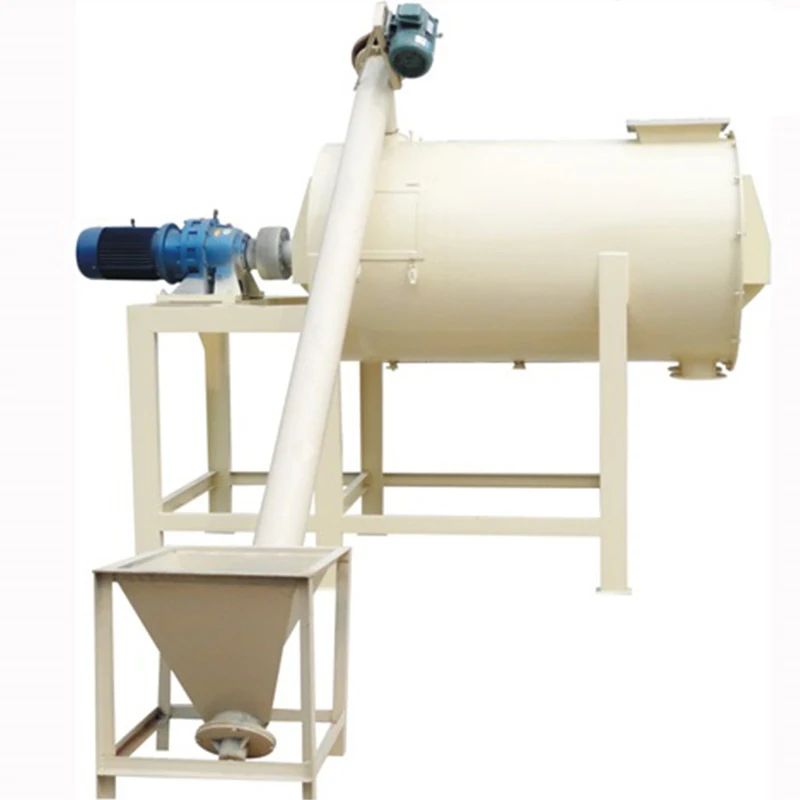

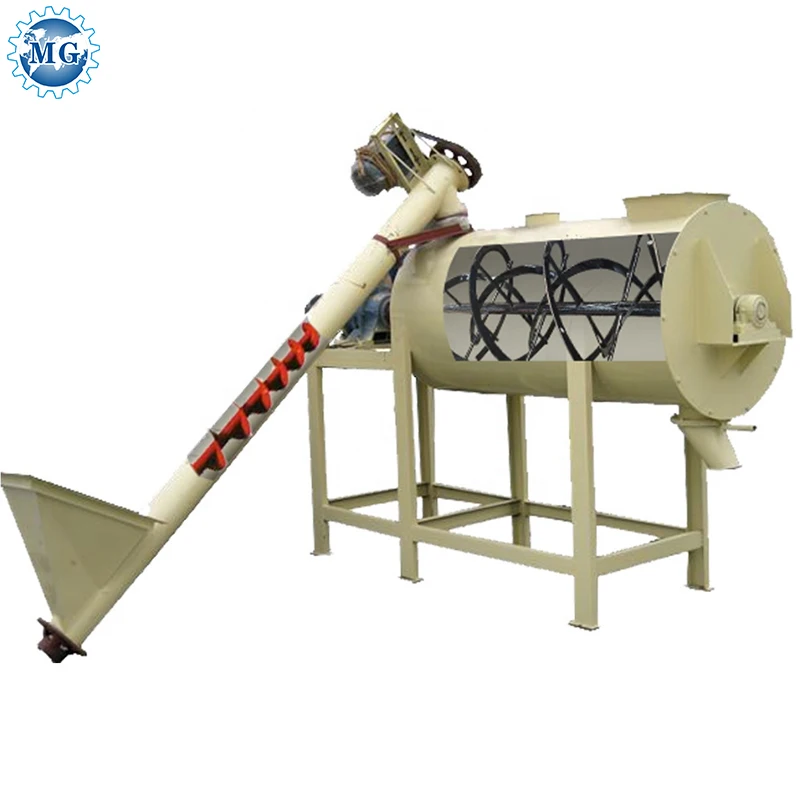

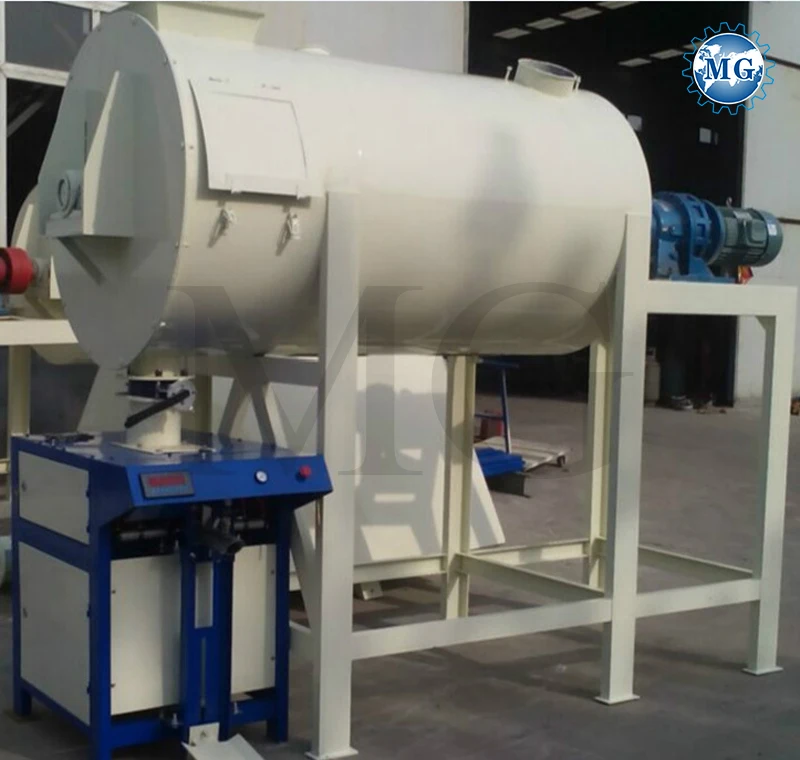

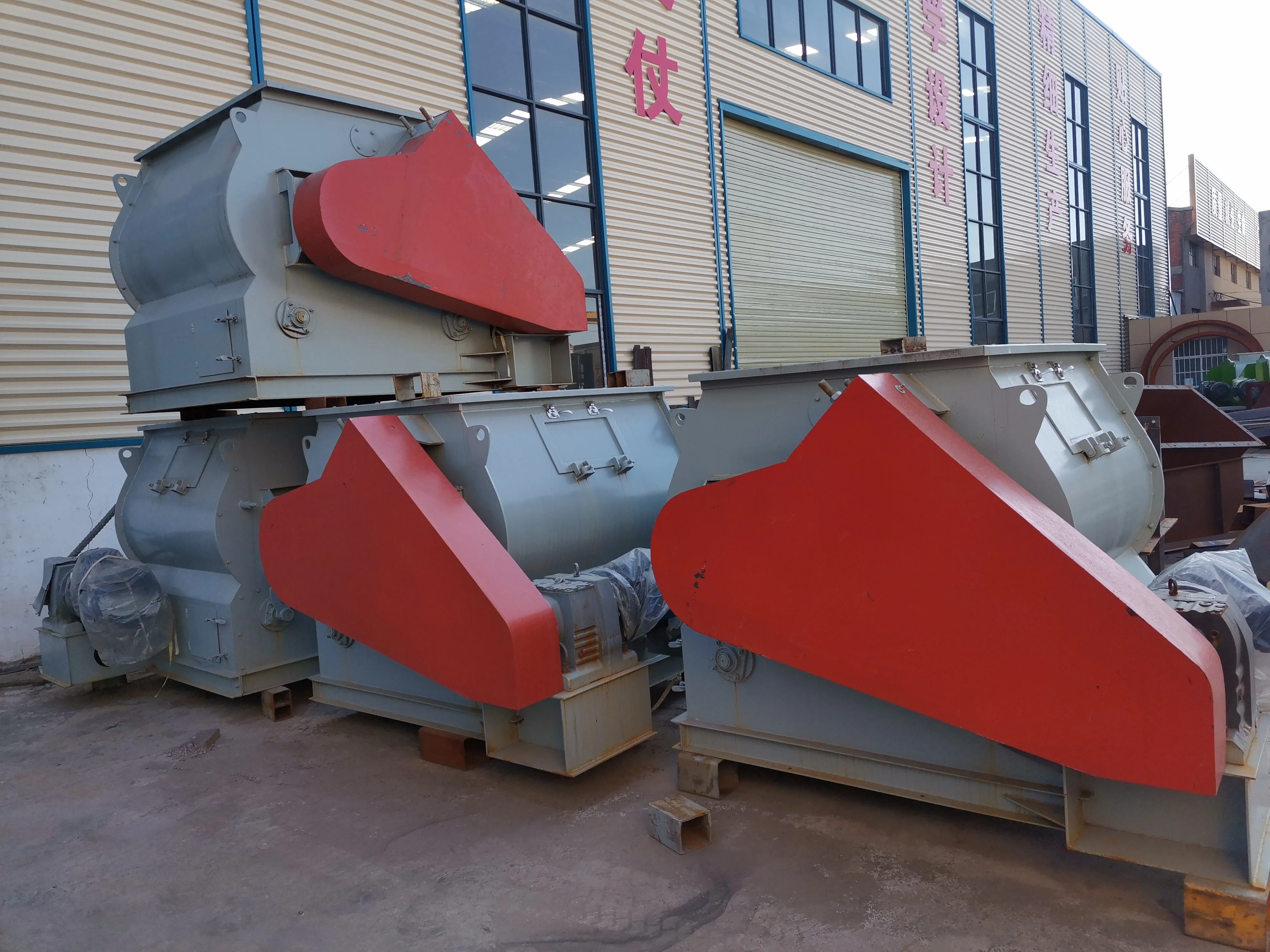

Screw Conveyor with Feeding Hopper and Spiral Ribbon Mixer..
The screw conveyor is Φ165X3500mm, feeding material into the mixer. Through rotating shaft at high speed, the outer and inner screw ribbon blades can turn over the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mixing the materials back and forth. In the same time,some material driven by screw ribbon do the radial motion,To achieve uniform mixing effect in relatively short time.The mixing time:10-15 min/batch.
Model | Power(kw) | Volume | Capacity(t/batch) | Capacity(t/h) | Size(mm) | Barrel Diameter(mm) |
MG1000 | 7.5 | 1.8 m³ | 1 T/batch | 3-4 T/H | 3300*1050*2100 | Φ1050 |
MG2000 | 11 | 2.8 m³ | 2 T/batch | 5-6 T/H | 3680*1200*2200 | Φ1200 |
MG3000 | 15 | 3.7 m³ | 3 T/batch | 7-8 T/H | 4032*1460*2455 | Φ1380 |
Automatic Packing Machine
Valve type automatic dry mortar packing machine, 15-50 kg/bag adjustable, the packing speed is 5-6 s/bag. Fast packing speed, high weighing accuracy, high degree of automation, and simple operation.
Packing Accuracy | >98% |
Weighing Range | 15-50 kg/bags adjustable |
Packing Speed | 4-6s/bag |
Working Technology | Impeller/Screw Type |
Power Supply | Customized Voltage and Frequency, 4KW |
Air Pressure Demand | 0.4 Mpa |
Bag Materials | Valve Type Paper/PP/Plastic |
Customers Visit Our Company
Certificates
Packaging & Delivery

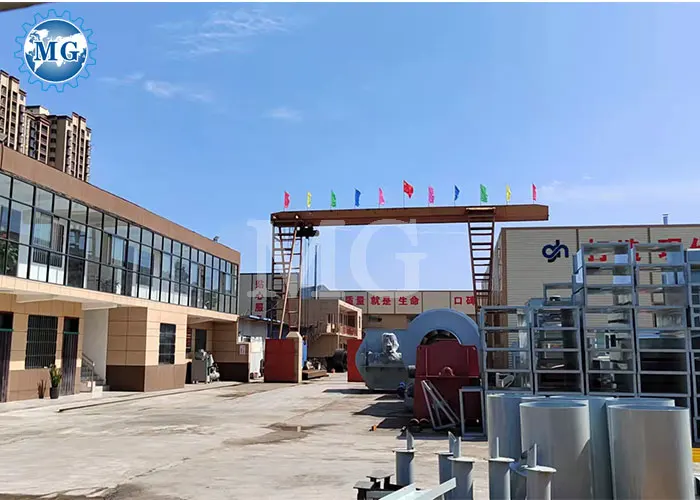

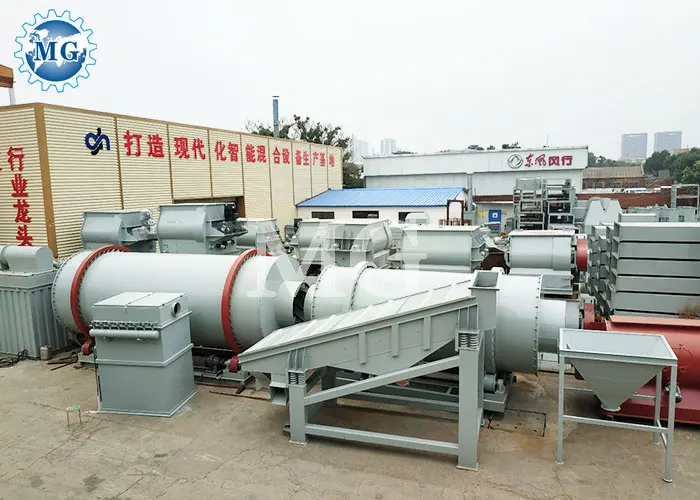

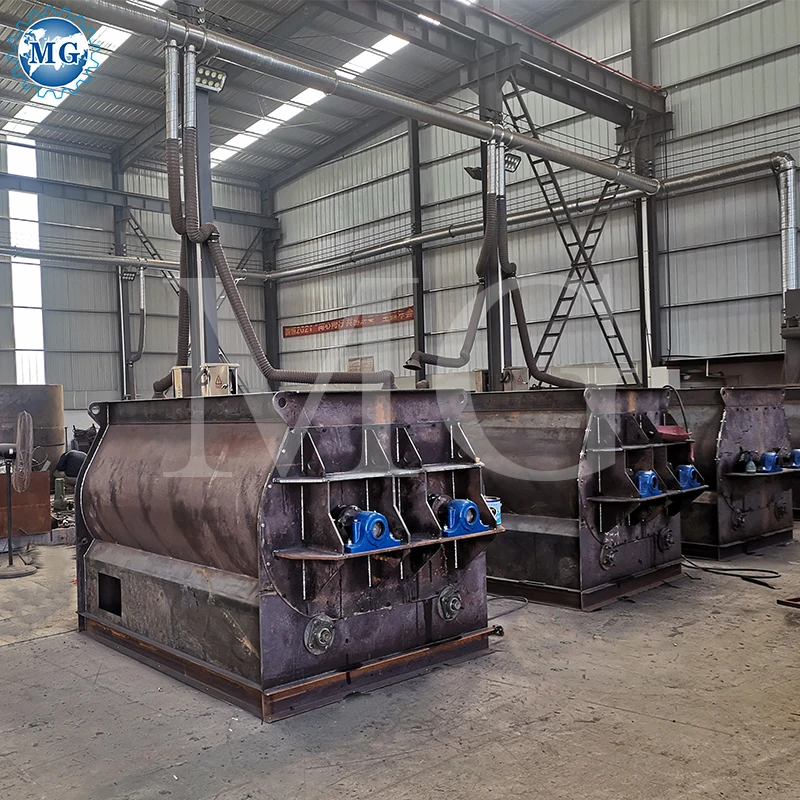

Our Company
Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.
The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer powder blending machine,impulse dust collector,automatic packing machine,and so on.
The company has obtained several national design patents and passed ISO 9001:2008 certification. We promise to all customers that:as soon as you choose our services and products,we will provide you the top quality product,latest technology in mortar formula,and special additives.
According to the actual situation of each customer(investment costs,plant conditions,material characteristics,product formula,etc.),the company can tailor a reasonable practical and efficient equipment solutions for customers.
MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 50 countries,such as Canada,Russia,Korea,Malaysia,the United Arab Emirates,Argentina,Chile,Ecuador,Morocco,South Africa,Nigeria,etc.
MG will be willing to work with you to seek common development and create brilliance.
Welcome to inquiry on our products.
FAQ
1.What product can this production line make?
Our automatic dry mortar production line can make all kinds of dry mortar,such as wall putty,plaster,skim coat,ceramic tile adhesive,and so on.
2.What is the attentions we should pay when we use ceramic tile adhesive?
1).Because the adhesiveness of the tile adhesive is very large, it is necessary to pay attention to stirring evenly when using it.It is best to use an electric mixer for stirring, which can better ensure the uniformity of the tile adhesive.
2).When using tile adhesive, pay attention to protective treatment to avoid the phenomenon of tiles falling off, especially in rainy days, do not directly contact with tile adhesive to avoid reducing the adhesiveness of tiles.
3.Do you have your own factory?
We have our own factory. Located in Zhengzhou City, Henan Province, China, welcome to visit our factory.
In addition, we have long-term cooperative relationships with some excellent raw material suppliers to ensure that the prices of the products we supply are lower than other foreign trade companies.
4. What should we do if the mixer rotates hard?
2.What is the attentions we should pay when we use ceramic tile adhesive?
1).Because the adhesiveness of the tile adhesive is very large, it is necessary to pay attention to stirring evenly when using it.It is best to use an electric mixer for stirring, which can better ensure the uniformity of the tile adhesive.
2).When using tile adhesive, pay attention to protective treatment to avoid the phenomenon of tiles falling off, especially in rainy days, do not directly contact with tile adhesive to avoid reducing the adhesiveness of tiles.
3.Do you have your own factory?
We have our own factory. Located in Zhengzhou City, Henan Province, China, welcome to visit our factory.
In addition, we have long-term cooperative relationships with some excellent raw material suppliers to ensure that the prices of the products we supply are lower than other foreign trade companies.
4. What should we do if the mixer rotates hard?
The main function of the dry powder mortar mixer is to mix and stir various raw materials in the tank. If the dry powder mortar mixer is difficult to stir, there are generally two reasons. One is the lack of power. Another reason for using a small mixer or using a low-speed mixer is that the amount of water added is insufficient. Enough water must be added in accordance with the production ratio so that the machine can run normally.
5. What should we do if there is material agglomeration?
The agglomeration of materials may be the reason that too many materials are stirred and input at one time during operation. We can place the agglomerated materials statically for two or three minutes, and the materials will loosen by themselves. Another reason may be that the storage time of the production materials is too long. , or the external conditions of material storage are not up to standard, in this case we can only replace the material, and then pay attention to the storage space of the raw material in the
next production must be kept dry and ventilated.
next production must be kept dry and ventilated.
6. What should we do if the mixer doesn't mix the material average?
The reason for the uneven mixing of dry mortar may be that the operator put the material first and then add water, and the second may be that the size or power of the mixer selected by the user is not suitable. In order to ensure the good mixing effect of the machine, the user not only The materials need to be put in in
the normal order, and at the same time, the appropriate mixer should be selected according to the production needs.
If you want to know more of our dry mortar plant, please send us inquiry or leave your contact number for us.
the normal order, and at the same time, the appropriate mixer should be selected according to the production needs.
If you want to know more of our dry mortar plant, please send us inquiry or leave your contact number for us.
