ORL high quality oil heater boiler superheater with low price

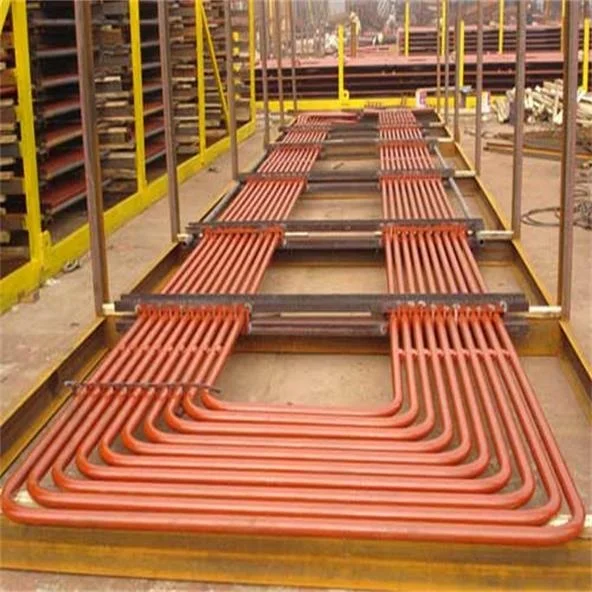

The Steam Superheater is a coil type heat exchanger which is used to produce superheated steam or to convert the wet steam to dry steam, generated by a boiler. It is different from a boiler in a way that, boiler utilizes both sensible heat as well as latent heat to convert water into steam while superheater utilizes only sensible heat to superheat the steam in order to increase its enthalpy.
Platen superheater
The platen superheater is composed of steel pipe with outer diameter of 32 ~ 42mm and header, which is generally suspended at the upper part of furnace or furnace outlet. The number of tubes in each screen is generally 15 ~ 30, which is determined according to the required steam flow rate.
Serpentine Superheater
The outside diameter of the pipe is generally 30-60mm. The convection superheater is the most commonly used, and the serpentine tube type is adopted. It has a relatively dense tube group, which is arranged in the flue of 450-1000 ℃ flue gas temperature, and is subject to the transverse and longitudinal erosion of flue gas. The flue gas mainly transfers heat to the pipe by convection, and some of it absorbs heat by radiation.
Product Paramenters
Description | Boiler superheater |
Material | Alloy steel, Carbon steel etc. |
Material Standard | ASTM, EN or ISO etc. |
Structure Type | Tube Coil |
Dimension | Customized |
Supply Ability | 500 ton per month |

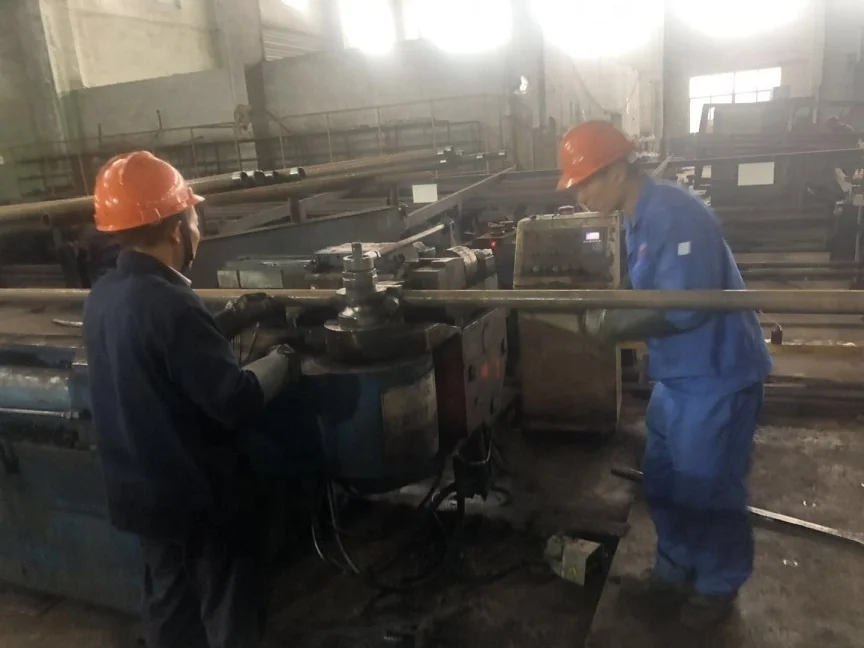

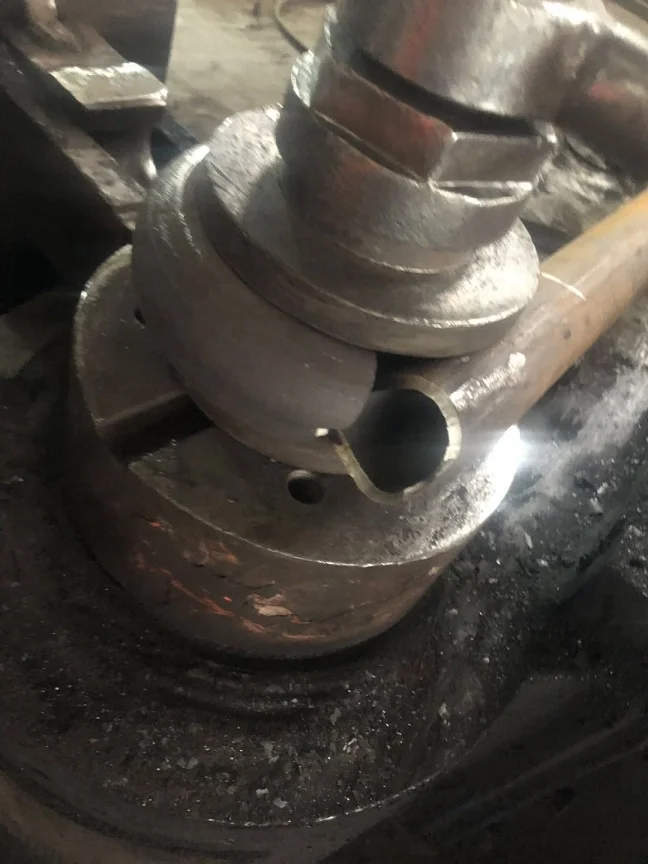

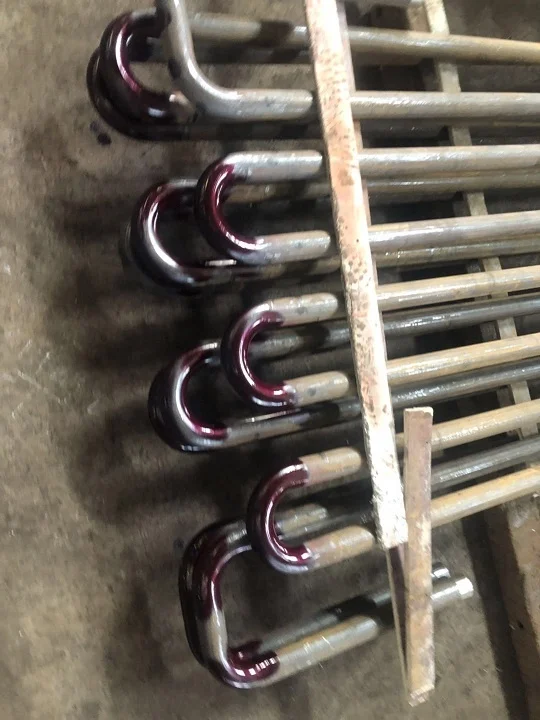

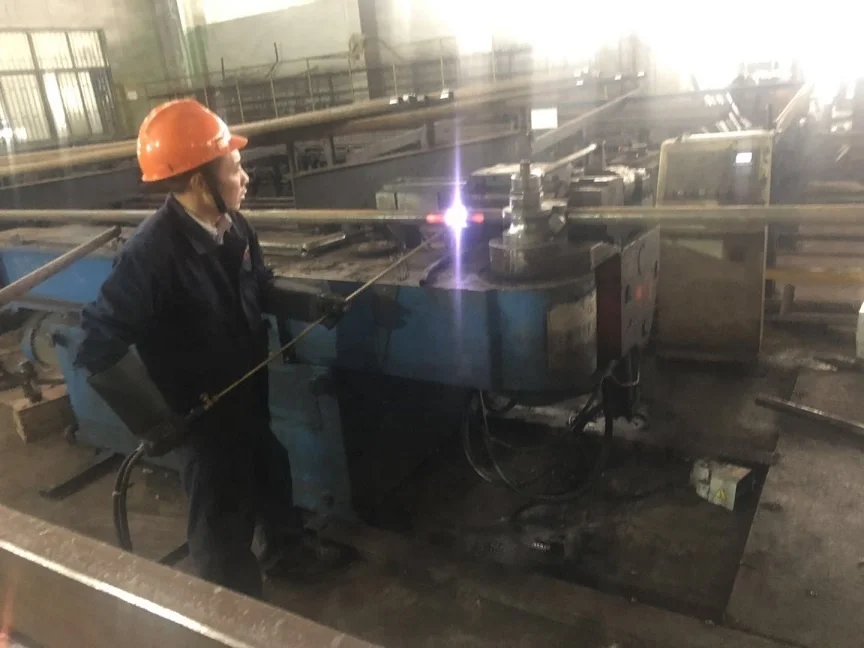

Manufacturing Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging |
Thermal Efficiency | Around 95% |
