PPL 150E High Speed Aluminum Plastic Blister Packing Machine For Capsules Candy Blister Packing Machine
- Category: >>>
- Supplier: PAG Pharmatech Co. Ltd. Sz
Share on (1600469175287):
Product Overview
Description
Product Description
Main Application

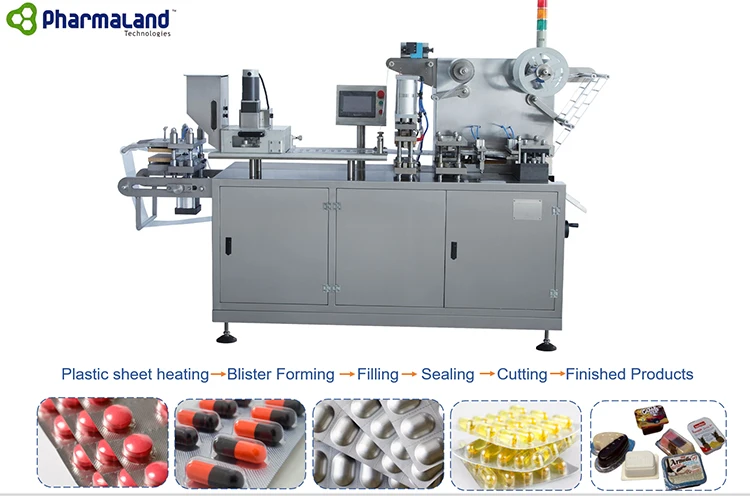

PPL-150E multi-functional automatic blister packaging machine has innovative design. Suitable for packing of tablets, candy,capsules and small metal parts and electronic components. The machine integrates the functions of material unwinding, aluminum feeding, blister forming, filling material, waste recycling, plastic heat sealing, printing batch number, texture indentation, forum cutter display etc. The sealing effect is good, safe and healthy.
Main Performance and Feature
1. With frequency stepless speed regulating, the punching frequency reaches 15-35times per minute.
2. The stroke can be adjusted within 40-120mm, which is easy to adjust with correct synchronization.
3. Adopts plate-type mould, positive-pressure forming, featured by batch number printing,creasing and cutting,aluminum-foil/plastics automatic feeding, automatic alarm for broken—piece and finished-piece and automatic stop etc.
4. Equipped with one set general feeder,which filling percentage reaches 99.5 and above. The feeder is fitted with dust exhaust joint so can overcome the dust problem duting feeding.
5. Adopts registering matching heating so that can reduce the heat energy loss of heater to the least, and the required temperature will be greatly reduced.
Technical Parameters
Cutting fequency | Al-plastic:15-35Times/min |
| Travel Range | 40-120mm (Adjustable) |

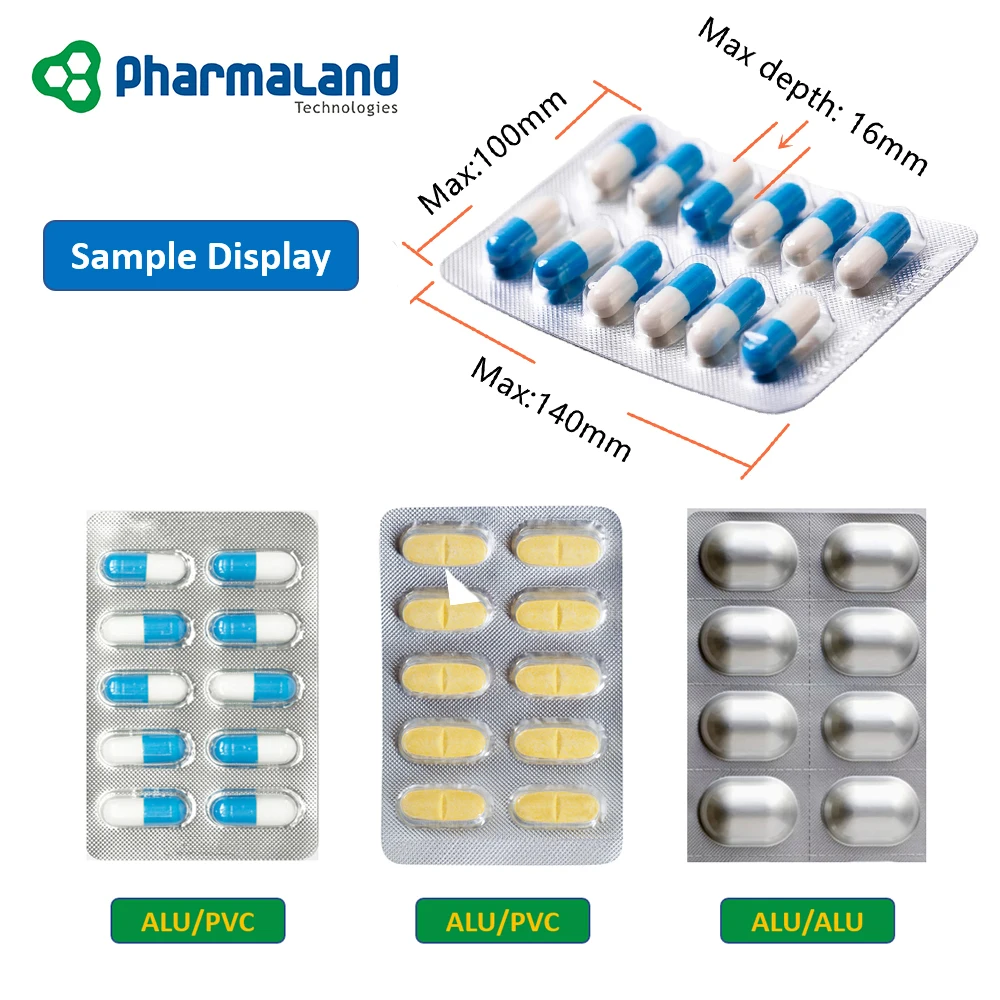

| Max forming area | 140×100mm |
| Max Forming Depth | 16mm( Can be customized) |
| Main motor power | 1.5kw |
| Upper heating power | 0.8kw |
| Lower heating power | 0.8kw |
| Heat sealing heating power | 0.7kw |
| Air volume flow | ≥0.2m³/min |
| Air pump pressure | 0.4-0.6Mpa |
| PVC | 0.25×150mm |
| Aluminum foil | 0.02×150mm |
| Weight | About 620kg |
| Overall dimensions | 2450×570×1550 mm |
Detailed Images
Delivered Project
Related Products
Company Information
Pharmaland Technologies Ltd, is a Canada company that was found in 2005 in Toronto with a version to offer affordable quality pharmaceutical and nutraceutical equipments and technical supports to our customers in Pharmaceutical, nutraceutical and food industries. With a global source of technologies and partnerships with those strategic manufacturers mainly in China, Pharmaland offers those most competitive products of the latest technologies with the world leading brand value.
Pharmaland Technologies’ machines are designed and developed with concepts and standards of Canadian mechanical quality and safety, and built up from our facilities of jointed venture and strategic partnership globally, mainly from those leading Pharmaceutical machinery manufacturers in China to offer solid, dependable, affordable and build-in last and long durations of production and package need.
We have our technical support team both in Toronto and Shenzhen China. We have our workshop, showroom and training center as well as parts inventory warehouse in China to provide our prompt service to global customer need.
Our commission is to offer pharmaceutical and nutraceutical manufacturing machinery with advanced technologies at an affordable price, reliable technical supports.
Packaging & Shipping
FAQ
Q1: How can you ensure the machines’ quality?
A1: Our factory is equipped with high precision lathe, and we only adopt superior material and leading brand components, the machines are designed in accordance with GMP standard.
We have very strict internal inspection during production and before shipment, will provide photos and testing video before shipment to our clients, the machines have one year warranty but life time service
Q2: Will validation documents provided?
A2: Yes, we can provide full set documents, IQ, OQ,PQ etc.
Q3. Any certificate you can provided?
A3: ISO9001. CE and GMP approved.
Q4: What kind of after-sales service you can provided?
A4: 1. We offer 12 months warranty and lifetime technic service
2.here is any technic problem, we will response within 24 hours by email or over phone, if problem can’t be solved on-line, we can arrange technician to provide on-site service.
Q5: Can you provide customized manufacture?
A5: Yes, we have professional technician team to provide customized solutions, just share with us your request for evaluating.
Q6. How can I trust you for first time cooperation?
A6: We can share with you our business license
Our main Alibaba shop has 15-years experienced .
It is workable for Alibaba trade assurance service for all orders.
You are warmly welcomed to our factory for visiting or machines audit at any time.
