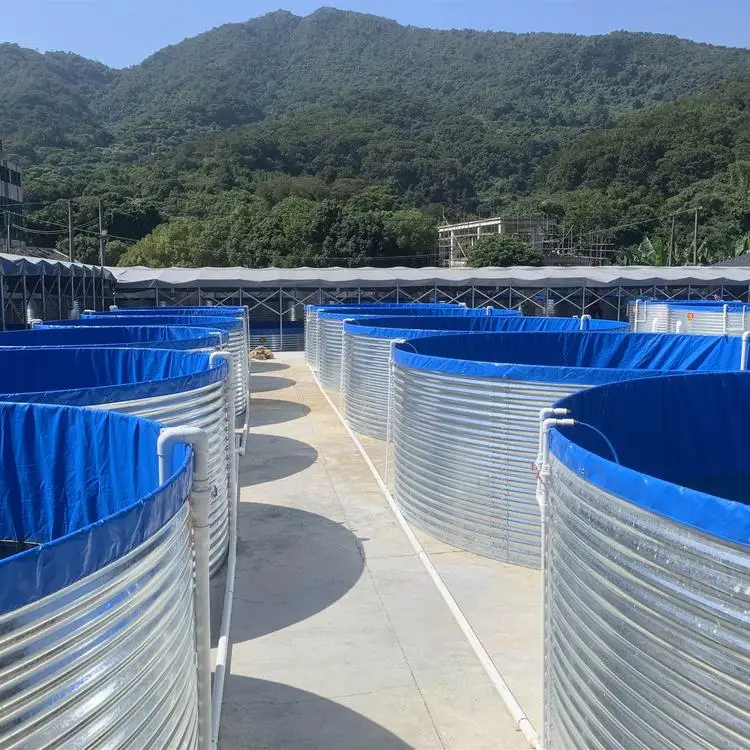

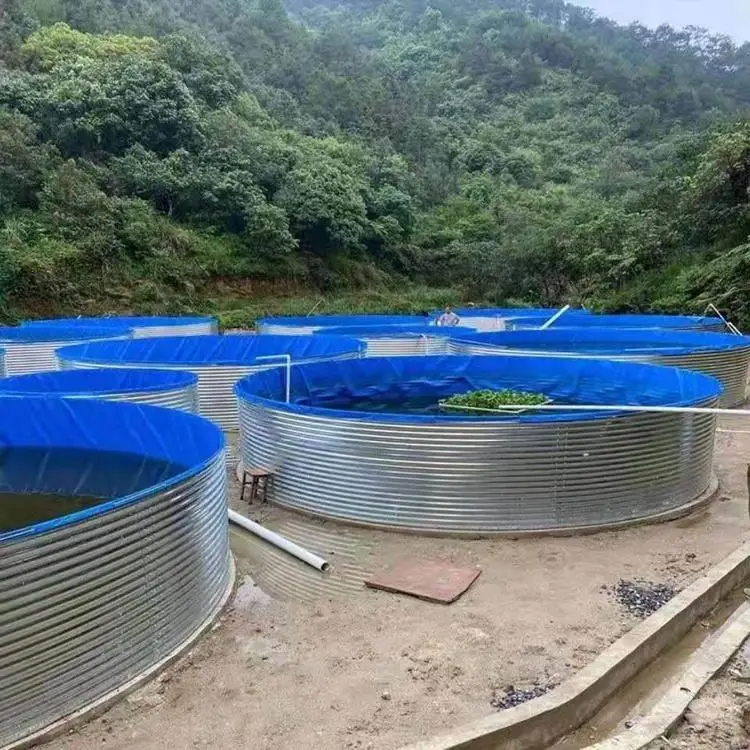

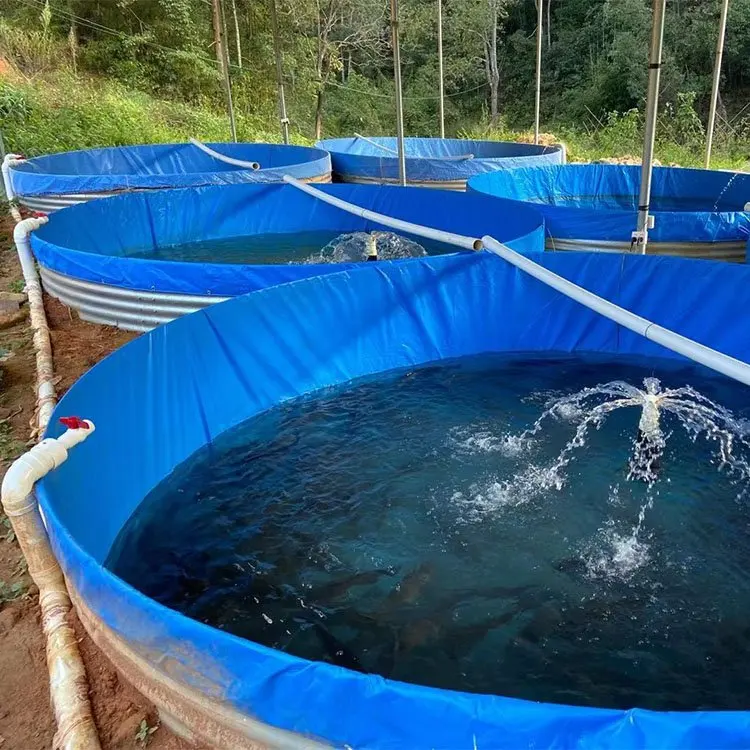

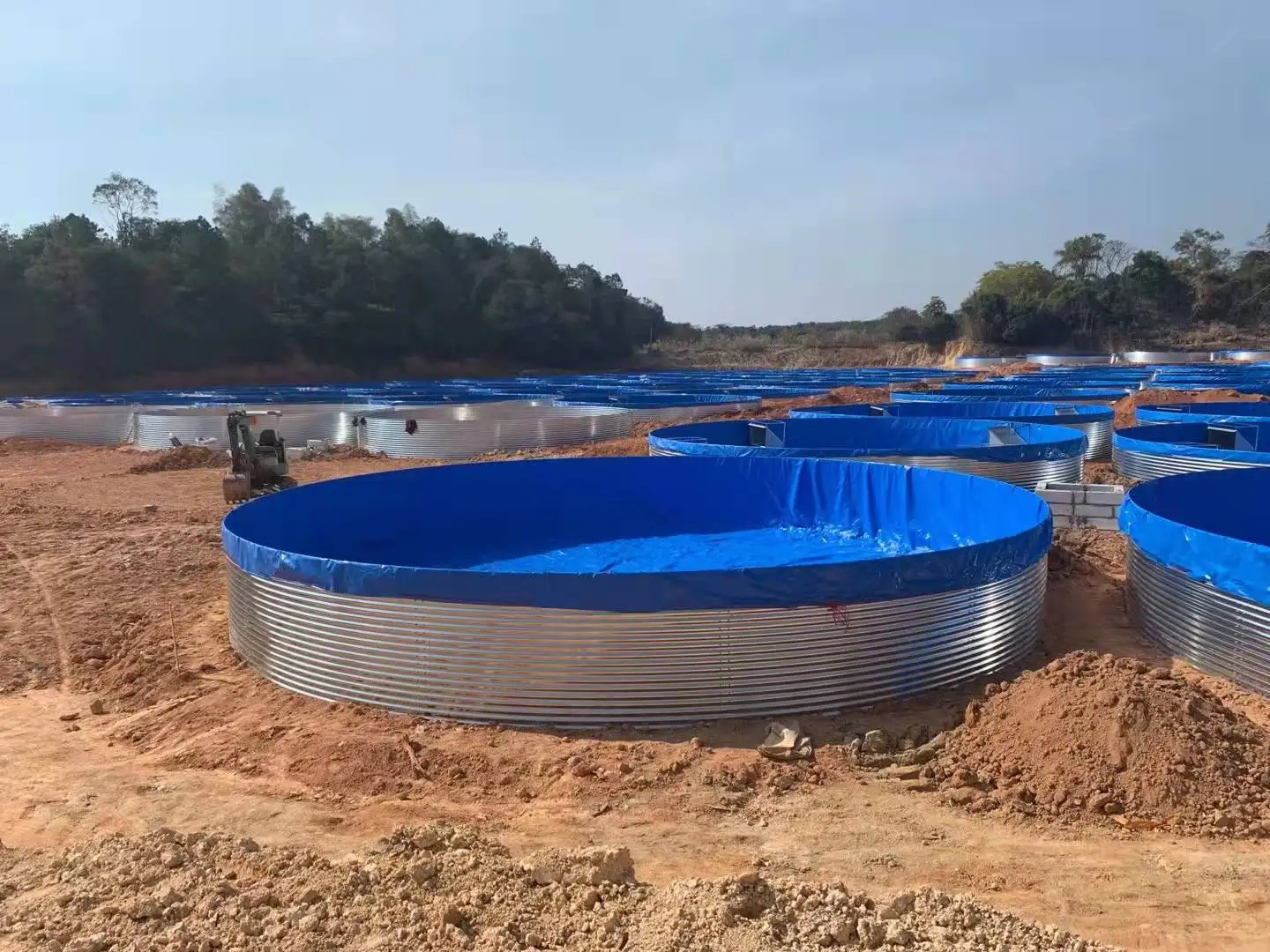

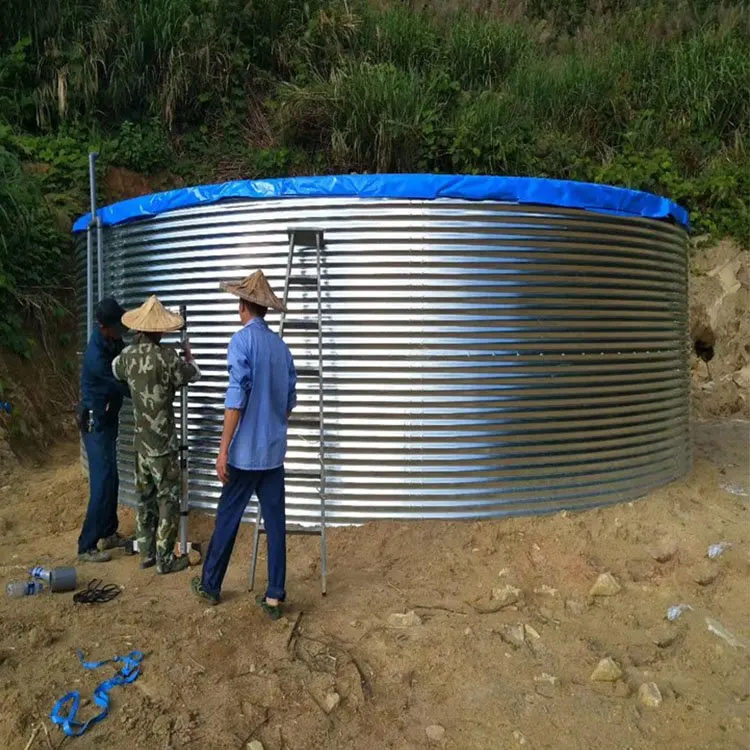

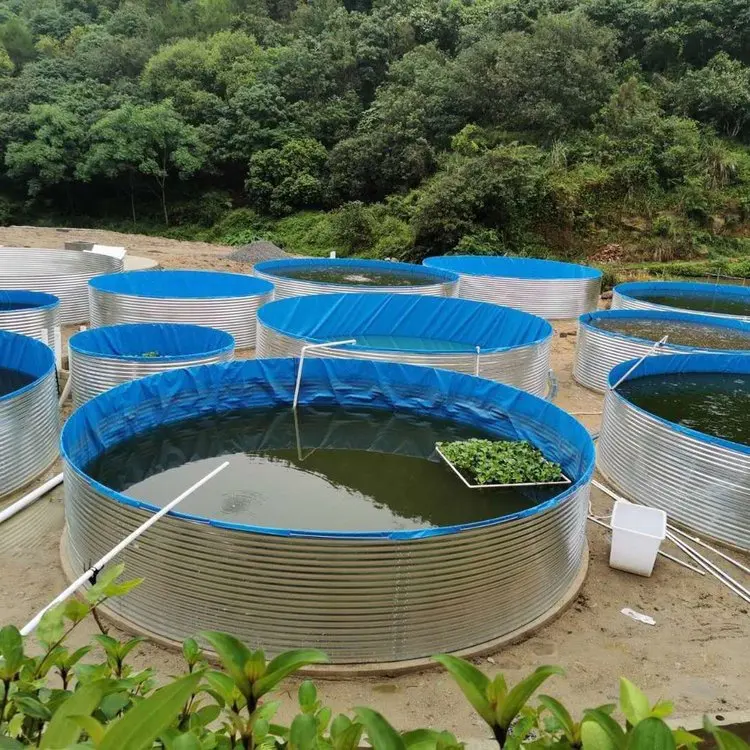

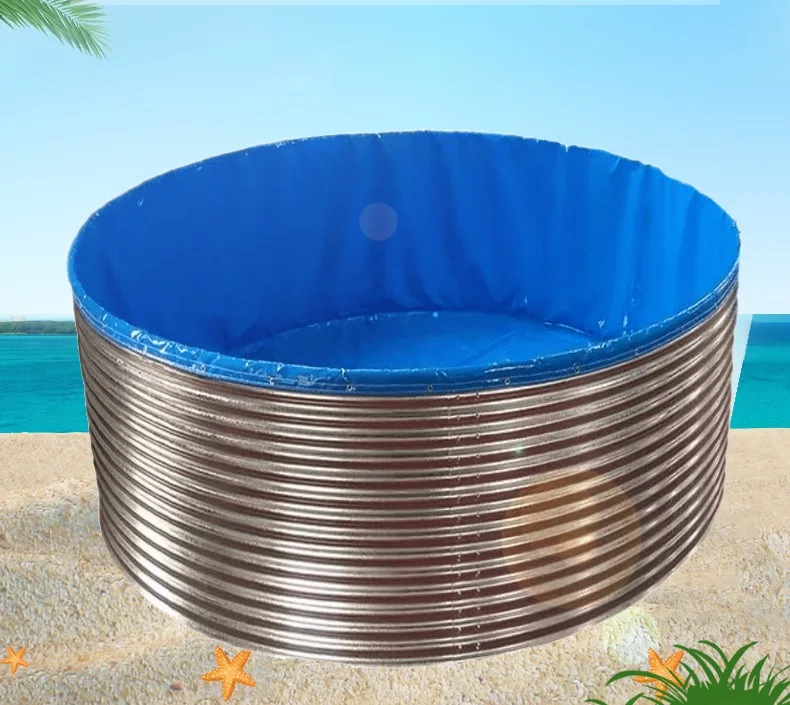

PVC lining +Galvanized steel panel support fish pond, water storage tank | ||||||||
Size | Volume (CBM) | |||||||
Diameter (m) | Height (m) | |||||||
3 | 0.95 | 6.7 | ||||||
1.15 | 8.1 | |||||||
1.45 | 10.2 | |||||||
4 | 0.95 | 11.9 | ||||||
1.15 | 14.4 | |||||||
1.45 | 18.2 | |||||||
5 | 0.95 | 18.6 | ||||||
1.15 | 22.5 | |||||||
1.45 | 28.4 | |||||||
6 | 0.95 | 26.8 | ||||||
1.15 | 32.5 | |||||||
1.45 | 40.9 | |||||||
7 | 0.95 | 36.5 | ||||||
1.15 | 44.2 | |||||||
1.45 | 55.7 | |||||||
8 | 0.95 | 47.7 | ||||||
1.15 | 57.7 | |||||||
1.45 | 72.8 | |||||||
9 | 0.95 | 60.4 | ||||||
1.15 | 73.1 | |||||||
1.45 | 92.2 | |||||||
10 | 0.95 | 74.5 | ||||||
1.15 | 90.2 | |||||||
1.45 | 113.8 | |||||||
11 | 0.95 | 90.2 | ||||||
1.15 | 109.2 | |||||||
1.45 | 137.7 | |||||||
12 | 0.95 | 107.3 | ||||||
1.15 | 129.9 | |||||||
1.45 | 163.9 | |||||||
13 | 0.95 | 126 | ||||||
1.15 | 154.9 | |||||||
1.45 | 192.3 | |||||||
14 | 0.95 | 146.1 | ||||||
1.15 | 176.9 | |||||||
1.45 | 223 | |||||||
15 | 0.95 | 167 | ||||||
1.15 | 203 | |||||||
1.45 | 256 | |||||||
16 | 0.95 | 191 | ||||||
1.15 | 231 | |||||||
1.45 | 291 | |||||||
17 | 0.95 | 215 | ||||||
1.15 | 260.8 | |||||||
1.45 | 328.9 | |||||||
18 | 0.95 | 241.6 | ||||||
1.15 | 292 | |||||||
1.45 | 368.7 | |||||||
19 | 0.95 | 269.2 | ||||||
1.15 | 325.8 | |||||||
1.45 | 410.9 | |||||||
20 | 0.95 | 298 | ||||||
1.15 | 361 | |||||||
1.45 | 455 | |||||||

PVC Lining Fish Pond Parameters | ||||||||

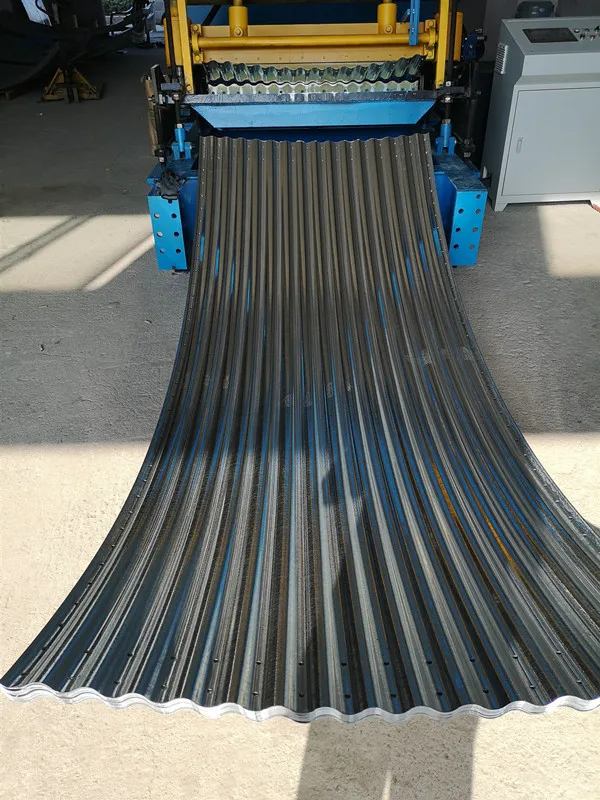

Support Panel | 1 | Thickness of corrugated galvanized steel panel | 1mm | |||||
2 | Zinc layer thicknes of steel panel | 110g | ||||||

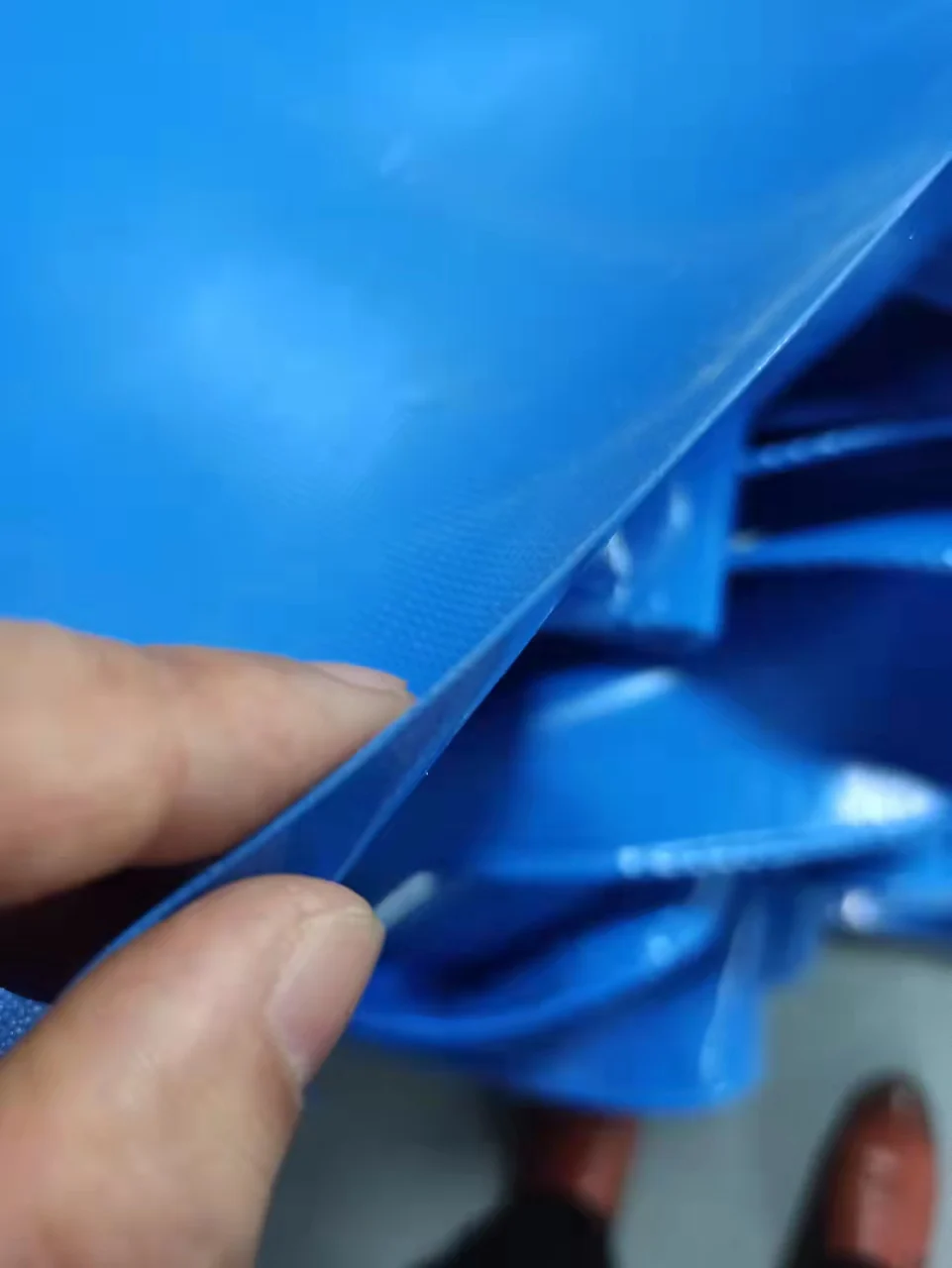

PVC lining | 3 | Thickness | 500g/550g/600g/650g /750g/900g/1000g | most popular:650g; | ||||

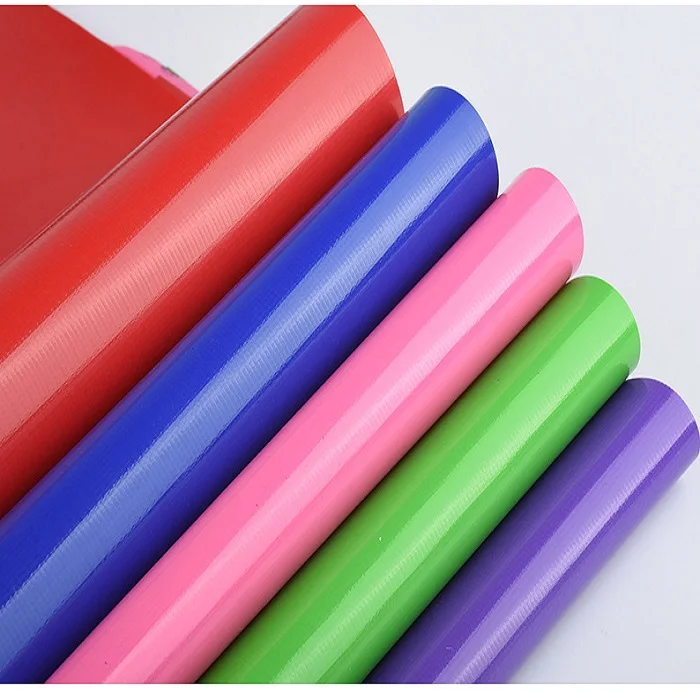

4 | Color | Green, white, blue, yellow, red, army green, orange, gray-blue, black. | most popular:blue; | |||||
