JPSK CNC hydraulic busbar machine for Industrial transformer

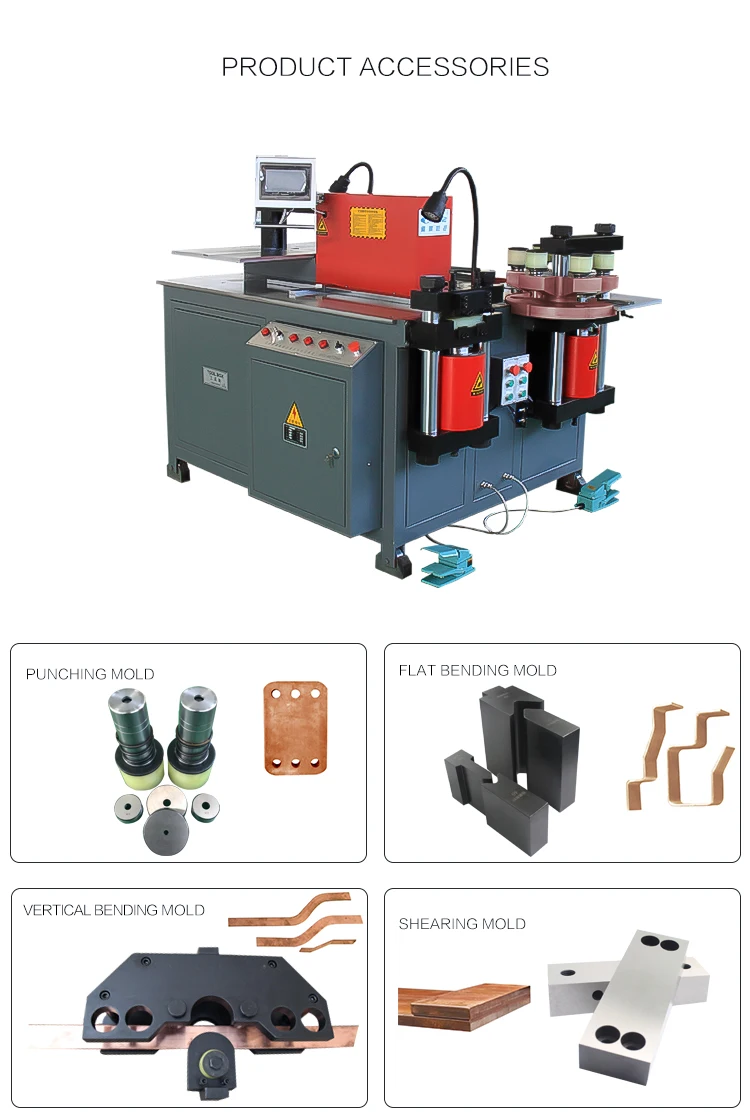

Appearance of JPMX-503ESK CNC busbar processing machine:

Application of JPMX-503ESK CNC busbar processing machine:

This machine is for copper/aluminum busbar bending, punching and shearing.

This machine is widely used in high-low switchgear manufacturing, electrical control panels building, power station establishment etc.

Main characteristics:

1. The shearing unit use sharp shearing, the incision interface is flat, no droop and burrs and waste.

2. The punching unit used an united six-mode turnplate in tooth shape to make sure the upper mold

and the lower mold are absolutely in the center. Improve the ,p;d concentricity and lengten the working life. The turnplate is in tooth shape with good view and high strength. No need to frequently change molds, labor intensity is highly reduced. it is wasy and quick to use. Producing efficiency is obviously higher than a traditional one.

3. The bending unit uses a double-decker working table,which can make sure that three working positions can do their only operation at same time without interfere the others. By changing different mold,it can do falt bending and vertical bending.CNC controls the bending angle by an imported PLC control system.Input a busbar thickness and an angle on a CNC touching screen,or input a height and a side length to get the result what you need,such as Z bending.Bending precision is ±1°, repeat precision is ±3°.The User can input the pressing data in advance,abd the system will do the process according to the inputted data.The field data can be put into the system at any time and be paged out for using repeatedly.

4. The machine has four casters, so it is easily to be moved everywhere. There are two operating modes, manual button and foot switch button, which is easily for worker to operate and use. Based on users requirement, it can do all kinds of special shape processing with different molds or equipping parts.

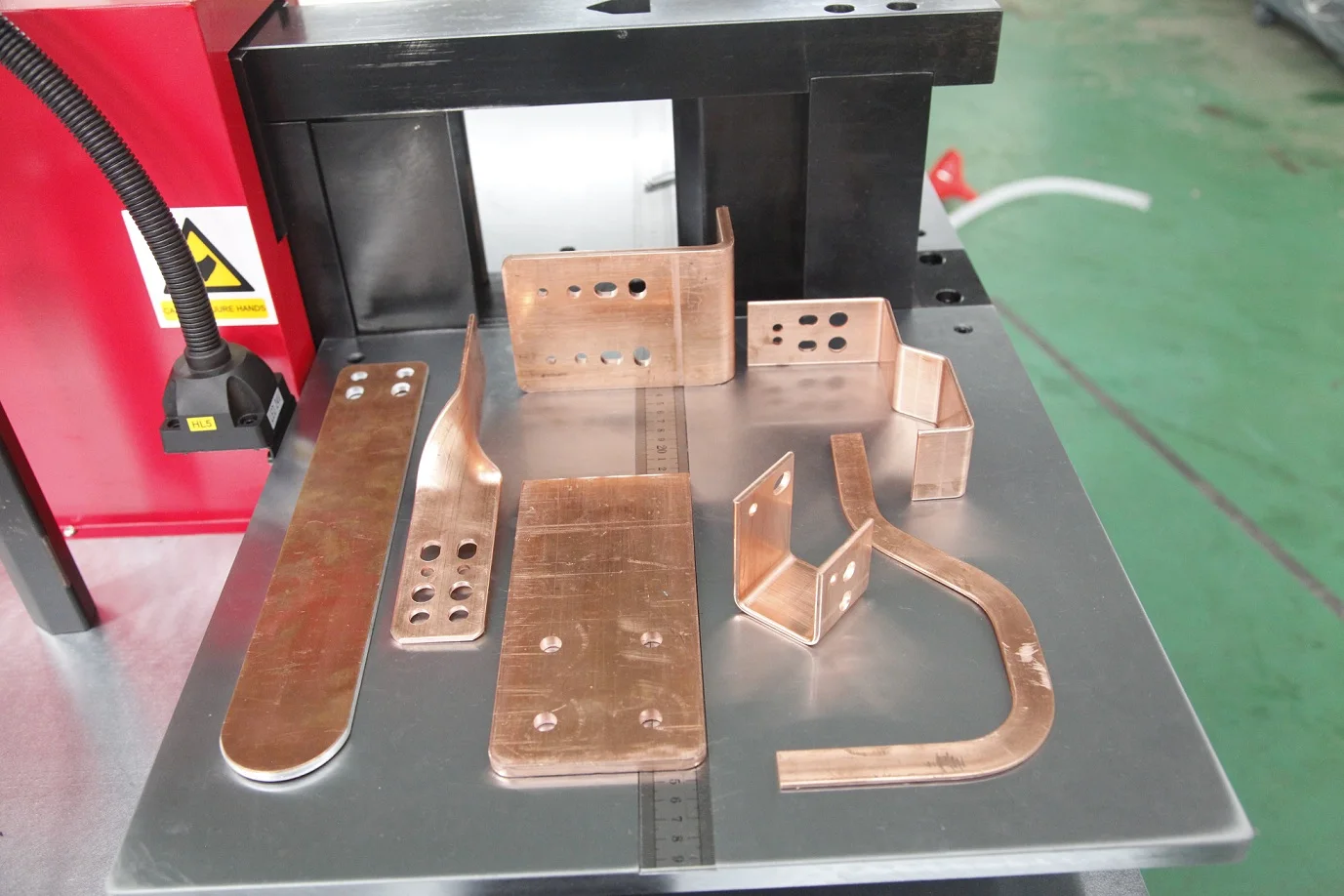

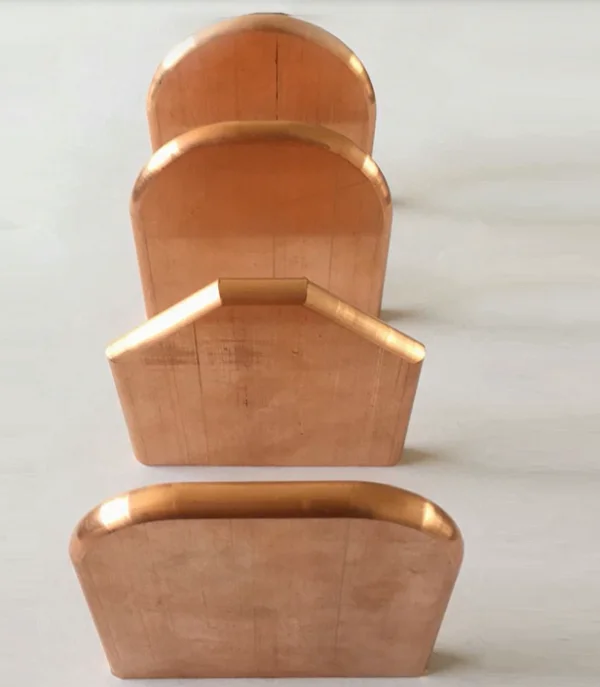

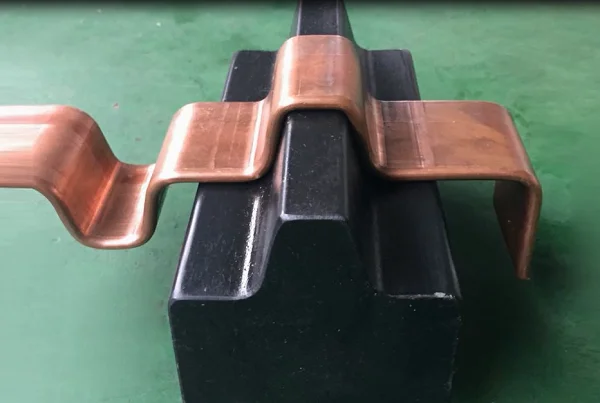

 The processing samples as following,

The shearing or cutting unit

The punching unit

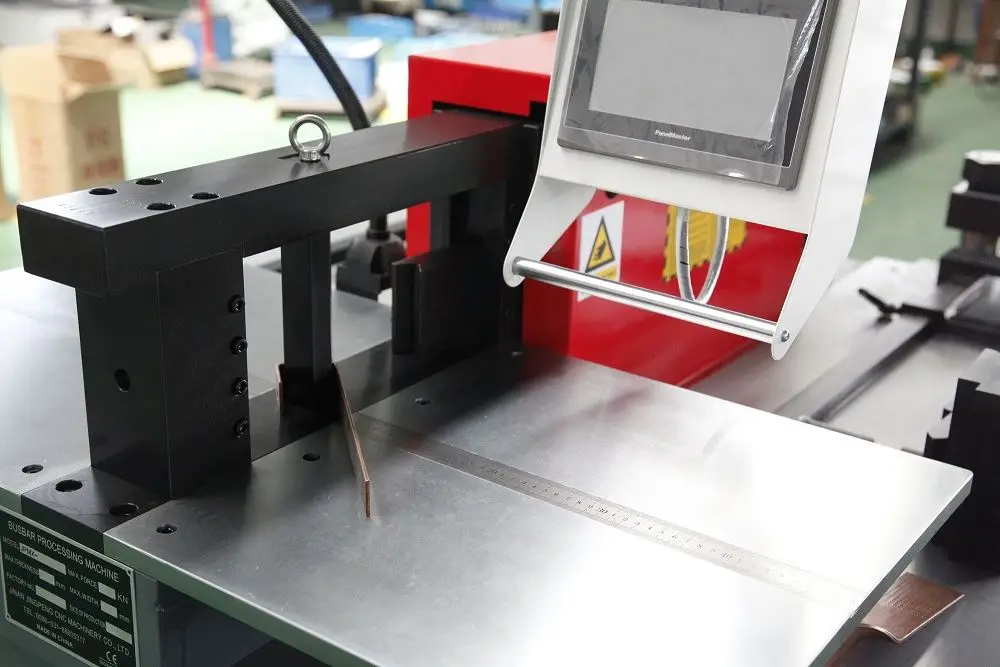

The bending unit

The technology parameters of JPMX-503ESK CNC busbar processing machine:

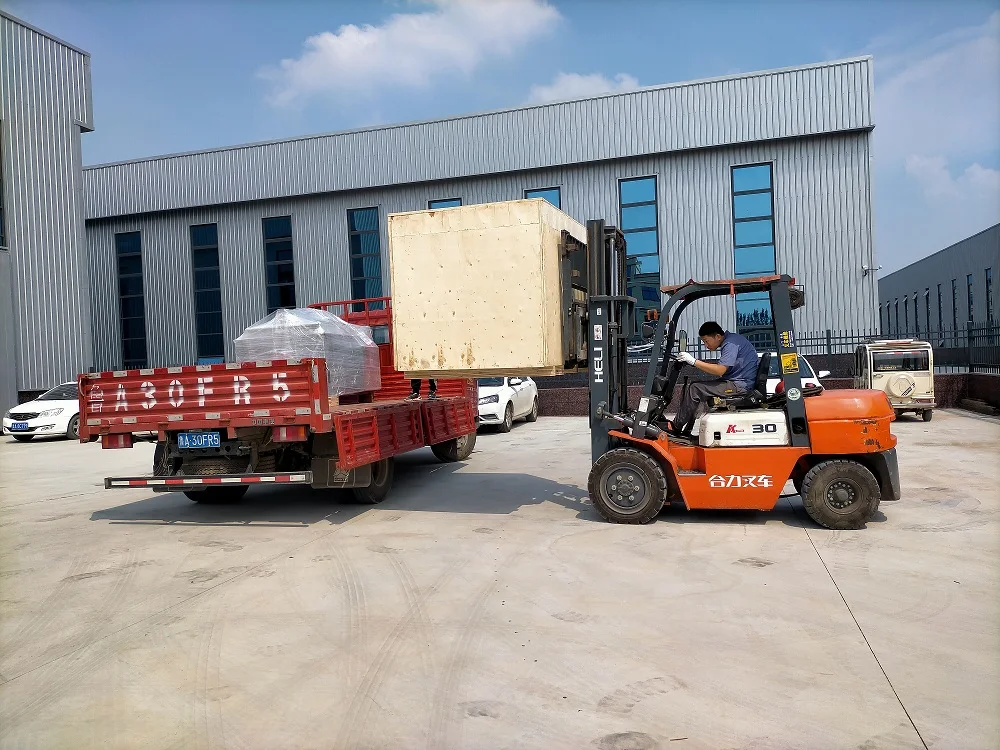

 Firstly, the JPMX-503ESK CNC busbar processing machine is to be packed with plastic sheet for cleaning and damp proofing.

Secondly, fasten the machine into the wood case for safety and against clashing.

 2.  What is your delivery time?

Usually within 7 days after the deposit.

3.  What is your power supply?

We will adjust according to your countries power supply. No problem.

4. What is your Min order quantity?

One set. Our customers can be end users, retailers and wholesalers.

5. If I buy your CNC busbar processing machine, will you offer me PLC backup?

Yes, we will.

6. Are all the Labels and instuctions of the machine in English?

Yes. the labels on the machine and the manuel books are all made in english version.

7. Besides this machine, do you have any other options for me?

We have dozens of options for you:

CNC busbar machine; Non- CNC busbar machine, combined busbar machine,

busbar cutting tools, busbar bending tools, busbar punching tools.

hydraulic pumps, hand pumps etc.

Please contact with us to know more informations!

8. What is your requirement for exclusive / sole agent?

We are looking for sole agent in world market.

We need to test the credit and the monthly quantity of the importers.

If the importer credit is good and reliable. And the monthly order quantity meet local market demand. We will come to further association.
