Промышленный V образный ремень Baopwer SPZ,SPA,SPB,SPC,3 в, 5 В, 8 в
- Category: >>>
- Supplier: Zhejiang Powerbelt Co. Ltd.
Share on (1600469190968):
Product Overview
Description
Product Description

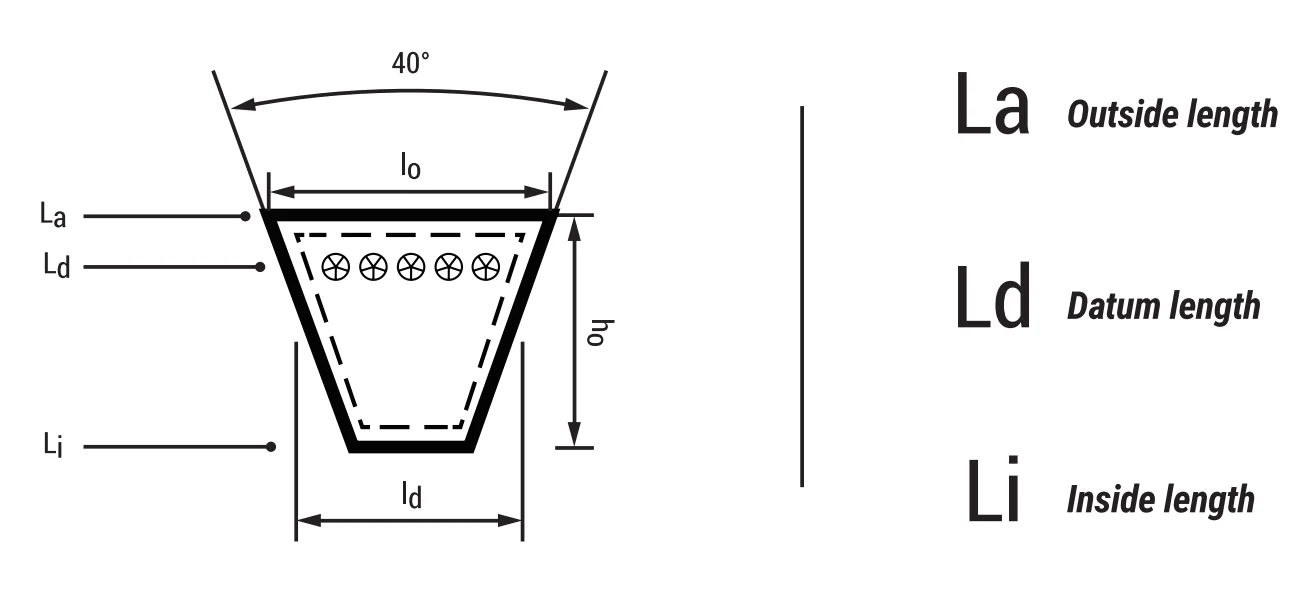

La: Outside length
Ld: Datum length
Li: Inside length
Product Description
1.Heavy duty fabric with high wear resistance
2.High transverse rigidity, hing transimission efficiency, excellent performance/cost ratio
3.Long belt life
4.Can transmit up to 3 times the horsepower of the calssic cross-sections
5.Temperature: -45℃--+80℃, limited oli resistant
Type | Top Width(mm) | Pitch Width(mm) | Height(mm) | Wedge Angle | Weight/m(kgs) |
SPZ | 10 | 8 | 8 | 40 | 0.075 |
SPA | 13 | 11 | 10 | 40 | 0.125 |
SPB | 17 | 14 | 14 | 40 | 0.22 |
SPC | 22 | 19 | 18 | 40 | 0.375 |
Type | Conversion Table | Length Standard | Minimum Diameter of pulley (mm) | Weight/m(kgs) | ||
SPZ | Lw=Li+37 | La=Li+50 | Lw | 63 | 0.075 | |
SPA | Lw=Li+45 | La=Li+63 | Lw | 90 | 0.125 | |
SPB | Lw=Li+60 | La=Li+88 | Lw | 140 | 0.22 | |
SPC | Lw=Li+83 | La=Li+113 | Lw | 224 | 0.375 | |
Type | Top Width(mm) | Height(mm) | Wedge Angle | Weight/m(kgs) |
3V(9N) | 9.5 | 8 | 40 | 0.075 |
5V(15N) | 16 | 13.5 | 40 | 0.21 |
8V(25N) | 25.5 | 23 | 40 | 0.525 |
Type | Conversion Table | Length Standard | Minimum Diameter of pulley (mm) | ||
3V(9N) | La=Li+50 | Li=Lw-37 | La | 67 | |
5V(15N) | La=Li+85 | Li=Lw-60 | La | 180 | |
8V(25N) | La=Li+145 | Li=Lw-92 | La | 330 | |
Why Customer Trust/Choose Baopower Agricutural Belt?
Premium Quality Materail
--Nature Rubber
--Specially Treated Polyester Cord
--Wear Resistant Fabric
--Specially Treated Polyester Cord
--Wear Resistant Fabric
20+Years Experience
--Started since 1994
--Export to 50+ countries
--OEM for top brand in the world
--Export to 50+ countries
--OEM for top brand in the world
Best Service
-- Low MOQ & Fast delivery
-- Different OEM to help customer build their brands
-- Inquiry will be replied in 2 hours by professional team
Multi Styles to Meet Customers' Demands
-- Rubber Conveyor Belt/ V Belt/ Timing Belt
-- PU Conveyor Belt/ V Belt/ Timing Belt
-- Power Transmission Accessaries
Product Application
Baopower wrapped narrow variable speed v belt is uitable for all industrial applications,Particularly where space,weight and horsepower capacity are critical. Recommend for use on all industrial heavy-duty, narrow section V-belts drives.

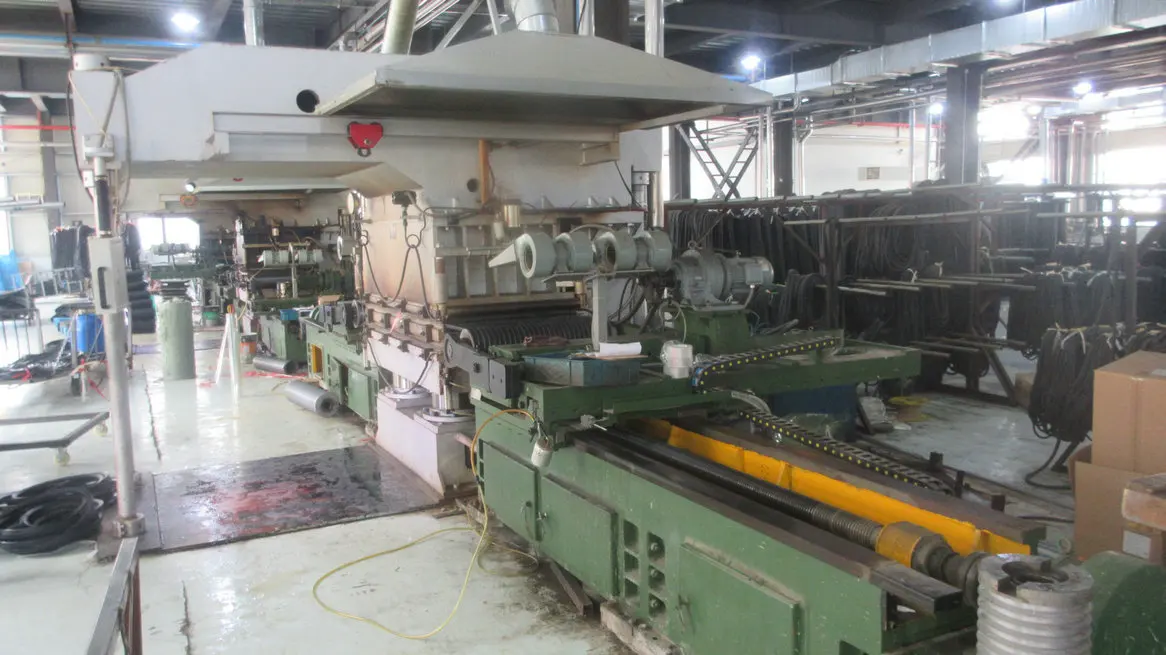

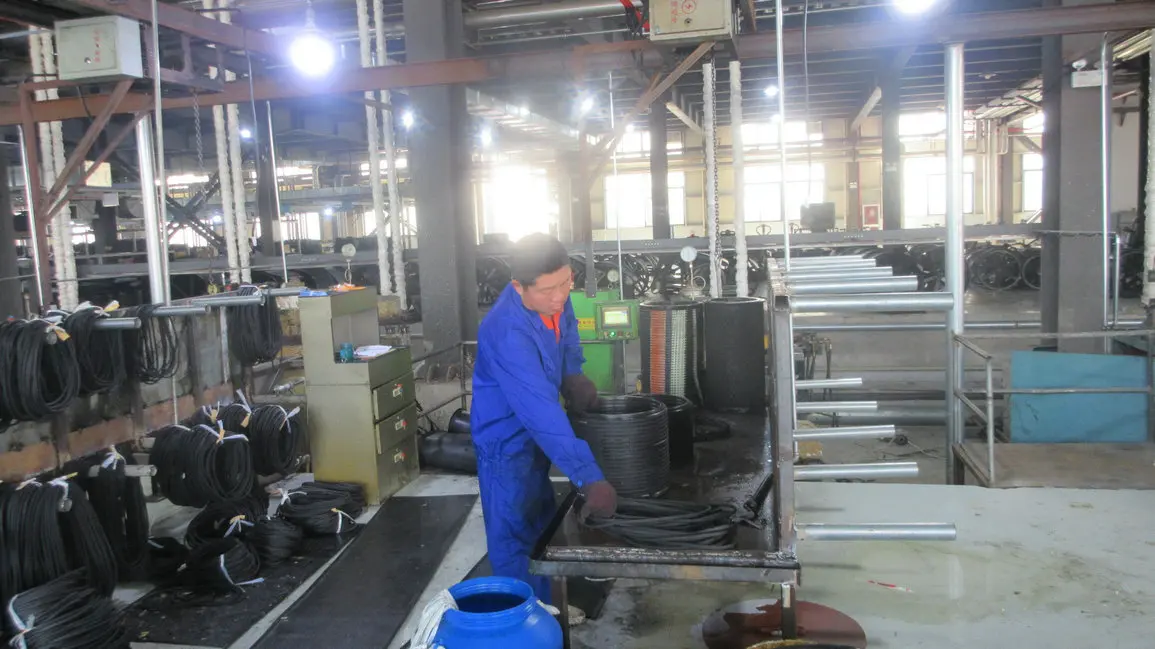

Company Introduction
ZHEJIANG POWERBELT CO. LTD.
Who Are We
-- Started since 1994
-- 20+years experience
-- 500+ workers
-- 100,000 m³ factory area
-- 40,000,000$ annual sales
-- 500+ workers
-- 100,000 m³ factory area
-- 40,000,000$ annual sales
What We Supply
--- Conveyor Belt
--- Wrapped V Belt
--- Cogged V Belt
--- Timing Belt
--- Poly V Belt
--- Cogged V Belt
--- Timing Belt
--- Poly V Belt
Our Aims
--Green specialist in power transmission
--World's leading transission exterprises

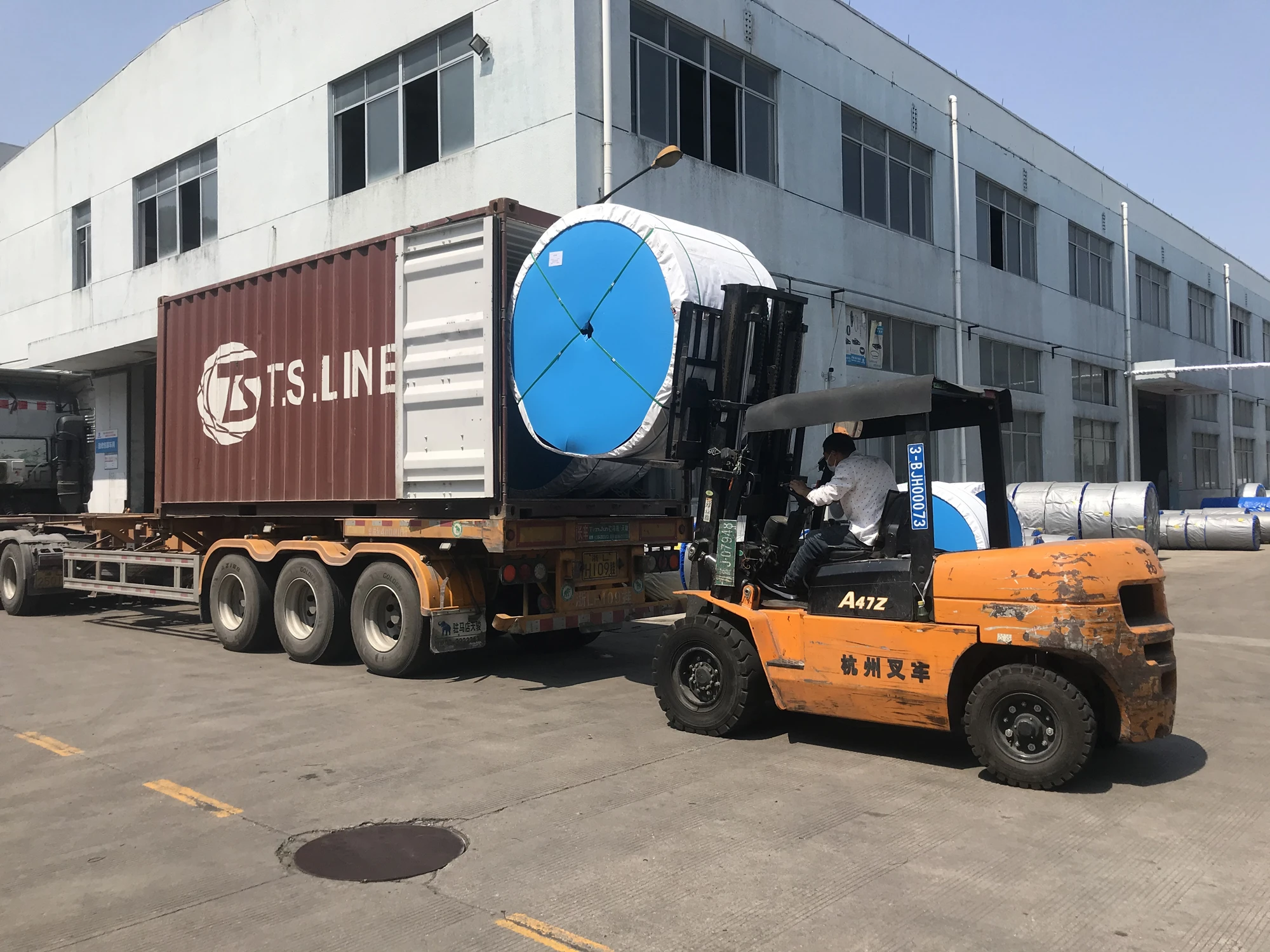

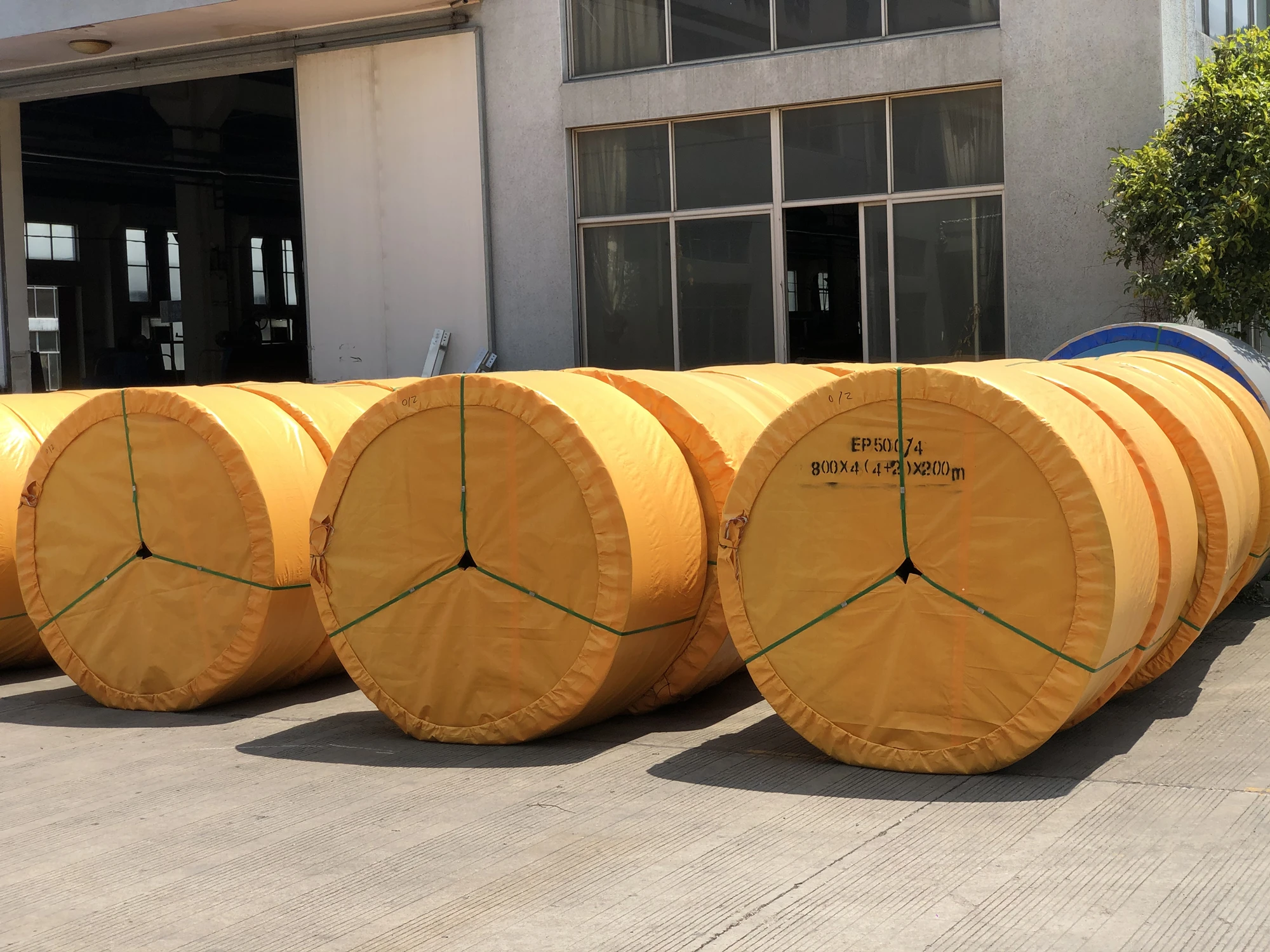

Packing&Shipping
OEM Packaging is welcome in Baopower Belt. Below is some pictures of packaging for V Belt, Timing Belt. If you Have special requirments, please send us an inquiry for more details.
Availibale Packing: Cartton, Poly Bags, Pallets, Wooden Case
Shipping: By Sea/ By Air/ By Train/ By Express
Certifications
