cnc cylinder head porting machine atc cnc router 1325 center used in furniture
- Category: >>>
- Supplier: Jinan L-Salt Machinery Co. Ltd.
Share on (1600469225162):
Product Overview
Description
Product Description
Specification
item | value |
Condition | New |
Spindle speed | 0rpm - 18000rpm |
Accuracy | 0.02mm |

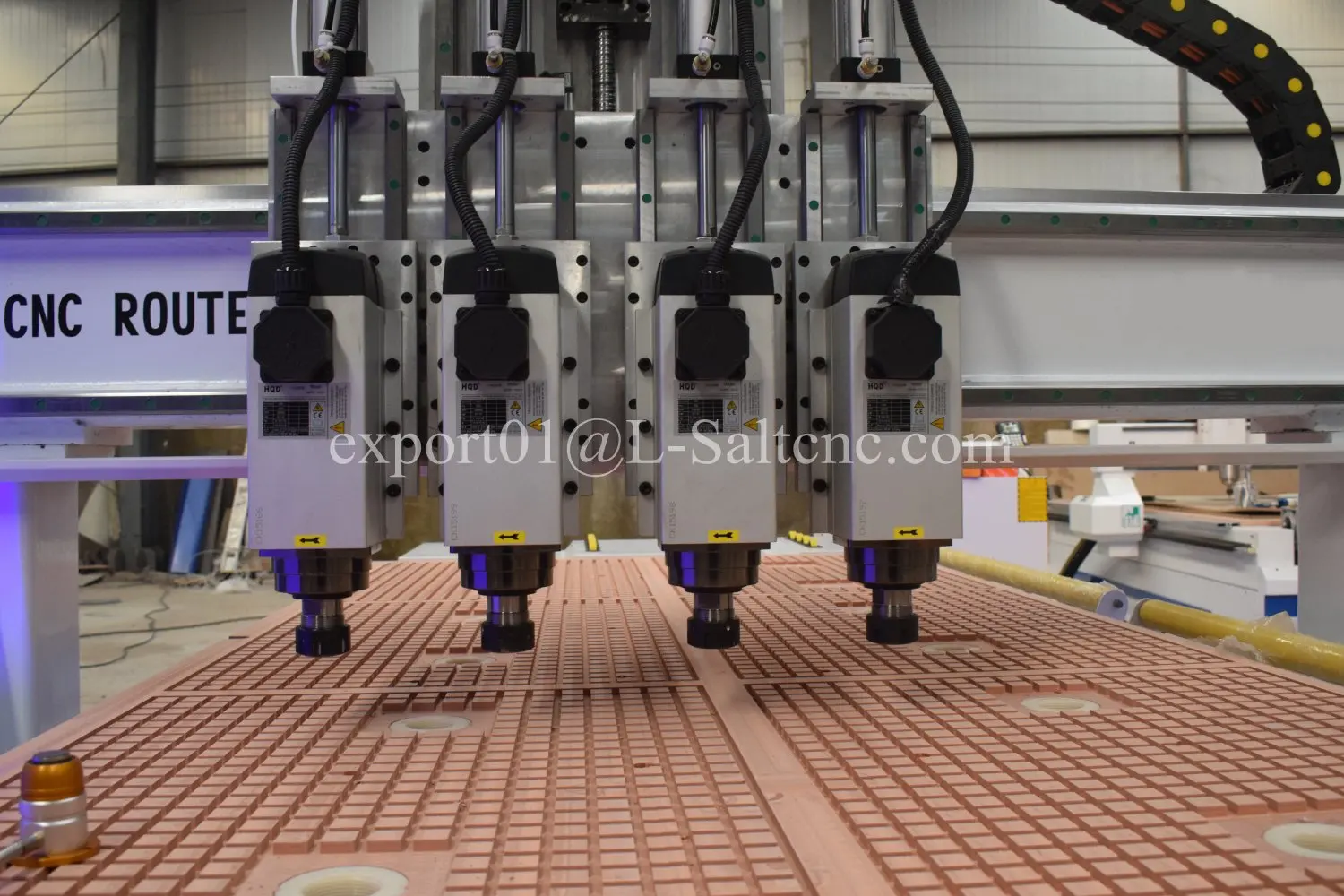

No. of Spindles | Four pneumatic 4.5KW air cooling spindles |
Working Table Size(mm) | 1300×2500 |
Voltage | 380V 50HZ 3P |
Machine size | 3150*2000*1700mm |
Working speed | 30000-40000mm/min |
Traveling speed | 60000mm/min |
Warranty of core components | 2 years |
XY driving | Rack |
Motor | Leadshine Servo Motor |
Inverter | Delta |
Table Surface | Vacuum Working Table |
Total power | 11KW |

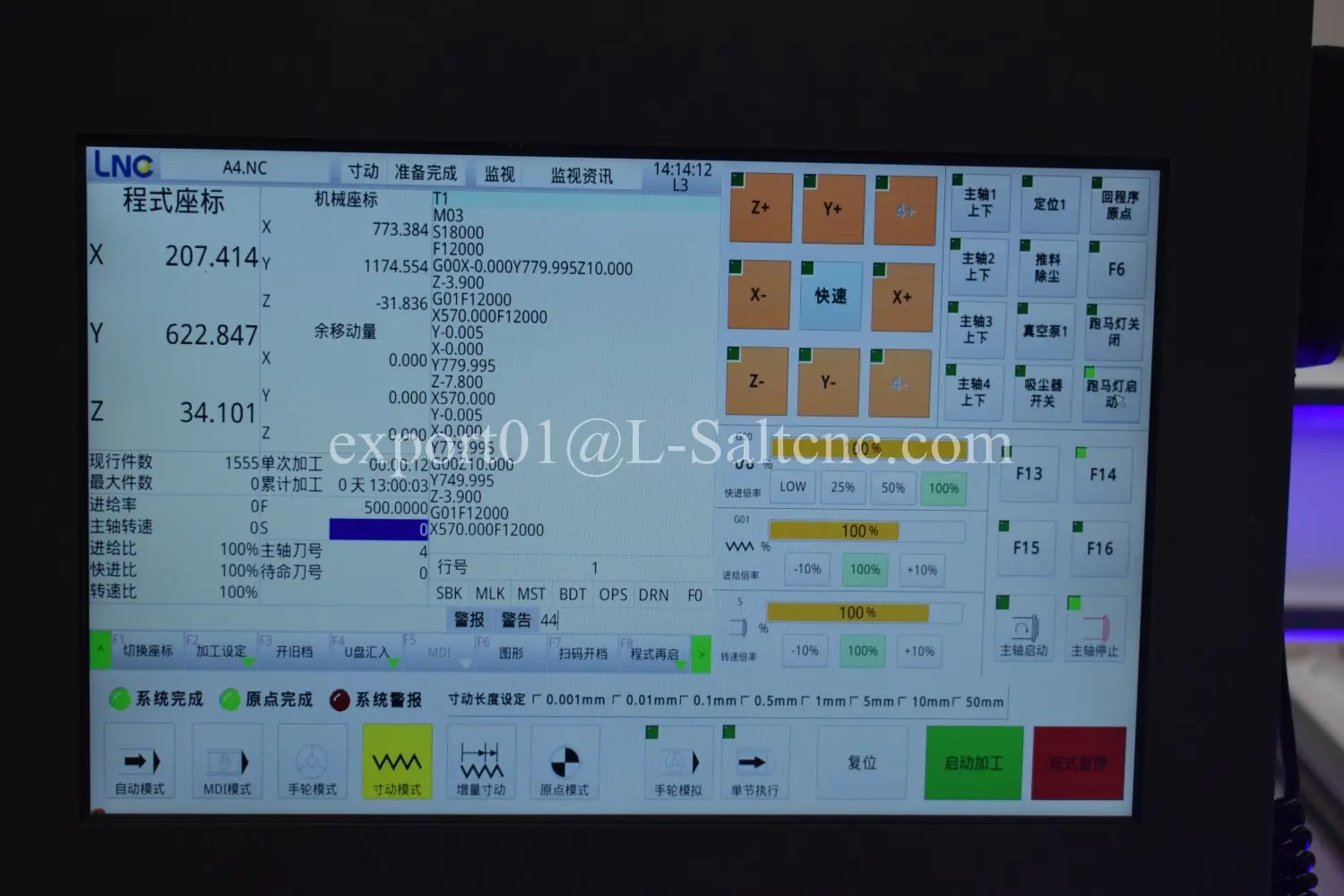

Controller | LNC |
vacuum pump | 5.5KW |
Dust collector | 3.0KW |
Main parts

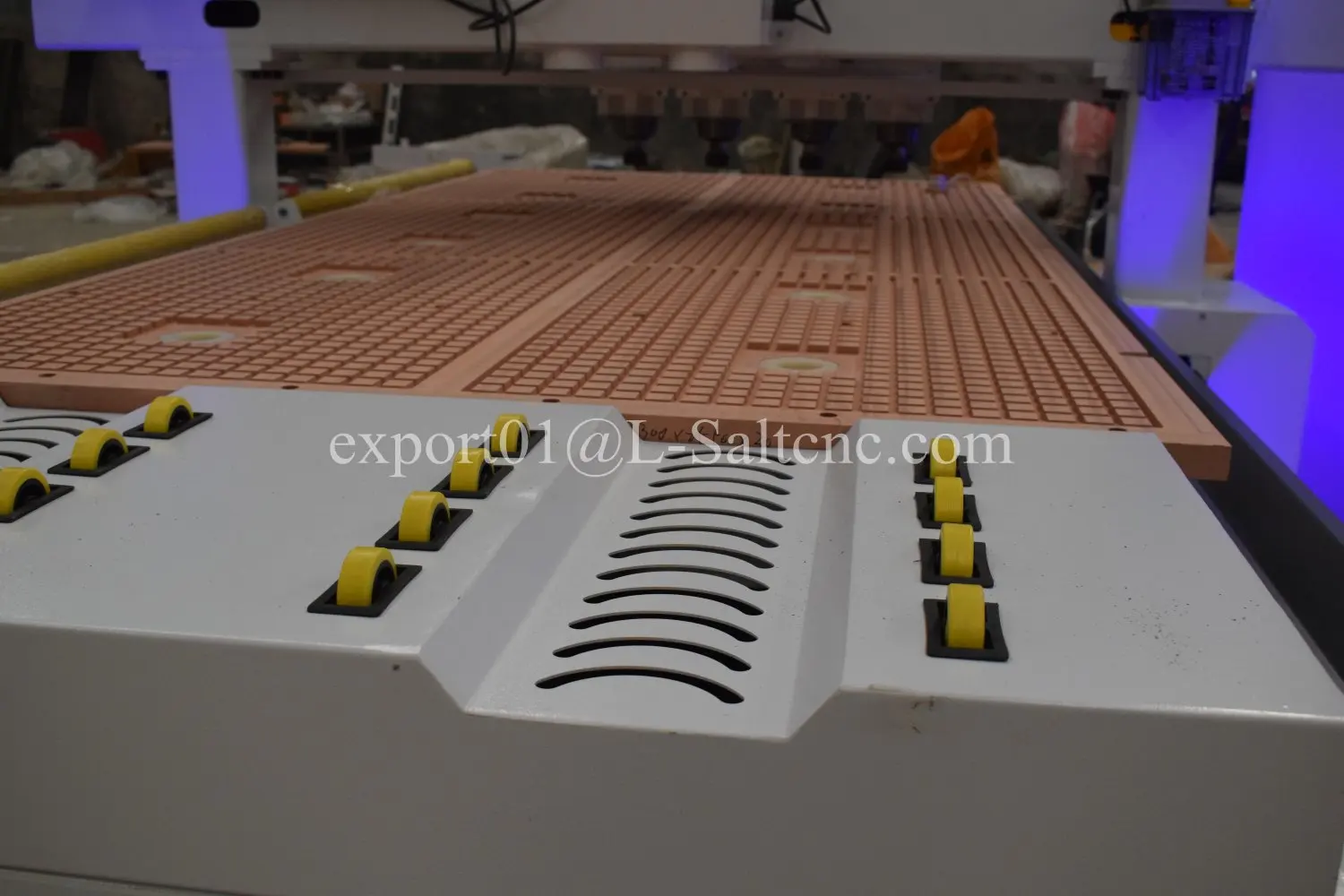

(1) Using international technology vacuum adsorption table, equipped with a strong adsorption vacuum pump,
six partition design, can be strong adsorption of different areas of the material, greatly improve the work
efficiency.
(2) The XY axis are rack rotation, fast speed, high efficiency, empty line speed up to 60m/min. Servo motor
(2) The XY axis are rack rotation, fast speed, high efficiency, empty line speed up to 60m/min. Servo motor
makes machine stable running with low noise, high speed and high accuracy.
(3) High- speed drive stepper motor and driver. The Y-axis is driven by double motors, with high precisi-on
(3) High- speed drive stepper motor and driver. The Y-axis is driven by double motors, with high precisi-on
rack drive, and with the vigorous cutting of the spindle to make carving faster.
(4) Adopt imported linear and square guide rail, big bearing force, smooth operation, high precision, long life,
(4) Adopt imported linear and square guide rail, big bearing force, smooth operation, high precision, long life,
high precision imported ball screw, accurate cutting.
(5) Gantry type movement, strengthen the table, can be arbitrary processing of the material on the table, strong
(5) Gantry type movement, strengthen the table, can be arbitrary processing of the material on the table, strong
and durable.
APPLICATIONS
♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould
industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet desig-n, relief, wood
furniture, computer tables, panel furniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system
module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
Company Profile
SERVICE
1. 24 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Recommend Products
FAQ
Q1:I knew nothing about this machine,what kind of machine I should choose?
Very easy to choose, just tell us : 1. the work you want to do? 2. the maximum size of your materiaols, then we
Very easy to choose, just tell us : 1. the work you want to do? 2. the maximum size of your materiaols, then we
give you perfect solutions and suggestions.
Q2:When I got this machine,but I did not know how to use it,What should I do?
We will send video and english version manual with the machine,If you still have some doubts,we can talk by
Q2:When I got this machine,but I did not know how to use it,What should I do?
We will send video and english version manual with the machine,If you still have some doubts,we can talk by
telephone or skype. Or even send our engineers oversea to help you.
Q3:If some problems happened to this machine during warranty period,what should I do?
We will supply free parts in machine warranty period if machine have some problem, While we also supply free
Q3:If some problems happened to this machine during warranty period,what should I do?
We will supply free parts in machine warranty period if machine have some problem, While we also supply free
after-service,so any doubts, just let us know, we will give you solutions.
