lab dual source W thermal evaporation coating equipment for metal film
- Category: >>>
- Supplier: Zhengzhou Tainuo Film Materials Co. Ltd.
Share on (1600469252713):
Product Overview
Description
Product Description

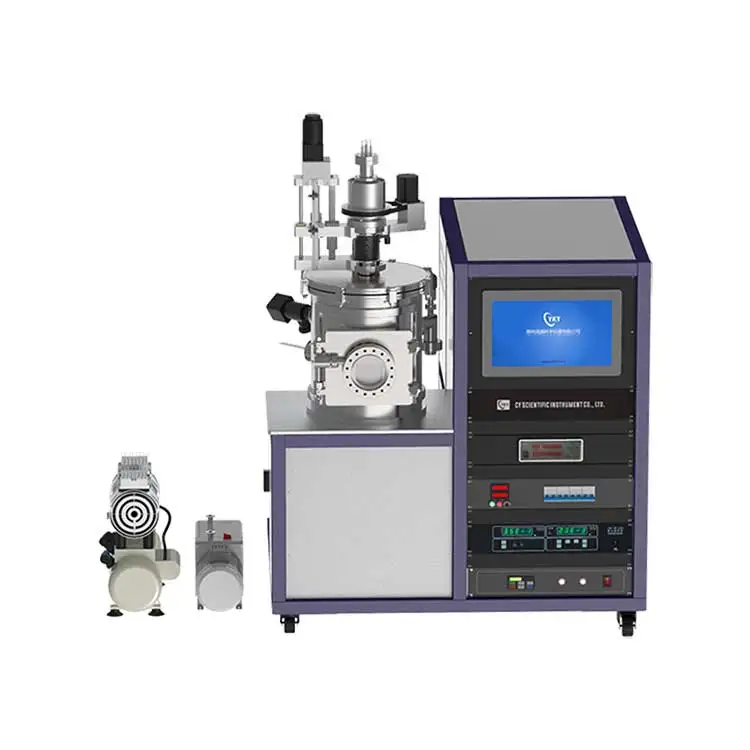

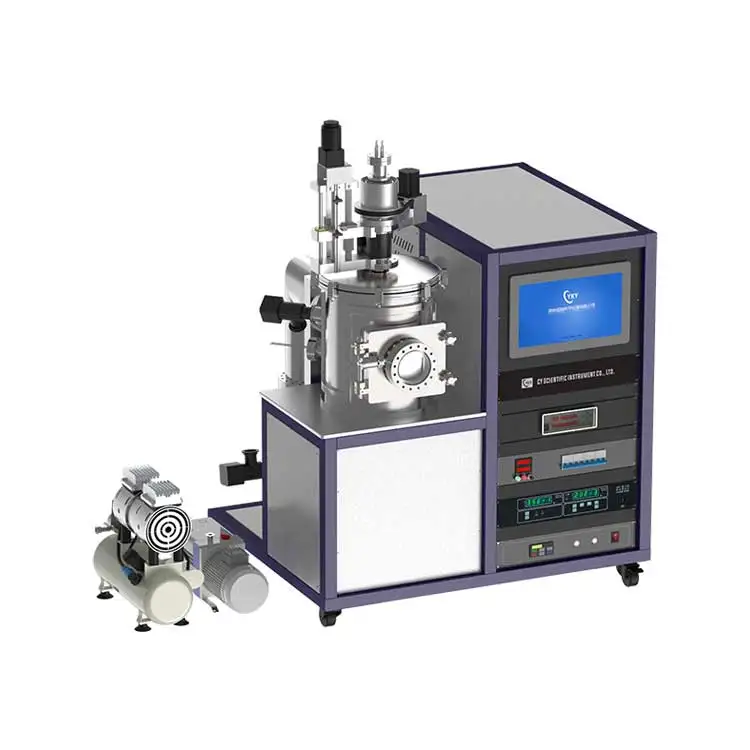

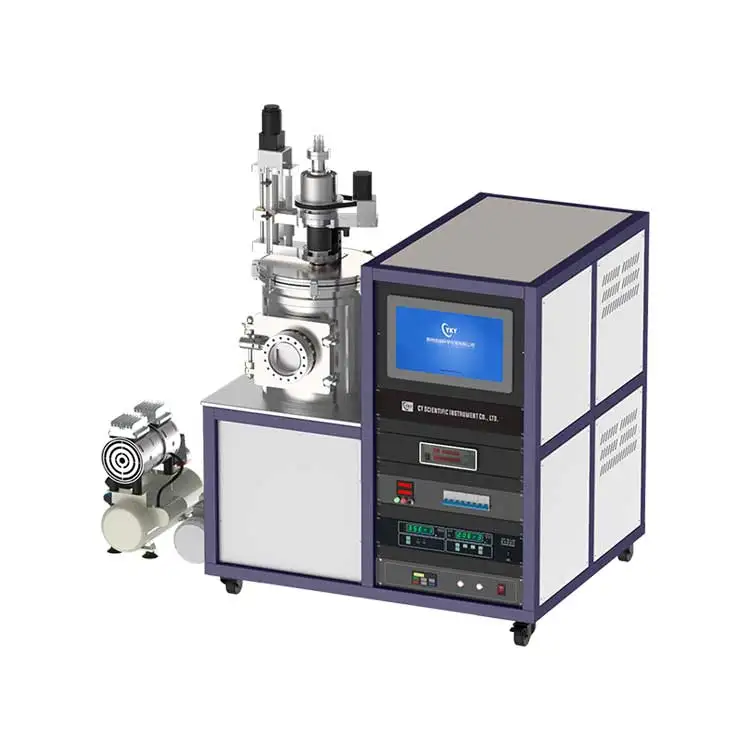

EVP300S-2S-HV Multi evaporation sources high vacuum evaporation coating instrument
This equipment is a multi-source high-vacuum evaporation coating instrument.

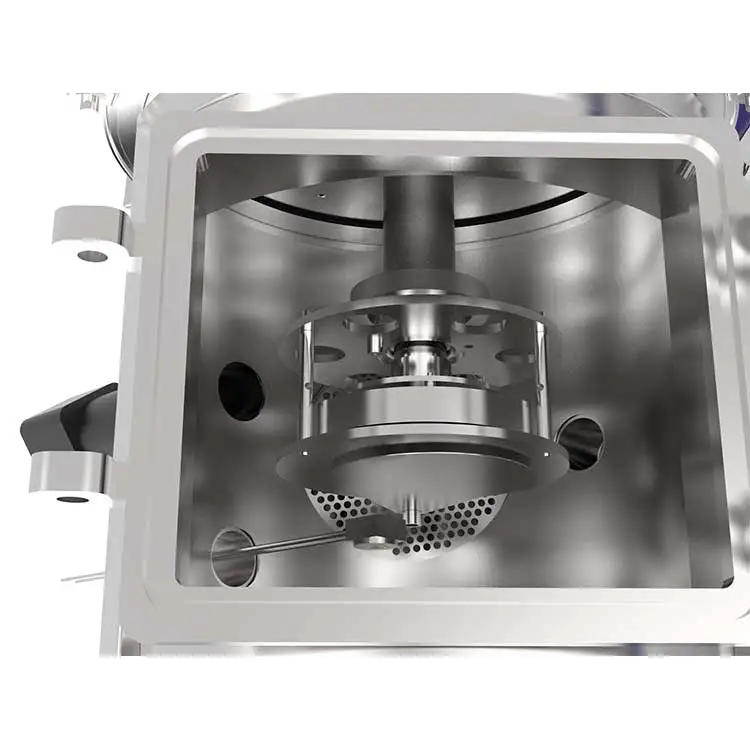

The equipment adopts a front-opening vacuum chamber design. The chamber has a large space and strong expandability, which can meet the evaporation coating of multiple types of large-size samples. The chamber has an upper sample stage inside, and the clamping or clamping type sample mounting parts can be selected according to the user's sample style.
The sample table can be rotated, heated and raised and lowered, and all operations are integrated and controlled through the touch screen.

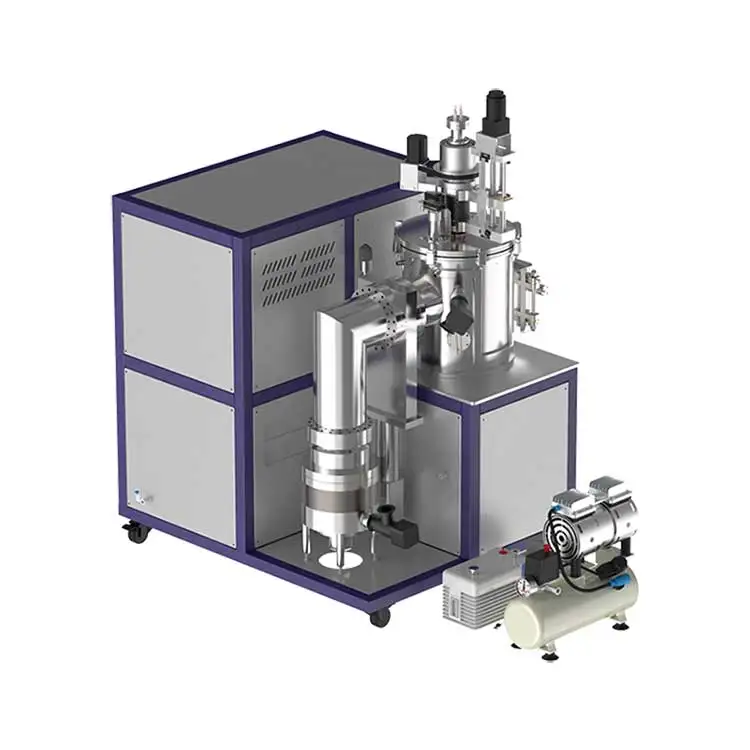

The vacuum pump set of the equipment is a two-stage vacuum system, which is composed of a dual stage rotary vane vacuum pump and a turbo molecular pump. It can provide a clean and oil-free high vacuum environment for the vacuum coating test; the vacuum system contains a complete pneumatic valve system, and the user can One-touch operation through the touch screen realizes vacuuming, non-stop load and unload sample, complete shutdown and other operations.

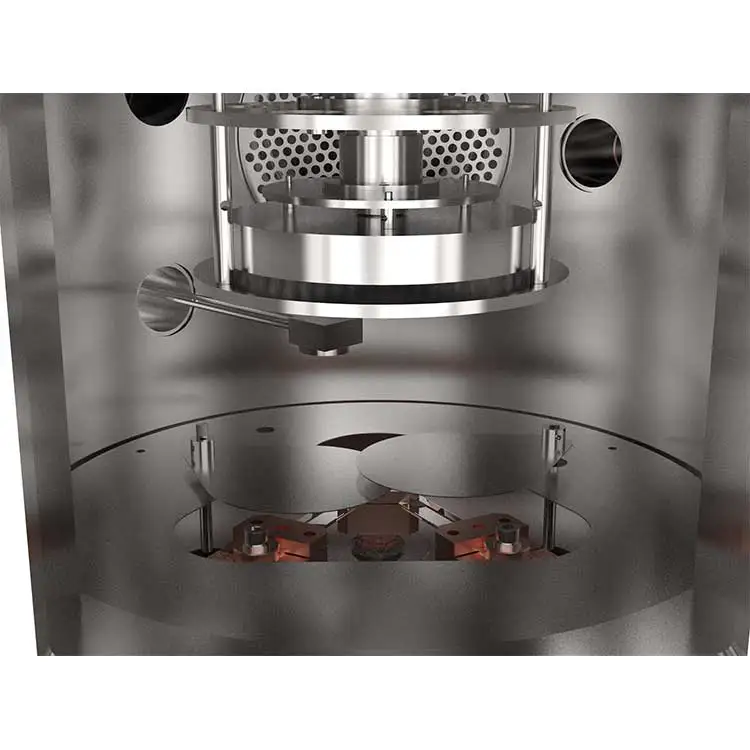

The equipment has two sets of evaporation sources. It adopts a tungsten boat evaporation source and water-cooled copper electrodes. It can support a maximum current of 300A and a heating temperature of up to 3000 ° C. It can realize the evaporation of various refractory metals.
This equipment adopts an integrated design, and the chamber and the electric control part are separated left and right, which realizes the separation of water and electricity, and effectively guarantees the safety of users. The electric control part adopts the design of the combination of touch screen and button panel. The vacuum system, sample table and other auxiliary functions are operated by the touch screen with one button.
The evaporation and the film thickness control are operated independently by the panel, which is as convenient for users as possible while avoiding the possibility of wrong operation. The equipment is well-designed and has excellent performance, and it is an indispensable choice for laboratory high-precision evaporation coating test.
Technical parameters
Sample stage | Size:Max support φ150mm sample Height:Adjustable up and down 70mm |
Evaporation source | Tungsten Boat x2 |
Vacuum chamber | Chamber size:Dia. 300mm X 400mm Observation window:Front φ100mm with shading sheet Chamber material:304 stainless steel Opening method:Front door open |
Film thickness control | Crystal vibrating film thickness measuring instrument, optional multi-channel film thickness controller |
Vacuum system | Backing pump:Dual stage rotary vane pump Pumping port:KF16 Secondary pump:Turbo molecular pump Pumping port:CF160 Vacuum measurement Resistance + ionization Compound vacuum gauge Exhaust rate:Mechanical pump 1.1L / s Molecular pump 600L / s Ultimate vacuum:1.0E-5Pa Power supply:AC 220V 50/60Hz Pumping rate:Rotary vane pump: 1.1L / S |
Flowmeter | One way mass flowmeter 500sccm Ar gas |
Control System | PLC automatic control Operation interface: touch screen + operation panel |
Other | Supply voltage:AC380V,50Hz Machine size:1000mm x 800mm x 1500mm Total power:5kW Machine weight:350kg |
Pictures
Company Introduction
Founded in 2005, Zhengzhou Tainuo Film Materials Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
