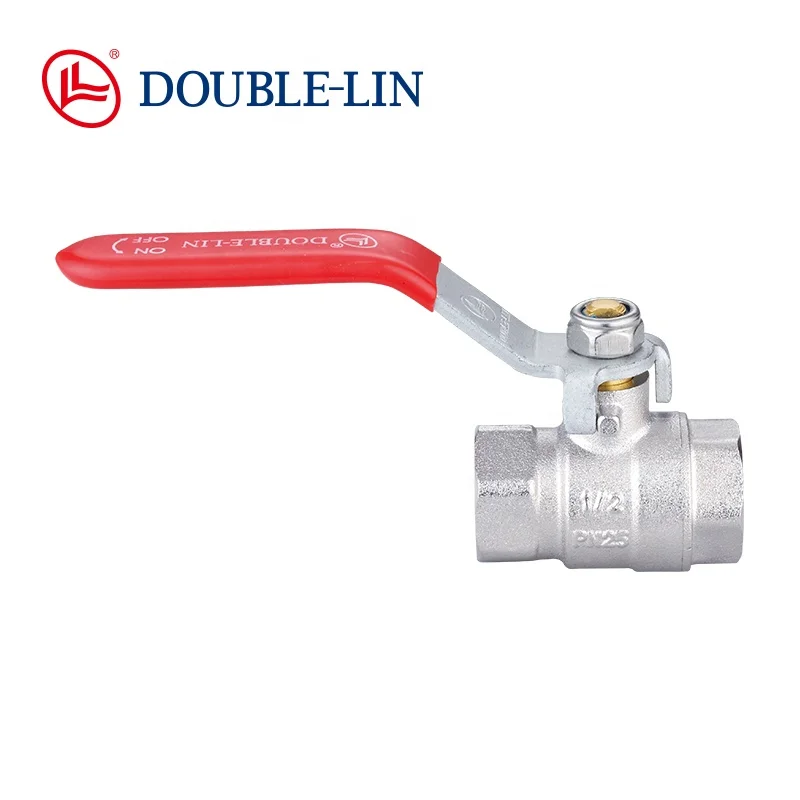

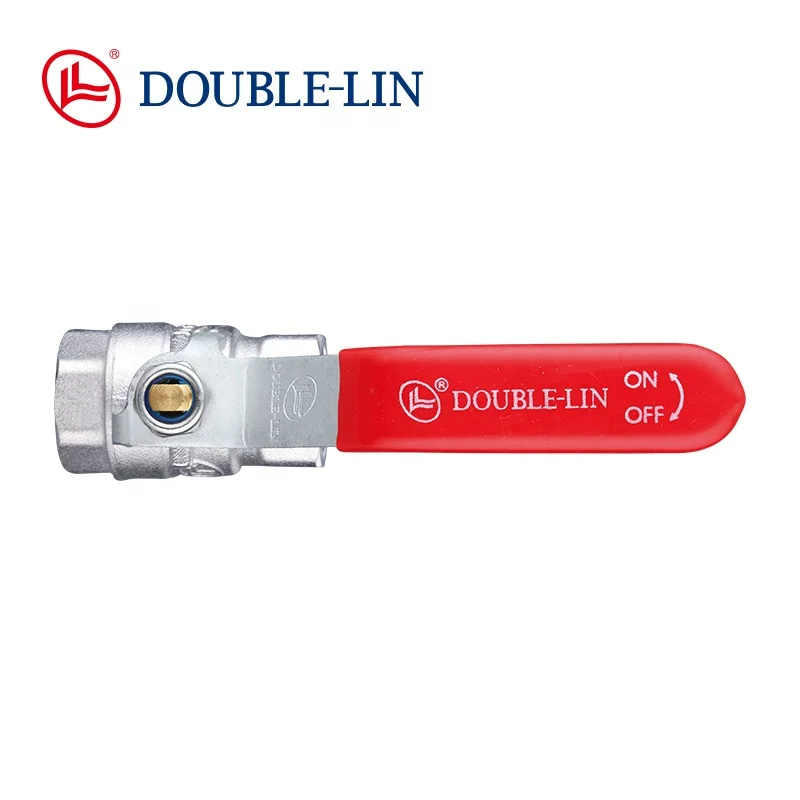

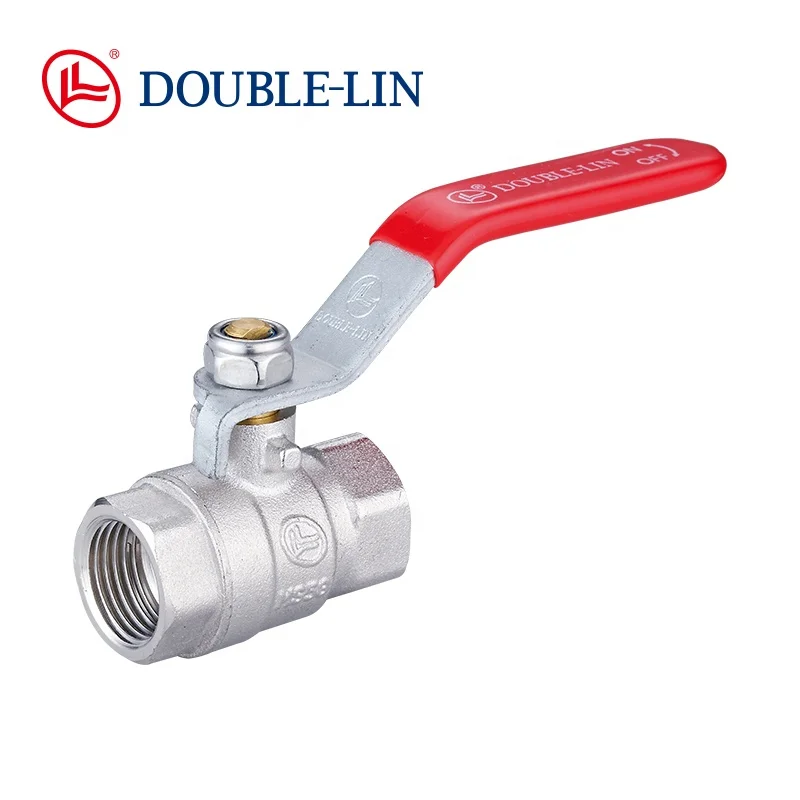

2 pcs Brass Water Ball Valve PN25 Flat Lever Handle Full Flow
- Category: >>>
- Supplier: Zhejiang Double-Lin Valves Co. Ltd.
Share on (1600469258962):
Product Overview
Description
Products Description
LL1001

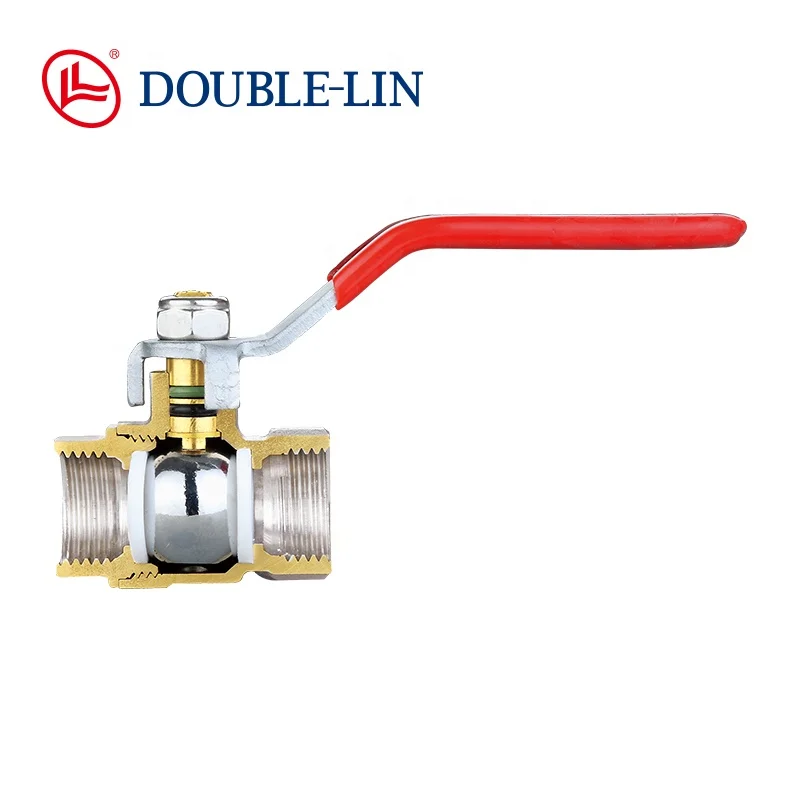

Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

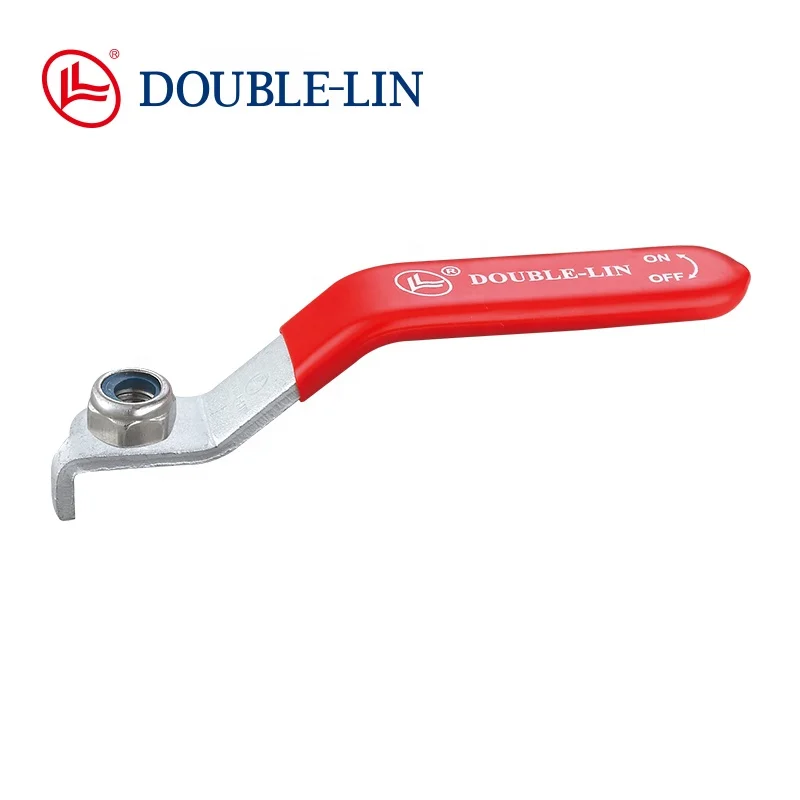

Handle: Plated with dacromet, the surface is coated against corrosion, the coating is thickened, the thickness is up to 1.3mm, comfortable using.
O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Handle: Plated with dacromet, the surface is coated against corrosion, the coating is thickened, the thickness is up to 1.3mm, comfortable using.
O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.
Details Images

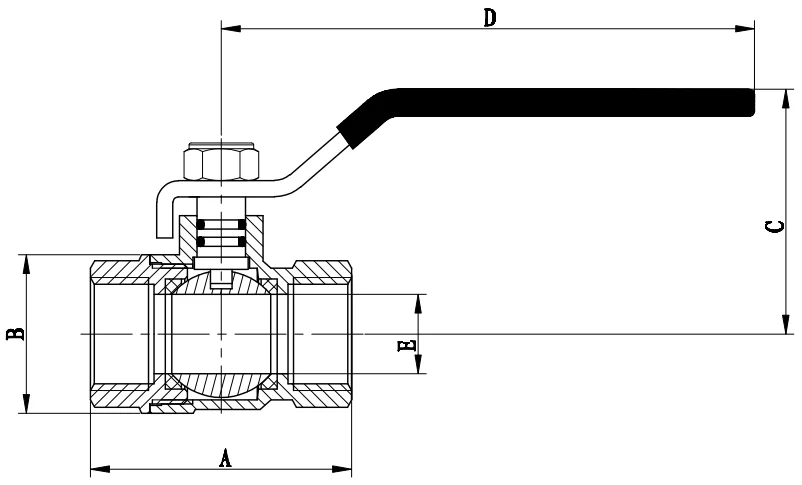

Dimension mm | 1/2" |
A | 48.4 |
B | 29.5 |
C | 54.2 |
D | 95 |
E | 14.8 |
PN | 25 |
No. | Part | Materials |
1 | Body | Brass |
2 | Bonnet | Brass |
3 | Ball | Brass |
3 | Stem | Brass |
4 | Seal | PTFE |
5 | O ring | NBR |
6 | O ring | Fluorubber |
7 | Handle | Iron or Steel |
8 | Nut | Stainless Steel |
