Product Description

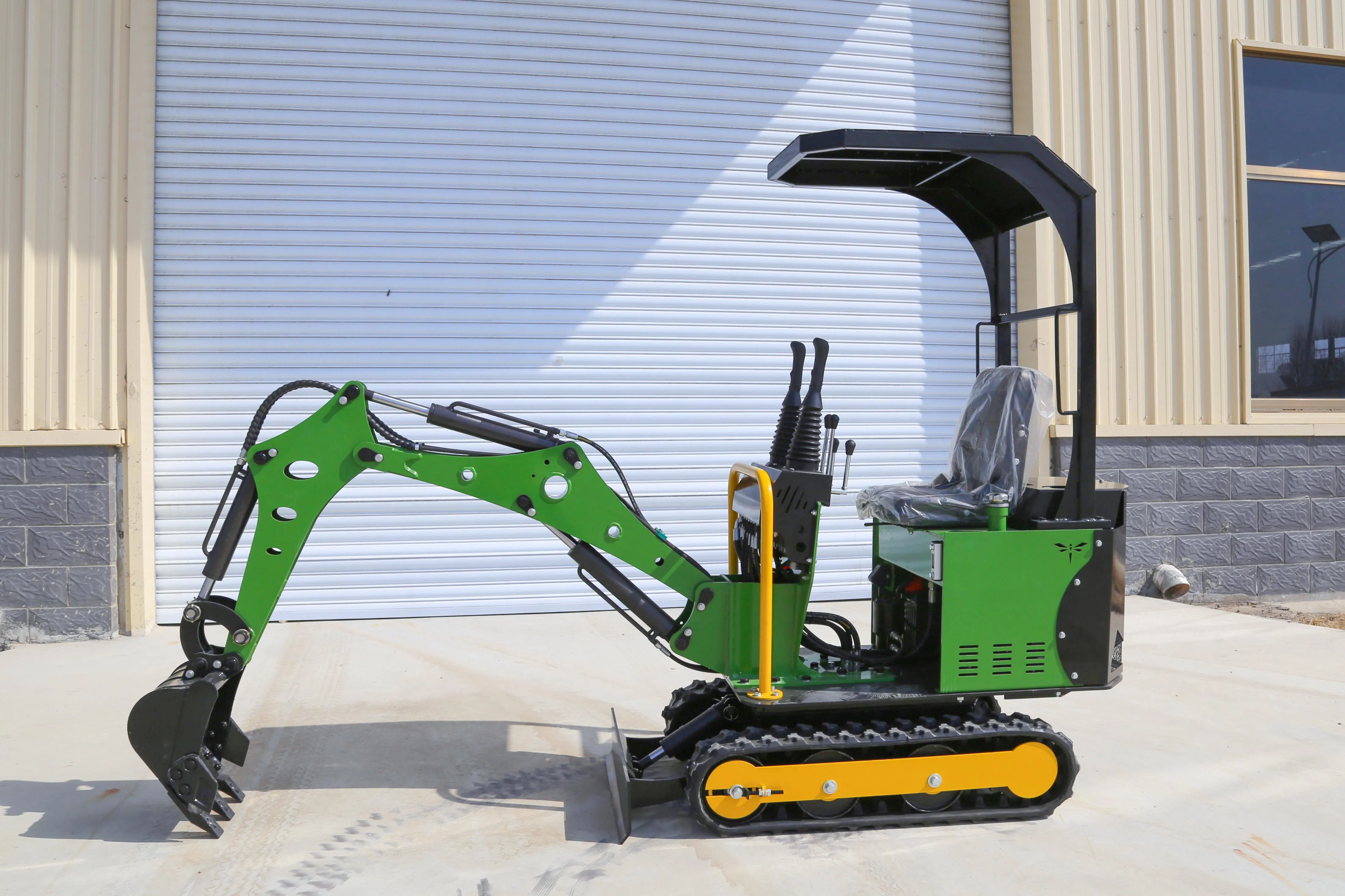

The PC-NT08 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
1. Engine: KOOP-192 engine, single-cylinder air cooled, 12HP, 8.6KW
2. Hydraulic pump (gear pump) is easy to maintain, long life
3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets
you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean
up.
4. Multiple valves under the operating handle,The benefit of less effort and improved control
is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start
1. Engine: KOOP-192 engine, single-cylinder air cooled, 12HP, 8.6KW
2. Hydraulic pump (gear pump) is easy to maintain, long life
3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets
you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean
up.
4. Multiple valves under the operating handle,The benefit of less effort and improved control
is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start
Model | PC-NT08 | Vehicle weight | 720KG |
Standard bucket capacity | 0.02m³ | Working device form | backhoe |
Type of engine | Horizontal air cooling | Rated power | 7.6/8.2kw |
Maximum excavating force | 7.5KN | Pump form | Single gear pump |
Set Work Pressure | 14MPa | Rotary speed | 12rpm |
Walking speed | 1.8Km/h | Climbing ability | 30° |
Ground pressure | 19Kpa | Dimendions | Specification |
Wheelbase | 420mm | Track grounding length | 1140mm |
Minimum ground clearance | 80mm | Chassis width | 720mm |
track width | 150mm | Transport length | 2480/2590mm |
Detailed Images
4. Dig-to-blade and dozer float features allow for easy clean up.
5. Multiple valves under the operating handle,The benefit of less effort and improved control is in your hands!
6. Rubber track no damage to cement, tile floor.
7.an extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimal performance
8.optional configuration
swing arm,EPA certified gasoline engine,electric motor
swing arm,EPA certified gasoline engine,electric motor
9.OEM serives
color,appearance,,engine,etc,can all be
color,appearance,,engine,etc,can all be

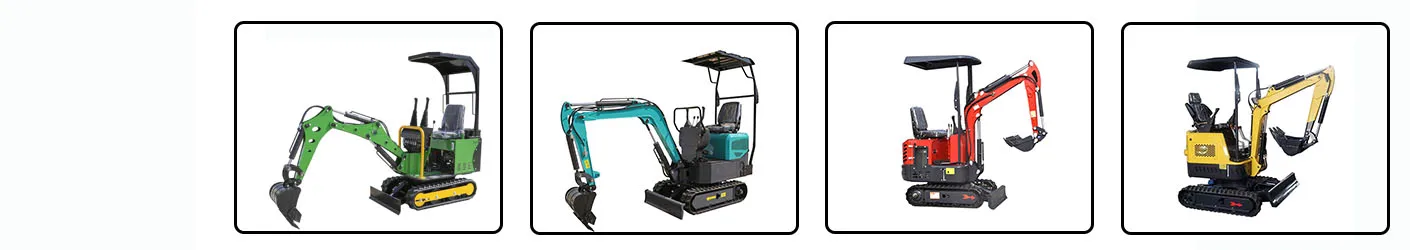

Model | NT-E08 | NT-E10 | NT-E13 | NT-E15 |
Operating Weight | 720kg | 900kg | 1150kg | 1200kg |
Engine | KOOP192F | Koop 192F | YouPu 2V80 | Kubota D722 |
Power | 10HP | 10HP | 10.5HP | 11HP |
Bucket | 0.02m³ | 0.025m³ | 0.026m³ | 0.028m³ |
Digging depth | 1200mm | 1320mm | 1804mm | 1810mm |
Machine Width | 720mm | 940mm | 960mm | 980mm |
Model | NT-E17 | NT-E20 | NT-E30 | NT-E60 |
Operating Weight | 1500kg | 2000kg | 2200kg | 6010kg |
Engine | Laidong 385 | YaNTarengine 3TNV70 | Changchai/3TNV88 | YaNTarengine |
Power | 25HP | 26HP | 26.8HP | 48.6HP |
Bucket | 0.04m³ | 0.06m³ | 0.08m³ | 0.2m³ |
Digging depth | 2000mm | 2050mm | 2150mm | 2460mm |
Machine Width | 1000mm | 1050mm | 1200mm | 1920mm |

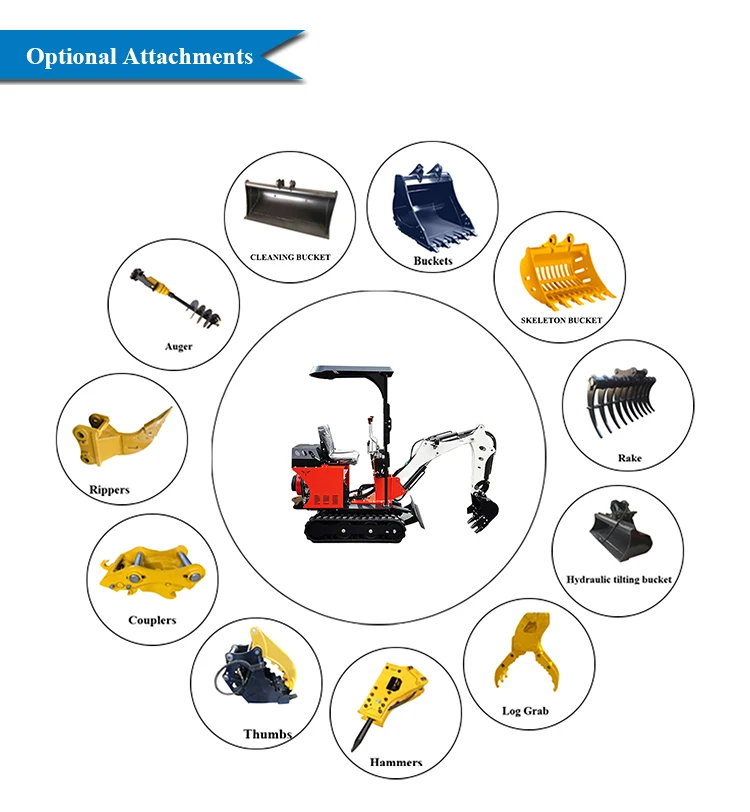

Optional Attachments
Augers | Buckets | Couplers | Hammers | Rippers | Rake | Thumbs | Hydraulic Tilting bucket | Log Grab | |
Agriculture | * | * | * | * | * | * | * | * | * |
Concrete Prep and Flatwork | * | * | * | * | * | * | |||
Excavation and Earth movation | * | * | * | * | * | * | * | ||
Finishing and Site Clean-Up | * | * | * | * | * | * | * | ||
Landscaping | * | * | * | * | * | * | * | * | |
Material Handing | * | * | * | * | * | * | |||
Rental | * | * | * | * | * | * | * | * | * |
Residenital and Commecial Construction | * | * | * | * | * | * | * | * | |
Site Prep and Demolition | * | * | * | * | * | * | * | * | |
Trenching and Utilities | * | * | * | * | * | * | * | * |

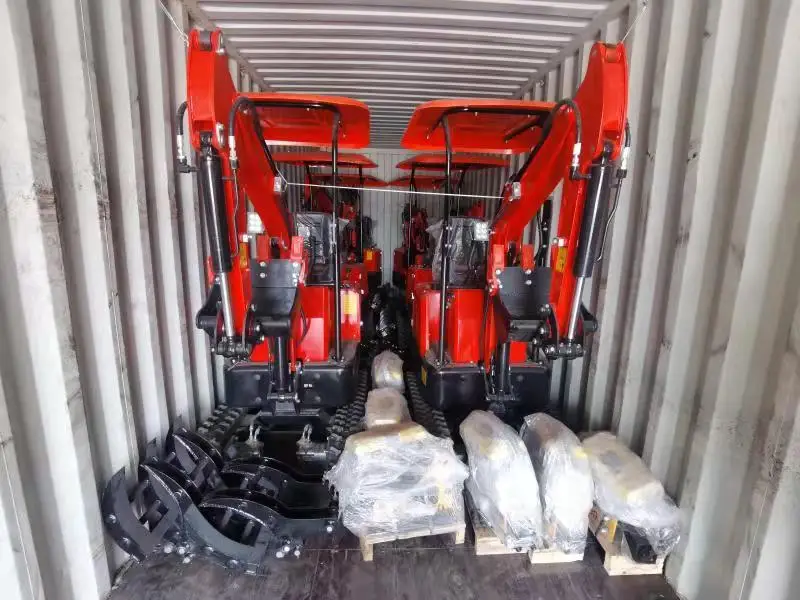

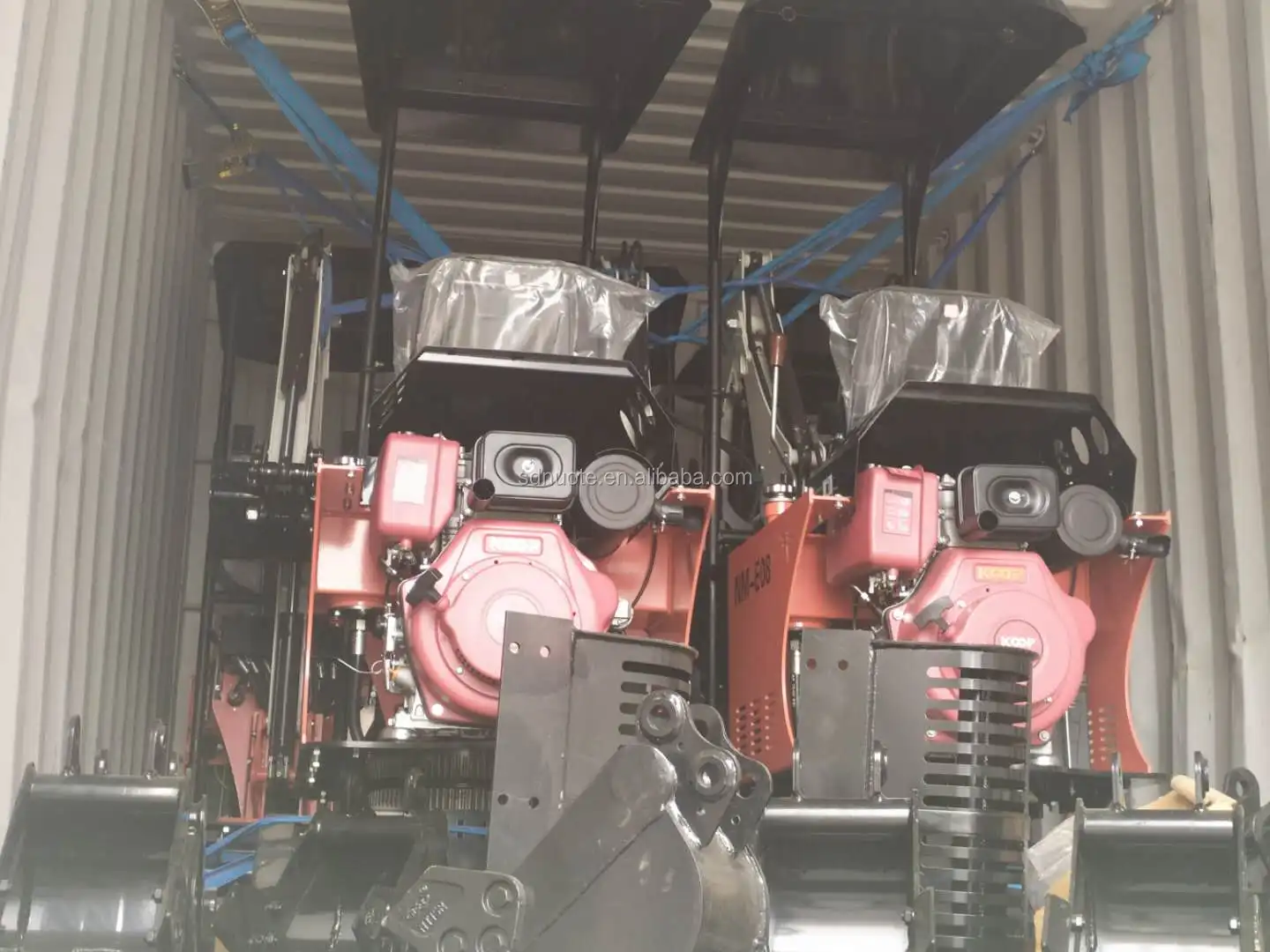

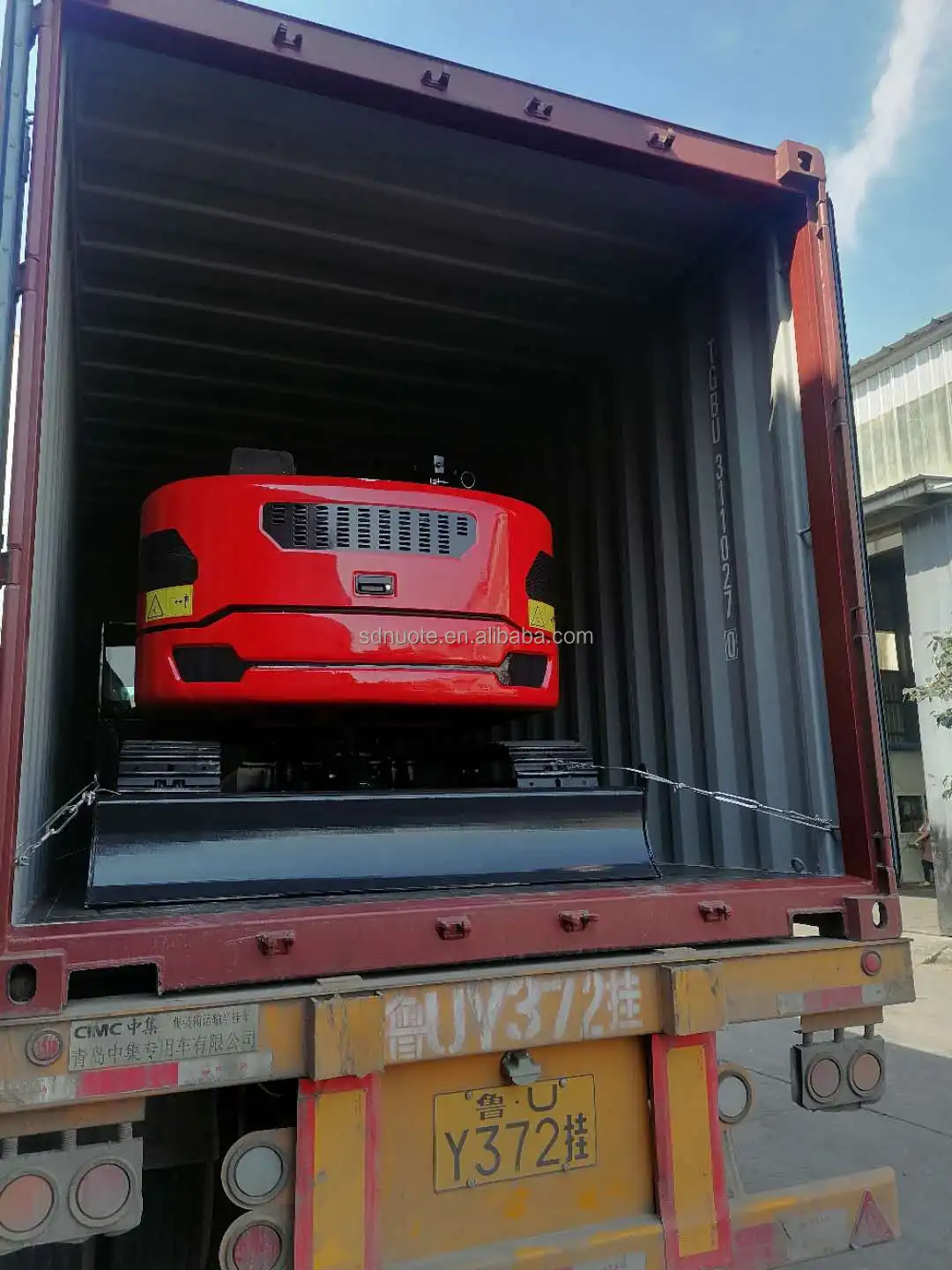

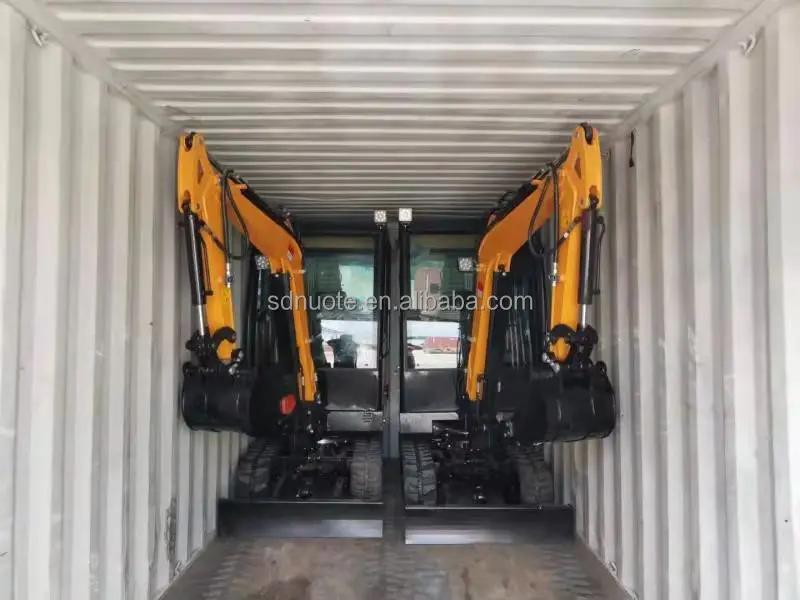

Suggestion:
Max 9 sets in one 20FT Container
Max 20sets/30sets in 40GP/HQ Container

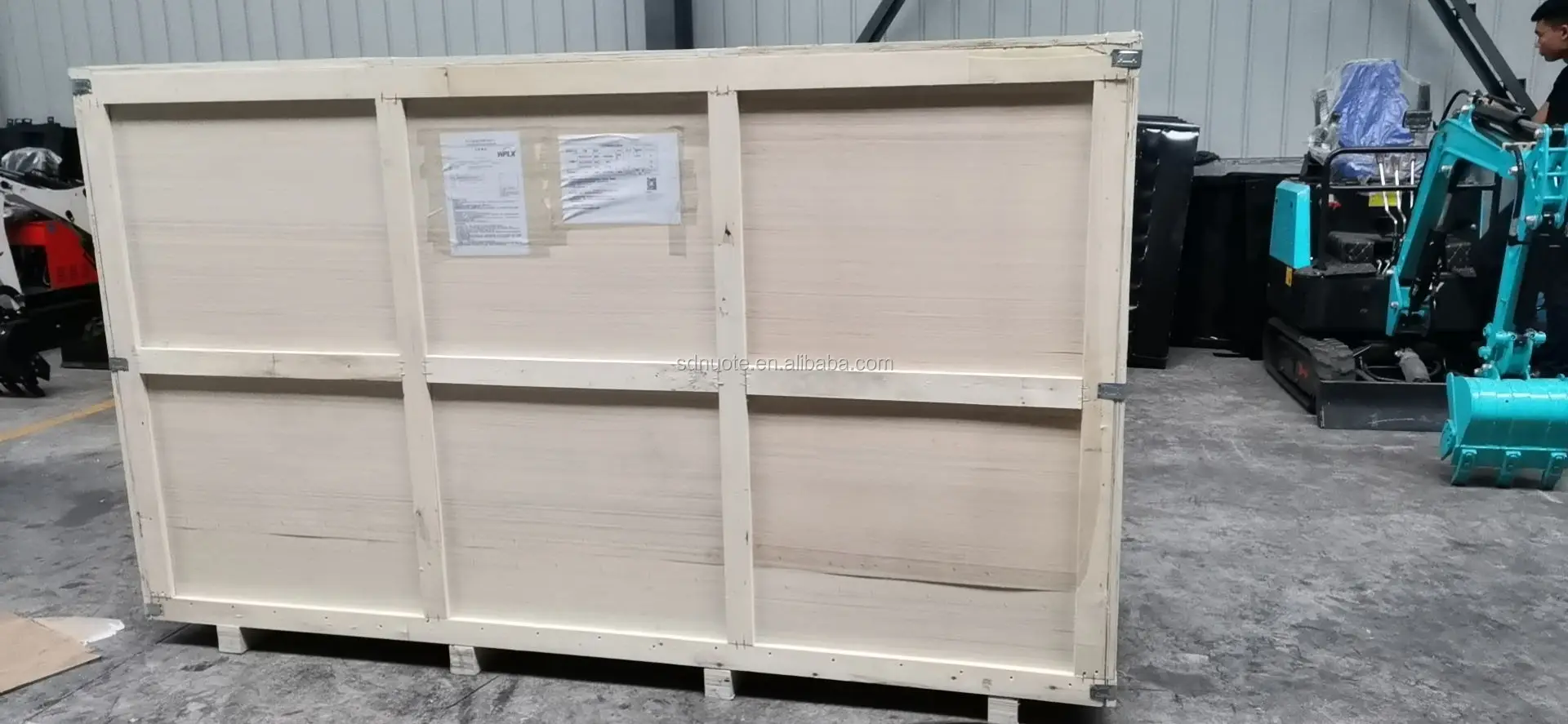

Single package with phywood box:2.65*0.85*1.6M
