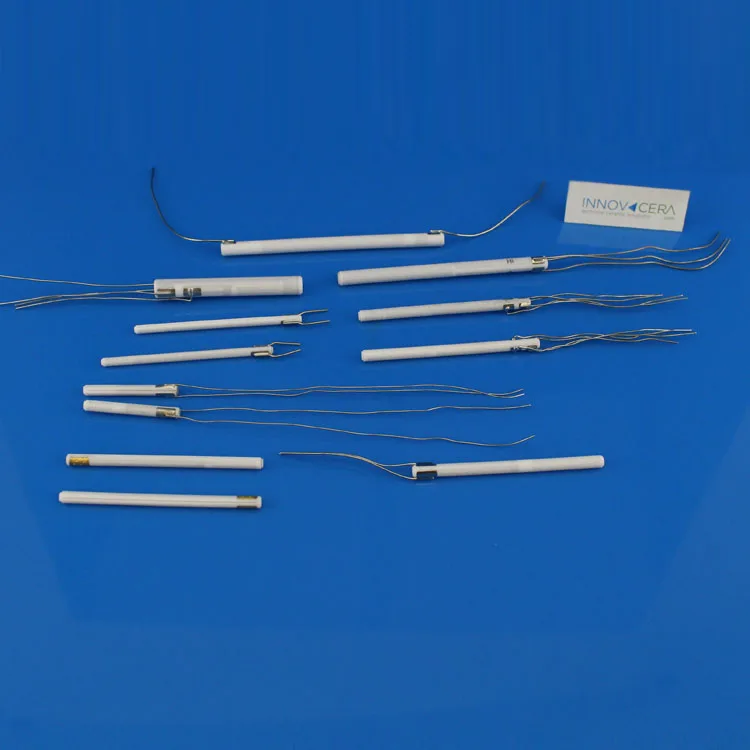

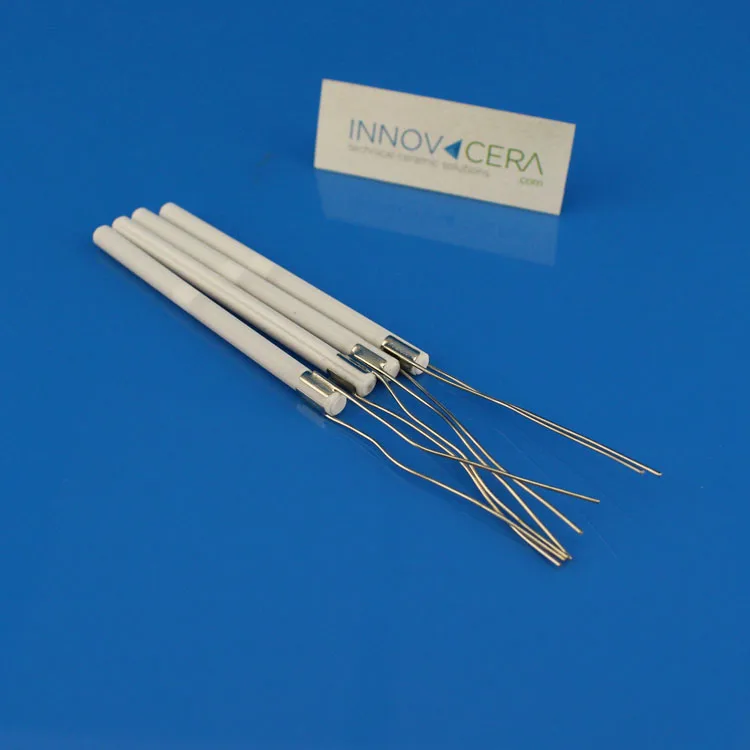

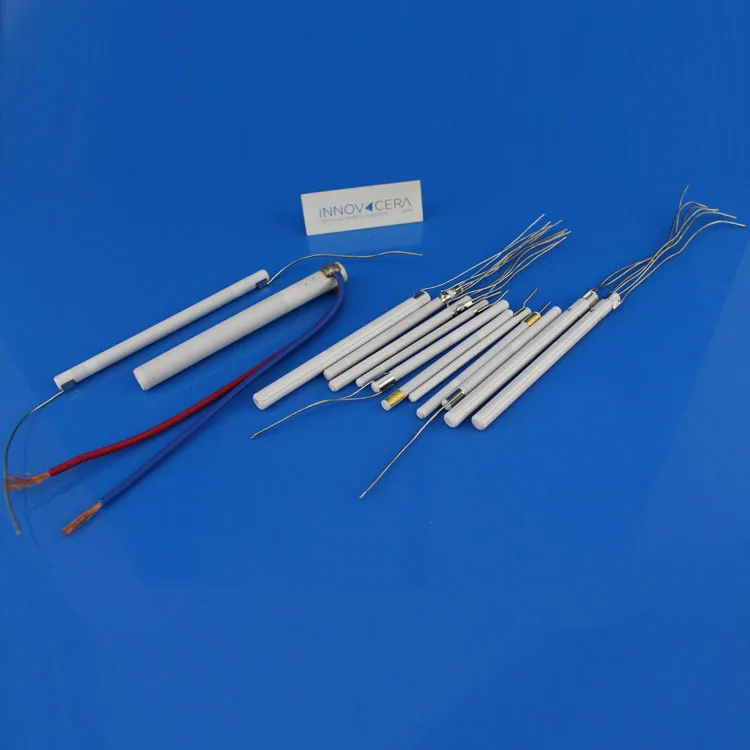

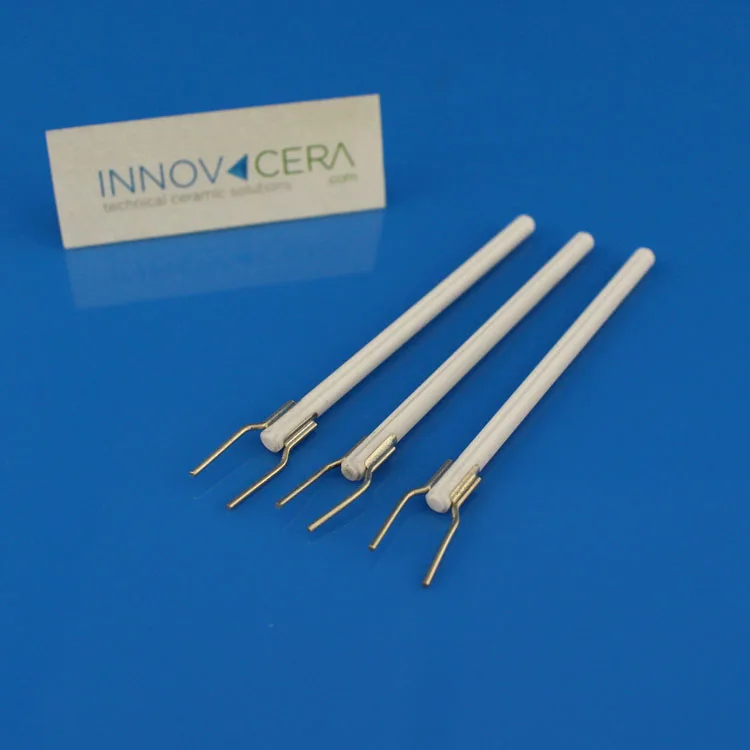

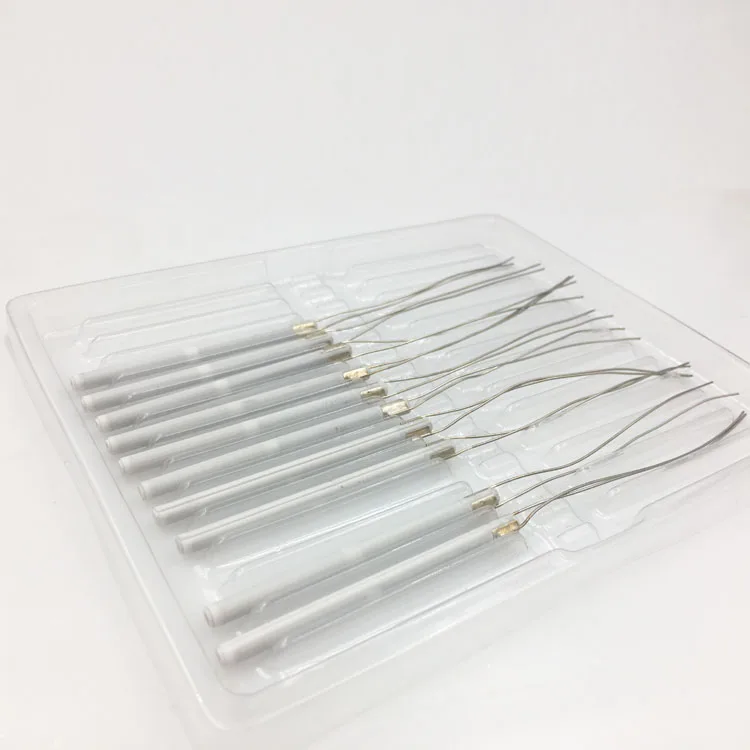

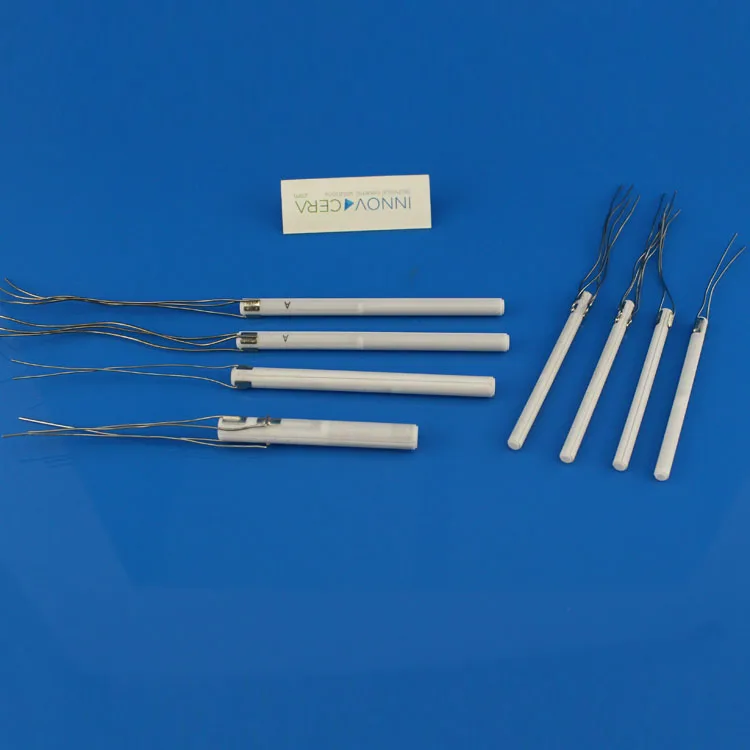

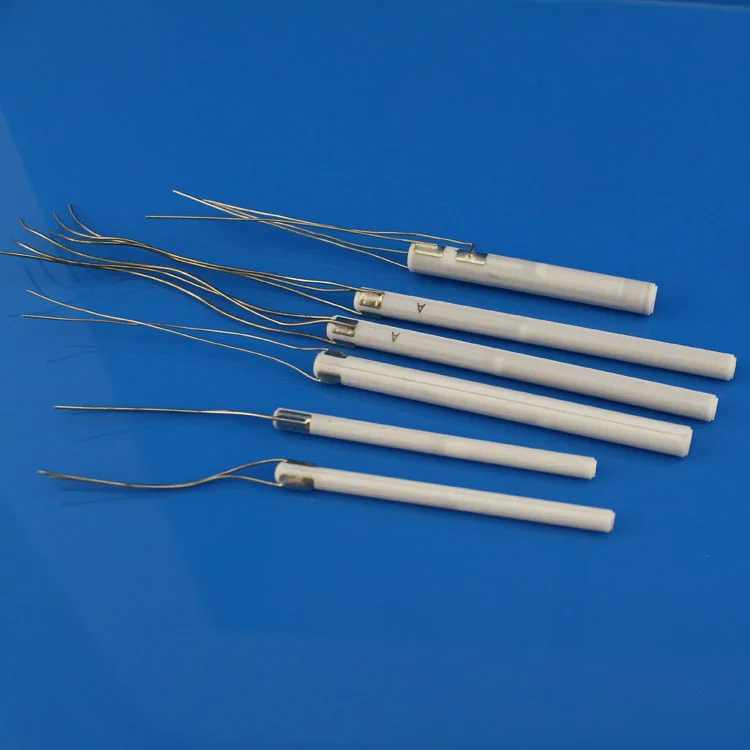

INNOVACERA 24V 100V 220V Alumina Ceramic Rod Heater for Soldering Iron
- Category: >>>
- Supplier: Xiamen Innovacera Advanced Materials Co. Ltd.
Share on (1600469337453):
Product Overview
Description
Alumina Ceramic Heater for electronic soldering iron | ||
Introductions | Alumina Ceramic heaters were developed based on ceramic lamination technologies, which are mainly used for highly reliable IC ceramic packages. Thus, these are widely used in electronic tools . | |
Material performance | 1.Material: Alumina 2.Maximum operation temperature :1000℃ 3.Thermal conductivity (20℃): 18W/(m.K) 4.Specific heat (20℃):0.78×103 J/(kg.K) 5.Coef.of liner thermal expansion (40~800℃) 6.Vickers hardness (Load 500g):12.3 Gpa 3-point 7.flexural strength: 340 MPa | |
Product Specification | 1.Part No.: AH60790301 2.Usage : Mainly applied to electronic soldering iron 3.Working: Voltage: 24VAC 4.Heating Resistance:3.0Ω±0.3Ω (23℃±2℃) 5.Feedback resistance:46-55Ω 6.Dimension: Length: L60*φ3.8mm 7.Electrode: Welding Two nickel wires on the surface; | |
Property | 1.Excellent Mechanical Properties 2.High-Temperature Durability 3.Rapid Heat Up 4.High Efficiency Heat Exchange 5.Small Size/HighOutput | |
Dimension
---
Part No. | Specification(mm) | Voltage | Heating Resistance |
AH60790301 | L60*φ3.8mm | 24VAC | 3.0±0.3 |
AH60790364 | L60*φ3.8mm | 220VAC | 140±10% |
AH60790331 | L60*φ4.3mm | 24VAC | 1.75±0.25 |
AH60790308 | L60*φ3.8mm | 110VAC | 310Ω±10% |
AH60790312 | L70*φ4.0mm | 110VAC | 125Ω±10% |
AH60790313 | L70*φ4.0mm | 110VAC | 175Ω±10% |
AH60790309 | L80*φ5.0mm | 100VAC | 37Ω±15% |
Advantage
---
2.Energefficient,super fast heating-up and high efficient thermal conductivity.
3.Excellent insulation and dielectric strength.

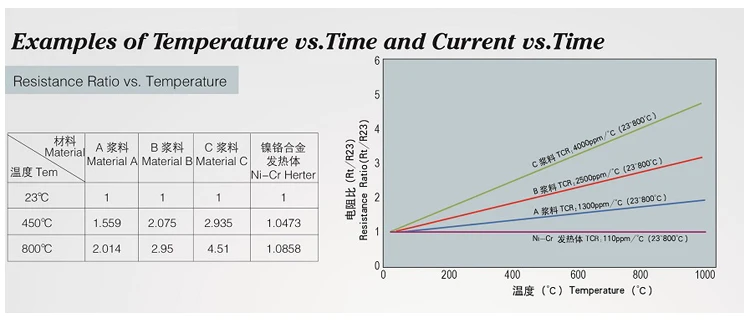

4.Sensor resistance is liner changing along with the temperature rising of heater.
5.Good sensitivity.
6.Safe product which contains no harmful material,i.e.be in line with intermatioal environmental protection standards.
We are producing High Quality Hakko A1321 24V 60W Heating Element for 936 Soldering Station with the advantages of
energy-efficient,long lifetime,high insulation,super fast heatin up and eco-friendly.
3.Excellent insulation and dielectric strength.
4.Sensor resistance is liner changing along with the temperature rising of heater.
5.Good sensitivity.
6.Safe product which contains no harmful material,i.e.be in line with intermatioal environmental protection standards.

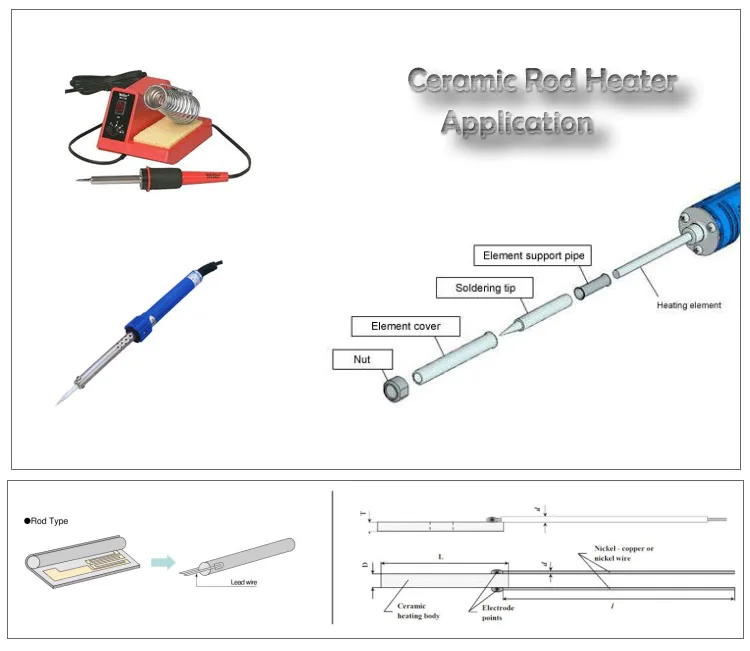

Application
---
We are producing High Quality Hakko A1321 24V 60W Heating Element for 936 Soldering Station with the advantages of
energy-efficient,long lifetime,high insulation,super fast heatin up and eco-friendly.
