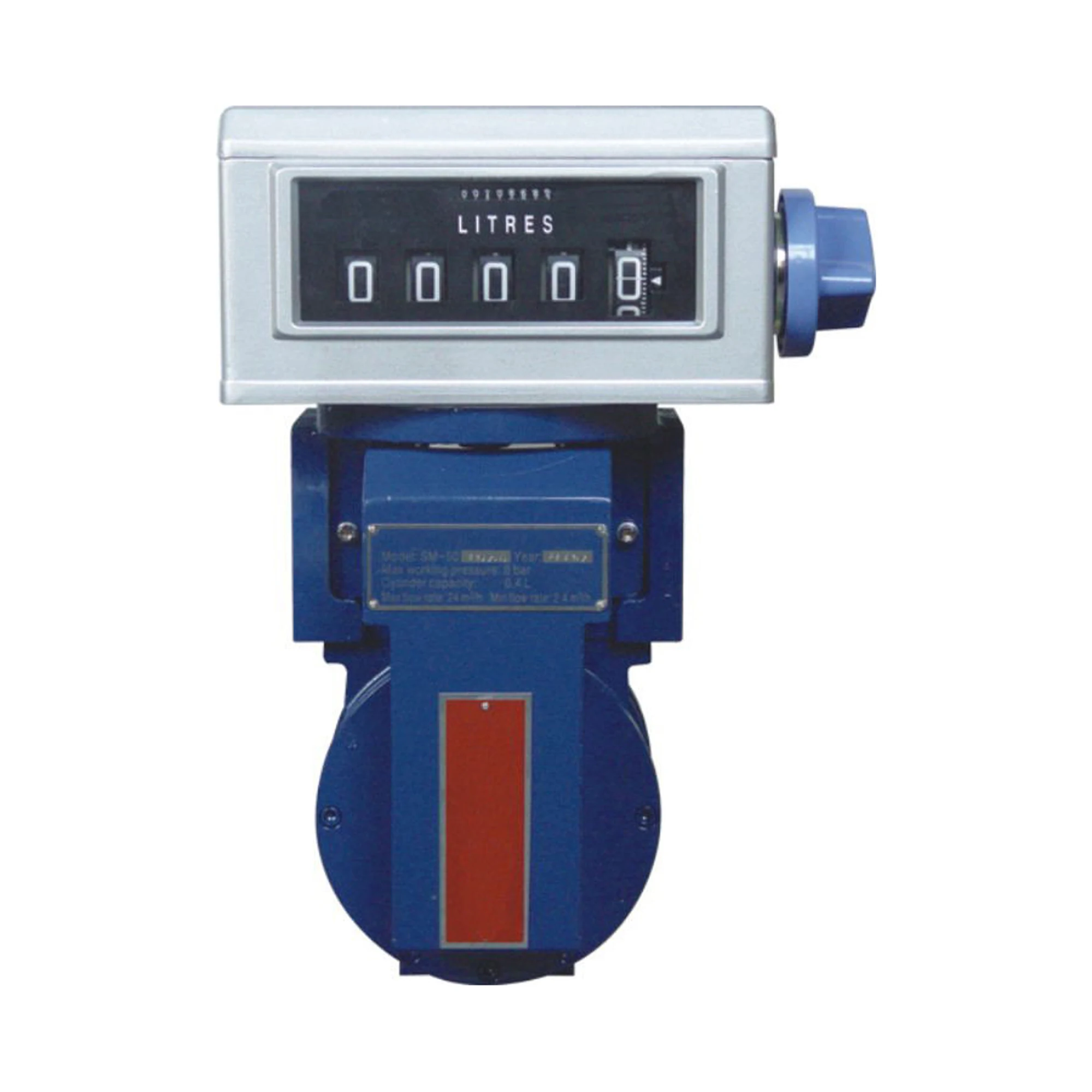

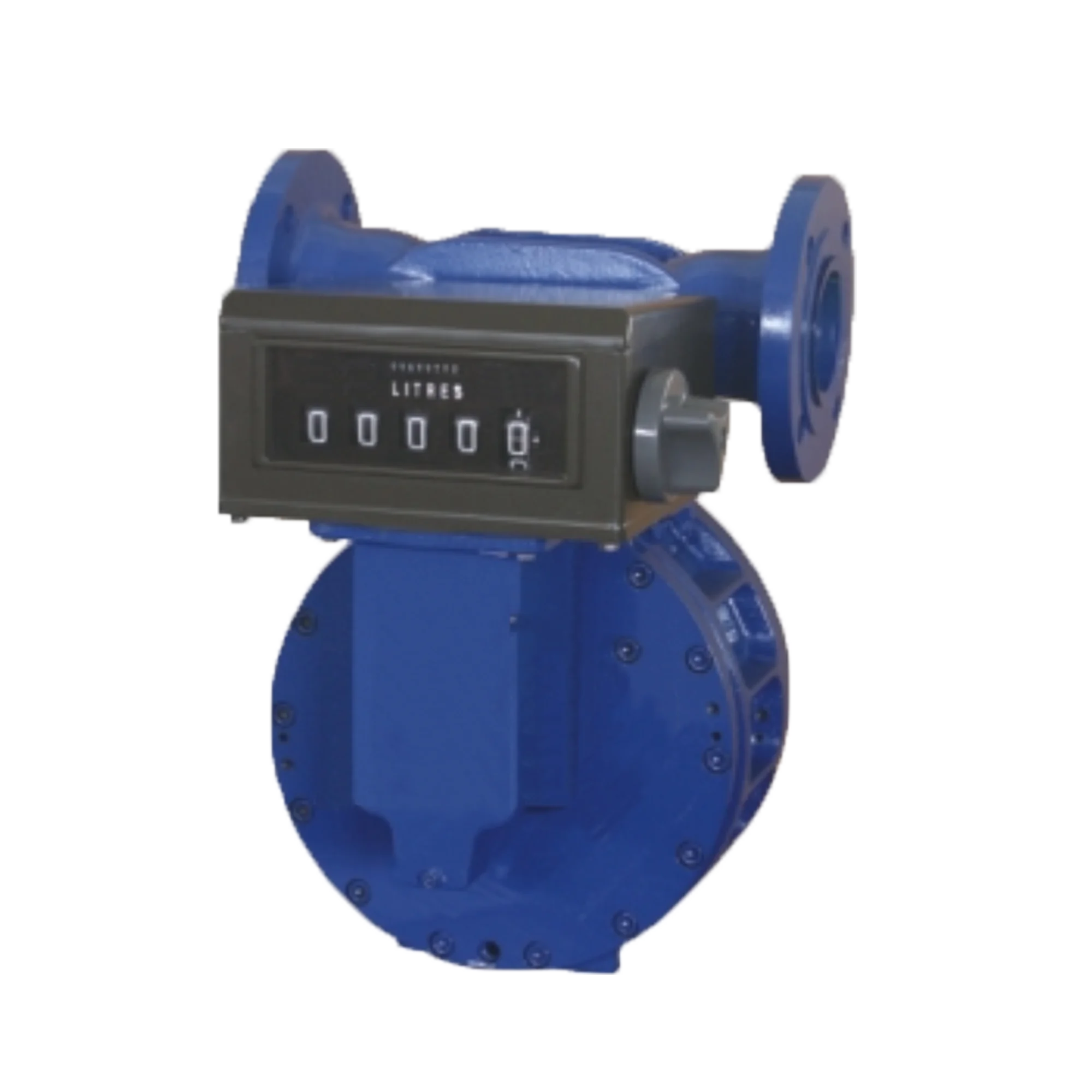

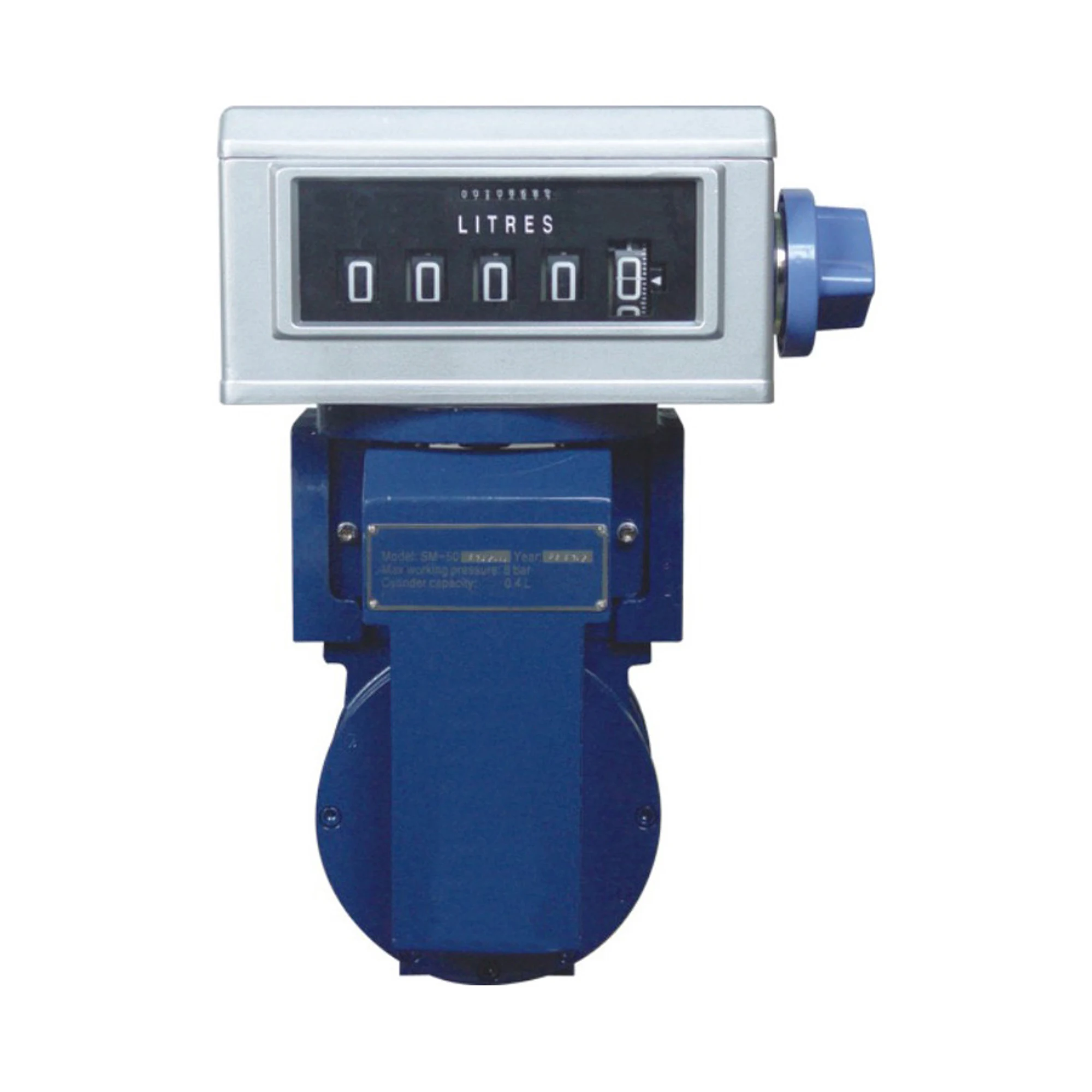

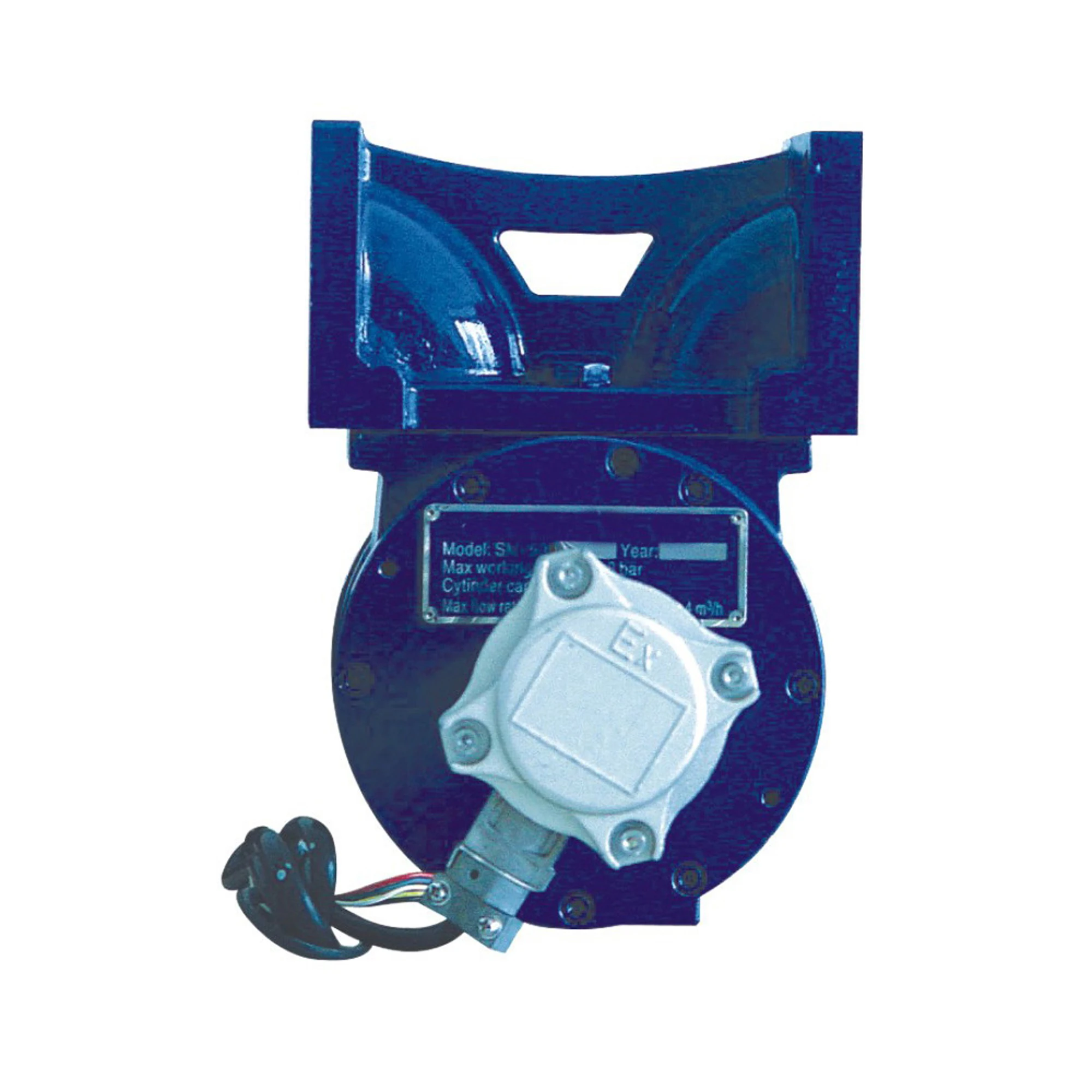

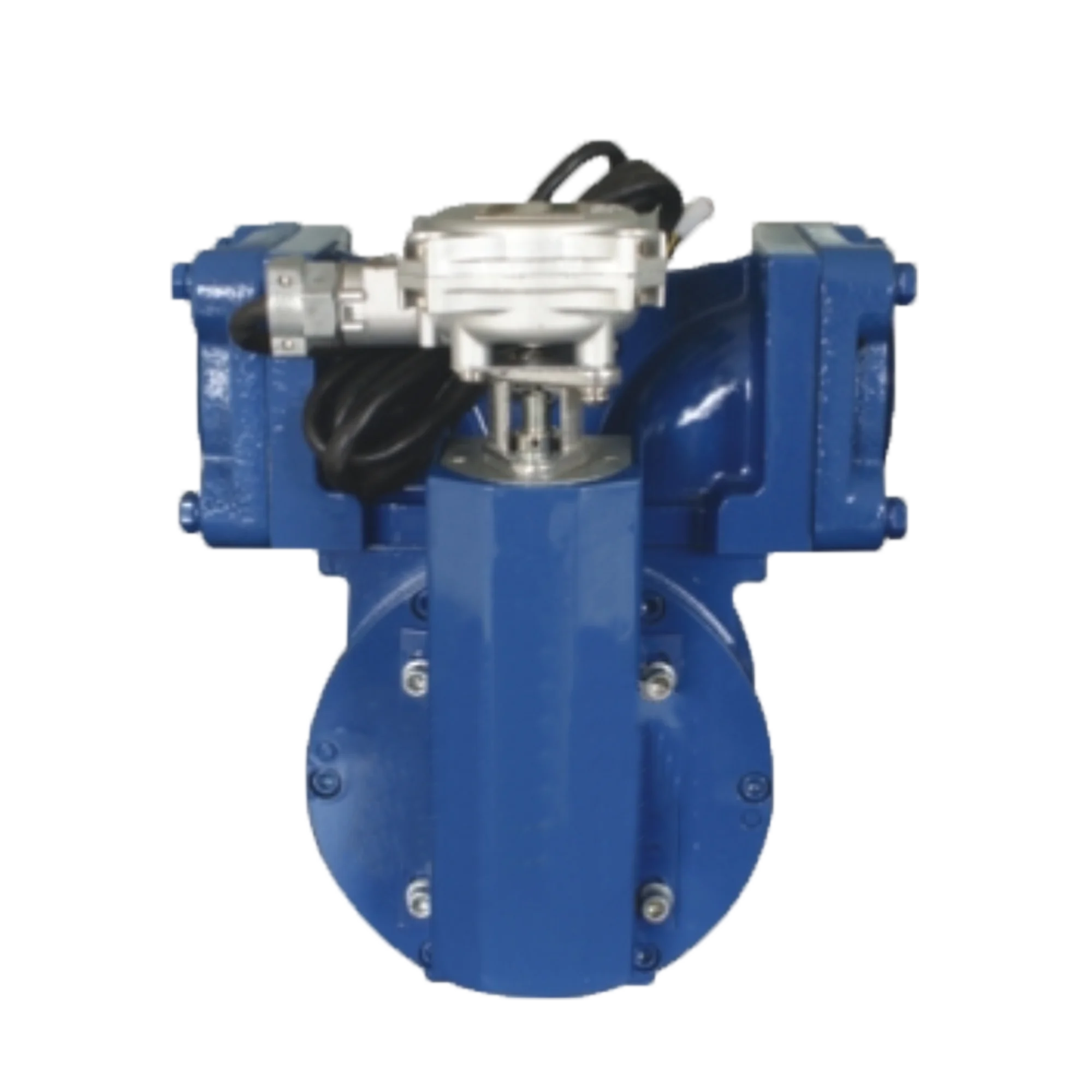

SM Series Positive Displacement Vane Flow Meter For Gas Station
- Category: >>>
- Supplier: Henan Station Energy Technology Co. Ltd.
Share on (1600469361687):
Product Overview
Description
SM Series Positive Displacement Vane Flow Meter For Gas Station
Products Description
Manifold: Steel or Aluminium
Body: Ni-resist Cast Iron
Covers: Steel
Rotor: Aluminium
Baldes: Carbon
Bearings: Stainless Steel
Seals/ gaskets: Viton, Buna”N
Body: Ni-resist Cast Iron
Covers: Steel
Rotor: Aluminium
Baldes: Carbon
Bearings: Stainless Steel
Seals/ gaskets: Viton, Buna”N
*Oil company: refineries, oil depots, gas station and tank trucks distribution
*Airports: aircraft refuellers
*Army: depot reception or loading trucks
*Administration (railway companies, public transport)
*Administration (railway companies, public transport)
*Ports: Boats/barges
*Private oil transport companies
*Private oil transport companies
Technical Parameters
Technical Specification | ||||
Model | SM-50-I | SM-80-1 | ||
Size | 50mm/2" | 80mm/3" | ||
Volume per Revolution | 0.4L/0.08US Gallon | 2.27L/0.5US Gallon | ||
Max. Flow Rate | 24M3/h or 400L/Min or 105US Gallon | 80M3/h or 1333L/Min or 360US Gallon | ||
Min. Flow Rate | 2.4M3/h or 40L/Min or 10.5US Gallon | 8M3/h or 133.3L/Min or 36US Gallon | ||
Accuracy | ±0.2% | |||
Repeatability | ≤0.05% | |||
Max. Operation Pressure | 8Bar/120PSI/8.3Kg/cm3 | 10Bar/150PSI/10.5Kg/cm3 | ||
Working Temp. | -40℃~+60℃ | |||
Max. Viscosity | 800Cps/3850SSU | |||
Packaging & Shipping
Packaging | ||||
Model | SM-50-1 | SM-80-1 | ||
Packaging | 1pc/Carton | |||
Net Weight | 20kgs | 56kgs | ||
Gross Weight | 22kgs | 58kgs | ||
Size | 29×23.5×40cm | 36×37×40cm | ||
Other products

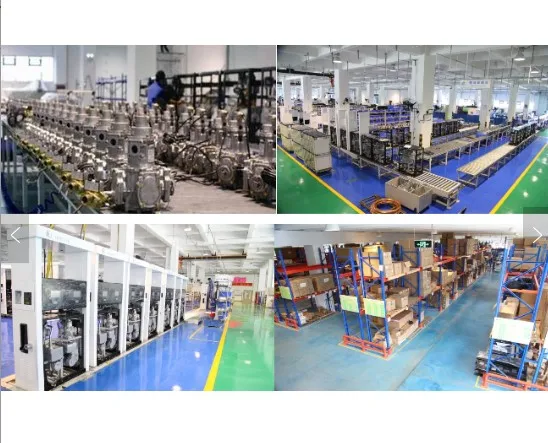

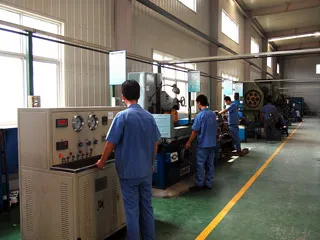

Company Information
